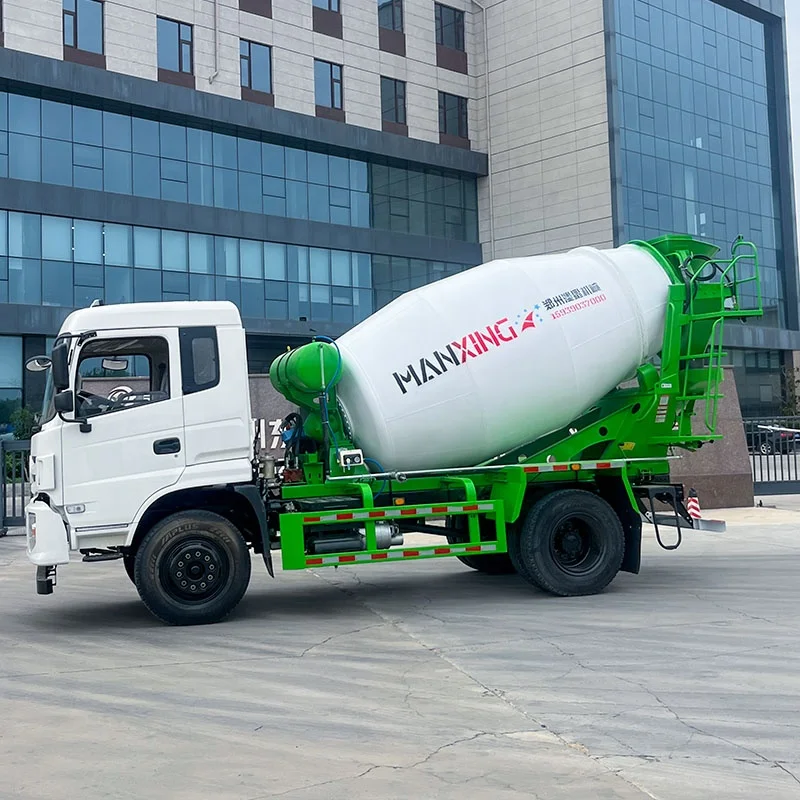

Multi purpose 5 cubic concrete mixing and conveying integrated machine, agricultural concrete mixer truck tanker truck

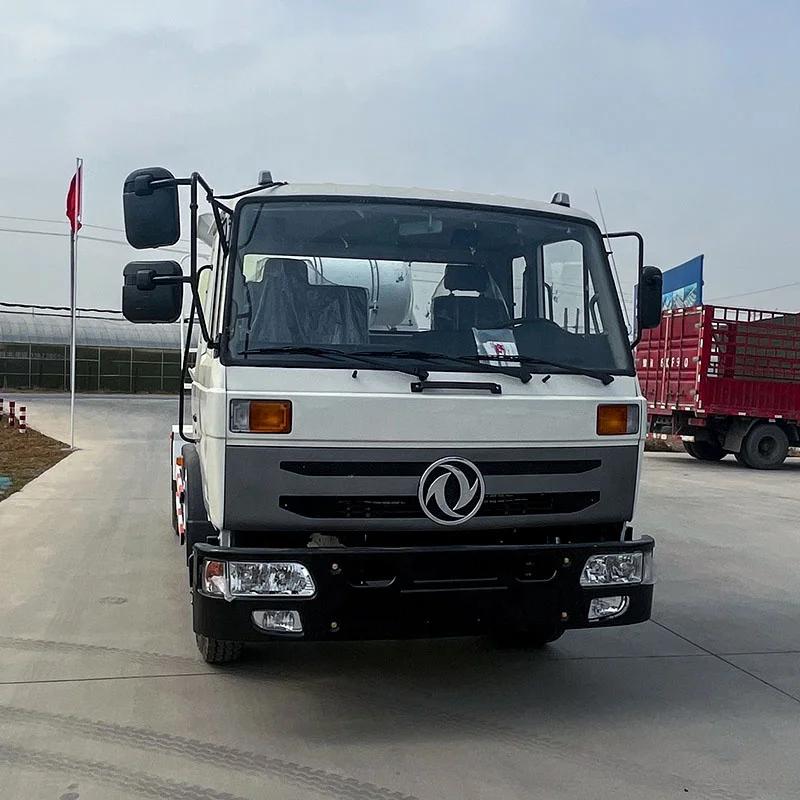

Multi purpose 5-cubic concrete mixing and conveying integrated machine, agricultural concrete mixer truck tanker truck

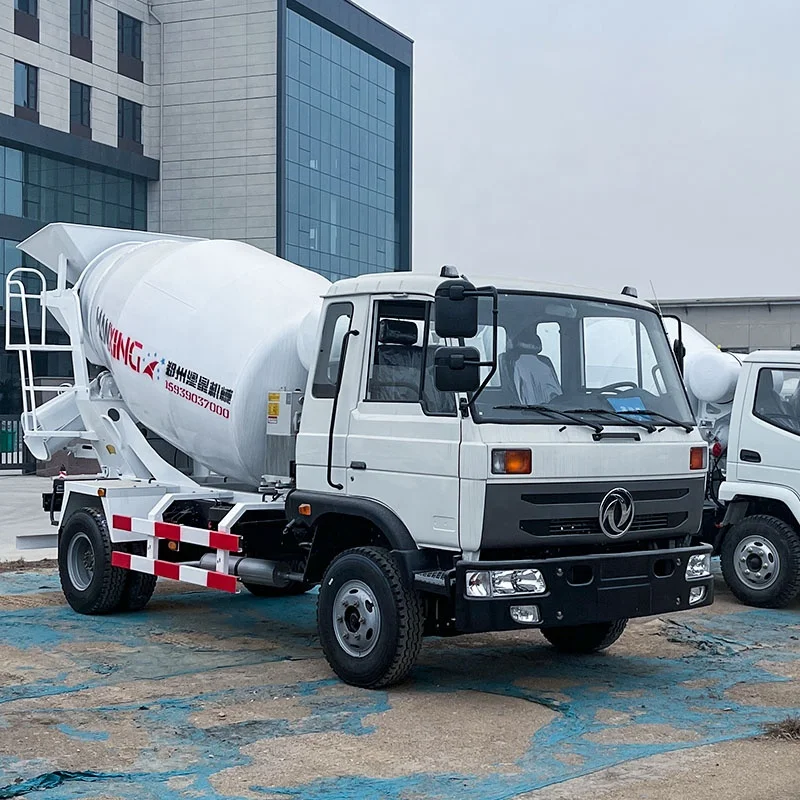

Multi purpose 5-cubic concrete mixing and conveying integrated machine, agricultural concrete mixer truck tanker truck

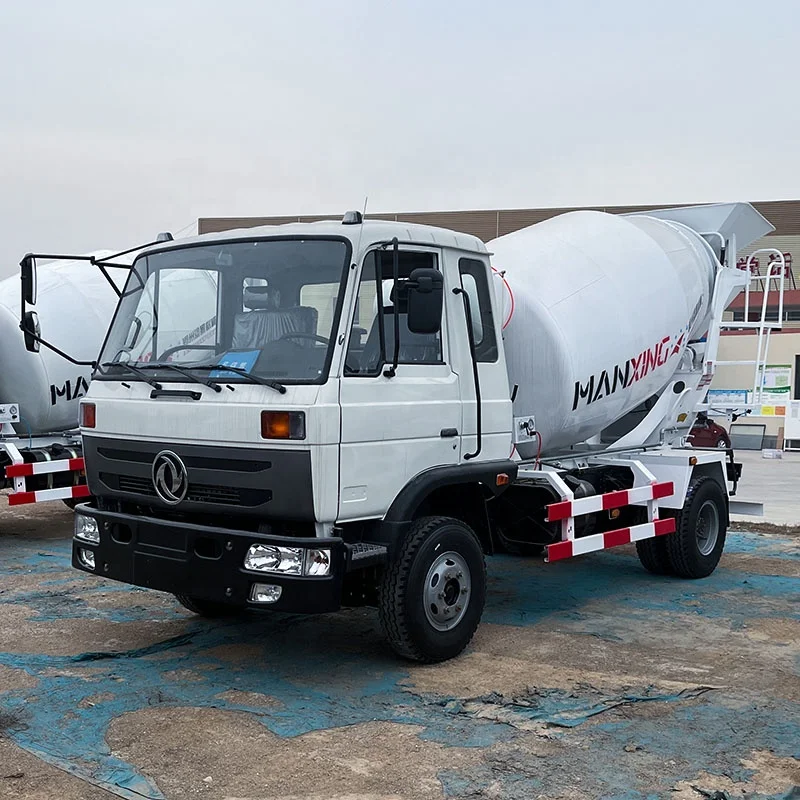

Multi purpose 5-cubic concrete mixing and conveying integrated machine, agricultural concrete mixer truck tanker truck

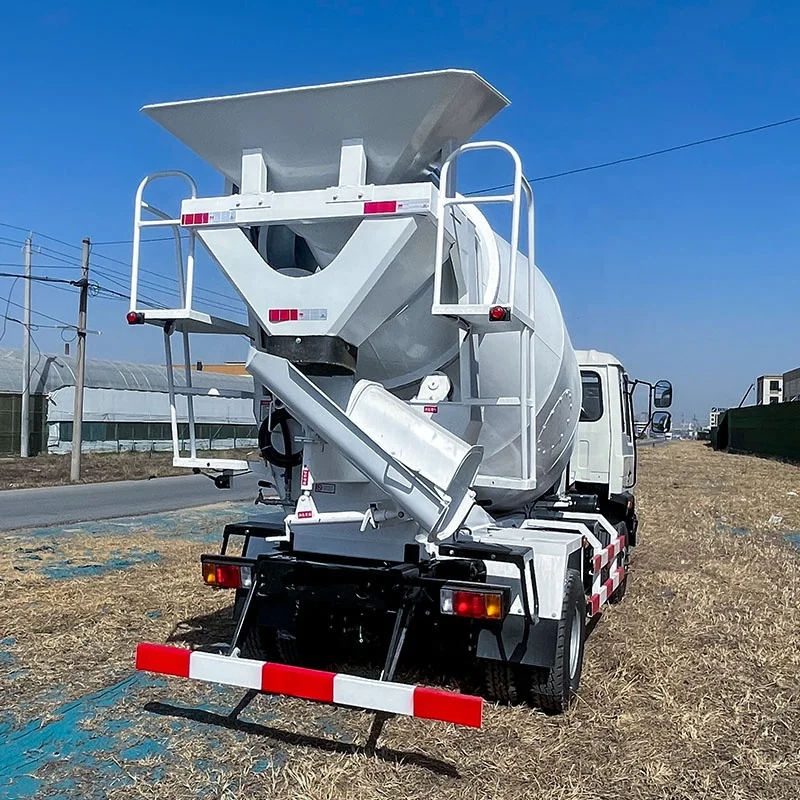

Multi purpose 5-cubic concrete mixing and conveying integrated machine, agricultural concrete mixer truck tanker truck

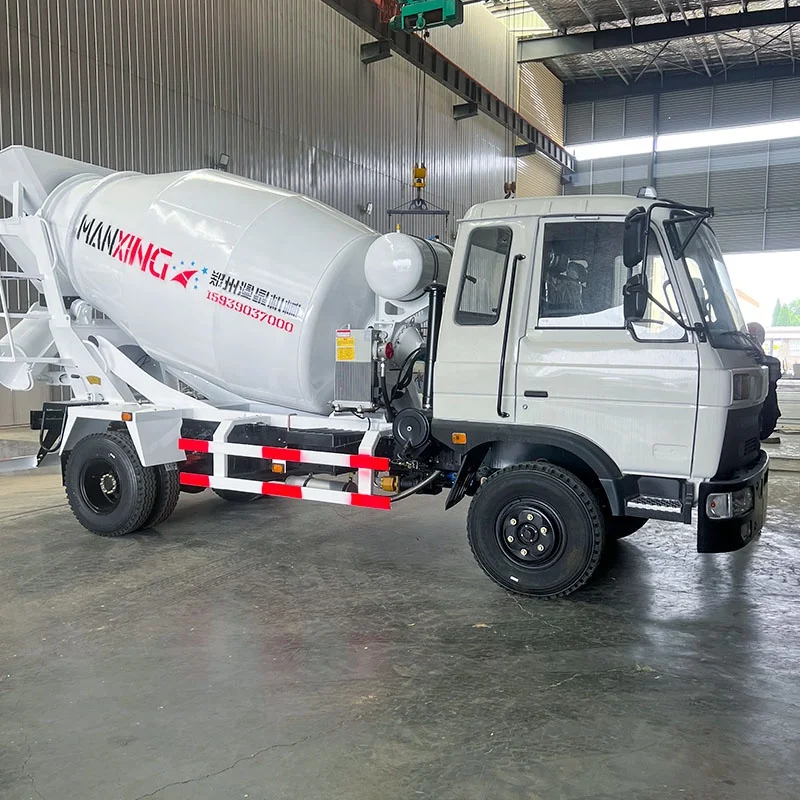

Multi purpose 5-cubic concrete mixing and conveying integrated machine, agricultural concrete mixer truck tanker truck
Multi purpose 5-cubic concrete mixing and conveying integrated machine, agricultural concrete mixer truck tanker truck

Multi purpose 5 cubic concrete mixing and conveying integrated machine, agricultural concrete mixer truck tanker truck

Share on (1601212379840):


Price:$2,070.00 - $2,170.00

Quantity:


Product Overview

Description







CONCRETE MIXER TRUCK
The concrete mixer truck is composed of a special truck chassis, a mixing tank, an inlet and outlet device, a water supply system and a hydraulic system

Nowadays, the mixer truck generally uses low-alloy steel to make concrete mixing tanks, and the service life is 5-8 cubic meters

The inlet and outlet hoppers are connected with the background support frame of the subframe through the frame, and the liner is filled with oil lining plate in the discharge hopper and the main discharge trough, and the lining plate is made of rigid strength fine-grained alloy steel


Vehicle name
Concrete mixing and
transportation tank
Volume
5Cubic
Engine
Yunnei4102Engine
Brake
Air cut-off brake (rear brake)
Chassis
Special chassis for Dolica
Water tank
Water circulation to prevent high temperatures
Number of tires
6
Maximum speed
About80（km/h)
Tyre size
825R16
Vehicle weight
≈5T
Wheel track
2.1Meters
Fuel oil
 Diesel
Wheelbase
3.3Meters
Fuel consumption
14L/Hundred kilometers
Rear axle
1080Rear axle (8Tons)
Gearbox
5Gear high and low speed gearbox
Overall dimension of complete machine
6700*2250*3200
Can-body size (mm）
4700*2200*2350
 Remark
Dimensions are all measured by hand, there are 1-2cmError, is normal, please know
Tank parameters of mixer truck
Tank material
AJ620JJHigh-strength wear-resistant manganese steel (special wear-resistant material---And that service life of the tank body is prolon3Times or more)
Can-body thickness
4mm
Volume
5Cubic
Can-body diameter
1.85Meters
Blade material
Thickened wear-resistant manganese steel
Head material
10mmThick carbon steel forging
Reducer
Manxing Customized Joint Venture Reducer
Hydraulic Motor
Jiangsu Zhenjiang vigorously125
Water supply system
300LAir pressure water supply of water tank
Cooling system
Xinxiang Hengsheng Radiator
Tugboat material
Cast steel
Feed rate
8—12Turn/ Minute
Discharge speed
6—10Turn/ Minute
Discharge speed
180° Up, down, left and right adjustment
Dead weight of tank body
≈2000kg
Tank process
Tooling splicing, automatic welding of circular seam and longitudinal seam, shot blasting and anti-rust treatment, sand blasting and polishing
 Remark
The configuration table is for reference, subject to the actual order configuration. The above data are measured manually, if any≈10cm The error is within the normal range








F A Q
Q: Are you a manufacturer?
A: Yes, Manxing factory is 150 thousands square meters large,established in 2003 and located in Xingyang, China. We welcome all of our customers to visit our factory

Q: What do you sell?
A: We mainly deal in concrete mixing plants, concrete mixer trucks,concrete mixing tanks, and supporting mechanical products and accessories

Q: How to pay?
A: We acceptT/T、L/C、Western Union or Alibaba trade insurance

Q: How to deliver?
A: We accept EXW, FOB, CFR, CIF or DDP

Q:Do you have after-sale service?
A: Yes, we have a one-year insurance policy. lf any part of the prodcut is damaged or malfunction during proper operation, we will send you another one for free.

Q: Why choose Manxing?
A: As a manufacturer we are albe to provide you with best productsin lowest price, and we are capable of supplying large quantity
