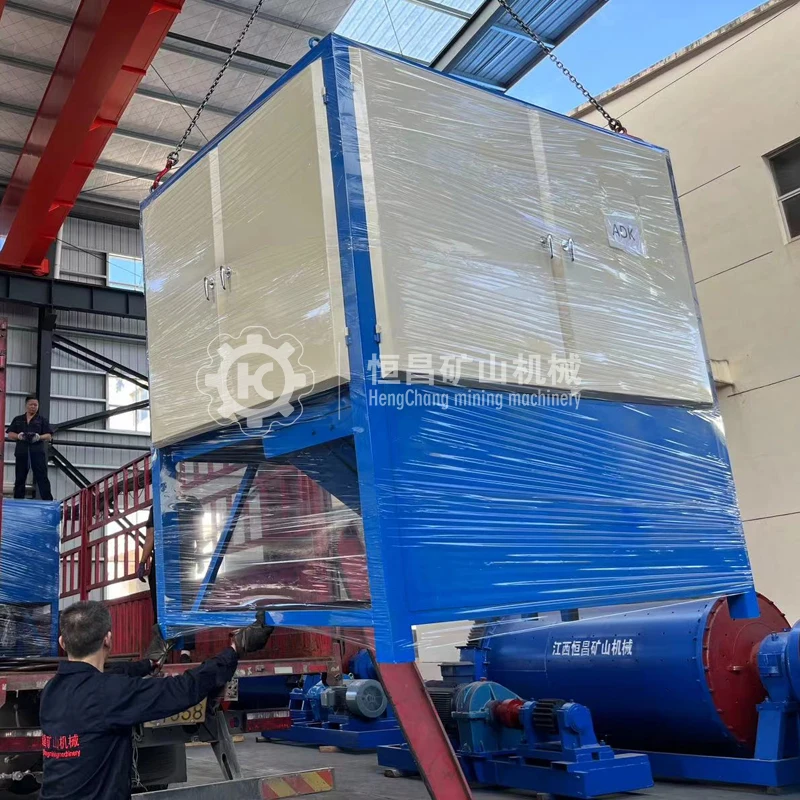

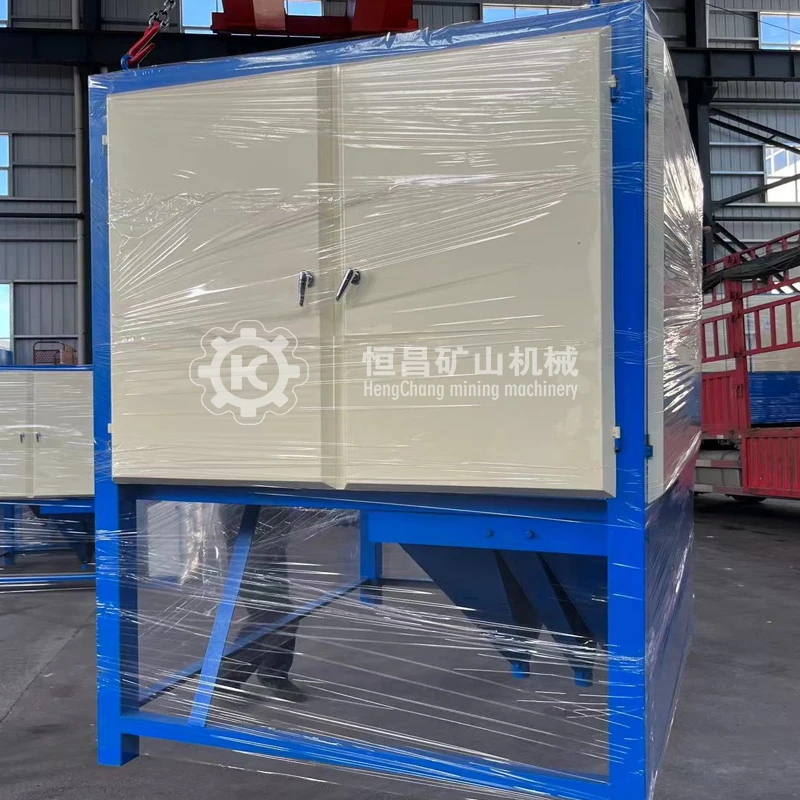

Industrial Dry Rutile Mining Machine 10000 15000 Gauss Various Minerals High Intensity Ore Magnetic Separator with Two Rollers
- Category: >>>
- Supplier: Jiangxi Hengchang Mining Machinery Manufacturing Co. Ltd.Jiangxi Ltd.
Share on (1601212459694):
Product Overview
Description
Industrial Dry Rutile Mining Machine 10000 -15000 Gauss Various Minerals High Intensity Ore Magnetic Separator with Two Rollers
Jiangxi Hengchang mining machinery is devoting to provide turnkey solution with worldwide clients for mineral processing plant including research, design, manufacture,installation and commissioning, personnel training, after-sale service and management of processing plant. Up to now, we have developed some major product lines: they are mining feeding machine, mining crushing machine, mining milling machine, mining screening equipment, mining classifying separator, mining magnetic separator, mining flotation machine and the mining gravity separator. When you find us, you find one best mining machinery manufacturer.
High Intensity Ore Magnetic Separator Introduction
We can produce one roller, two rollers, three rollers, four rollers dry type high intensity magnetic separator and low intensity magnetic separator, magnetic field intensity from 800 gauss to 20000 gauss. the dry magnetic separators are widely used for separate magnetic iron ore,Tin ore, ilmenite, titanium ore, hematile, manganese, cobalt, cassiterite, coltan,tantalum, niobium, zircon sand, beach black sands, Monazite ore, Rutile ore,silica purify sand and so on.
Best selling countries such as Indonesia, sudan, zimbabwe, morocco, philippines, somalia, peru, mali, congo, mali, mozambique, suriname, ghana, south africa, uganda, zambia, tanzania, angola, canada, chile, nigeria, austrialia, malaysia, mexico, turkey, pakistan, thailand, united states etc.
High Intensity Ore Magnetic Separator Main Features

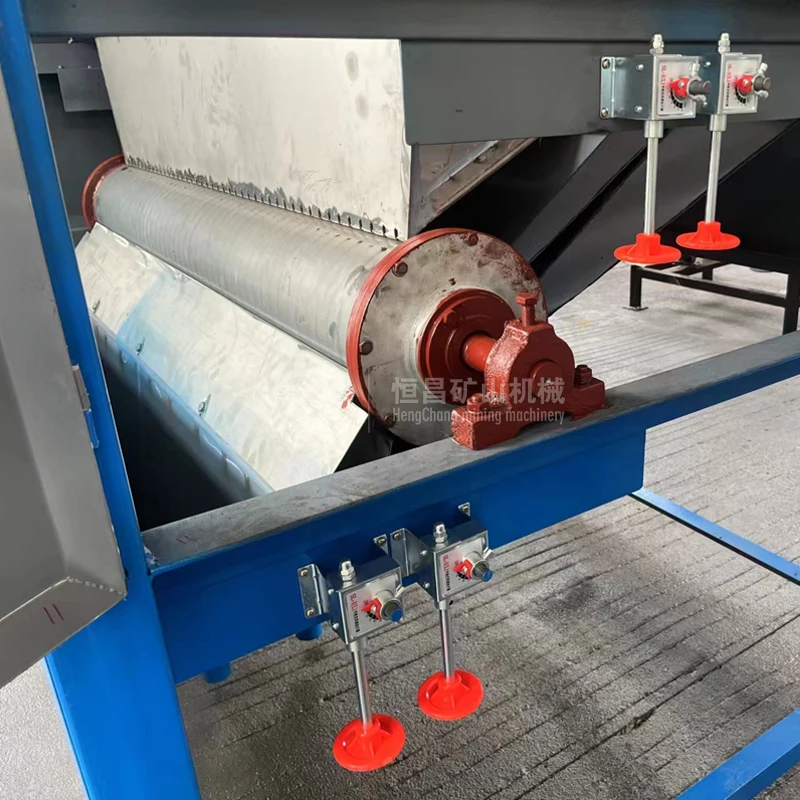

1. This dry roller magnetic separator machine is used to sort a variety of magnetic mixed minerals with a particle size of 0-2mm. On the basis of the feasibility of magnetic separation, the iron is removed by a first-stage magnetic roller and the design of the strong magnetic roller is divided into sections. A variety of magnetic mixed minerals are selected. This machine is classified as a downstream structure according to the movement direction of the magnetic product and the incoming mineral to be selected. Pick and choose.The ore grade of this machine is two grades of concentrate and tailings.
2. The machine adopts the multi-stage selection design of permanent magnet magnetic system, and the work is stable, and the concentrate grade can be guaranteed even when the processing capacity is large.
3. The machine has compact structure, small volume, light weight, high efficiency, low power consumption, and is very beneficial to maintenance and repair.
4. The transmission principle of this machine is also very simple, the operation is convenient and simple, and the work efficiency is also very high.

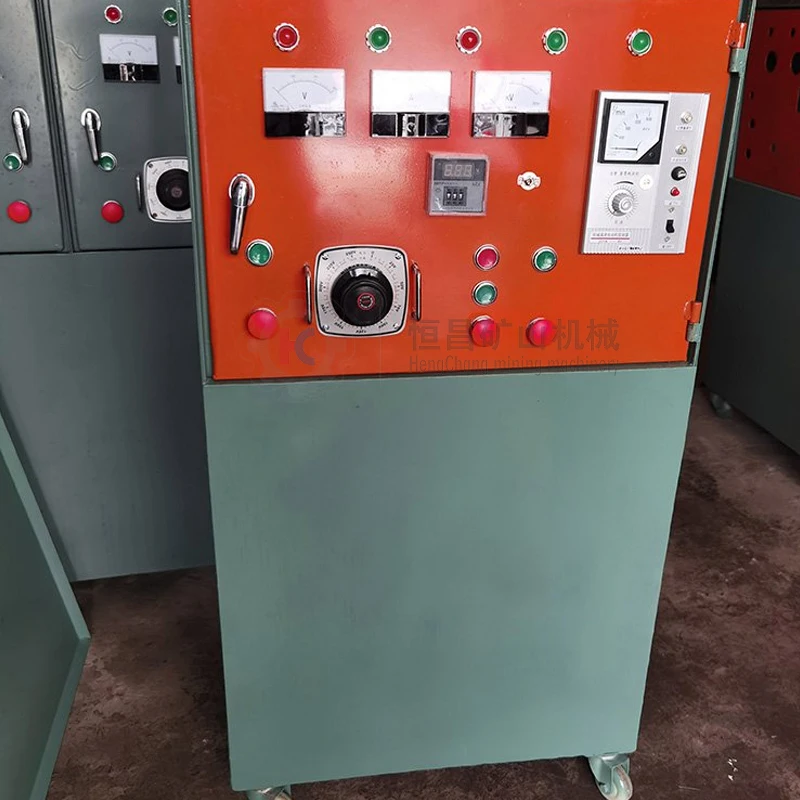

5. The machine incorporates advanced electrical control technology, which makes the production operation convenient and easy to understand, and reduces the operator's labor intensity while improving work efficiency.

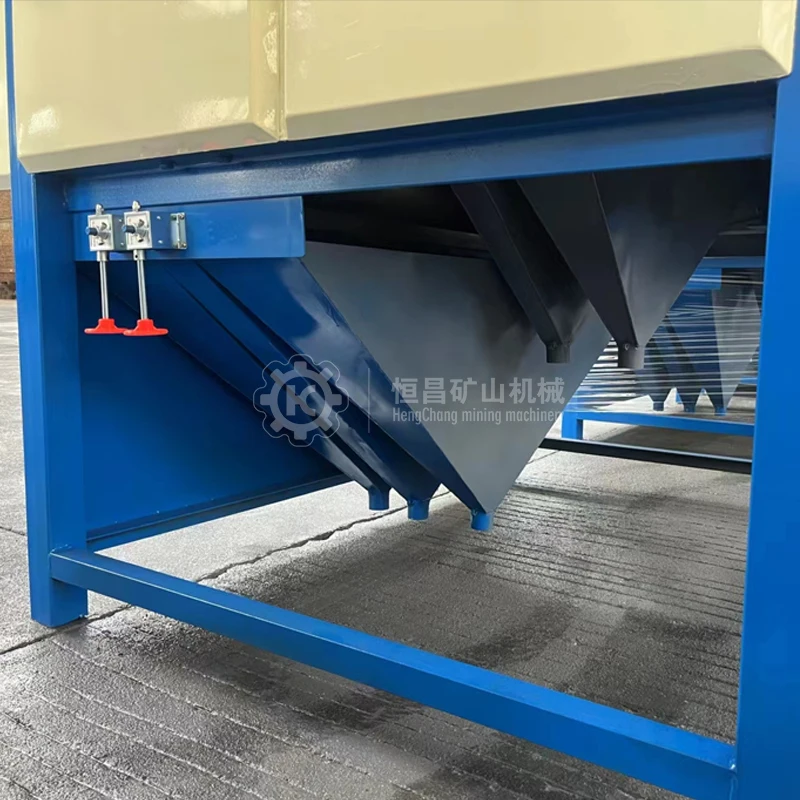

6. There is an adjustable partition plate in the sorting bucket of this machine. The main trough, material guide trough and partition plate are all made of high wear-resistant stainless steel, which can effectively ensure the service life of the machine and avoid rust affecting the quality of minerals. Possibly; the dividing plate can be flexibly adjusted and fast fixed, which plays a great role in ensuring the quality of the ore position during the production process.

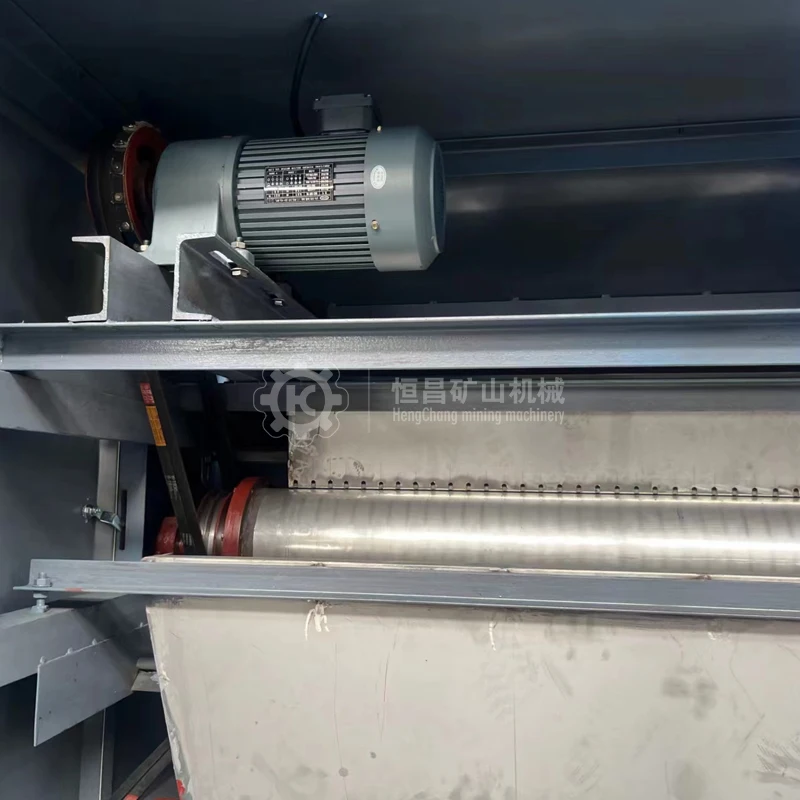

7. The electromagnetic speed-regulating motor is used to provide power to ensure the service life of the motor and the mechanical transmission power; the speed of ore dressing can be adjusted, and the multi-stage minerality can be sorted.
2. The machine adopts the multi-stage selection design of permanent magnet magnetic system, and the work is stable, and the concentrate grade can be guaranteed even when the processing capacity is large.
3. The machine has compact structure, small volume, light weight, high efficiency, low power consumption, and is very beneficial to maintenance and repair.
4. The transmission principle of this machine is also very simple, the operation is convenient and simple, and the work efficiency is also very high.
5. The machine incorporates advanced electrical control technology, which makes the production operation convenient and easy to understand, and reduces the operator's labor intensity while improving work efficiency.
6. There is an adjustable partition plate in the sorting bucket of this machine. The main trough, material guide trough and partition plate are all made of high wear-resistant stainless steel, which can effectively ensure the service life of the machine and avoid rust affecting the quality of minerals. Possibly; the dividing plate can be flexibly adjusted and fast fixed, which plays a great role in ensuring the quality of the ore position during the production process.
7. The electromagnetic speed-regulating motor is used to provide power to ensure the service life of the motor and the mechanical transmission power; the speed of ore dressing can be adjusted, and the multi-stage minerality can be sorted.

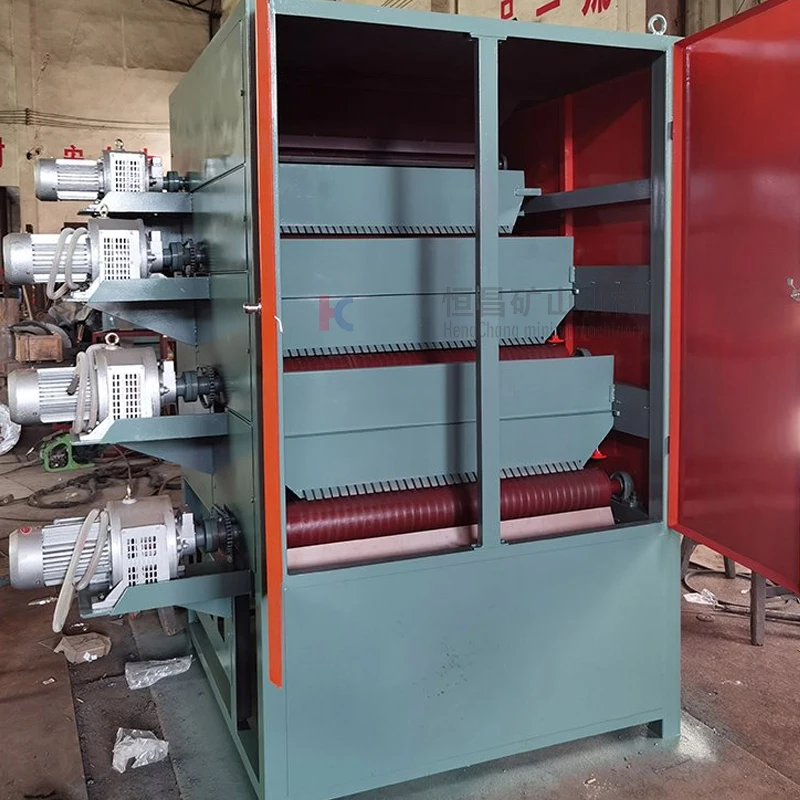

Item | One Roller Magnetic Separator | Two Rollers Magnetic Separator | Three Rollers Magnetic Separator | Four Rollers Magnetic Separator | ||||
Capacity | 10-20 T/h | 1-2 T/h | 1-2 T/h | 2-5 T/h | ||||
Roller size (Diameter*Length) | First roller 400*1800mm | First roller 160*1200mm | First roller 160*1200mm | First roller 440*1100mm | ||||
Second roller 390*1200mm | Second roller 440*1100mm | |||||||
Second roller 160*1200mm | Third roller 160*1200mm | Third roller 440*1100mm | ||||||
Fourth roller 220*1100mm | ||||||||
Magnetic field intensity | 1200 Gauss | 13000 Gauss (First roller) | 1200 Gauss (First roller) | 1000-1500 Gauss (First roller) | ||||
8000 Gauss (Second roller) | 5000-7000 Gauss (Second roller) | |||||||
13000 Gauss (Second roller) | 13000-15000 Gauss (Third roller) | 8000-10000 Gauss (Third roller) | ||||||
15000 Gauss (Fourth roller) | ||||||||
How to adjust the roller speed | Electromagnetic speed regulation to adjust the roller speed | AC Inverter Controller to adjust the speed variation of each rollers | ||||||
Material | The whole machine frame is made of steel material | |||||||
Magnetic field intensity | Customized Available | |||||||
Drum diameter and length | Customized Available | |||||||
Brand | Jiangxi Hengchang Mining Machinery | |||||||
Voltage | AC380V,50Hz,Three phase Standard (It can be customized according to the local requirements of the customer) | |||||||
Feeder hopper on the top of the machine | ||||||||
1.What is your machine used for ?
Our Roller type magnetic separator used for separate Tin ore, Zircon ore, Magnetic iron ore, Ilmenite ore, Monazite ore, Rutile ore, silica sand, weak magnetic ore and so on.
2.Are you factory or trade company?
Yes, we are the Professional manufacturer from 1985.So we could give you original factory price than those trade companies.
3.Can I operate it well, if I have no experience?
Do not worry! Our machines is designed to use easily.You are welcome to visit our company to be trained here,And we could arrange the engineer to go to your country/company to train your workers directly as your requested and the relative travel cost will be on your account.
4.How about your Service ?
All of our machines have one year warranty and Wholelife Technology support to make sure your machine work well.
5.How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
6.What about the payment method?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
