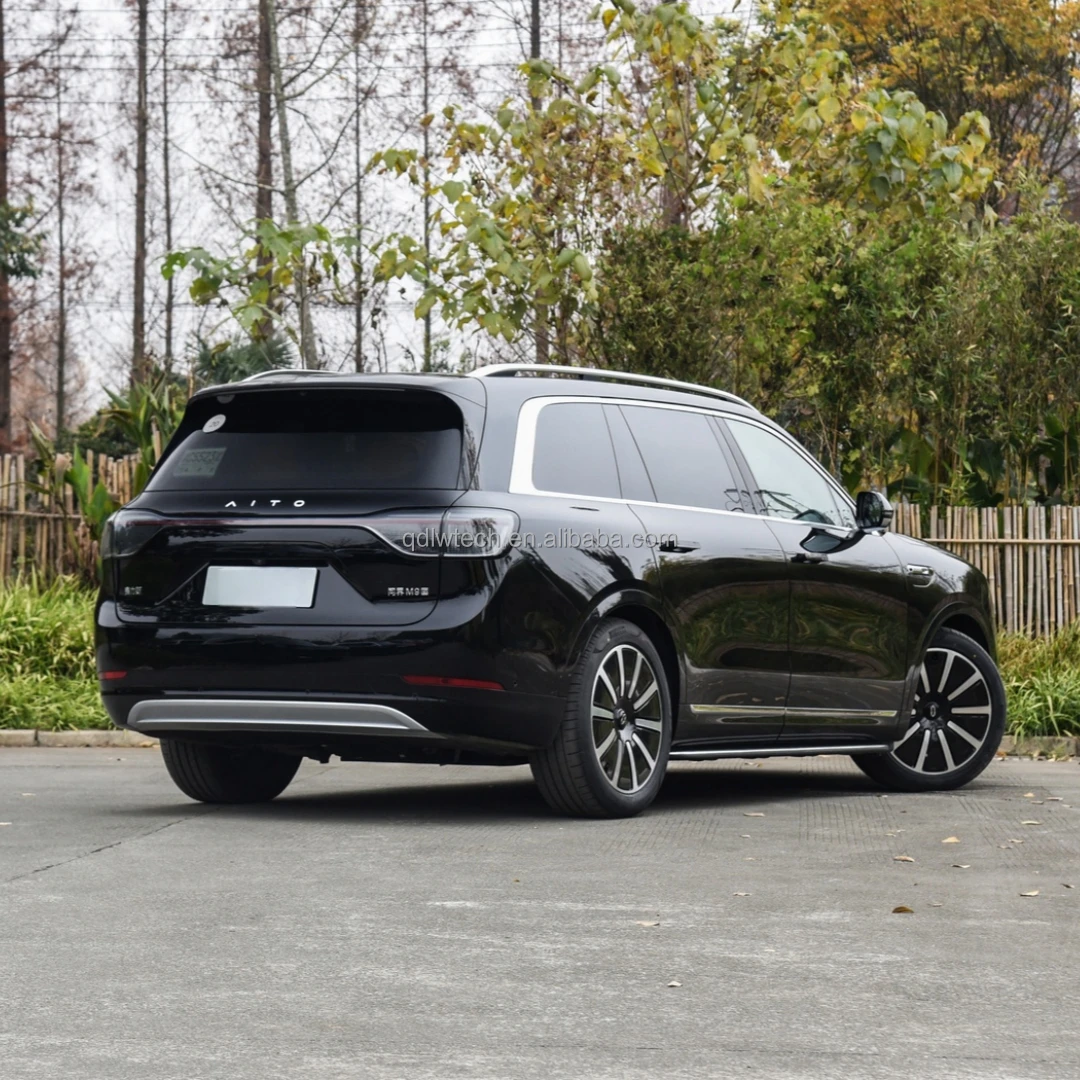

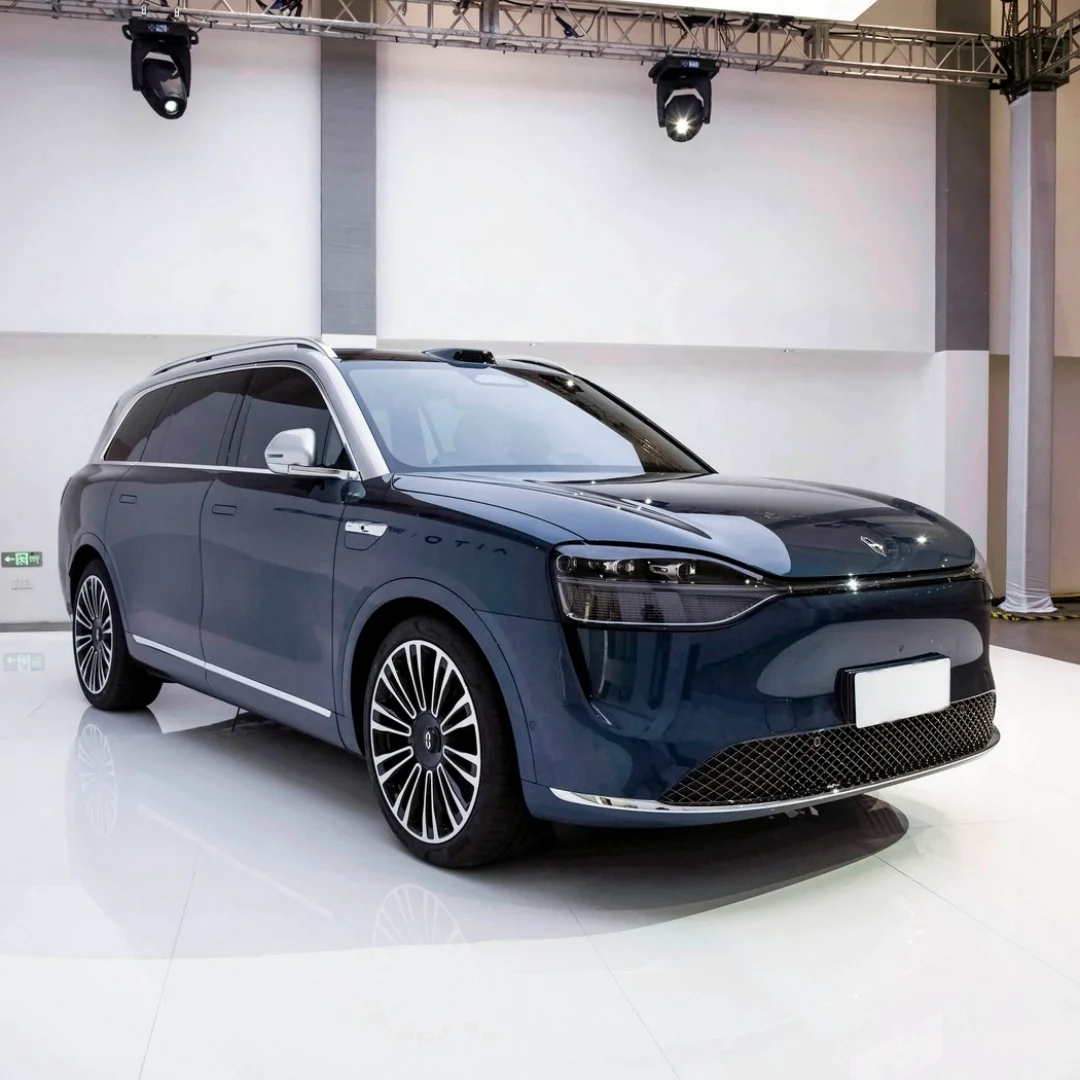

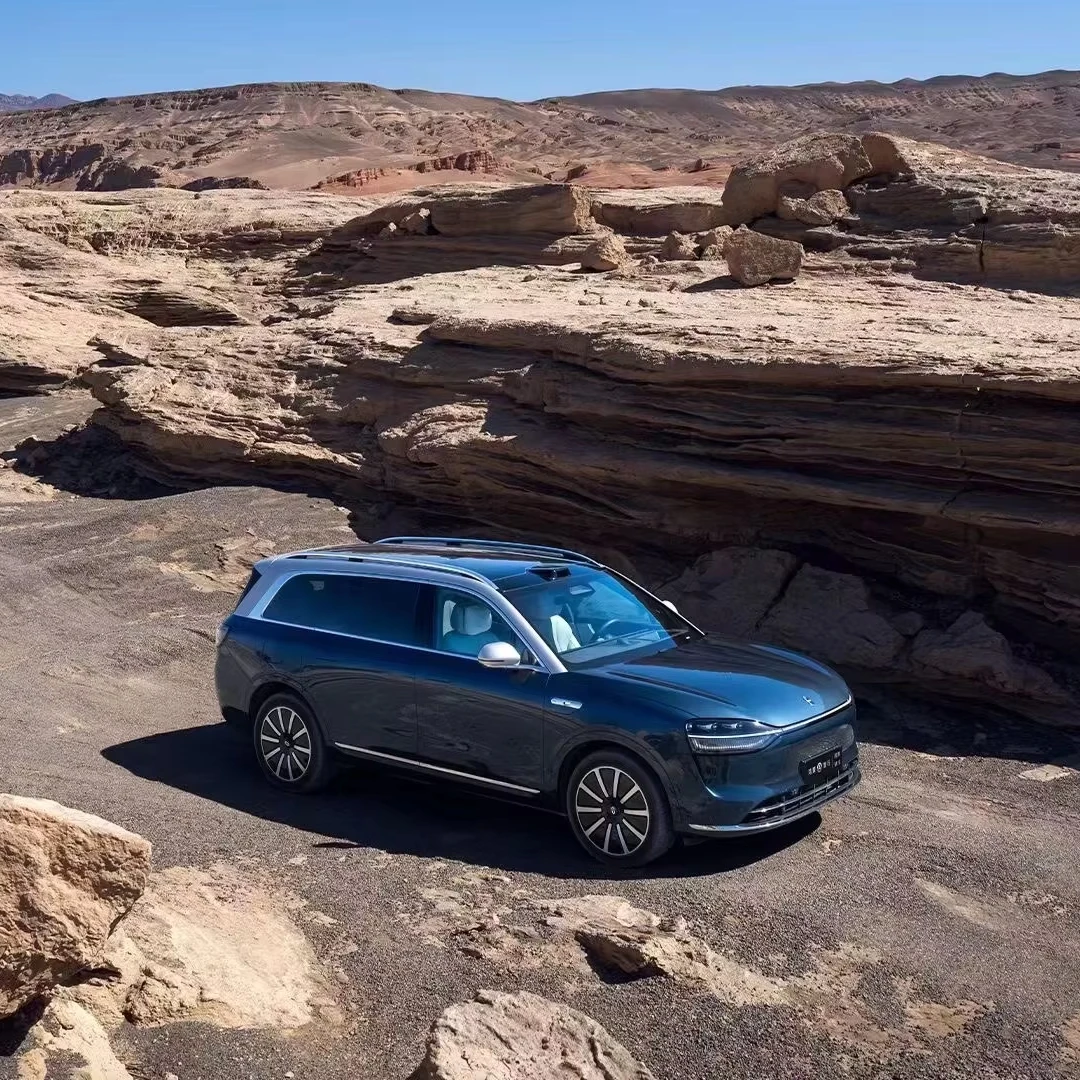

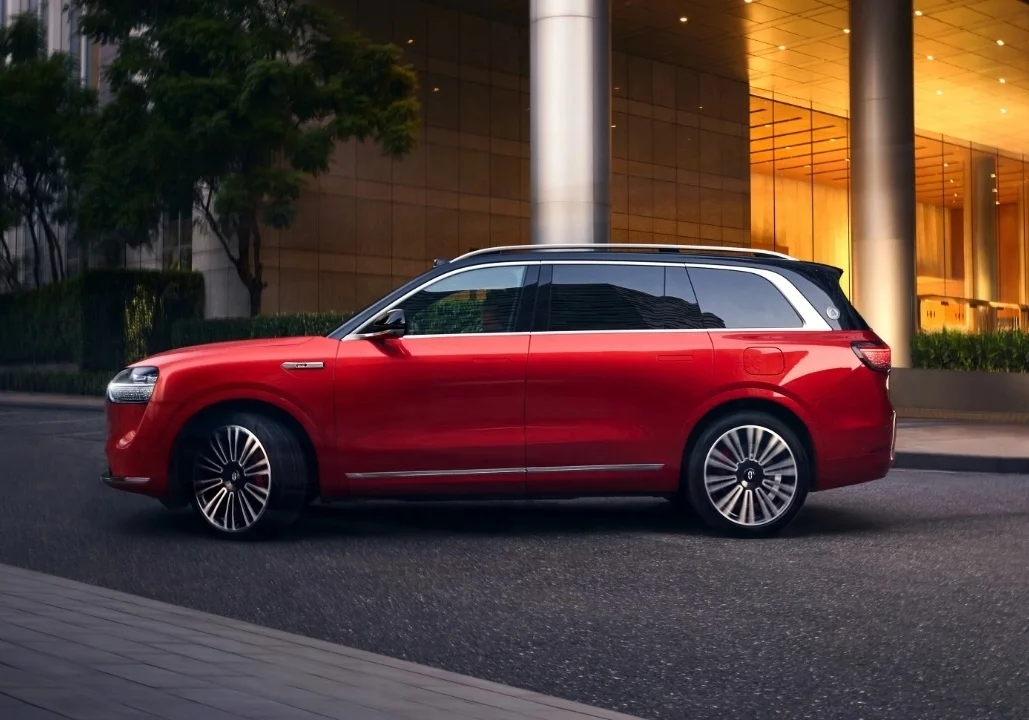

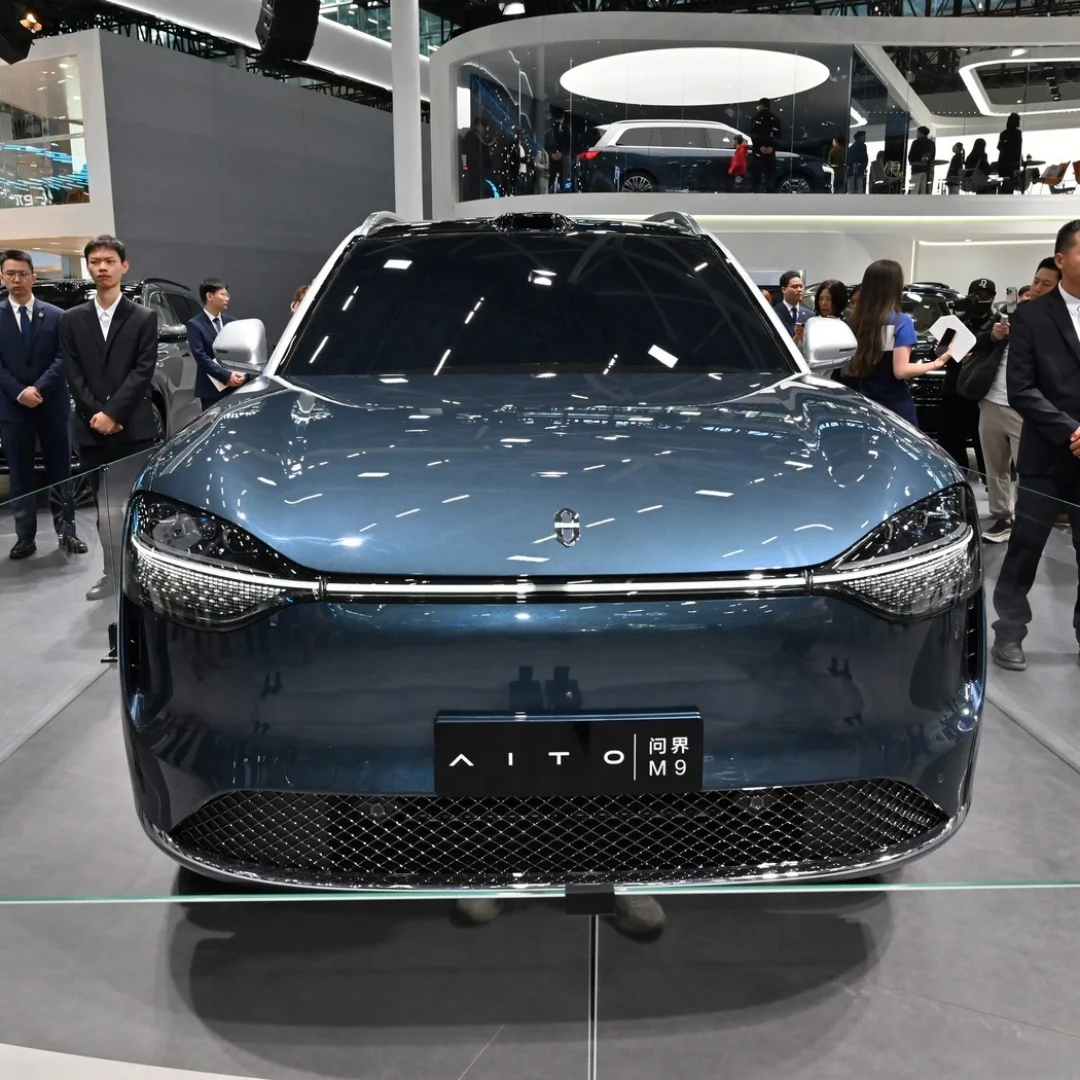

Artificial Intelligence Automatic Driving Full Size Large Luxury Hybrid Electric 4WD 4X4 SUV Hua wei Seres AITO M9 EVR Max

Colors

● Black/Cyan

○ Blue/Orange

Colors

● Gray/Orange

○ Apricot

Power Type

EVR（Extended range hybrid）

Body Form Type

integral body construction

Overall Size-L*W*H

5230 × 1999 × 1800mm

Wheelbase（mm）

3110

Kerb Weight（kg）

2560

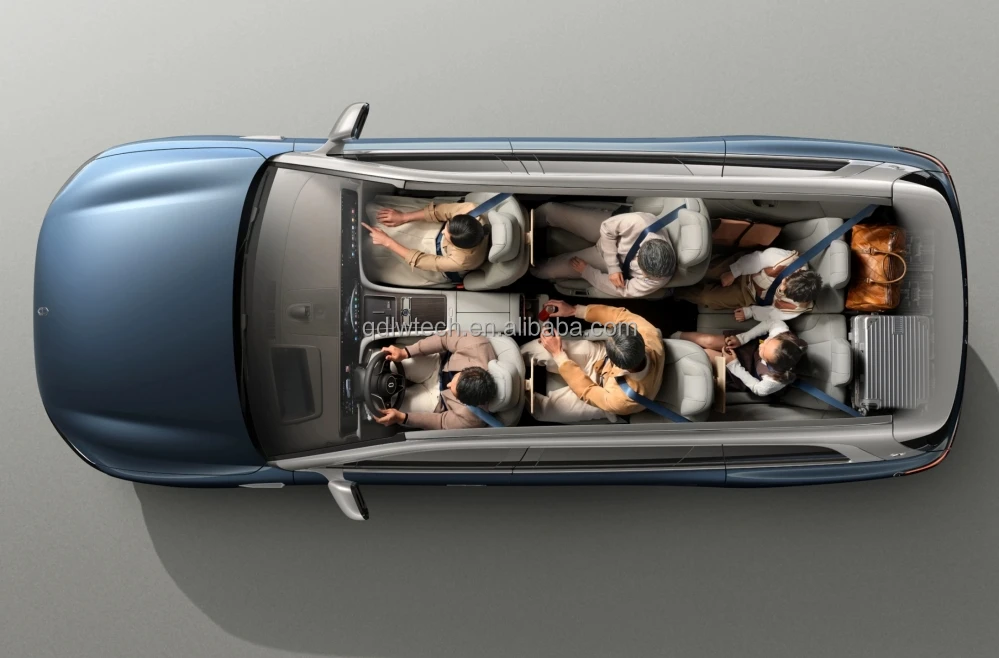

Seats（pcs）

6

Front spare tank

—

●

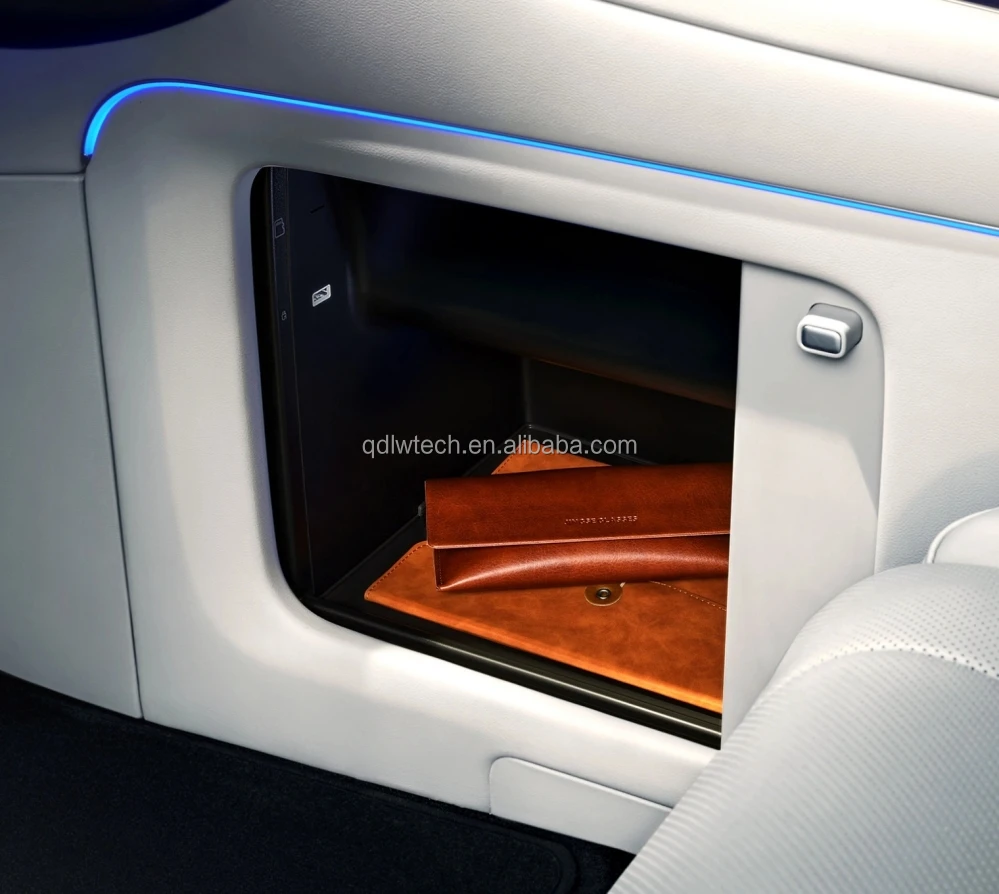

Driver privacy locker

●

Co-Driver privacy locker

●

Split central armrest box

●

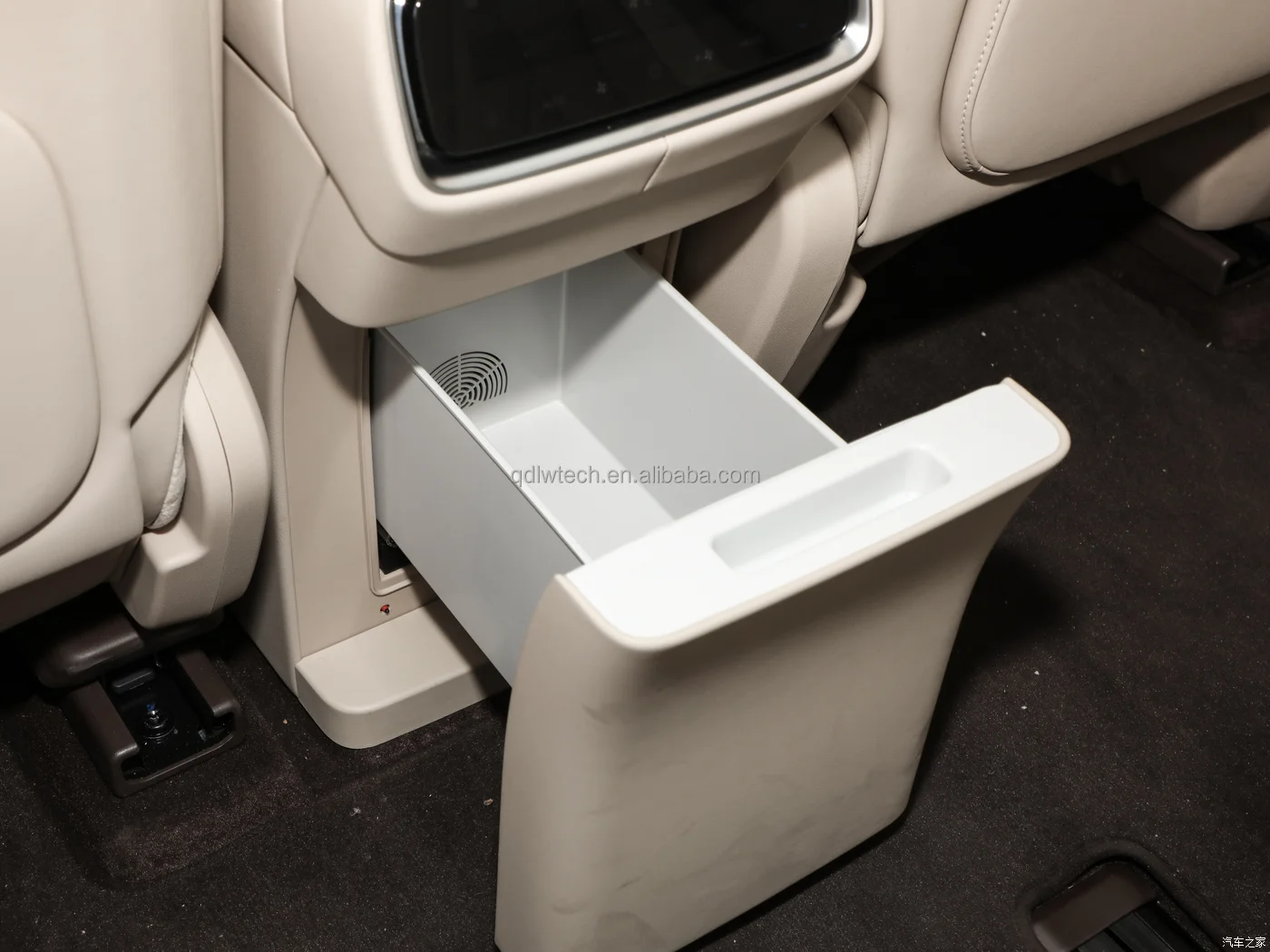

Dual purpose refrigerated and insulated car refrigerator

●

Rear Trunk storage capacity(L)

●The third row of seats can be moved back and forth/folded-206 L~716 L

Storage Box under Rear Trunk Cover

●

Individual cup holder

6pcs

● 1362 km @ 42 kWh

—

○ 1402 km @ 52 kWh

CLTC Pure Electric Comprehensive Range（Full Charged）2（km）

● 225 km @ 42 kWh

630 km

○ 275 km @ 52 kWh

● 1210 km @ 42 kWh

—

○ 1239 km @ 52 kWh

WLTC Pure Electric Comprehensive Range（Full Charged）3（km）

● 190 km @ 42 kWh

—

○ 233 km @ 52 kWh

0-100 km/h acceleration time4（s）

4.9

4.3

Max Speed（km/h）

200

200

range extender

1.5T range extender 4.0

—

driving pattern

Energy saving/comfort/sports/customized personalization

Vehicle mode

Mandatory pure electricity, pure electricity priority, intelligent, fuel priority

pure electricity

driving form

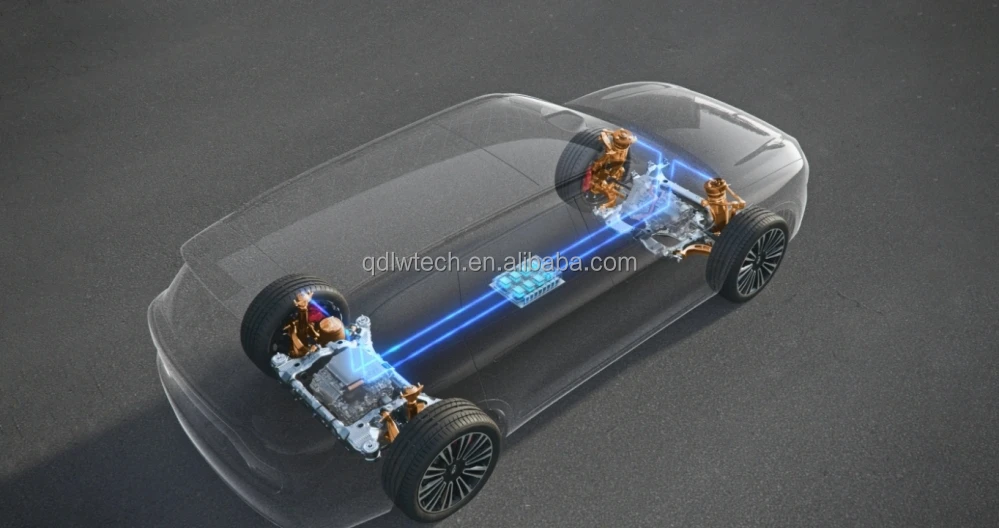

Dual motor four-wheel drive

Front drive motor

AC asynchronous motor

Rear drive motor

pm synchronous motor

Max Power（kW）

Front：160/Rear：230

Max Torque（N·m）

Front：277/Rear：396

Voltage

●

Huawei Whale 800V high voltage battery platform

Battery Type

Ternary lithium battery

Battery Capacity5（kWh）

● 42 kWh

100 kWh

○ 52 kWh

Charging Time 6

Fast-DC：30 minutes（20%~80% ）

Fast-DC：15 minutes（30%~80% ）

Slow-AC：5 h（20%~90%）

Slow-AC：11.7 h（20%~90%）

Fuel oil label

95# and higher

—

Fuel Tank（L)

65 L，pressure-oil tank

—

Emission Standard

Euro 6

—

front suspension

Four ball joint double fork arm front independent suspension

Rear suspension

Multi-link trapezoidal arm rear independent suspension

Closed air suspension

●

CDC continuously variable damping shock absorber

●

Body height adjustment range

80 mm

Body height is automatically adjusted with speed

●

Front and rear ventilated disc brakes

●

Electronic parking brake

●

Steering Power mode (Comfort/Sport)

●

R-EPS variable electric power steering with speed

●

Steering redundant systems

●

Braking redundant systems

●

Main driver active seat belt

●

The second and third row ISOFIX child safety seats connector*4

●

All Seatbelts unfastened Reminder

●

First Row Front airbag x 2

●

First Row Side airbag x 2

●

First Row Central airbag x 1

●

Side air curtain × 2 covering all vehicle occupants

●

Second row side airbags x 2

●

HD driving recorder

●

Intelligent driver assistance system

● HUAWEI ADS Advanced Edition

Laser radar

● 1 piece (192 lines)

Millimeter-wave radar

● 3 pcs

Ultrasonic radar

● 12 pcs

High perception camera

● Front view × 2pcs + Rear View × 1pc + Side View × 4pcs

panoramic camera

● 4 pcs

High accuracy positioning

●

Power wash astern camera

●

Blind Area Monitoring and Early Warning (BSD)

●

Open Door Warning (DOW)

●

Forward Collision Warning (FCW)

●

Automatic Emergency Braking (AEB)

●

Rear Crossing Collision Warning (RCTA)

●

Backward Cross Collision Braking (RCTB)

●

Forward Crossing Collision Warning (FCTA)

●

Forward Cross Collision Braking (FCTB)

●

Rear Collision Warning (RCW)

●

Rear-facing Automatic Emergency Braking (RAEB)

●

Low Speed Automatic Emergency Braking (LAEB)

●

Lane Departure Warning (LDW)

●

Lane Keeping Assist (LKA)

●

Emergency Lane Keeping Assist (ELKA)

●

Traffic Sign Recognition (TSR)

●

Overspeed Alarm (TSA)

●

Traffic Light Recognition (TLR)

●

Lateral Obstacle Material Collision Prevention (LOCP)

●

Irregular Obstacle Automatic Emergency Braking (GAEB)

●

Emergency Steering Assistance (ESA)

●

360° Panoramic View (AVM)

●

Transparent chassis

●

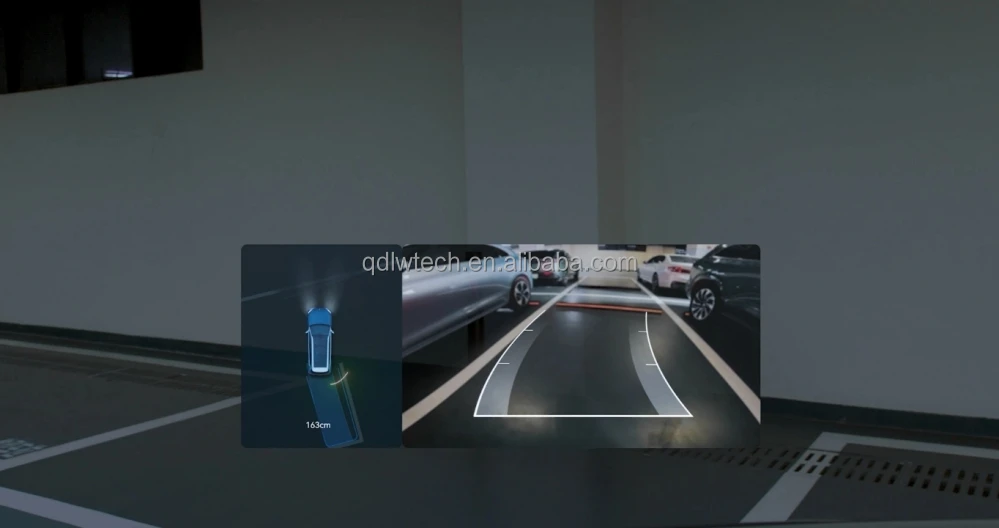

Intelligent Parking Assistance (APA)

●

Remote Parking Assist (RPA)

● Remote call mooring in/out (support vertical, parallel, inclined train ⁠ position)

● Remote control straight in straight out

Tracking astern (RA)

●

Valet Parking Assistance (AVP) 8

○

Valet Driver (VPD) 8

○（Beta）

Adaptive Cruise Assist (ACC)

●

High Speed Lane Cruise Assist (Highway LCC)

●

High Speed Intelligent Driving Navigation Assistance (Highway NCA)

●

Urban Lane Cruise Assist (City LCC)

●

Urban Lane Cruise Assist Enhancement (City LCC PLUS)8

○

Urban Navigation Assistance for Intelligent Driving (City NCA)8

○

Sentinel mode

●

Wheels&Tyres

● 21 inch ten spoke low wind resistance wheels

○ 21-inch multi-spoke Starlight wheels

(With front 265/45 R21 quiet tires, rear 285/45 R21 quiet tires)

○ 22-inch double ten-spoke sports wheels 9

(With front 265/40 R22 quiet performance tires, rear 285/40 R22 quiet performance tires)

Active Grille Shutter

●

Silent electric suction/electric spring door

●

—

●

—

Electric door (with millimeter wave radar, electric suction/electric ejection/electric function)

—

●

—

●

Skylight

Panoramic double quiet insulated privacy glass + electric sunshade

Glass

Front windshield double silenced silver insulated glass

First row of double silenced insulated glass

Second row of double quiet insulated privacy glass

Third row of double quiet insulated privacy glass

Back door privacy glass

Rear hidden boneless wiper

●

Hidden door handle

●

Back door opening mode

Electric

External rearview mirror power folding/heating/memory function

●

Automatic anti-glare internal rearview mirror

●

Automatic anti-glare driver's side exterior rearview mirror

●

Rear wind and defrost function

●

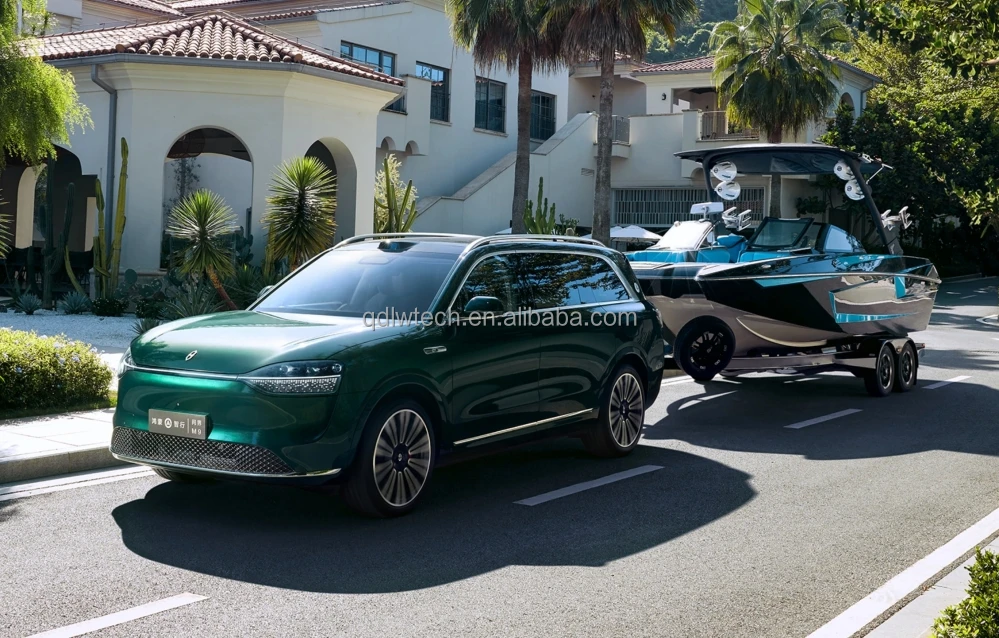

Electric trailer hook 10

○

Adaptive Low Light (AFS)

●

Adaptive Matrix Headlights (ADB)

●

Megapixel Smart Projection Headlight (DLP)

—

●

—

●

Automatic Near/Far Light Switching (HMA)

●

LED turn signal

●

LED side turn signal

●

Intelligent interactive matrix headlights

●

Front and rear skyline position lights

●

LED rear combined side wall light

●

LED rear brake light

●

LED rear fog light

●

Kunpeng wing welcome lamp

●

16.8 million color water LED atmosphere lights

●

Front and rear door warning lights

●

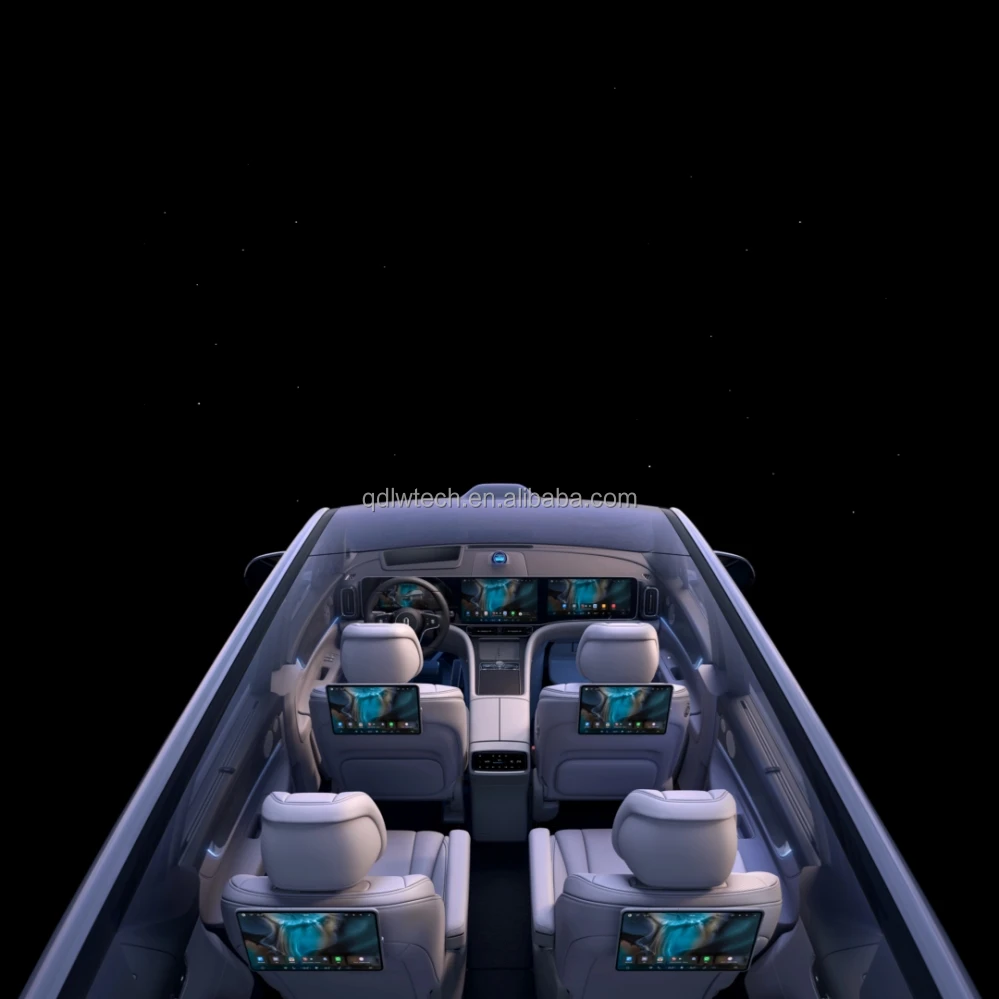

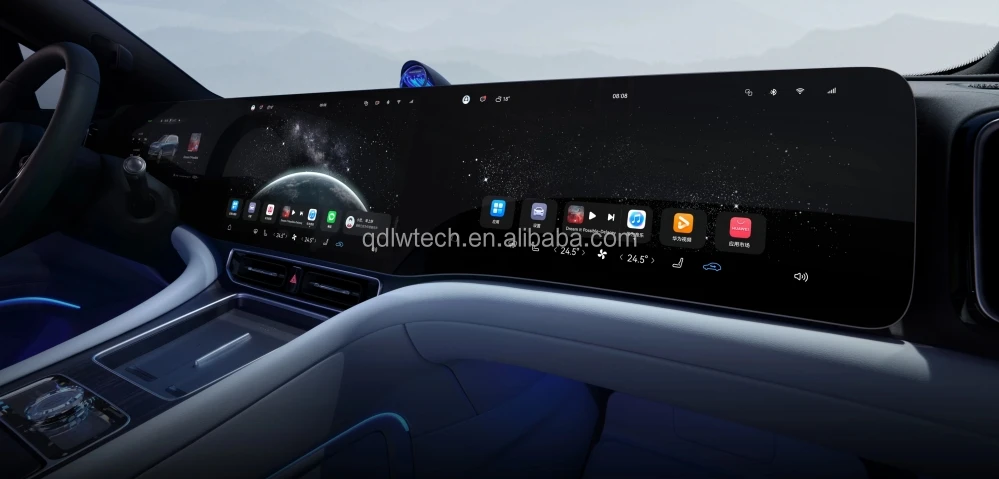

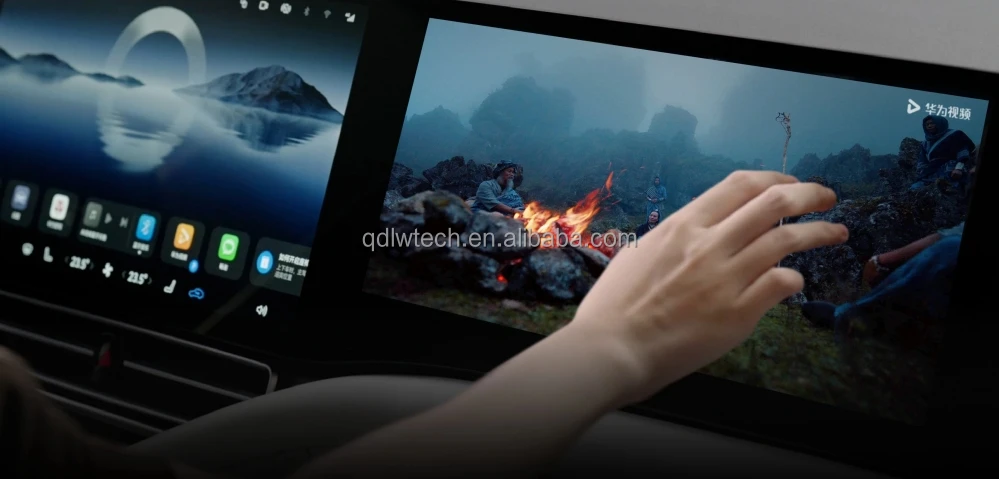

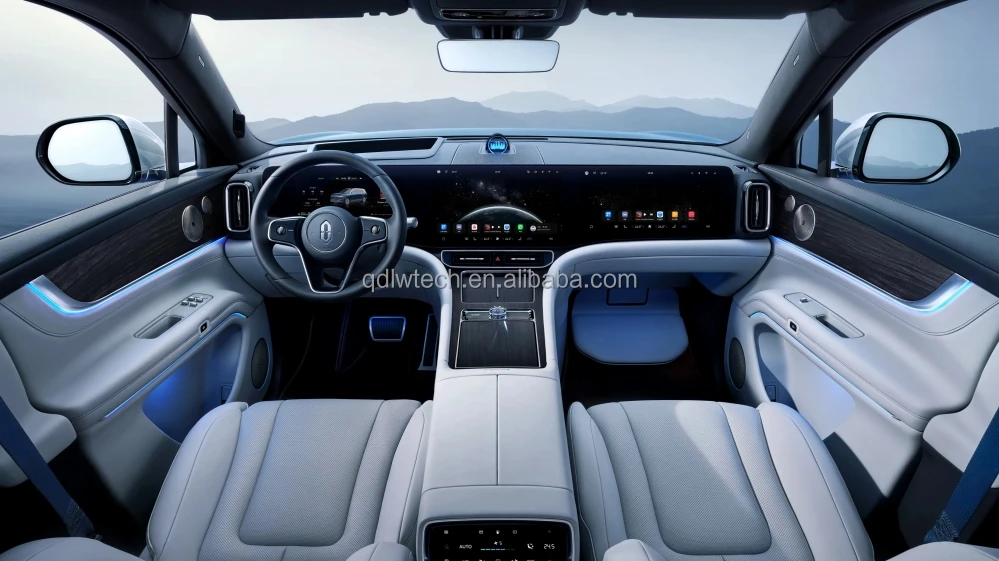

One Glass triple screen

●

12.3-inch LCD dashboard

●

15.6-inch center control screen

●

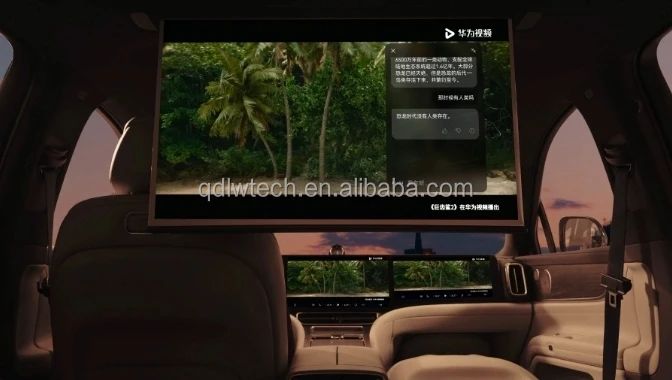

16-inch passenger screen

●

AR-HUD heads-up display

●

Intelligent laser projection system

○

●

○

●

acoustic system

HUAWEI SOUND Excellence Series

Sound layout

7.1.4

Sound unit

● 23 in-car speakers

● 2 headrest speakers

● 1 external speaker

Star Ring scatterers

●

Amplifier power

2080 W

Four array microphones x 6

●

multi-function steering wheel

●

electric adjustable steering wheel

●（up-down + forward-backword）

Steering wheel heating

●

Automatic three-temperature zone air conditioning

●

AQS Automatic air quality control

●

PM2.5 monitoring inside and outside

●

Anion Generator

●

CN95 + activated carbon high efficiency air filter

●

UVC photocatalytic sterilization system

●

Fragrance System11

●

Seat material

First/second row: Nappa leather seats

Main Driver's seat

12 way electric regulation

Support foot support, leg support, folding

14 way electric regulation

Second-row seat

8 way electric regulation

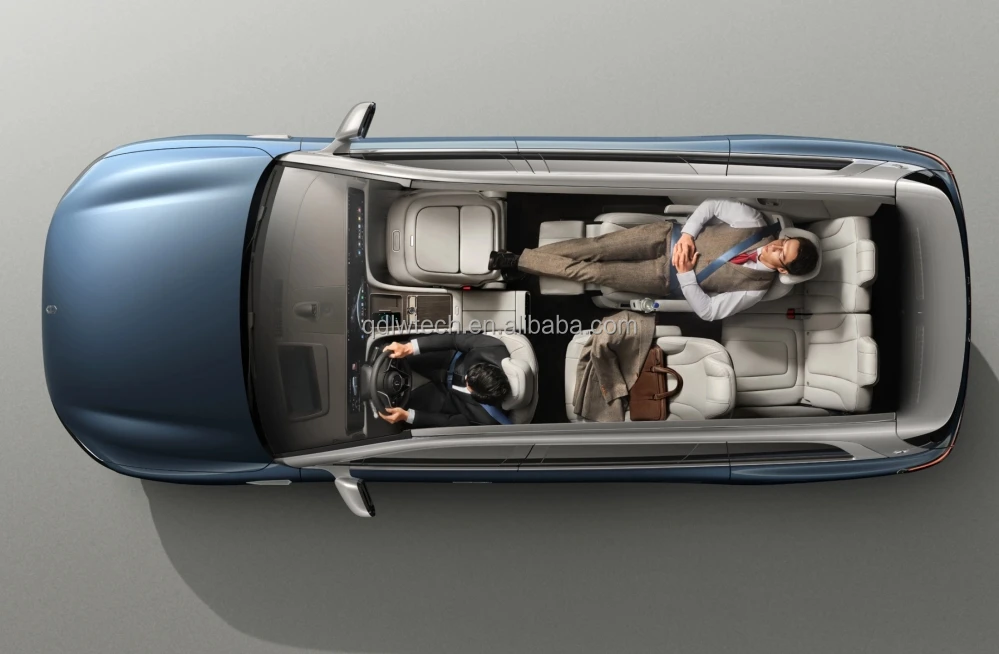

Second row right side zero gravity seat

○

● Dual electric handrails

○

● Dual electric handrails

10 points Full back massage

10 points Full back massage

14 way electric regulation

14 way electric regulation

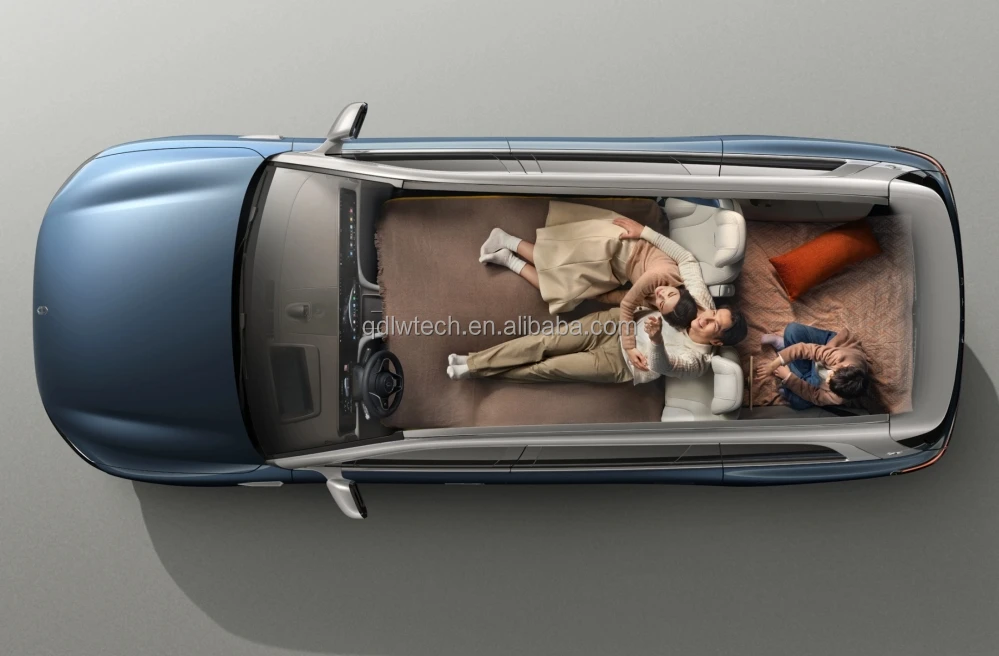

Third-row seat

Front and rear electric adjustment

The backrest Angle is electrically adjusted, the maximum Angle is 33°

Seat ventilation

● (Front row + second row)

Seat heating

● (Front row + second row + third row)

Chair massage

● (Front row + second row)

Main/passenger seat memory function

●

Magic Suction Vehicle Interface 12 (HUAWEI MagLink)

●

Mobile phone wireless charging13

●（50 W *2 ）

Mobile phone wire charging13

●（6 pcs；3 * 66 W + 1 * 65 W + 2 * 18 W Type-C）

Cabin data interface

1 DVR TF card interface

1 DVR TF card interface

1 USB 2.0 port

12V car power supply

● (2-armrest × 1, trunk × 1)

GPS navigation

●

DMS face recognition

●

Electric CMS

●

UWB remote key

●

Mobile phone Bluetooth key 14

●

Watch Bluetooth key15

●

Watch UWB key16

●

NFC card key

●

Camp Power Mode 17 (V2L)

●

Rescue Power Supply Mode 18 (V2V)

●

Charging pile19

○

Passenger seat tray table

○

Comfortable enjoying fixed pedals

○

Fully automatic comfortable electric pedal

○

—

Some of the functions listed in the table will be supported through OTA upgrades, depending on the actual product delivery.

1. When the third discharge is poured, the trunk can reach the maximum volume

2. Under full charge condition, CLTC comprehensive range and CLTC pure electric range (full charge) data come from the test center of Celis Group Co., LTD., using 21-inch low wind resistance wheels. In actual road driving, the vehicle's actual driving range is affected by different environmental temperature, driving road conditions, driving habits and operations, battery life and other objective factors.

3. Under full charge condition, WLTC comprehensive range and WLTC pure electric range (full charge) data come from the test center of Salis Group Co., LTD., using 21 inches low wind resistance wheels. In actual road driving, the vehicle's actual driving range is affected by different environmental temperature, driving road conditions, driving habits and operations, battery life and other objective factors.

4. The data comes from the test center of Celis Group Co., LTD. The actual acceleration performance of vehicles varies in actual road driving due to different environmental temperatures, road conditions, driving habits and operations, battery life and other objective factors.

5. The battery power is calculated by 1/3C discharge.

6. The slow charging time data is obtained from the test of about 7 kW power charging pile, and the fast charging time data is obtained from the test of about 600 kW power charging pile. The actual charging time varies with the usage scenario and the power of the charging pile. The actual usage prevails.

7. Intelligent driver assistance systems cannot handle all traffic, weather, and road conditions. Drivers must always pay

attention to the current traffic conditions and maintain active control of the vehicle at all times. Please read all sections of the owner's manual on this feature to understand the limitations of this feature. Drivers should be aware of these limitations before using the function. Use caution when the traffic conditions are complex and changeable, the road is wet with snow and rain, the road is flooded or muddy, the visibility is poor, the road is rough or the entrance and exit of the highway, etc.

8. Valet parking assistance, parking agent driving, urban lane cruise assistance enhancement, and urban intelligent driving navigation assistance are advanced function packages of intelligent driving service software, which need to be purchased through the APP or purchased separately on the center control screen.

9. (1) After selecting R22 wheels/tires, driving experience, endurance, etc., will be changed from R21, the actual situation shall prevail;

(2) Extended range version, under the condition of 42 degrees full charge, CLTC comprehensive battery life of 1303 km, CLTC pure battery life of 215 km (full charge);

(3) Extended range version, under the condition of 52 degrees full charge, CLTC comprehensive battery life of 1341 km, CLTC pure battery life of 260 km (full charge);

(4) Pure electric version, CLTC pure battery life 585 km (full charge);

(5) The data comes from the test center of Celis Group Co., LTD. In actual road driving, the vehicle's actual driving range is affected by different environmental temperature, driving road conditions, driving habits and operations, battery life and other objective factors.

10. This function can not be installed after, you need to pay for it before placing an order. The launch time of this feature is subject to official information.

11. Factory standard with 3 fragrances, use need to buy separately.

12. Zero Gravity seat does not support HUAWEI MagLink.

13. The actual charging power varies with the charging protocol supported by the device and the ambient temperature. Please refer to the actual usage.

14. Huawei phones of HarmonyOS 2.0 and above support Huawei Wallet digital car keys, and the devices are connected to the Internet. The digital car key has NFC + Bluetooth two-in-one function, will be launched with the model, more details are subject to the information in the Huawei Wallet APP.

15. This function supports the following HUAWEI wearable devices: Huawei WATCH 3/4 series of HarmonyOS 3.0 or later, and the devices are networked. Watches must be purchased separately.

16. This function supports HUAWEI WATCH 4 Pro of HarmonyOS 4.0 or later, and the devices are connected to the Internet. Watches must be purchased separately.

17. Camp power supply mode (V2L), can reverse output 220V AC, maximum power of 6 kW; The V2L cable must be purchased separately.

18.EVR provides AC/DC V2V, EV provides AC V2V

(1) M9 extended range products: Provide DC V2V capability to charge another electric vehicle through a dedicated V2V connection cable, up to 15 kW/h, (2) M9 extended range and pure electric products: Ac V2V capability to charge another EV with a dedicated V2V cable up to 6 kW/h, (3) V2V cable to be purchased separately.

19. Non-standard configuration, you need to purchase 7 kW AC charging pile or 11 kW DC charging pile separately.
