factory low price Dewatering geotextile geo tubes for environmental dredging and remediation sludge polyester geo tube
- Category: >>>
- Supplier: Anhui Zhonglu Engineering Materials Co. Ltd.
Share on (1601212593269):
Product Overview
Description
factory low price Dewatering geotextile geo tubes for environmental dredging and remediation sludge polyester geo tube
Product Description

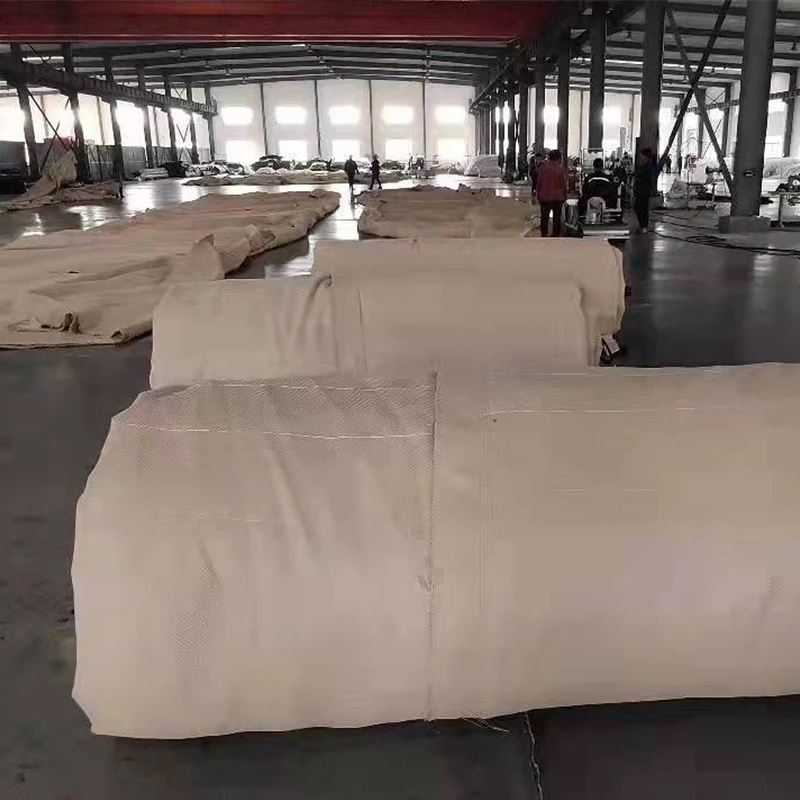

Geotextile tube
Geotextile tubes are made by PP woven fabric in a variety of sizes and lengths. They are in extra wide sizes with greater load distribution to resist punching and protect the embankment and foundation. Geotextile tubes are not only used to form shoreline structure including form temporary breakwaters, headlands, revetment on sand beach, also used in environment protection, like fill in the pollution silt, they let the water come out and retain the solid articles
Geotextile tubes are made by PP woven fabric in a variety of sizes and lengths. They are in extra wide sizes with greater load distribution to resist punching and protect the embankment and foundation. Geotextile tubes are not only used to form shoreline structure including form temporary breakwaters, headlands, revetment on sand beach, also used in environment protection, like fill in the pollution silt, they let the water come out and retain the solid articles

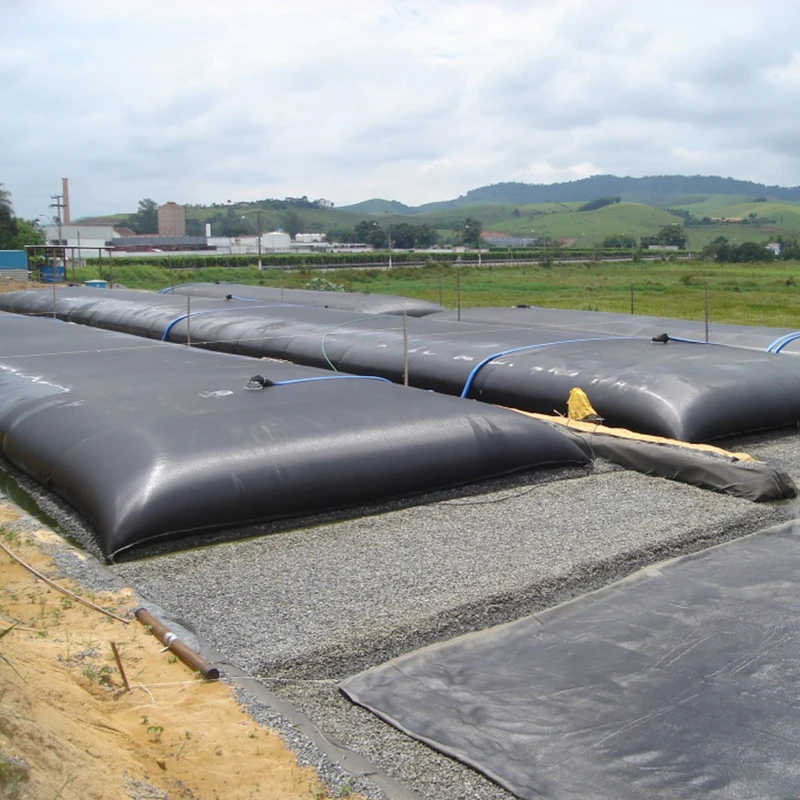

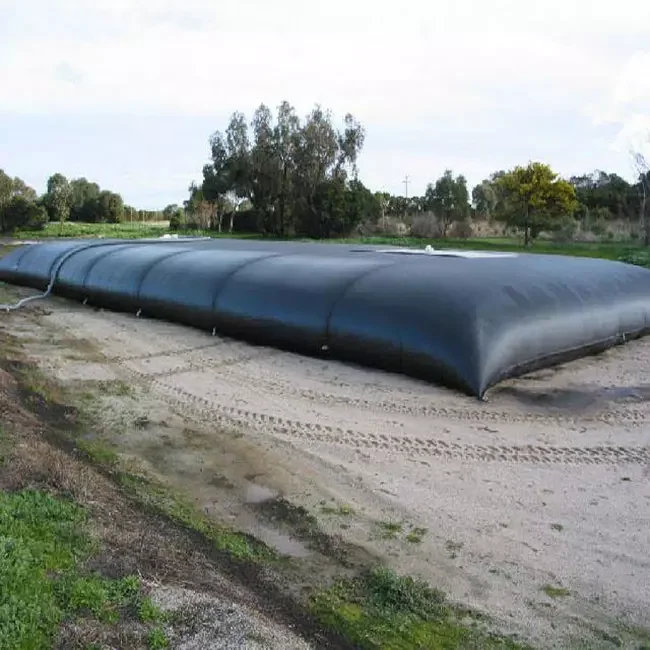

Geotube is a typical tube for dewatering. It is high efficiency filtration products designed to effectively remove silt, sand, sediment and other unwanted materials from your discharge or storm water runoff. Dewatering geotextile tube has been frequently used during dredging, construction work, lagoon sludge removal, and other sediment removal processes.
What materials can a geotextile tube dewater?
The list of materials that can been dewatered by geotextile tubes includes:
Municipal water treatment and wastewater sludge
Contaminated dredged material
Marine dredgings
Agricultural animal waste
Fine-grained, inorganic industrial sludge
Construction dewatering
Shale fracking waste water
The list of materials that can been dewatered by geotextile tubes includes:
Municipal water treatment and wastewater sludge
Contaminated dredged material
Marine dredgings
Agricultural animal waste
Fine-grained, inorganic industrial sludge
Construction dewatering
Shale fracking waste water
Feature
1. High strength, low deformation
2. Durability: steady property, not easy to resolved, air slaked and can keep the original property long term
3. Anti-erosion: anti-acid, anti-alkali, resists insects and mould
4. Permeability: could control the sieve size to retain certain permeability
5.Effective high volume containment
6.Efficient dewatering and volume reduction
7.Cost effective
8.No special equipment required
1. High strength, low deformation
2. Durability: steady property, not easy to resolved, air slaked and can keep the original property long term
3. Anti-erosion: anti-acid, anti-alkali, resists insects and mould
4. Permeability: could control the sieve size to retain certain permeability
5.Effective high volume containment
6.Efficient dewatering and volume reduction
7.Cost effective
8.No special equipment required
Technical data
Item | Unit | Technical Parameters | ||||||
Tube 500 | Tube 750 | Tube 1000 | ||||||
Breaking strength | MD | KN/m >= | 70 | 120 | 200 | |||
CD | KN/m >= | 90 | 120 | 200 | ||||
Elongation of break | MD | %<= | 20 | 20 | 20 | |||
CD | %<= | 10 | 10 | 10 | ||||
Sewing Tensile strength | >=% | 80 | 80 | 80 | ||||
Bursting Strength(CBR) | KN>= | 8 | 14 | 18 | ||||
Equivalent opening size(O90) | mm | 0.2-0.6 | 0.2-0.6 | 0.2-0.6 | ||||
Permeability(Q50) | L/m2/s>= | 20 | 13 | 15 | ||||
UV-resistance(500HRS strength retention) | %>= | 90 | 80 | 80 | ||||
Application
1. Bank protection
2. Dyke protection
3. Base protection
4. Embankment engineering
5. Dam engineering
6. Cofferdam engineering
1. Bank protection
2. Dyke protection
3. Base protection
4. Embankment engineering
5. Dam engineering
6. Cofferdam engineering
The Geotextile Tube Bag dehydration technology is an effective technology and a solution that has been

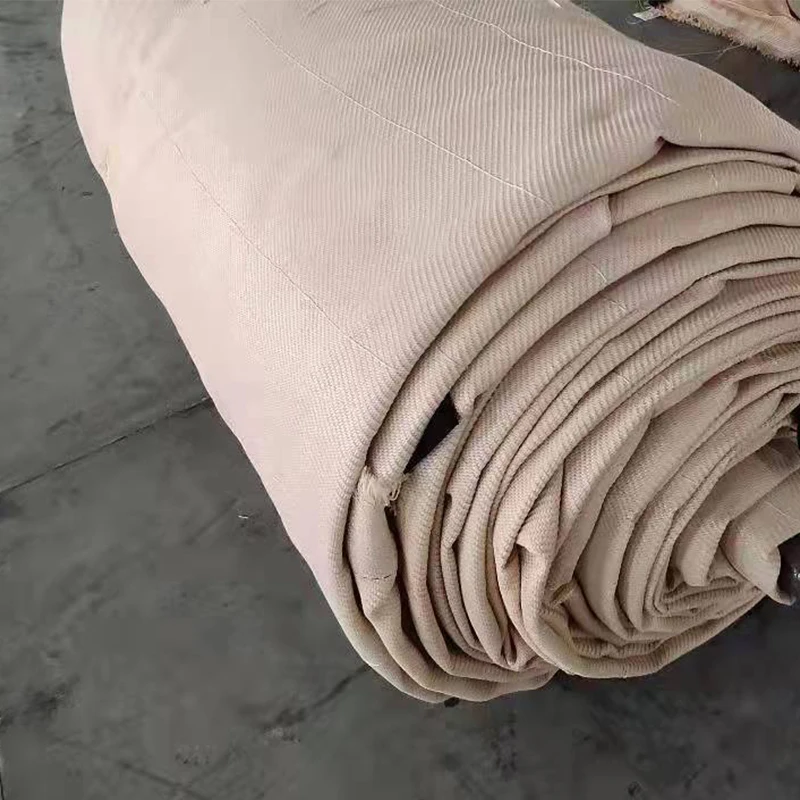

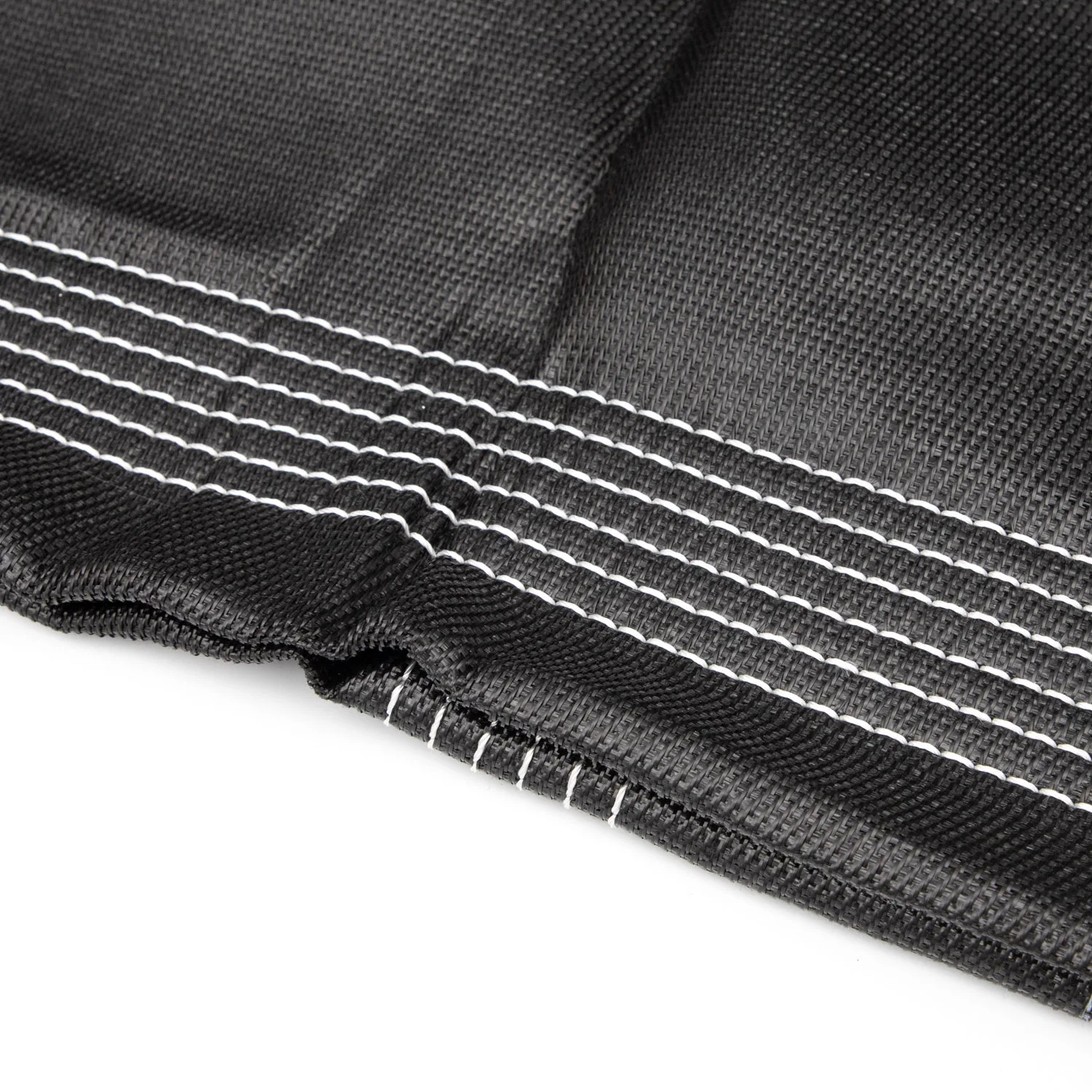

proven safe for dehydration by many research centers around the world. It is made of high-performance, special polypropylene monofilament, flat yarn or split film yarn for cloth processing and special sewing
proven safe for dehydration by many research centers around the world. It is made of high-performance, special polypropylene monofilament, flat yarn or split film yarn for cloth processing and special sewing
Solids are contained inside the Geotube dewatering unit, Easy removal and disposal solids from polluted water.
Efficient, versatile and environmental friendly solution reduces carbon. High effluent discharge rate with clear filtrate that can be recirculated through the system.
Custom-sized containers saves expensive and limited land space, Geotube dewatering unit can be cut open, exposing highly dewatered solids that can be easily excavated and transported away.
Cost effective, low maintenance and saves time. Reliable in all weather conditions and reduces risks in operational safety.
Packing & Delivery
standard export packing or packed as customers' request
HOW TO USE GEOTEXTILE TUBE

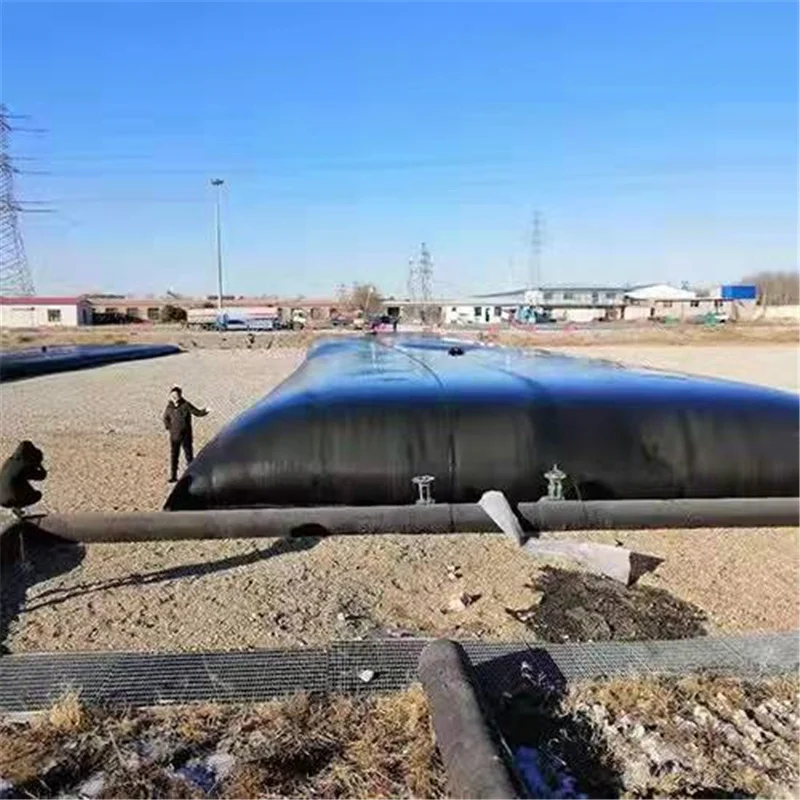

Every geotextile tube project is unique. As such, general guidelines can be described, but each project requires consultation with a geotextile tube expert to identify the project's singular attributes and to design the sludge dewatering process accordingly. It is of utmost importance to place the geotextile tube on a level ground and before deploying, any barriers ,such as stone ,sundry , have to be removed as to prevent them from influencing the deploying effect. After the geotextile tube delivered to the site,

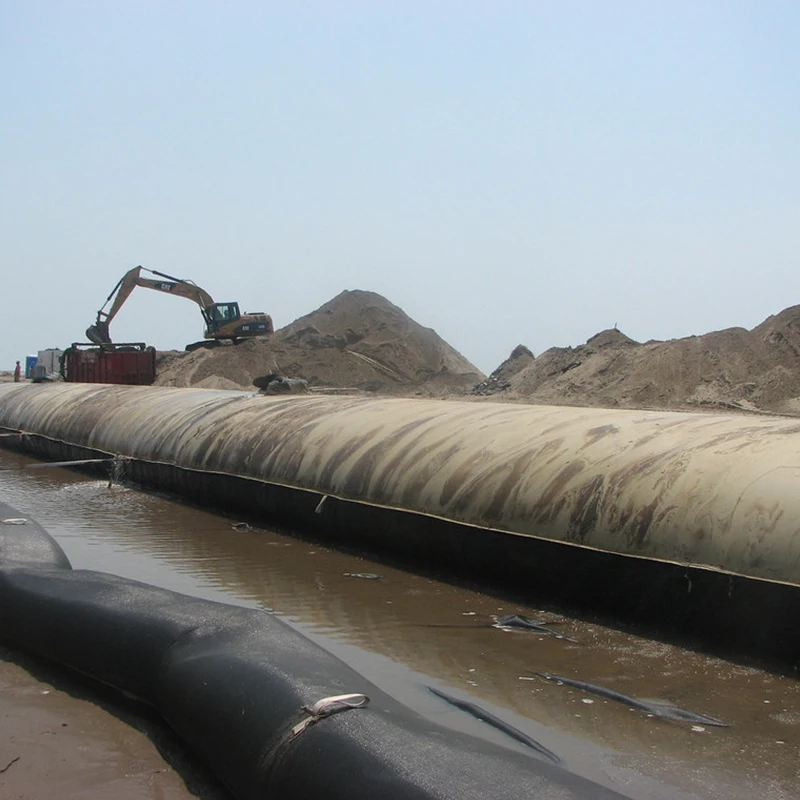

secure it on ground with external steel pipe or timber pile to fix the position of geotube. Prepare the feeding equipment in advance, like cutter head and suction dredge (for dredged materials), feed pump (for sludge materials),which are to be used in the following operations.
Every geotextile tube project is unique. As such, general guidelines can be described, but each project requires consultation with a geotextile tube expert to identify the project's singular attributes and to design the sludge dewatering process accordingly. It is of utmost importance to place the geotextile tube on a level ground and before deploying, any barriers ,such as stone ,sundry , have to be removed as to prevent them from influencing the deploying effect. After the geotextile tube delivered to the site,
secure it on ground with external steel pipe or timber pile to fix the position of geotube. Prepare the feeding equipment in advance, like cutter head and suction dredge (for dredged materials), feed pump (for sludge materials),which are to be used in the following operations.

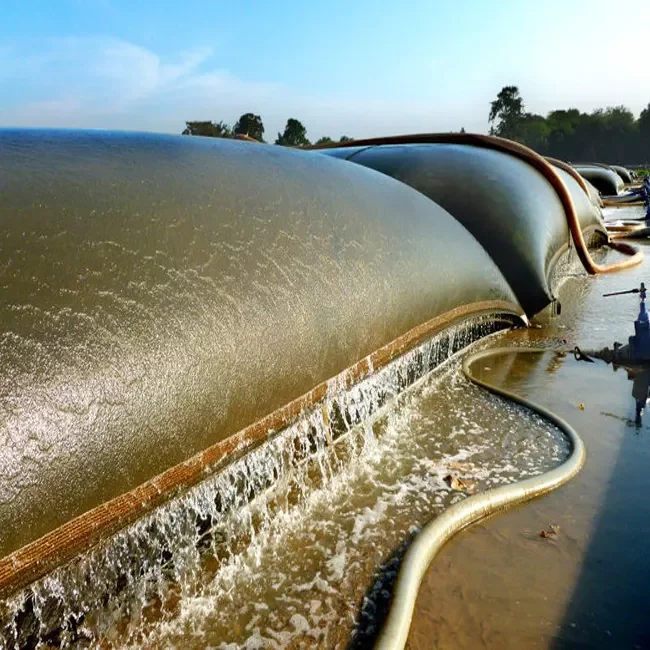

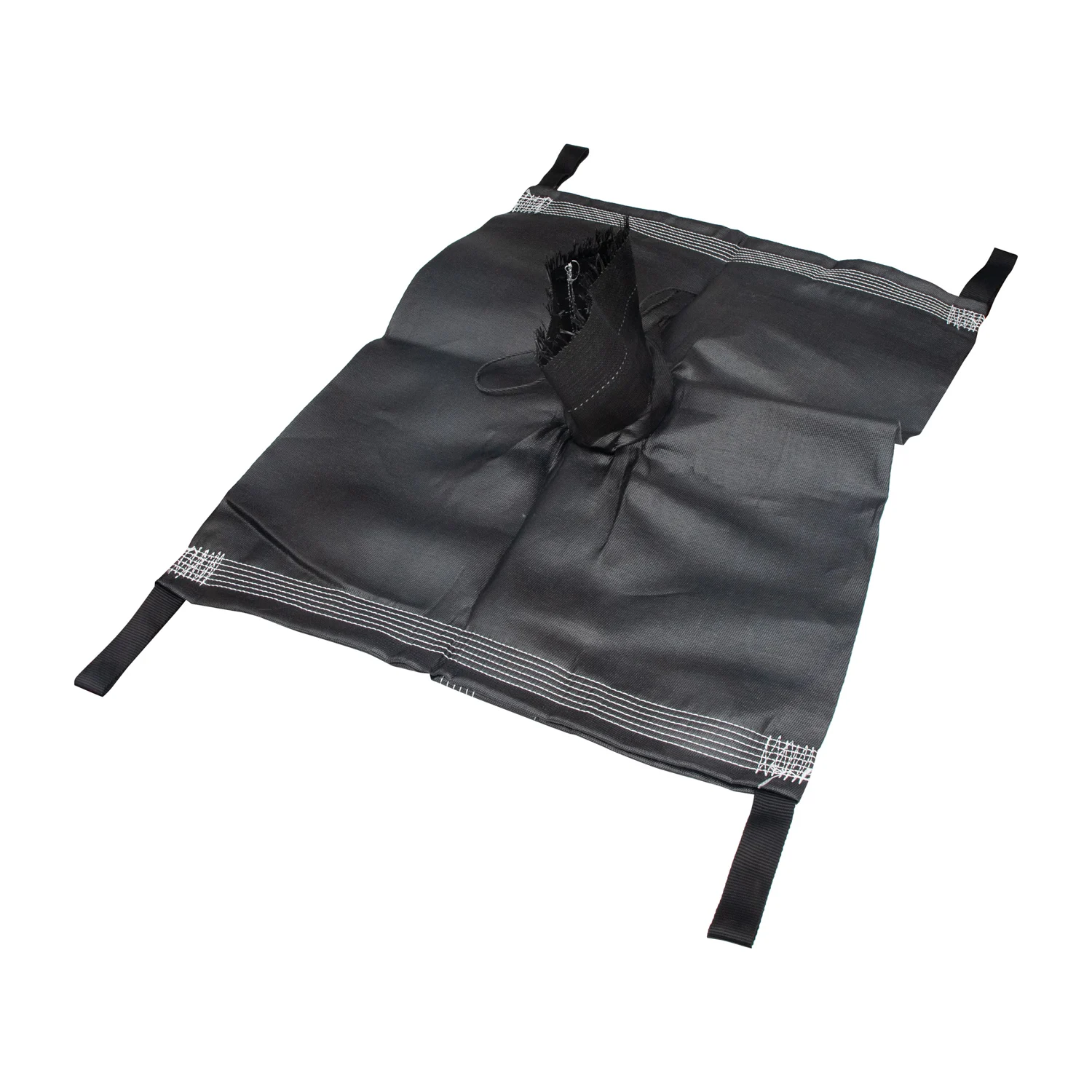

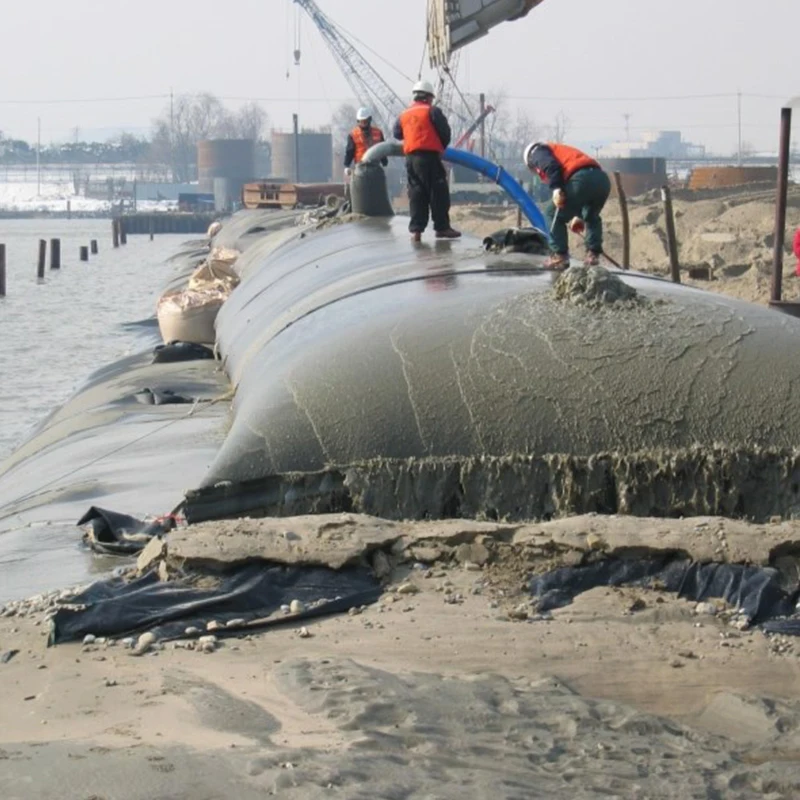

Geotextile tube have a "shirt-sleeve" style filling port. Simply place the pump hose into the port and secure it with a hose clamp, tie-wire or duct tape. Once the pumping begins, clear, effluent water will drain from the tube through the small openings in the permeable geotextile fabric. Meanwhile, the sludge dewatering tube bottom will develop a filter cake quickly, so the water will decant mainly out of the sides and top of the tube gradually.
After a long-time cycle of repeated cycles of filling and dewatering, over 99% of solids are captured. Typically, the decanted water can be returned to waterways without additional treatment. If any erosion caused around the tube, deploy the sump pumps at the all four corners of the area to collect the effluent.
Notes:
1- During pumping, the elevation or height of the tube needs to be monitored to prevent ruptures. Typically, keep the height to be 80% is more a optimum.
2- The sands gathered the most at the entrance of port , so adjust the sand concentration at the proper time to assure the sands depositing smoothly.
3- To fill the tube to its required height, the designed height should be equal or greater than the half of the diameter of geotextile tube.
4- The sand concentration of the dewatered material shoul.
1.: The first step is to fill, high strength and permeable geotextile bag body needed to make into actual, then filling slurry into the bag.
2. The second step is drainage, because the geotextile that makes up the bag has tiny holes that trap it in the mud, solids can also discharge water from the mud, which can effectively reduce the volume of inclusion in the bag body,The bag body can be repeatedly filled until the allowable height of the bag material is reached, and the discharged water can be reused.
3.The third step is consolidation. After repeated filling and drainage, the fine particles left in the bag body will gradually consolidate due to drying.
FAQ
Q：Can you send samples?
Q：How long is the delivery time?
A: General within 3-7days after received the deposit.
Q: How to control product quality?
A: Our factory adopts lean management, products from the beginning to the end of the production process have strict quality control. All products must be strictly tested before packing and shipping.
A：Yes, we are very happy to provide you with free samples to check the quality of our products.
Q：Are you a manufacturer or a trading company?
A：Our company located in Hefei，Anhui Province，with are gistered capital of 52 miion yuan. It is a professional manufacturer of geomembrane, geotextile, geogrid and other products. So we have the competitive price with best quality.
Q：Can you produce the product according to customers' requirements?
A: Sure，we are professional manufacturer，OEM and ODM are both welcome.
Q：Are you a manufacturer or a trading company?
A：Our company located in Hefei，Anhui Province，with are gistered capital of 52 miion yuan. It is a professional manufacturer of geomembrane, geotextile, geogrid and other products. So we have the competitive price with best quality.
Q：Can you produce the product according to customers' requirements?
A: Sure，we are professional manufacturer，OEM and ODM are both welcome.
Q：How long is the delivery time?
A: General within 3-7days after received the deposit.
Q: How to control product quality?
A: Our factory adopts lean management, products from the beginning to the end of the production process have strict quality control. All products must be strictly tested before packing and shipping.
