Ditrontech high precise dispensing dettol liquid solution dispensing vaccines produce peristaltic pump used in industrial

Product name

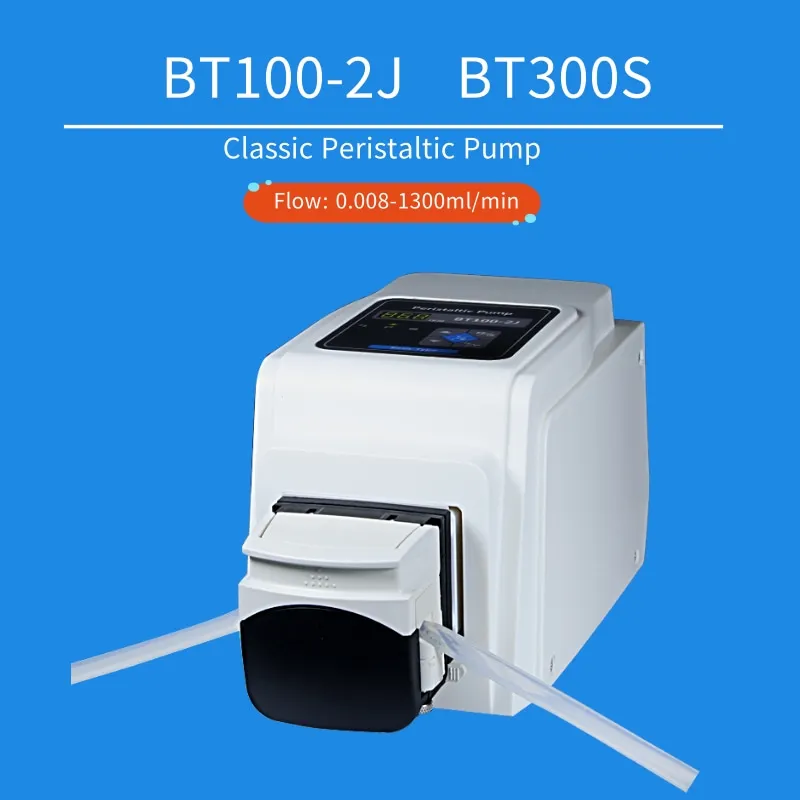

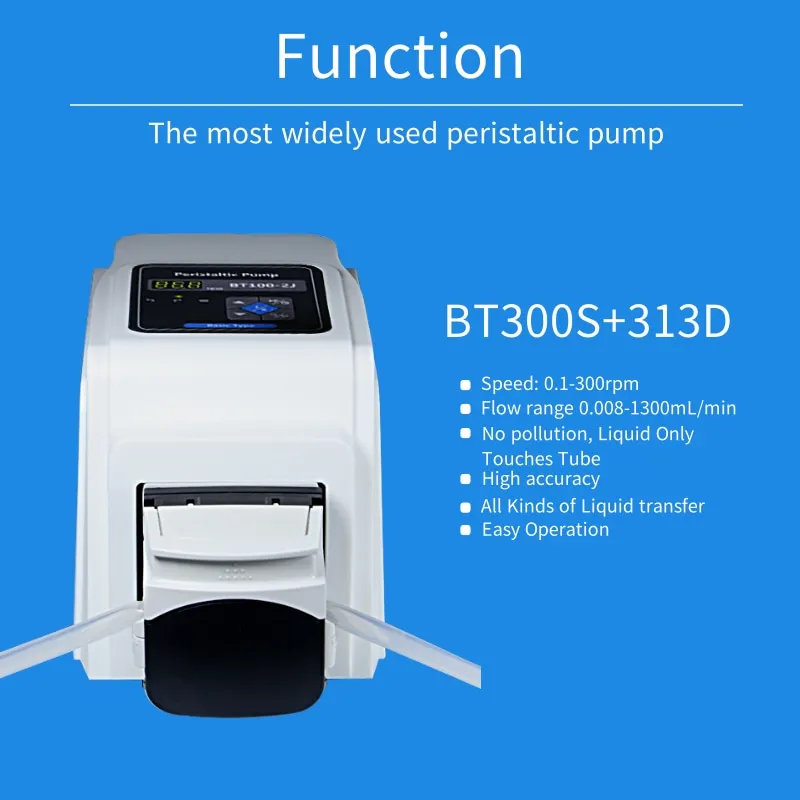

BT300S Speed Adjustable Peristaltic Pump

Driver

BT100-2J

BT300S

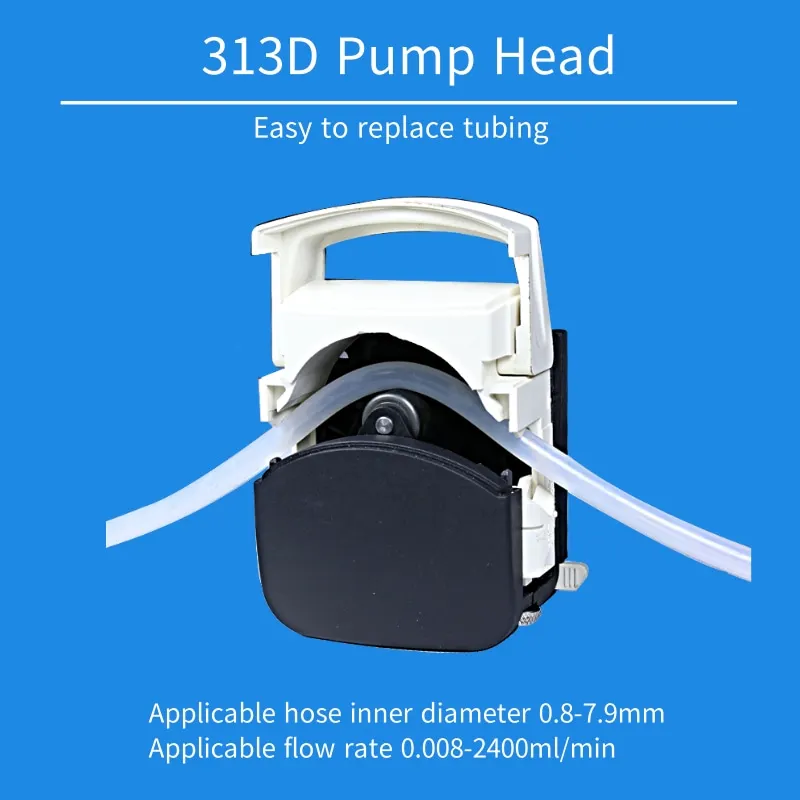

Pump head

313D

313D

Flow range

0.008-620mL/min

0.008-1300mL/min

Speed adjustable range

0.1-150RPM

0.1-300RPM

Speed resolution

0.1(<100RPM)

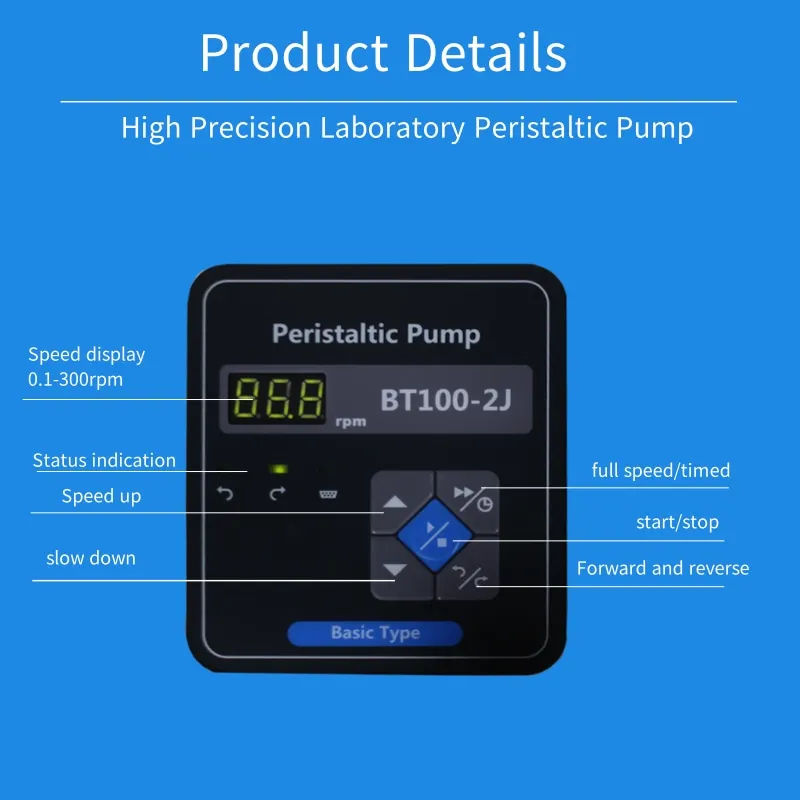

Display function

3 digit LED display the speed

Direction control

Clock-wise/counter clock-wise direction, import toggle switch

Operation mode

Membrane keypad operate, convenient, quick and reliable

Full speed function

Full speed button to realize fast filling and drain

Power-down memory function

After power on, running as before

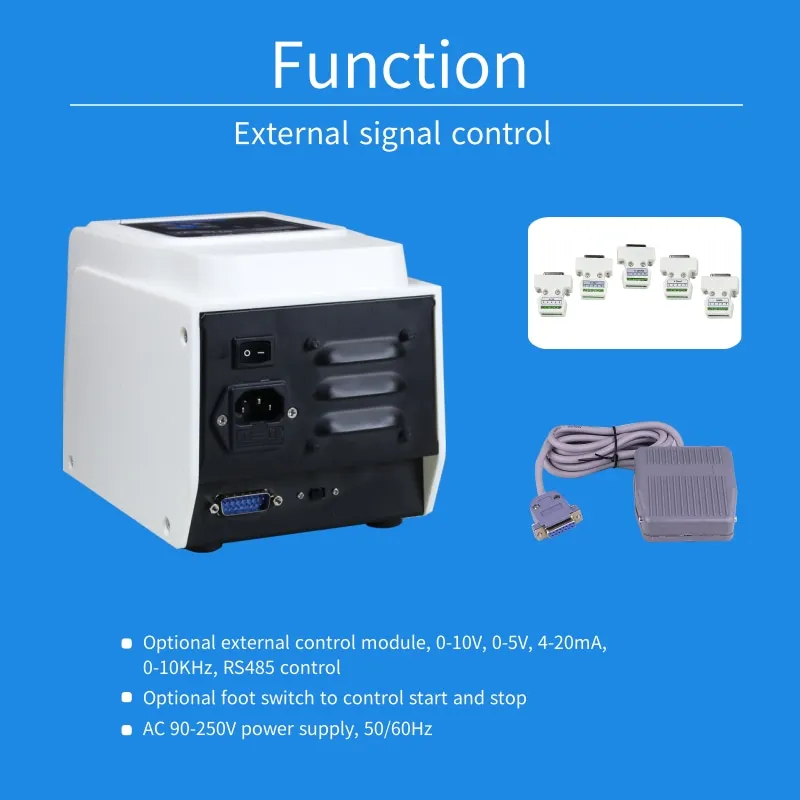

External control function

Different model external control module for Start/Stop, direction, flow rate;

0-5V,0-10V,4-20mA,0-10KHz  4 module for option

Communication function

Optional communication module, RS485 communication control (via Modbus protocol)

Intelligent temperature control

Cooling fun intelligent temperature control system, reduce noise

Foot switch control

Optional

Power

Consumption

<40W

Power supply

Wide AC90-260V,50Hz/60Hz

Operation condition

Temperature 0 to 40 °C, Relative humidity < 80%

dimension

225mm×143mm×148mm (doesn’t including pump head  )

Driver weight

3.5KG

IP rate

IP31
