2S200 20 DC24V 12V AC220V 110V Normally Close SS304 Stainless Steel Automatic Water Solenoid Valve 3/4 Inch
- Category: >>>
- Supplier: Taizhou Chenming Automation Technology Co. Ltd.
Share on (1601212831111):
Product Overview
Description

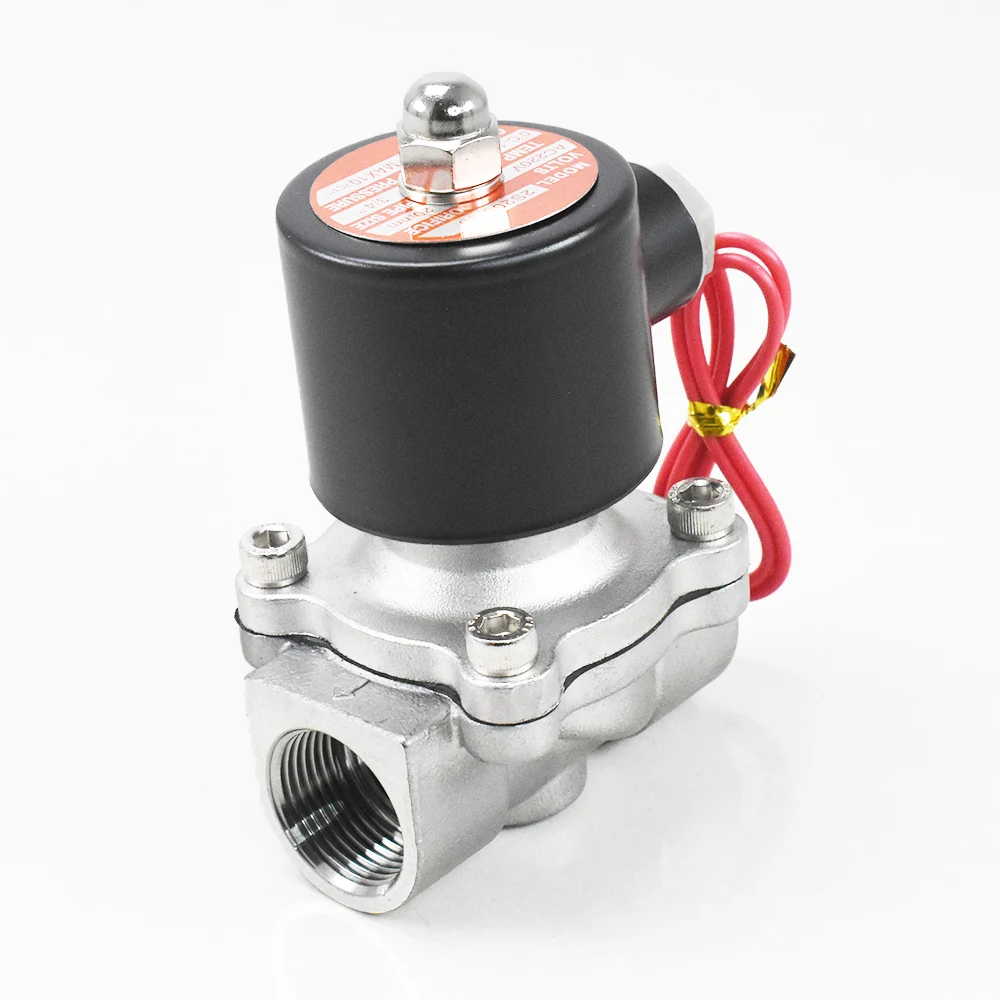

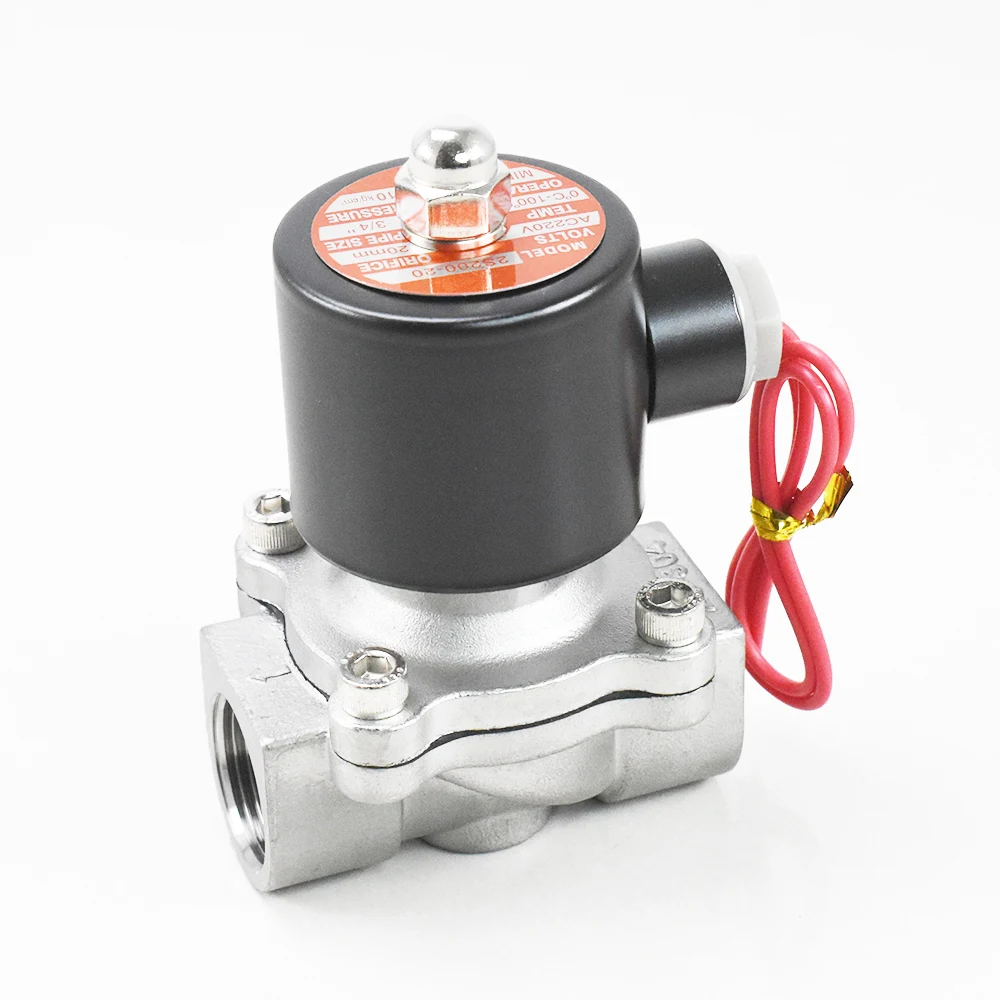

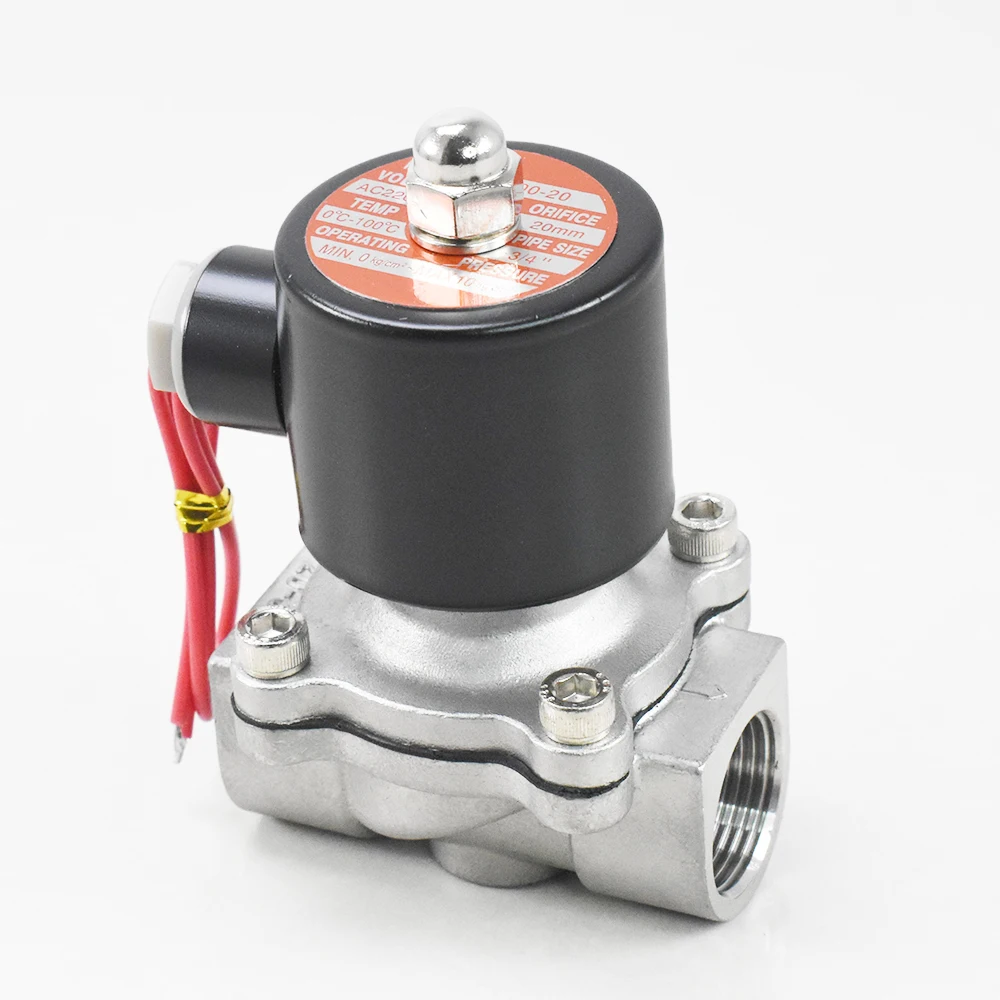

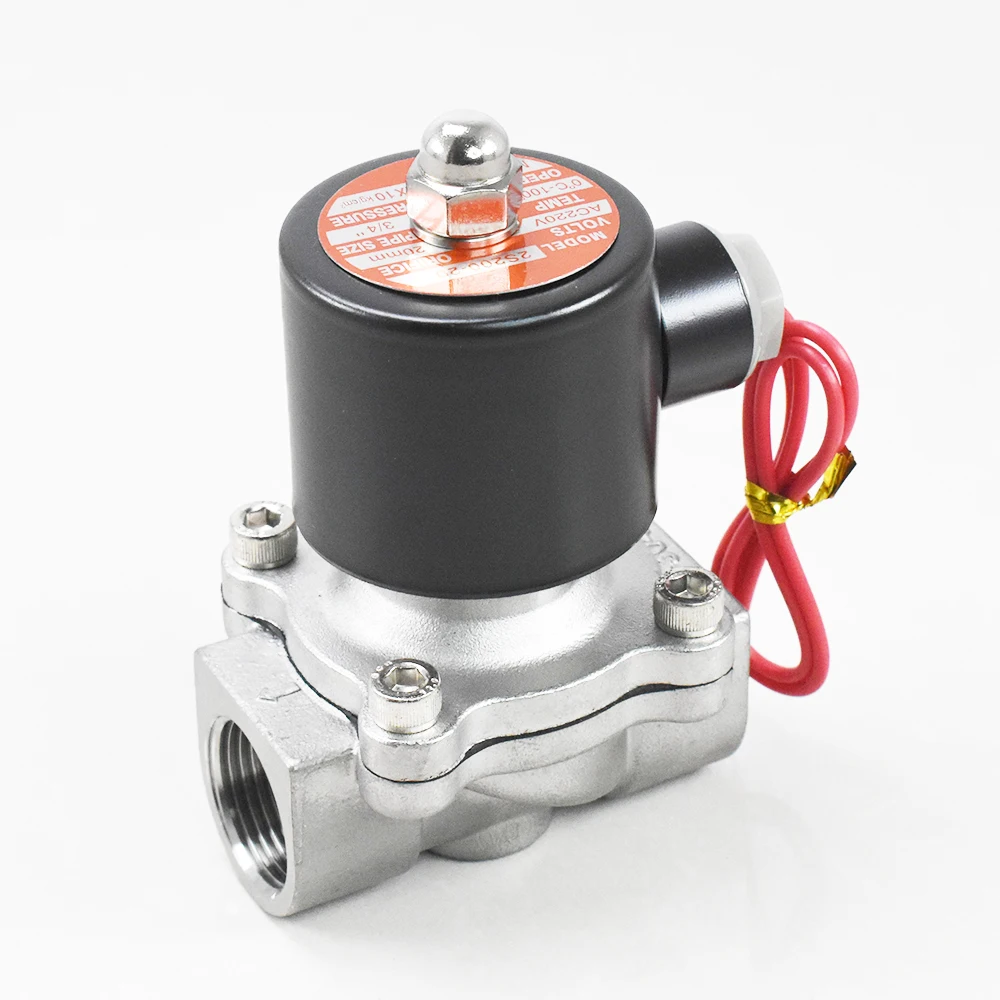

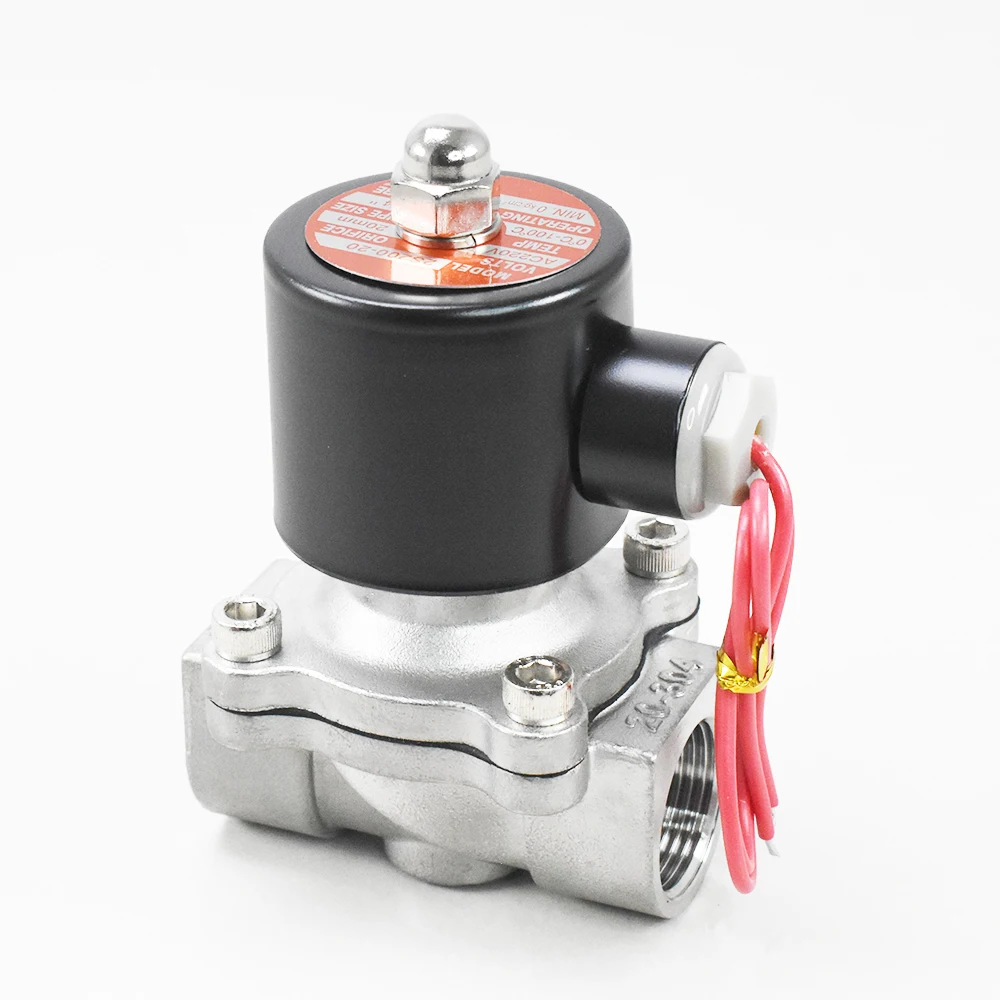

2S200-20 DC24V 12V AC220V 110V Normally Close SS304 Stainless Steel Automatic Water Solenoid Valve 3/4 Inch
Product Description
Ordering Code
2S 160 15 - AC220V
Series Orifice size Port size Voltage
2/2 way 160:16mm 15: 1/2'' DC12V
200:20mm 20: 3/4'' DC24V
250:25mm 25: 1'' AC220V 50/60Hz
350:35mm 35: 1-1/4'' AC24V 50/60Hz
400:40mm 40: 1-1/2'' AC110V 50/60Hz
500:50mm 50: 2'' AC380V 50/60Hz
Specifications
| Model | 2S25-08 | 2S040-10 | 2S160-15 | 2S200-20 | 2S250-25 | 2S350-35 | 2S400-40 | 2S500-50 |
| Fluid | Air,Water,Oil (filterd through 40u filter element) | |||||||
| Action | Internally piloted type | |||||||
| Type | Normally closed type | |||||||
| Effective area(mm²) | 2.5 | 4 | 16 | 20 | 25 | 35 | 40 | 50 |
| CV Value | 0.23 | 0.6 | 4.8 | 7.6 | 12 | 24 | 29 | 48 |
| Port size | 1/4'' | 3/8'' | 1/2'' | 3/4'' | 1'' | 1-1/4'' | 1-1/2'' | 2'' |
Operating Pressure | Water & Oil :0-5bar ; Air:0-7bar | |||||||
Proof Pressure | 0-10bar | |||||||
| Fluid Temperature | -5~85℃ | |||||||
| Voltage range | ±10% | |||||||
| Body | Stainless Steel | |||||||
| Seal | NBR | |||||||
Product Details
Main Product
Company Information
Our Service
FAQ
Q: What is your MOQ?
A: 5pcs for MOQ.
Q: What is your packing?
A: Each Solenoid Valve by one box packing.
Q: What Voltage you can offer
A: AC220V/DC24V/DC12V/AC110V/AC24V
Q: What is your quality?
A: Sample will tell you what you want.
Q: What is your warranty?
A: One year under normally used.
Q: Can you do OEM?
A: Yes, we can.
