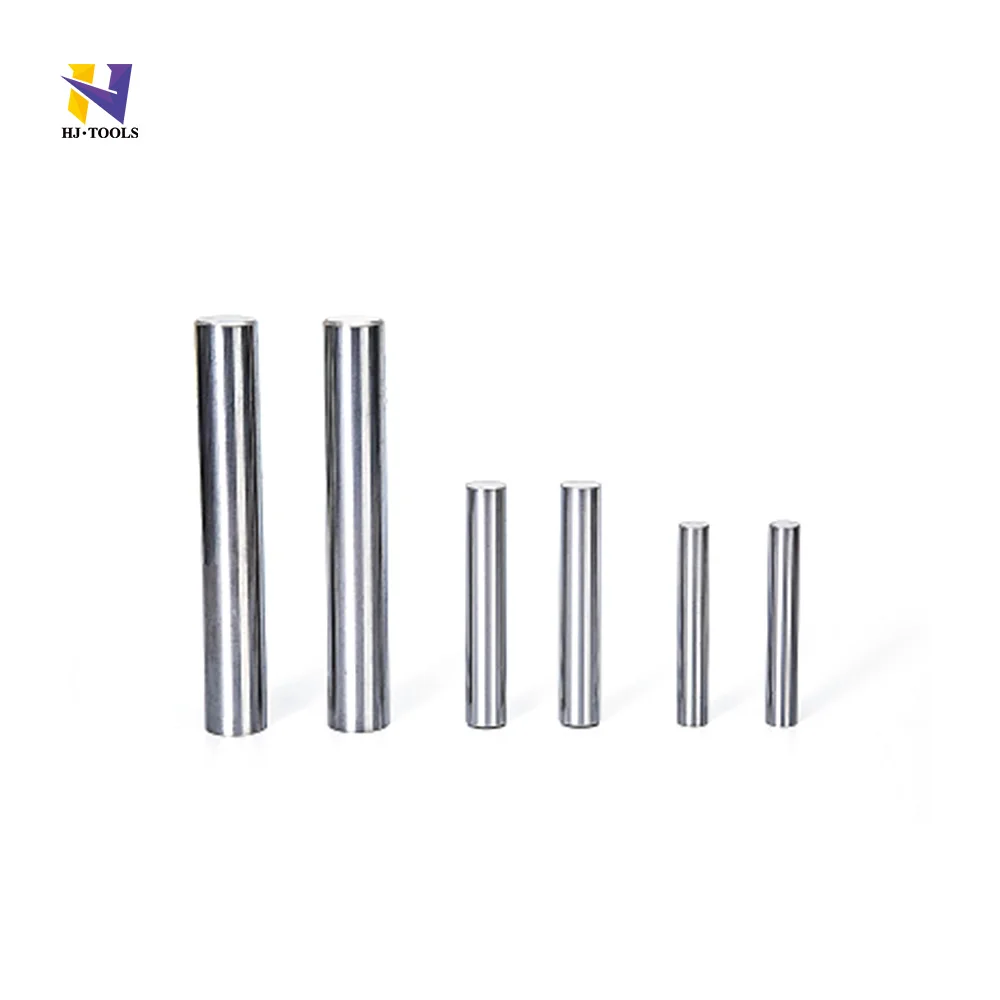

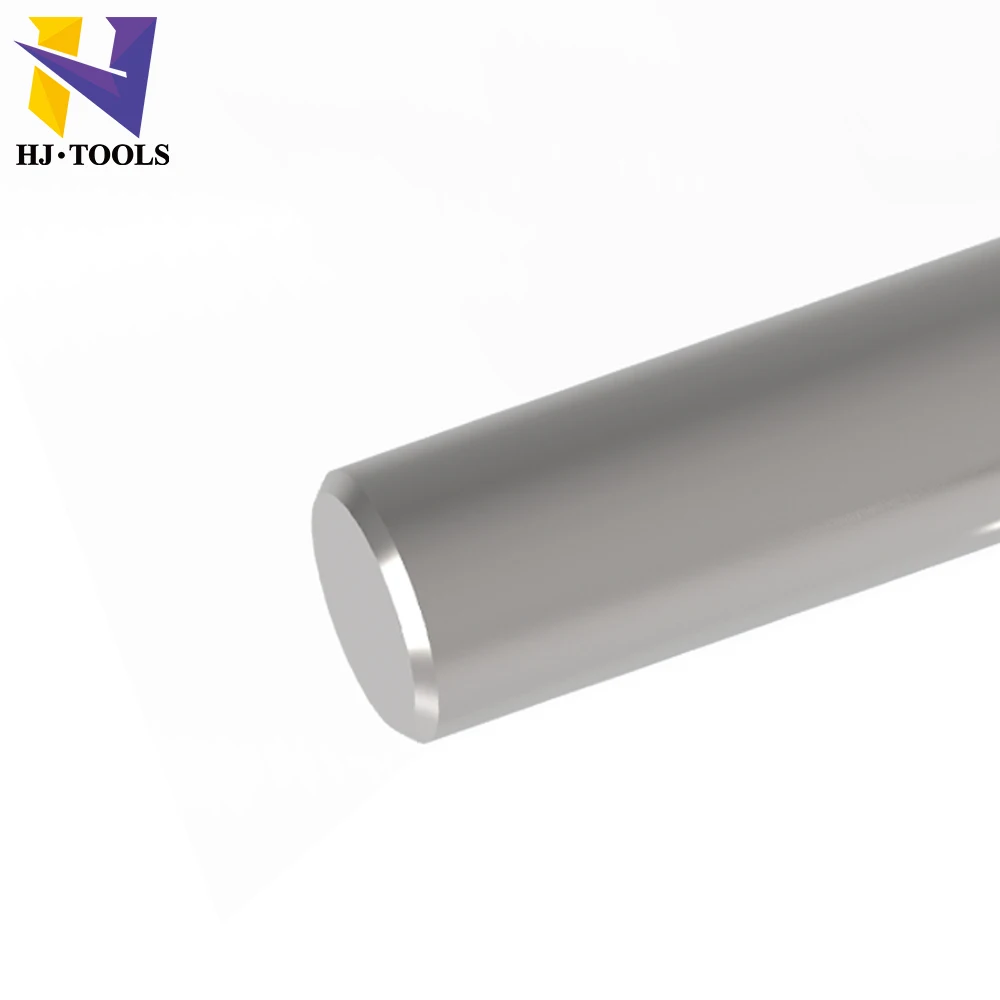

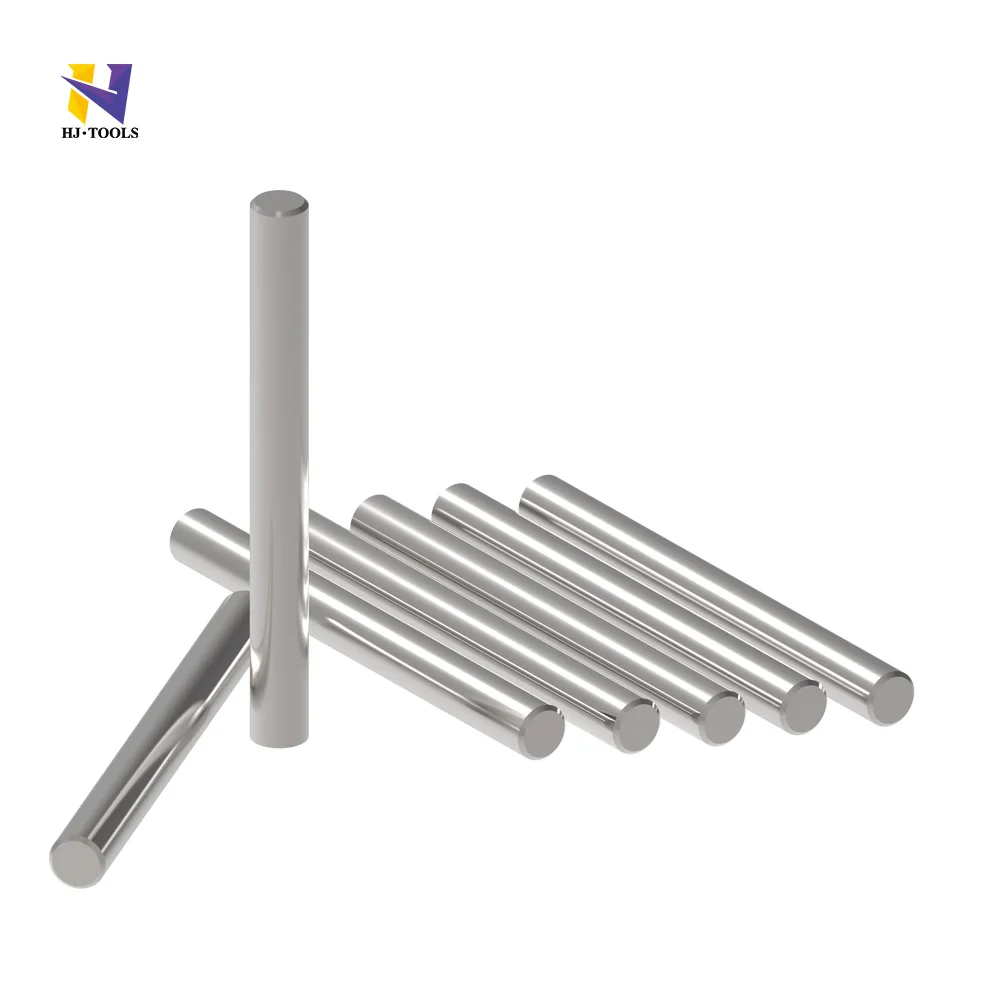

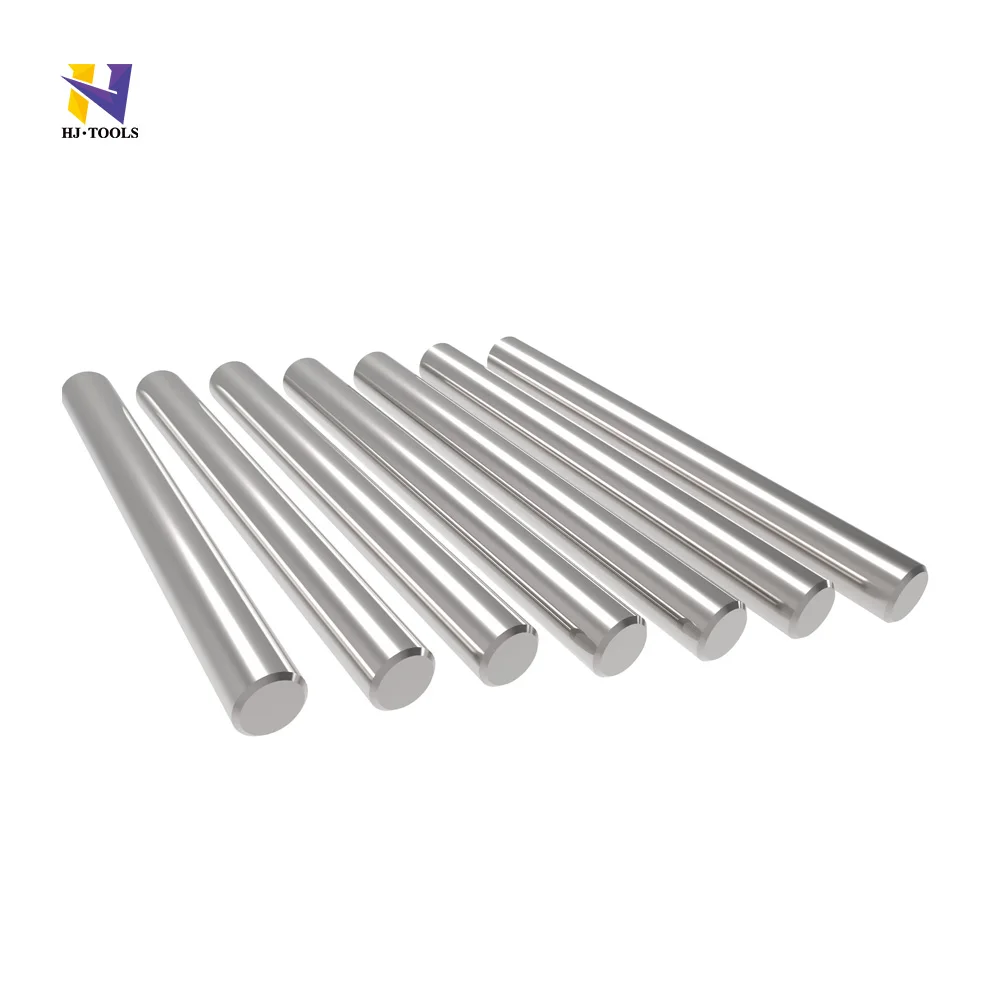

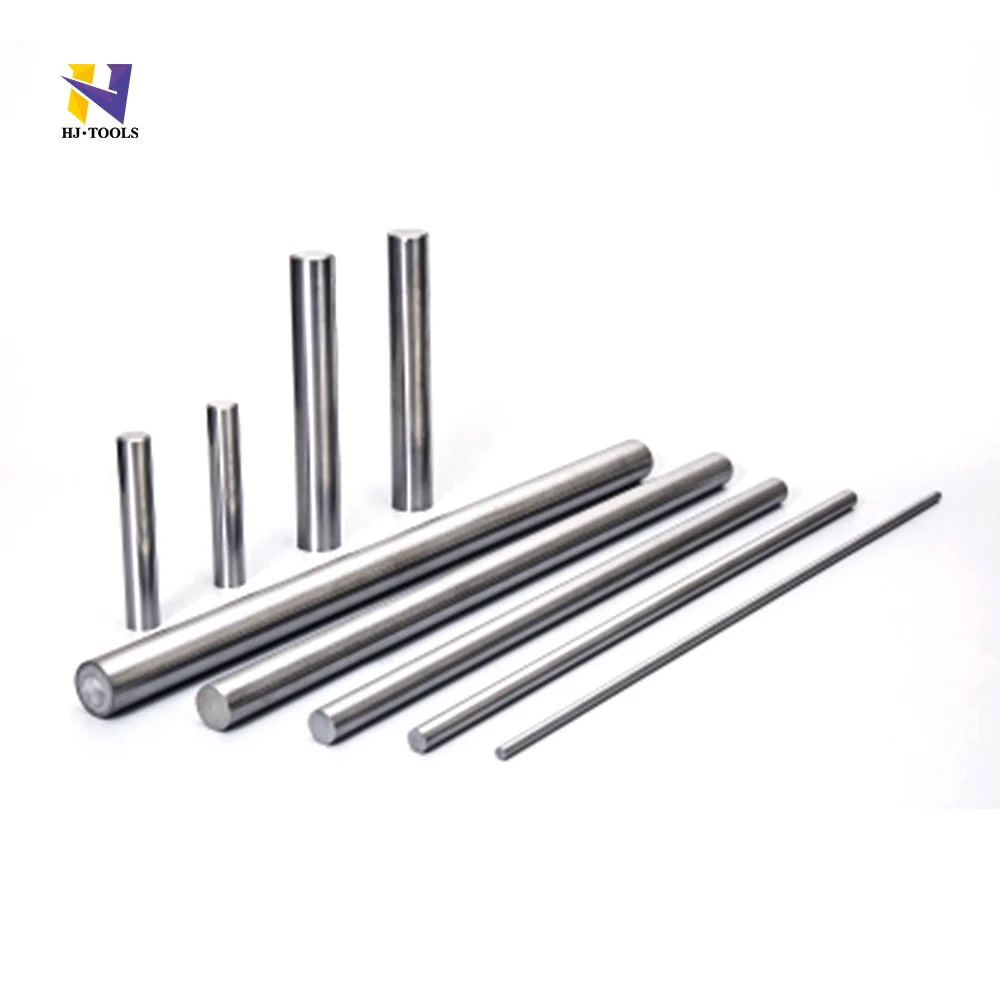

Manufacturer Raw material T09NF Cemented Tungsten Carbide Rods Ground Rods With Chamfer for Graphite, Carbon Fiber
- Category: >>>
- Supplier: Xiamen HJ Carbide Technology Co. Ltd.
Share on (1601212924170):
Product Overview
Description
Product Description

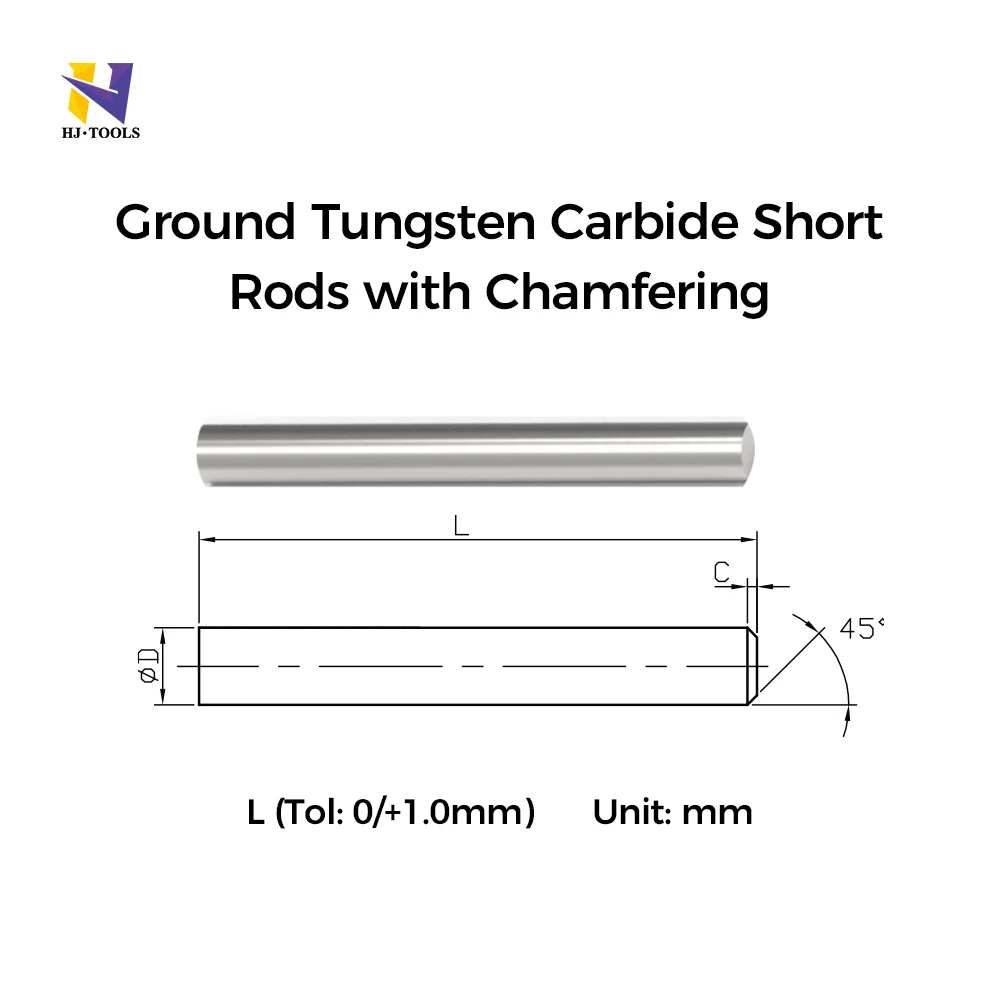

Product name | Ground Tungsten Carbide Short Rods with Chamfering-Metric |
Grade | HL12FS / HL12UF / T12UF / HL10S / T10F / T10 / T09NF / T08UF / T06A / HL06NF / HL06UF / T06UF / HL03S |
Application | End Mills, Drills, Cutting Tools |
Material | 100% Original Tungsten Carbide |
Tolerance | h6 |

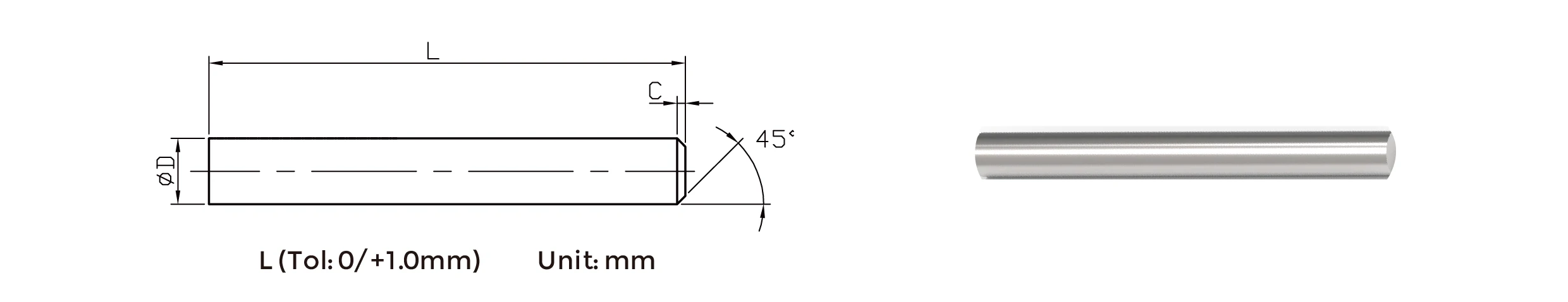

Specification
Outer Diameter ΦD | Length L | Chamfering Dimension C | Tol. h6 | Outer Diameter ΦD | Length L | Chamfering Dimension C | Tol. h6 |
3 | 40 | 0.4 | ○ | 8 | 80 | 0.6 | ○ |
3 | 50 | 0.4 | ○ | 8 | 90 | 0.6 | ○ |
3 | 70 | 0.4 | ○ | 8 | 100 | 0.6 | ○ |
3 | 100 | 0.4 | ○ | 8 | 150 | 0.6 | ○ |
3 | 150 | 0.4 | ○ | 10 | 70 | 0.6 | ○ |
4 | 40 | 0.4 | ○ | 10 | 75 | 0.6 | ○ |
4 | 50 | 0.4 | ○ | 10 | 90 | 0.6 | ○ |
4 | 75 | 0.4 | ○ | 10 | 100 | 0.6 | ○ |
4 | 100 | 0.4 | ○ | 10 | 125 | 0.6 | ○ |
4 | 150 | 0.4 | ○ | 11 | 110 | 0.8 | ○ |
5 | 50 | 0.5 | ○ | 12 | 75 | 0.8 | ○ |
5 | 55 | 0.5 | ○ | 12 | 90 | 0.8 | ○ |
5 | 60 | 0.5 | ○ | 12 | 100 | 0.8 | ○ |
5 | 70 | 0.5 | ○ | 12 | 120 | 0.8 | ○ |
5 | 80 | 0.5 | ○ | 14 | 75 | 0.8 | ○ |
5 | 100 | 0.5 | ○ | 14 | 110 | 0.8 | ○ |
5 | 150 | 0.5 | ○ | 14 | 125 | 0.8 | ○ |
6 | 50 | 0.5 | ○ | 16 | 100 | 0.8 | ○ |
6 | 60 | 0.5 | ○ | 16 | 125 | 0.8 | ○ |
6 | 75 | 0.5 | ○ | 18 | 100 | 0.8 | ○ |
6 | 100 | 0.5 | ○ | 18 | 150 | 0.8 | ○ |
6 | 150 | 0.5 | ○ | 20 | 100 | 1 | ○ |
7 | 55 | 0.6 | ○ | 20 | 120 | 1 | ○ |
7 | 60 | 0.6 | ○ | 20 | 150 | 1 | ○ |
8 | 60 | 0.6 | ○ | 25 | 100 | 1 | ○ |
8 | 75 | 0.6 | ○ | 25 | 150 | 1 | ○ |
○ In stock ▲ Customizable
Features
1)High Hardness
86-93HRA, Approximate 69-81HRC.
2)Good Red Hardness
It can remain 60HRC at temperature ranges 900-1000°C.

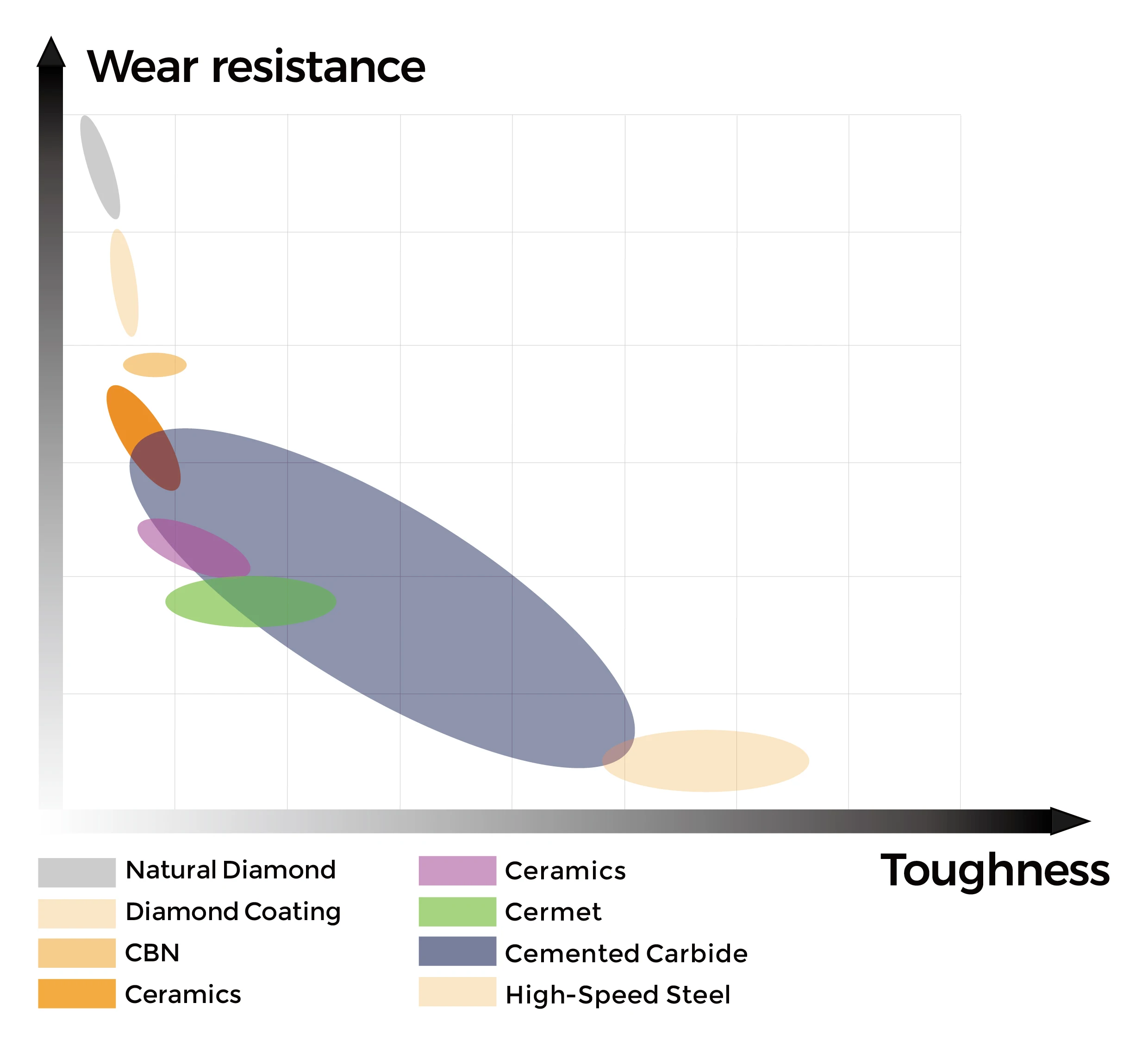

3)High Wear-resistance
The cutting speed of cemented carbide tools is 4-7 times higher than high-speed steel, and the tool life is 5-80 times longer. The tool life could be longer than alloy tool steel 20-150 times if they are used for manufacturing molds and measuring tools.
86-93HRA, Approximate 69-81HRC.
2)Good Red Hardness
It can remain 60HRC at temperature ranges 900-1000°C.
3)High Wear-resistance
The cutting speed of cemented carbide tools is 4-7 times higher than high-speed steel, and the tool life is 5-80 times longer. The tool life could be longer than alloy tool steel 20-150 times if they are used for manufacturing molds and measuring tools.
Grade Specifications
Notes: The above mentioned numerical values are typical values, which are testing results base on national standard of all the performances, they are for reference only. The actual numerical values are subject to Warranty booklets.

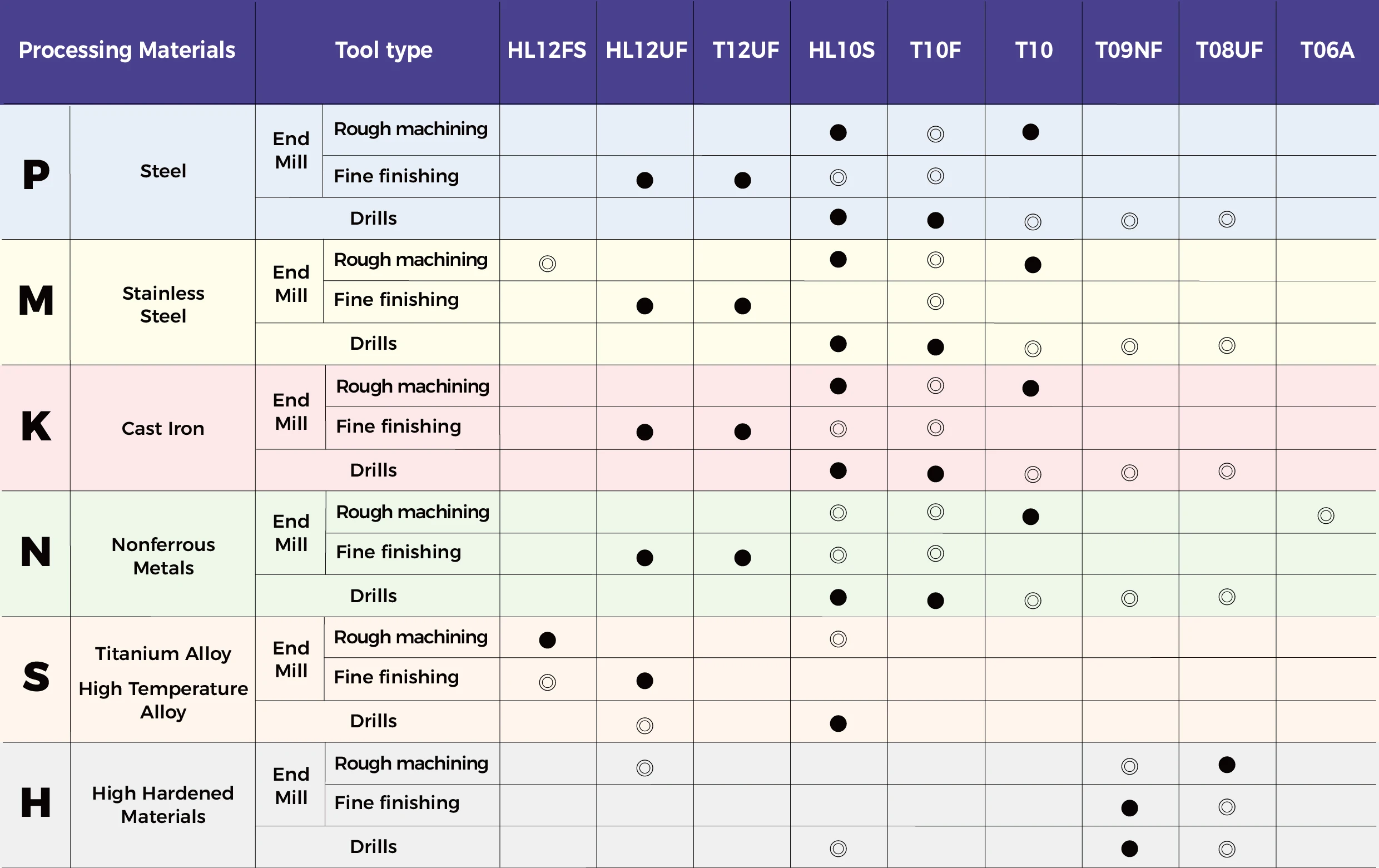

Grade Selection Guide
Metal Processing
◎ First Choice ● Second Choice

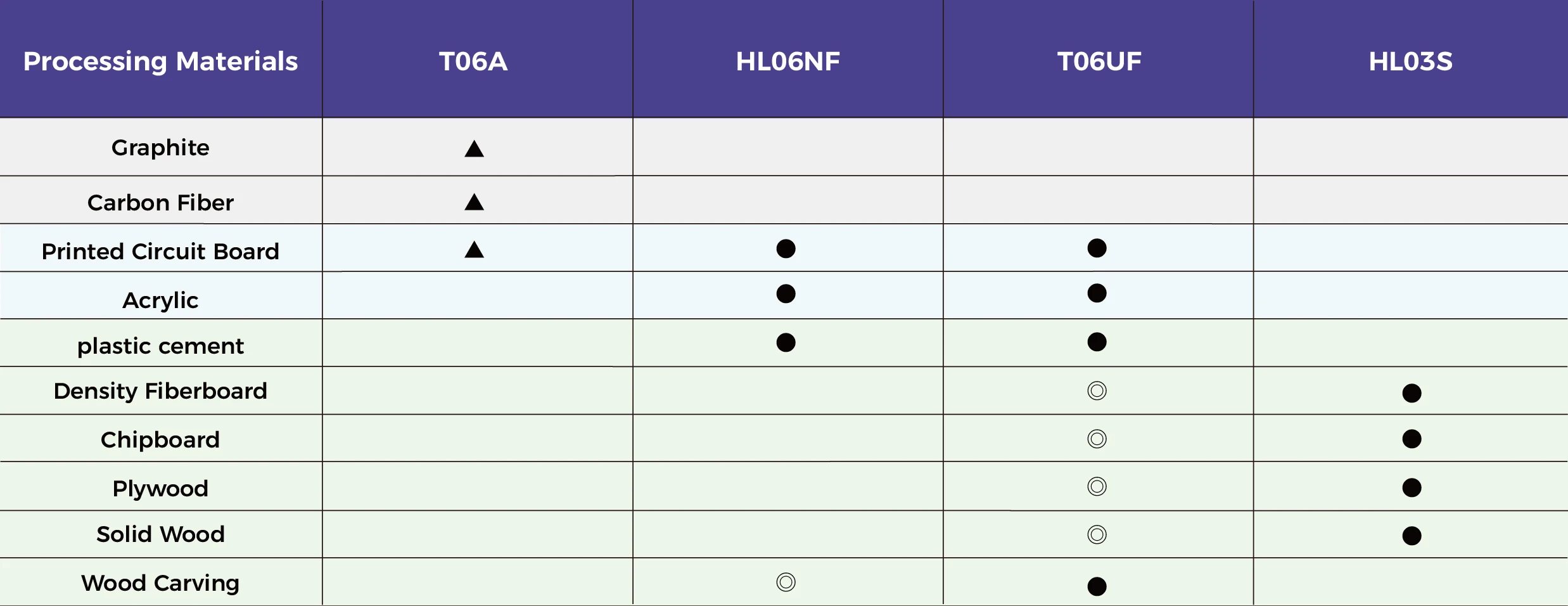

Non-metal processing
◎ First Choice ● Second Choice ▲ Diamond Coating
Notes: The above grades we recommended are for your reference only, The Tool Design, Coating and working Condition all will affect tool life, Please choose your materials carefully base on actual testing and use conditions.

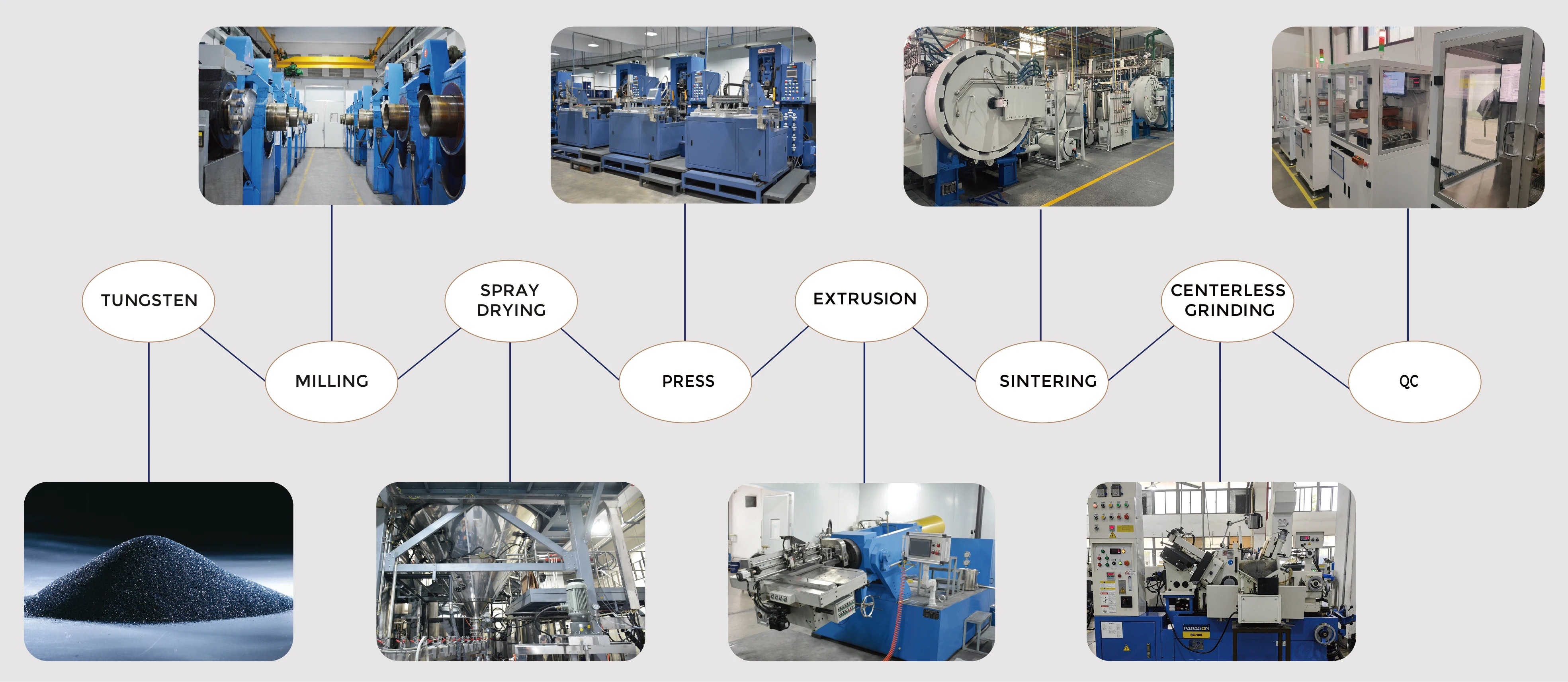

Production Process
Company Profile
HJ Carbide is a high-tech enterprise integrating R&D, production and sales. Expert in the ultrafine cemented carbide research and development.
We specialized in designing and manufacturing of precision cutting tools, including cemented carbide rods, Solid Carbide end mill cutter, carbide drill bits, carbide turning inserts and some special precision cutting tools.
Our company is based on our firm commitment to providing the premium cutting tools and highest levels of customer service for global customers in the aerospace, automotive, medical, mold making and 3C industries who are looking
for comprehensive cutting tool solutions.
Coupled with a range of advanced manufacturing equipment, streamlined processes and testing devices, our team of seasoned professionals is large enough to produce the cutting tools to an exceptionally high standard. All our cutting tool products are ISO9001 and OHSAS18001 compliant. The reliable quality of products is highly appreciated by our customers worldwide.
Whether you are a distributor looking for cooperative partner or an end user looking for custom cutting tools for your specific machining applications, We are a trustworthy source for you.
Certifications
Exhibition
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: Are you a manufacturer?
A: Yes, We are a professional cutting tools manufacturer and has its own factory based in Xiamen. We produce in-house the carbide rods, end mills, drill bits, indexable inserts, etc.
Q: Can you supply with drawing or on an ODM basis?
A: Yes, We can supply customized products.
1) We can produce according to your drawings;
2) We can supply goods with medium-sized packaging without our logo, then you can repack at your side with your brand packaging;
3) If volume is big, we can pack at our side with your brand packaging.
Q: Why we cooperate with you?
A: There are some reasons:
1) We are a company with adequate production machines, inspection instruments, which can supply good quality products with reasonable price;
2) We enter new cutting tool area with skilled personnel who have worked in industry-renowned companies for years, which found a basis for our future growth.
3) We have launched the new brand “HONGJIANG” for cutting tools and seek for partner globally. Now it is the right time to cooperate with us and take an advanced position in our sales network.
Q: What is your brand positioning?
A:
1). Quality positioning: HONGJIANG brand aims at establishing itself as a leading brand and competing in a global market by supplying premium quality products.
2). Price positioning: We provide our products with the same quality as those international brands at more reasonable prices.
Q: Is application engineer available when needed?
A: Yes, we provide online training and technical support. When any tough challenges are faced by user, we will send our application engineer to provide on-site technical support at customer's site.
A: Yes, We are a professional cutting tools manufacturer and has its own factory based in Xiamen. We produce in-house the carbide rods, end mills, drill bits, indexable inserts, etc.
Q: Can you supply with drawing or on an ODM basis?
A: Yes, We can supply customized products.
1) We can produce according to your drawings;
2) We can supply goods with medium-sized packaging without our logo, then you can repack at your side with your brand packaging;
3) If volume is big, we can pack at our side with your brand packaging.
Q: Why we cooperate with you?
A: There are some reasons:
1) We are a company with adequate production machines, inspection instruments, which can supply good quality products with reasonable price;
2) We enter new cutting tool area with skilled personnel who have worked in industry-renowned companies for years, which found a basis for our future growth.
3) We have launched the new brand “HONGJIANG” for cutting tools and seek for partner globally. Now it is the right time to cooperate with us and take an advanced position in our sales network.
Q: What is your brand positioning?
A:
1). Quality positioning: HONGJIANG brand aims at establishing itself as a leading brand and competing in a global market by supplying premium quality products.
2). Price positioning: We provide our products with the same quality as those international brands at more reasonable prices.
Q: Is application engineer available when needed?
A: Yes, we provide online training and technical support. When any tough challenges are faced by user, we will send our application engineer to provide on-site technical support at customer's site.
