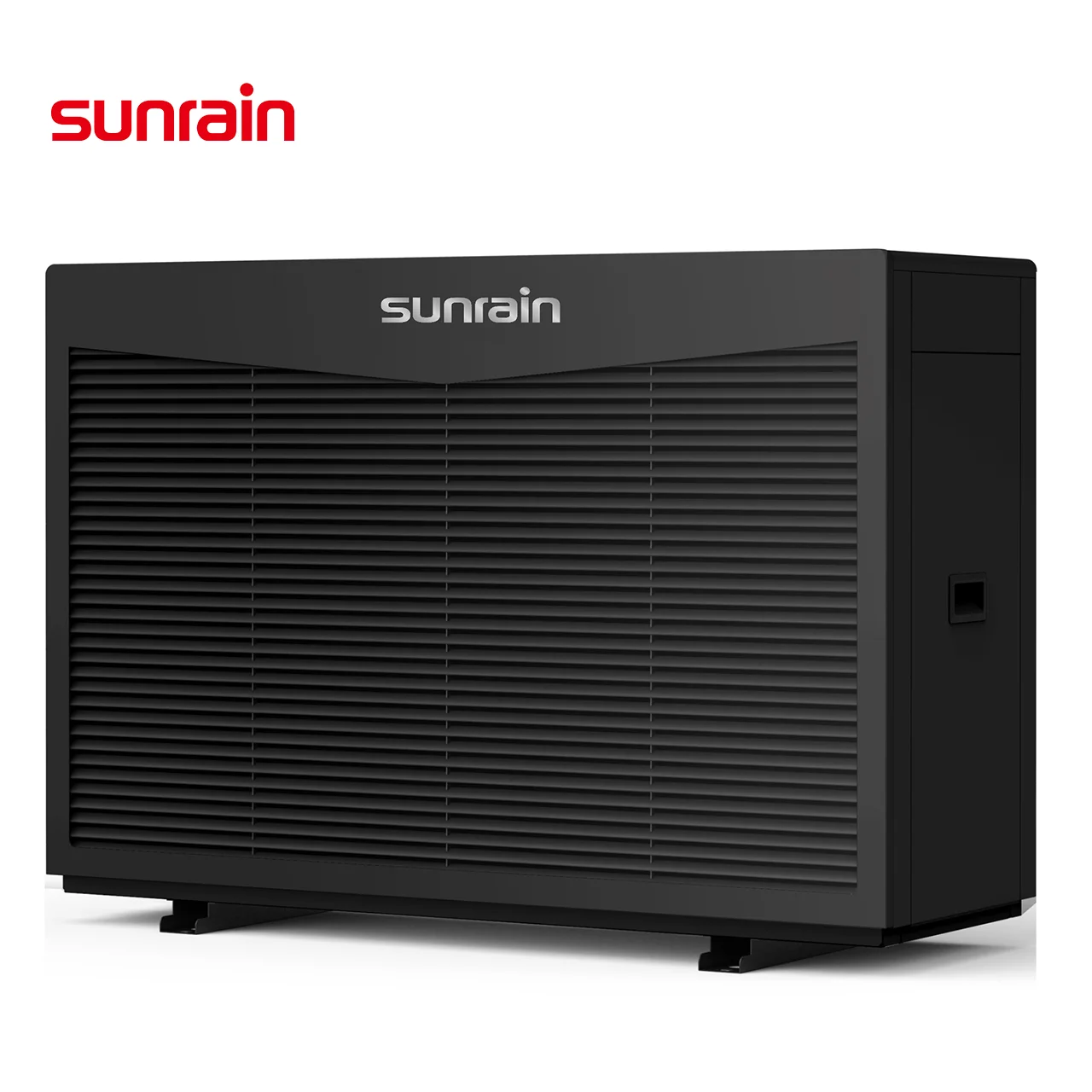

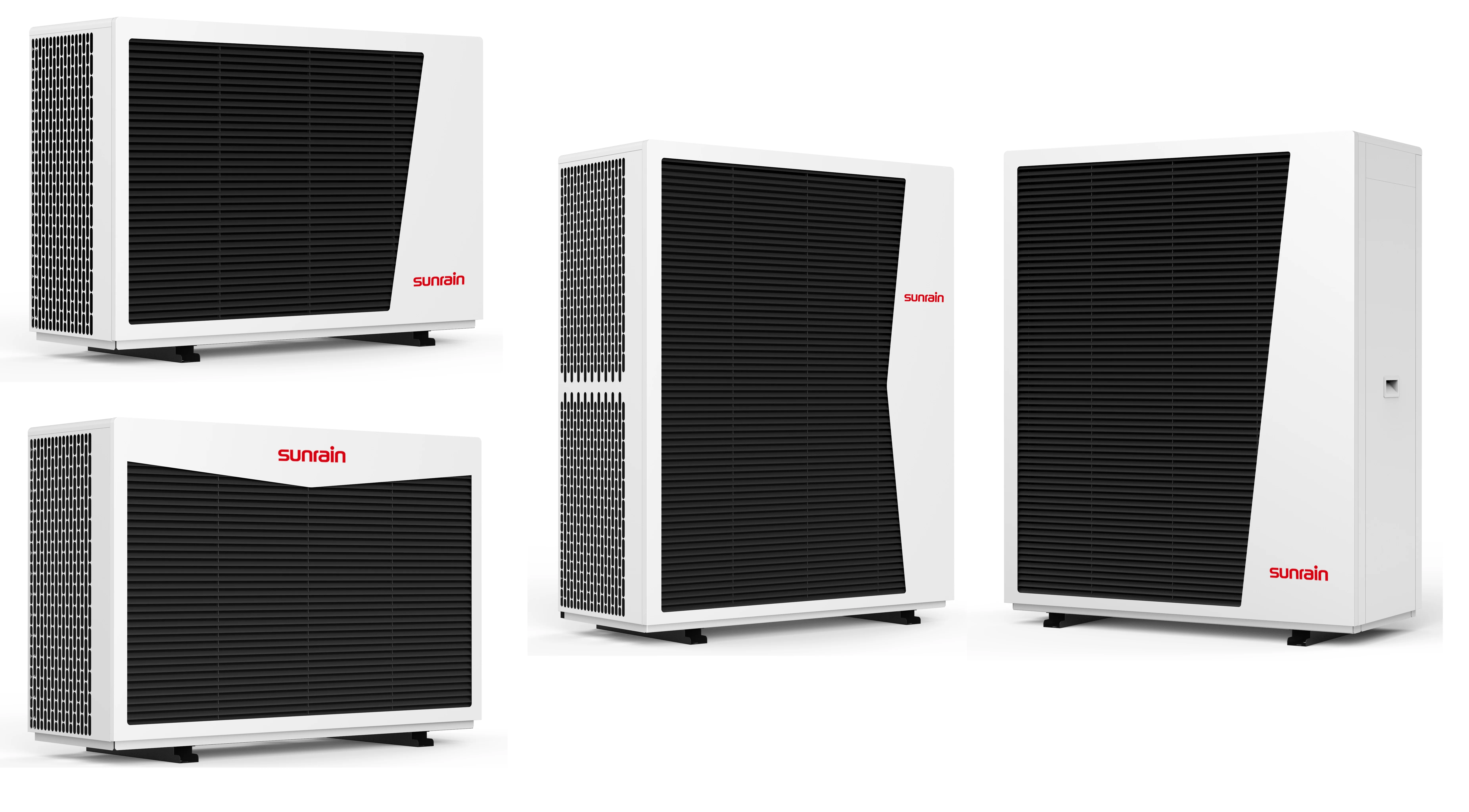

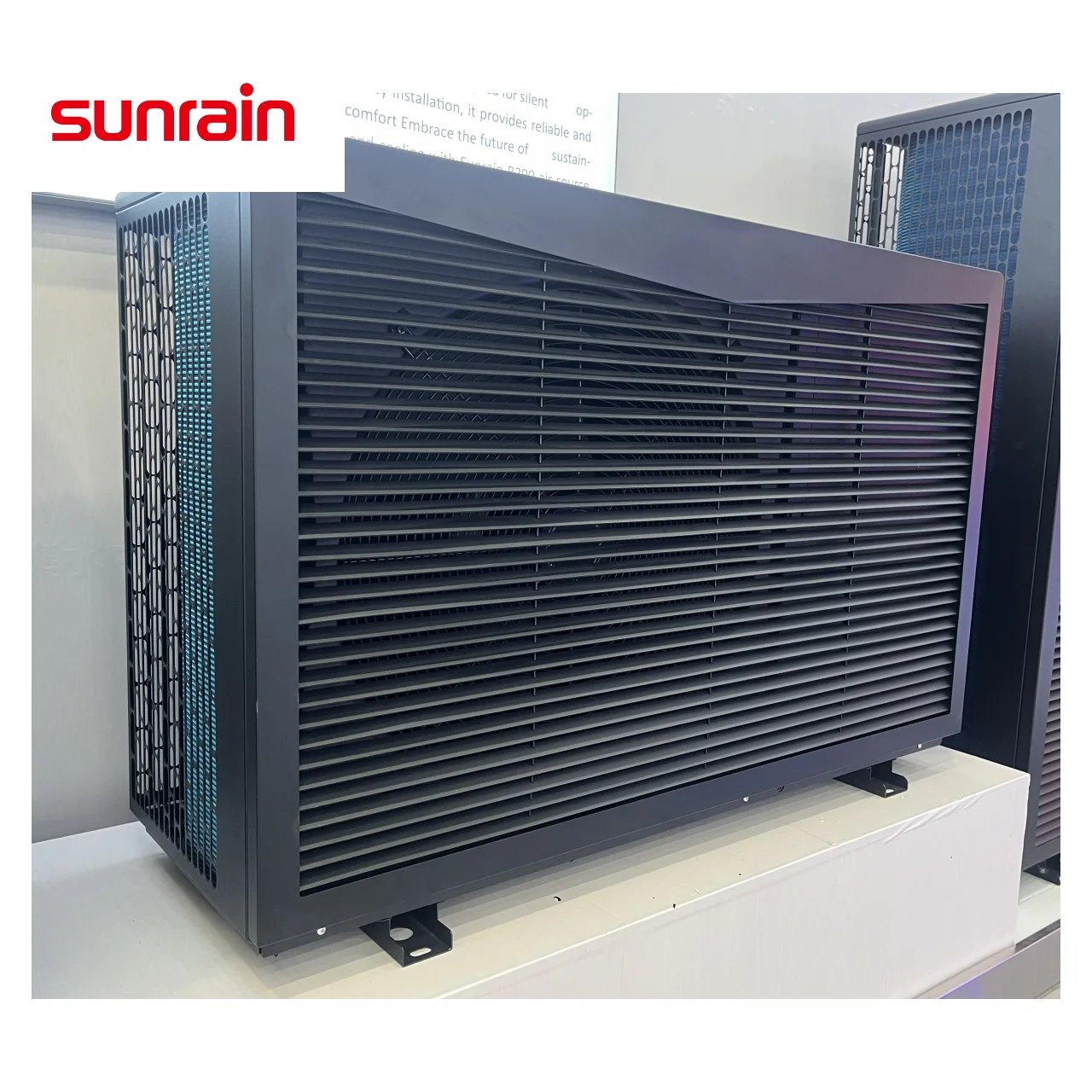

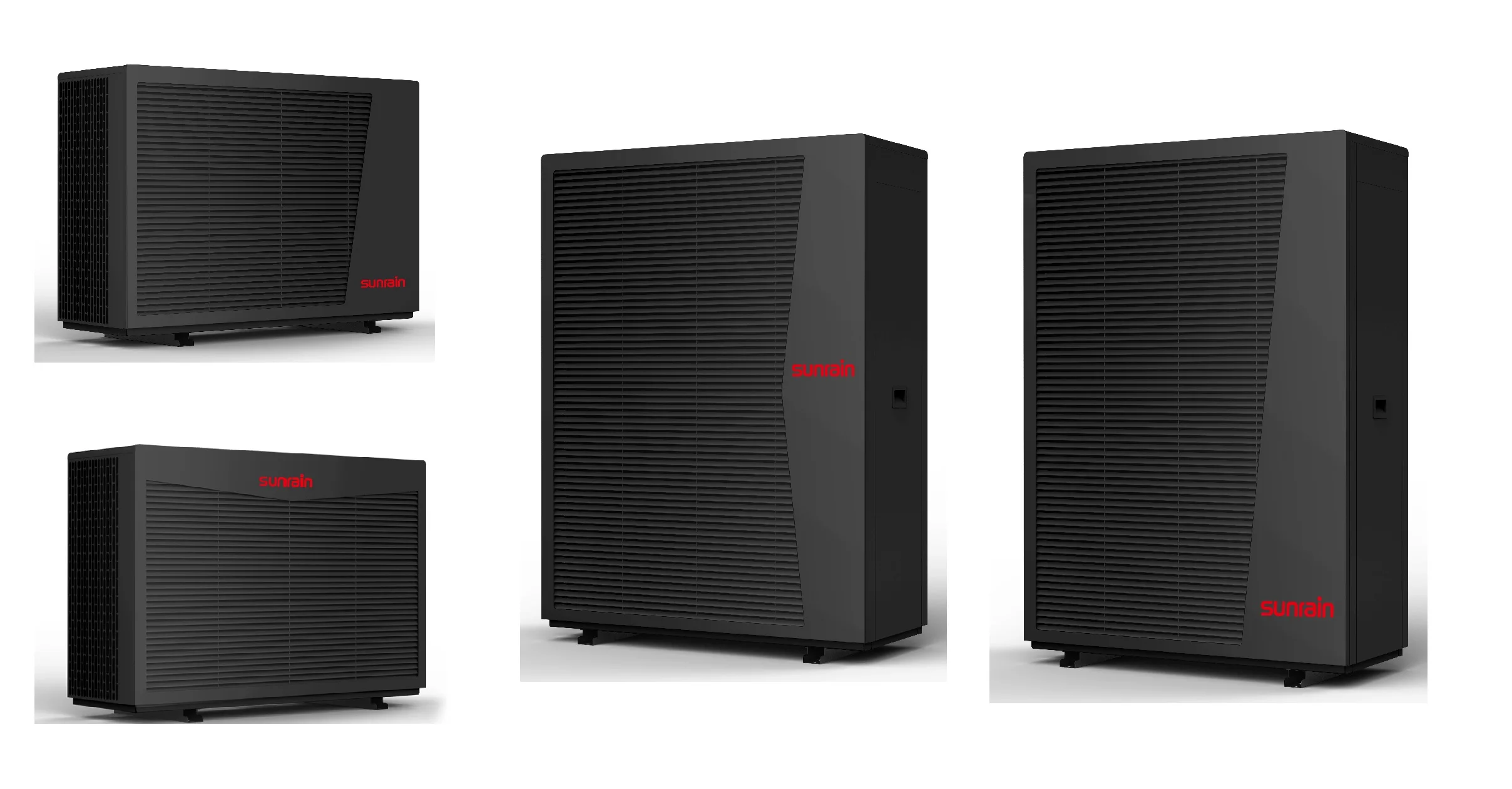

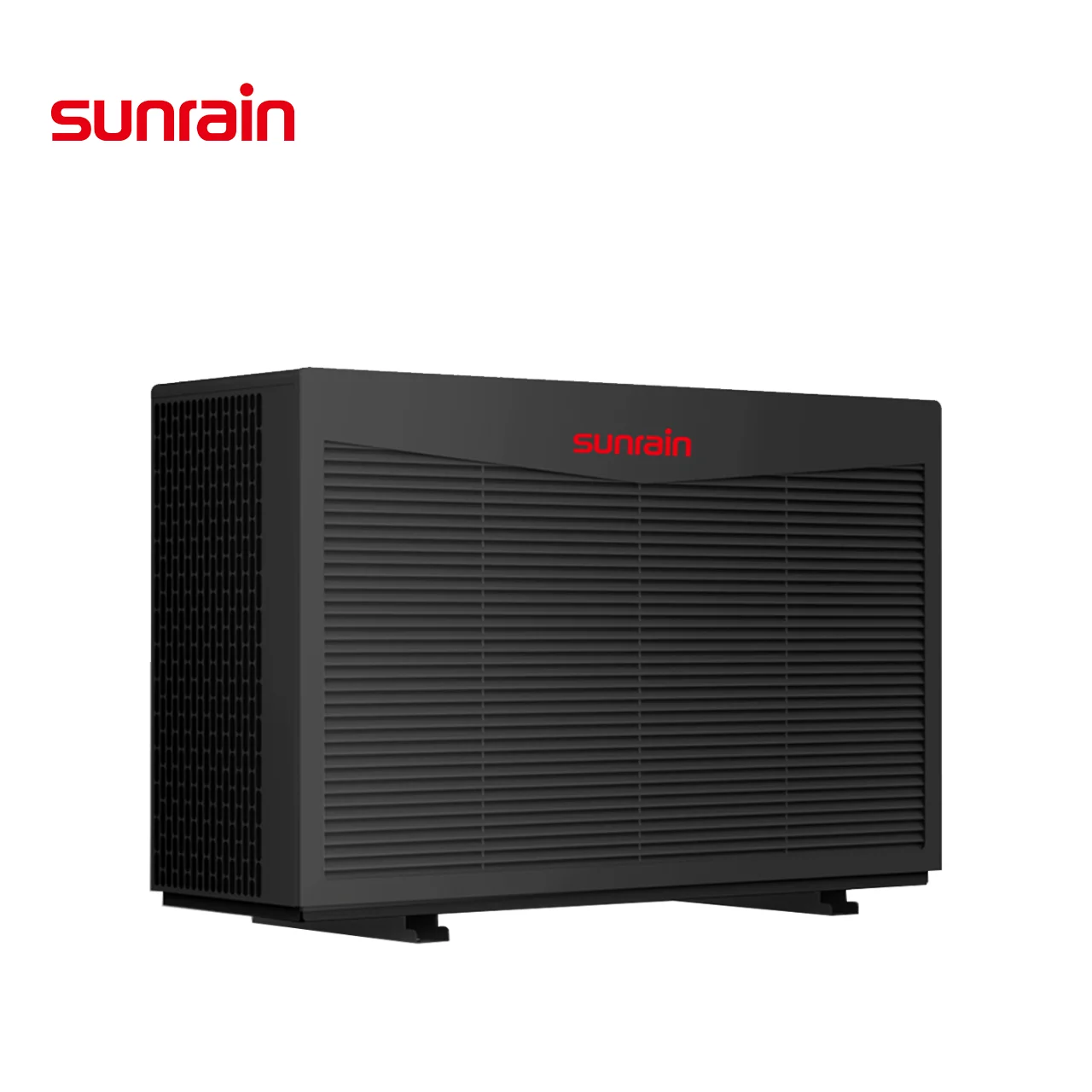

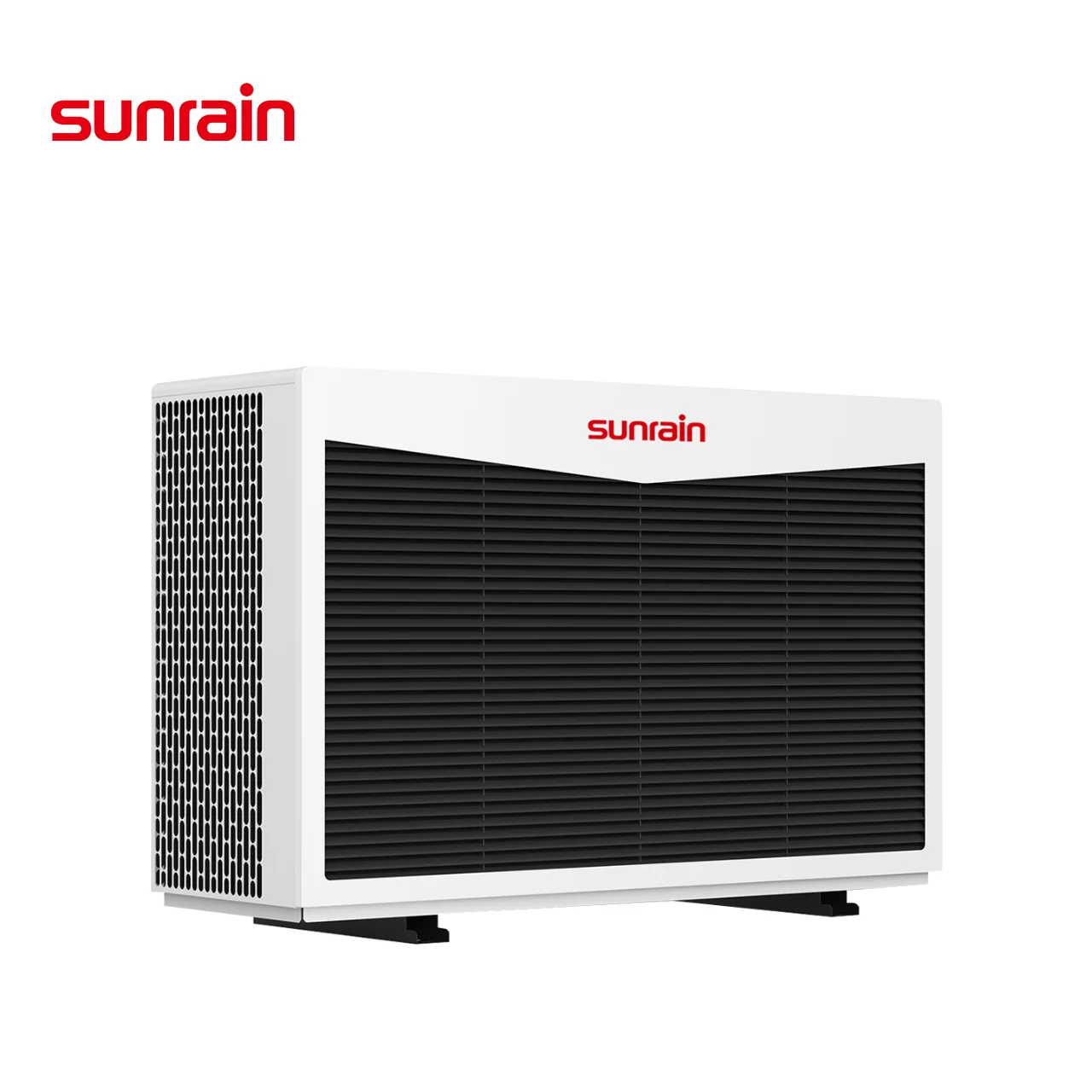

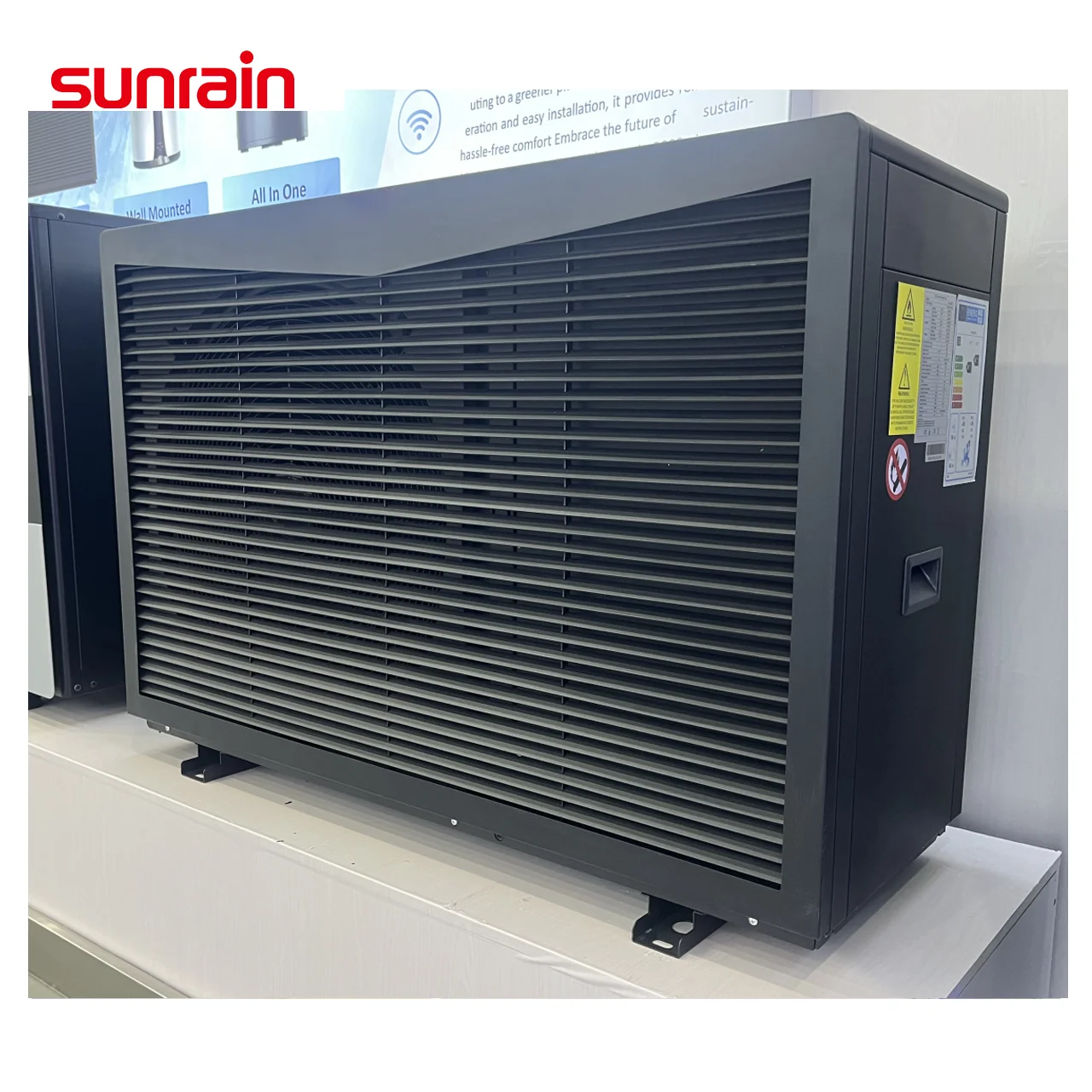

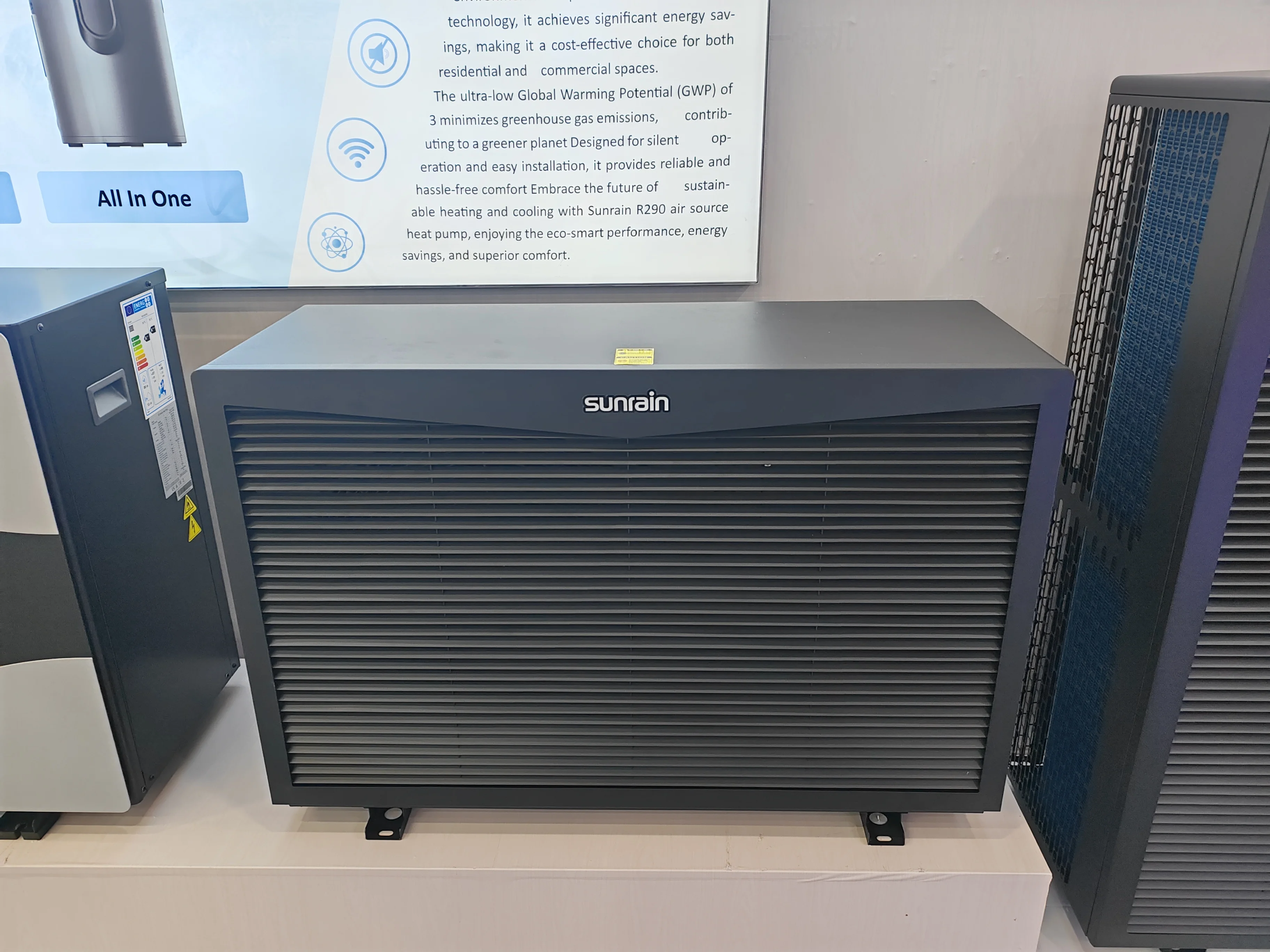

Sunrain Factory R290 Air Source Full DC Inverter EVI Heating Cooling & DHW Air to Water Heater A WIFI Air Monoblock Heat Pump
- Category: >>>
- Supplier: Jiangsu Sunrain Solar Energy Co. Ltd.
Share on (1601213169171):
Product Overview
Description
Product Description

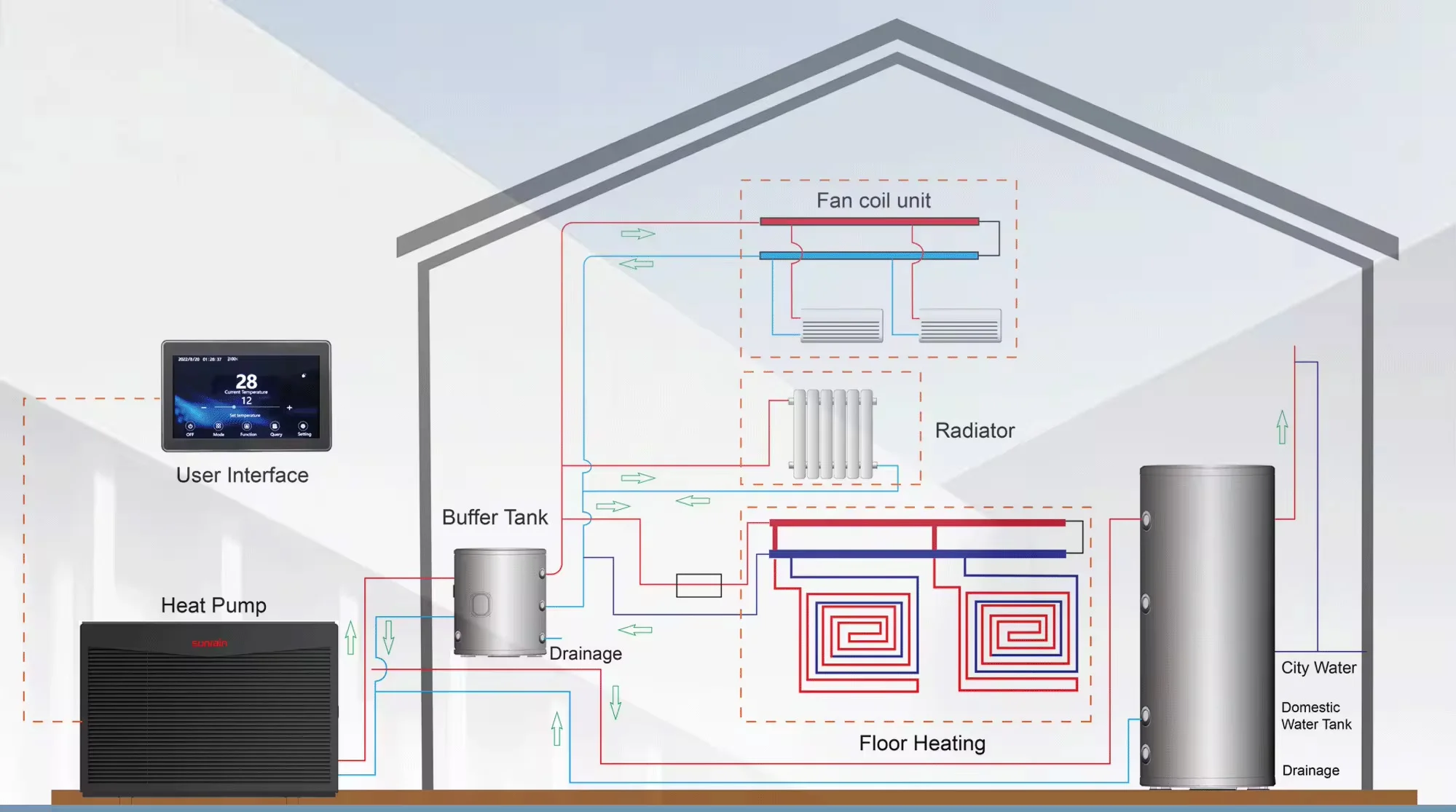

Standby Programs for User Selection
1)-Hot water model
2)-Fan coil heating mode
3)-Fan coil cooling mode
4)-Hot water +Floor/radiator circulating heating mode
5)-Floor/radiator circulating heating mode
6)-Hot water + Fan coil heating mode
7)-Hot water + Fan coil cooling
3)-Fan coil cooling mode
4)-Hot water +Floor/radiator circulating heating mode
5)-Floor/radiator circulating heating mode
6)-Hot water + Fan coil heating mode
7)-Hot water + Fan coil cooling
Features of Monobloc Heat Pump
1). R290 refrigerant, low GWP (GWP=3).
2). Energy class: A+++.
3). Stable operation at —25℃
4). Power Detection Function
5). SG-READY Function
6). 5-Inch TFT True Color Screen
3). Stable operation at —25℃
4). Power Detection Function
5). SG-READY Function
6). 5-Inch TFT True Color Screen
7). 5G/2.4G Compatible WIFI Module
8). Dual Temperature Zone
9). Reserved RS485 Communication Port
10). Linkage Control with PV Function
11). Outlet water temperature up to 75℃.
8). Dual Temperature Zone
9). Reserved RS485 Communication Port
10). Linkage Control with PV Function
11). Outlet water temperature up to 75℃.

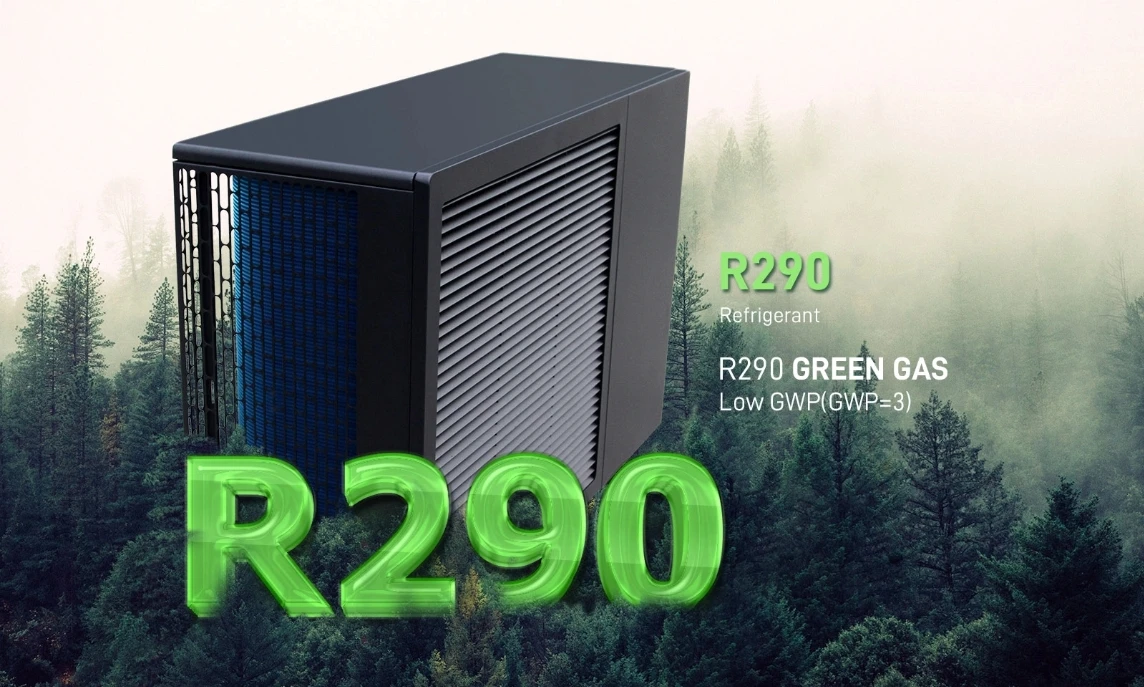

Green R290 Refrigerant
Experience sustainable style with our Keymark approved R290 EVI monoblock DC inverter heat pump – powered by low GWP R290 refrigerant and designed to green your customer's life.
Ultra Quiet Operating Mode
By incorporating the advanced technology of air-to-water heat pump, we offer the ability to adjust the power of the compressor and fan, allowing for noise reduction during specific periods when quiet operation is desired, such as at night. With this feature, the 'air to water heat pump' can cut down the noise level by half, ensuring a peaceful and comfortable environment for users. This intelligent control over the pump's performance not only enhances comfort but also optimizes energy usage.
Full DC inverter Technology
Sunrain DC Inverter heat pumps, including the advanced air-to-water heat pump, are designed to deliver remarkable energy savings for both heating and hot water production. With their high Seasonal Coefficient of Performance (SCOP) levels, these heat pumps offer exceptional efficiency and sustainability. In comparison to traditional heating systems such as boilers, air-to-water heat pump can reduce energy consumption by 30% to 50% over a single winter, leading to substantial cost savings for users. By harnessing renewable energy from the air, the heat pump minimizes reliance on fossil fuels and significantly lowers carbon emissions, making it an environmentally-friendly choice.
DC INVERTEER COMPRESSOR
In contrast to AC drive technology, DC inverter speed technology often regulates compressor control process more accurately,increasing transmission efficiency and lowering compressor noise and energy consumption.
DC INVERTER FAN MOTOR
DC fan moto control enables super-quiet fan operation and minimizes power consumption.
WATER PUMP
The built-in water pump connects to the water inlet of the machine to make water flow in the pipe.
ELECTRONIC EXPANSION VALVE
In order to maintain the stability of the refrigeration the system, and electronic valve can quickly alter the flow of
refrigerant.
refrigerant.
PLATE HEAT EXCHANGER
Heat exchange is carried out through the plates, which has the advantage of high heat exchange efficiency

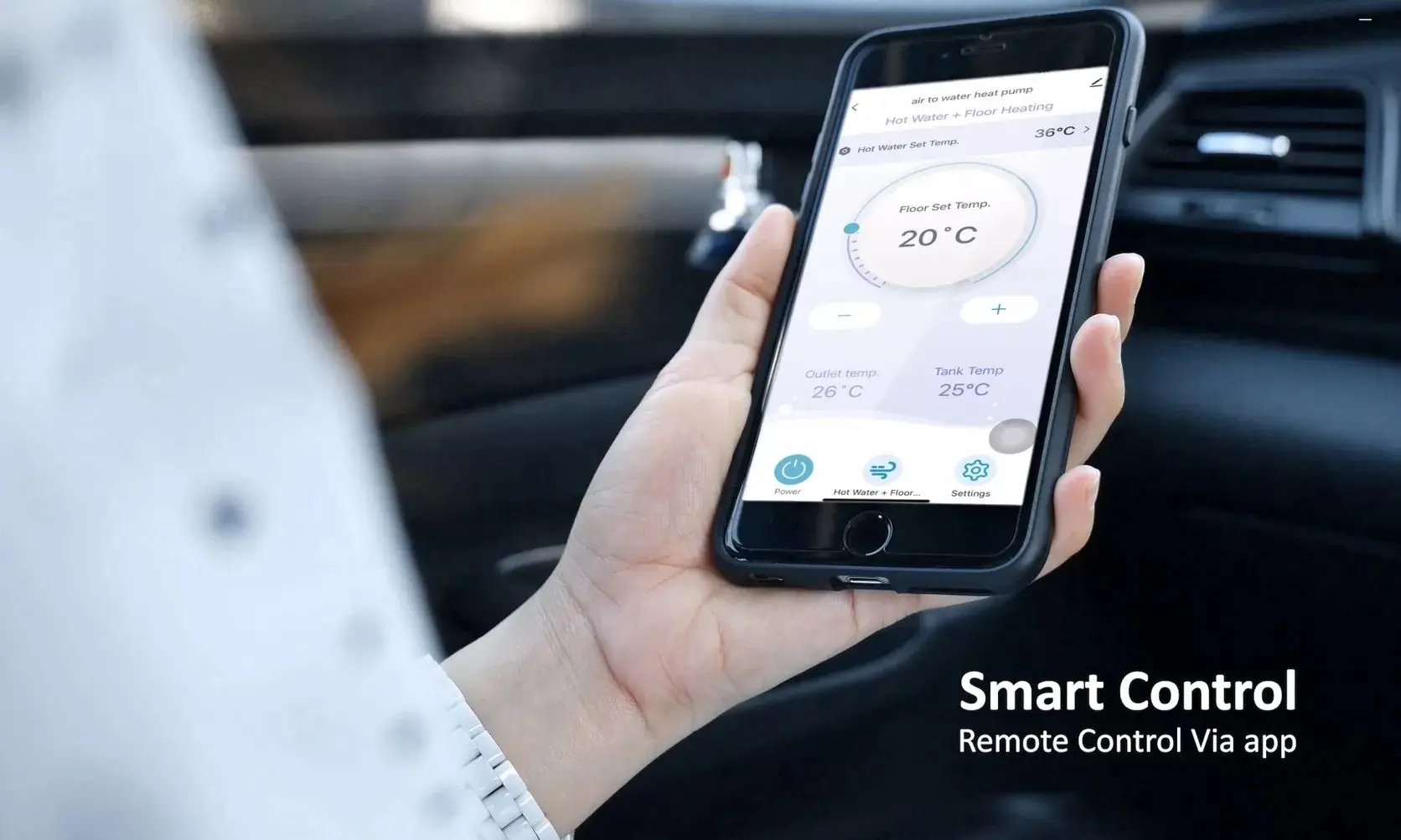

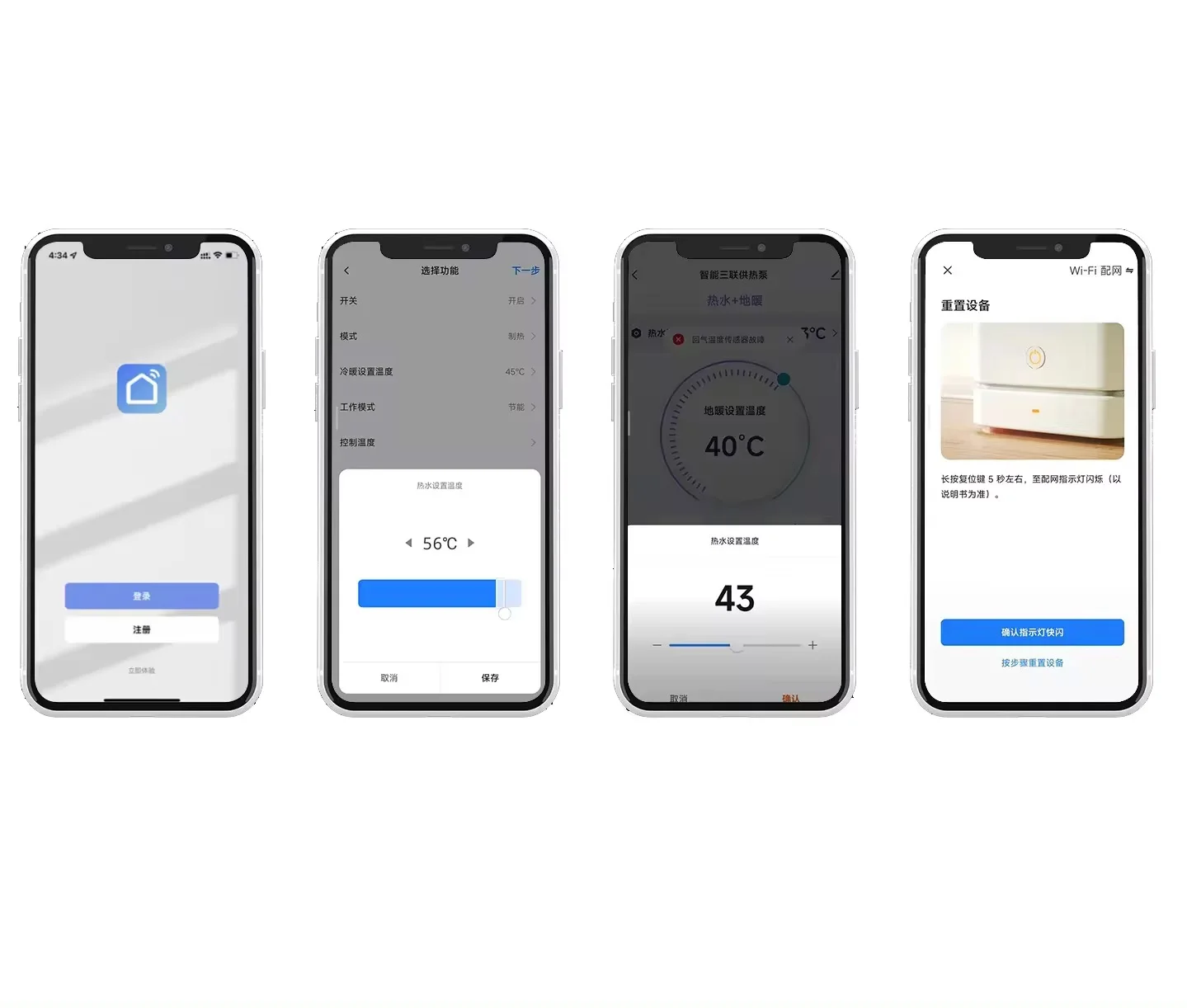

5G/2.4G Compatible WIFI Module
Stay connected with our innovative air source heat pump, which includes a 5G/2.4G Compatible WIFI Module. Using your smartphone or tablet, you can operate and monitor your heat pump system from anywhere. For maximum comfort and energy efficiency, enjoy the simplicity of altering settings, scheduling temperature adjustments, and getting real-time notifications.

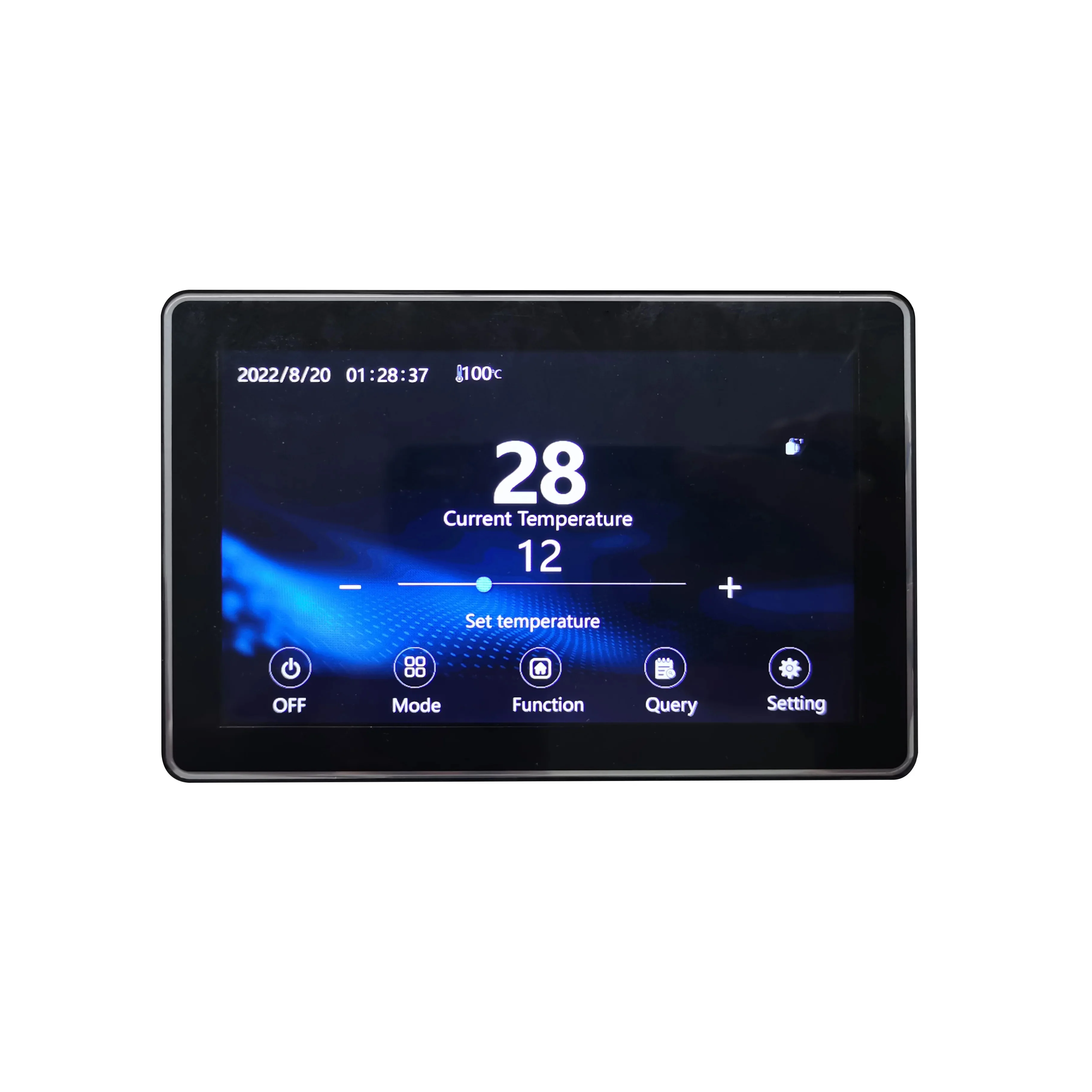

USER-FRIENDLY CONTROL TFT
The efficient and eco-friendly air-to-water heat pump system can be accessed via the color LED display. Sunrain has consolidated all features and configurations, including the advanced technology of the air-to-water heat pump, onto a single page to ensure ease of use.
Exclusive Design To Work In The Most Extreme Condition
The versatile air-to-water heat pump is engineered to operate effectively across a wide range of outdoor temperatures, including extreme conditions. With its robust design, this equipment can reliably function in temperatures as low as -25°C and as high as 35°C. Whether you're facing freezing winters or scorching summers, the 'air to water heat pump' remains efficient and dependable, providing consistent heating and hot water production throughout the year. This exceptional temperature range capability ensures that users can rely on the air-to-water heat pump to meet their heating needs regardless of the climate or weather conditions.Whether it's battling cold or enduring sweltering heat, the air-to-water heat pump is designed to withstand and perform optimally in a broad spectrum of outdoor temperatures, delivering comfort and reliability in any environment.

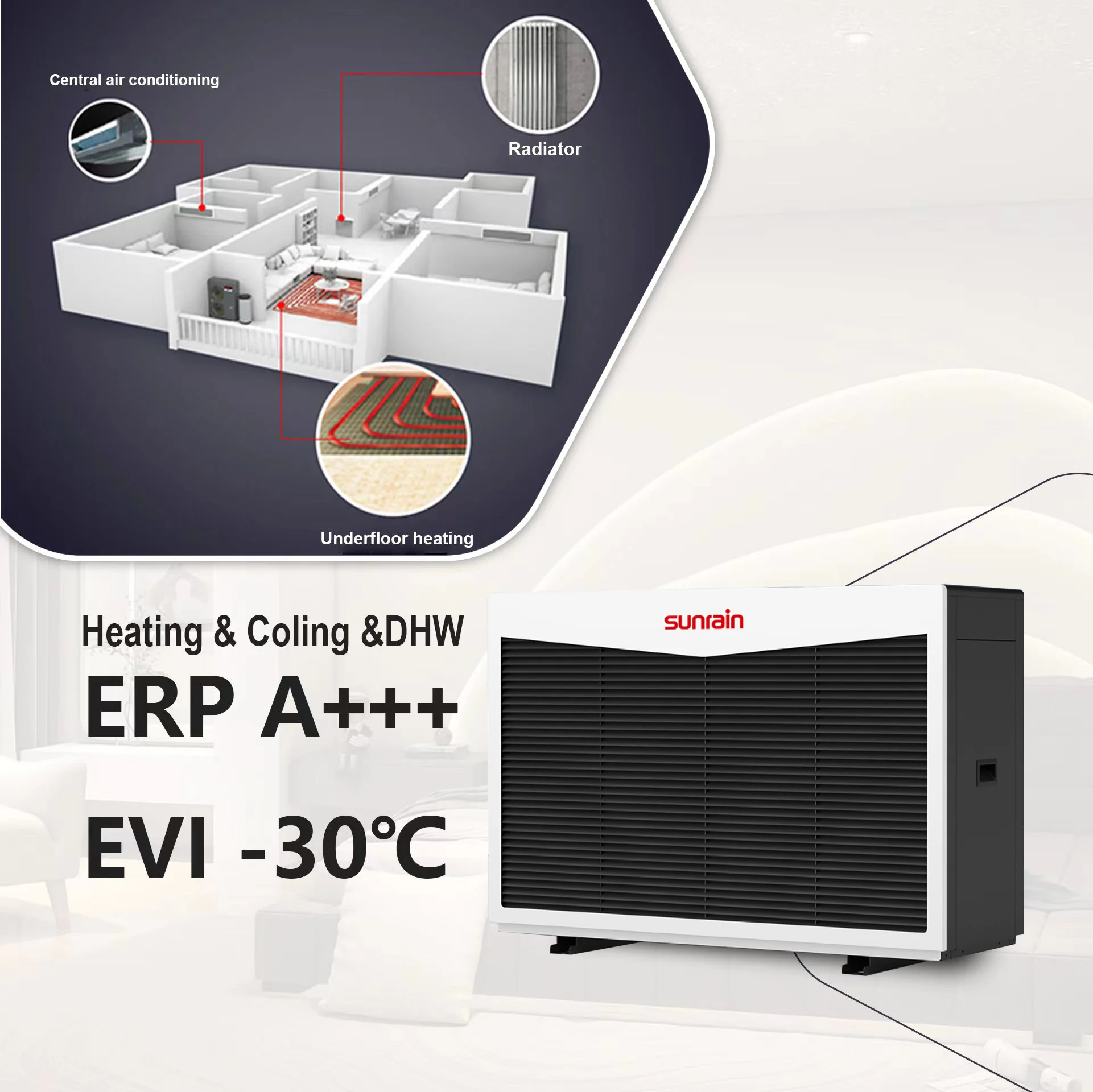

Dual Temperature Zone
With the innovative air-to-water heat pump, you can experience personalized comfort at its finest, thanks to its dual temperature zone capability. This advanced feature allows you to independently adjust the temperature settings for different areas of your home, ensuring optimal comfort and energy efficiency.
Proven Quality
Sunrain offers heat pump solutions that can seamlessly integrate into the future smart energy grids, contributing to the availability of affordable heating systems necessary for achieving carbon reduction targets. These heat pumps are designed to meet the rigorous standards set by prestigious quality accreditation schemes like MCS, Keymark, CE(Conformité Européenne), ErP(Energy-Related Products), BAFA, and SG Ready, which are essential for qualifying for state subsidies in Europe.

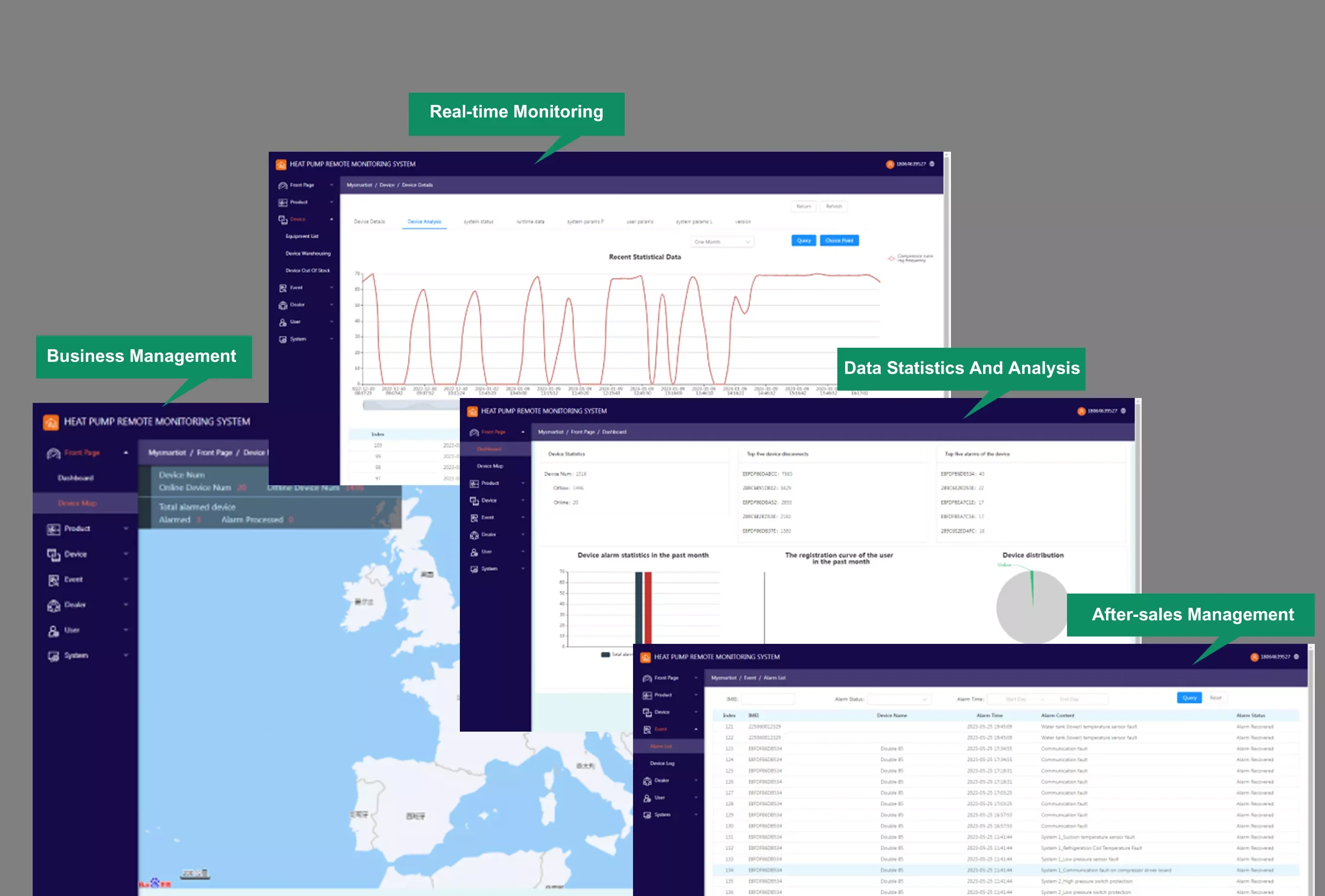

Efficient IoT Solution (DTU)
Sunrain takes customer management to the next level with its efficient IoT platform, specifically designed to enhance the performance of air-to-water heat pump and streamline operations for dealers. This innovative platform empowers dealers to reduce labour costs significantly while delivering exceptional customer service. By leveraging the platform's capabilities, dealers can remotely monitor the operating parameters of air-to-water heat pump, ensuring optimal performance and identifying any potential issues in real-time.
The IoT customer management platform also offers seamless data recording and synchronization features, enabling dealers to effortlessly integrate the management systems of both dealers and manufacturers. This integration facilitates efficient communication and collaboration, ensuring a smooth flow of information and streamlined processes.
The IoT customer management platform also offers seamless data recording and synchronization features, enabling dealers to effortlessly integrate the management systems of both dealers and manufacturers. This integration facilitates efficient communication and collaboration, ensuring a smooth flow of information and streamlined processes.
Specification
Model | SMHP-006C1 | SMHP-012C1 | SMHP-012C3 | SMHP-018C1 | SMHP-018C3 | |||||||
Power Supply | V/Ph/Hz | 220~240/1/50 | 380~415/3/50 | 220~240/1/50 | 380~415/3/50 | |||||||
Nominal Heating (Max) (A7/6℃,W30/35℃） | Heating Capacity | kW | 2.92~9.10 | 4.30~15.20 | 4.30~15.20 | 7.24~22.1 | 7.24~22.1 | |||||
Power Input | kW | 0.61~2.11 | 0.87~3.73 | 0.87~3.73 | 1.50~5.88 | 1.50~5.88 | ||||||
Current Input | A | 2.80~9.25 | 4.02~16.38 | 1.78~6.04 | 6.86~30.25 | 2.82~9.16 | ||||||
Nominal Heating (Max) (A7/6℃,W47/55℃） | Heating Capacity | kW | 2.99~8.16 | 4.25~14.55 | 4.25~14.55 | 6.36~19.45 | 6.36~19.45 | |||||
Power Input | kW | 1.03~2.92 | 1.45~4.28 | 1.45~4.28 | 2.15~6.85 | 2.15~6.85 | ||||||
Current Input | A | 4.57~12.79 | 6.71~18.80 | 2.84~6.78 | 9.84~30.12 | 3.71~10.60 | ||||||
Nominal Cooling (Max) (A35/24℃,W12/7℃） | Cooling Capacity | kW | 1.38~5.70 | 3.65~11.04 | 3.65~11.4 | 4.55~17.20 | 4.55~17.20 | |||||
Power Input | kW | 0.67~2.44 | 1.12~3.97 | 1.12~3.97 | 1.85~7.31 | 1.85~7.31 | ||||||
Current Input | A | 3.06~10.27 | 5.18~17.44 | 1.97~6.30 | 8.47~32.1 | 2.99~11.26 | ||||||
ERP Level (Outlet water temp. at 35℃） | / | A+++ | ||||||||||
MAX. input power | KW | 3.50 | 5.40 | 5.85 | 7.50 | 10.50 | ||||||
MAX. input current | A | 15.00 | 25.00 | 10.00 | 35.00 | 17.00 | ||||||
Refrigerant | / | R290 | ||||||||||
Rated water flow | m³/h | 1.00 | 2.06 | 2.06 | 3.10 | 3.10 | ||||||
Fan quantity | / | 1 | 1 | 1 | 2 | 2 | ||||||
Fan motor type | / | DC inverter | ||||||||||
Compressor | / | DC inverter | ||||||||||
Circulation pump | / | Inverter type / Built-in | ||||||||||
IP Class | / | IPX4 | ||||||||||
Sound pressure at 1m distance | dB(A) | 42 | 50 | 50 | 55 | 55 | ||||||
Max outlet water temperature | ℃ | 75 | ||||||||||
Water piping connections | / | DN 25 (1") | DN 25 (1") | DN 25 (1") | DN 32 (1-1/4") | DN 32 (1-1/4") | ||||||
Water pressure drop (max) | kPa | 20 | 20 | 20 | 55 | 55 | ||||||
Operating temperature range (Heating mode) | ℃ | -25~45 | ||||||||||
Operating temperature range (Cooling mode) | ℃ | 16~45 | ||||||||||
Unpacked Dimensions (L x D x H ) | mm | 1187*418*805 | 1287*448*904 | 1287*448*904 | 1187*488*1456 | 1187*488*1456 | ||||||
Packed Dimensions (L x D x H ) | mm | 1217*463*920 | 1317*493*1020 | 1317*493*1020 | 1217*538*1570 | 1217*538*1570 | ||||||
Unpacked weight | kg | 110 | 123 | 123 | 184 | 184 | ||||||
Packed weight | kg | 115 | 128 | 128 | 192 | 192 | ||||||
EVI Monoblock Air Source Heat Pumps Working Principle Diagram.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Details Images

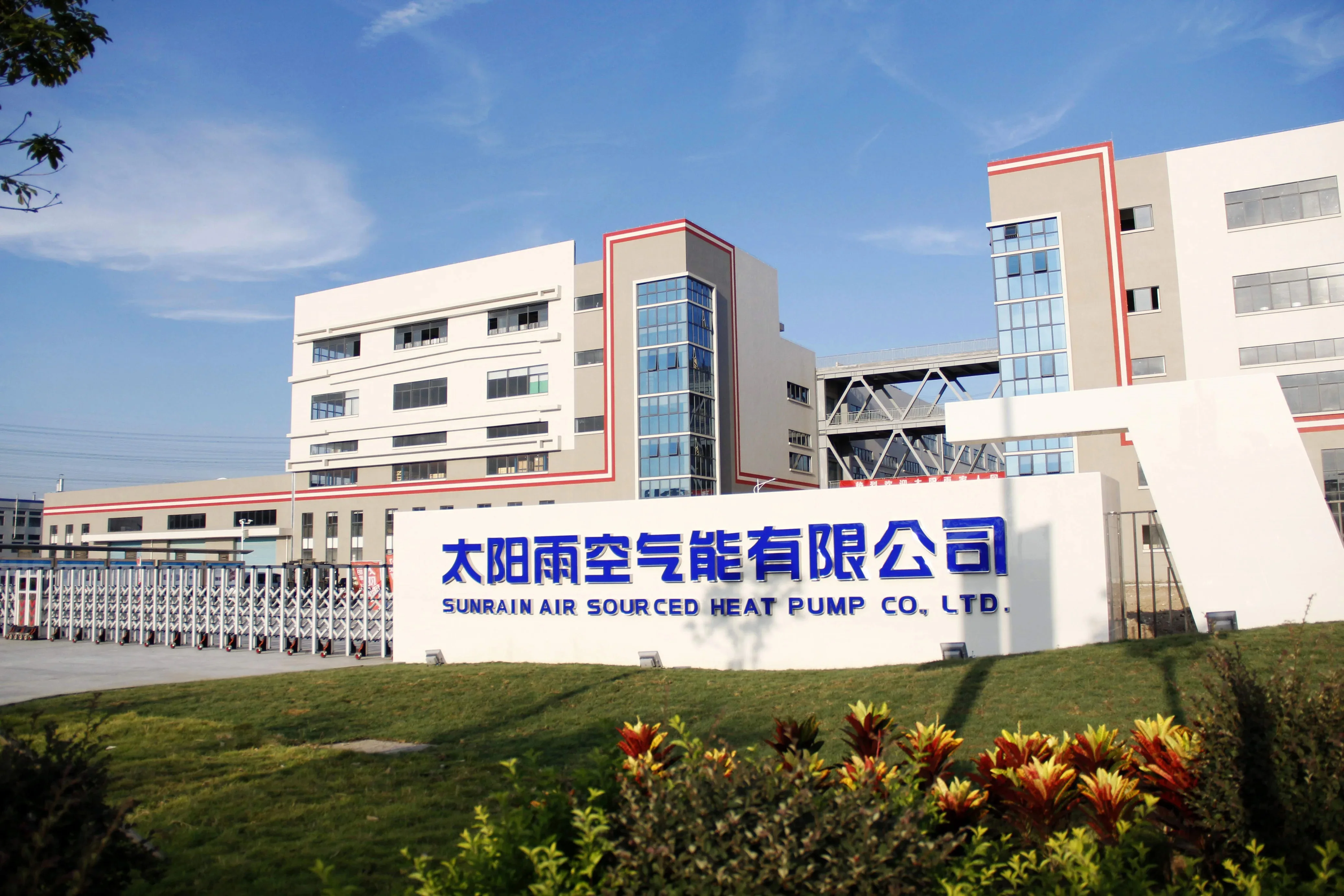

Company Profile
Certifications
Packing & Delivery
FAQ
Q1 Are you a manufacturer?
A: Yes, we are a professional heat pump manufacturer with rich experience and complete R&D, production, sales, and service supply.
Q2: What is your main product?
Answer: Our main products include DC variable frequency heat pumps, air source heat pumps water heaters, all in one heat pumps, swimming pool heat pumps, and EVI heat pumps in cold areas.
Q3: How do I place an order?
Answer: Please send us an inquiry or contact us through online services; After receiving your inquiry, we will reply to you
Catalogs, quotations, and other information you need.
Q4: Do you provide OEM/ODM customized manufacturing services?
Answer: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce European standard heat pumps under your brand according to your special needs.
Q5: Can I apply to become your heat pump distributor/distributor?
A: We are currently looking for more heat pump distributors/dealers worldwide, who can distribute our heat pump products in local countries/regions.
Q6: I need to buy in large quantities. Can you provide a sample service?
Yes, we can provide sample service, and we have engineers to help you solve installation problems.
A: Yes, we are a professional heat pump manufacturer with rich experience and complete R&D, production, sales, and service supply.
Q2: What is your main product?
Answer: Our main products include DC variable frequency heat pumps, air source heat pumps water heaters, all in one heat pumps, swimming pool heat pumps, and EVI heat pumps in cold areas.
Q3: How do I place an order?
Answer: Please send us an inquiry or contact us through online services; After receiving your inquiry, we will reply to you
Catalogs, quotations, and other information you need.
Q4: Do you provide OEM/ODM customized manufacturing services?
Answer: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce European standard heat pumps under your brand according to your special needs.
Q5: Can I apply to become your heat pump distributor/distributor?
A: We are currently looking for more heat pump distributors/dealers worldwide, who can distribute our heat pump products in local countries/regions.
Q6: I need to buy in large quantities. Can you provide a sample service?
Yes, we can provide sample service, and we have engineers to help you solve installation problems.
