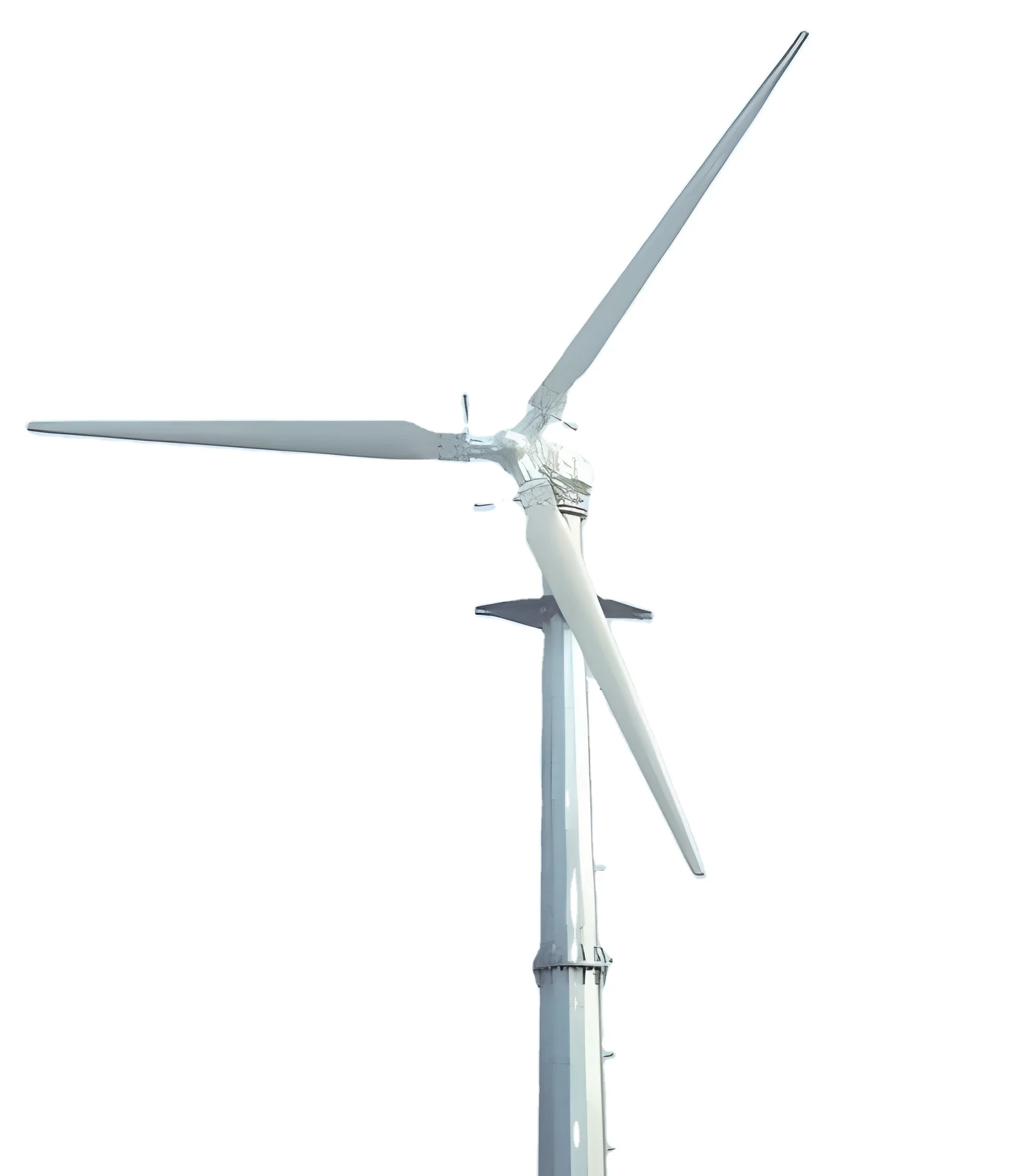

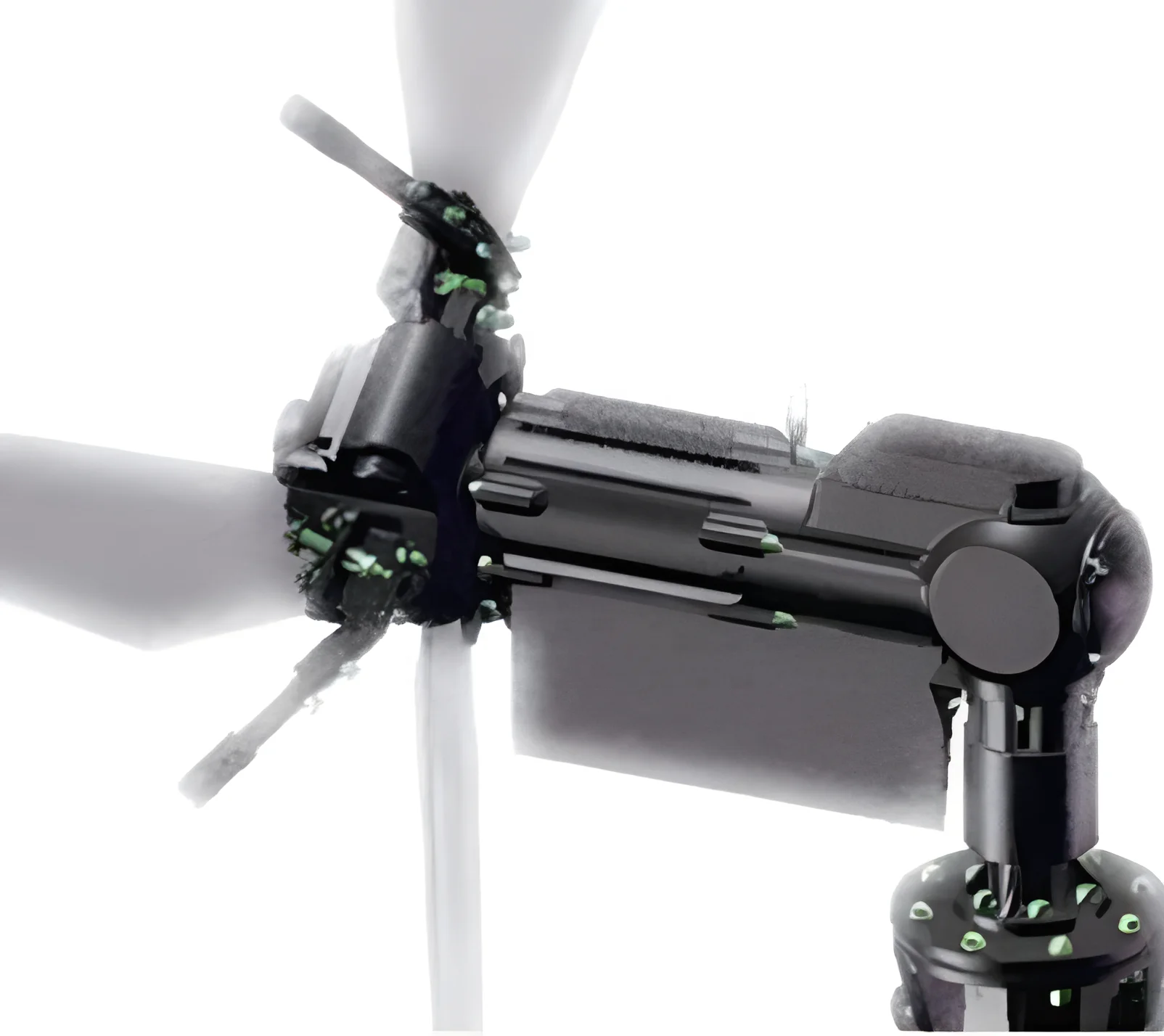

High Output Low Start Speed Pitch Control Horizontal Axis 5kw Wind Turbine generator power station
- Category: >>>
- Supplier: Qingdao HenryD Wind Power Equipment Co. Ltd.
Share on (1601213199158):
Product Overview
Description
5KW! variable pitch control wind power/wind generator 5kw, 48v 96v 360v,
On/Off grid system, easy installation tilting up tower
5kw variable pitch wind turbine with tail: US$3300.00/set
Including blades, nose cone, hub, generator and nacelle, tail
Provide the tower, inverter, controller seperately.
Product Description

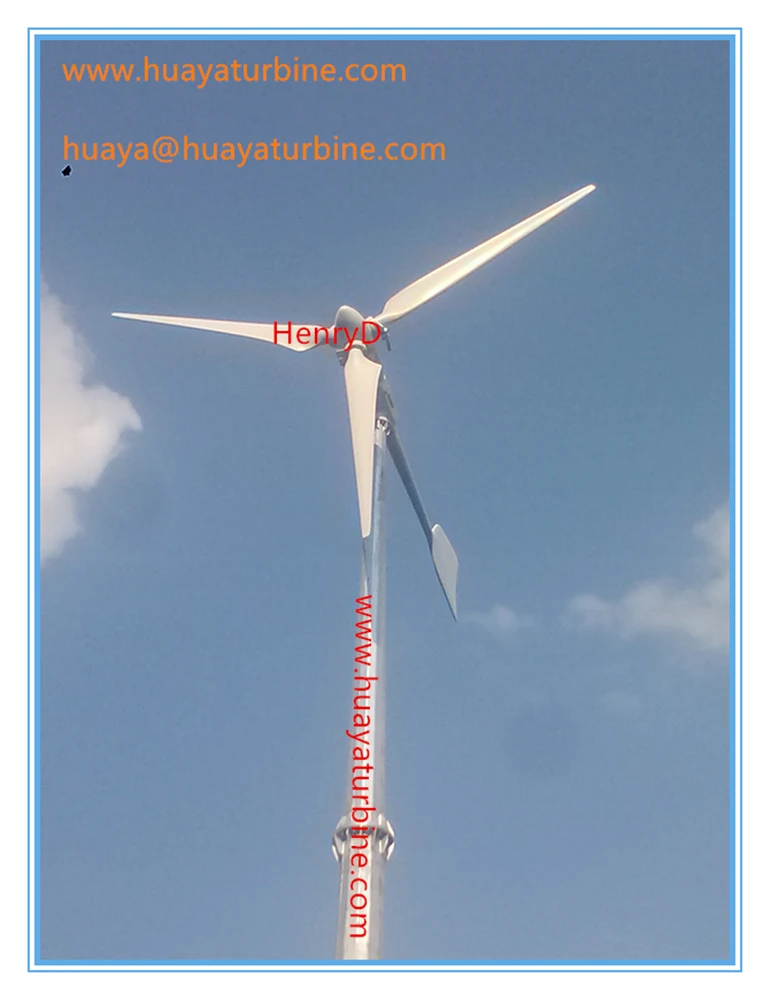

Introduction
5KW pitch control wind turbine takes advantage of the characteristic of weight to control
blade angle according to wind speed and rotation speed, and through the blade twist,
the turbine changes blades itself aerodynamic characteristics and output power. It is the
most efficient small HAWT in current market.
Feature
1. Advanced pitch-controlled technology, enable the turbine blades to catch the best angle for wind
power utilization, more efficient.
2. Easy start-up behavior and keep constant power output under gust, wide working wind speed from
2m/s to 35m/s, more power output.
3. Multi-protection methods ensure system in high reliability and safety during high wind speed operation
(yawing + electromagnetic brake + pitch controlled + manual brake), more reliable.
4. Cast steel body with anti-corrosion treatment for working well in harsh environment, more durable.
5. Direct drive, gearless, maintenance-free permanent magnet generator, better configure.
Specification
| Performance | |
| Rated power | 5000W @10m/s |
| Peak power | 6000W |
| Start-up wind speed | 2m/s |
| Working wind speed | 3-35m/s |
| Survival wind speed | 50m/s |
| Rotor | |
| Rotor diameter | 5.4 |
| Swept area | 22.89m² |
| Blade | 3pcs reinforced fiber glass |
| Blade length | 250cm |
| Shell material | precision steel |
| Rated RPM | 260 |
| Weight | 450KG |
| Others | |
| Generator type | directly drive 3-phase AC PM |
| Speed regulation & protection | yawing + electromagnetic brake + pitched control |
| Controller rated voltage | DC 48-500V |
| Suggested battery capacity | 8pcs 250AH/12VDC (grid off system) |
| Suggested tower | 9-15 tilting up tower |
| Working temperature | -40-60°c |

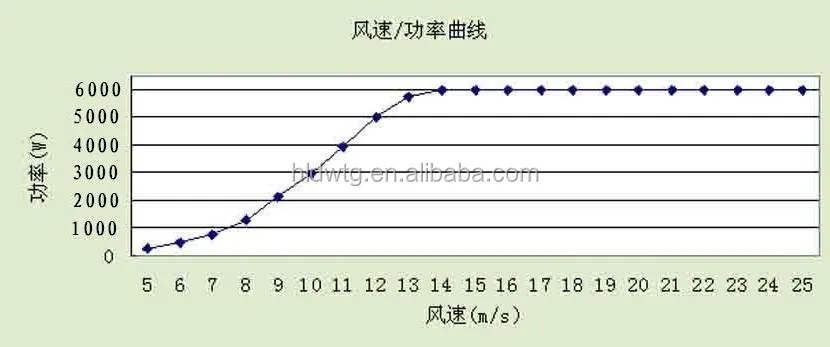

| Power curve | |
 | |
Output power data for on grid system:
| Rated Power (w) | Wind speed (m/s) | Working voltage (V) | Output power(W) |
| 5000 | 3 | 120 | 0.187 |
| 4 | 160 | 0.442 | |
| 5 | 200 | 0.866 | |
| 6 | 250 | 1.496 | |
| 7 | 300 | 2.376 | |
| 8 | 360 | 3.547 | |
| 9 | 380 | 5.05 | |
| 10 | 380 | 5.25 | |
| 11 | 380 | 5.45 | |
| 12 | 380 | 5.65 | |
| 13 | 380 | 5.85 | |
| 14 | 380 | 6 | |
| 15 | 380 | 6 | |
| 16 | 380 | 6 | |
| 17 | 380 | 6 | |
| 18 | 380 | 6 | |
| 19 | 380 | 6 | |
| 20 | 380 | 6 |
Application
1. Hybrid wind and solar power system for home AC loads
5kw off grid controller normal spec:
Type | 5KW-48Vdc | 5KW-120Vdc | 5KW-240Vdc |
Wind turbine rated power | 5KW | 5KW | 5KW |
Wind turbine max. power | 10KW | 10KW | 10KW |
Solar panel power | 1.5KW | 1.5KW | 1.5KW |
Battery | 48Vdc | 120Vdc | 240Vdc |
Function | Rectifier,charge, control | ||
Display mode | LCD | ||
Display content | Wind turbine voltage, wind turbine current, wind turbine power, solar panel voltage, solar panel current, solar panel power, battery voltage, charge current | ||
PWM constant pressure voltage | >56Vdc | >135Vdc | >280 Vdc |
3-phase load voltage of the wind turbine | 58±1Vdc | 145±2Vdc | 290±5Vdc |
Wind turbine recovery charging voltage | 54±1Vdc | 135±2Vdc | 280±5Vdc |
Solar controller stop charging voltage | 58±1Vdc | 145±2Vdc | 290±5Vdc |
Solar restore charge voltage | 54±1Vdc | 135±2Vdc | 280±5Vdc |
Low-voltage of the battery | 40±1Vdc | 100±2Vdc | 200±5Vdc |
Self-provided connecting wire of the battery | >20mm² | >10mm² | >6mm² |
PWM fuse | 125A | 63A | 40A |
Solar fuse | 32A | 16A | 10A |
Charging fuse | 160A | 63A | 50A |
Work environment temperature | -30-60°C | ||
Relative humidity | <90% No condensation | ||
Noise (1m) | <40dB | ||
Degree of protection | IP20(Indoor) | ||
Cooling method | Forced air cooling | ||
*Communication interface (optional) | RS485/USB/GPRS/Ethernet | ||
*Temperature compensation (optional) | -4mv/°C/2V,-35°C~+80°C, Accuracy:±1°C | ||
Size of the controller | 500*440*290 mm | ||
Weight of the controller | 21 Kg | ||
Size of the load | 660*510*450 mm | ||
Weight of the load | 31 Kg | ||
2.On grid wind power system
Wind turbine with tower + PWM on grid controller with dump load + grid tie inverter
Power of the equipped wind turbine (W) | 5K |
Operating mode | Continuous |
Function | Commutation, control |
Operating environment | Temperature -30~60℃, humidity≤80% |
PWM unloading voltage (DCV) | ≥380V |
three-phase dump load voltage (DCV) | 400±5V |
three-phase dump load delay time (min) | 10-20 minutes |
Low voltage indicator (V) | ≤130V |
Self-provided connecting wire of the three-phase dump load (mm²) | >4mm² |
Self-provided connecting wire of the PWM dump load(mm²) | >4mm² |
PWM unloading fuse (A) | 25A |
DC output fuse (A) | 25A |

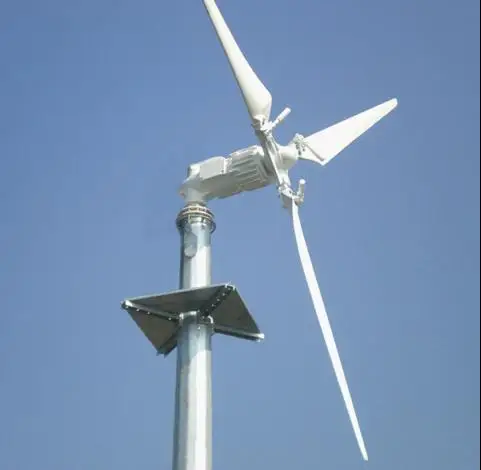

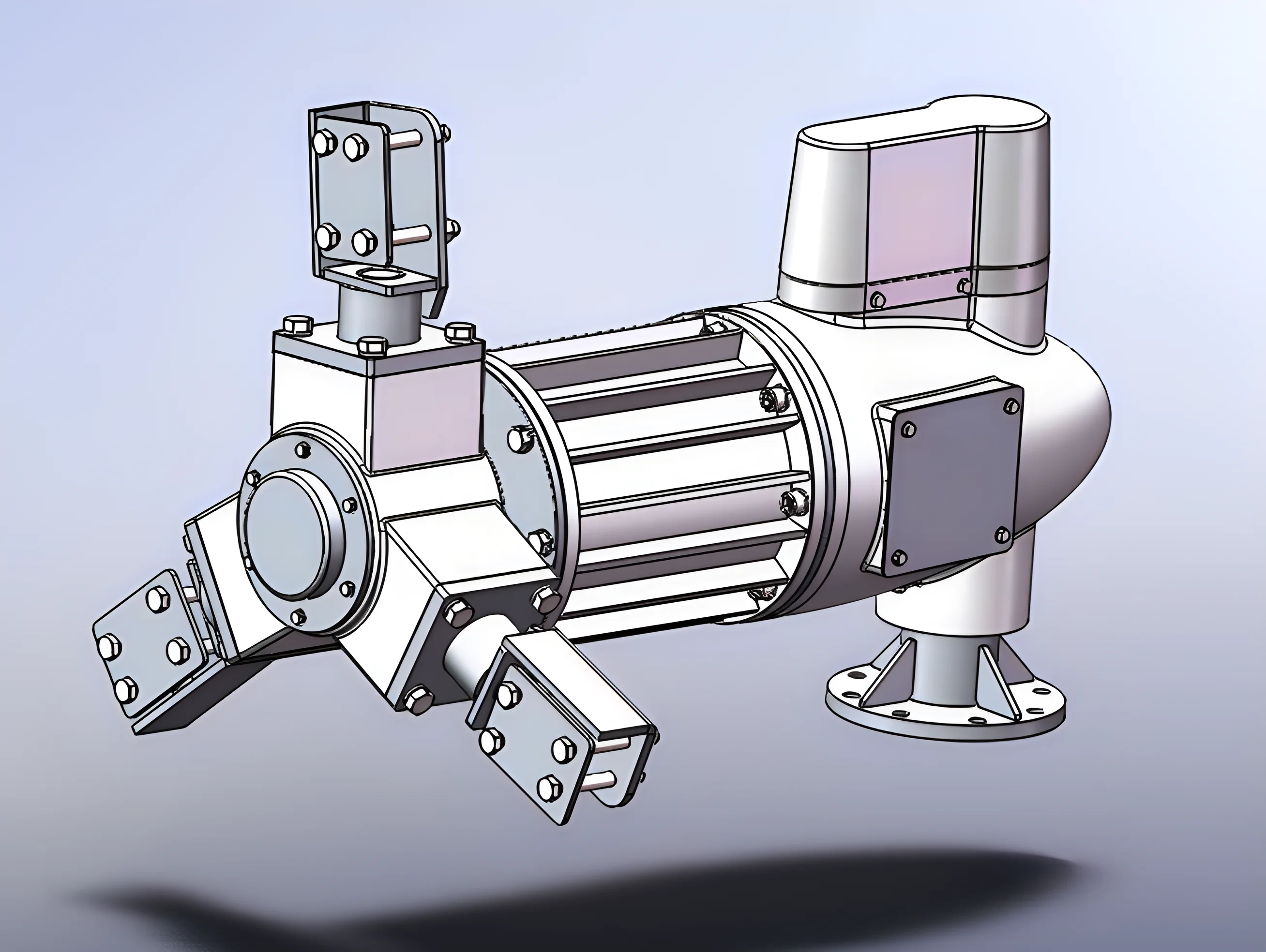

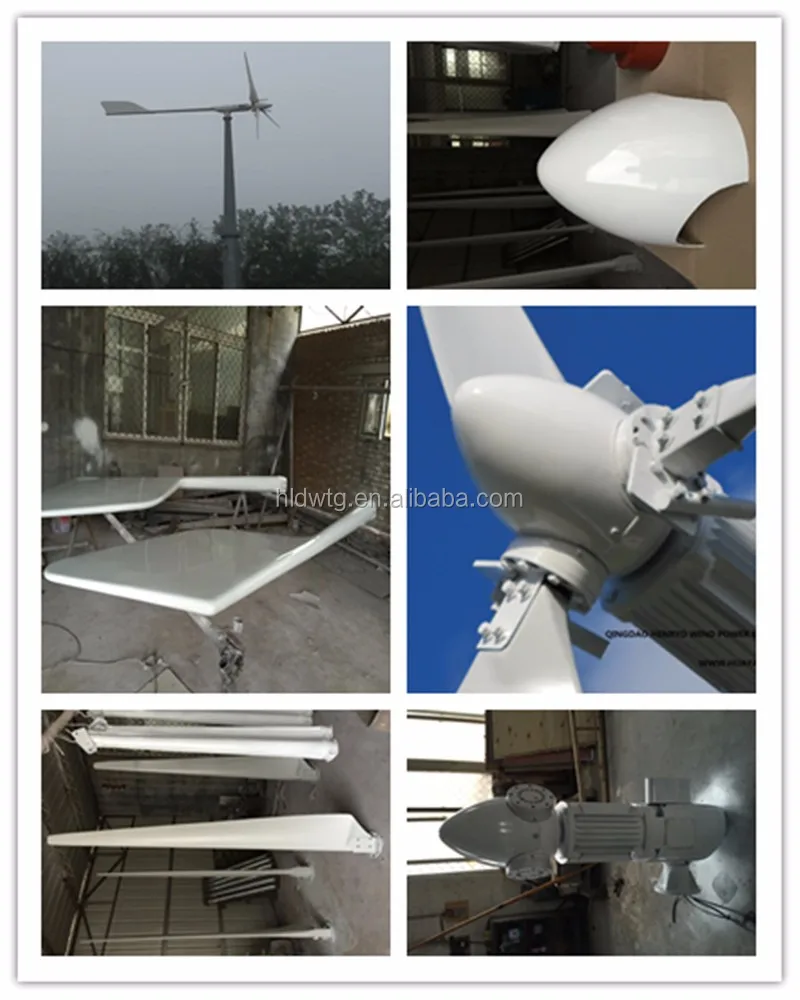

Wind turbine main body assembly

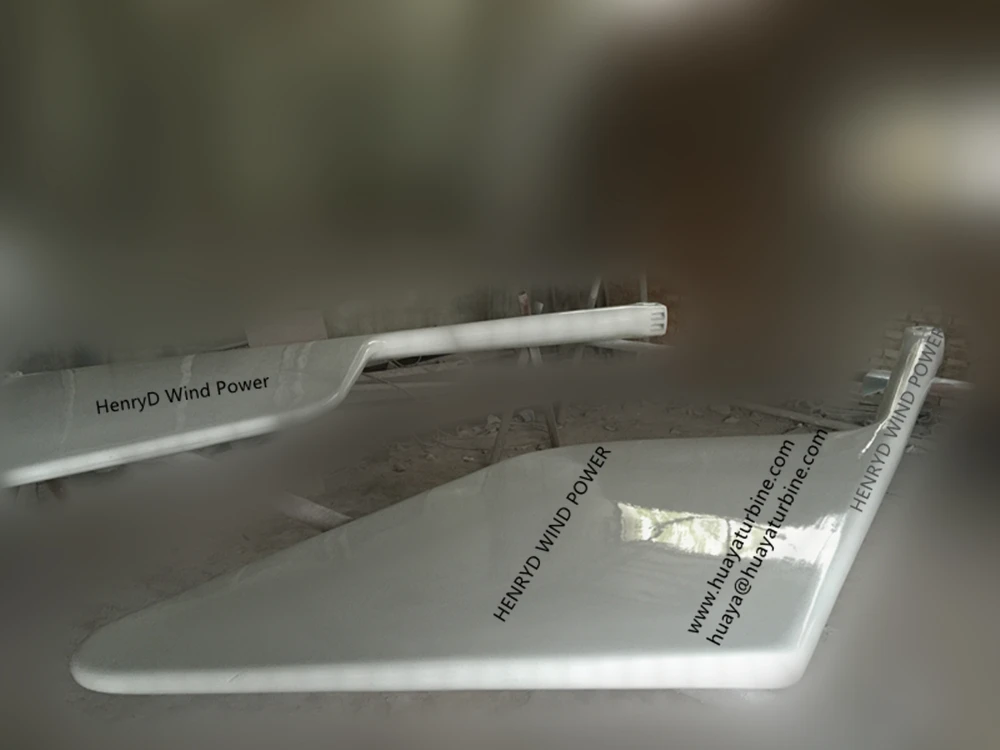

Wind turbine tail:
Wind generator winding:

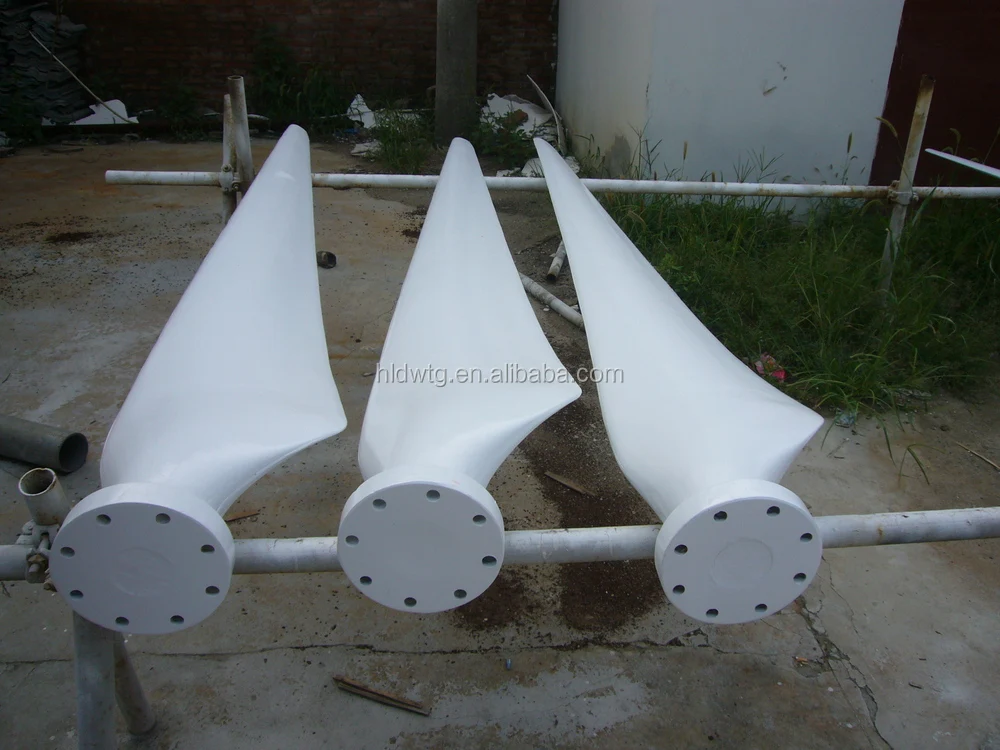

Wind turbine blades:

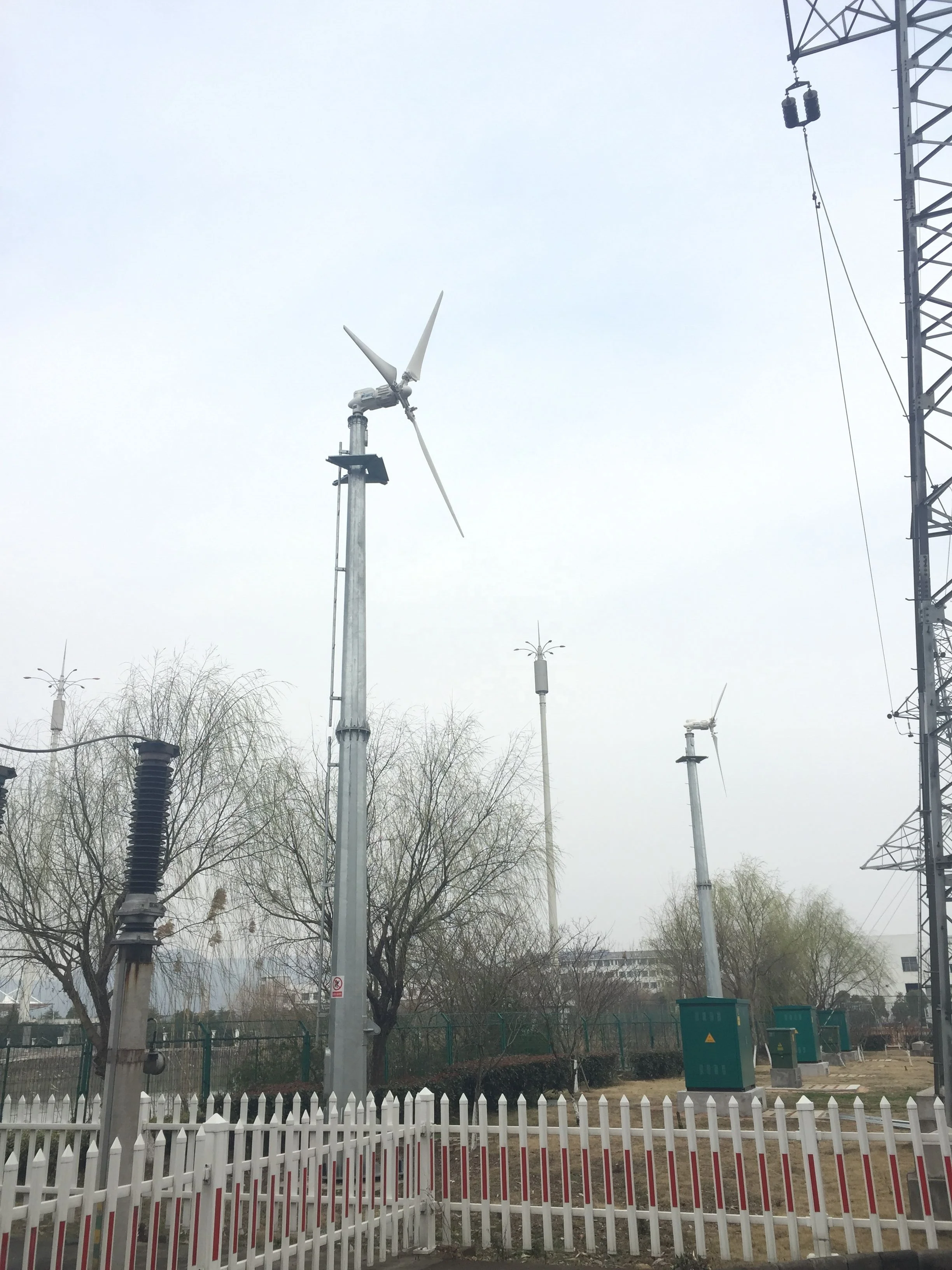

Application:
Packaging & Shipping

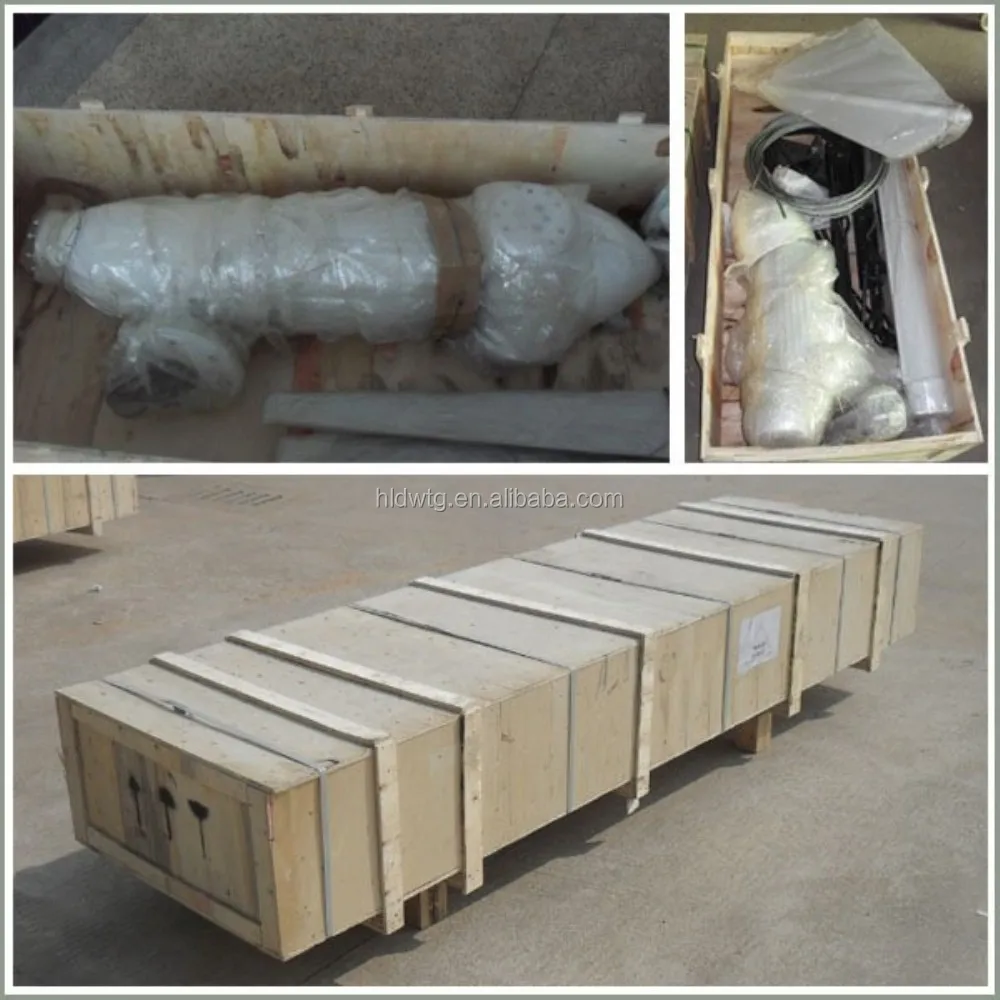

Packaging & Shipping
Packaging details
| Model | Outside size | G.W kg | Cubage m3 | Q'ty | Remark | |
5kw380v variable pitch wind turbine main body | 1.58*0.71*0.49 | 374 | 0.55 | 1 | generator,hub, nacelle | plywood case |
| 3.38*1.13*0.33 | 146 | 1.26 | 1 | blades and tail | plywood case | |
5kw on grid controller with dump load | 0.64*0.5*0.81 | 58 | 0.26 | 1 | controller with dump load | plywood case |
| TTL: | 578 | 2.07 | 3 | |||
Shipping method:
Sample order is acceptable and recommended to send via LCL sea shipment or air shipment.
Please contact our sales to get the detail shipment suggestion.
Our Services
Provide professional wind turbine technical support;
Provide on/off grid system design, wind solar hybrid system design service.
Completely system provider and designer;
Wind turbine type, model, capacity selection professional support;
Tower design, foundation drawing support;
Provide Pma, hub, flange drawing;
Provide OEM service, customized service.
Support paypal /west union payment, TT payment;
For more details, pls contact with us.
Contact person: Aron wang
skype: chinaaron
www.huayaturbine.com
Company Information
We started to manufacture wind turbine in 1994. In 2004, there are only 4 small wind turbine
manufactures in China. We keep improving and develop in the small wind turbine field. We are
not the leading small wind turbine exporter, but we are the leading wind turbine manufacture
and designer now.
We manufacture 300w-30kw fixed pitch wind turbine;
2kw, 3kw, 5kw, 10kw, 20kw, 30kw, 50kw, 60kw pitch controlled wind turbine;
1kw, 2kw, 3kw, 5kw Vertical axis wind turbine;
On grid system/off grid system, wind solar hybrid system; Water heating system;
For more details, pls contact with us via e-mail.
Certification
Workshop, office and stock
FAQ
Q1: Is the wind turbine price listed above include the charge controller and others? If not,
where I can purchase the controller and inverter?
A: The listed price is just for wind turbine only (generator + blades), no including controller, inverter
and other parts. Please contact our sales for the controller, inverter and other system parts for on
grid and off grid application.
Q2: What is the working voltage of your HAWTs for my battery bank or grid utility?
A: Please find our recommended working voltage as below:
SA-2KWP --- 48V/96V (off grid) / 220V (on grid)
SA-3KWP --- 48V/96V/120V (off grid) / 220V (on grid)
SA-5KWP --- 96V/120V/240V (off grid) / 220V (on grid)
SA-10KWP --- 120V/240V/360V (off grid) / 380V (on grid)
Q3: What thickness of pole would we use for your horizontal wind turbine and what would
be the height approximately of the section that we would add on to your unit?
A: We recommend to use 5mm-8mm thickness, 6-15m height free standing tower for our pitch
control wind turbines. Please contact our sales to get more tower information.
Q4: How is your HAWTs to realize the security protection during heavy winds?
A: There are multi security protection to ensure our pitch control HAWTs speed regulation
and protection during high wind: yawing + electromagnetic brake (by controller) + pitch controlled
+ manual brake (available on HAWT 5KW and 10KW models).
1. Wind turbine model selection
It depends your local annual average wind speed, daily/monthly home power consumption.
Low average wind speed place, select larger blades rotor, higher rated working voltage;
Rich wind place select speed limited wind turbine: variable pitch wind turbine, stall out vertical
axis wind turbine.
The safety and steady working system is the first choice.
2. Wind turbine tower selection
Now we have guy wire tower, stand alone tower, tilting up tower, hydraulic tower.
Guy wire tower cost is lower, easy to delivery. But the installation area is larger;
Tilting up tower is for 500w-5kw wind turbine. Easy installation, small installation area. But the delivery cost is higher.
Hydraulic tower: It is used for no crane place. Easy installation and put down. The cost is higher.
Stand alone tower for the installation place with crane.
The tower height: Make sure blades rotor is higher than wind turbine surrounding barrier height.
3. Working system selection
On grid system: wind turbine with tower + PWM controller with dump load + grid tie inverter;
Off grid system: wind turbine with tower + PWM charge controller with dump load + battery group
+ inverter;
Wind solar hybrid on/off grid system: Safety and reliable than only wind or solar system.
Wind turbine water heating system: work in rich wind place. Average wind speed higher than 8m/s.
For more question, pls contact with us directly. We will give you a professional response.
Why select us:
We are the wind turbine designer and manufacture. We know our wind turbine advantage
and disadvantage in different wind condition.
I have more than 10 years wind turbine sales experience. We provide the right wind turbine
and working system to different user according to their different situation and request.
In 2004, there are 4 small wind turbine manufacture. Now there are so much trading company
and manufacture, we know Chinese small wind turbine market well and can provide user more
useful advise.
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
