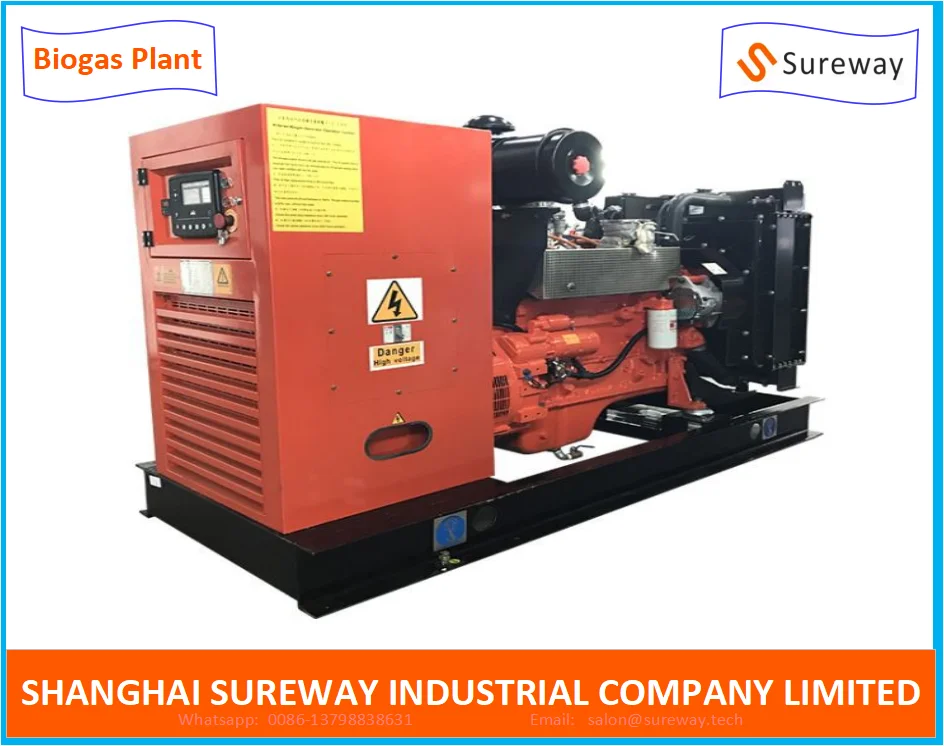

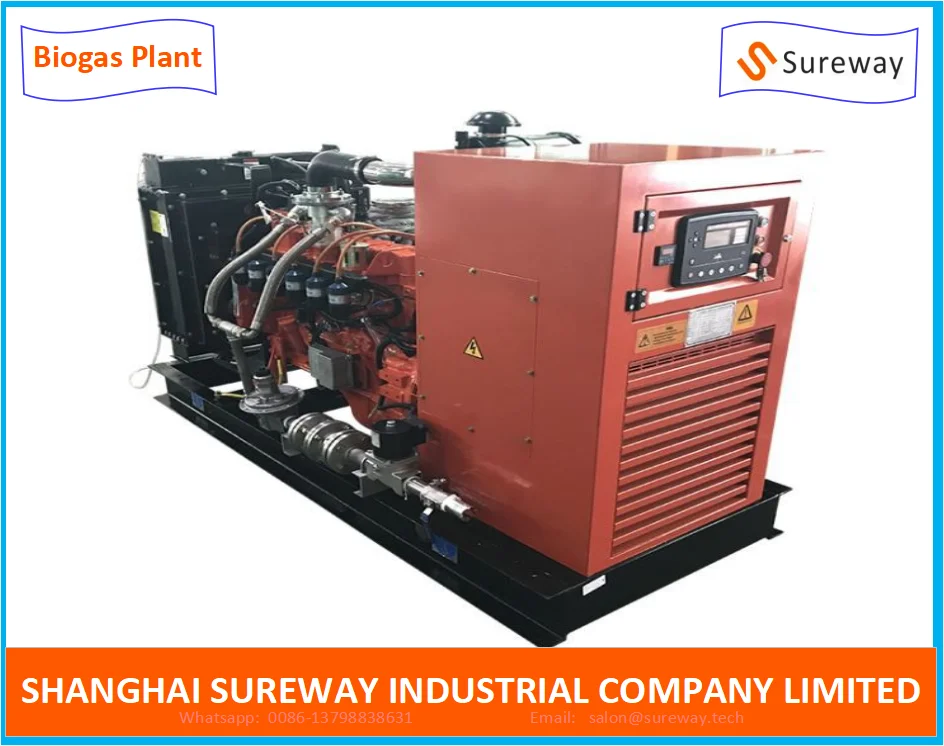

80 KW Gas Generator, natural gas genset for power generation

Product Overview

Description



Ratings

Rated  Power	kVA	100
	kW	80
Voltage type		50Hz,380/220V, 3 phases and 4 wires

*Ratings at 0.8 power factor



Performance Data

Engine Brand & Model	HG6TB
Alternator Brand & Model	LSA44.3S5/80KW
Control System	Deepsea DSE6120
Standard Noise Level@7m (Soundproof Sets)	75 dBA
Circuit Breaker Type	3 Poles MCCB
Frequency & Phase	50hz 3Phases + 4Wires
Engine Speed (RPM)	1500
Fuel Consumption (Nm3/hr)  100% Load	25.14

* The above fuel consumption is calculate with the natural gas whose heat value is 35.8MJ/Nm3



Dimensions and Weights

Content		Open type	Soundproof    Sets
Dimensions: (mm)	L	2450	3200
	W	1100	1200
	H	1550	1650
Weights (kg)		1150	1835



Engine Brand & Model: HGT6B

Engine Data

No. of Cylinders	6  in-line	Engine power(KW)	100
Cycle	4 Stroke	Cylinder Type	Dry
Bore * Stroke (mm)	102 x120	Compression Ratio	10.5:1
Induction	Turbocharged & Aftercooled	Displacement (L)	5.88
Cooling Method	Water cooled	Governing Type	Electronic
Starting method	24V DC motor	Coolant capacity, including radiator (L)	29.26
Lubricant Oil	15W40-CF4 or above grade	Oil pan capacity (L)	16



Preparation before genset starting:

Before genset starting, check and adjust the whole generator set to keep it in good condition. The connection and fixing of every module must be liable, as well as the gneset's cooling system and electrical starting system to ensure no leaking, no loosing, flexible transfer switch, good lubrication. Gas supply system should be normal, otherwise you have to mend it at once or re-adjust it correctly and then restart it.



All CAMDA supplying gas gensets have been finished the testing. So it can be used with load directly. When it is used for the first time, CAMDA advice its load better to be 80%-90% of full load. When it is for continous usage, please ensure its load to be 75%-80% of full load.

clean the dust, water track, oil stain and rust on genset.

check whether all connecting parts and fastening pieces are loose or not; check all moving parts are flexible or not. Is there any part jammed? Check all connecting wires are correct and firm.Check if there is any wire drop off or loosen.

Check whether gas intake pipe unobstructed or not.

Turn on gas intake pipe switch.

Check whether there is enough oil in oil pan.

Whether the cooler is full of coolant or not.

Put all the switches on corresponding working position, the air breaker should be placed at "off" position.
