Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00

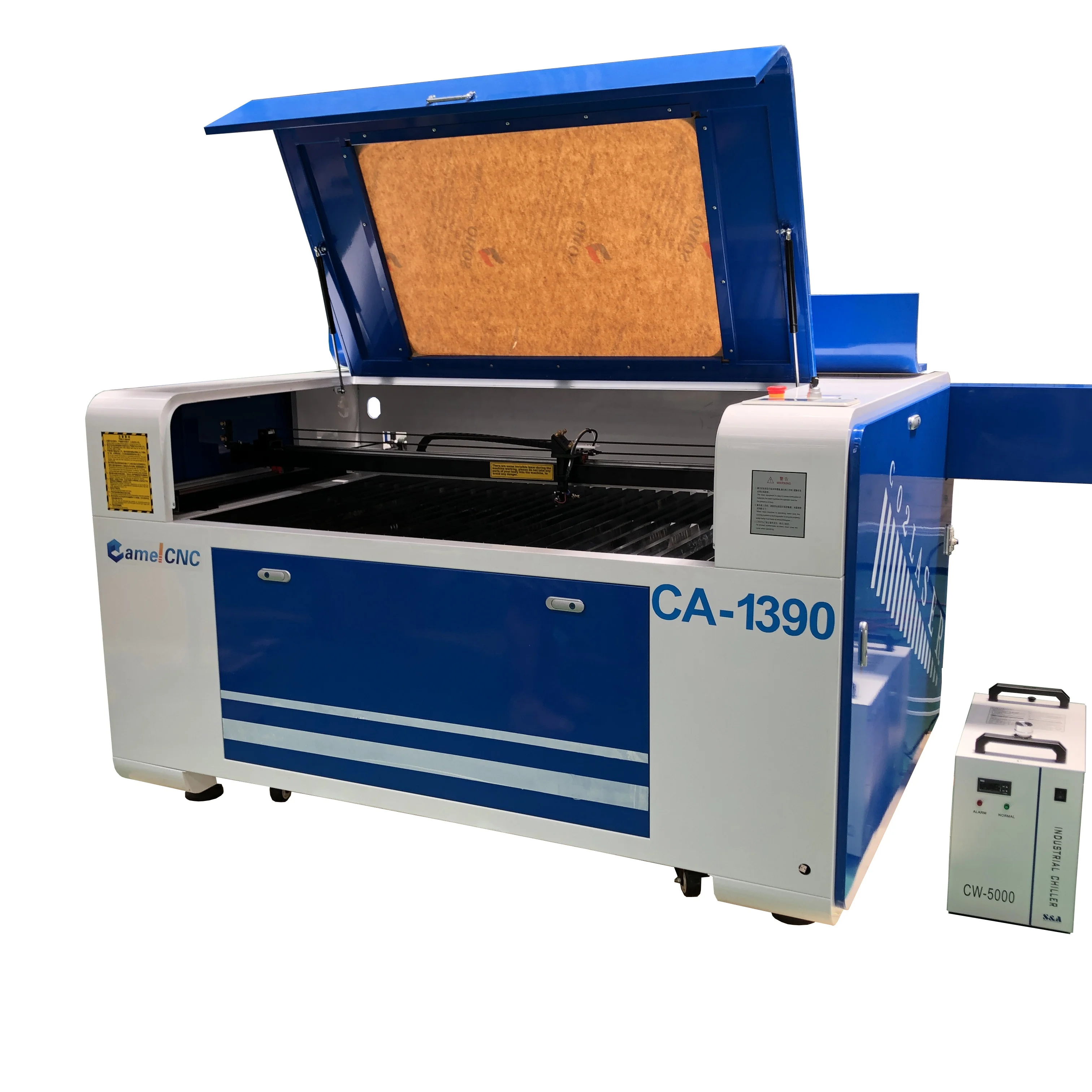

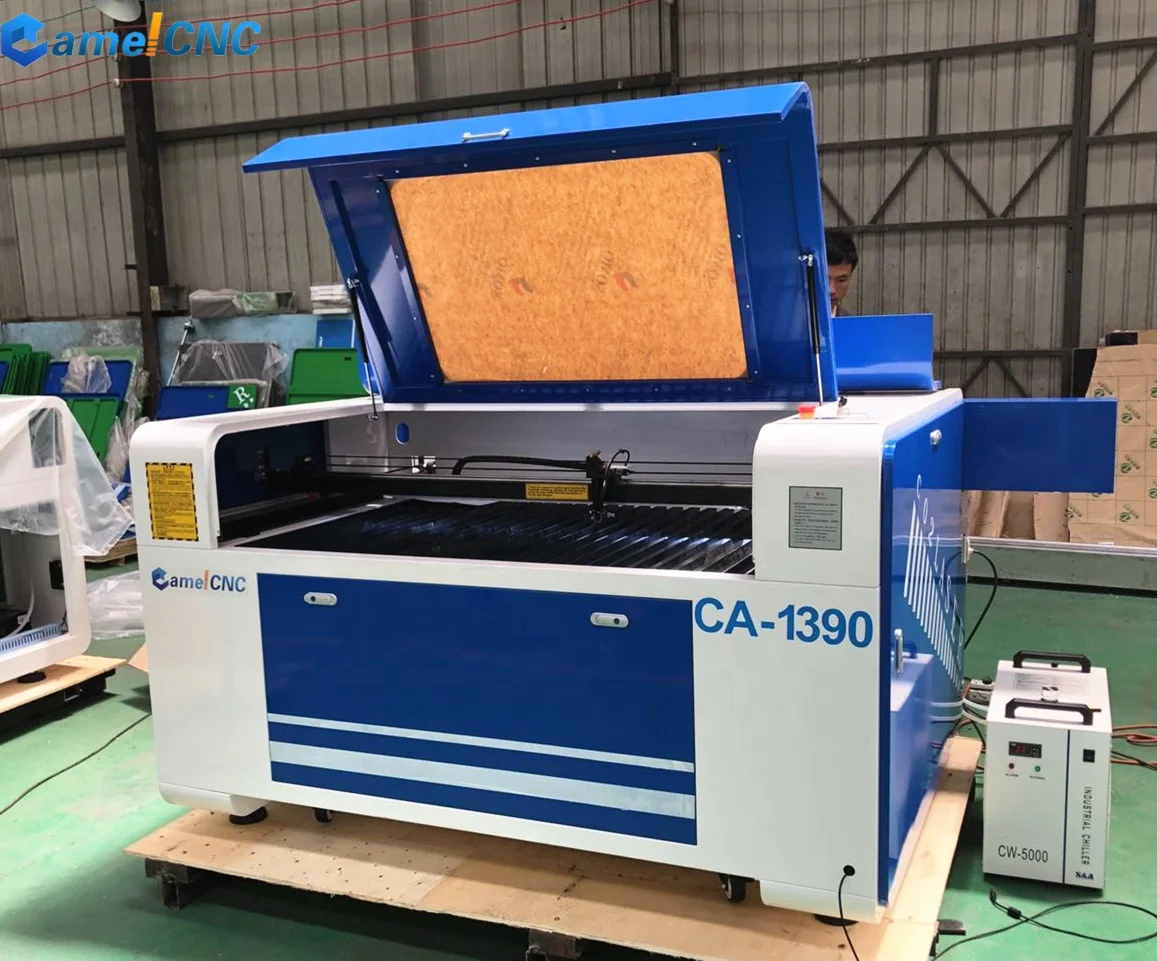

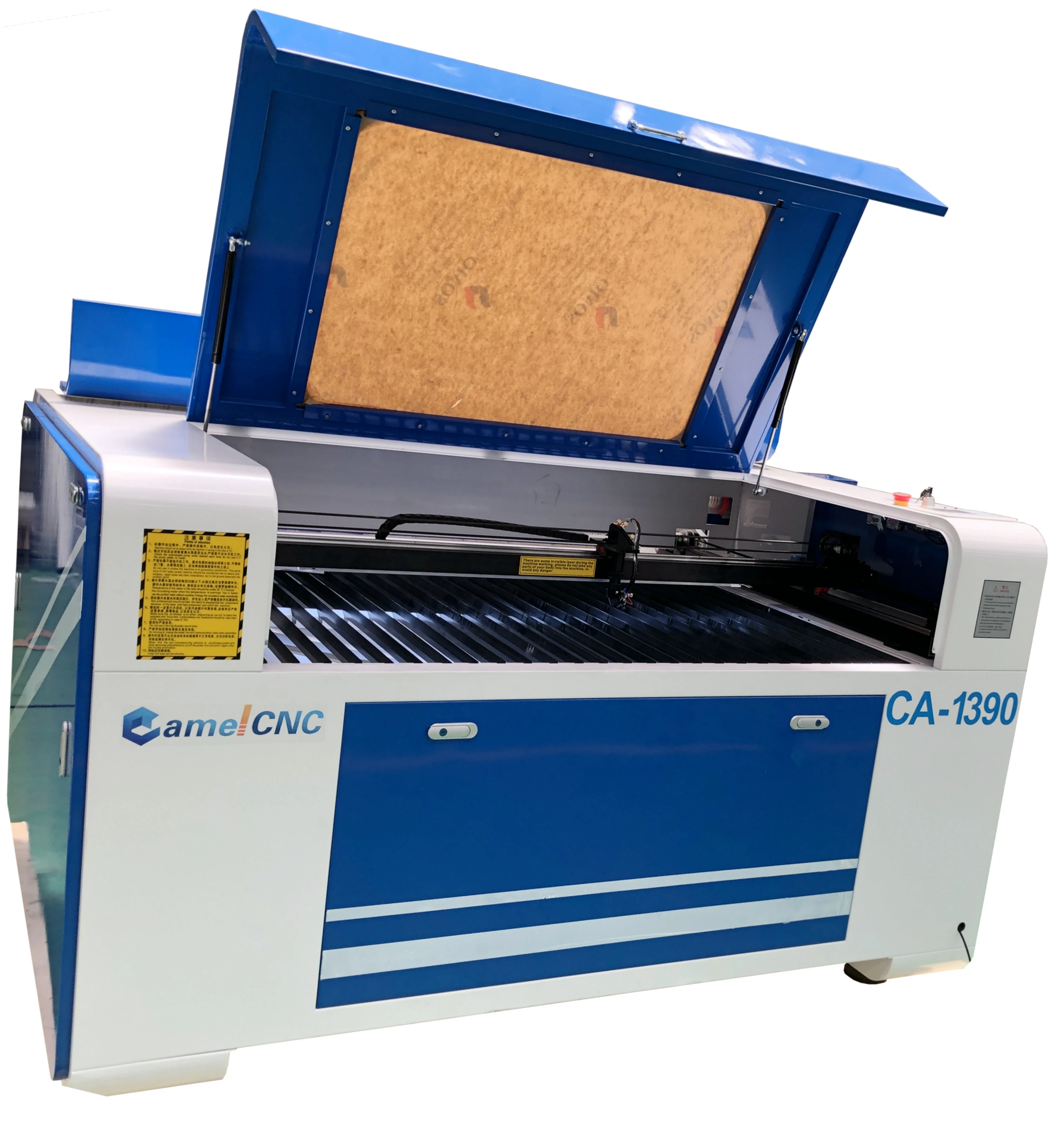

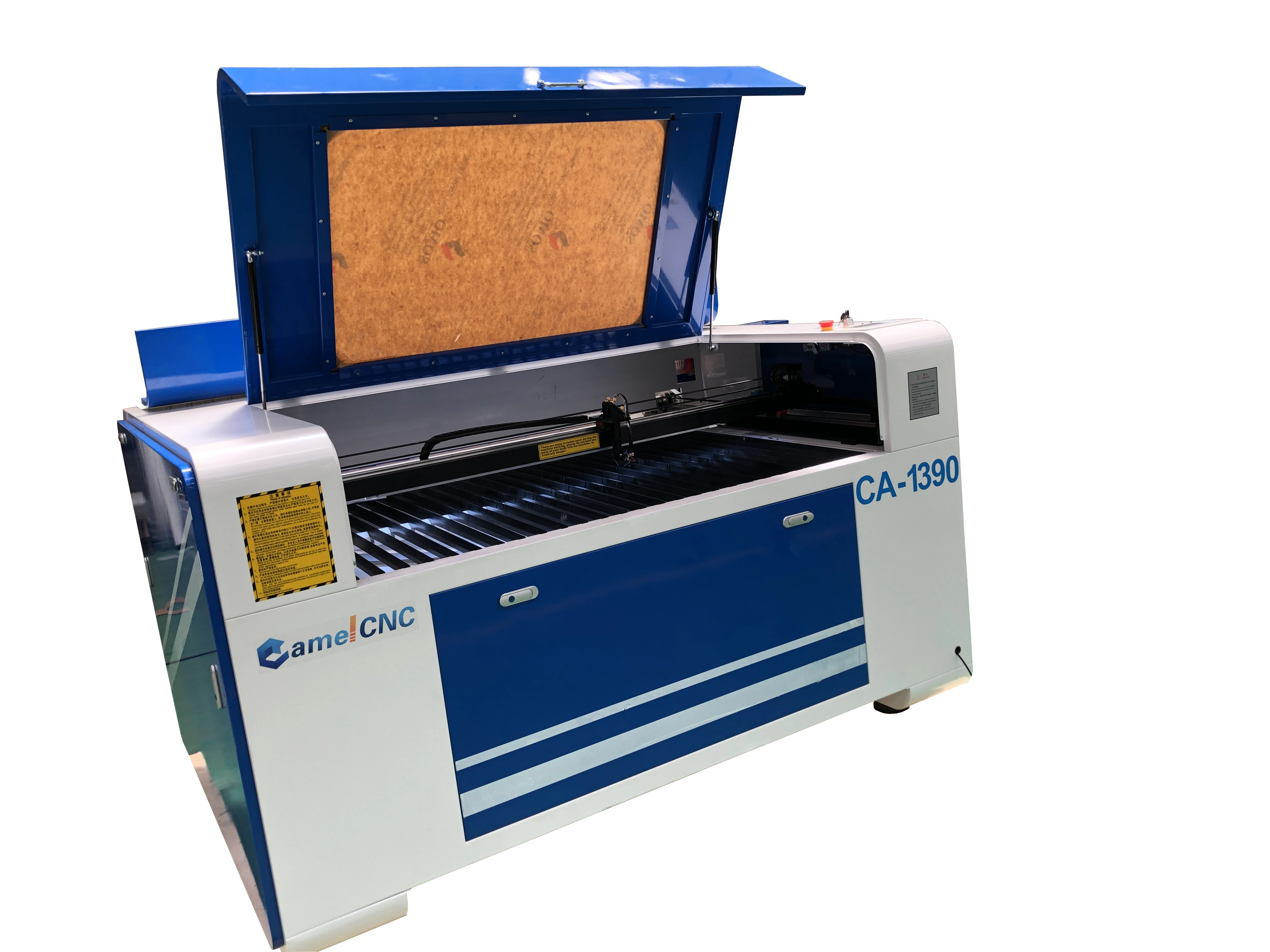

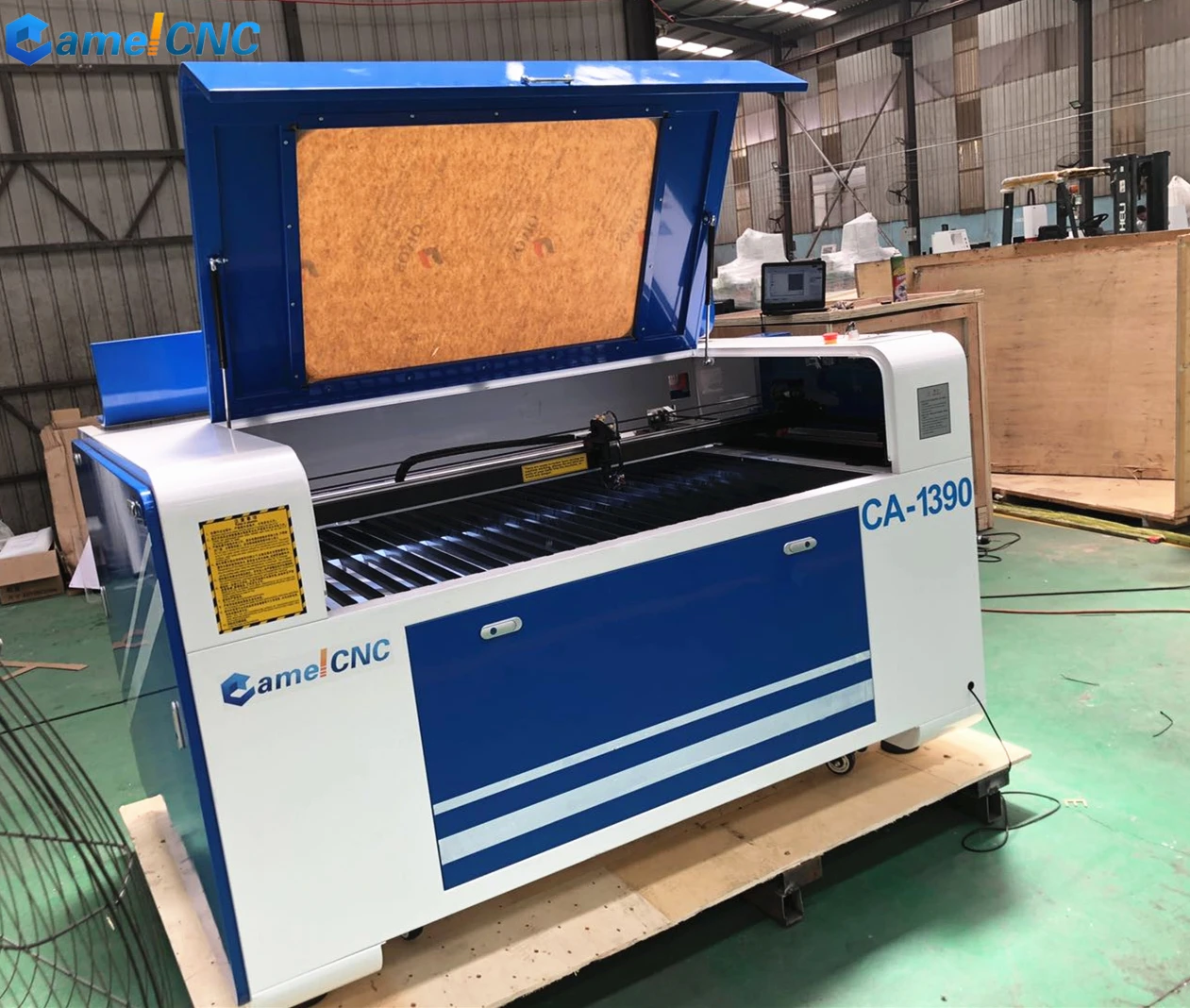

100w Laser Cutting Machine Co2 Laser Engraving Machine With Ccd Camera
- Category: >>>
- Supplier: Jinan Camel CNC Machinery Co. Ltd.
Share on (1601213319960):
Product Overview
Description
Products Description

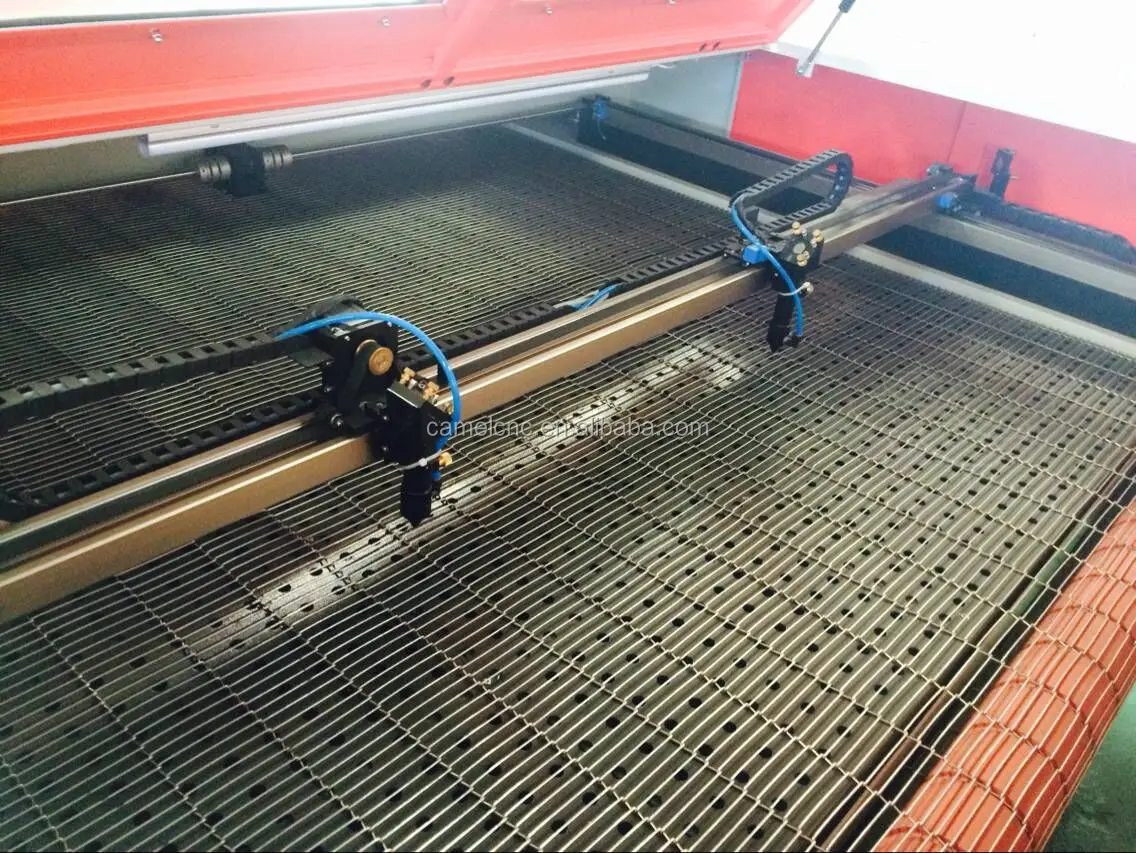

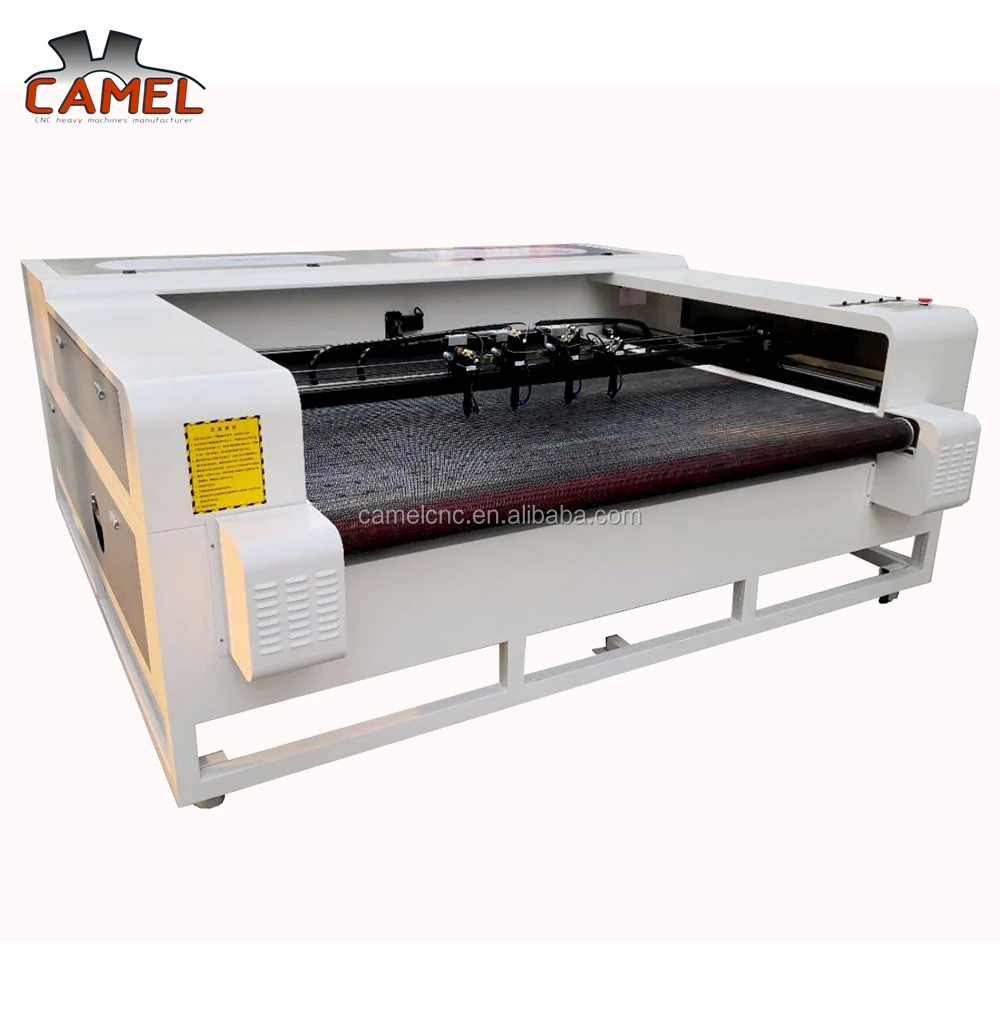

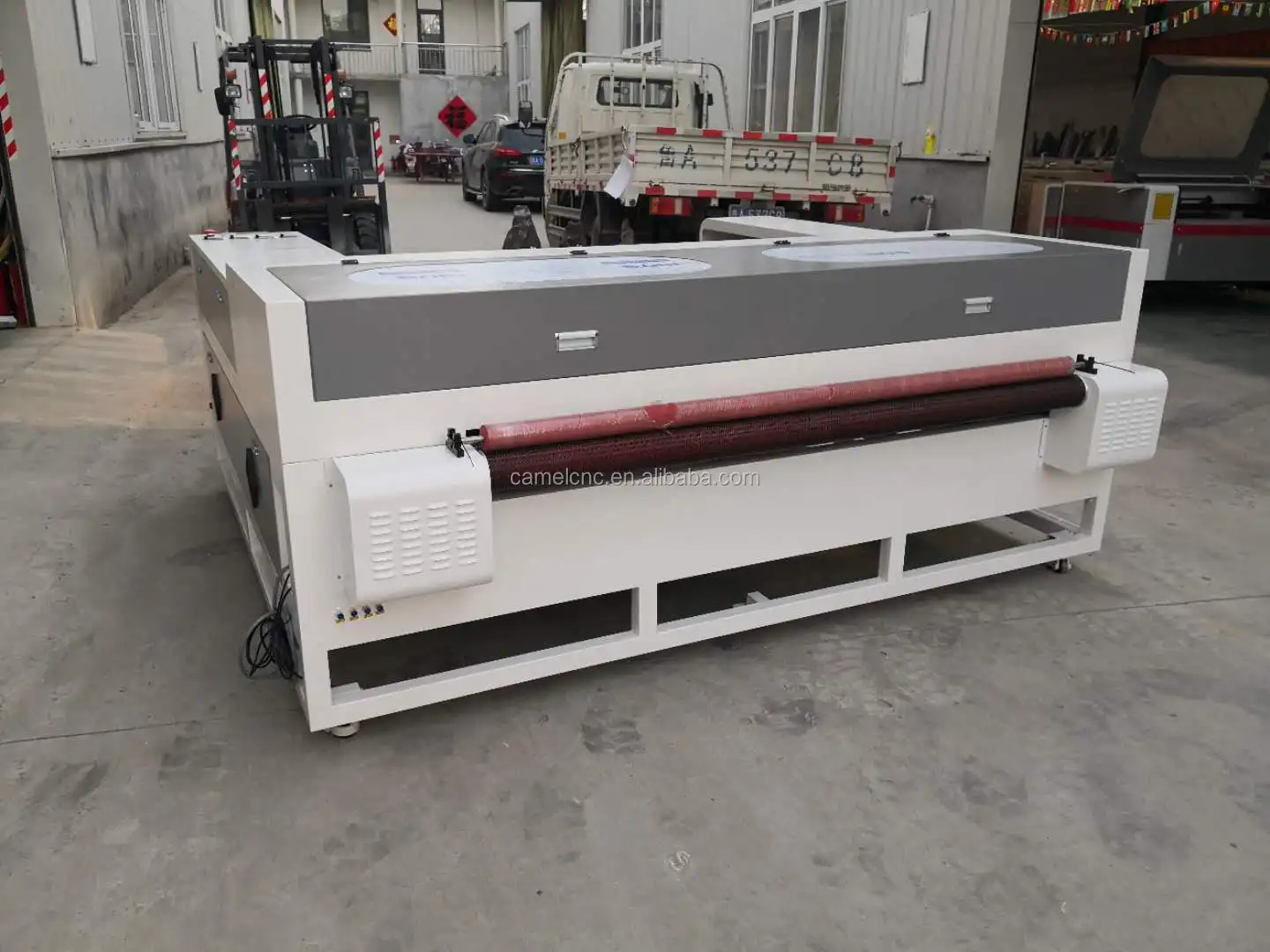

CAMEL CNC 1390 1610 Co2 laser cutter 4 heads cloth fabric auto feeding laser cutting machine factory supply
Machine Configuration:
1.CE certification
2.Working voltage 220V,50/60HZ
3.Working size 1600mm by 1000mm
4.RDcam(Ruida) offline control system with USB offline function
5.80W-150W laser tube and device
7.Honeycomb/Blade Knife auto feeding working table
8.Imported reflector and focus lens
9.Exhaust fan
10.Red Dot position
11.water chiller
2.Working voltage 220V,50/60HZ
3.Working size 1600mm by 1000mm
4.RDcam(Ruida) offline control system with USB offline function
5.80W-150W laser tube and device
7.Honeycomb/Blade Knife auto feeding working table
8.Imported reflector and focus lens
9.Exhaust fan
10.Red Dot position
11.water chiller
Product Paramenters
No | Type | CA-1610 |
1 | Engraving Area | 1600*1000mm |
2 | Laser power | 80w 100w 150w 180w |
3 | Laser Type | CO2 Laser Tube |
4 | Engraving speed | 0~60000mm/min |
5 | Cutting speed | 0~36000mm/min |
6 | Resetting positioning accuracy | ＜0.01mm |
7 | Cutting depth | Acryl 0-25mm(other depths depend on other materials) |
8 | Minimum Shaping Character | 1.5×1.5mm |
9 | Power supply | 220V±10% 50HZ or 110V±10% 60HZ |
10 | Gross power | 1200W |
11 | Software supported | ArtCut, CorelDraw, PhotoShop, AutoCAD |
12 | Graphic format supported | PLT、DXF、BMP、JPG、GIF、PGN、TIF |
13 | Engraver for Curve surfaces (Yes/No) | YES (we can add an Rotary attachment on the Laser Engrave/Cutting Machine, then the machine can engrave on Cylinder) |
14 | Water Cooling: (Yes / No) | YES |
15 | Laser Tube (life hours) | 5000-10000hours |
16 | Recommended Spare Parts / Consumables | Laser Tube and Lens |
Details Images
:Laser tube device
Water chiller
Ruida control system

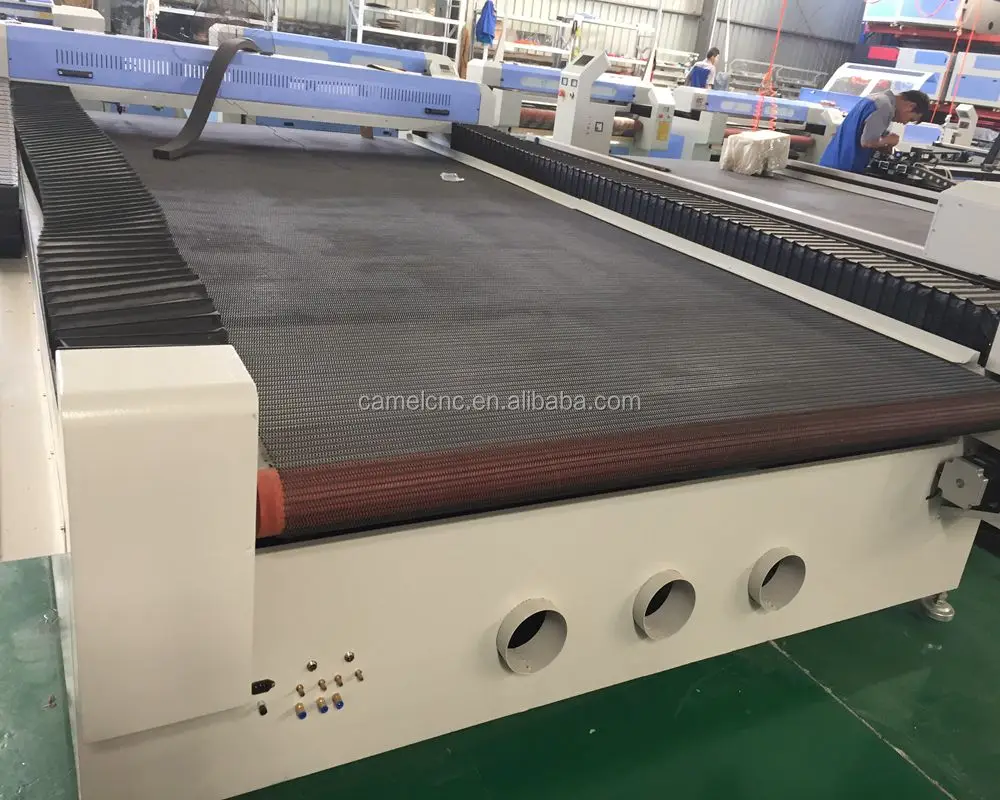

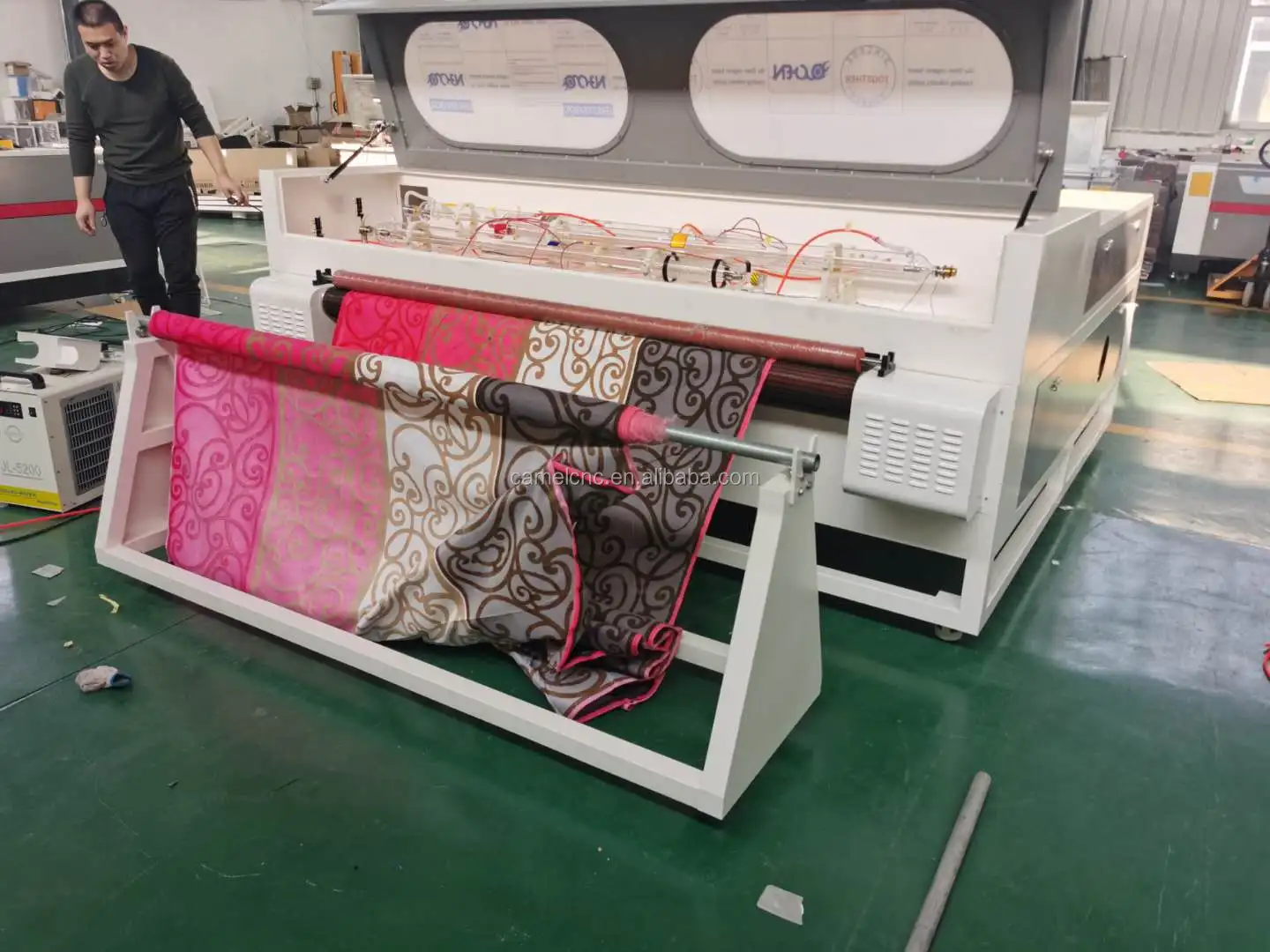

Auto feeding system
Tool kits
Control cabinet inside
Application
Applicable materials: acrylic,wood, MDF,bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials
Applicable industries: advertisement, gift, shoes, toys, sign making,computers, garments, model cutting, building, packaging,paper industry
Applicable industries: advertisement, gift, shoes, toys, sign making,computers, garments, model cutting, building, packaging,paper industry
Sample：
Product packaging
Company Profile

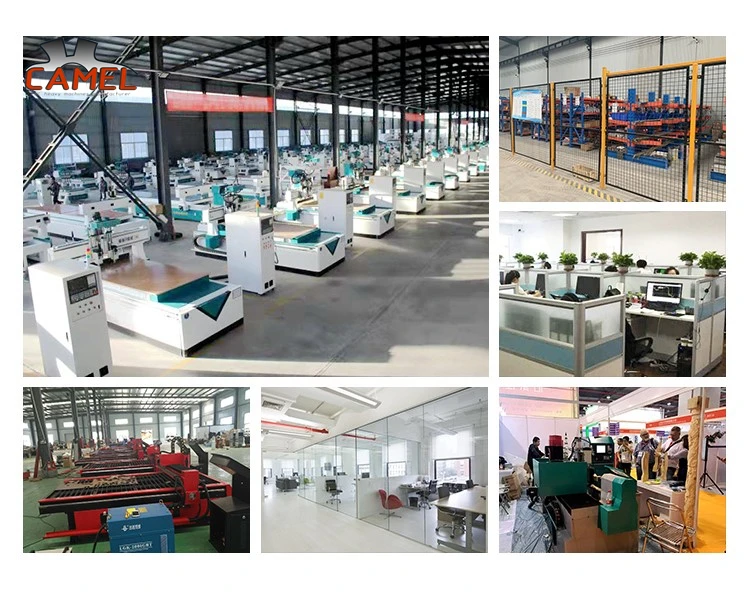

Workshop:
