UV lamp Ballast 120V power supply for 75w 80w 100w UV lamp lighting

UVC Lamp Electronic Ballast Main Technical Data

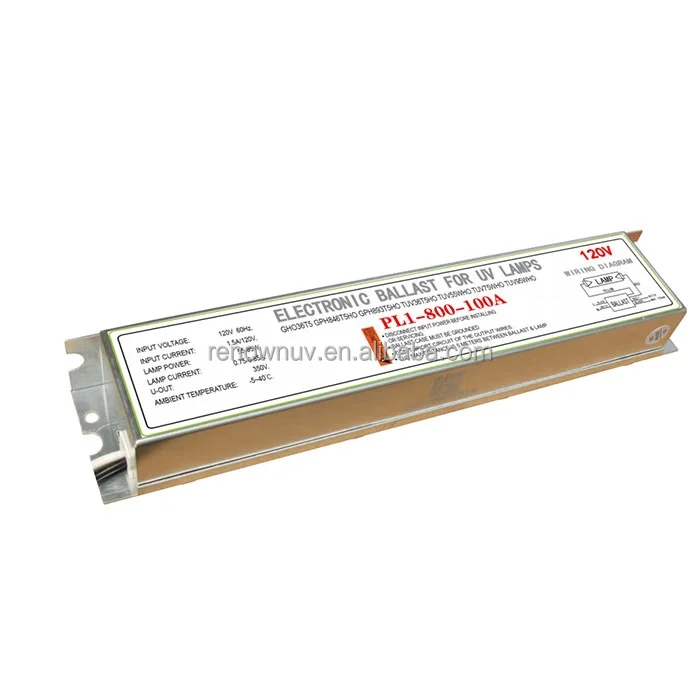

PL1-800-100 UV lamp electronic ballast Application UV Lamp Types

UVC Lamp  Type:  GPH846T5HO  GPH893T5HO  GHO36T5  TUV55WHO

TUV60WHO TUV75WHO

Wiring Diag:A

Electronic Ballast Wiring Diagram

Electronic Ballast Dimension

 l Technical specifications

Mains Frequency:50/60Hz

Power Factor: >0.55

Efficiency: >90%

Operating Frequency: 40-70KHz

Starting:Instant

Dimensions: 215*44*26mm

Input line length:430mm

Output line length:630mm

Signal line length:630mm

l Installation requirement

Wire Gauge:0.5-1.0mm²

Max.cable length between ballasts and lamp:5m

LDE specification:V_F=1.8-3.6V I_F =20-50mA

l Mounting Restrictions

Disconnect Input Power Before Installing or Servicing.

Ballast Case Must Be Grounded.

Don’t short any two wires of the four outputs.

The yellow wire must be insulated when driving a lamp.

l For applications with less than one switch-on cycle per day

(other otherwise preheat start ballasts are recommended)

Lamp filament must be suitable for instant start operation,ask lamp manufacturer.

l Features

Lamp status indication via DC signal output.

DC3~6V 5mA:lamp on. DC 0V:lamp fault or on lamp. Connect LED.

l Applications

All areas of applications include UV lamps

=>Air purification

=>Aquarium

=>Industrial water treatment

=>Kitchen purification

RENOWNUV, a professional brand established in 1996, is focused on offering complete proposals for air and water UV disinfection treatment. RENOWNUV has advanced purification compounding technology of photochemical reaction and photophysics process and design capability from Europe.

As a professional designer and manufacturer of electronic ballast, RENOWNUV is delicated to develop high-quality electronic ballasts. Products are widely used in the fieds of sewage treatment, water purification, air purification, waste gas treatment, medical, priting and soon. RENOWNUV owns a professional and 10+ years experienced R & D team. Aiming to be “top China electronic ballast expert”, and insisting on meeting the customers requirement as the aim of researching and developing product. RENOWNU owns production line with annual production capacity reach 20 million pieces.

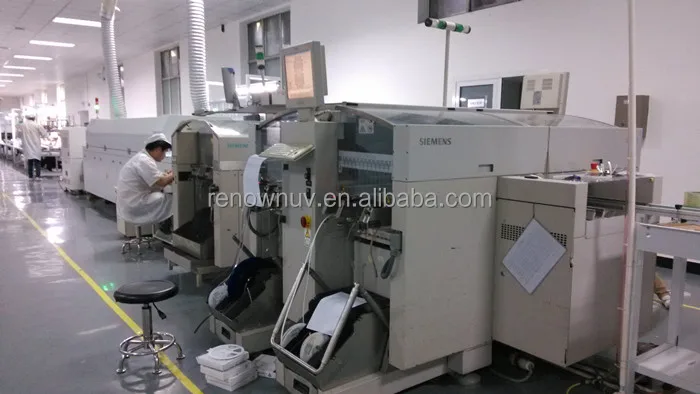

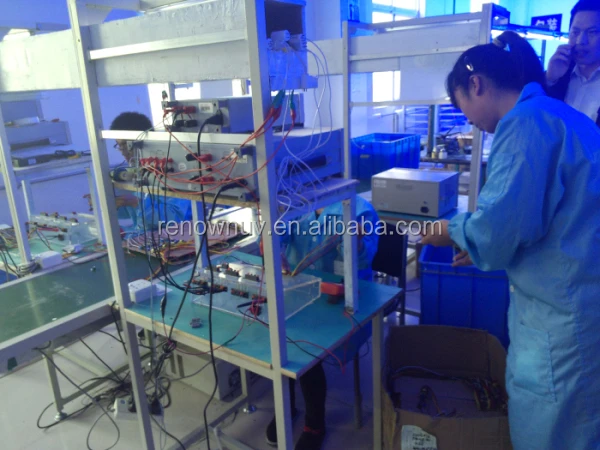

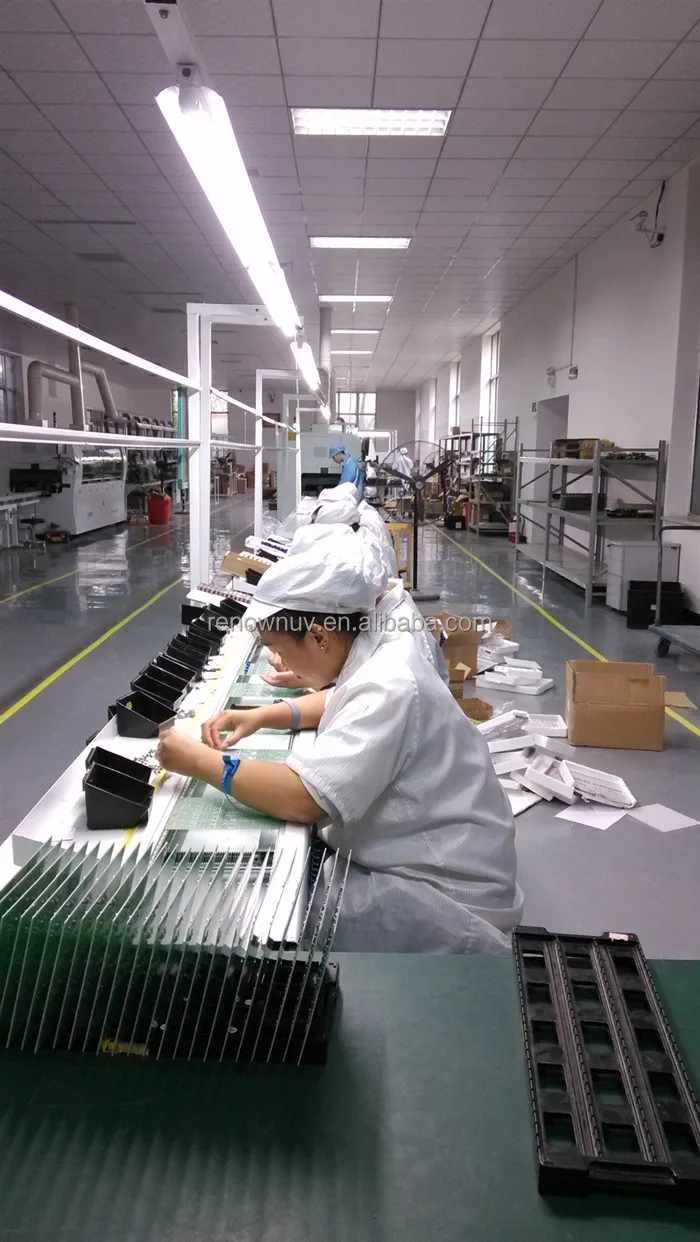

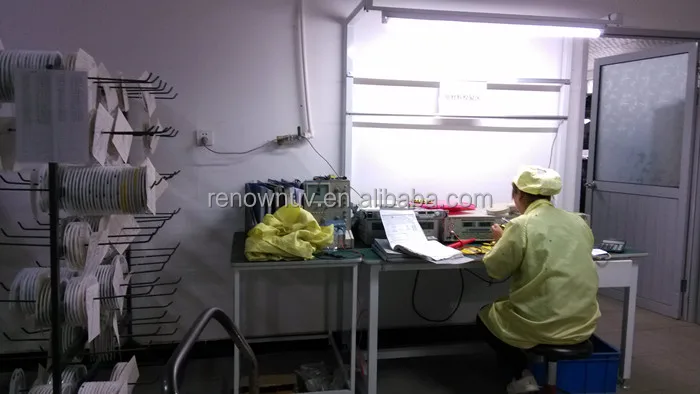

RENOWNUV owns full set of advanced production machines, like full automatic drying machine, automatic printing machine, high speed chip machine, automatic washing machine, off-line AOI visual inspection machine, automatic chain plug-in line and lead-free automatic wave soldering ect.

After years development, we gaind cooperation with many valueable customers by applying them different international certificates to meet different market needs. Till now, we have models of electronic ballast CE, UL, SAA etc certified.

Customers all around the world are welcome to consult us for special electronic ballast design, and certification application.

Our UV lamp electronic ballasts are well packed with cartons. Pallet will be used for large volume goods delivery. We offer multi delivery choices, like express, air shipping and sea shipping, for customers convenience.
