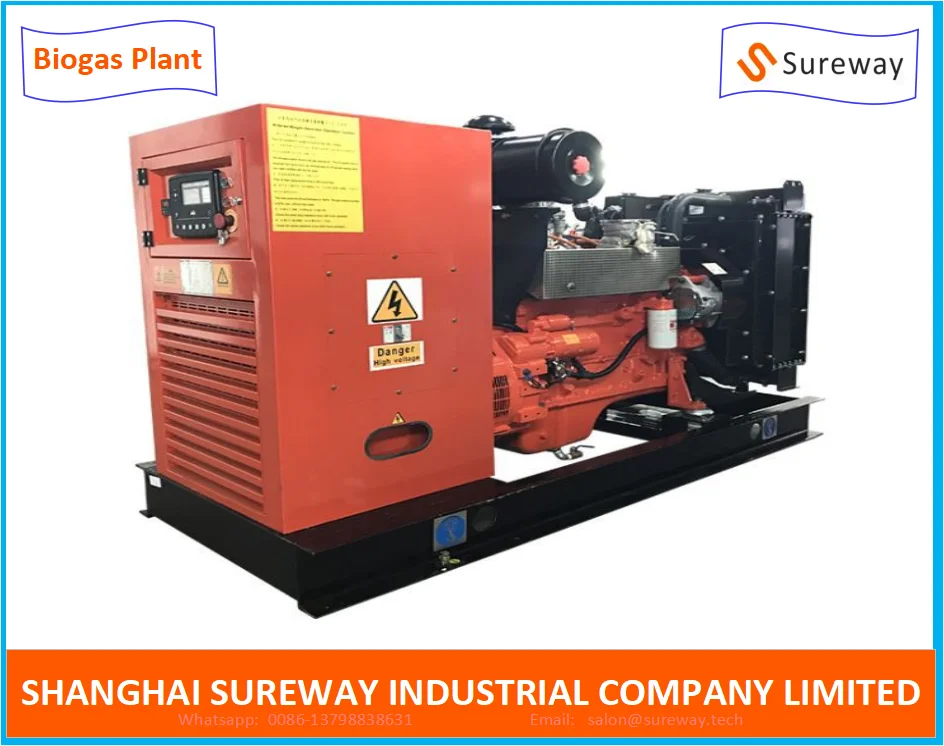

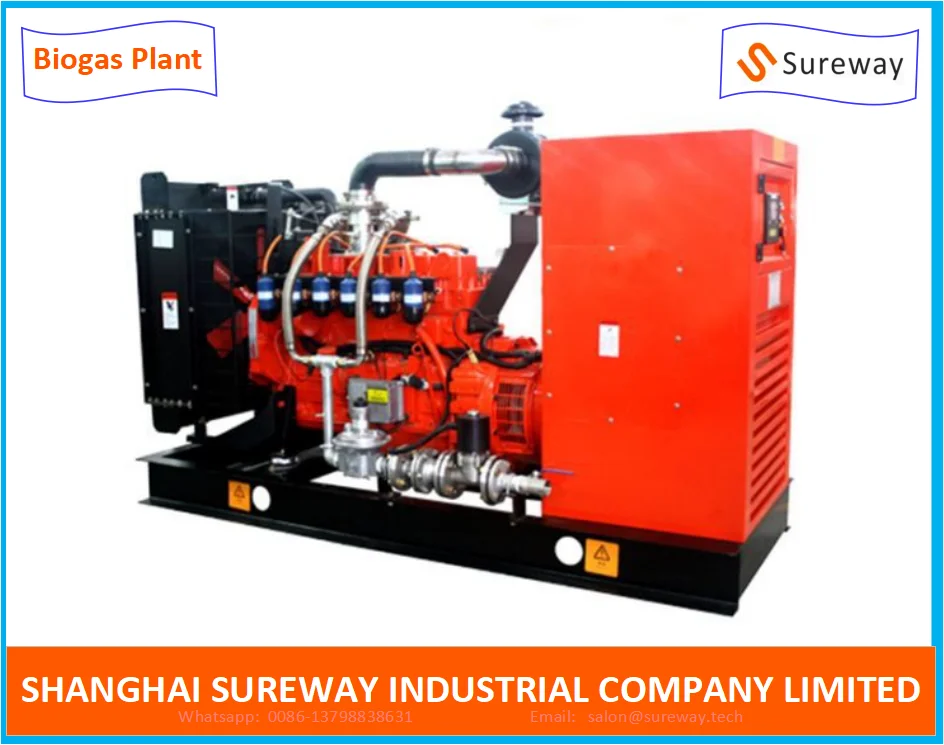

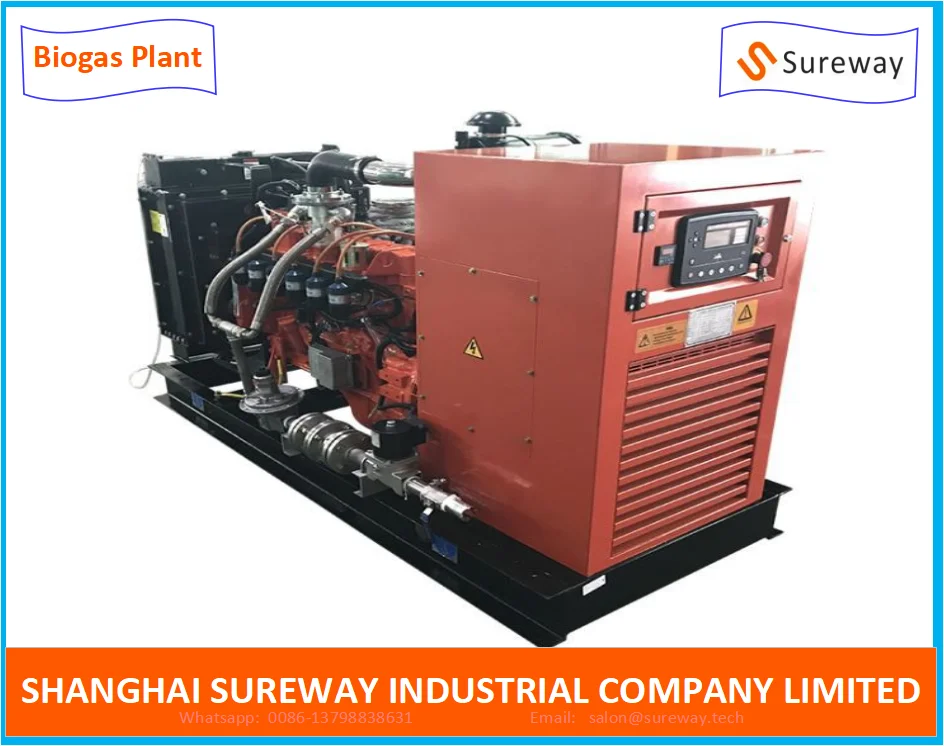

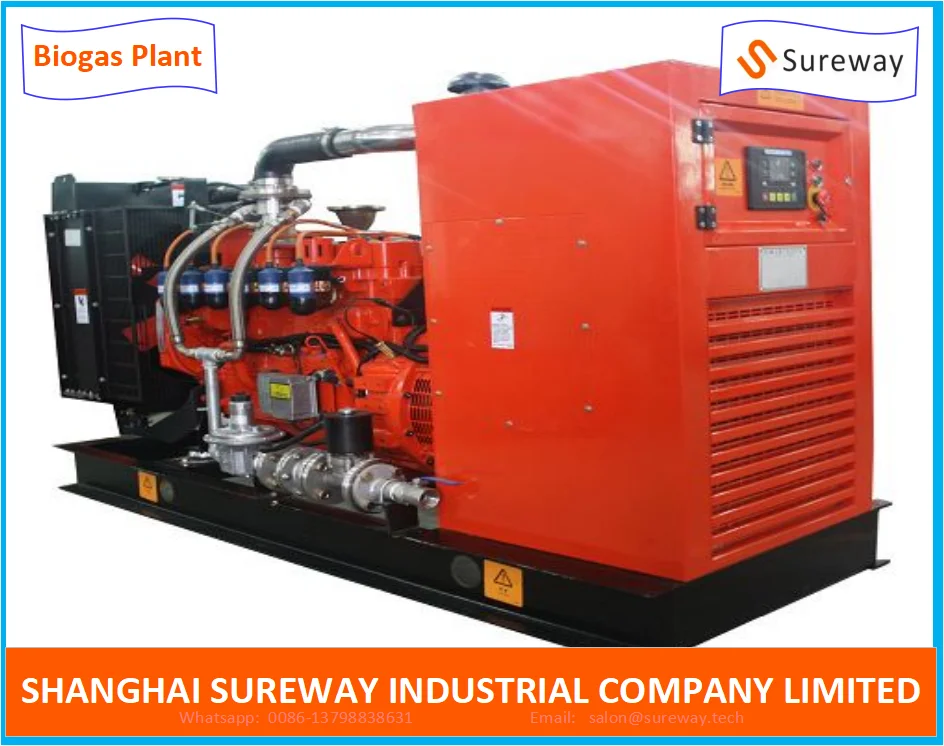

120 KW Gas Generator, natural gas genset for power generation

Product Overview

Description



Ratings

Rated  Power	kVA	150
	kW	120
Voltage type		50Hz, 380/220V, 3 phases and 4 wires

*Ratings at 0.8 power factor



Performance Data

Engine Brand & Model	HGN14
Alternator Brand & Model	LSA44.3L10/120KW
Control System	Deepsea DSE6120
Standard Noise Level@7m (Soundproof Sets)	75 dBA
Circuit Breaker Type	3 Poles MCCB
Frequency & Phase	50hz 3Phases + 4Wires
Engine Speed (RPM)	1500
Fuel Consumption (Nm3/hr) 100% Load	37.71

* The above fuel consumption is calculate with the natural gas whose heat value is 35.8MJ/Nm³



Dimensions and Weights

Content		Open type	Soundproof Sets
Dimensions: (mm)	L	2800	3500
	W	850	1300
	H	1480	1900
Weights (kg)		1850	2850



Engine Brand & Model: HGN14

Engine Data

No. of Cylinders	6	Engine power(KW)	145
Cycle	4 Stroke	Cylinder Type	Wet
Bore * Stroke (mm)	140 * 152	Compression Ratio	11:1
Induction	Aftercooled	Displacement (L)	14
Cooling Method	Water cooled	Governing Type	Electronic
Starting method	24V DC motor	Coolant capacity, including radiator (L)	66.8
Lubricant Oil	15W40-CF4 or above grade	Oil pan capacity (L)	36



Open the gas fuel switch, adjust the gas pressure to 0.8-1.6Kpa.

Open the power supply switch and ensure indicator light is on, then start genset according to the control system operating specifications.

Turn off gas fuel switch if genset fail to start for three times. In order to discharge the residual gas, please start genset again. But before that, please check the malfunction and troubleshooting.

After genset starting, the speed should be controlled about 1500RPM and note the reading of oil pressure carefully. If the oil pressure have no indicator, stop genset and check it immediately.

If the genset operate normally, turn off air switch and increase the load gradually.



Please Note: air switch have the protective equipment of decompression. So it can be turn off when the genset voltage reach 70% rated voltage. (When turn off switch, the shift handle should be button up firstly and then turn off upwards). After the switch turn on, if genset voltage is reduced to 40-70% rated voltage, this switch will jump upwards once again, but it will not be the "off" position, all these situation is normal.
