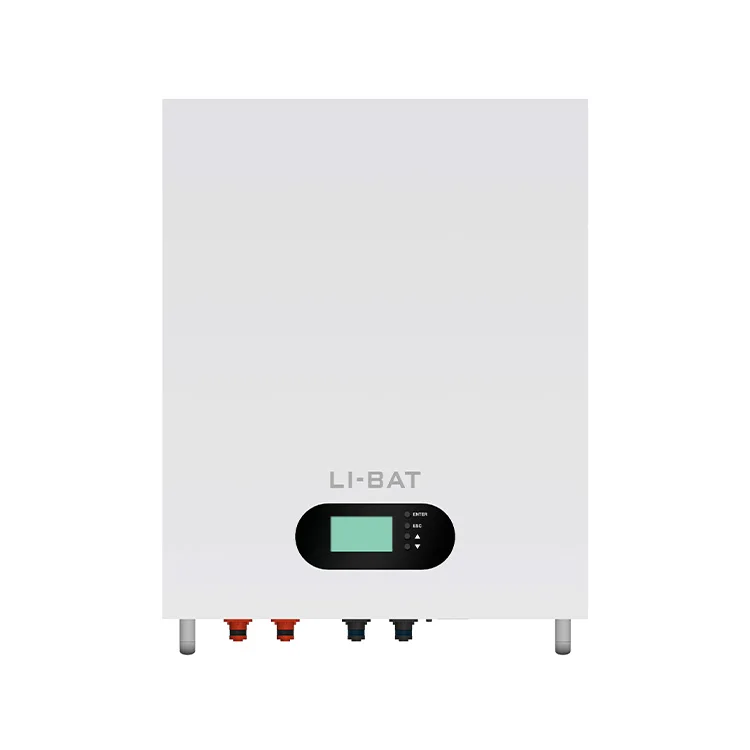

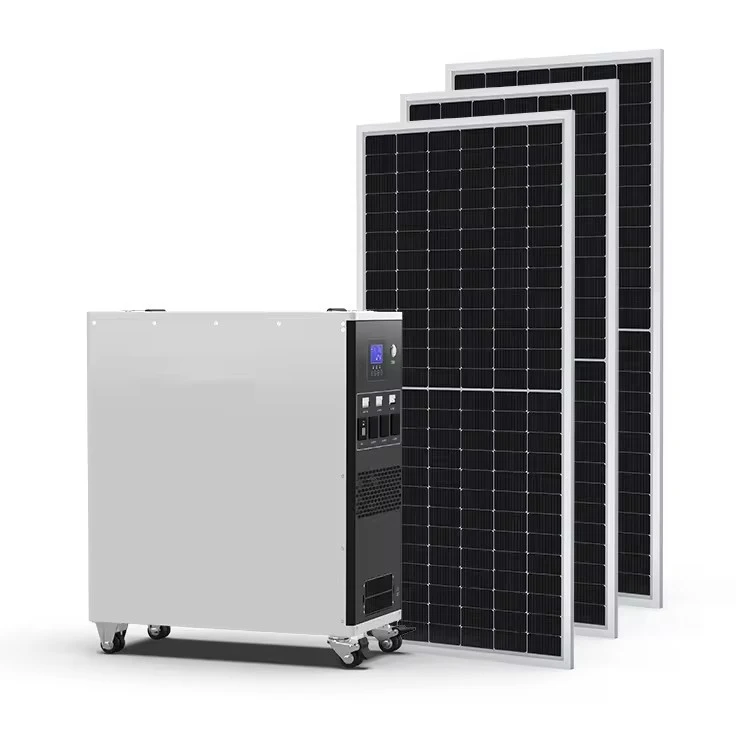

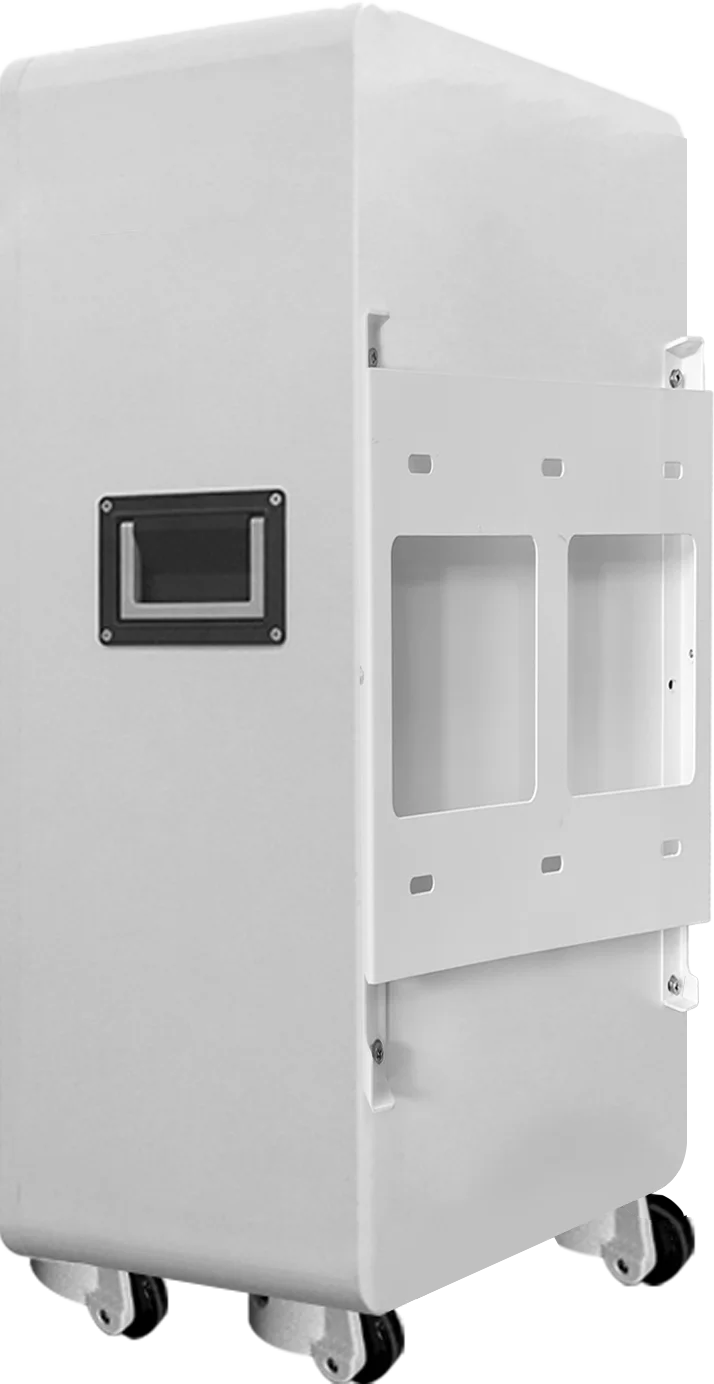

51.2V 280Ah Hv Lithium Battery 48V 200Ah 300Ah Lithium Battery Solar Portable Power Station
- Category: >>>
- Supplier: Pingdingshan Sinoshine Energy Co. Ltd.Pingdingshan Ltd.
Share on (1601213464378):
Product Overview
Description
VR
Products Description
Model | GBP4850 | GBP48100 | GBP48200 | ||
Nominal Voltage (V) | 48 | ||||
Battery Capacity (AH) | 50(2.5KWH) | 100(5KWH) | 200(10KWH) | ||
Working Voltage Range | 42-56.25 | ||||
Recommended Charging voltage (V) | 52.5 | ||||
Recommended Discharge cutoff Voltage(V) | 45.7 | ||||
Standard Charging Current (A) | 25 | 50 | 100 | ||
Max Continuous Charging Current(A) | 50 | 100 | 200 | ||
Standard Discharge Current (A) | 25 | 50 | 100 | ||
Max Continuous Discharging Current(A) | 50 | 100 | 200 | ||
Operating Temperature (℃C) | -20℃~60℃(recommend 10℃~35℃) | ||||
Cool method | Natural air cooling | ||||
Certificate | CE, UN38.3, MSDS | ||||
Cycle life | Around 5000 times | ||||
Communication | RS485(CAN optional) | ||||

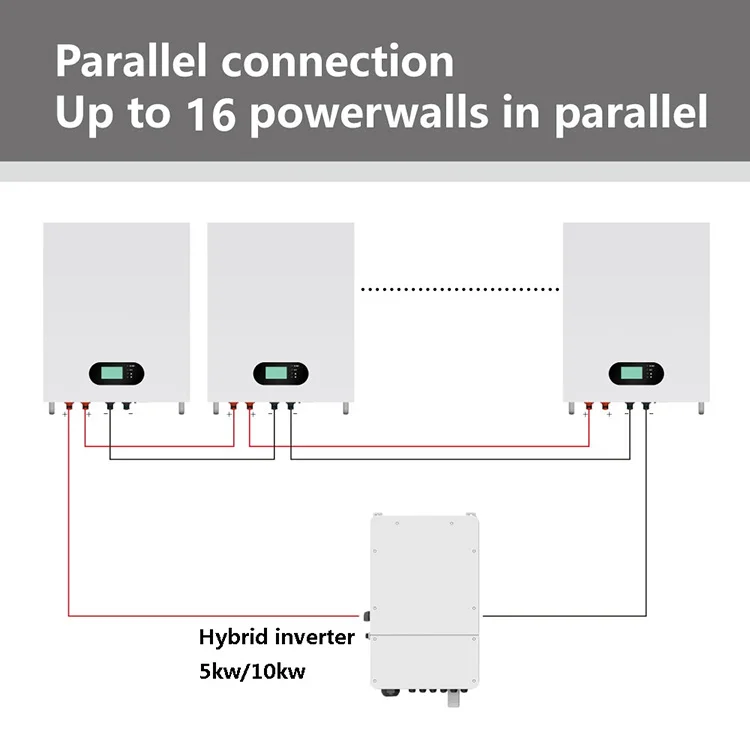

Parallel function | 48v support at most 15 packs in parallel use(Capacity is 75KWH) | ||||
Max size (W*D*H)mm | 410*180/220*590mm(including mounting rack) | ||||
Weight | 22KG | 45KG | 106KG | ||
Protection Level | IP20 | ||||
Communication | RS485(CAN optional) | ||||
Remark | 0.5C Discharge Max: 1C, 80%DOD | ||||

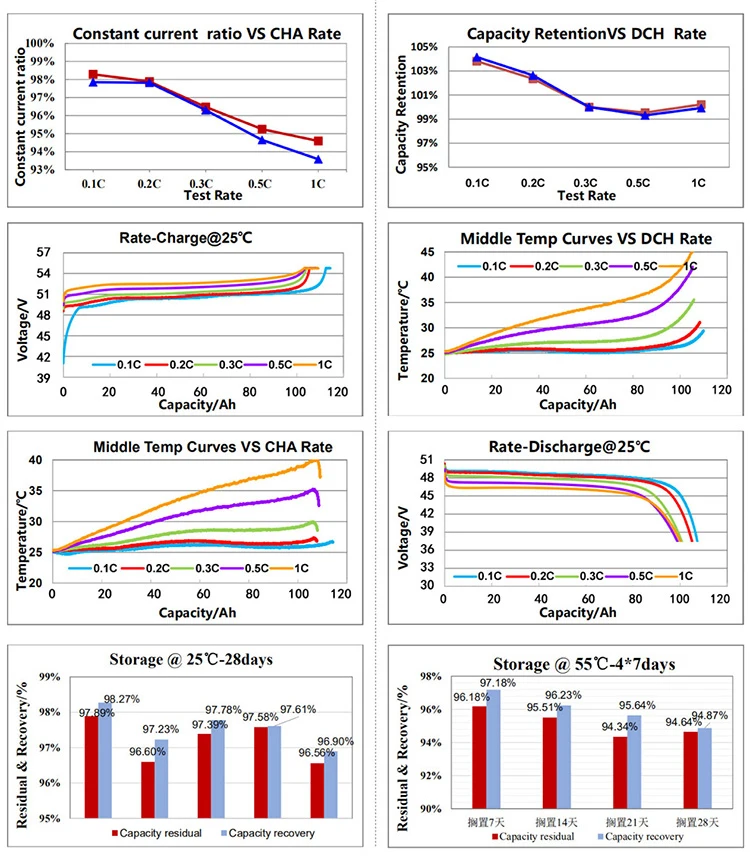

Detailed Images
Why Choose Us
Certifications
Packing & Delivery

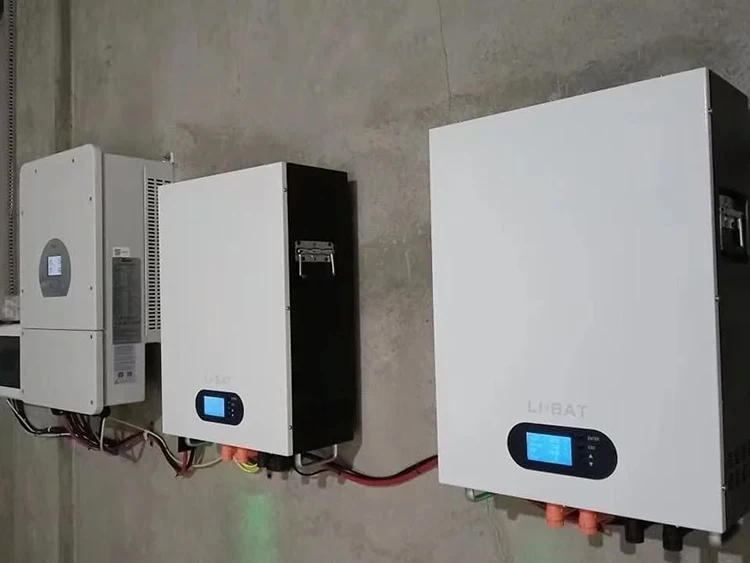

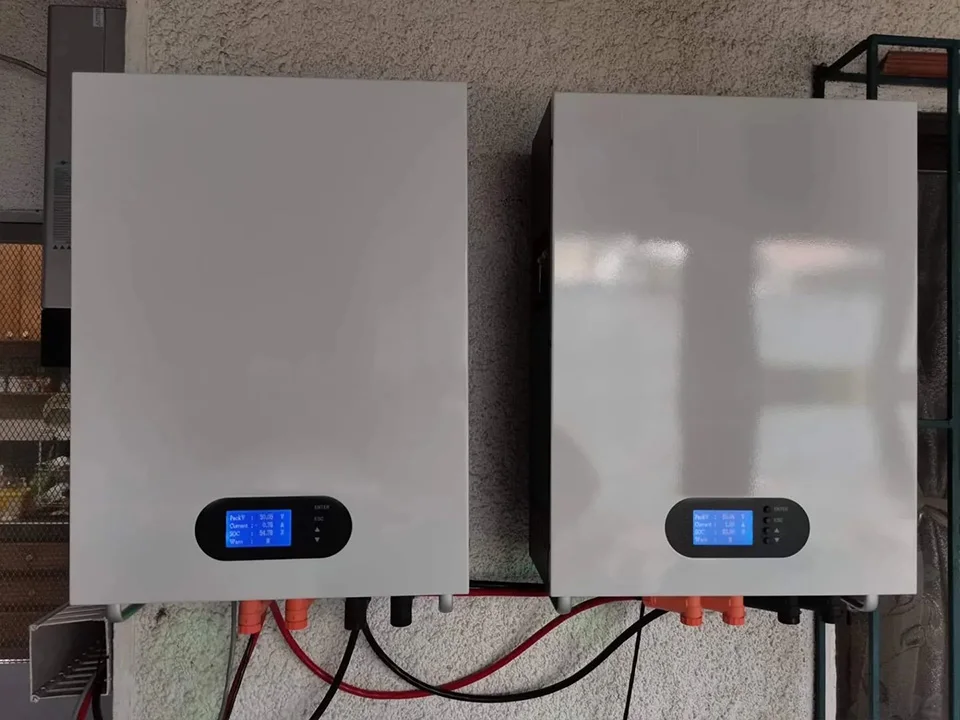

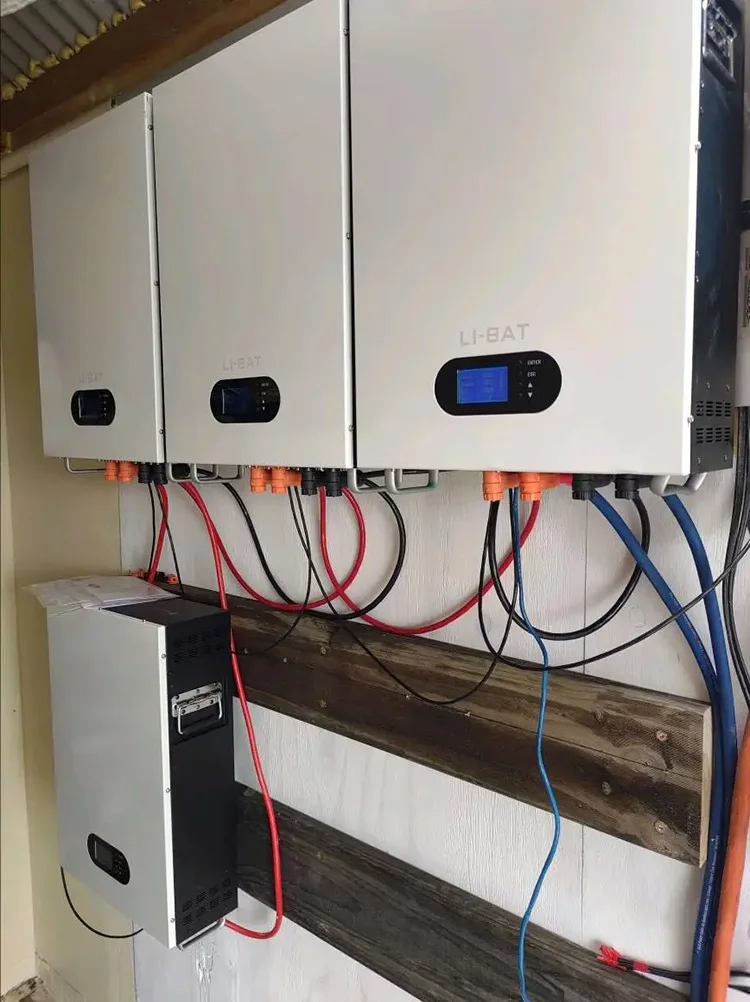

Project Case
