Biobase VET Chemistry Analyzer Urea TP ALT AST Glu GGT Blood Testing Chemistry Analyzer
- Category: >>>
- Supplier: Biobase Medstar Co. Ltd.
Share on (1601213502798):
Product Overview
Description
Products Description

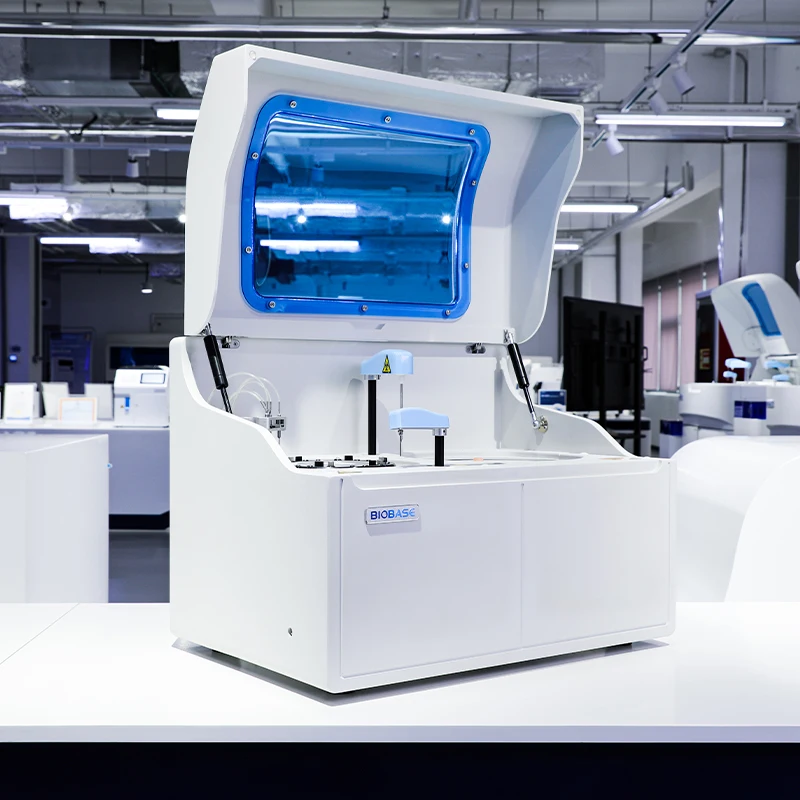

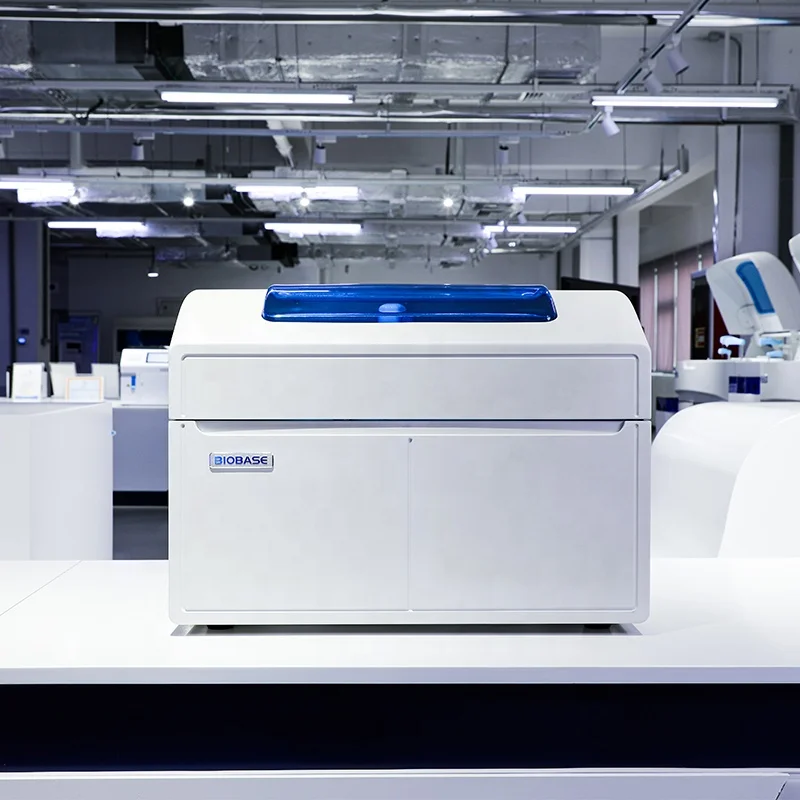

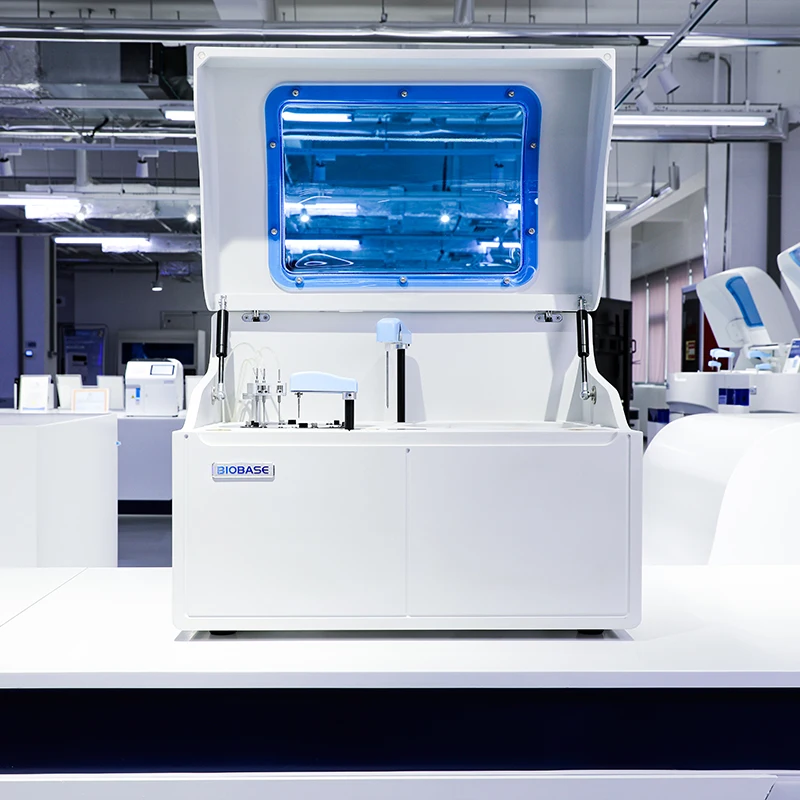

BIOBASE Automatic Biochemistry Analyzer
BK-200
Features:
1. 37 Sample positions.

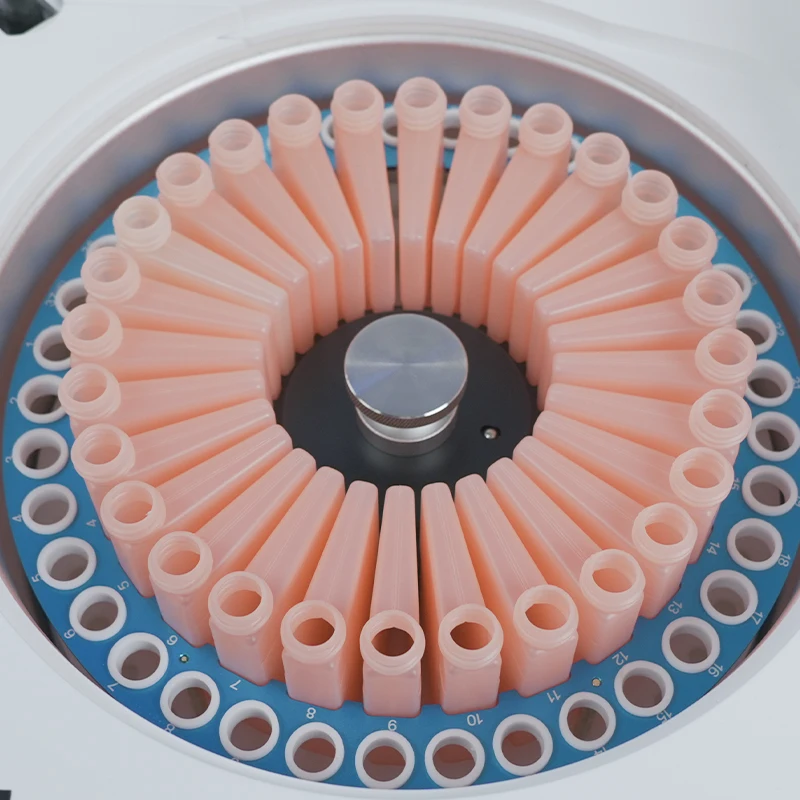

2. 28 Reagent positions.
3. 48 Reaction cuvettes.
4. 200 Tests per hour.
5. Probe anti-collision function,liquid level dectection function.
1. 37 Sample positions.
2. 28 Reagent positions.
3. 48 Reaction cuvettes.
4. 200 Tests per hour.
5. Probe anti-collision function,liquid level dectection function.
Product Paramenters
Model | BK-200 | ||
Overall Performance | Throughput | 200 Tests/hour | |
Analysis Method | End-point, Fixed-time, Rate(Kinetic), Turbidimetry | ||

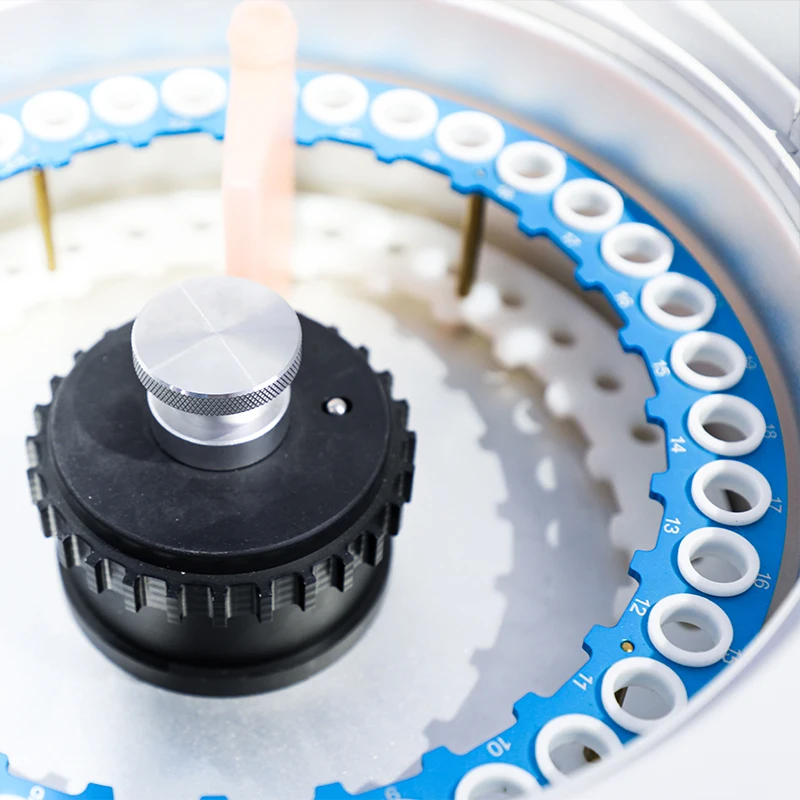

Sample & Reagent System | Sample Positions | 37 sample positions | |
Reagent Position | 28 reagent positions | ||
Sample Volume | 2-70µl | ||
Reagent Volume | 20-350µl | ||

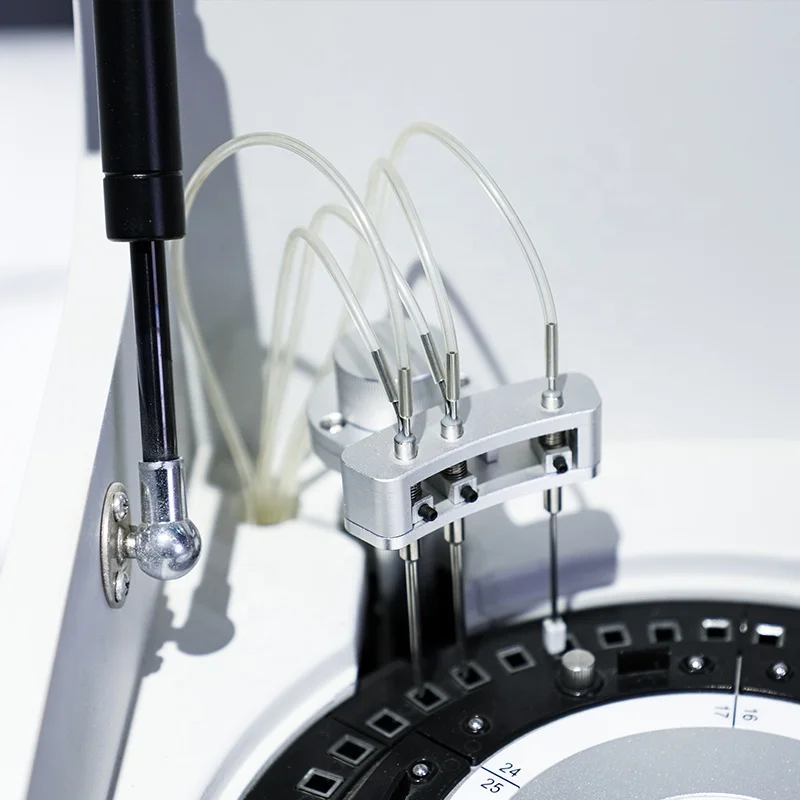

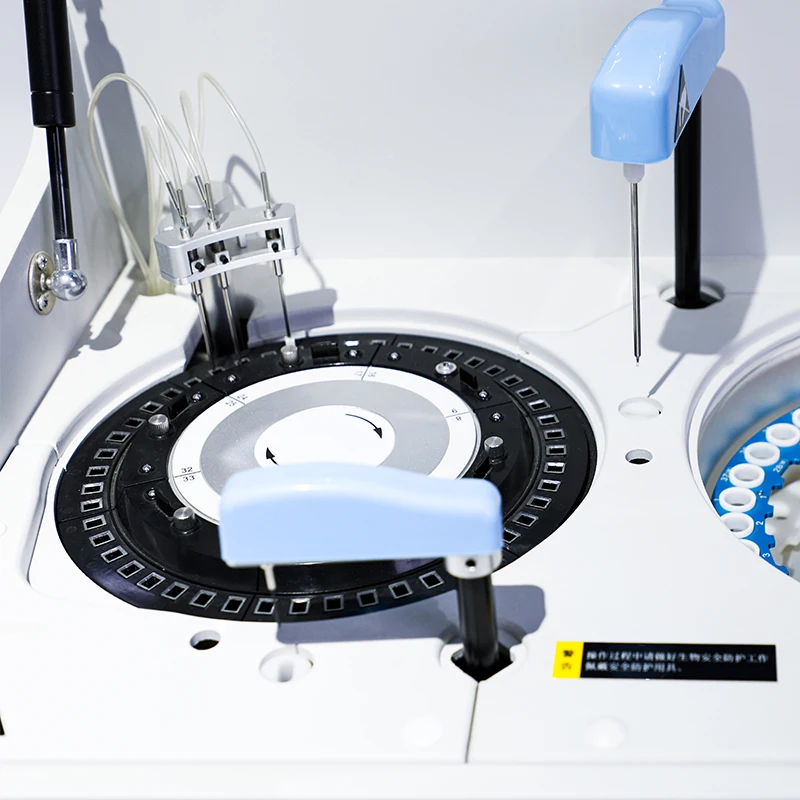

Probe | with anti-collision function, liquid level detection function | ||
Probe Washing | Automatic washing interior and exterior | ||
Reagent Cooling | Refrigerated tray with independent switch | ||
Reaction System | Temperature Control | 37+0.2℃, real-time monitoring | |

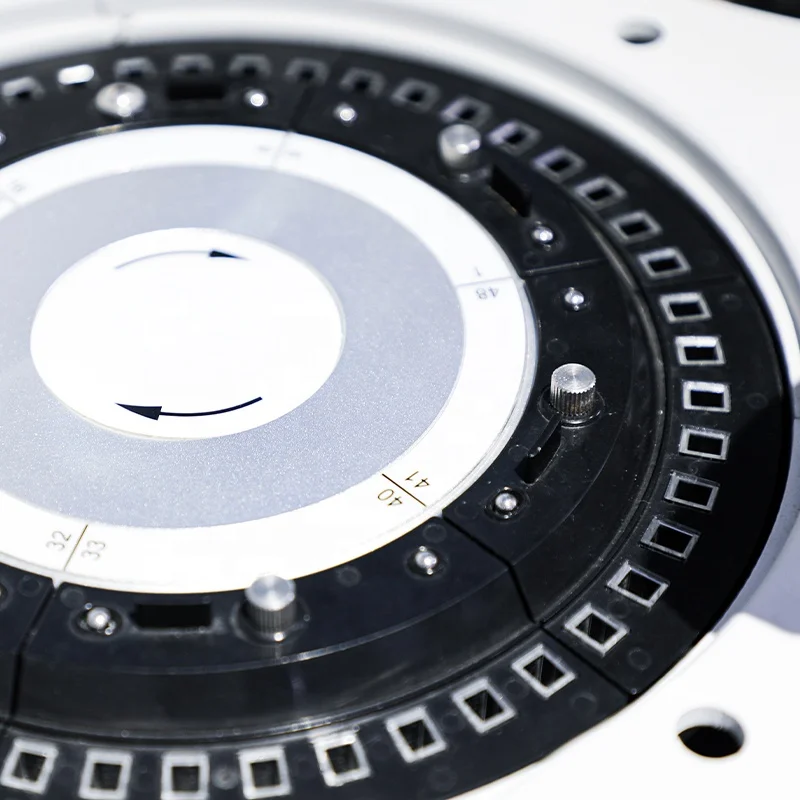

Cuvettes | 48 reusable cuvettes, optical length 6mm | ||
Mixer Probe | Independent stirring | ||
Washing | Automatic cuvettes washing | ||
STAT function | YES | ||
Optical System | Light Source | 6V/10W halogen lamp | |
Spectrophotometry | Post-spectral spectrophotometry | ||
Wavelength | 340,405,450,480,505,546,570,600,,630,700,750,800nm | ||
Absorbance | 0-3.0Abs | ||
Calibration & QC | Calibration | Linear:K factor, 1-point ,2-point and multipoint linear Non-Linear: Spline,Polygon, Index, Ogarithm, Logit-4P, Logit-5P | |
Quality Control | Real-time QC, Westgard multi rule, Cumulative Sum Check, Twin Plot(2D) | ||
Data Management | Software | Windows 7/8/10, 32 or 64bit | |
LIS System | Bi-direction, support HL7 protocol | ||
Interface | LAN port access | ||
Printer | External, multiple reporting mode available | ||
Working Conditions | Power Supply | AC220V±10%, 50/60Hz, 110V±10%, 60Hz, 300W | |
Temperature | 15～30℃ | ||
Water Consumption | Deionized water: ＜5L/H | ||
Humidity | 40-85% | ||
Size & Weight | External Size (W*D*H) | 625*425*460mm | |
Net Weight | 36kg | ||
Package Size (W*D*H) | 750*560*900mm | ||
Gross Weight | 55kg | ||
