2.5D 3D 20w 30w 50w 80w 100w Jpt Mopa M7 Raycus Engraver Fiber Laser Printing Marking Machine For Guns Jewelry Embossing
- Category: >>>
- Supplier: Jinan Hitec Machinery Co. Ltd.
Share on (1601213822856):
Product Overview
Description
Product Overview

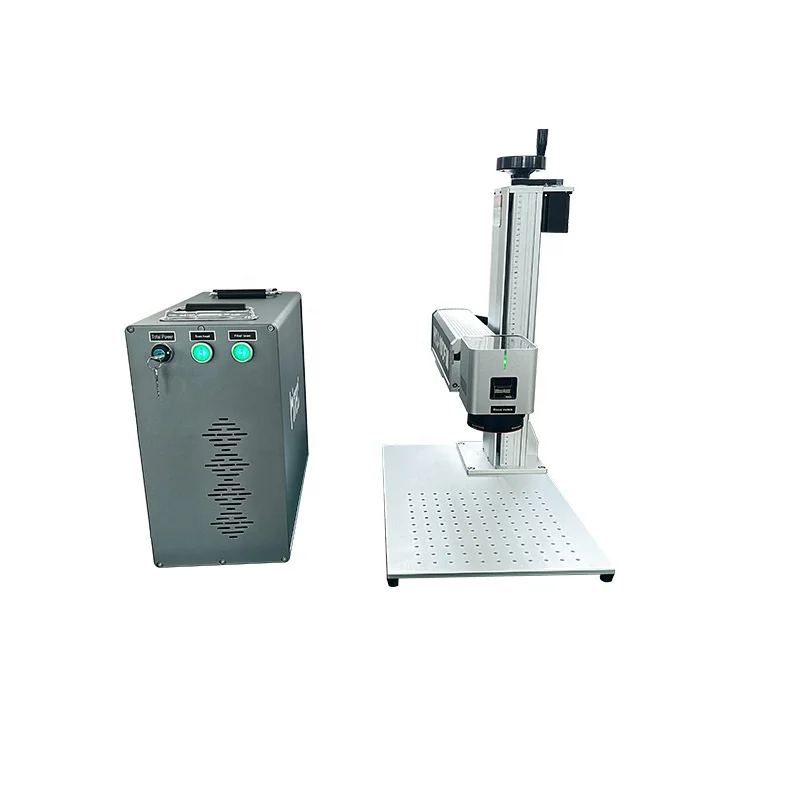

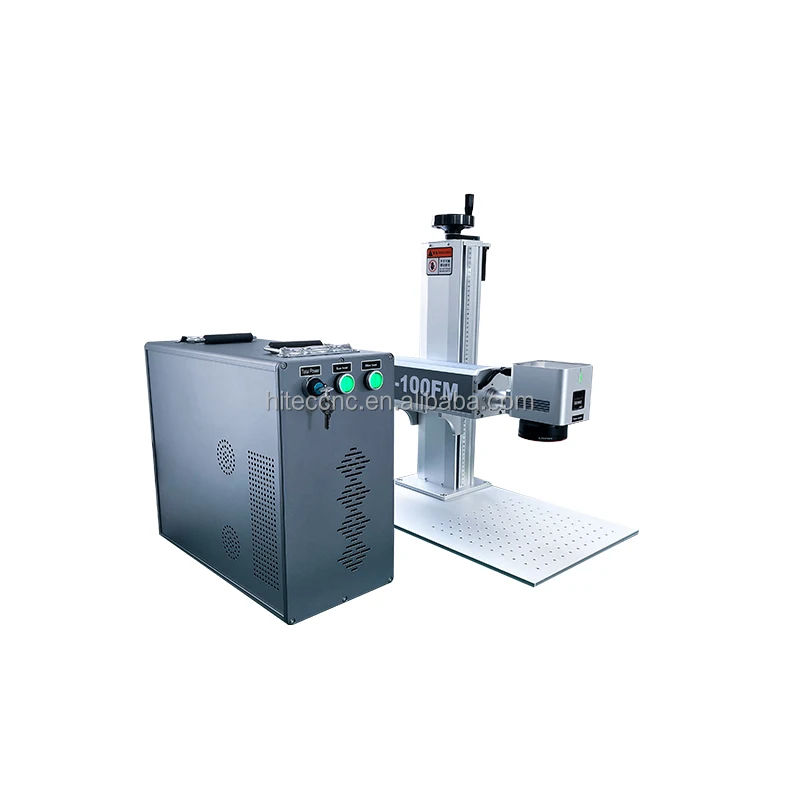

HTJ-100FM-2.5D Laser Marking Machine
The most popular jewelry cutting and engraving machine in Europe. 2.5D fiber laser marking machine can work with most metal marking applications, such as logo making, serial numbers, technical specifications and other designs on metals (copper, iron, steel, stainless steel, titanium, aluminum, gold, silver, brass, alloys), and 2.5D fiber laser engraving machine can finish all 2D laser works and can also make 3D relief engraving on flat plate, but it can't make 3D engraving on curved part. If the user only need to do some relief engraving, it is much economic cost than 3D laser engraving machine. It can also mark different colors on stainless steel and titanium with MOPA laser source.
Feature at glance
1. Fastest marking
2. No consumables
3. Low maintenance
4. Low operating costs
5. Surface treatments resistant
6. Mark at high temperatures
7. Laser safety guidance
2. No consumables
3. Low maintenance
4. Low operating costs
5. Surface treatments resistant
6. Mark at high temperatures
7. Laser safety guidance
8. Motorized Z-axis,calibration mod
Product Specification
No | Item | Data | |
1 | Working area | 110*110mm/175*175mm/200*200mm | |
2 | Laser source | JPT MOPA 60/80/100/120/200W | |
3 | Laser head | OUYA double red light M102 | |
4 | Control board | EZCAD DLC | |
5 | Control software | EZCAD3 | |
6 | Power supply | Taiwan best brand MW laser power supply | |
7 | Certification | CE, FDA | |
8 | Warranty | 3 Years | |
9 | Cooling system | Air cooling | |
10 | Voltage | 220V / 50HZ or 110V / 60HZ | |
11 | Full necessary parts for the laser marking machine | Full necessary parts for the laser marking machine | |
1. | Safety glasses | ||
2. | Focal length ruler | ||
3. | Dimming piece | ||
4. | U disk (1pcs) | ||
5. | Metal sheet 1 box | ||
6. | Positioning Bar 2+ Screws 4 | ||
7. | Wrench | ||
8. | Foot switch | ||
9. | Lens | ||
JPT MOPA laser source
60w/80W/100w/120W/200w
OUYA double red light M102
Taiwan MW Famous brand
Control board
Field lens
Power switch
EZCAD3 Software
Parts with machine
Europe Standard Plug
Technology data
Power | 60W/ 80W/ 100W/ 120W/ 200W/ 300W |
Laser wavelength | 1064nm |
Marking area | 100*100 mm etc |
Marking depth/Cutting deapth | Marking depth:0-8mm marking depth |
Marking Speed | 7000mm/s |
Minimum Line Width | 0.015 mm |
Minimum Character | 0.2 mm |
Repeated Precision | ±0.003 mm |
Focus Spot Diameter | <0.01mm |
Power Stability (8h) | <±1.5%rms |
System Operation Environment | Windows XP / Windows 7 / Windows 8 / Windows 10 |
Cooling Mode | Air cooling--Built-in |
Working Temperature | 0℃~40℃ |
Voltage | 220V / 50HZ / 1-PH or 110V / 60HZ / 1-PH |
Power Requirement | <500W |
Computer Requested | Include with the machine |
Dimension (L*W*H) | 770*470*770mm |
Net Weight | 58KG |
Gross Weight | 68KG |
Samples
For ring engraving
For ring engraving
For ring engraving
For jewelry engraving
For jewelry engraving
For jewelry engraving
For jewelry engraving and cutting
For jewelry engraving and cutting
For jewelry engraving and cutting
For jewelry engraving and cutting
For jewelry engraving and cutting
For jewelry engraving and cutting
For jewelry engraving and cutting
For jewelry engraving and cutting
For jewelry engraving and cutting
Most popular purchase combinations among jewelry manufacturers:
1.Fiber laser marking machine + Metal fixed table for jewelry cutting.
2. Fiber laser marking machine +Rotary for ring D69 mm.
3.Fiber laser marking machine + Metal fixed table for jewelry cutting+Rotary for ring D69 mm + Smoke purifier
For 2D flat engraving
For 2D flat engraving
For 2D flat engraving
For color marking
For color marking
For color marking
For deep engraving
For deep engraving
For deep engraving
For 3D relief engraving
For 3D relief engraving
For 3D relief engraving
Optional Area
Optional parts
Optional type
Company profile
JINAN HITEC MACHINERY CO.,LTD
Established in the year 2002,We are manufacturer and develop of the high technology machines. Hitec products are used in a wide variety of industries, markets and applications thoughout all over the world.Hitec is highly committed to offering the most advanced,capable and efficient manufacturing technology backed by unsurpassed service and support. We offer laser cutting machine, fiber laser cutter machine, cnc router machine, wood cnc lathe machine, cnc plasma cutter, cnc oscillating knife cutter machine.
QC and Service
QC
5 face cnc milling machine which process accurancy can be 0.001mm,to improve all the machine hardware precision,from machine bed,gantry parts to tapping.
All the machine parts Assembe by our machine milling and lathe machine,can be guarantee the machine precision and fast delivery time
All the machine parts Assembe by our machine milling and lathe machine,can be guarantee the machine precision and fast delivery time
Certification
CE FDA ISO certification
Service
Technology support
We welcome all our buyers come to visit our factory for directly free training, our professional engineer will support you to study the machine operation.
We will supply machine operation manual, training videos and machine parameters, our engineer will supply online machine installation and training.
The customers’ technicians can keep in touch with our engineer at any time, through wechat/whatsapp/mobile phone or email, our engineer will help to solve your problems as soon as possible.
If customer need, we will send our engineer to the customers’ place to provide install and train the customer to use the
machine,our engineer will stay at customers’ place for 5-7days,customers should pay the round-trip airkets/hotels/food for our engineer.
We welcome all our buyers come to visit our factory for directly free training, our professional engineer will support you to study the machine operation.
We will supply machine operation manual, training videos and machine parameters, our engineer will supply online machine installation and training.
The customers’ technicians can keep in touch with our engineer at any time, through wechat/whatsapp/mobile phone or email, our engineer will help to solve your problems as soon as possible.
If customer need, we will send our engineer to the customers’ place to provide install and train the customer to use the
machine,our engineer will stay at customers’ place for 5-7days,customers should pay the round-trip airkets/hotels/food for our engineer.
The main purpose of pre-sales service is to assist customers to do engineering planning and system requirements analysis, so that
our products can meet the needs of users to the greatest extent, and at the same time make the customer's investment play the
largest comprehensive economic benefit.
our products can meet the needs of users to the greatest extent, and at the same time make the customer's investment play the
largest comprehensive economic benefit.
1. Strengthen user communication and exchange on project progress at any time; 2. As far as possible to meet the changes of the
user's reasonable temporary needs;
3. Collaborate friendly with users to deliver qualified products.
user's reasonable temporary needs;
3. Collaborate friendly with users to deliver qualified products.
Guarantee Policy
The guarantee period of quality shall be 3 years counting from the date on which the commodity arrives at the port of destination.
Except the damage is artificial, we are responsible for offering the fittings free of charge during the guarantee period, but you
need to send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. Out of
the guaranteed period, should the parts required to be repaired or replaced, if any, the parts will be charged.
Except the damage is artificial, we are responsible for offering the fittings free of charge during the guarantee period, but you
need to send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. Out of
the guaranteed period, should the parts required to be repaired or replaced, if any, the parts will be charged.
