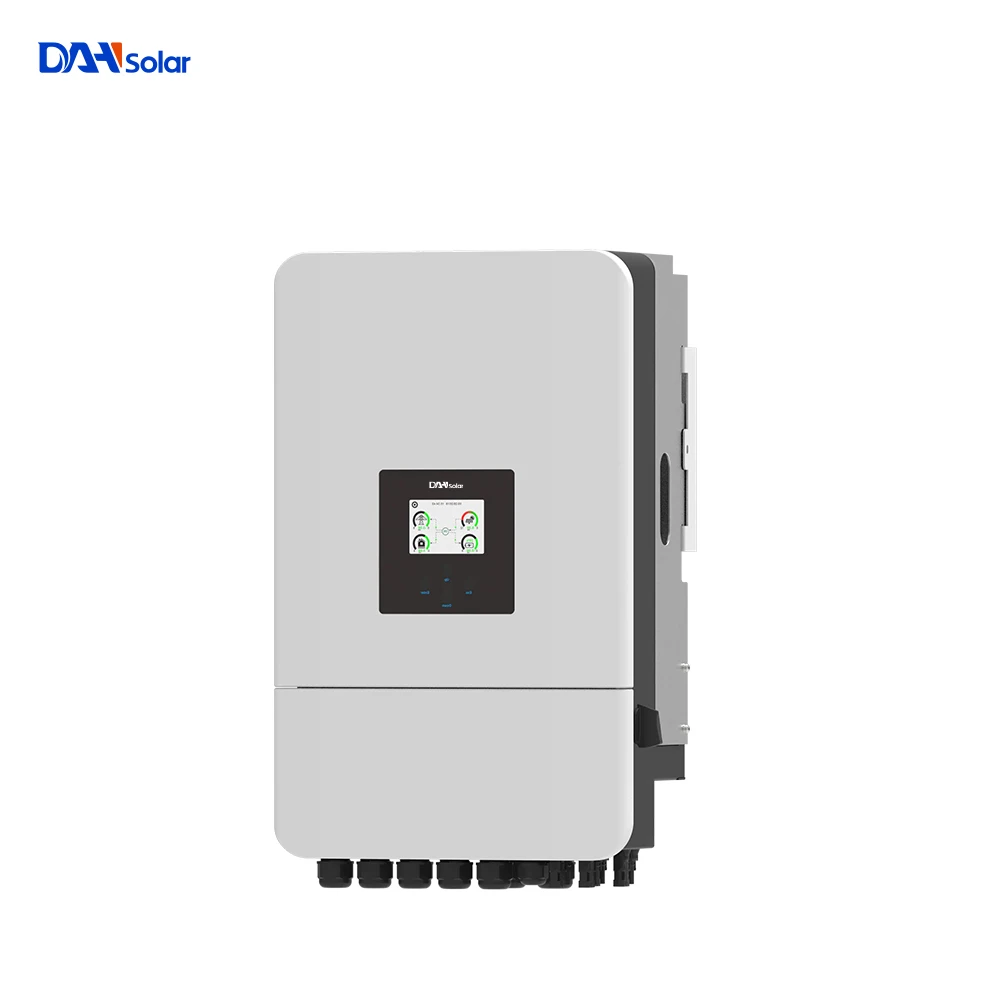

deye sun 6k sg03lp1 eu hybrid solar inverter 6kw solar inverter price list with battery
- Category: >>>
- Supplier: Dah Solar Co. Ltd.Dah Ltd.
Share on (1601214062474):
Product Overview
Description
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
Model | SUN-3.6K-SG05LP1-EU-SM2 | SUN-5K-SG05LP1-EU-SM2 | SUN-6K-SG05LP1-EU-SM2 | SUN-7K-SG05LP1-EU-SM2 | SUN-7.6K-SG05LP1-EU | SUN-8K-SG05LP1-EU-SM2 | ||||||
Battery Input Data | ||||||||||||
Battery Type | Lead-acid or Lithium-ion | |||||||||||
Battery Voltage Range(V) | 40-60 | |||||||||||
Max.Charging Current(A) | 90 | 120 | 135 | 175 | 190 | 190 | ||||||
Max.Discharging Current(A) | 90 | 120 | 135 | 175 | 190 | 190 | ||||||
Charging Strategy for Li-ion Battery | Self-adaption to BMS | |||||||||||
Number of battery input | 1 | |||||||||||
PV String Input Data | ||||||||||||
Max PV Input Power（W） | 4680 | 6500 | 7800 | 10000 | 9880 | 10400 | ||||||
Max PV Input Voltage（V） | 500 | |||||||||||
Start-up Voltage（V） | 125 | |||||||||||
MPPT Voltage Range（V） | 150-425 | |||||||||||
Rated PV Input Voltage(V) | 370 | |||||||||||
Max Input Short-Circuit Current（A） | 27+27 | 34+34 | 34+34 | |||||||||
Max Operating PV Input Current（A） | 18+18 | 26+26 | 26+26 | |||||||||
No.of MPP Trackers/No.of String Per MPP Tracker | 2/1+1 | 2/2+2 | 2/2+2 | |||||||||
AC Input/Output Data | ||||||||||||
Rated AC Input/Output Active Power（W） | 3600 | 5000 | 6000 | 7000 | 7600 | 8000 | ||||||
Max AC Input/Output Apparent Power （VA） | 3960 | 5500 | 6600 | 7700 | 8360 | 8800 | ||||||
Peak Power (off-grid)（W） | 2 times of rated power,10s | |||||||||||
Rated AC Input/Output Current（A） | 16.4/15.7 | 22.8/21.8 | 27.3/26.1 | 31.9/30.5 | 34.5/33.1 | 36.4/34.8 | ||||||
Max AC Input/Output Current（A） | 18/17.3 | 25/24 | 30/28.7 | 35/33.5 | 38/36.4 | 40/38.3 | ||||||
Max Continuous AC Passthrough (grid to load)（A） | 35 | 40 | 50 | |||||||||
Rated Input/Output Voltage/Range(V) | 220V/230 0.85Un-1.1Un | |||||||||||
Grid Connection Form | L+N+PE | |||||||||||
Rated Input/Output Grid Frequency/Range | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz | |||||||||||
Power Factor Adjustment Range | 0.8 leading-0.8lagging | |||||||||||
Total Current Harmonic Distortion THDi | <3% (of nominal power) | |||||||||||
DC Injection Current | <0.5%ln | |||||||||||
Efficiency | ||||||||||||
Max Efficiency | 97.6% | |||||||||||
Euro Efficiency | 96.5% | |||||||||||
MPPT Efficiency | ＞99% | |||||||||||
Equipment Protection | ||||||||||||
Integrated | DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection AC Output Overvoltage Protection, AC Output Short Circuit Protection, Thermal Protection DC Terminal Insulation Impedance Monitoring, DC Component Monitoring, Ground Fault Current Monitoring Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch Overvoltage Load Drop Protection, Residual Current (RCD) Detection, Surge protection level | |||||||||||
Surge Protection Level | TYPE II(DC),TYPE II(AC) | |||||||||||
Interface | ||||||||||||
Communication Interface | RS485/RS232/CAN | |||||||||||
Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | |||||||||||
General Data | ||||||||||||
Operating Temperature Range | -40 to +60℃, >45℃ Derating | |||||||||||
Permissible Ambient Humidity | 0~100% | |||||||||||
Permissible Altitude | 2000m | |||||||||||
Noise | ＜30 dB(A) | |||||||||||
Ingress Protection(IP) Rating | IP 65 | |||||||||||
Inverter Topology | Non-Isolated | |||||||||||
Over Voltage Category | OVC II(DC),OVC III(AC) | |||||||||||
Cabinet size（W*H*D）[mm] | 366×589.5×237 (Excluding Connectors and Brackets) | |||||||||||
Weight[kg] | 26.8 | |||||||||||
Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | |||||||||||
Type Of Cooling | Intelligent air cooling | |||||||||||
Grid Regulation | IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G99,VDE-AR-N 4105 | |||||||||||
Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||||||||||

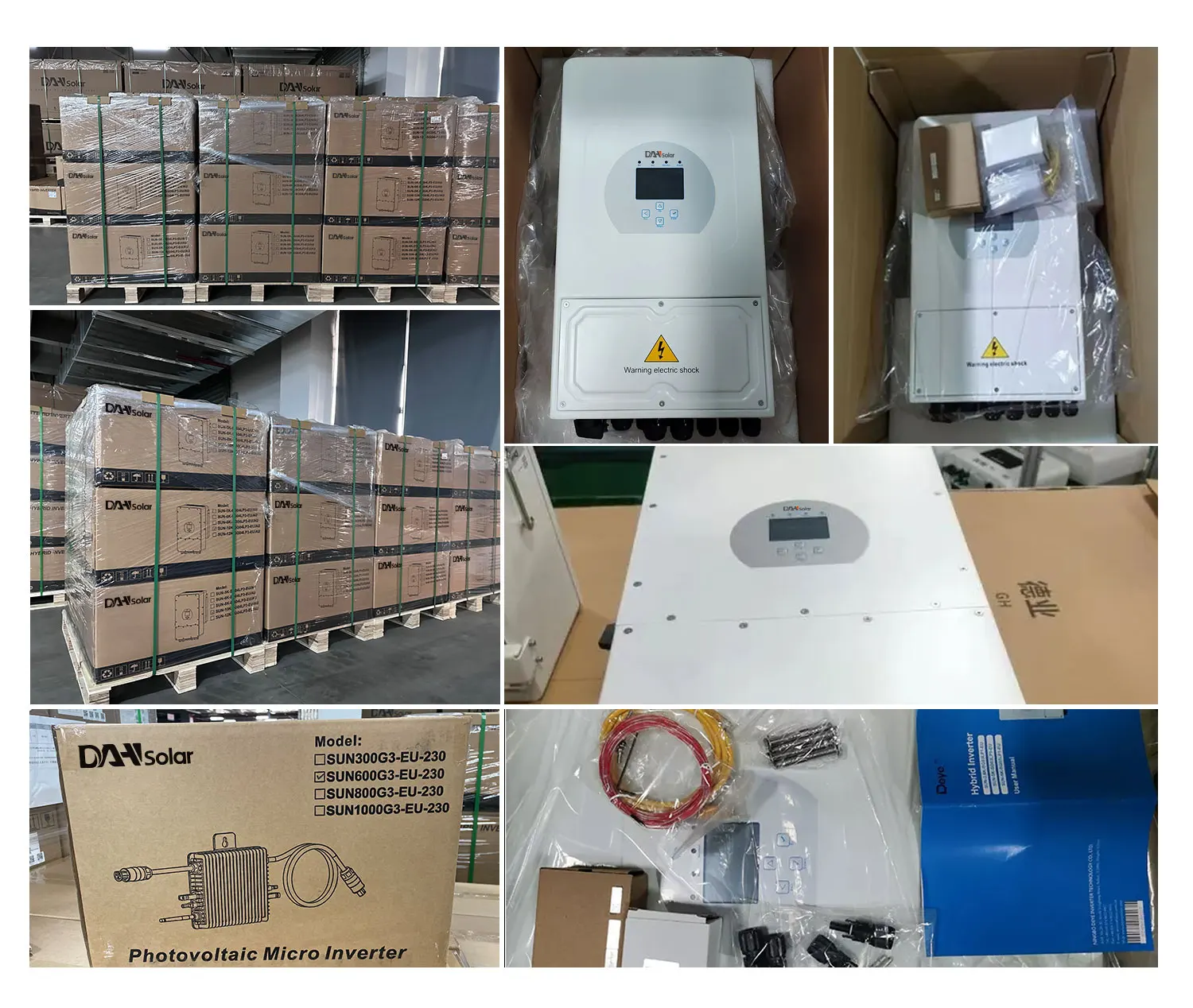

Safe Package

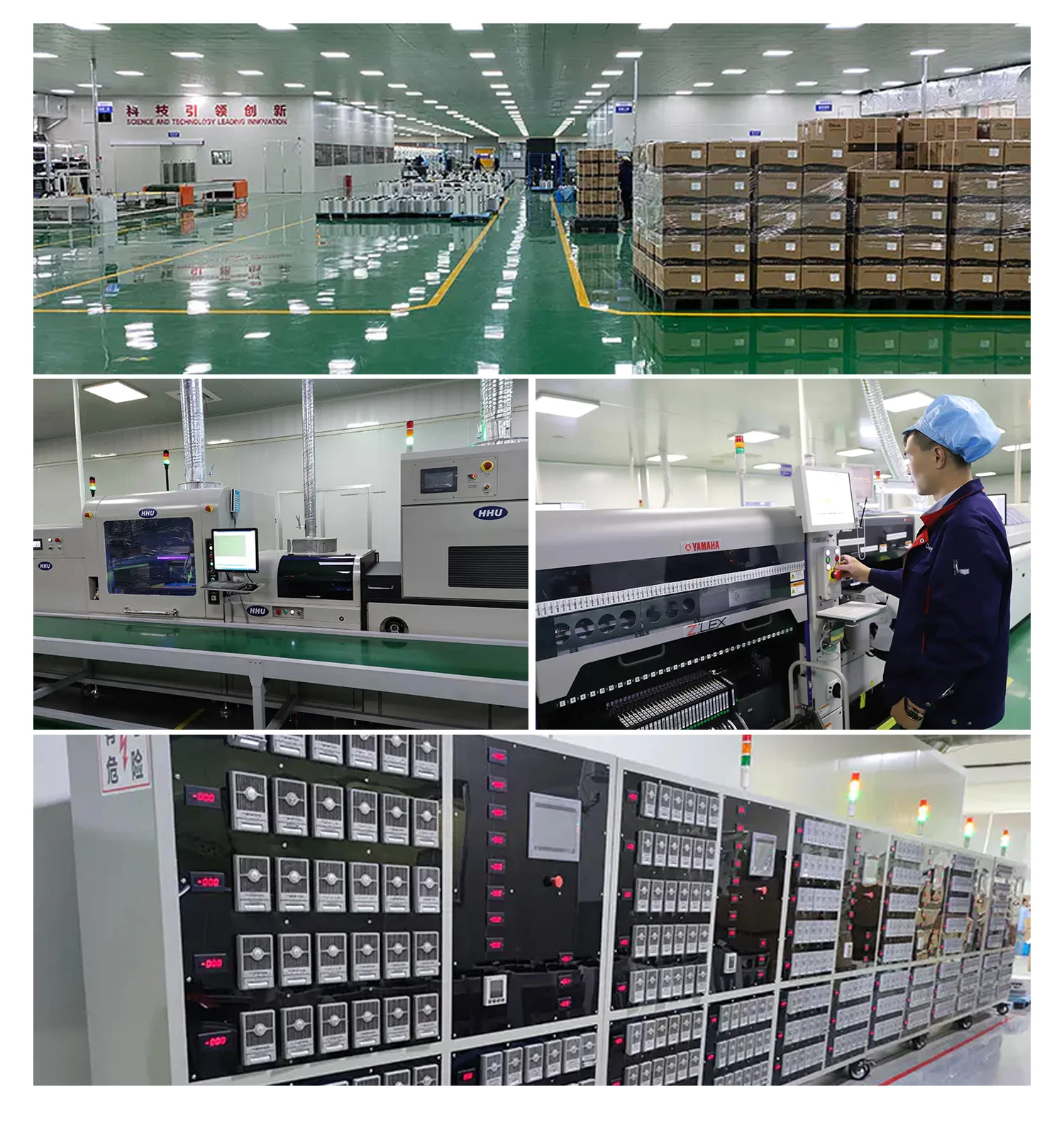

About Us

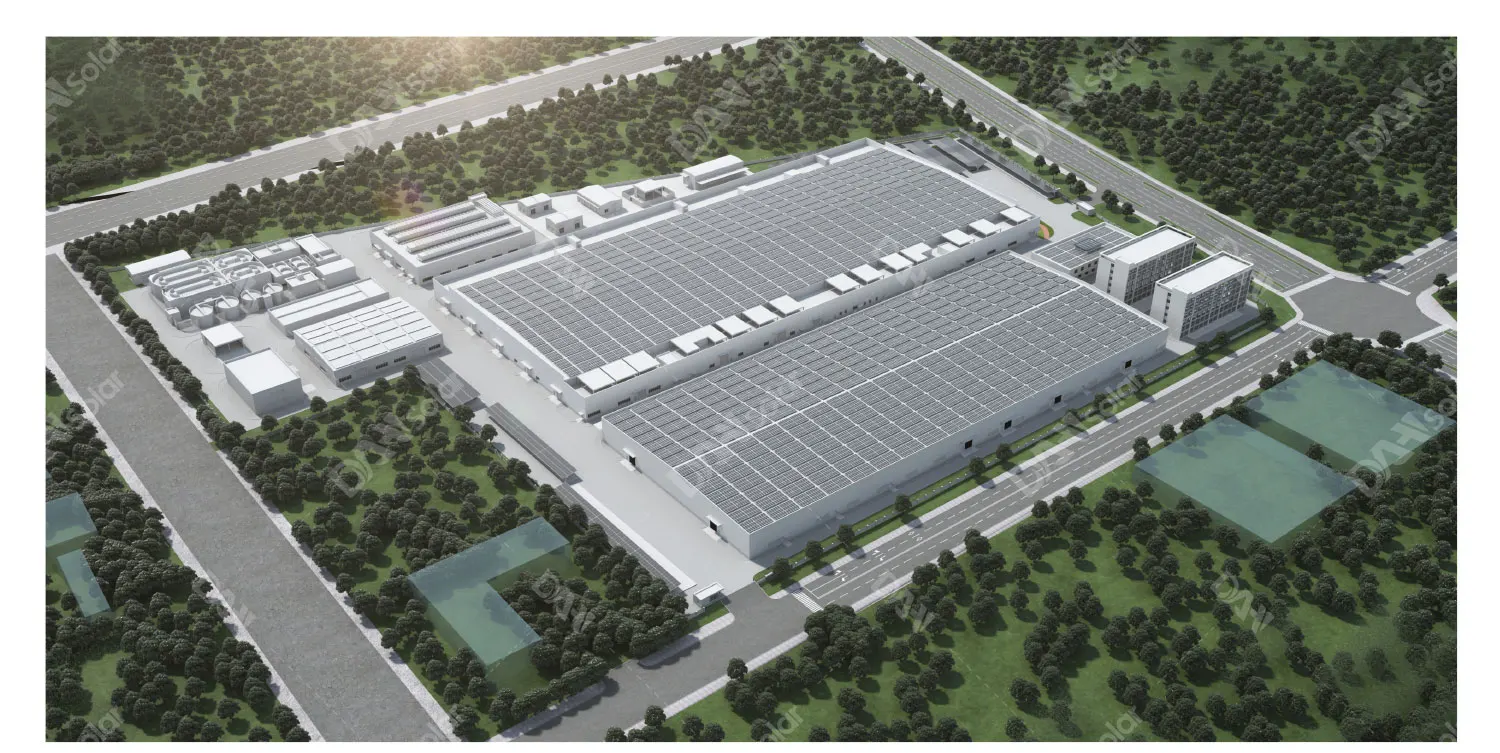

After years cultivation, DAH Solar has established the silicon wafer, solar cell, PV module, integrated PV system manufacturing bases. DAH Solar has accomplished the industrial integration, which would drive the high-speed development of the enterprise.

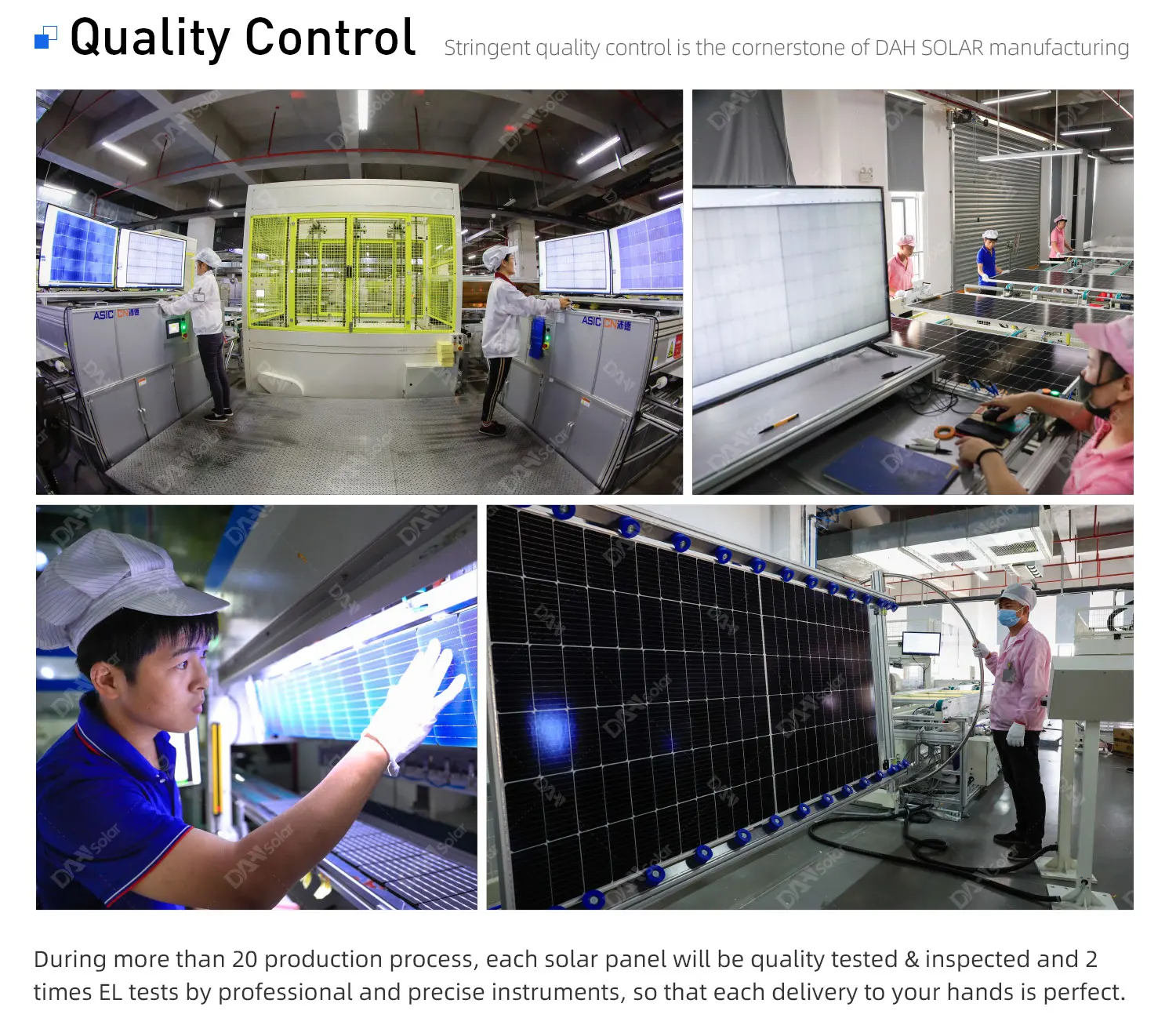

Quality Control
During more than 20 production process, each solar panel will be quality tested & inspected and 2 times EL tests by professional and precise instruments, so that each delivery to vour hands is perfect.

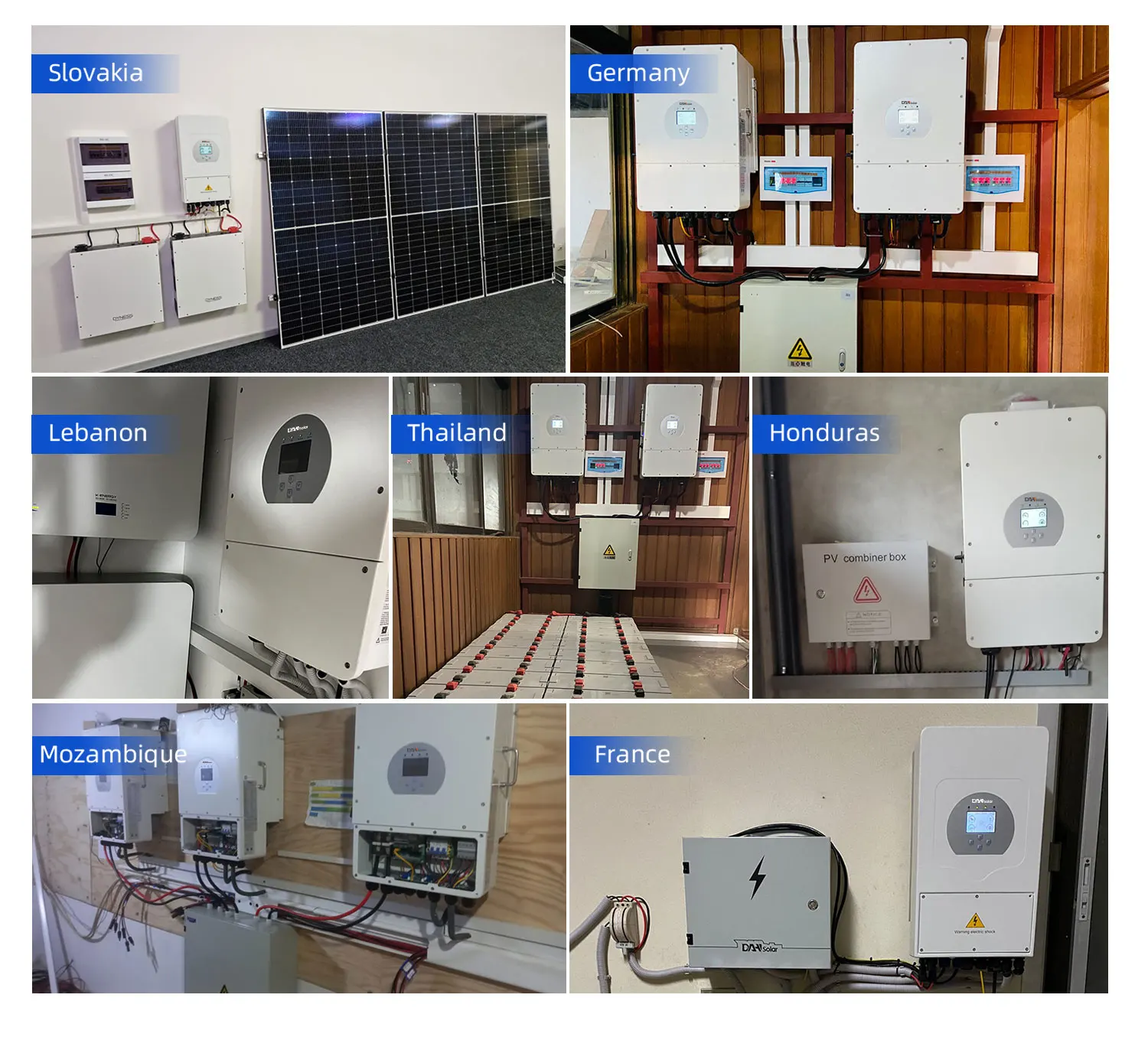

Projects & Exhibitions
DAH Solar has exported solar system to more than 100 countries, with rich experience in designing,exporting, installation. Our local engineers team can provide timely after-sales service. Also overseas local projects visiting is available to help you know more about our products quality before order.
