Precision PCB Board QR Code On line UV Laser Marking Machine QR Code Circuit Fiber Laser Marking Machine
- Category: >>>
- Supplier: Magic Cube Laser Technology (Shenzhen) Co. Ltd.
Share on (1601214165110):
Product Overview
Description
PCB UV laser marking machine for plastic carylic pcb glass PCB Board Barcode Production Date
Contact: Cecilia Young
Whatsapp/Tel: 008613272386715

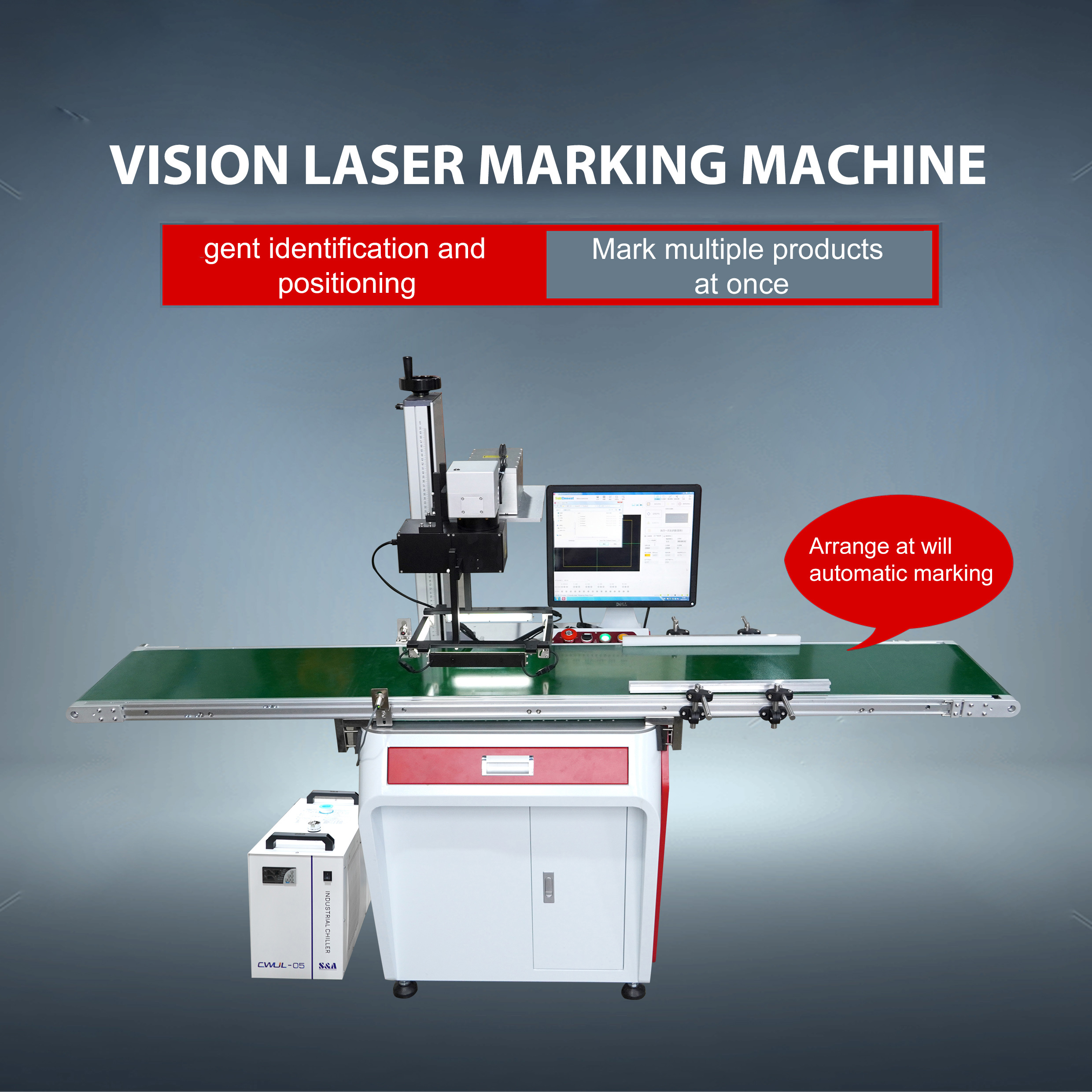

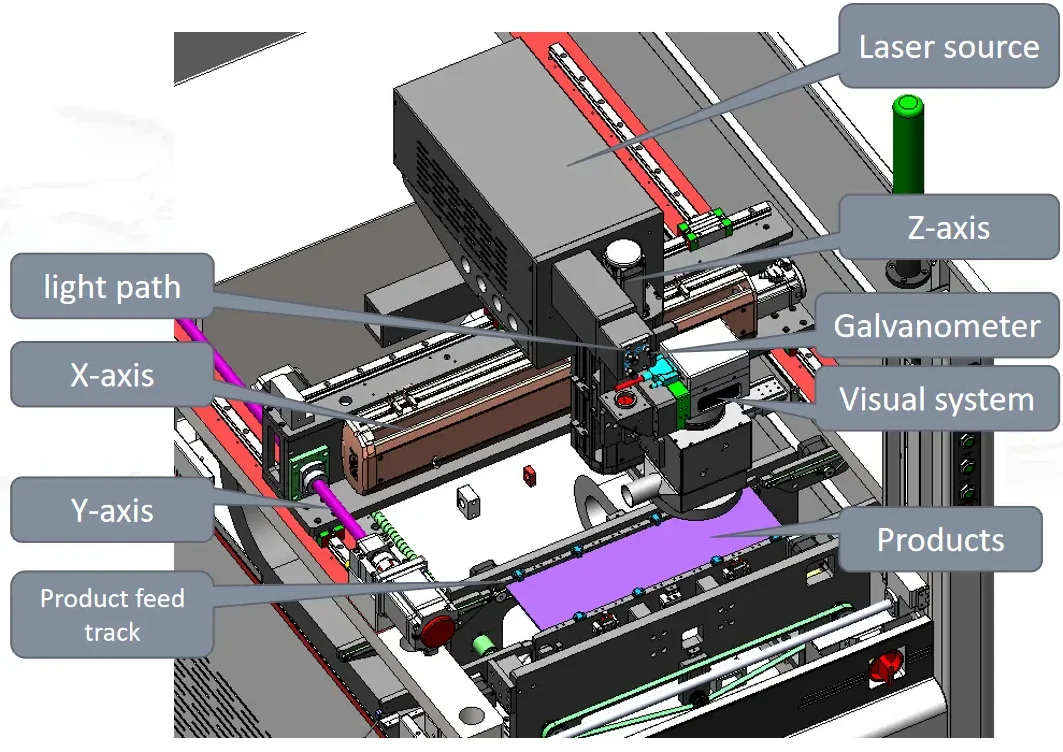

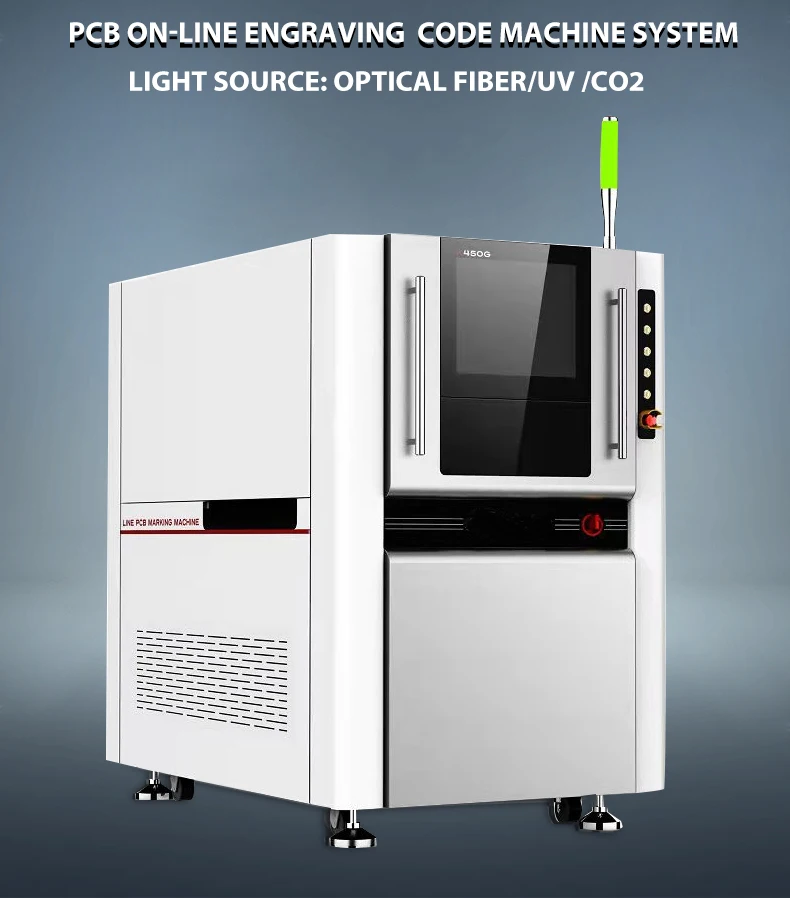

This machine can realize the feeding, positioning, marking and discharging of the PCB board. The operator only needs to put the PCB board into the board feeder, take it out at the discharge point or flow it into the next process.

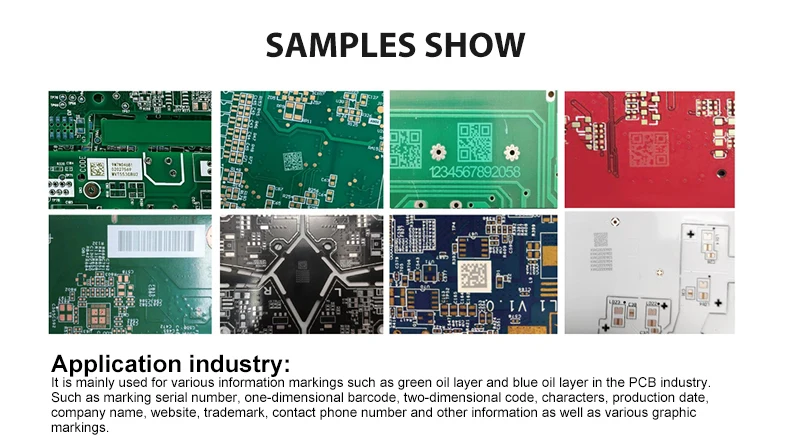

The equipment is mainly used for dynamic marking in the PCB industry (1D barcode, QR code,
production batch number, characters, etc.). The technical parameters of the equipment are mainly
based on PCB industry standards and SMEMA standards, it can verify the marked 1D code and QR
code, and connect with the user system data to form a closed-loop management.
Product Parameters:
| Model | 100-M8-M-R |
| M² typical Value | 1.4 |
| Average power | 100 |
| Maxmum pulse energy | 0.58mJ@12ns |
| Full power frequency range | 200-4000 |
| Central wavelength | 1064 |
| Frequency adjustable range | 1-4000 |
| Pulse width | 6-100 |
| Output instablity | <5 |
| Current demand | <10 |
| Environment supply current | >10 |
| Power | <480 |
| Polarization state | Random polarization |
| Spectral width@3db: | <30 |
| Beam diameter | 3.0±0.5 |
| Adjustable power range | 0~100 |
| Operating temperature range | 0~40 |
Applicable Field:1, reinforced and non-reinforced glass cutting, such as: mobile phone glass cover, car glass cover, camera glass cover, etc.;
2, sapphire glass cutting, such as: mobile phone sapphire cover, camera sapphire glass cover, sapphire light strip (LED light strip), etc.;
3, LCD glass cutting, such as: special-shaped LCD screen inverted R/U/C Angle, LCD screen cutting, etc.;
4, other optical glass cutting, such as: filter cutting, mirror cutting, etc.
Packing :
