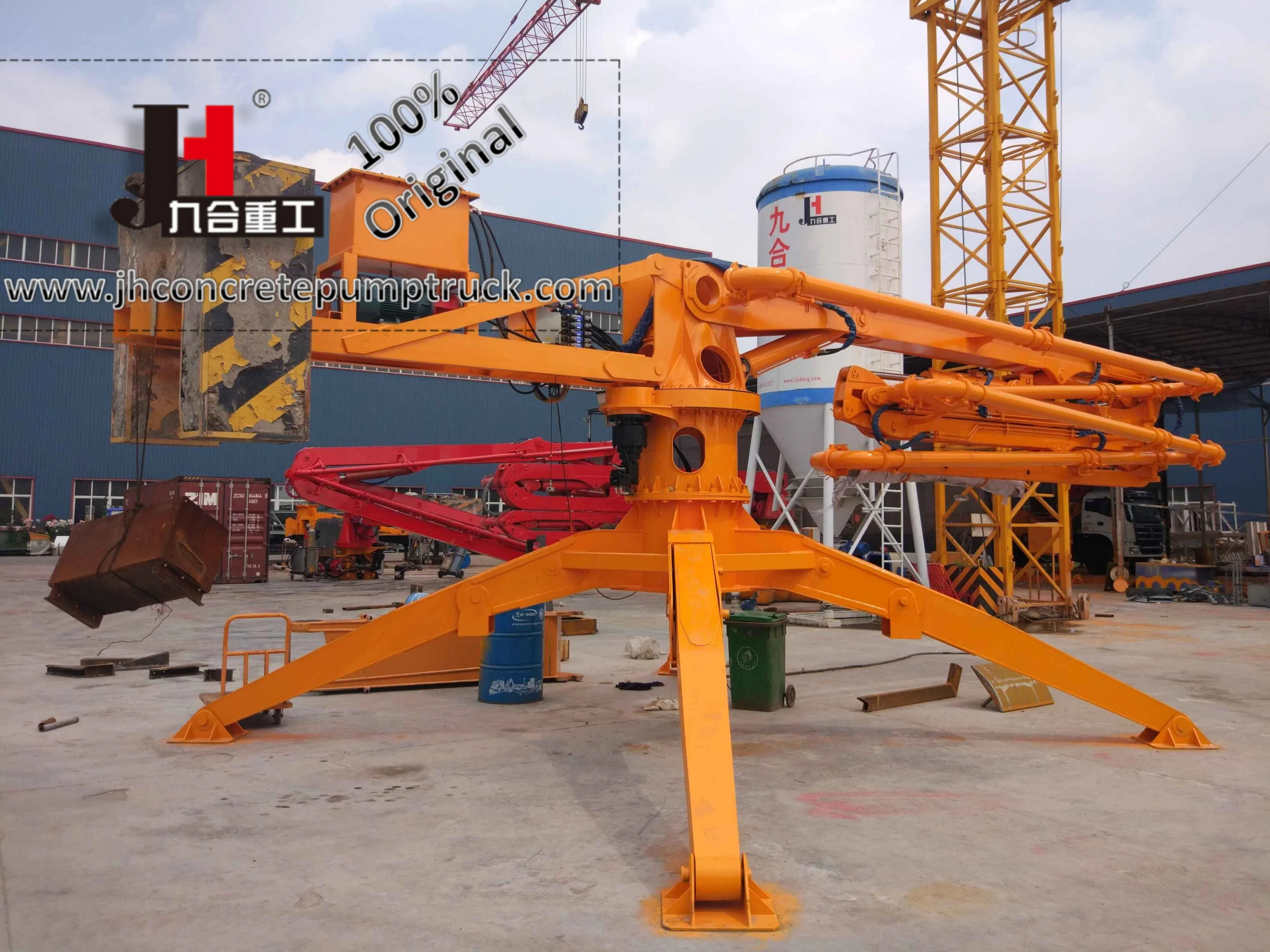

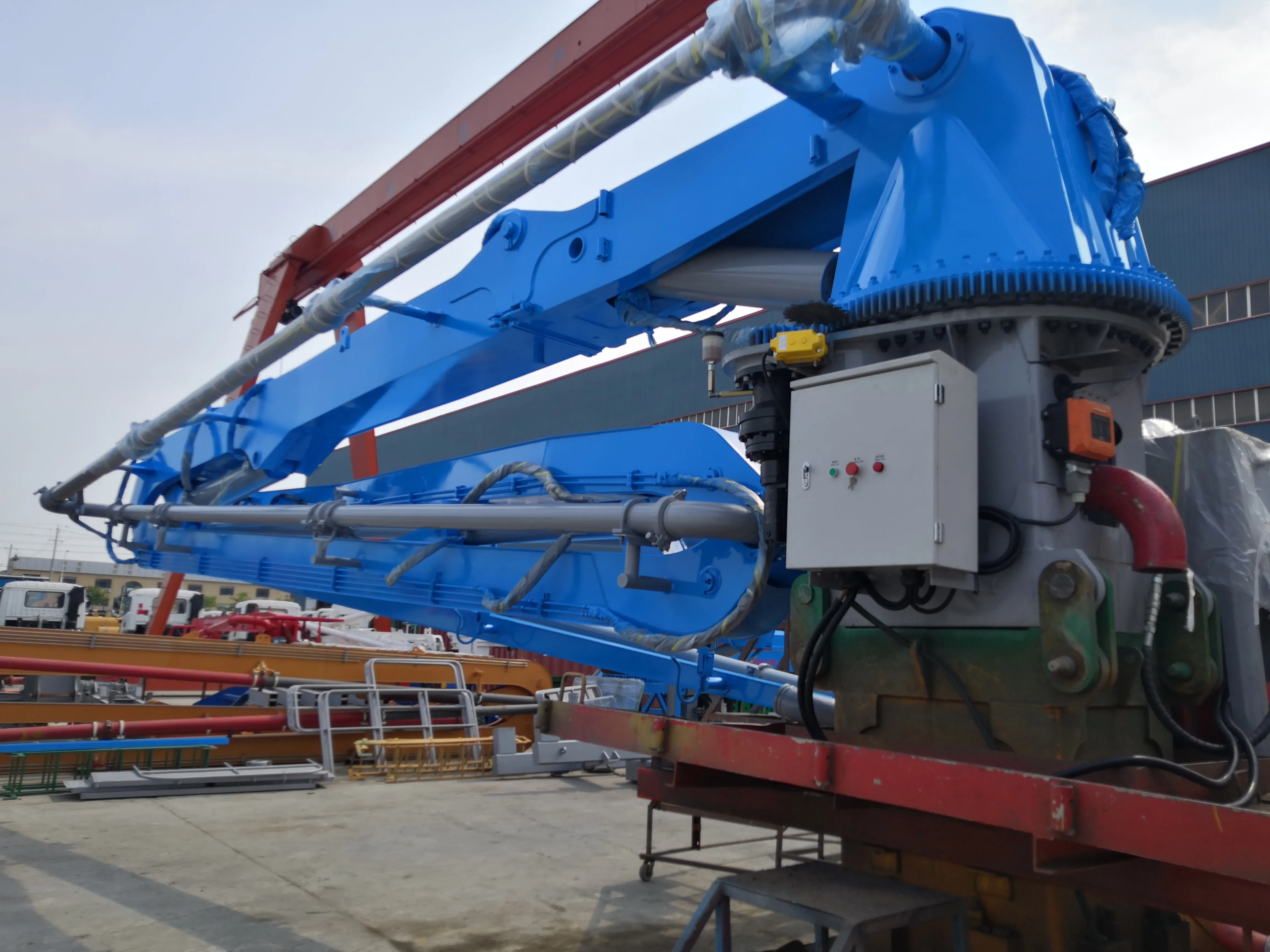

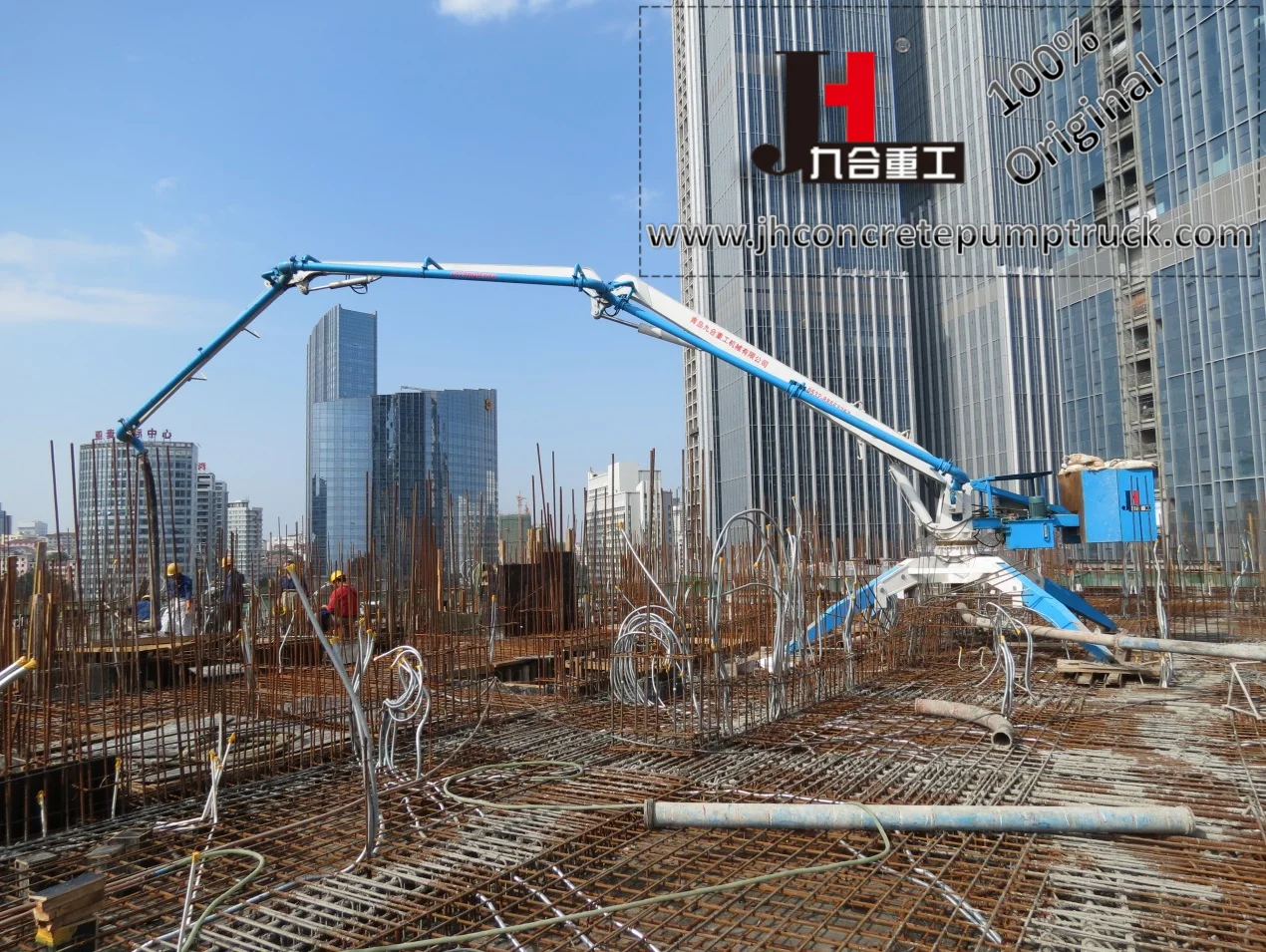

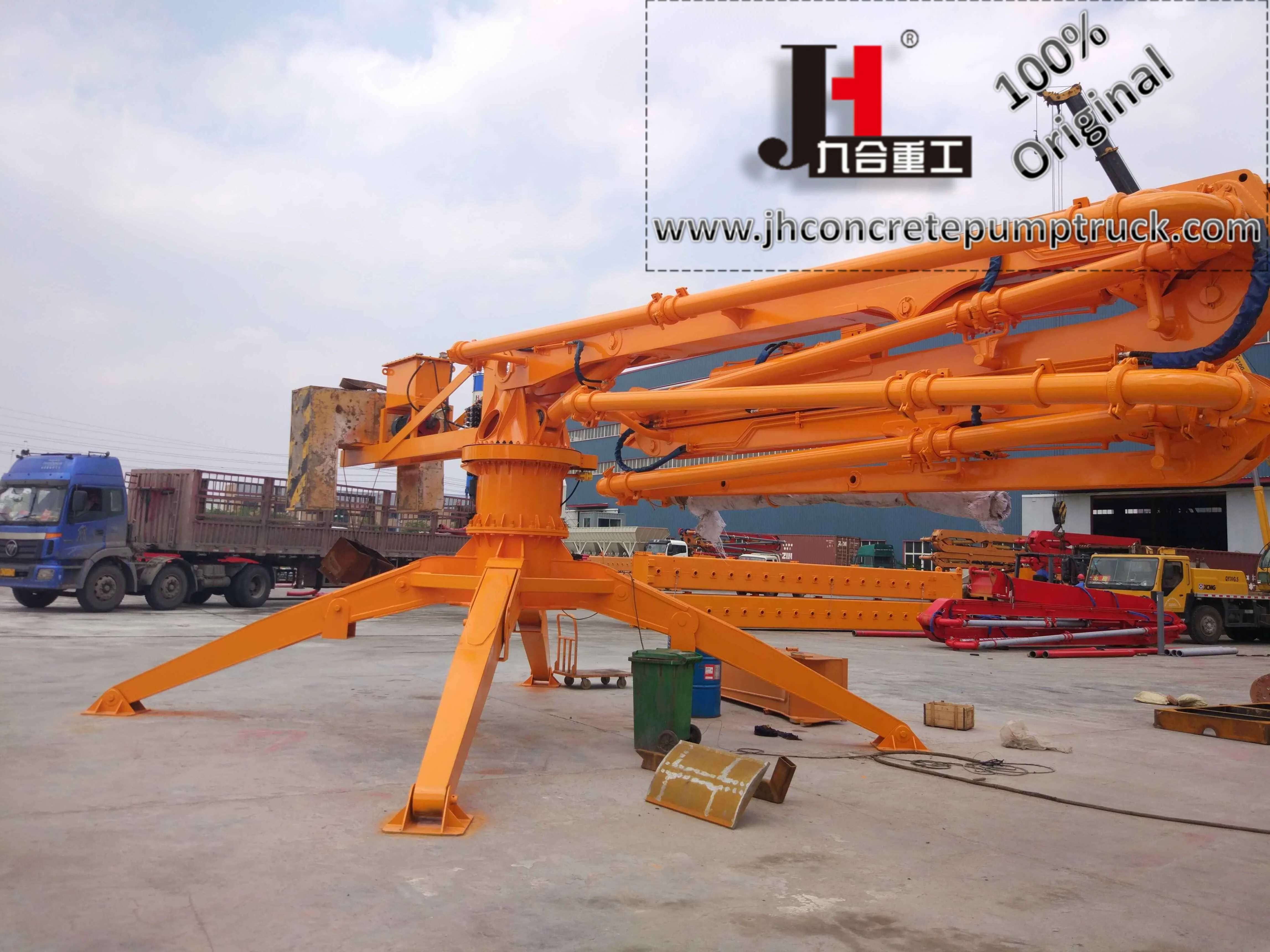

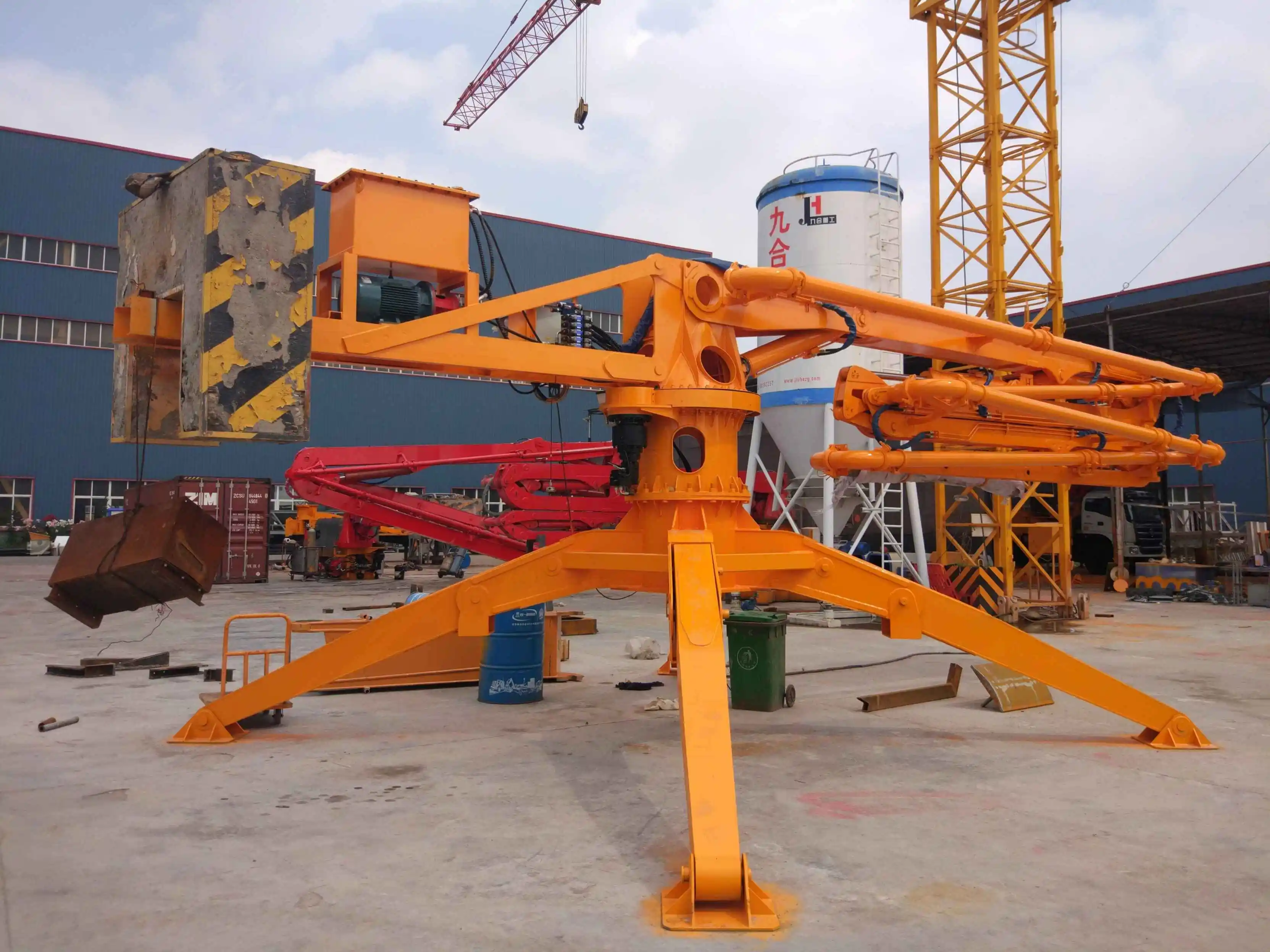

JIUHE factory 17 m Concrete Pump Placing Boom Stationary Self Climbing Concrete Placing Boom Without Balance Weight
- Category: >>>
- Supplier: Qingdao Jiuhe Heavy Industry Machinery Co. Ltd.
Share on (1601214201480):
Product Overview
Description
Product Description
Specification
Item | HGY-15 | HGY-17 |
Max. placing radius | 15m | 17m |
Big arm length | 6m | 6.66m |
Medium arm length | 5m | 5.73m |
Small arm length | 4m | 4.61m |
Big arm elevation | 0-70 degree | 0-70 degree |
Medium arm elevation | 0-180 degree | 0-180 degree |
Small arm elevation | 0-180 degree | 0-180 degree |
Tail Rotary radius | 2.81m | 3.5m |
Max. theory delivery pressure | 24Mpa | 25Mpa |
Rotation range | 360 degree | 360 degree |
Overall height | 2.6m | 3.2m |
Inner dia. of delivery pipe | 125mm | 125mm |
Rated voltage | 380V | 380V |
Total power | 4KW | 5.5KW |
Rated revolution | 0.3-0.8r/min | 0.3-0.8r/min |
Type of hydraulic oil circuit | Open circuit | Open circuit |
Type of hydraulic oil | HM-N46 | HM-N46 |
Allowed max. aggregate diameter | 40MM | 40MM |
Length of rubber hose | 3M | 3M |
Weight( self-weight) | 3300KG | 5000KG |
Weight(total weight) | 5500KG | 7200KG |
item | value |
Applicable Industries | Hotels, Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops, Other |
Showroom Location | Italy, France, Germany, Pakistan, Mexico, Argentina, Australia |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2020 |
Warranty of core components | 1 Year |
Core Components | Engine, Bearing, Motor, Gear, Pump |
Condition | New |
Place of Origin | China |
Shandong | |
Brand Name | Jiuhe |
Weight | 20300kg |
Warranty | 1 Year |
UNIQUE SELLING POINT | High operating efficiency |
Feeding Height | Connect with Pump Through Pipe |
Certification | CE, ISO9001 |
Transport Package | Nude Package |
Type of hydraulic oil circuit | open circuit |
Length of rubber hose(M) | 3 |
Model NO. | 28m |
Tower Structure Type | Tubular Column |
Climbing Mode | Cylinder Jacking |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Qingdao Jiuhe Heavy Industry Machinery Co., Ltd. was established in 2011. It is a national high-tech enterprise integrating R&D, production, sales and service of concrete pumping series and aerial vehicle series. The main products include: concrete pump truck, concrete pump, wet shotcrete machine, ladder lift truck, aerial work vehicle and other construction machinery and special vehicle equipment. Our JH brand machines have been exported to more than 30 countries and got an excellent reputation.
