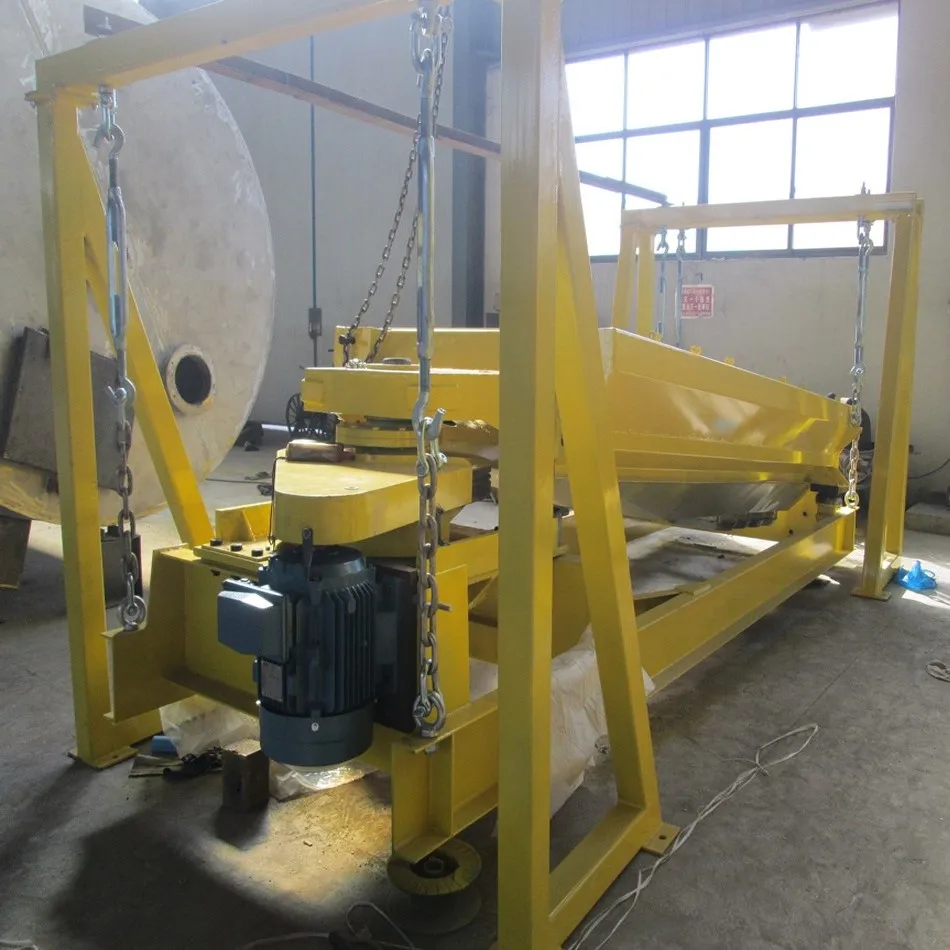

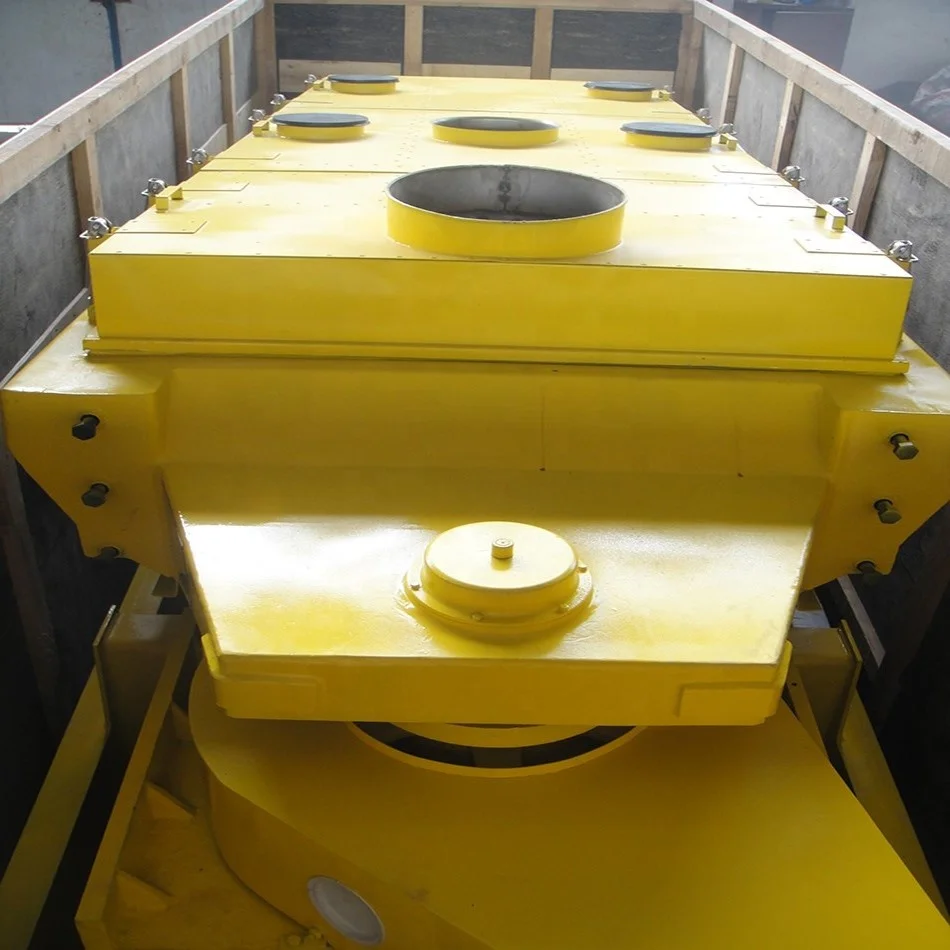

Wholesale NEW ORIGINAL certificate of origin hot sale gyratory screen Gyratory Sifter Machine
- Category: >>>
- Supplier: Henan Pingyuan Mining Machinery Co. Ltd.
Share on (1601214207828):
Product Overview
Description
Specification
item | value |
Applicable Industries | Construction works , Energy & Mining, Farms, Food & Beverage Factory, Manufacturing Plant |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Ordinary Product |
Warranty of core components | 1 Year |
Core Components | Gearbox, Motor |
Condition | New |
Type | Circular |
Application | Chemicals,ore,food processing and so on |
Place of Origin | China |
Brand Name | PK |
Voltage | as your request |
Dimension(L*W*H) | Customized according to different needs |
Weight | 3500KG |
Warranty | 1 Year |
keyword | gyratory vibrating screen |
Capacity: | 5~120m3/h |
Model: | PXZS1224/1230/1236/1524/1530/1536/1830/1836/1840/1840/2040/2050 |
Screening area: | 1.8~8.0m2 |
Frequency: | 750rpm-1000rpm |
Amplitude: | 75mm~90mm |
Layer : | 1-5 |
Feeding Size: | <75mm |
Power: | 3/4/5.5/7.5/11/15kw |
Length: | 2400mm-5000mm |
Product Description
Introduction

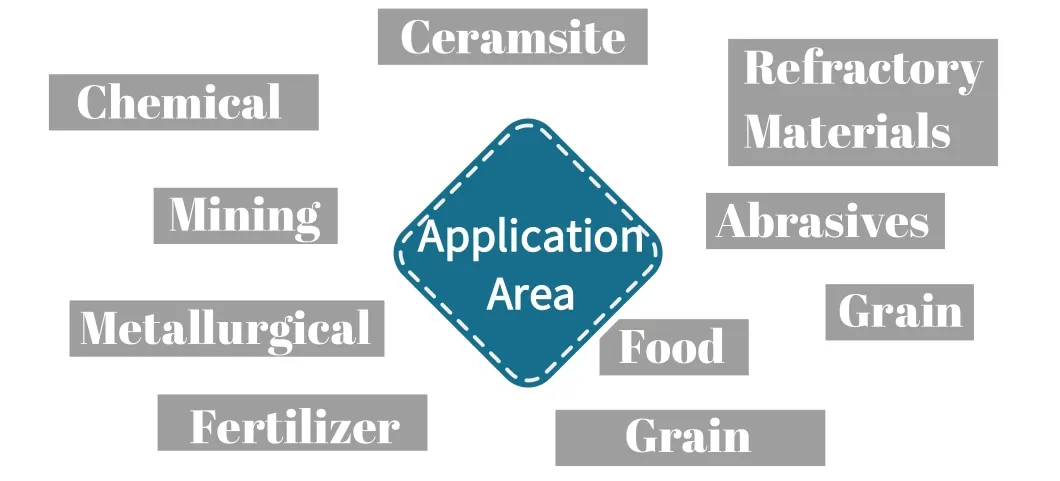

Gyratory screen is designed to provide precise and accurate sieving of material, it adopts eccentric mechanism which drives the material on the screen surface do uniform gyratory reciprocating swing motion,the materials are spread and stratified on the full screen surface, then the gyratory reciprocating motion gradually changes to an elliptical motion at the centre which is good for material sieving,a straight-line motion at the discharge end,the material movement track becomes short and then materials flow out of the outlet.Gyratory screener is widely used in chemical,fertilizer,metallurgical,ceramsite,refractory materials,grain, food, abrasives, mining and other industries in the sizing process of material accurate screening.
Product features

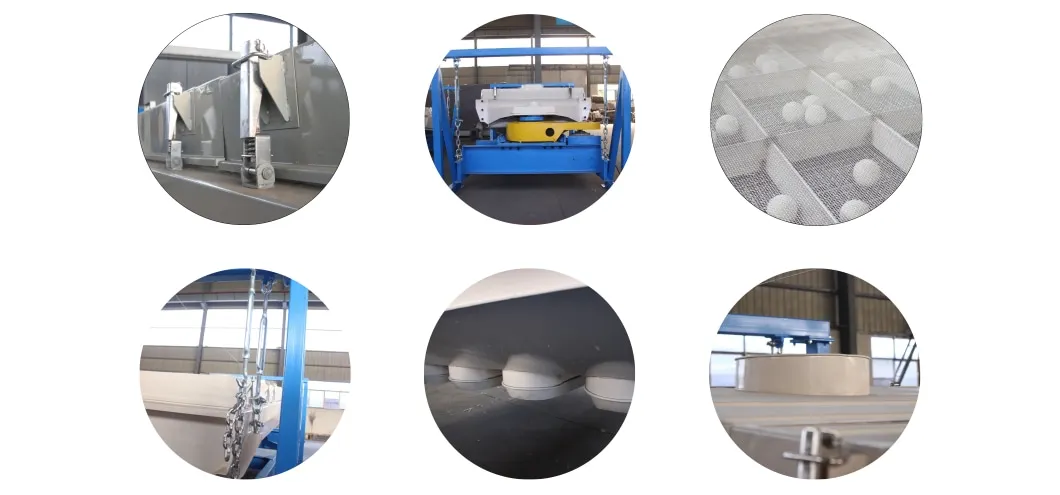

Advantages and Features

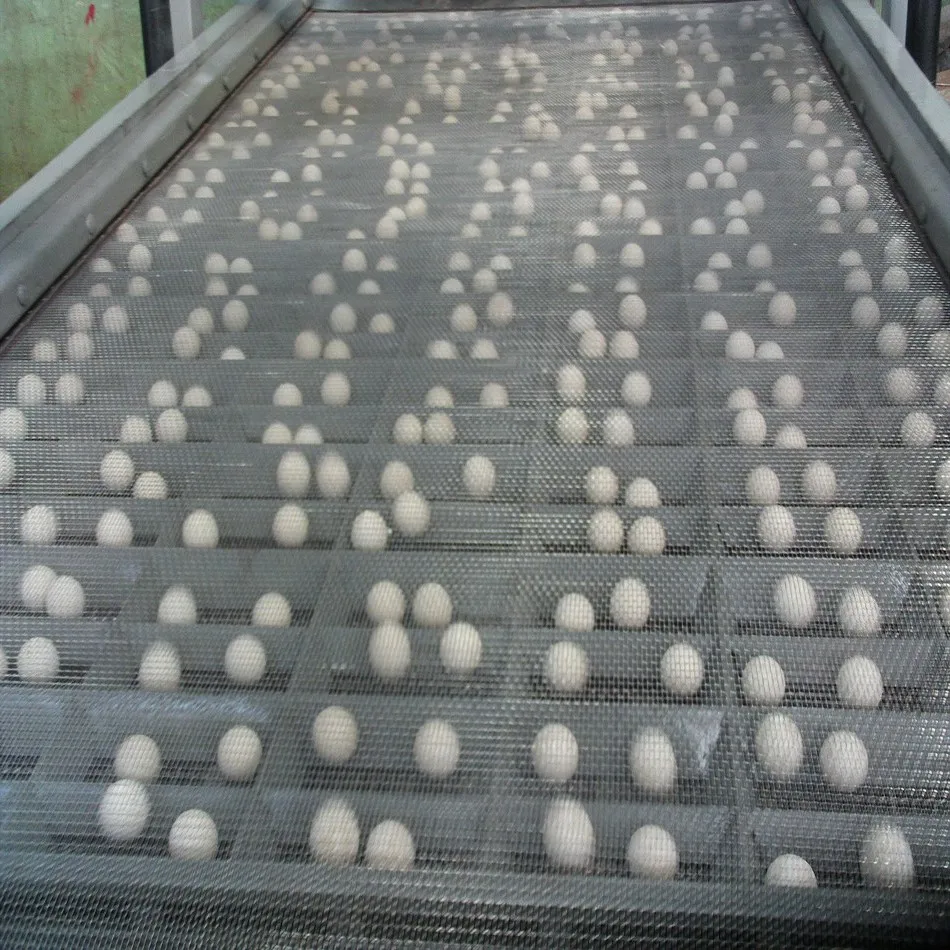

1.Automatic cleaning- Bouncing balls keep screen openings clean and maintain efficiency and capacity.
2.Screen long service life- No vertical component avoid the impact and damage of material to screen.
3.Full utilization of screen surface- Gyratory reciprocating motion ensures material constantly contact with screen surface.
2.Screen long service life- No vertical component avoid the impact and damage of material to screen.
3.Full utilization of screen surface- Gyratory reciprocating motion ensures material constantly contact with screen surface.
4.Environmentally Friendly- Fully enclosed structure,no dust pollution,improve working conditions for operators as well.
5.Top-class design -Mature technology, easy installation and maintenance, convenient and quick screen replacement. 6.Customized
order- multi- layer,different capacity and mesh size can be customized according to customer's demand. 7.Quick Screen

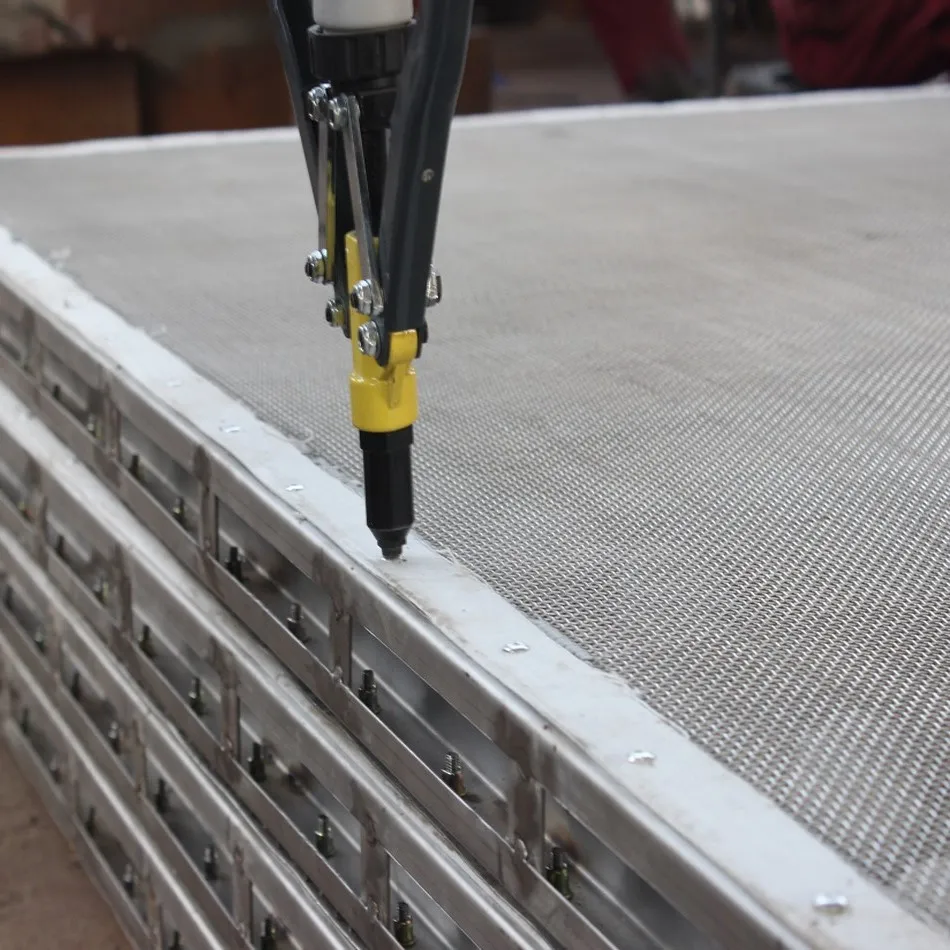

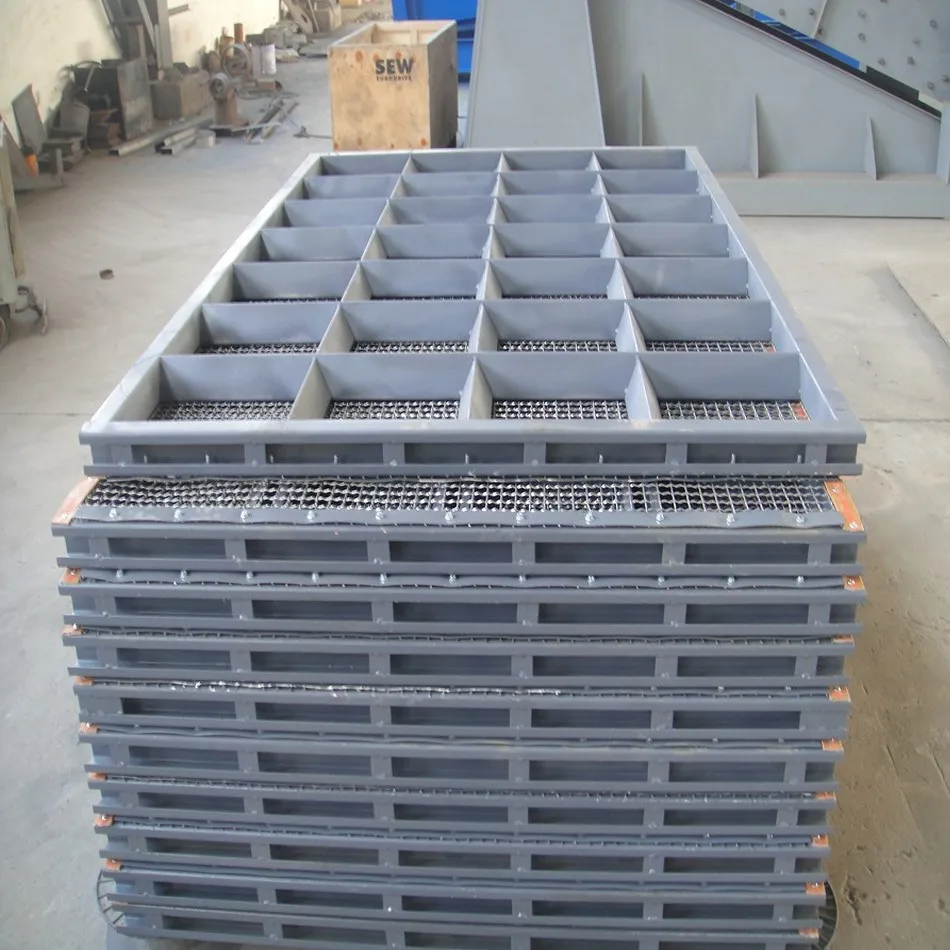

Changes-Quick release device is provided to take down the net rack and replace the screen rapidly. 8.Various sieving solution-
Gyratory screen allows separations with openings from 12mm to 325mm.
5.Top-class design -Mature technology, easy installation and maintenance, convenient and quick screen replacement. 6.Customized
order- multi- layer,different capacity and mesh size can be customized according to customer's demand. 7.Quick Screen
Changes-Quick release device is provided to take down the net rack and replace the screen rapidly. 8.Various sieving solution-
Gyratory screen allows separations with openings from 12mm to 325mm.
Product Paramenters
Model | Screen Surface | Layer No. | Feeding Size | Amplitude (mm) | Frequency (r/min) | Power (kW) | ||
width | length | |||||||
PXZS1224 | 1200mm | 2400mm | 1-4 | <50mm | 75-90 | 1450 | 5.5 | |
PXZS1230 | 1200mm | 3000mm | 1-4 | <50mm | 75-90 | 1450 | 5.5 | |
PXZS1236 | 1200mm | 3600mm | 1-4 | <50mm | 75-90 | 1450 | 5.5 | |
PXZS1524 | 1500mm | 2400mm | 1-4 | <50mm | 75-90 | 1450 | 5.5 | |
PXZS1530 | 1500mm | 3000mm | 1-4 | <50mm | 75-90 | 1450 | 5.5 | |
PXZS1536 | 1500mm | 3600mm | 1-4 | <50mm | 75-90 | 1450 | 5.5 | |
PXZS1830 | 1800mm | 3000mm | 1-4 | <75mm | 75-90 | 750 | 7.5 | |
PXZS1836 | 1800mm | 3600mm | 1-4 | <75mm | 75-90 | 750 | 7.5 | |
PXZS1840 | 1800mm | 4000mm | 1-4 | <75mm | 75-90 | 750 | 7.5 | |
PXZS2036 | 2000mm | 3600mm | 1-4 | <75mm | 75-90 | 750 | 7.5 | |
PXZS2040 | 2000mm | 4000mm | 1-4 | <75mm | 75-90 | 750 | 11 | |
PXZS2050 | 2000mm | 5000mm | 1-4 | <75mm | 75-90 | 750 | 11 | |
Note: the parameter above is just for reference,it can be customized by different requirment.
Henan Pingyuan Mining Machinery Co., Ltd.
Established in 1960, Henan Pingyuan Mining Machinery Co., Ltd. Has enjoyed more than 50 steady years of successful growth to become an international company employing over 200 directemployees with annual sales exceeding $1,200 million.lt is located at 289 yellow river road of Xinxiang, China with an area of 88,400 m2 which includes 16,200 m2 of standard heavy duty industrial workshop.
We understand that our customers’ bulk conveying systems and processing equipment must be operated at peak performance at all times. That is why we're fully committed to giving our customers value before, during and even after the sale. One of the most important aspects of the services offered by PK machinery is the quick and easy provision of spare parts.PK machinery offers a full range of engineering and management services for designing and supplying systems and equipment.
lf you should ever have a need for service of your equipment, you can count on PK machinery to be there. Our understanding of quality is not limited to providing reliable systems and equipment.but also offering excellent customer services as well.
We understand that our customers’ bulk conveying systems and processing equipment must be operated at peak performance at all times. That is why we're fully committed to giving our customers value before, during and even after the sale. One of the most important aspects of the services offered by PK machinery is the quick and easy provision of spare parts.PK machinery offers a full range of engineering and management services for designing and supplying systems and equipment.
lf you should ever have a need for service of your equipment, you can count on PK machinery to be there. Our understanding of quality is not limited to providing reliable systems and equipment.but also offering excellent customer services as well.
Q1：Are you factory or trade company?
A: We are factory
Q2：Where your products have been exported before?
A: Our products have been sold to South Asia, Africa, South America, middle East and so
on.
on.
Q3：How will you help the customer to install the equipment?
A: Our senior engineer will guide the installation and commissioning as well as the initialproduction at
Q4：How about the wear parts supply?
A: We offer wear parts to our customer with our most favorable price. lf there are problemsyoucould not handle, we will send our technicians to your place and you are therefore.responsible for all thecost involved.
Q5：What about the payment method?
A: T/T, L/C Paypal is available
Q6：What about after-sale service?
A:12 months warranty for all kinds of products
