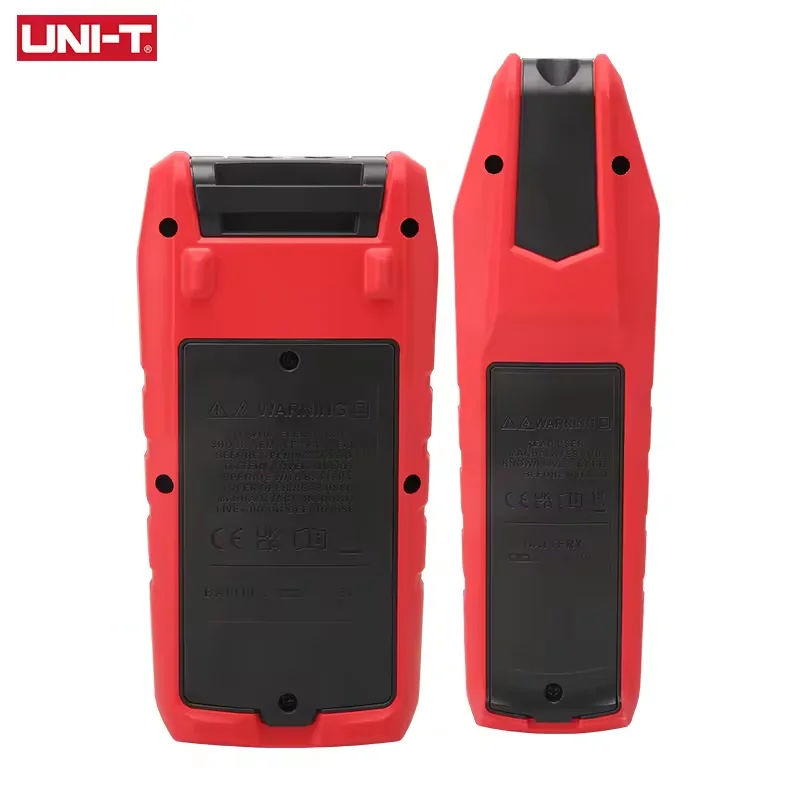

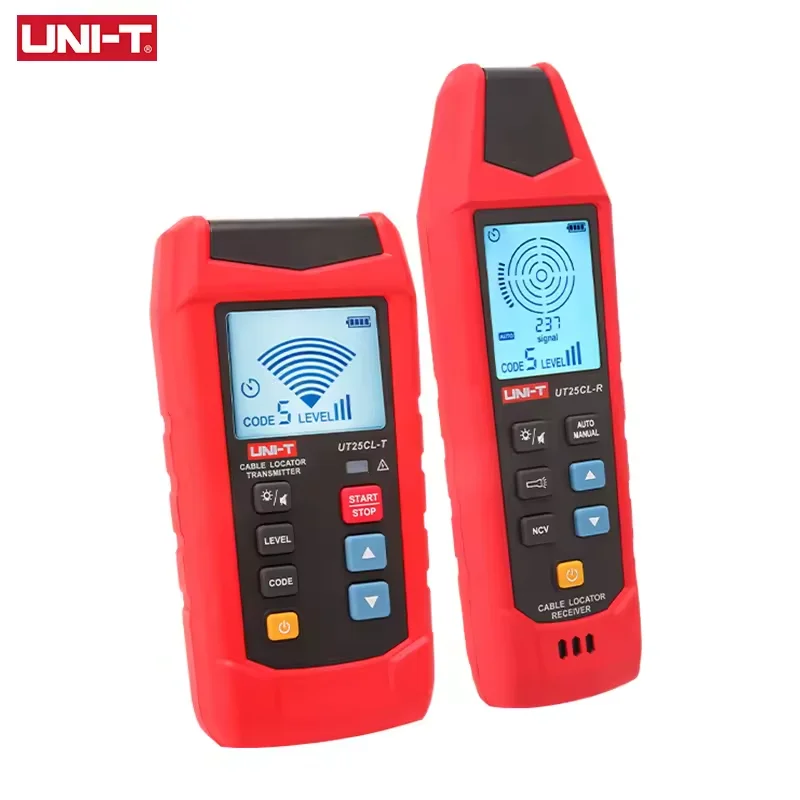

UNI T Cable locator UT25CL Handheld Cable locator Detects Short Circuits Traces Underground Cables Voltage Measurement

Technical Specifications

Features

1, Find conductors inside the wall, detect conductor interruptions or short circuits.

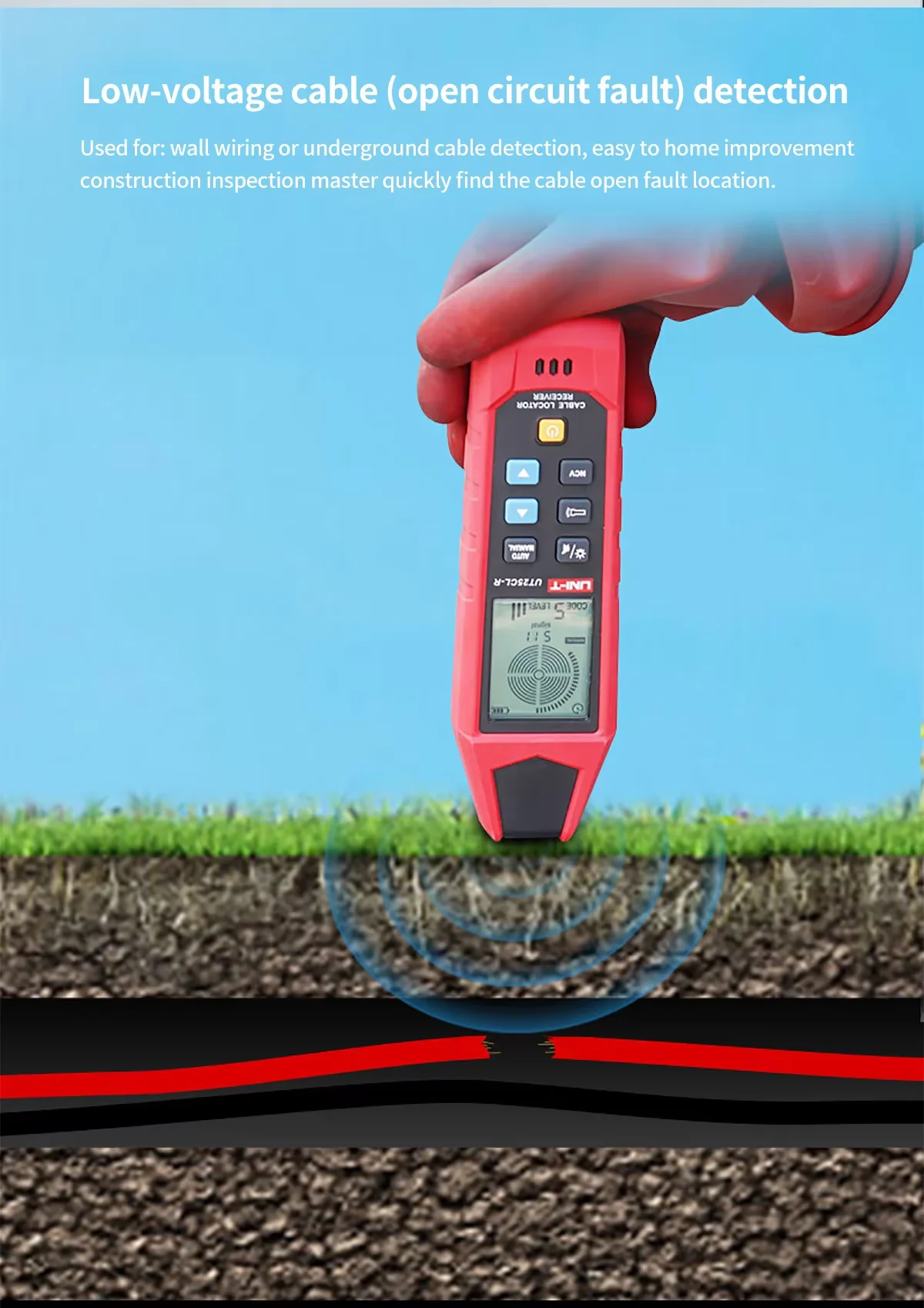

2, Trace the underground cable paths.
3, Locate fuses and devices associated with the fuses.
4, Identify short circuits and open circuits in the underfloor metal heating.
5, Trace metal water pipes and metal heating pipelines.
6, Adjustable sensitivity (Receiver: 3 levels; Transmitter: 9 levels)

Transmitter

Output signal

33KHZ

Energized wire voltage ragne

AC/DC 8~480V; AC: 50/60Hz/ 2.5% ±3deg

Screen

Segment code LCD (TN; Translucent )

Backlight

√

Code value

0,1,2,3,4,5,6,7

Signal strength

three level: 1, 2, 3

Unipolar test

√(energized wire test, max voltage 480V)

Bipolar test

√(energized wire test, max voltage 480V)

ELV LED indicator

1. If the input voltage exceeds 25V, the ELV LED turns on.
2. As the voltage rises, the brightness of the ELV LED increases.
3. In any other case, the ELV LED will be dim or not illuminated.

Receiver

Receiving frequency

33KHz

Tracing depth

Around 0~2.5m (unipolar mode; single-circuit: 2.5m)

Around 0~0.5m (bipolar mode)

NCV voltage range

80V ~ 1000V, 50Hz/60Hz

Voltage detection depth

Around 0~0.4 meters

Code value

0,1,2,3,4,5,6,7

Signal strength

three level: 1, 2, 3

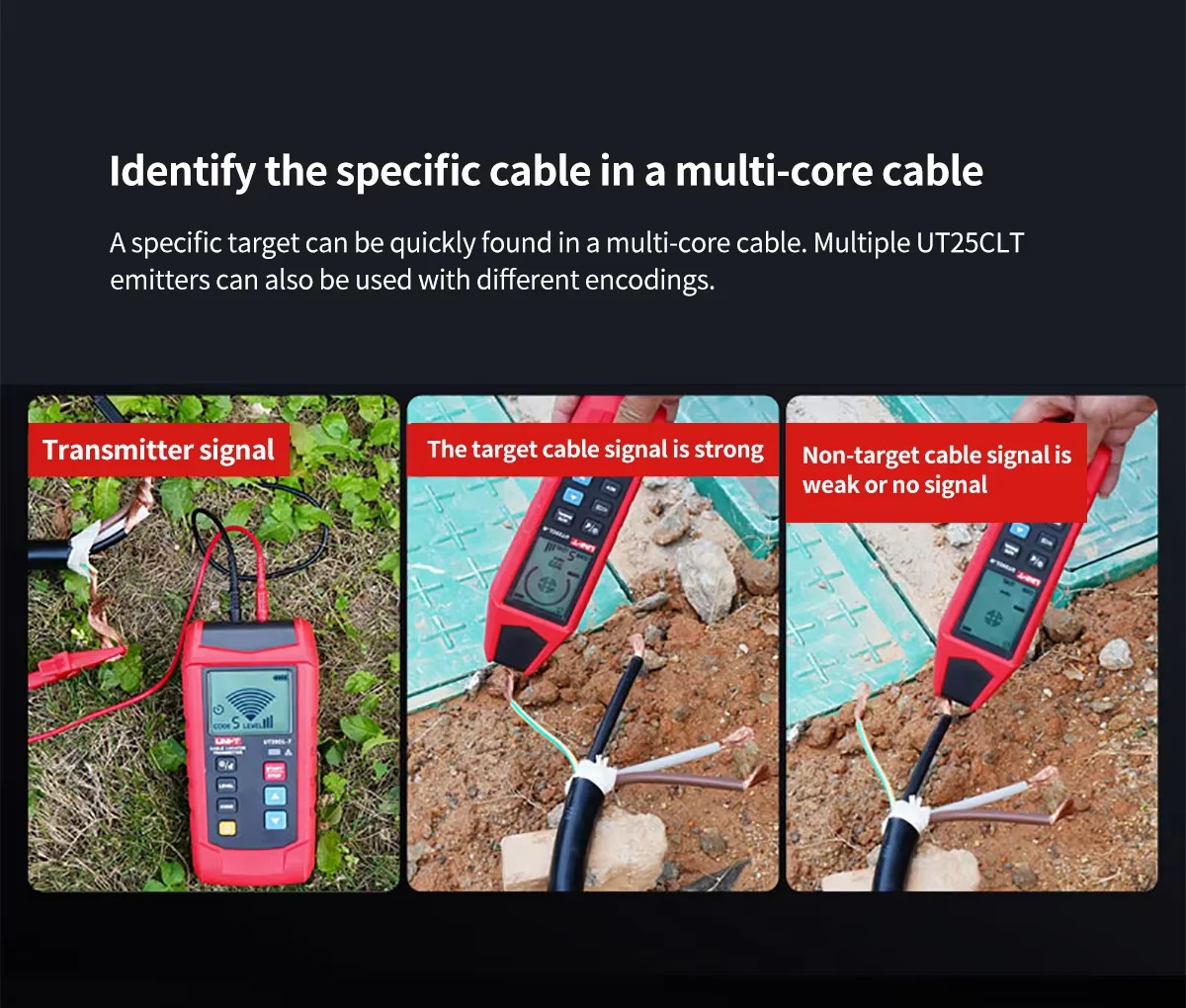

Multi-Transmitors compatible

Up to 8pcs

Screen

Segment code LCD (TN; Translucent )

Others

Flash light

√

Backlight

√

Manual sensitivity adjustment

√

Over voltage category

CAT III 480V

Pollution rating

2

IP rating

IP54

Certificates

CE , RoHS
