Products Description

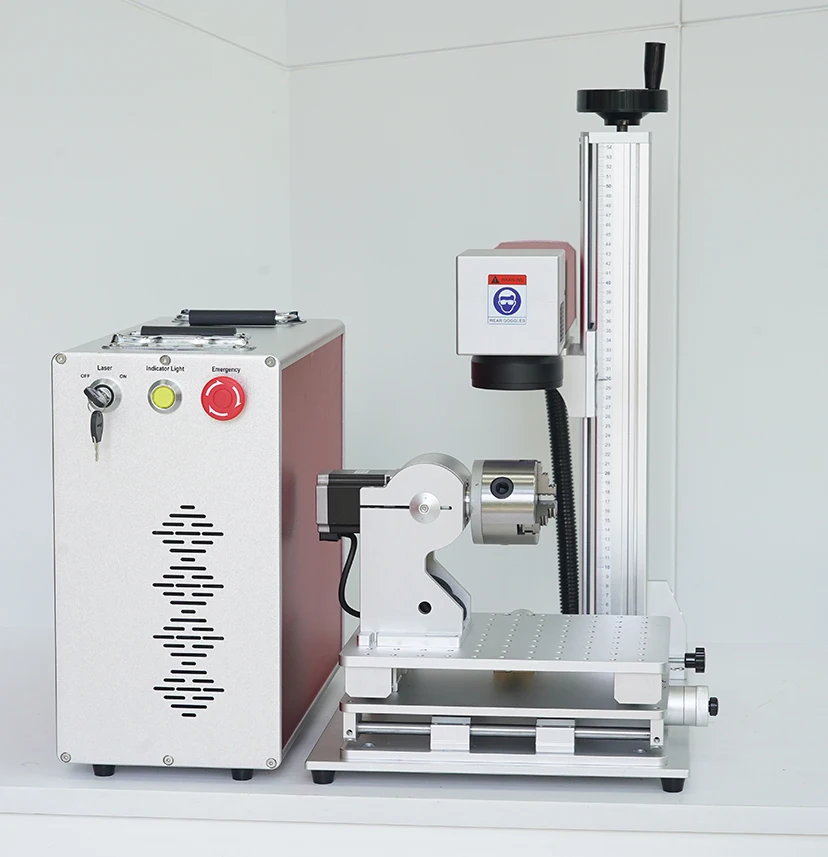

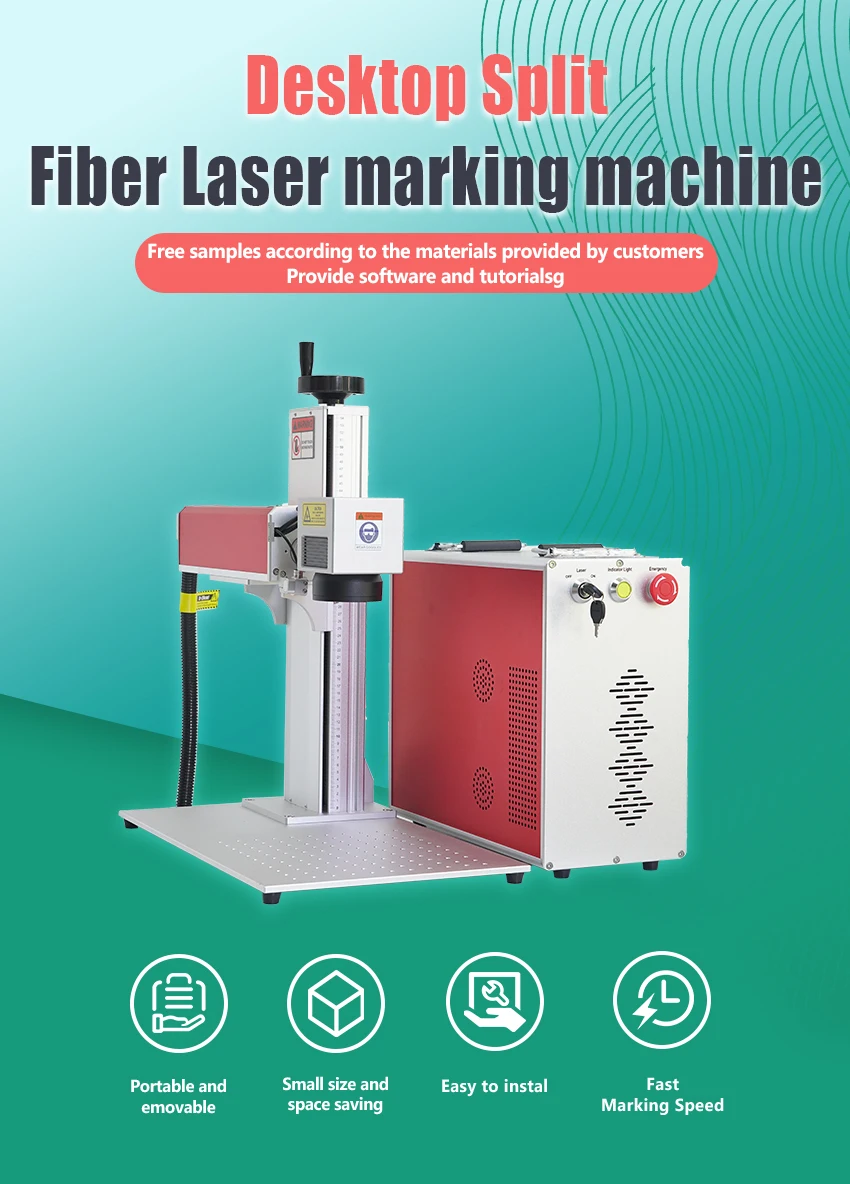

RAYCUS JPT 20w 30w 50w 60w 80w 100w Portable Split Type Fiber Laser Marking Machines For Metal Jewelry Plastic Engrave Machine






Marking Principle：The fiber laser marking machine can expose the deeper material by evaporating the surface material, or cause physical changes in the surface material through light energy to make marks, or burn part of the material through light energy to reveal the required etching patterns, text, barcodes and other graphics.

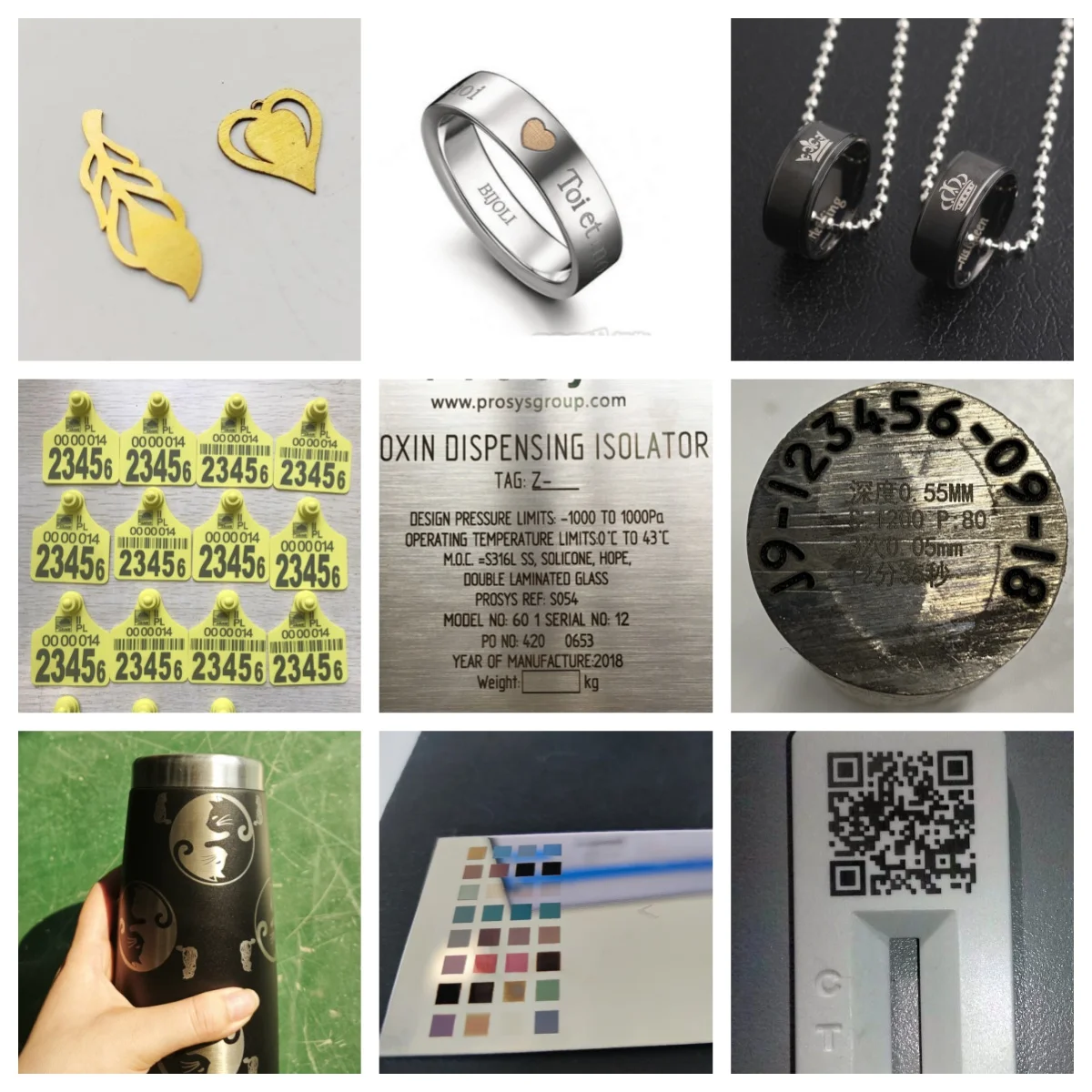

Application：Fiber laser marking machines are widely used in a wide range of fields, including electronic components, integrated circuits, electrical appliances, mobile communications, hardware products, tool accessories, precision instruments, glasses and watches, jewelry, auto parts, etc. They are particularly suitable for fields with high requirements on depth, smoothness and precision, such as the mold industry and bitmap marking industry.


Features：The fiber laser marking machine has the characteristics of no water cooling device, small size, easy installation, maintenance-free, stable and reliable operation, no consumables, low power consumption, clear and beautiful marking, etc. It is suitable for laser marking on the surface of various materials.

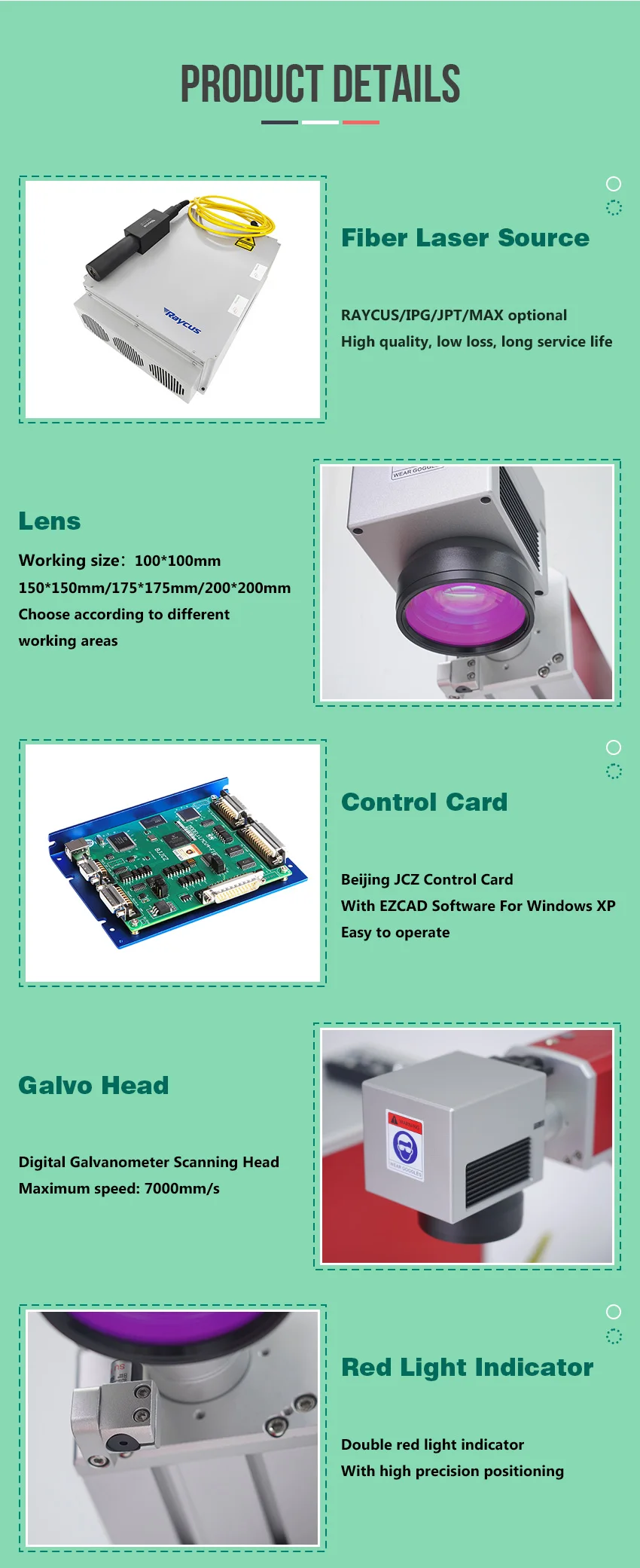

Product Paramenters


Product Name
Fiber Laser Marking Machine
Laser Source
JPT/Raycus/MAX Optional
Marking Speed
≤8000mm/s
Minimum Line Width
0.01mm(0.0004in)
Cooling Type
Air Cooling
Minimum Character
0.2mm(0.008in)
Laser Wavelength
1064nm
Power
20w 30w 50w 60w 80w 100w
Max Marking Area
300mm*300mm
Control Software
EZCAD
Electrical Requirements
110V-240V/50Hz-60Hz

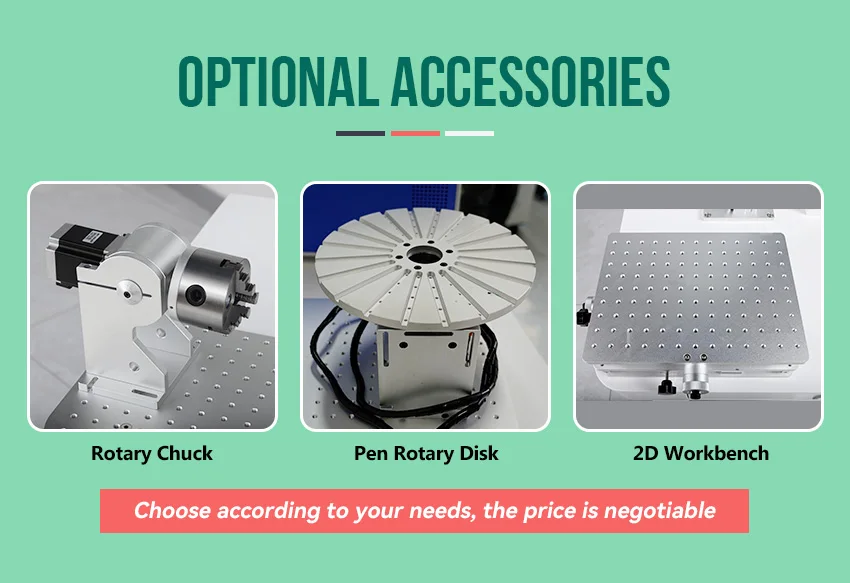

Optional Accessories
Rotary/2D worktable/Cutting fixture and so on.
Output Power Adjustment Range
10%~100%
Supported Image Format
PLT,DXF,AI,BMP,JPEG,etc.
