Product Overview

Description



Products Description




Ball mill, also named grinding ball, is one of the most important grinding mills in the mining industry which is used to break all kinds of minerals and other materials in the industries of ore beneficiation, construction materials and chemical engineering.
Ball mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as abrasives, refractories, cement, quartz sand, grit, slag powder, copper ore, iron ore, gold ore, concrete aggregate, asphalt aggregate and other hard, brittle materials crushing and the broken, especially for artificial sand process of adjustment fineness mesh.

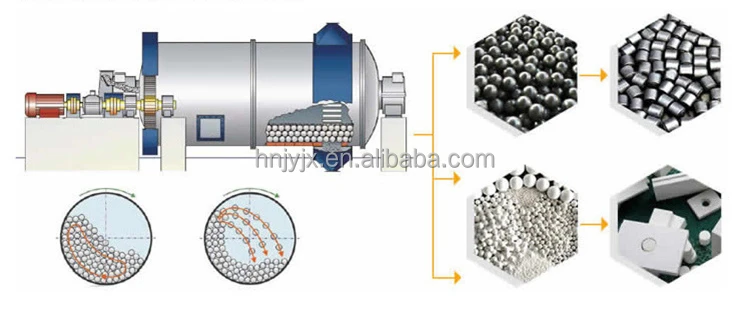

Working Principle


Materials enter the first cabin of ball mills via the feeding device across the hollow shaft uniformly. In the first cabin, there is a ladder scale board or a ripple scale board with different steel balls which will be lifted to certain height in the effect of centrifugal force produced by the rotating cylinder. Then the balls fall to impact and grind the materials. After the rough grinding process, materials enter the second cabin through the single layer cabin separating board. There is a scale board with steel balls in the second cabin which will grind materials. The finished powder materials are discharged from the unloading plate, thus finishing the grinding process.






Product Paramenters


Model
Rotary speed（r/min）
Balls load
(t)
Feed size(mm)
Discharge size(mm)
Capacity
(t/h)
Motor Power(kw)
Weight
(t)
900x1800
36-38
1.5
≤20
0.075-0.89
0.65-2
18.5
4.6
900x3000
36
2.7
≤20
0.075-0.89
1.1-3.5
22
5.6
1200x2400
36
3
≤25
0.075-0.6
1.5-4.8
30
12.8
1200x3000
36
3.5
≤25
0.075-0.4
1.6-5
37
13
1200x4500
32.4
5
≤25
0.075-0.4
1.6-5.8
55
13.8
1500x3000
29.7
7.5
≤25
0.074-0.4
2-5
75
15.6
1500x4500
27
11
≤25
0.074-0.4
3-6
90
21
1500x5700
28
12
≤25
0.074-0.4
3.5-6
130
24.7
1830x3000
25.4
11
≤25
0.075-0.4
4-10
130
28
1830x4500
25.4
15
≤25
0.074-0.4
4.5-12
155
32
1830x6400
24.1
21
≤25
0.074-0.4
6.5-15
180
34
1830x7000
24.1
23
≤25
0.074-0.4
7.5-17
210
36
2100x3000
23.7
15
≤25
0.075-0.4
6.5-36
210
34
2100x4500
23.7
24
≤25
0.075-0.4
8-43
245
42
2100x7000
23.7
26
≤25
0.074-0.4
8-45
280
50
2200x3600
21.5
27
≤25
0.075-0.4
9-40
280
50
2200x4500
21.5
27
≤25
0.074-0.4
9-45
280
48.5
2200x6500
21.7
35
≤25
0.074-0.4
14-26
370
52.8
2200x7000
21.7
35
≤25
0.074-0.4
15-28
380
54
2200x7500
21.7
35
≤25
0.075-0.4
15-30
380
56
2400x4500
21
28
≤25
0.074-0.4
15-60
320
60
2400x4500
21
30
≤25
0.074-0.4
8.5-60
320
65
2700x4000
20.7
40
≤25
0.074-0.4
12-80
400
94
2700x4500
20.7
48
≤25
0.074-0.4
12-90
430
102
3200x4500
18
65
≤25
0.075-0.4
25-130
800
137

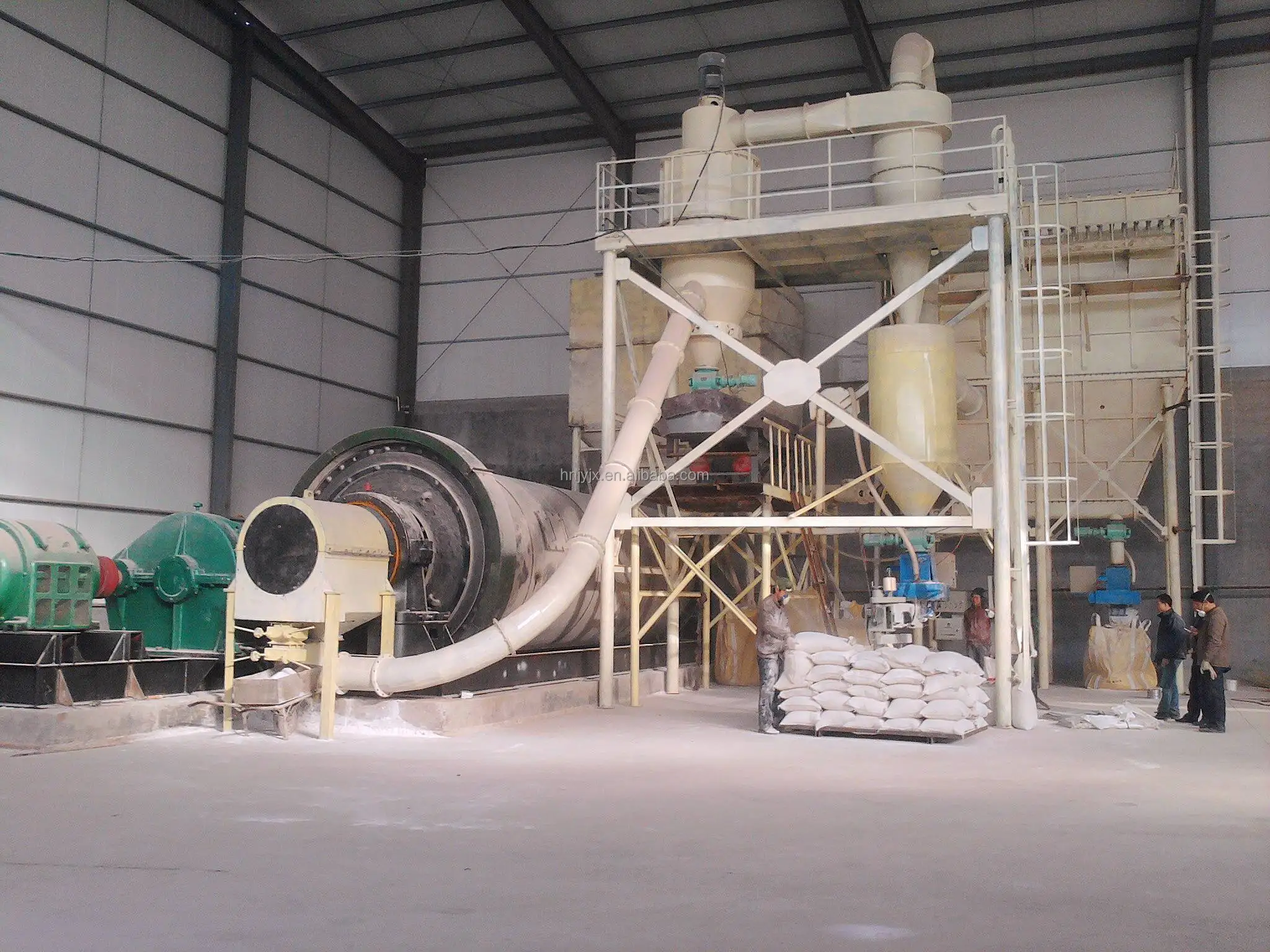

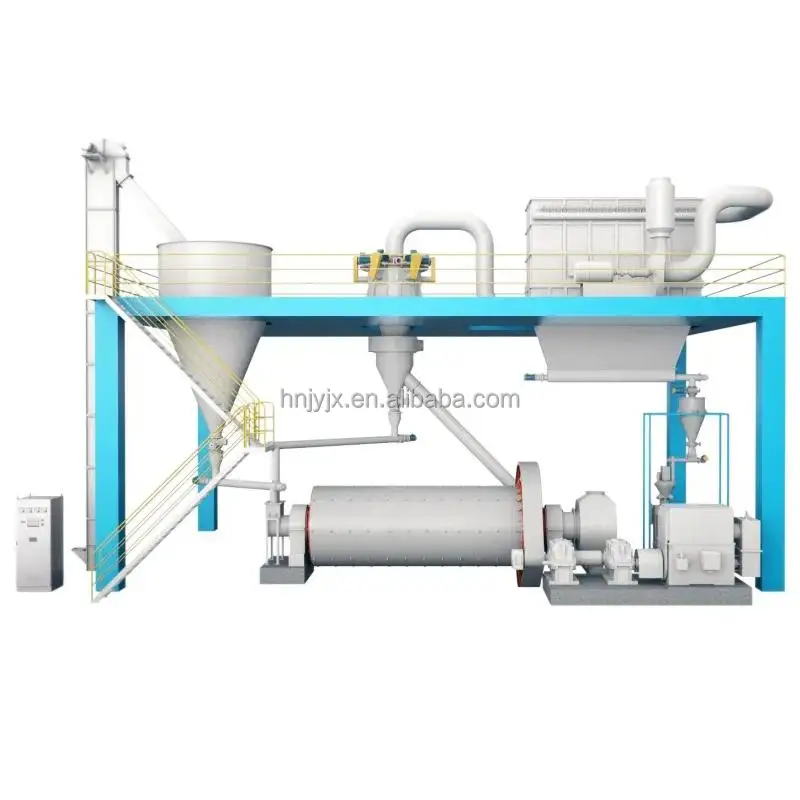

Production Line

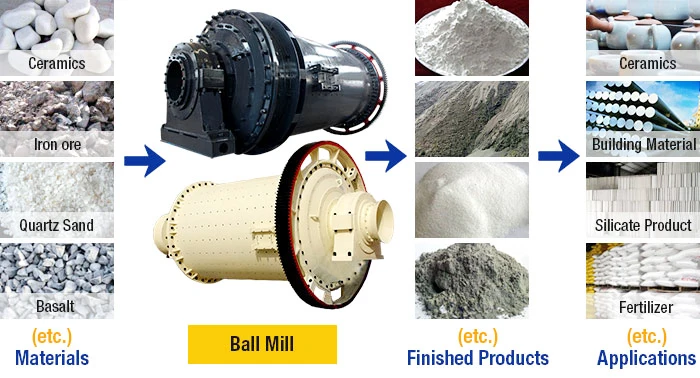

Ball mill is the important equipment on powdering process, applies to grind material to get designed requirement of size. Widely used in electricity, non-ferrous metal and non-metallic mineral processing,such as abrasives, refractories, cement, quartz sand, grit, slag powder, copper ore, iron ore, gold ore, concrete aggregate, asphalt aggregate and other hard brittle materials crushing and the broken,especially for artificial sand process of adjustment fineness mesh.Is a highly efficient, energy-saving gravel sand making equipment, 50% energy saving than traditional sand making machine, is currently the world's advanced sand making equipment.

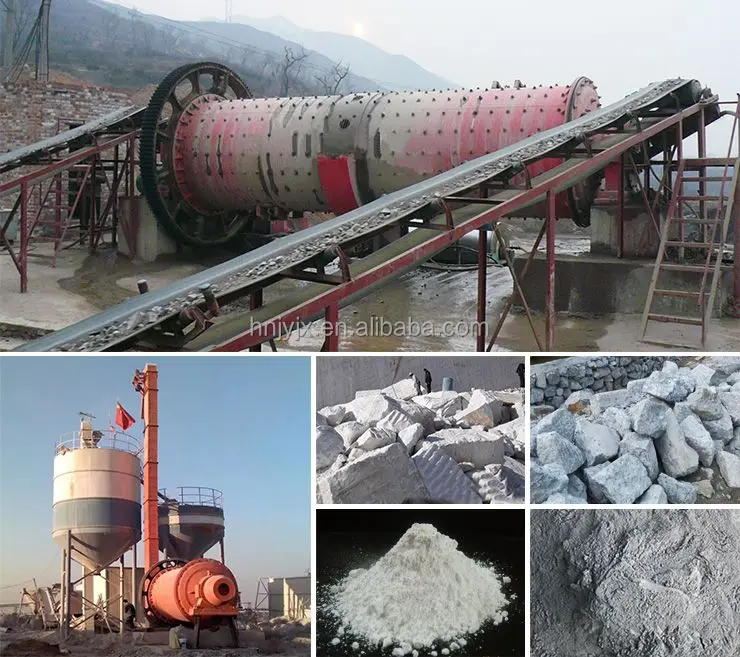

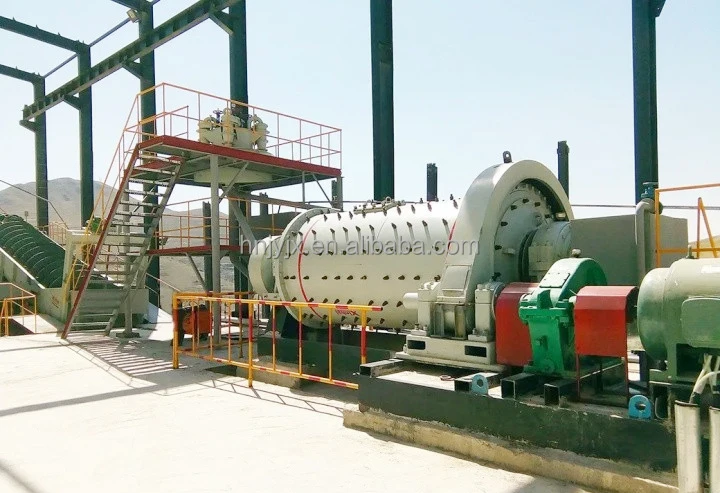

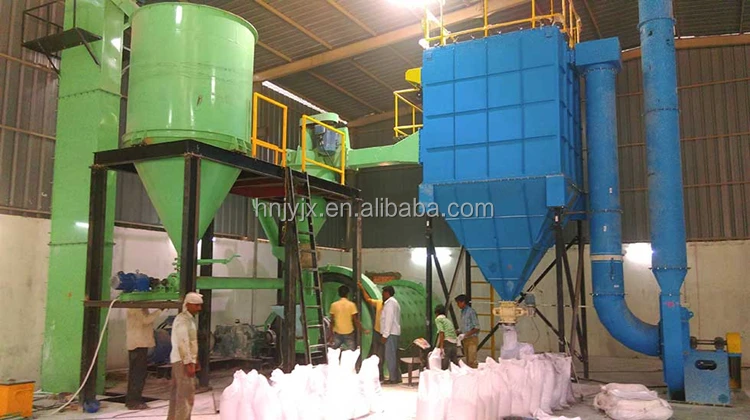

Customer Site








For Stone Crushers, Contact Us














FAQ


Q: Are you a manufacturing or trading company?
A: We are a factory, established in 1998. We are the direct manufacture, so we can offer you the lowest price than the market price. The price of the machine can be given the largest discount based on quantity.

Q: What is your payment method?
A: Paypal, T/T, L/C, and Western Union are all available. After sign the contract, pay the 30%-50% deposit of total purchase price and pay the full payment before delivery. We take photos and videos of finished products before delivery.

Q: How long is your delivery time?
A: The lead time is 10-30 days, Delivery time will vary depending on the type of the machine, shipping method selected and parts availability.

Q: How long is the warranty? Does your company supply the spare parts?
A: One year. Spare parts for you at the lowest cost. We will provide the technical advice and find the solution immediately for you when the machine is in trouble.

Q: If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We have already built many mining projects in China and overseas.
