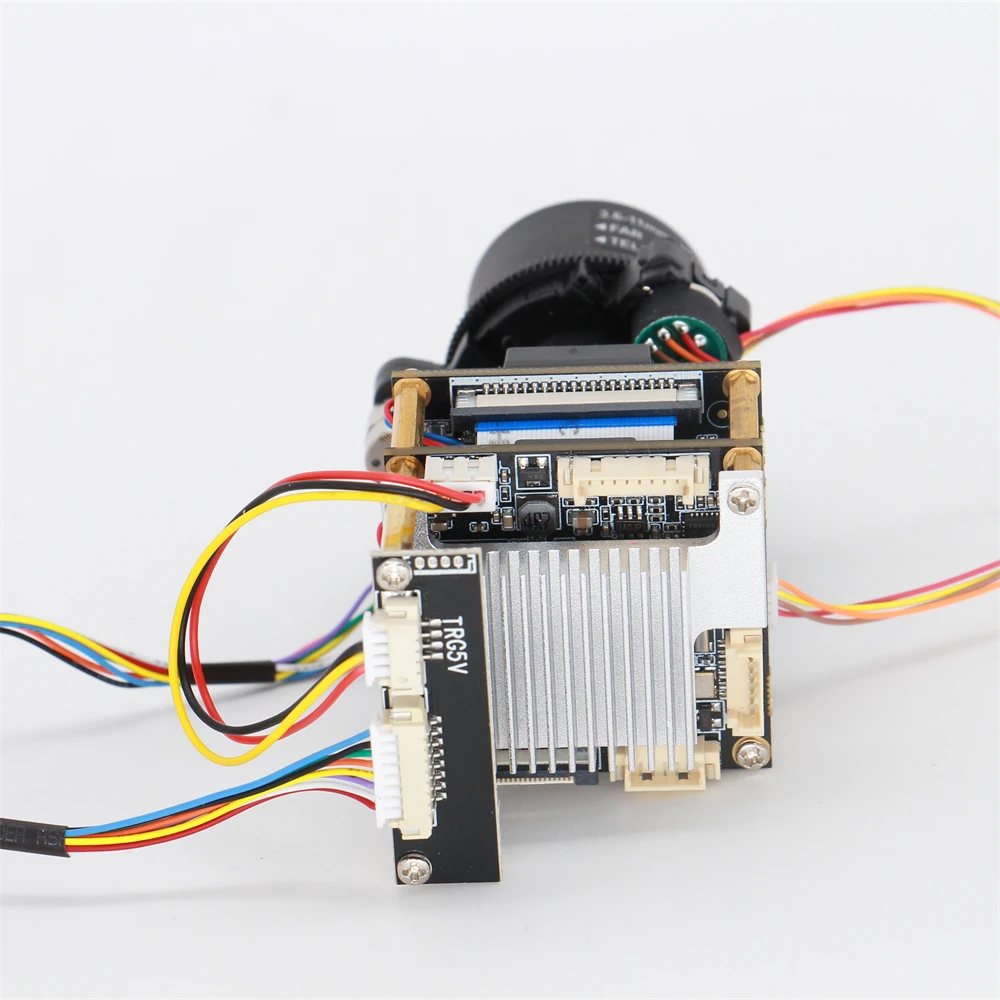

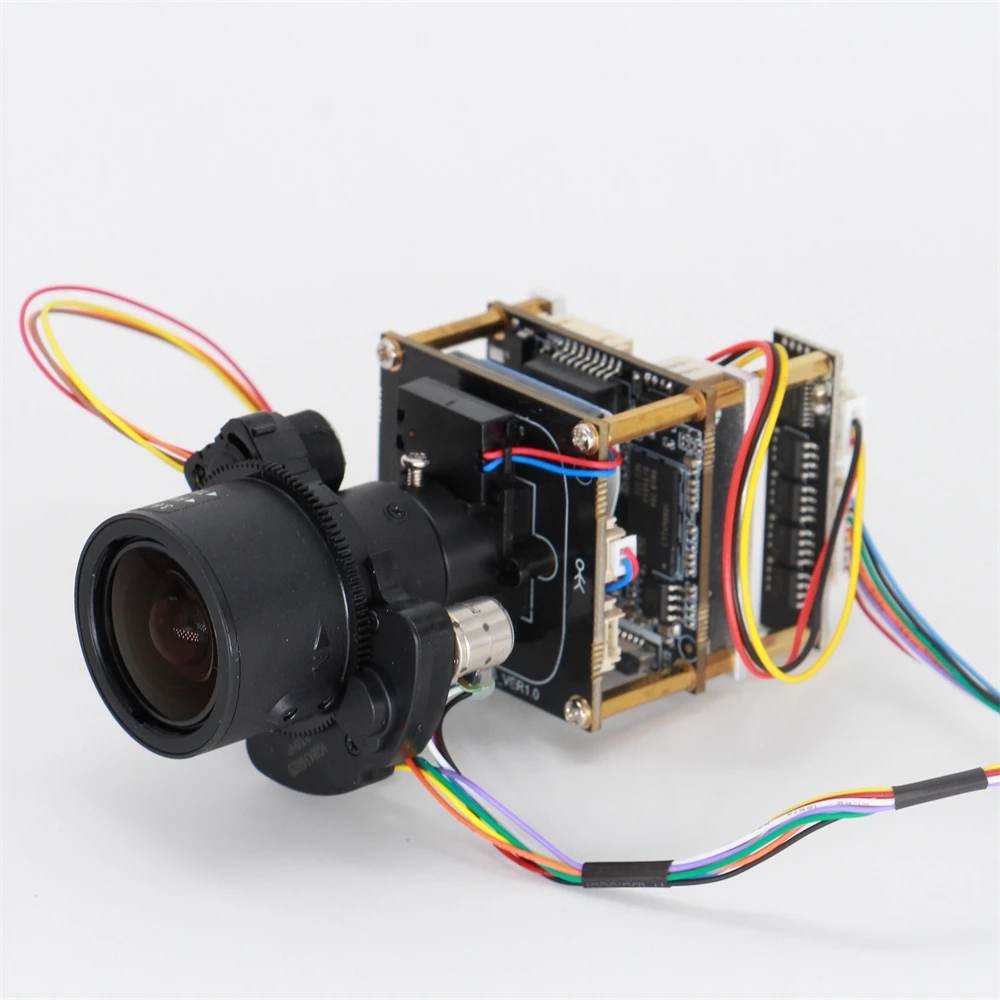

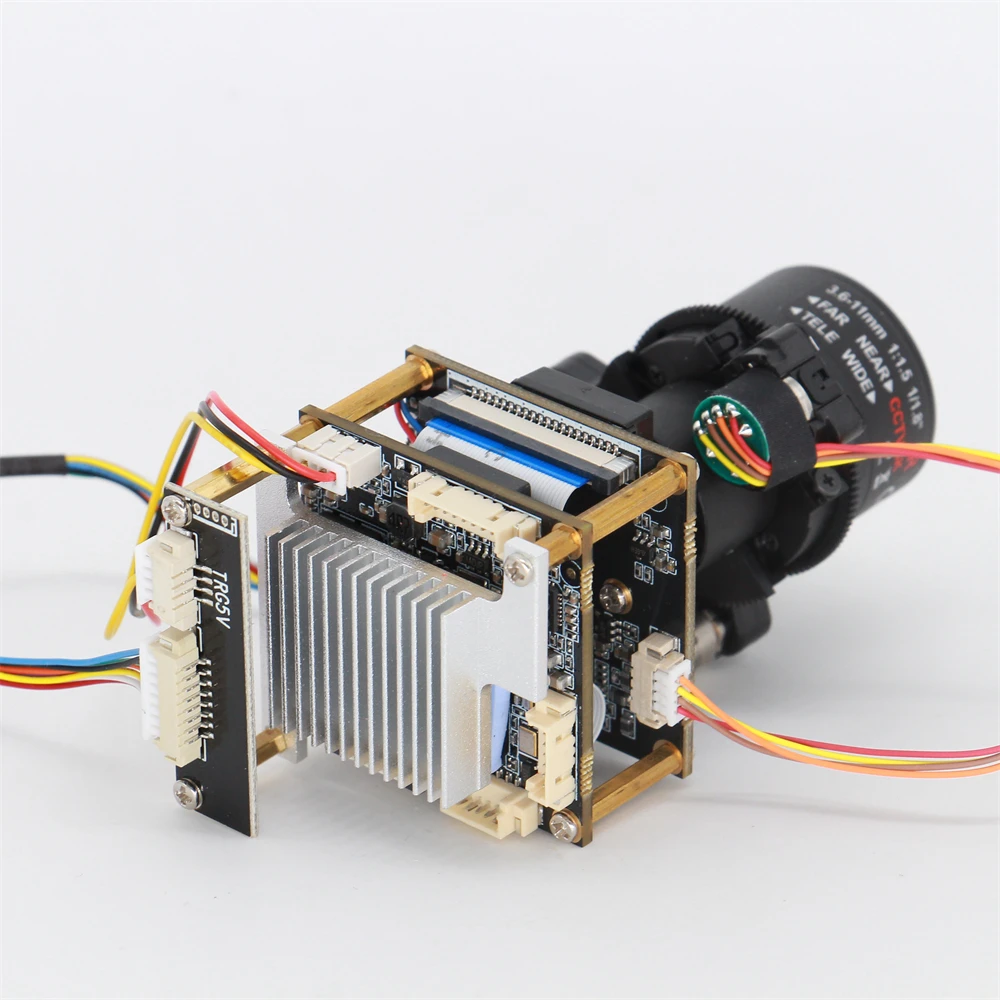

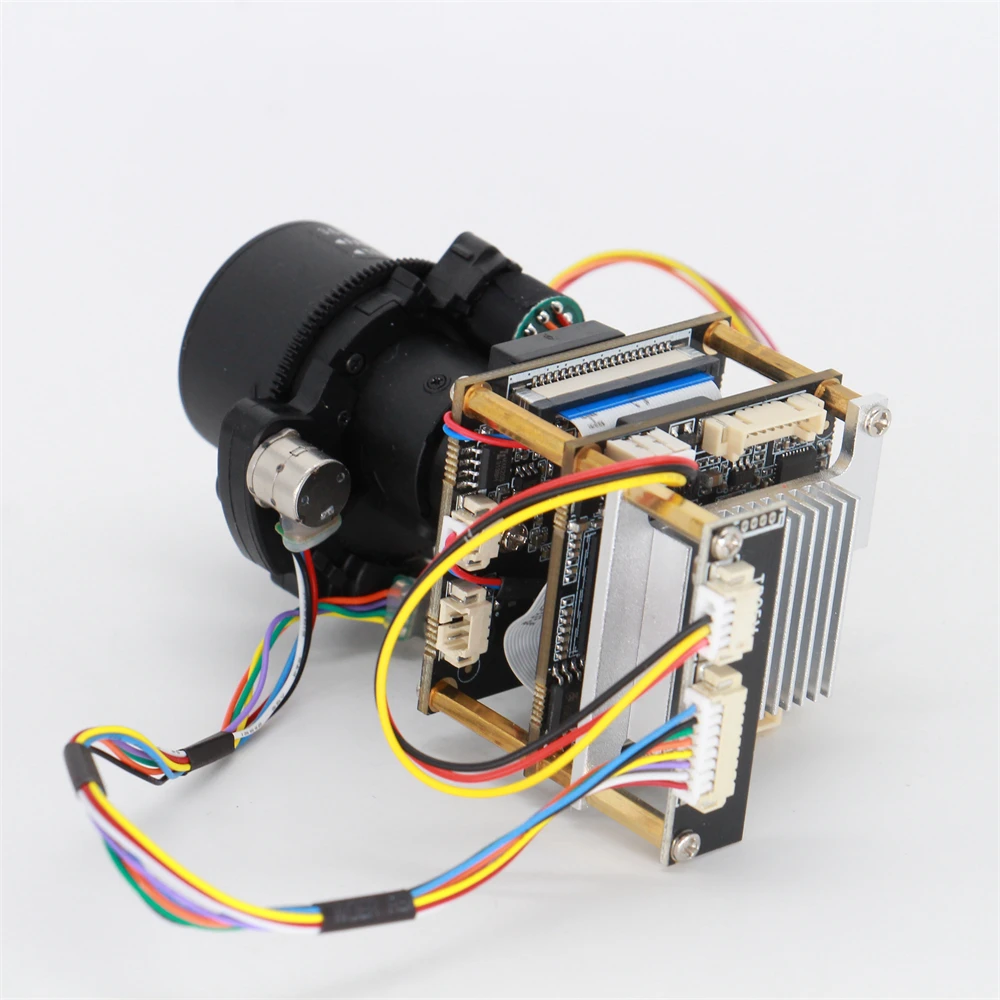

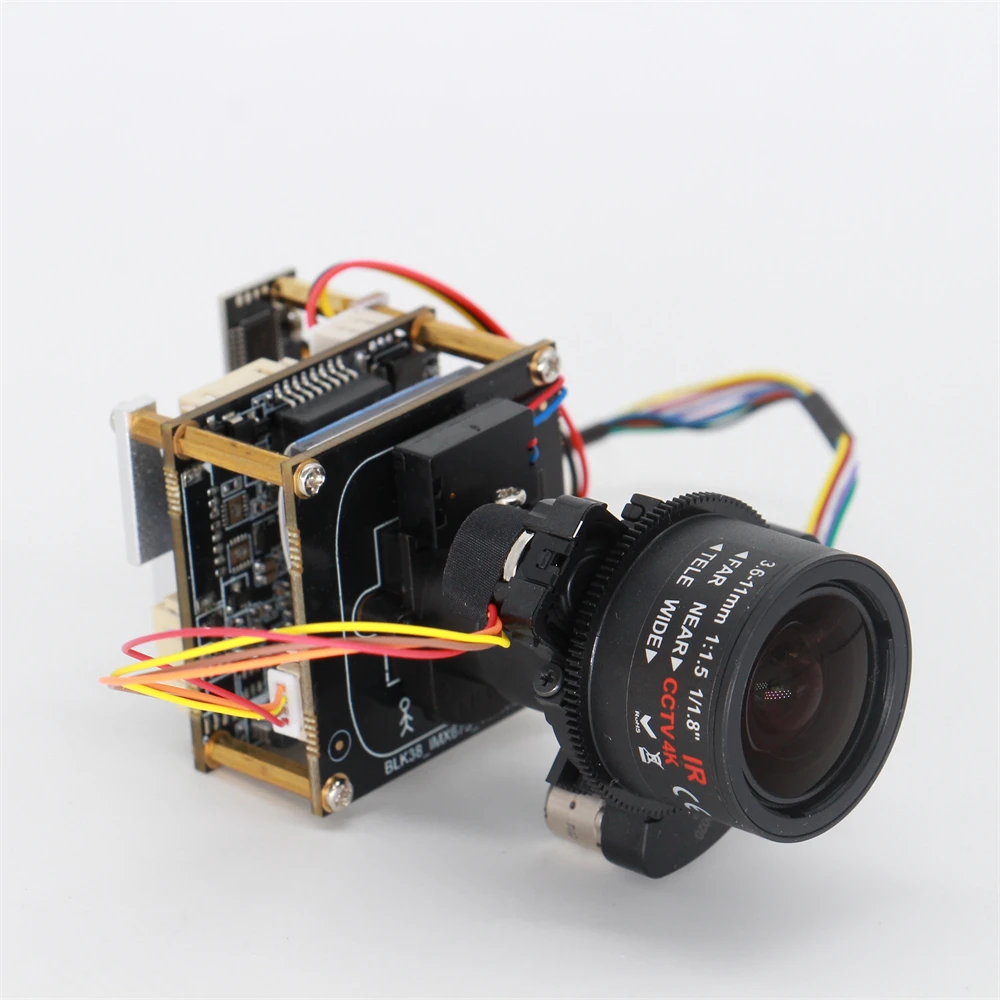

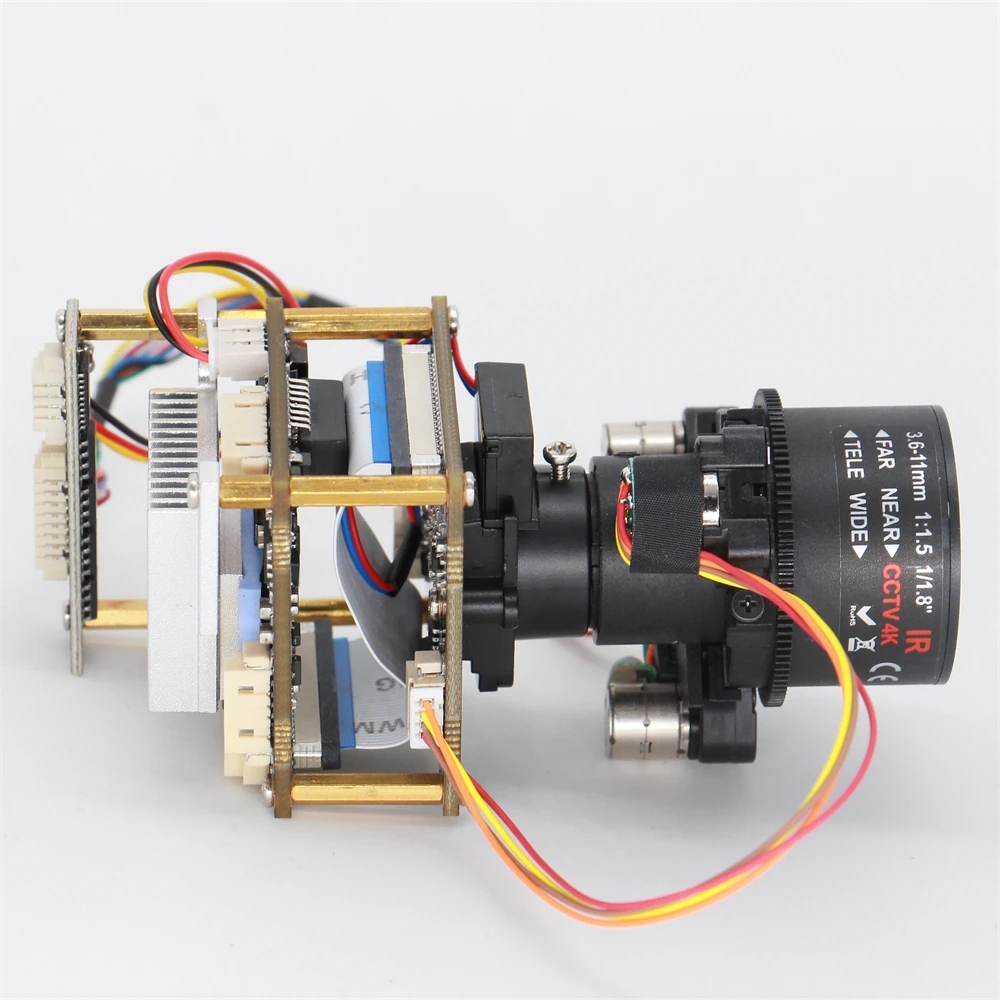

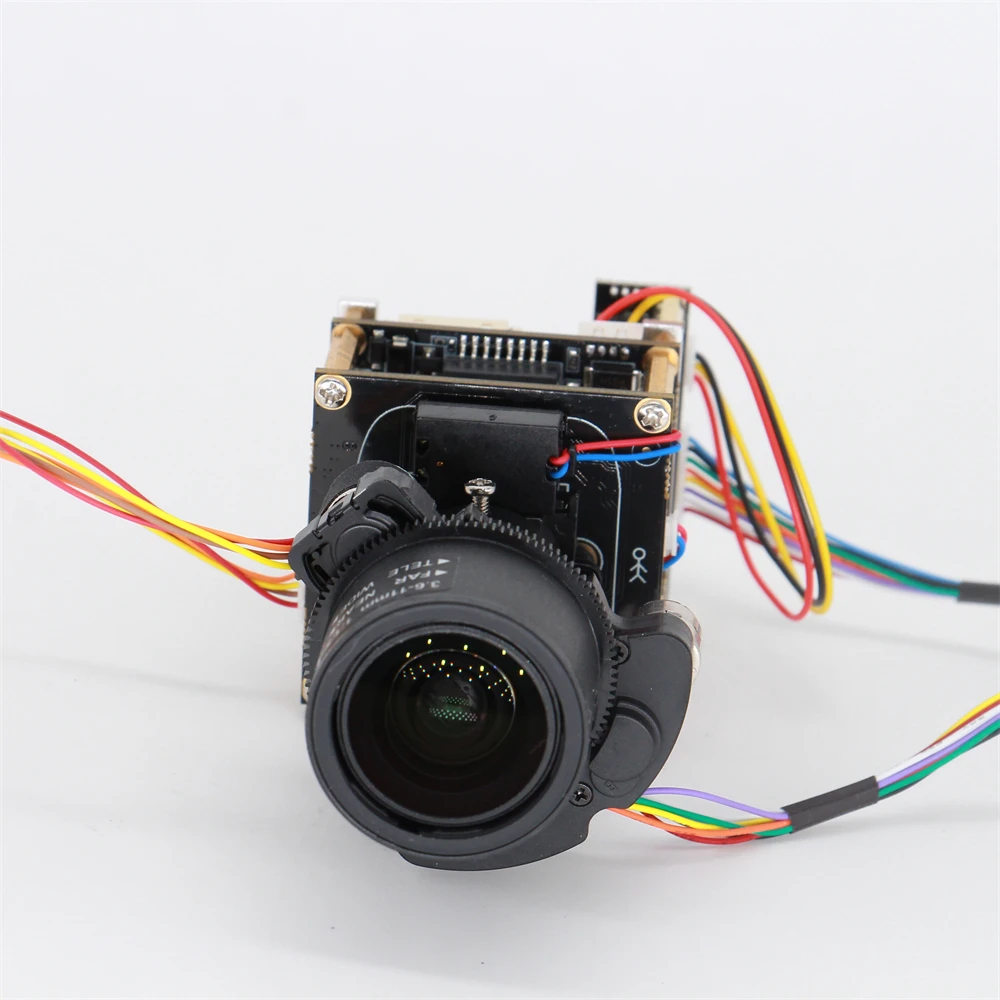

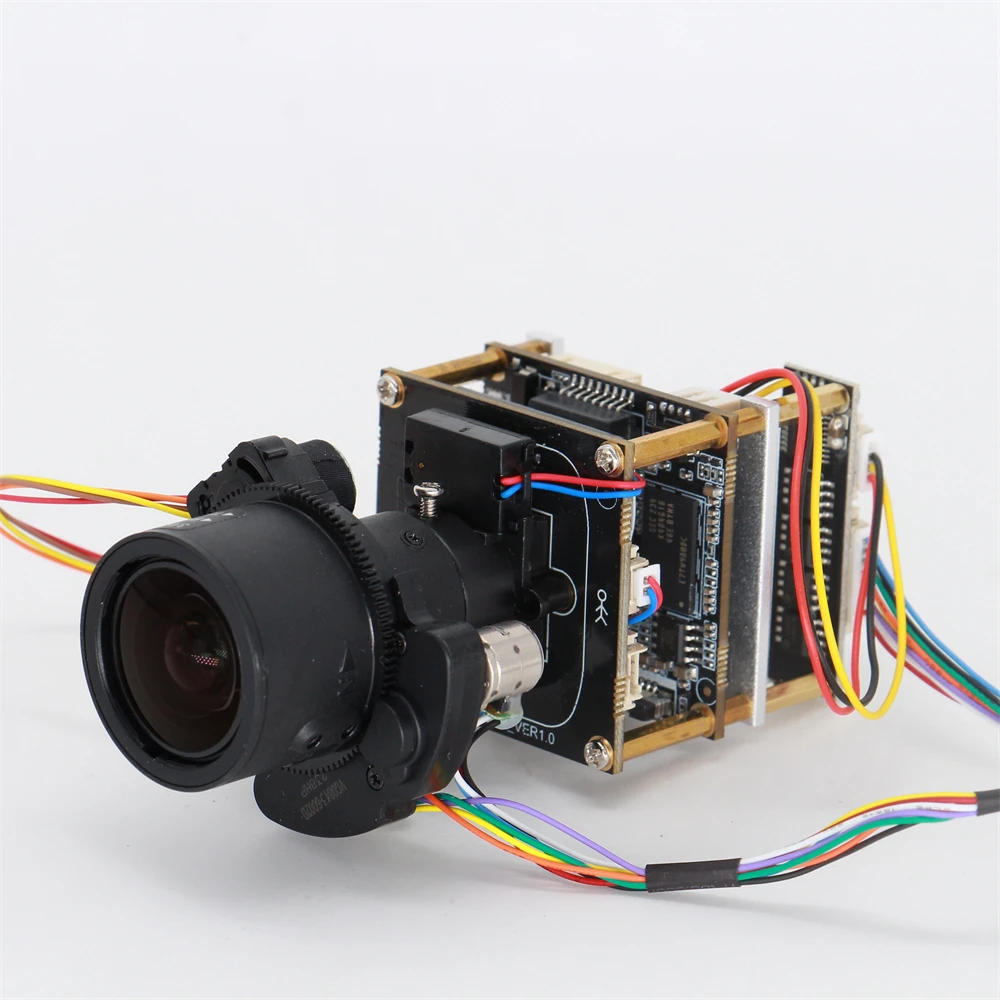

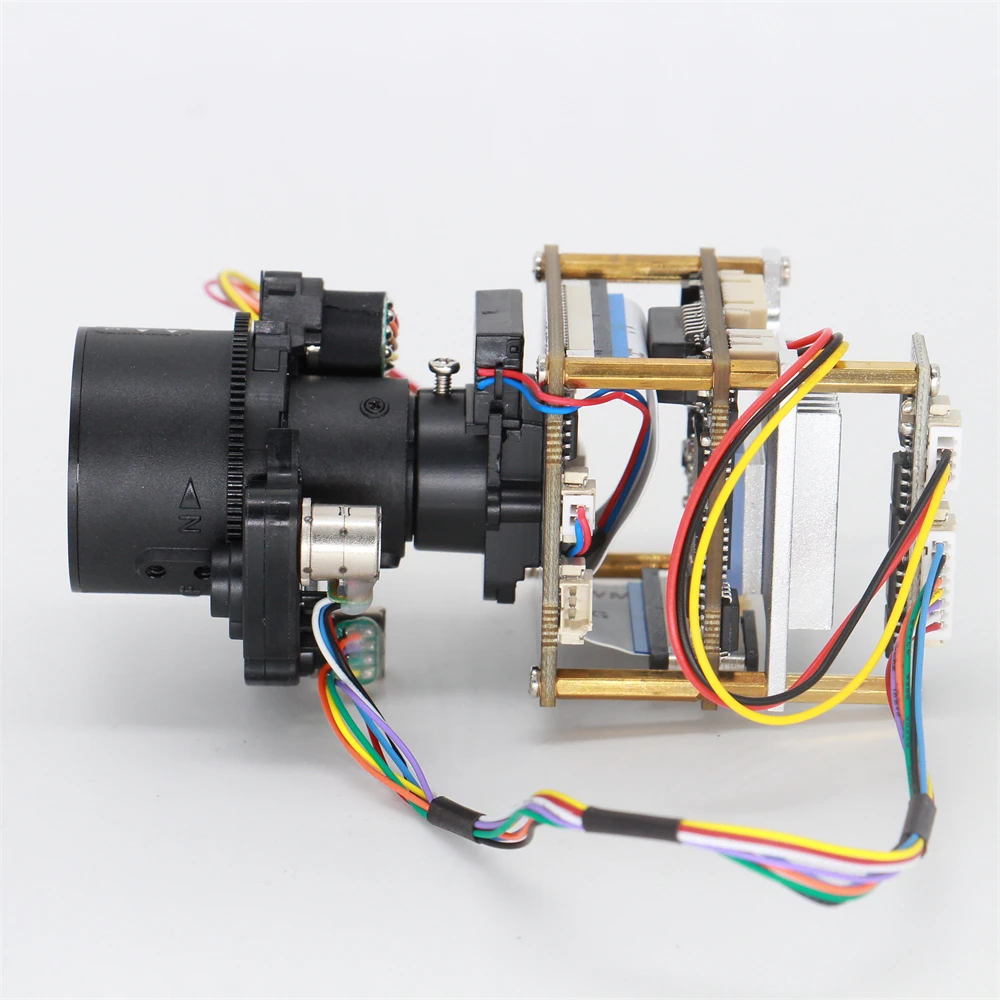

8MP 4K 60fps Starvis 2 Starlight IMX678 SD3403 3.6 11mm Motorized Zoom WIFI Camera Module SIP K678U 3611

Product Overview

Description

Motorized Lens IP Camera Board

8MP 4K 60fps Starvis 2 Starlight IMX678+SD3403 3.6-11mm Motorized Zoom WIFI Camera Module

Model:SIP-K678U-3611

Highlights

> IMX678+Hi3519DV500
> 1/1.8"SONY CMOS, 8.0mp 60fps
> H.265+/H.265/H.264/MJPEG
> DWDR,3DNR,Lens Correction,WB
> ONVIF,API,SDK,GB28181,CGI,RTSP
> Supports three streams and multiple resolutions
> Support for SMART LEDs
> Adjustable shutter, image, menu, etc.
> Support audio, USB,UART,Reset.
> Support RS485,Auto IRIS Lens
> Support character overlay
> Support Google Chrome
> Mobile phone monitoring(optional)
> Support custom development
> Optional CVBS function
> Lens:3.6-11mm electric zoom lens
> Support custom development (algorithm custom porting, functional interface customization, platform protocol docking, etc.)



Model	SIP-K678U-3611
Camera Type	H.265 8mp Starlight IP Camera Module
Camera
Image Sensor	1/1.8" SONY IMX678 CMOS Sensor
Effective Pixels	8M pixels
DSP	SD3403
Min. Illumination	Color: 0.0001Lux F1.2(AGC ON), B/W: 0Lux(IR ON)
S/N Ratio	≥50dB(AGC OFF)
Motorized Zoom Lens	Support 3.6-11mm Motorized Zoom Lens
Ir-Cut	Support
Day/Night	Color/B&W/Auto
Smart IR/white light	Support
Light mode	Low Level/High Level/PWM
WDR	≥120dB WDR
3DNR	Support
Tonal	Available to set
Brightness	Available to set
Sharpness	Available to set
Contrast	Available to set
Saturation	Available to set
Gamma	Available to set
BLC	Available to set
Mirror image	Open/Close
Flip	Open/Close
HLC	Open/Close
Video Format	PAL/NTSC
Lens Correction	Open/Close
Dehaze	Open/Close
Exposure Strategy	Highlight Priority/Low Light Priority/Auto
Exposure Mode	Auto / Manual
AutoExposure Time	Auto / Manual(1/12s-1/8000s)
Slow Shutter	Open/Close
Gain Mode	Auto / Manual
White Balance Mode	Auto/Manual/White Balance Scene Adjustable/White Balance Style Adjustable
OSD Settings	Code stream information/display week/display time/channel title/watermark overlay
OSD Display	Color/size/position adjustable
Video/Audio
Video Coding	H.265/H.264
Encoding Scheme	Baseline/Main Profile/High Profile
Resolution	Main stream:3840X2160,2880X1620,2560X1440,1920X1080(1-30fps)
	Sub Stream/Three Streams:D1, VGA, (1-30fps)
Frame Rate	1-30fps
Bit Rate	32Kbps-16Mbps
Bitrate Type	Support VBR/CBR
Audio Compression	G.711U/ G.711A/G.726/AAC
Audio Input Mode	Mic In/Line In
Audio Input Gain	Available To Set
Audio Output Gain	Available To Set
Echo	Open/Close
Network
Data Storage	Video Record, Picture Format
Trigger	Manual, automatic (motion detection, alarm, time)
Alarm Data Transmission	Websocket, FTP, Browser
Network Protocol	HTTP,HTTPS,TCP/IP,UDP,RTP,FTP,RTCP,RTSP,NTP,DHCP,DNS,DDNS,SNMP,SSL/TLS,UPNP,PPPOE,etc.
Transfer Protocol	ONVIF/GB28181/SDK/CGI
Number Of Client Visits	Support 8 Users Login At The Same Time
Browser	IE/Edge/Chrome/Firefox
Network Lost  Recording	Supports
Motion Detection	Supports 4 Area
Hide Detect	Supports 4 Area

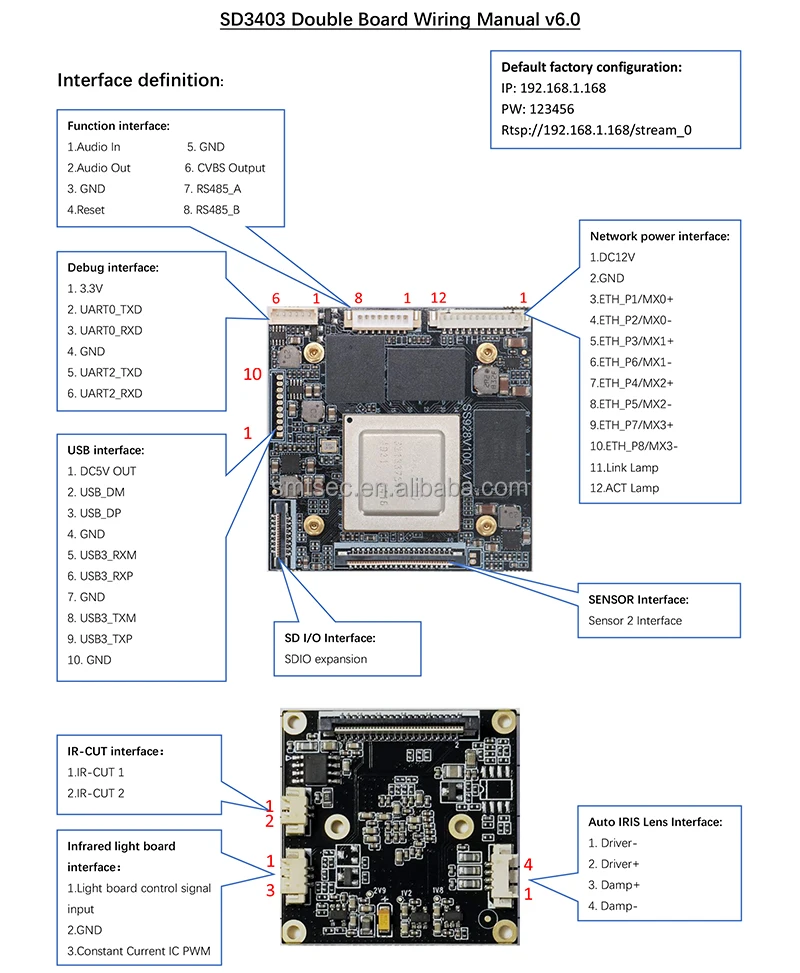

Interface
Network Interface	10M/100M Adaptive Ethernet Port
Audio Input	1Ch Audio Input
Audio Output	1Ch Audio Output
USB interface	1 USB2.0 interface (5V power supply), support extended 4G/WiFi function
Uart port	1Ch
Reset interface	Support
RS485	1Ch
Auto IRIS Lens	Support
<Optional Function>	<Note: The standard version does not include the following functions, if you need, please consult us>
Smart Phone	iPhone,iPad, Android
TF storage function	Maximum Support 512G
Wifi	Support 802.11bgn
4G Function	Support 4G Cat.1, rate up to 10Mbps
POE	IEEE802.3af/at
Smart function	Support humanoid detection/area intrusion/flame detection/electric vehicle detection/license plate detection
Function customization	Support function customization development, platform protocol docking, algorithm customization transplantation, hardware and software development
General
Power Supply	DC12V1A
Power Consumption	<1.2W
Working Environment	-20°C~+60°C , Less Than 90% Rh
Product Size(L/W/H)	38X38X90mm
Net Weight	0.2Kg
