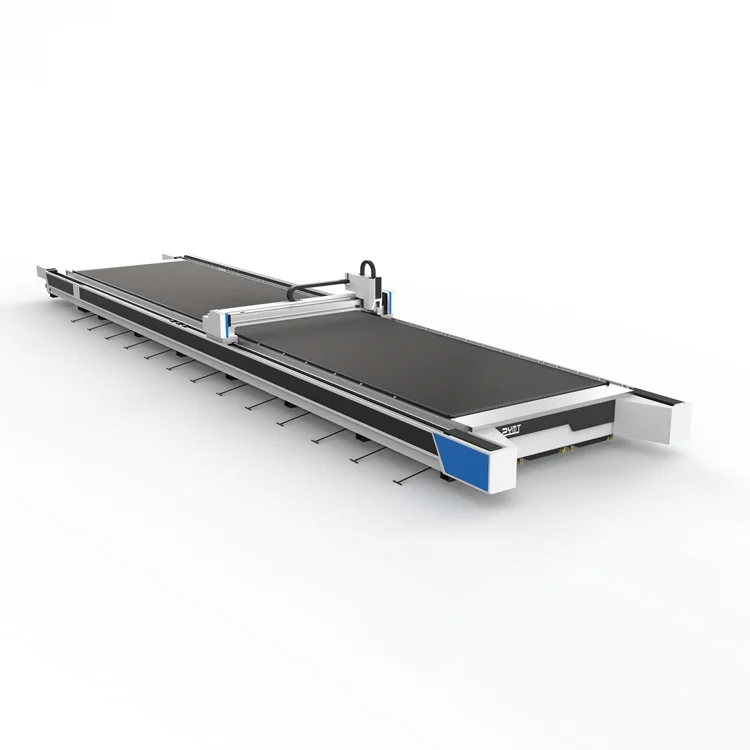

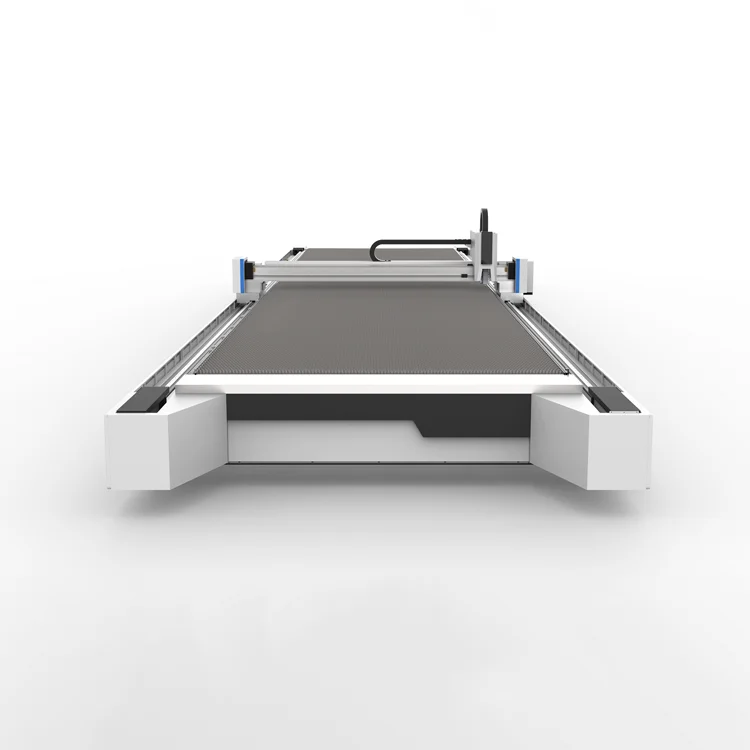

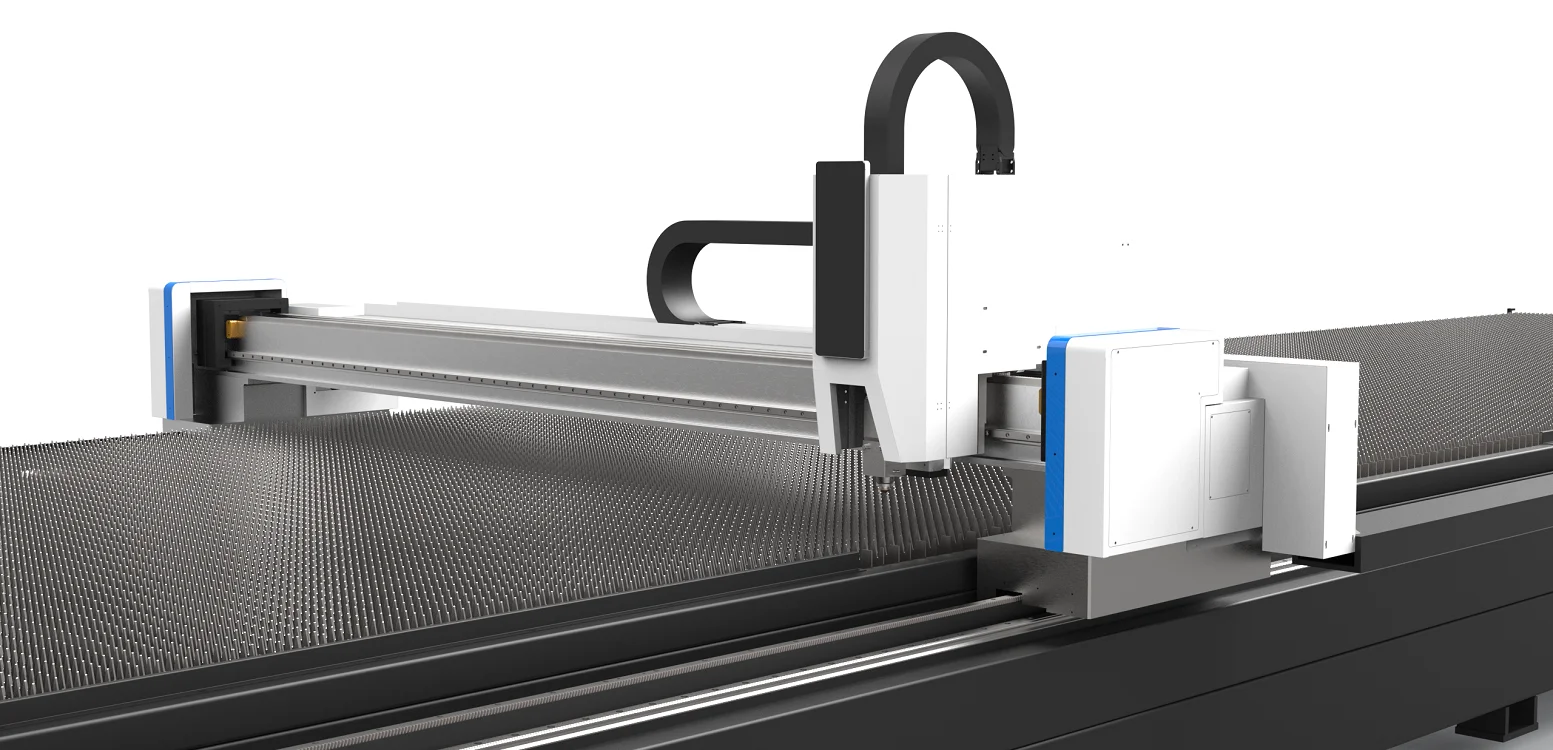

Hot Sale Sheet Metal Cutter High Speed Exchange Table Fiber Laser Cutting Machine

Share on (1601214344232):


Price:$8,600.00 - $19,700.00

Quantity:


Product Overview

Description







Product Overview
The special tube laser cutting machine consists of 7 axes
It can realize the cutting of various pipes such as round pipes, square pipes, rectangular pipes, elliptical
pipes, etc.

It can realize the one-time forming and processing of 6 meters of pipes, and can be equipped with different
pipe lengths and pipe diameters such as 9 meters and 12 meters.

The equipment matches the feeding shaft and the pulling shaft, which can greatly reduce the waste of
processing tails

Capable of cutting multiple pipes of different directions and diameters on the main pipe
Can cut variable angle bevel face

Known by the industry as a pipe cutting machine and a material expert.




Project
Unit
ZYR-6022
ZYR-6036
ZYR-9036
Cut Pipe Length
mm
6000
6000
9000
Chuck Diameter
mm
220
360
360
Laser Power
W
≤12000W
≤12000W
≤12000W
Acceleration
m/s2
10
10
10
Positioning Accuracy
mm/m
±0.02
±0.02
±0.02
Repeatability
mm
±0.03
±0.03
±0.03
Rotary Axis Speed
rmp
80
80
80
