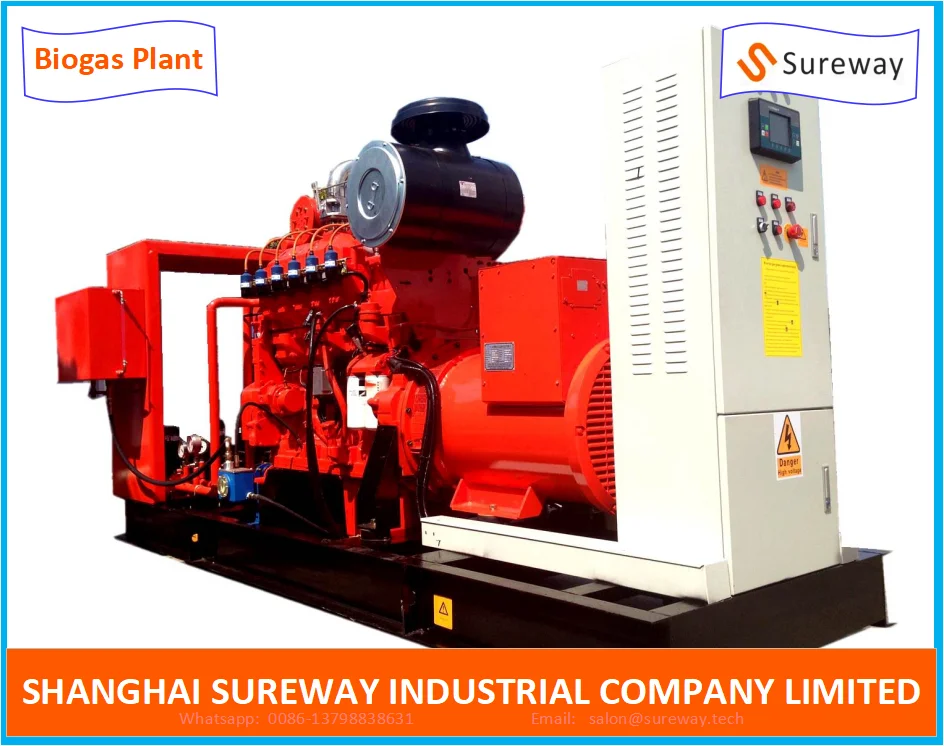

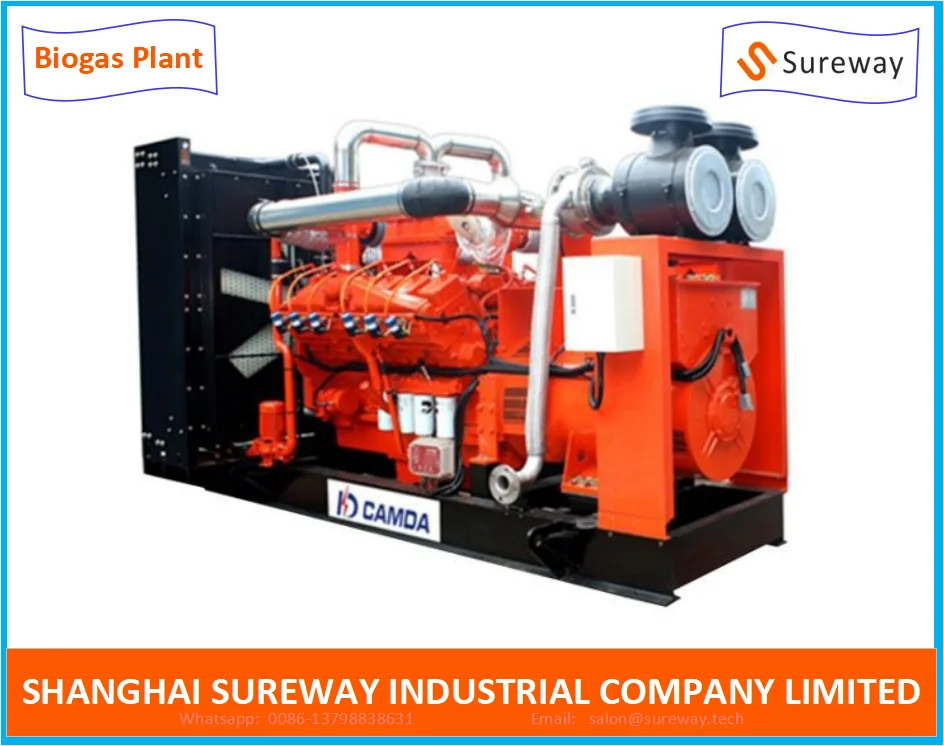

300 KW Biogas Generator,Biogas Generator Set

Product Overview

Description

Ratings

Rated  Power	kVA	375
	kW	300
Voltage type		50Hz, 380/220V, 3 phases and 4 wires

*Ratings at 0.8 power factor



Dimensions and Weights

Content		Open type	Soundproof Sets
Dimensions: (mm)	L	3500	5600
	W	1250	2000
	H	2020	2500
Weights (kg)		3380	4985



Engine Brand & Model: HGKT38

Engine Data



No. of Cylinders	6 in-line	Engine power(KW)	341
Cycle	4 Stroke	Cylinder Type	Wet
Bore * Stroke (mm)	159 * 159	Compression Ratio	11.5:1
Induction	Turbocharged & Aftercooled	Displacement (L)	18.9
Cooling Method	Water cooled	Governing Type	Electronic
Starting method	24V DC motor	Coolant capacity, including radiator (L)	115
Lubricant Oil	15W40-CF4 or above grade	Oil pan capacity (L)	87





Gen-set Fastening and Shock-proof Devices:

In general when manufacturing, a Cushioning Pad has been installed on the rigid base of the generator set, and has proofread the engine and the alternator exactly. So only need to install the genset in a predetermined position, and put in standard level.

If the genset is not installed with shockproof pad, shockproof device will be needed when the genset is placed on the flat-panel; rubber cushion or steel shells can be used to decrease vibration, otherwise the genset will be damaged or have unsuitable shock.

If possible, the concrete foundation should tamp the below raw soil or backfilling concrete in advance, then form a 200mm layer of shock absorption with cement, asphalt, cinder mixed with water. It can prevent the shock of genset and the resonance of some of the plant.

WARNING: The inherent vibration rate should be more than two times of the engine speed. If it close to the engine speed, parts of the plant may have the possibility to make resonance.



Ventilation:

The running of the engine and operation of the alternator will spread heat all through the plant room and raise the temperature of the room, so ventilation is essential. It can control the plant room temperature effectively, and supply the generator with cool and fresh air.



Low noise:

Noise level is decided by the size of power room and level of noise pressure.Reduce the noise to the level corresponding to the environmental noise standard. No need to excessive demands, because this will cause unnecessary high cost.

For many installation, use flexible frame to fix genset, plus the normal control of air exhaust, air inlet and radiator fan, which can reduce the noise to an acceptable level.

If the noise remain high after these processing, we can set sound insulation board in the room or around the gensets. Fix sound-absorbing board on the wall of the room or put the genset in a special designed sound insulation container to reduce noise.
