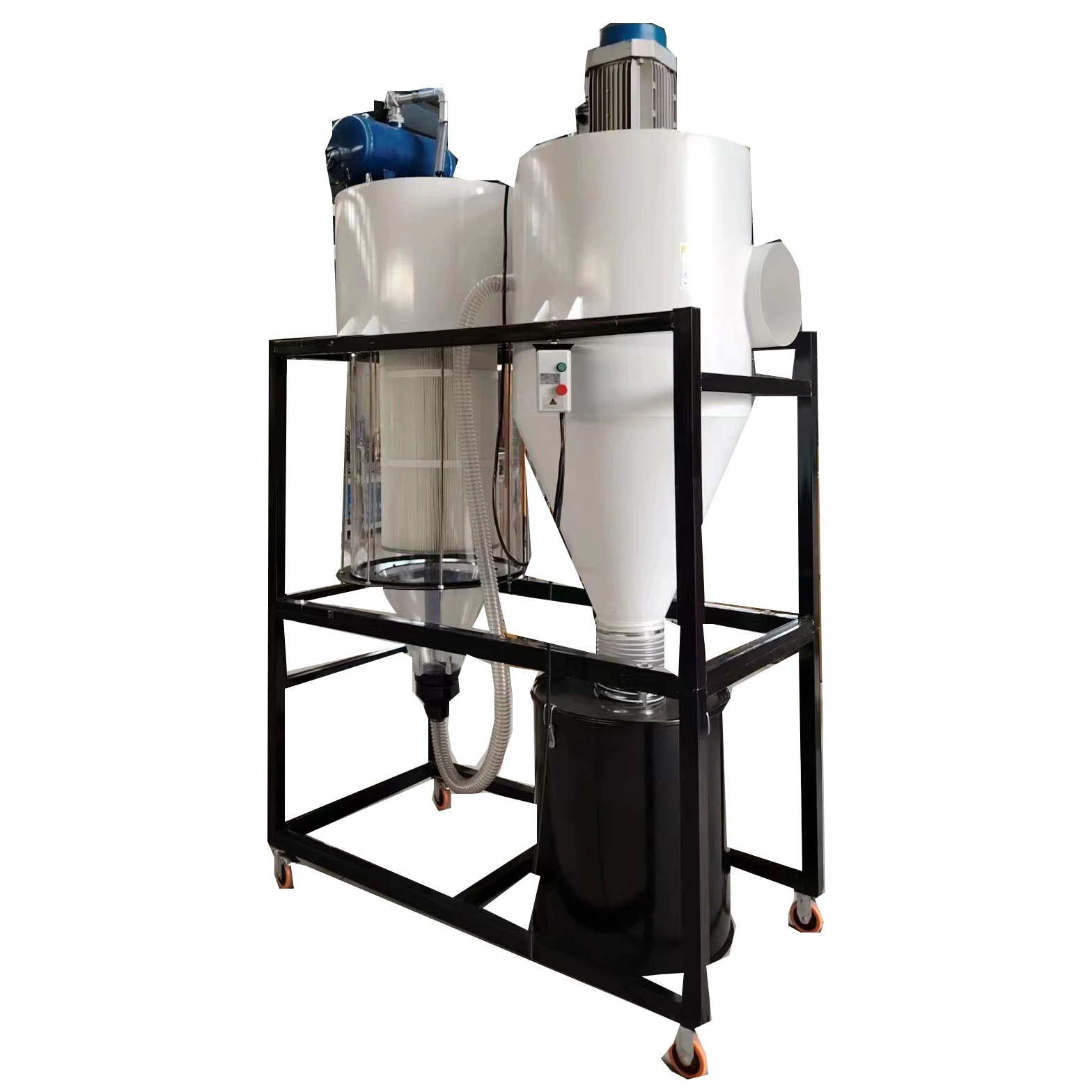

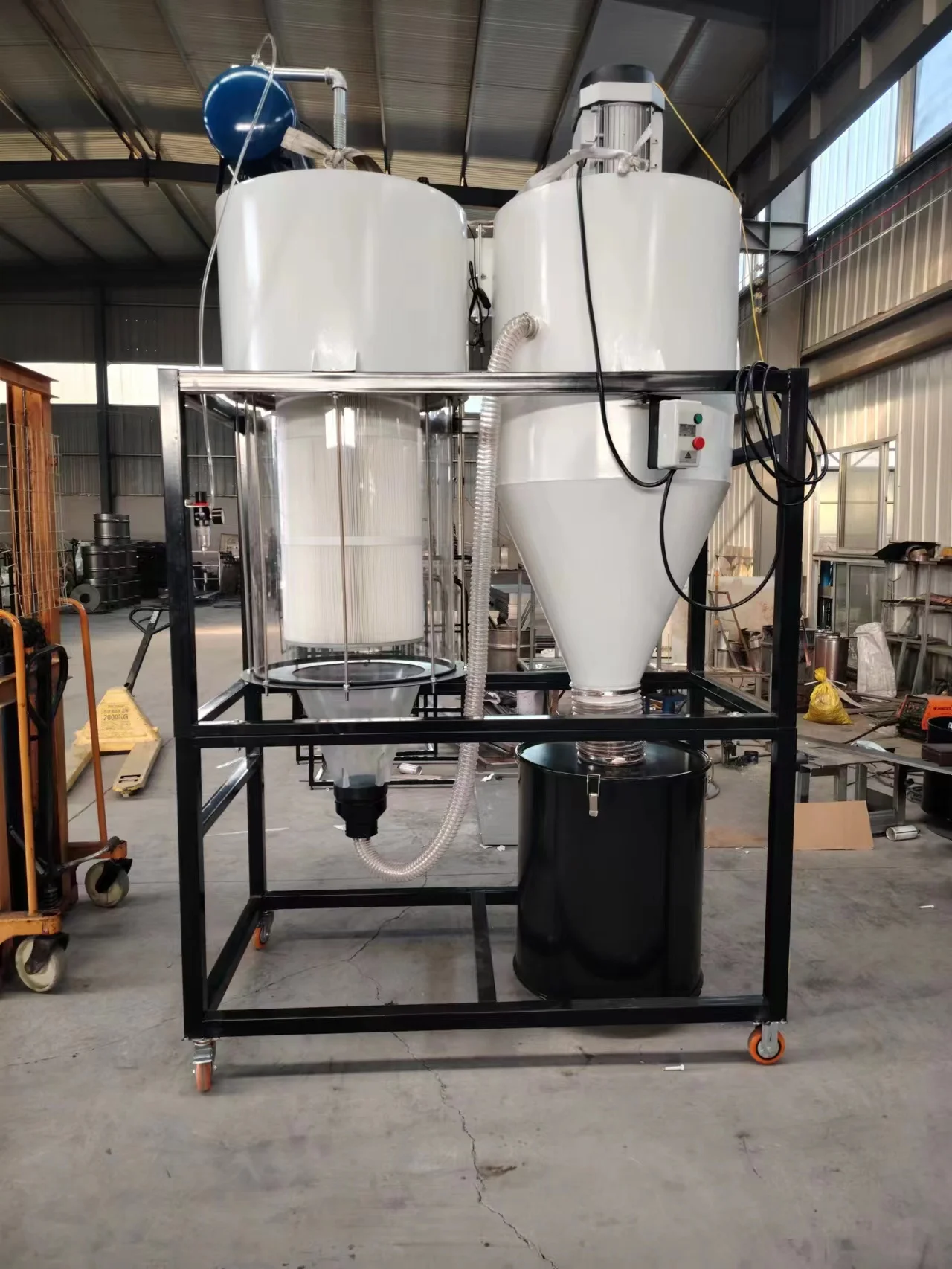

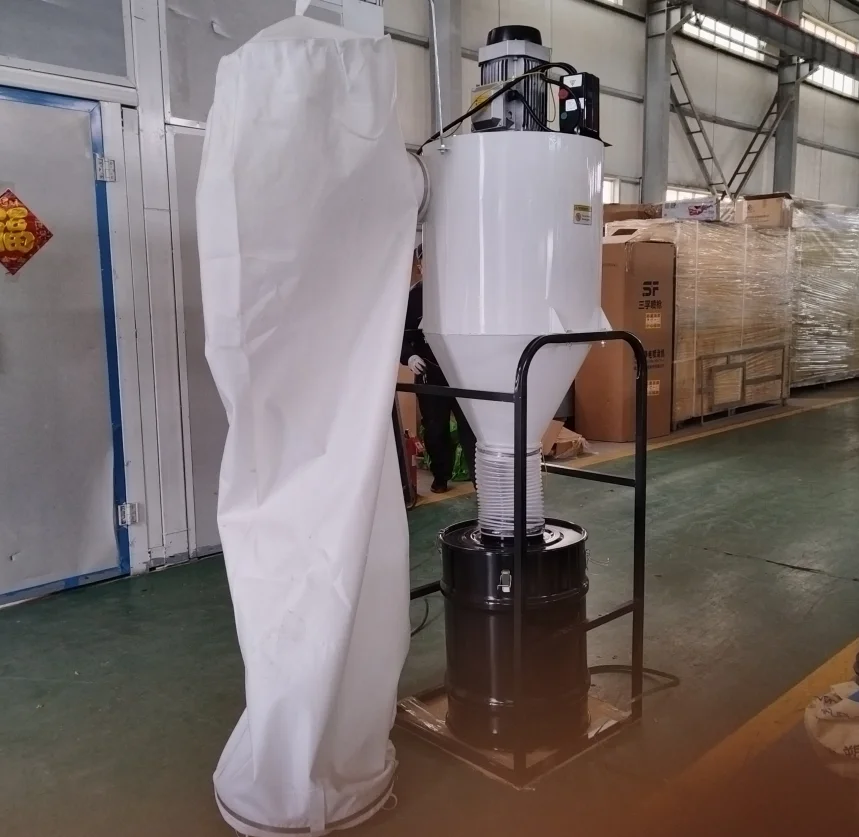

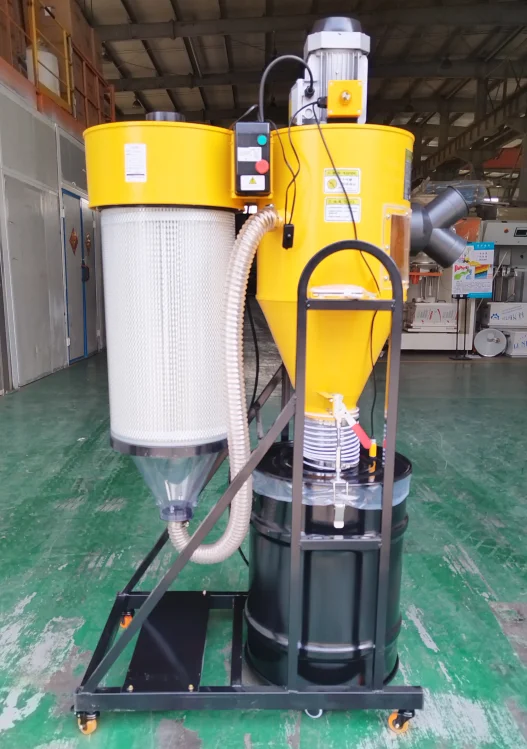

Factory Exw Price Woodworking Silent Dust Collector Cyclone Dust Collector
- Category: >>>
- Supplier: Qingdao Allway Tech Co. Ltd.
Share on (1601214421069):
Product Overview
Description
Product Description
Equipment Introduction
This small cyclone dust collector is designed by our company on the basis of making and researching dust collector for more than 20 years, it is more convenient for individuals and small and medium-sized factories who do not want to do central dust removal to use, its unique cyclone separation technology makes dust removal simpler, more convenient and quicker, greatly reduces the consumable products, does not produce secondary pollution, so that the body and mind are healthier and more enjoyable to work.
Functional characteristics
Dust-containing gas enters into the cylinder from the air inlet, rotates downward spirally along the inner wall, dust is thrown to the wall under the action of centrifugal force, and falls into the dust collection barrel under the action of gravity, and the purified gas is discharged from the central pipe.
Focus on professional
We are a manufacturer specialising in the production of customised cyclone dust collectors, in addition to the existing product models, we can also design all types of cyclone dust collectors specifically according to customer requirements.
This small cyclone dust collector is designed by our company on the basis of making and researching dust collector for more than 20 years, it is more convenient for individuals and small and medium-sized factories who do not want to do central dust removal to use, its unique cyclone separation technology makes dust removal simpler, more convenient and quicker, greatly reduces the consumable products, does not produce secondary pollution, so that the body and mind are healthier and more enjoyable to work.
Functional characteristics
Dust-containing gas enters into the cylinder from the air inlet, rotates downward spirally along the inner wall, dust is thrown to the wall under the action of centrifugal force, and falls into the dust collection barrel under the action of gravity, and the purified gas is discharged from the central pipe.
Focus on professional
We are a manufacturer specialising in the production of customised cyclone dust collectors, in addition to the existing product models, we can also design all types of cyclone dust collectors specifically according to customer requirements.

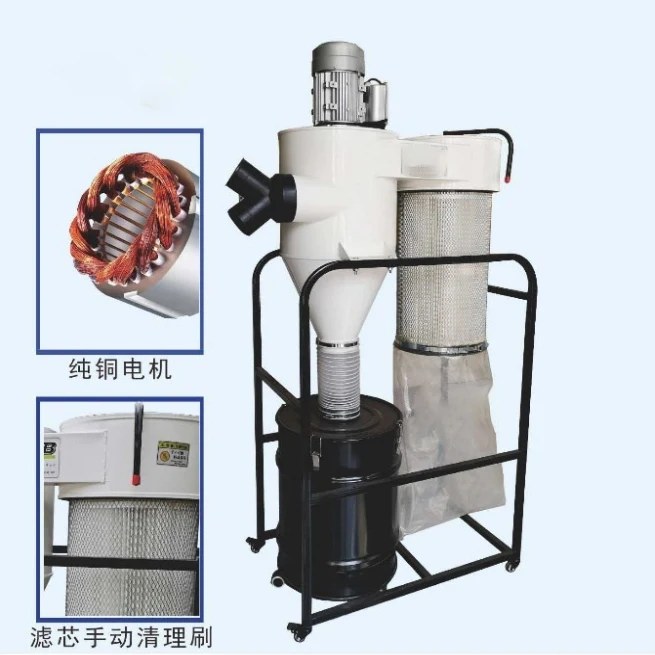

Models
Model -2200
Specs
1/Air volume:2200m³/h
2/Air inlet size:145mm*1/95*2
3/Installation size:550*900*2000mm
4/Secondary filtration:polyester fiber
5/Motor:Pure copper
6/Filter:Manual cleaning
1/Air volume:2200m³/h
2/Air inlet size:145mm*1/95*2
3/Installation size:550*900*2000mm
4/Secondary filtration:polyester fiber
5/Motor:Pure copper
6/Filter:Manual cleaning
Power
2.2kw 2.2kw 3kw
220v 380v 380v
2.2kw 2.2kw 3kw
220v 380v 380v

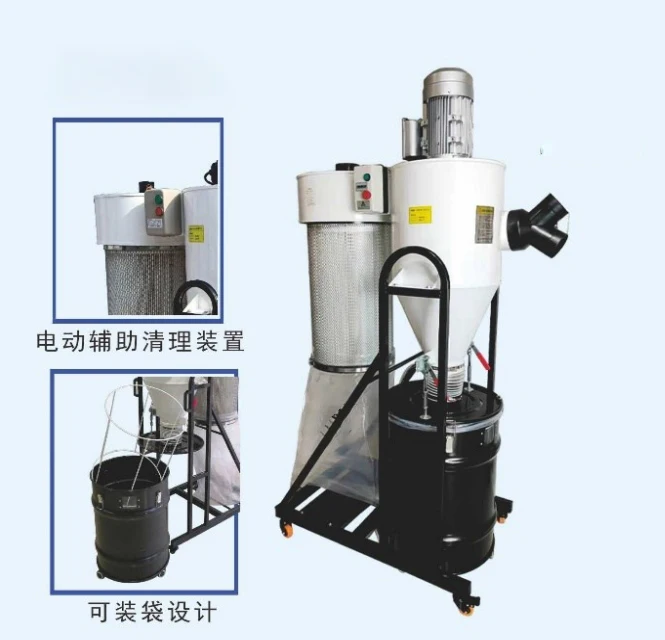

Model XF-2200S
Specs
1/Air volume:2200m³/h
2/Air inlet size:145mm*1/95*2
3/Installation size:550*900*1850mm
4/Secondary filtration:polyester fiber
5/Motor:Pure copper
6/Filter:Electric assisted cleaning
7/Ash bucket can be modified bag design
2.2kw 2.2kw 3kw
220v 380v 380v
1/Air volume:2200m³/h
2/Air inlet size:145mm*1/95*2
3/Installation size:550*900*1850mm
4/Secondary filtration:polyester fiber
5/Motor:Pure copper
6/Filter:Electric assisted cleaning
7/Ash bucket can be modified bag design
Power
2.2kw 2.2kw 3kw
220v 380v 380v

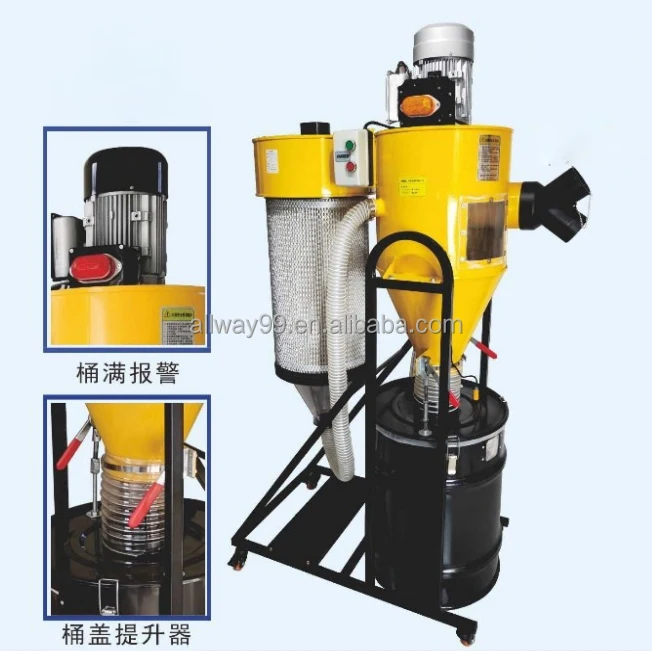

Model FK-2200
Specs
1/Air volume:2200m³/h
2/Air inlet size:145mm*1/95*2
3/Installation size:550*900*1850mm
4/Secondary filtration:polyester fiber
5/Motor:Pure copper
6/Filter:Electric assisted cleaning
7/Bucket full alarm device,Bucket lid lifter
1/Air volume:2200m³/h
2/Air inlet size:145mm*1/95*2
3/Installation size:550*900*1850mm
4/Secondary filtration:polyester fiber
5/Motor:Pure copper
6/Filter:Electric assisted cleaning
7/Bucket full alarm device,Bucket lid lifter
Power
2.2kw 2.2kw 3kw
220v 380v 380v
2.2kw 2.2kw 3kw
220v 380v 380v

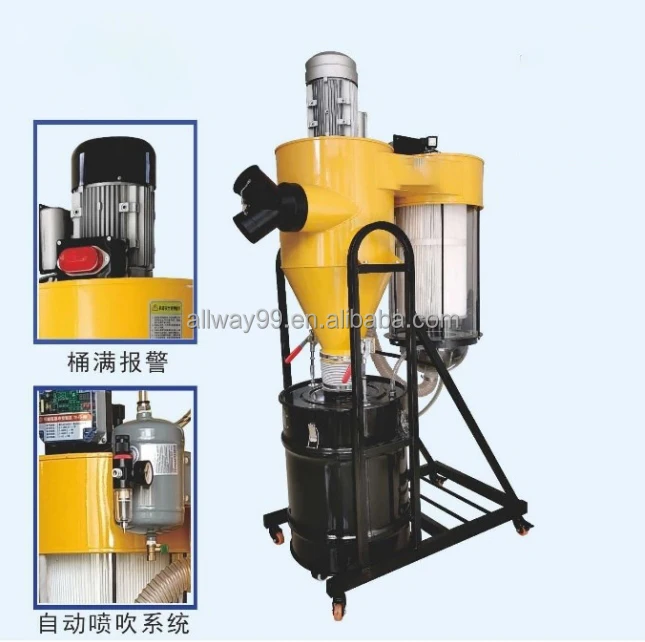

Model MC-2200
Specs
1/Air volume:2200m³/h
2/Air inlet size:145mm*1/95*2
3/Installation size:550*900*1850mm
4/Secondary filtration:polyester fiber
5/Motor:Pure copper
6/Filter:Automatic blowing ash cleaning system
7/Bucket full alarm device
1/Air volume:2200m³/h
2/Air inlet size:145mm*1/95*2
3/Installation size:550*900*1850mm
4/Secondary filtration:polyester fiber
5/Motor:Pure copper
6/Filter:Automatic blowing ash cleaning system
7/Bucket full alarm device
Power
2.2kw 2.2kw 3kw
220v 380v 380v
2.2kw 2.2kw 3kw
220v 380v 380v

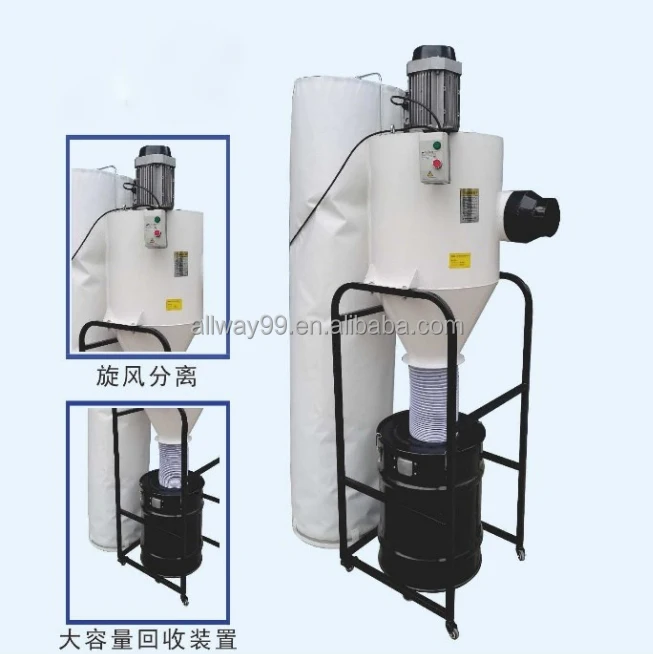

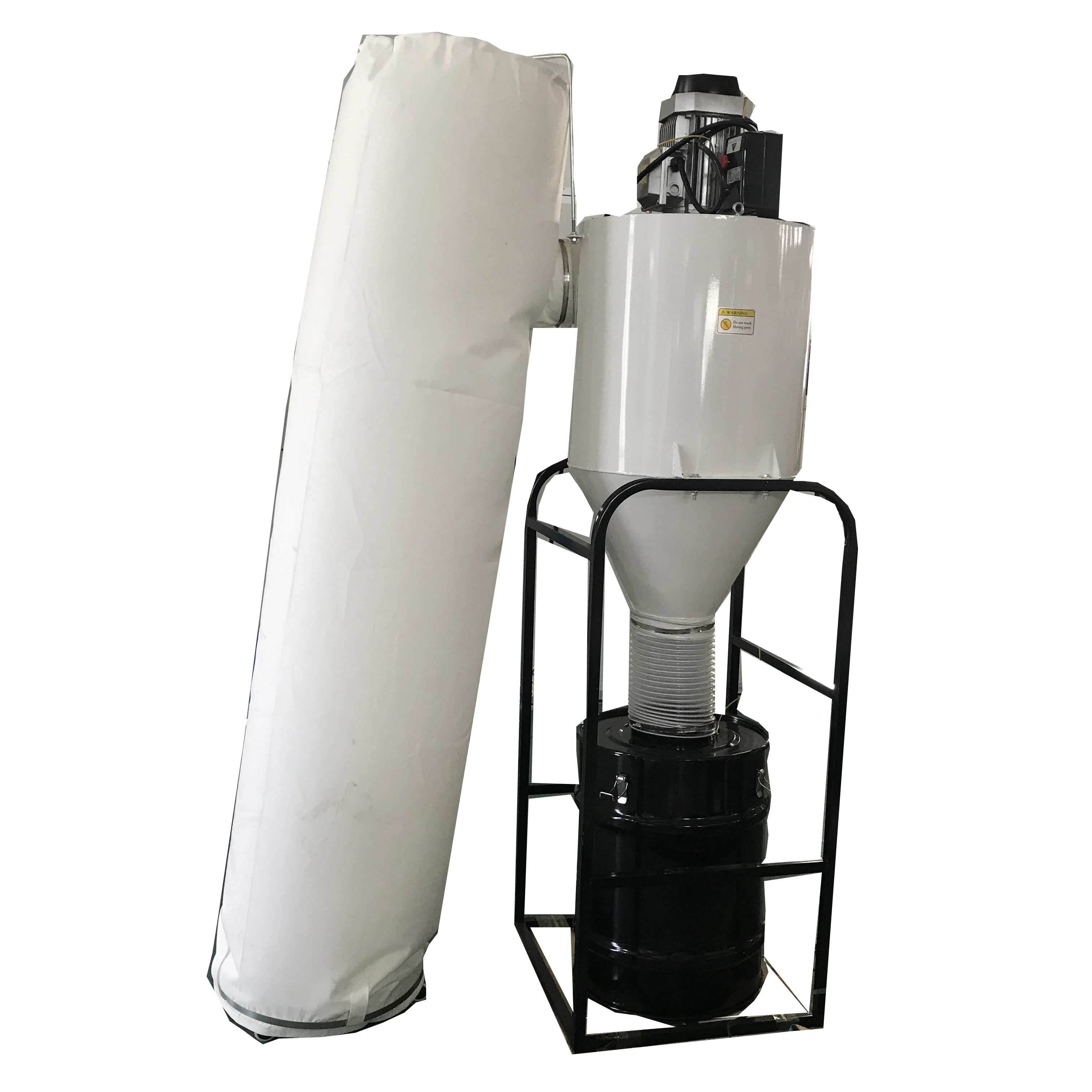

Model DGB-3200
Specs
1/Air volume:3200m³/h
2/Air inlet size:200mm(support customize)
3/Installation size:600*1200*2100mm
4/Motor:Pure copper
5/Cleaning style:cyclone separation
6/Large capacity recovery device
7/Filter:Polyester Needled Felt Bag
The recycling effect is general, the service life is short, it is
not easy to clean, and the fine dust can not be filtered.
1/Air volume:3200m³/h
2/Air inlet size:200mm(support customize)
3/Installation size:600*1200*2100mm
4/Motor:Pure copper
5/Cleaning style:cyclone separation
6/Large capacity recovery device
7/Filter:Polyester Needled Felt Bag
The recycling effect is general, the service life is short, it is
not easy to clean, and the fine dust can not be filtered.
POWER 380V 3KW

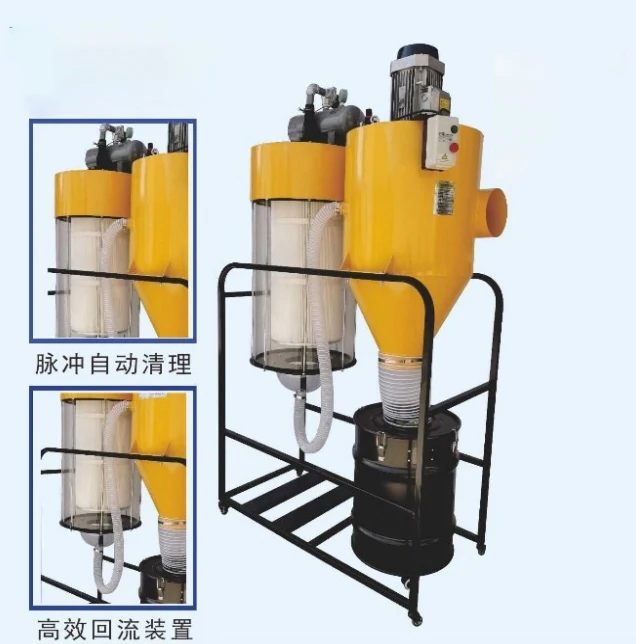

Model DGM-3200
Specs
1/Air volume:3200-3400m³/h
2/Air inlet size:200mm(support customize)
3/Installation size:600*1200*2100mm
4/Secondary filtration:Polymer polyester fibre
5/Motor:Pure copper
6/Filter:Automatic blowing ash cleaning system
7/High efficiency reflux unit
1/Air volume:3200-3400m³/h
2/Air inlet size:200mm(support customize)
3/Installation size:600*1200*2100mm
4/Secondary filtration:Polymer polyester fibre
5/Motor:Pure copper
6/Filter:Automatic blowing ash cleaning system
7/High efficiency reflux unit
POWER 380V 4KW

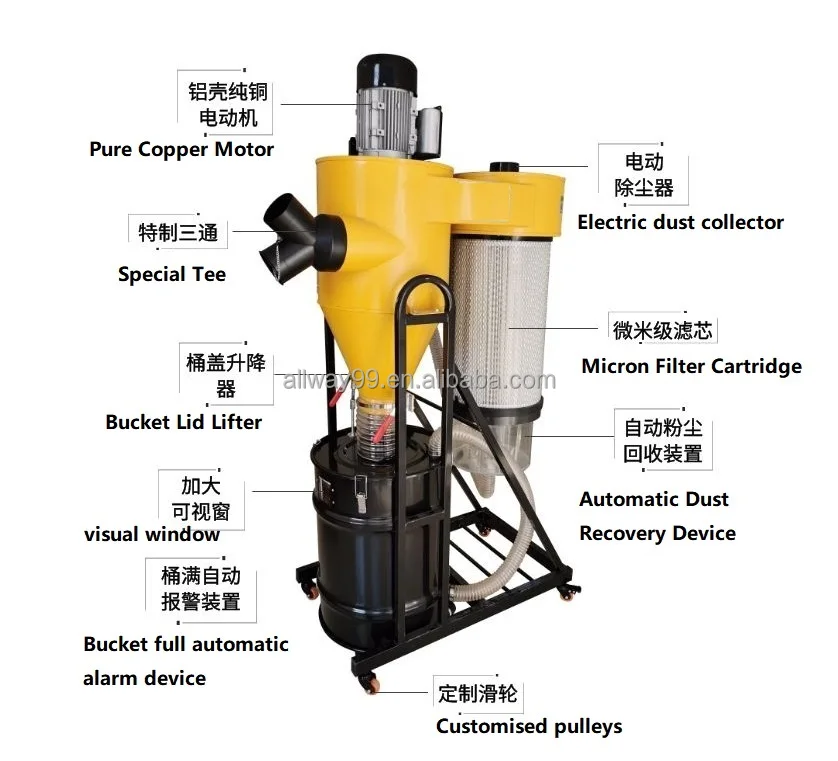

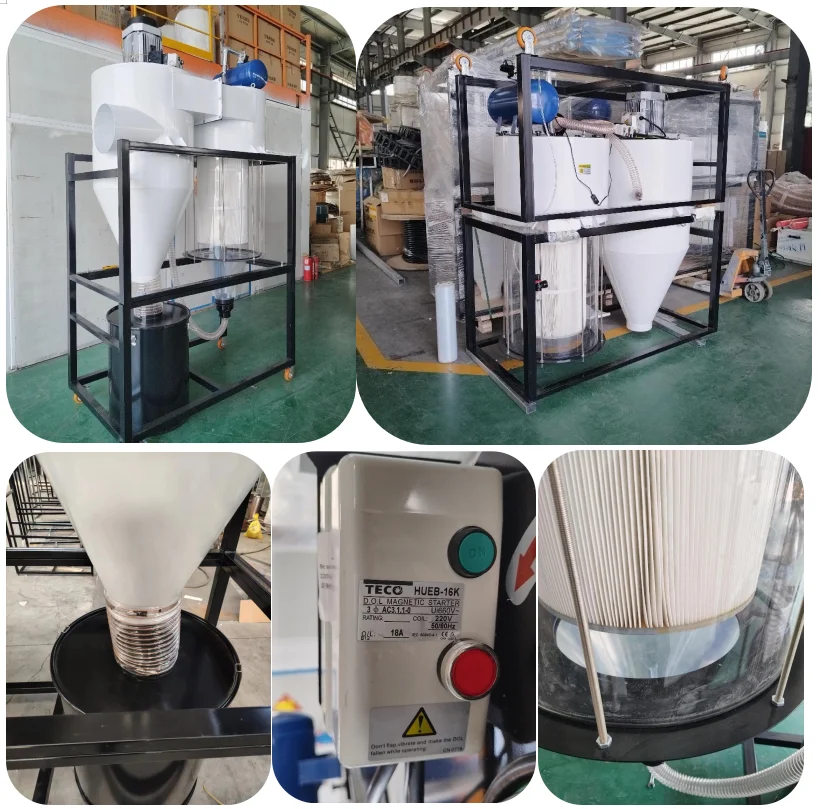

Detail Information
control switch
Bucket lid lifter
flexible connection
100L duct bucket
spare parts
packing
Specification
item | value |
Applicable Industries | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works , woodworking factory, furniture industry |
Showroom Location | United States, Philippines, Peru, Saudi Arabia, Indonesia, Argentina, Chile, UAE, Colombia, Romania, Uzbekistan, Malaysia, Cape Verde |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Ordinary Product |
Warranty of core components | 1 Year |
Core Components | Engine, Motor, Pressure vessel, Pump |
Condition | New |
Place of Origin | China |
Shandong | |
Brand Name | Allway |
Dimension(L*W*H) | 550*900*1850mm |
Weight | 100kg |
Warranty | 1 Year |
Air volume | 2200-3400m³/h |
Motor | Pure copper |
Filter | cartridge filter |

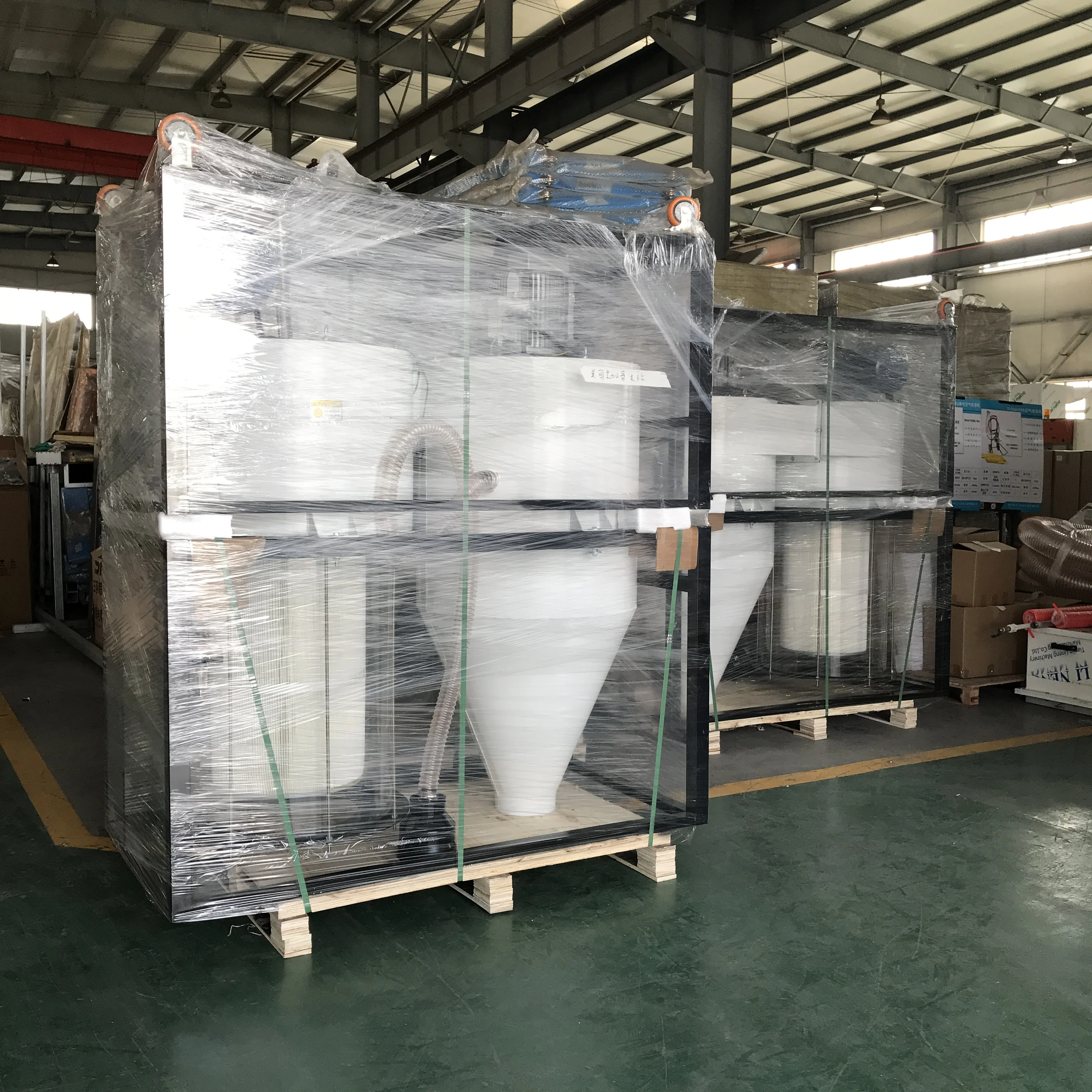

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Qindao Allway Tech Co.,Ltd manufacture and sale dust collectors,waste gas purification equipment,water treatment system,RO water purification system,NaClO generator,and so on.The products are exported to more than 60 countries,including Australia,Europe,America,Middle Ease and so on.
CUSTOMER VISITING
CERTIFICATE

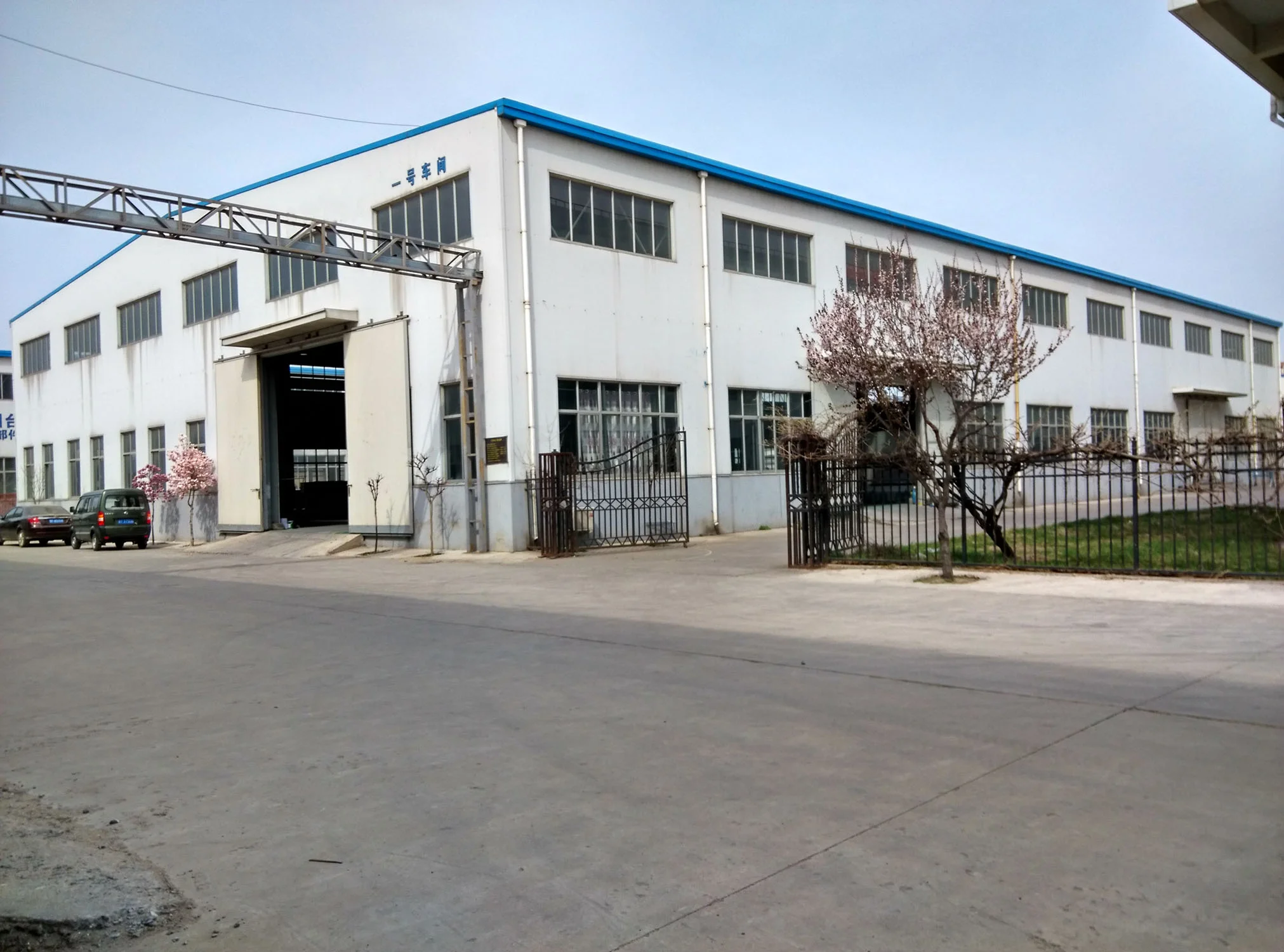

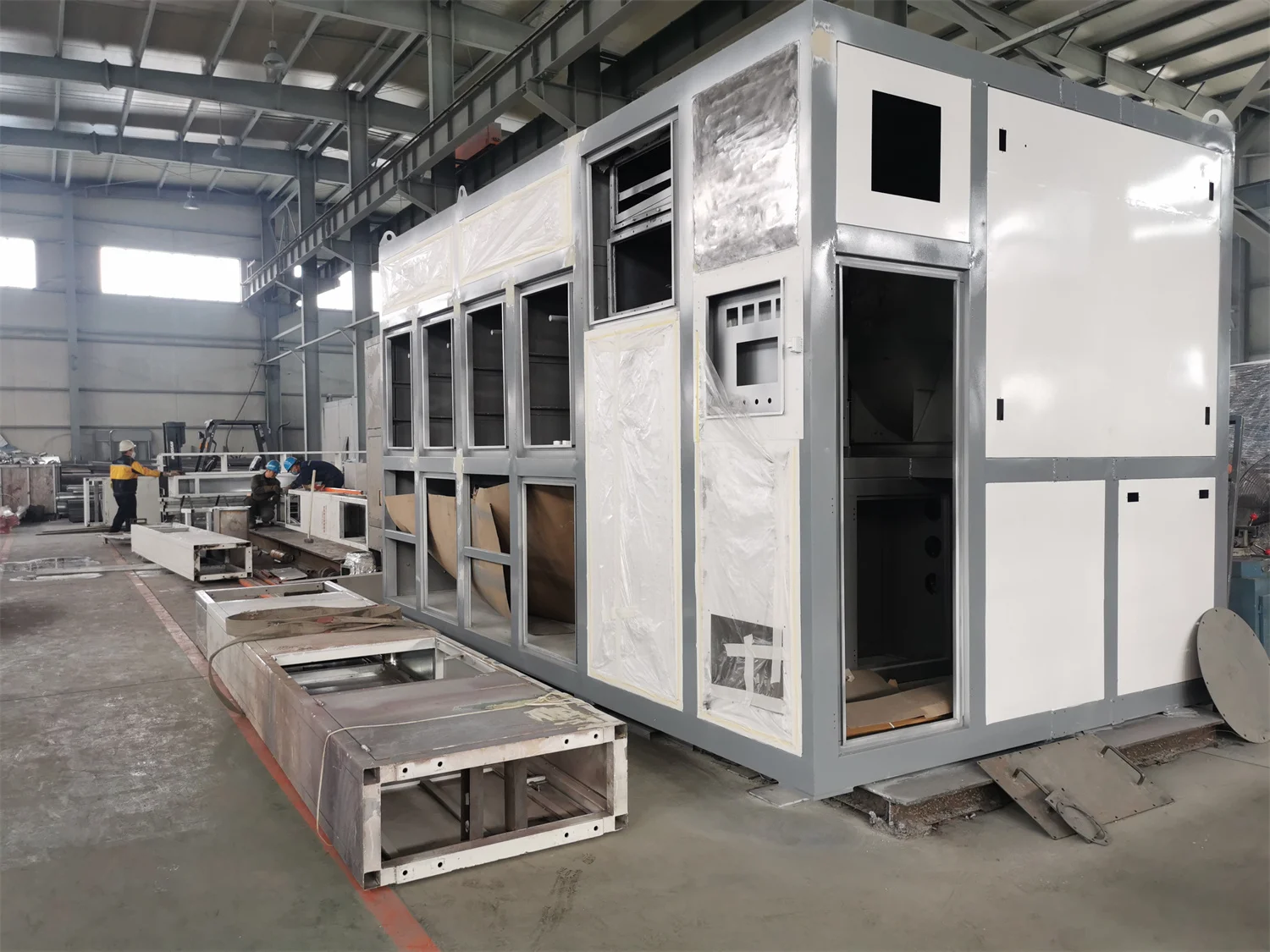

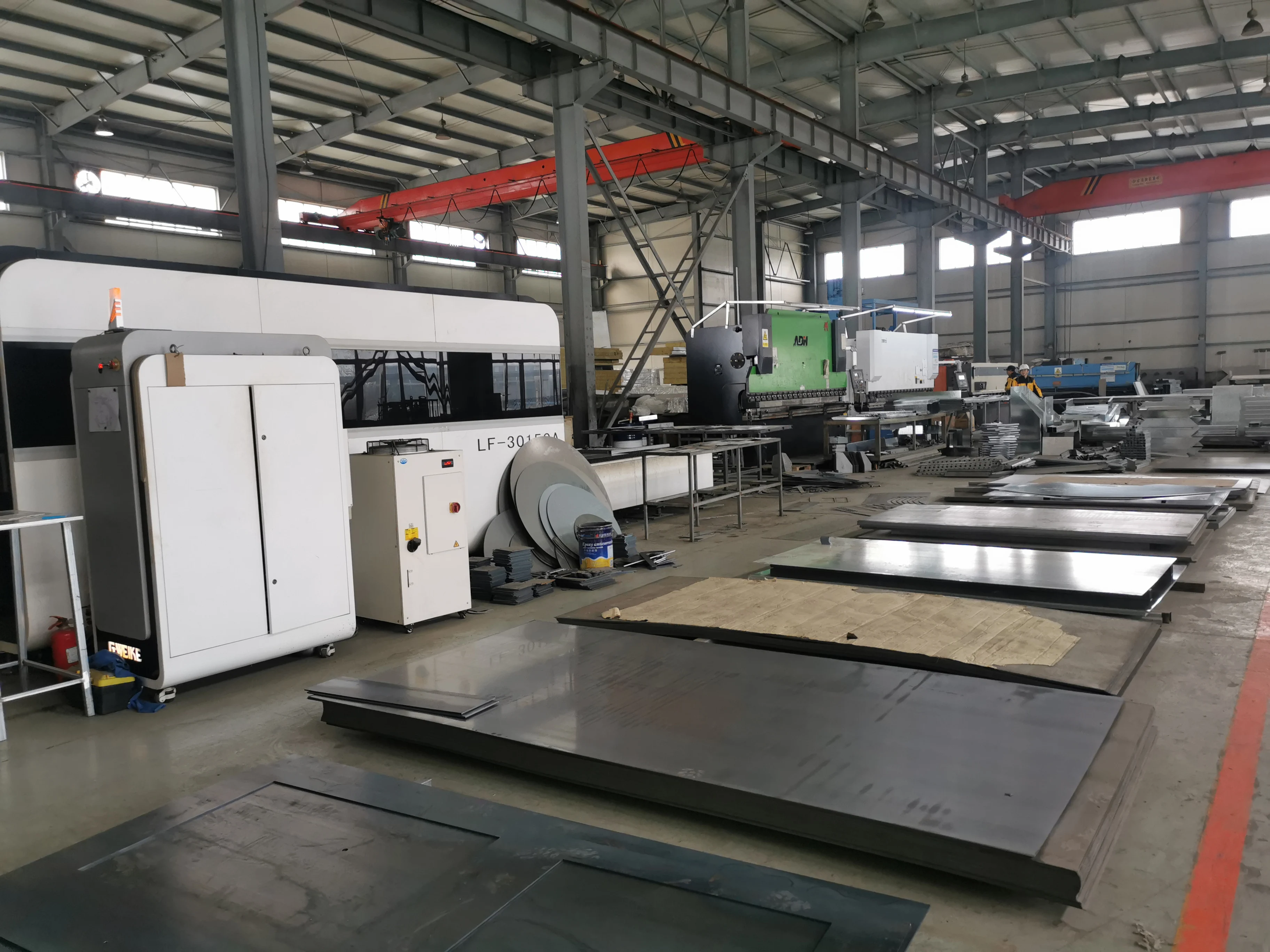

FACTORY SHOW

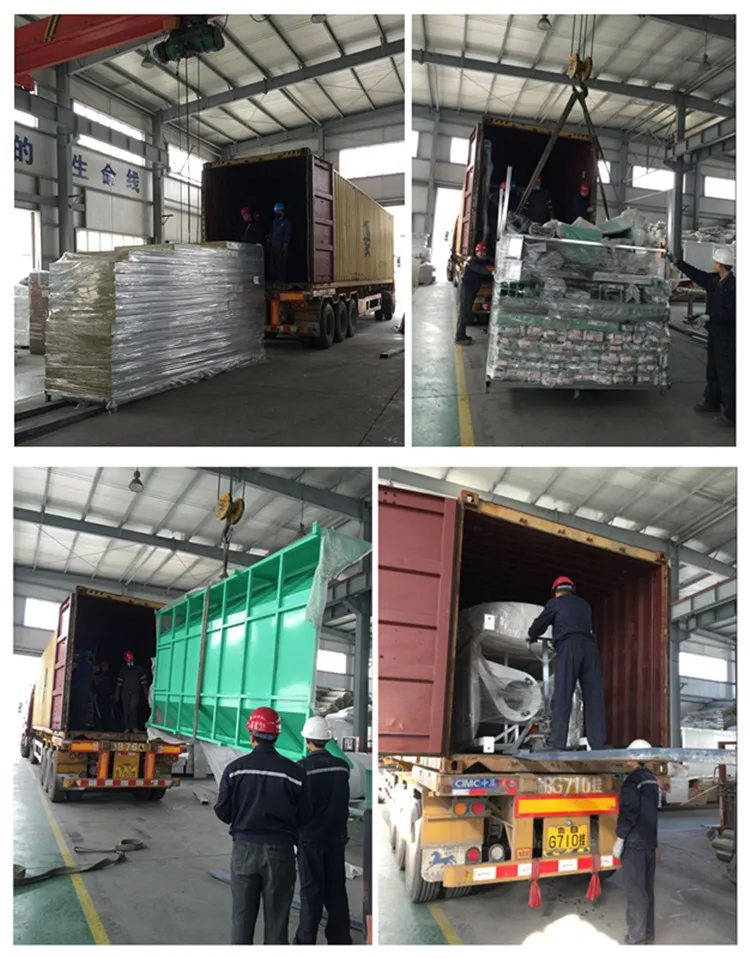

LOADING&DELIVERY
