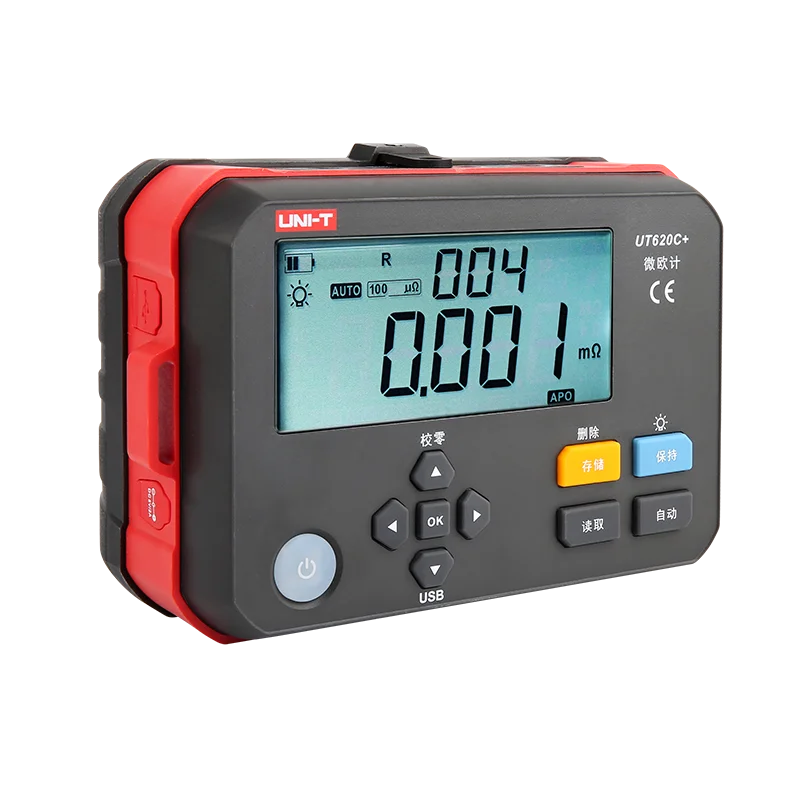

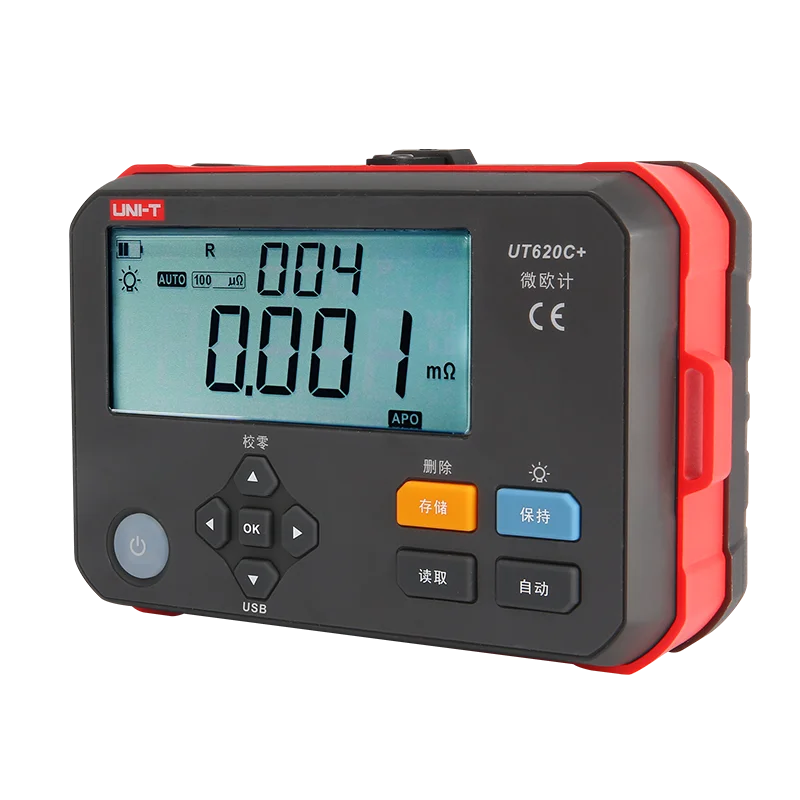

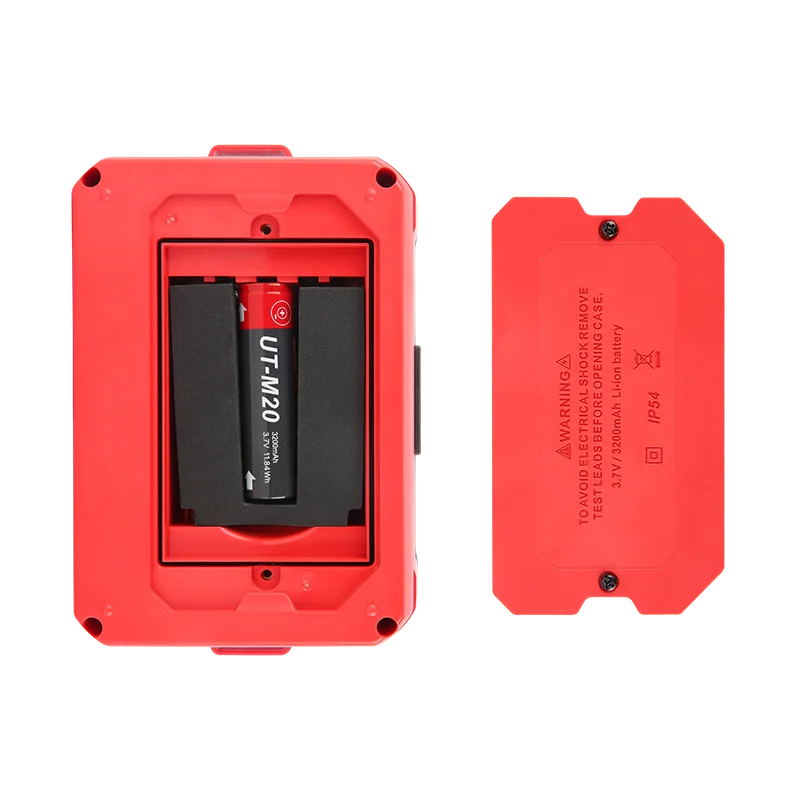

UT620C Plus Micro Ohmmeter DC Low Resistance Tester 0.001m~300.0k Auto & Manual Range Professional Digital Ohm Meter

Product Name

DIGITAL LOW RESISTANCE OHMMETER

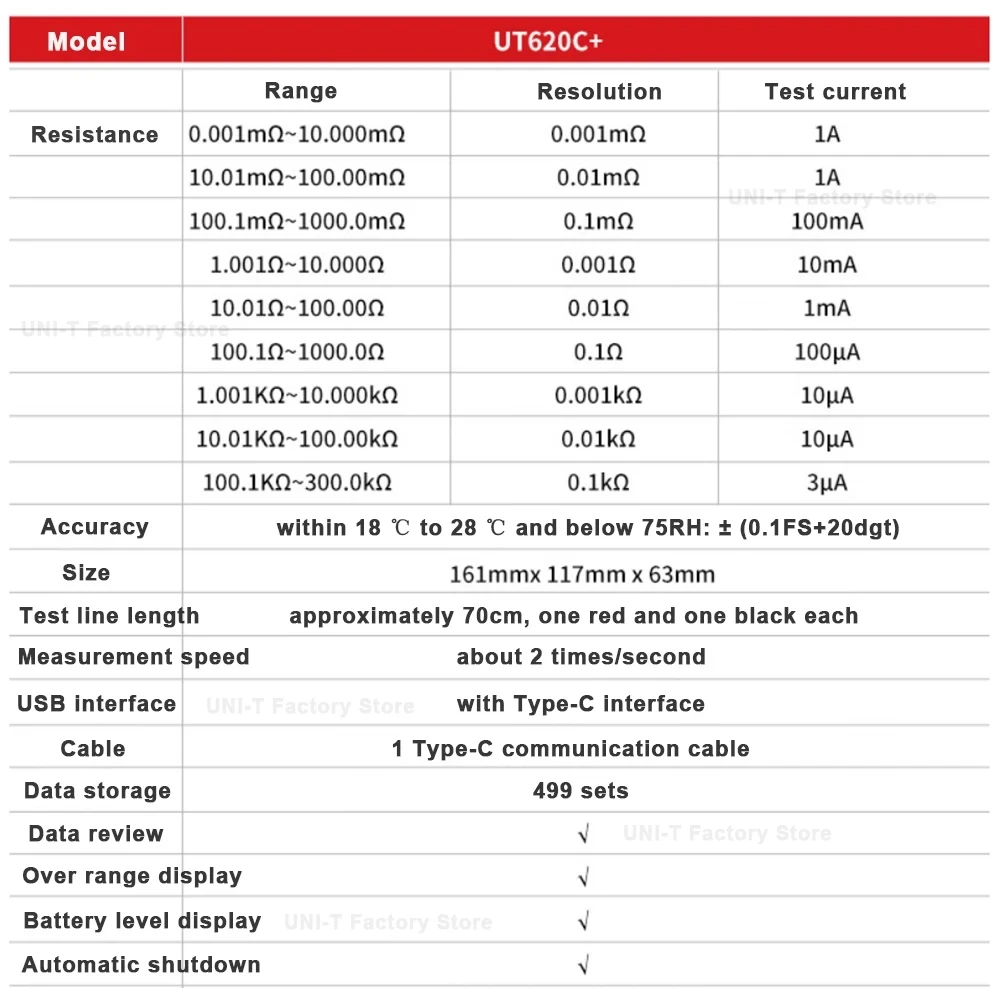

Test Range

0.001 mΩ to 300.0 kΩ

Open Circuit Voltage

≤4.2 V

Test Current

≥1 A

Accuracy

±0.1%

Typical Application

Measure the wire resistance of cables, the contact resistance of switches, connectors, relays, the resistance of coils, motors,
and transformer windings, as well as the resistance of equipment shells, lightning protection strips, ground beams, structures,
cabinets, steel bars, etc.
Connection resistance test between metal components of water pipes, windows, guardrails, radiators, assembly lines and other
objects. Low-value resistance test, resistance test of connecting conductors between ground grid and
ground.

Model Number

UT620C

Detection Method

Four-wire Method Test

Dimensions

181 x 191 x 51 mm

Weight

1.1 kg
