sample free R2.0 R2.5HD R3.0 R3.5 R4.0 R5.0 R6.0 R7.0 residential house 430mm 580mm width eco brown glass wool insulation Batts
- Category: >>>
- Supplier: Hebei United Energy Tech Co. Ltd.Hebei Ltd.
Share on (1601214505192):
Product Overview
Description
PRODUCT INFORMATION
United Insulation fiberglass insulation glass wool batts and pre-cut rolls are consisted of long, resilient fibers bonded together with a thermosetting resin to form a lightweight, flexible glass wool batts or rolls.
Both batts and rolls are pre-cut to fit snugly between wall studs, ceiling and floor joist. However, only rolls or blanket insulation provide continuous coverage because of their extended lengths. Both batts and rolls can be supplied with a factory applied foil vapor barrier (FSK, Vinyl, Foil, WMP, and Kraft Facing) accordingly to project designs or customer's requirement.
Both batts and rolls are pre-cut to fit snugly between wall studs, ceiling and floor joist. However, only rolls or blanket insulation provide continuous coverage because of their extended lengths. Both batts and rolls can be supplied with a factory applied foil vapor barrier (FSK, Vinyl, Foil, WMP, and Kraft Facing) accordingly to project designs or customer's requirement.
AVAILABLE FORMS
Batts and Pro-Cut Roll
AVAILABLE SIZE
| Product Code | Density (kg/m³) | Thickness (mm) | Width (mm) | Conductivty (W/m·K) | R-Value (m²·K/W) | Packing (pcs/PKG) | PKG/40'HQ (No#) | |
| UET BATT 12150 | 12 | 150 | 430 | 0.039 | 3.50 | 1 | Loading Qty, Please consult | |
| UET BATT 12185 | 12 | 185 | 430 | 0.039 | 4.00 | 1 | ||
| UET BATT 12200 | 12 | 200 | 580 | 0.039 | 5.00 | 1 | ||
| UET PCR 12100 | 12 | 100 | 600 | 0.039 | 2.50 | 1 | ||
| UET PCR 12150 | 12 | 150 | 600 | 0.039 | 3.50 | 1 | ||
| UET PCR 12185 | 12 | 185 | 600 | 0.039 | 4.00 | 1 |
Conductivity Value tested under temperature in 23°C
Consult your local sales representative for other available sizes and specification.
PHYSICAL PROPERTIES OF UET PCR 12100
| Tested Content | Tested Method | Tested Value | |
| Density | ASTM C612 | 12kgs/m³ | |
| Thickness | GB/T 17795-2008 | 100mm | |
| Average diameter of fibers | GB/T 17795-2008 | 6.5μm | |
| Coefficient of Heat Conductivity | EN12667 | 0.039W/m·K | |
| Thermal Resistance | ASTM C653 | 2.50m²·K/W | |
| Average NRC | EN ISO 354 | 0.95 | |
| Maximum Service Temperature | ASTM C411 | 170°C | |
| Corrosion Resistance | ASTM C665 | NO Chemical Reaction | |
| Mold Resistance | ASTM C665 | Mildew proof | |
| Moisture Absorption | ASTM C1104 | Less 3% by weight | |
| Humidity veneration Rate | ASTM E96 | Max 0.013g/24Hours·m² | |
| Non-Combustibility | ASTM E84 | Flame Propagation: 25; Flame Diffustivity: 50 |
CUSTOMIZED PACKING
One time charge of the packing mold. MOQ is one 40HC.

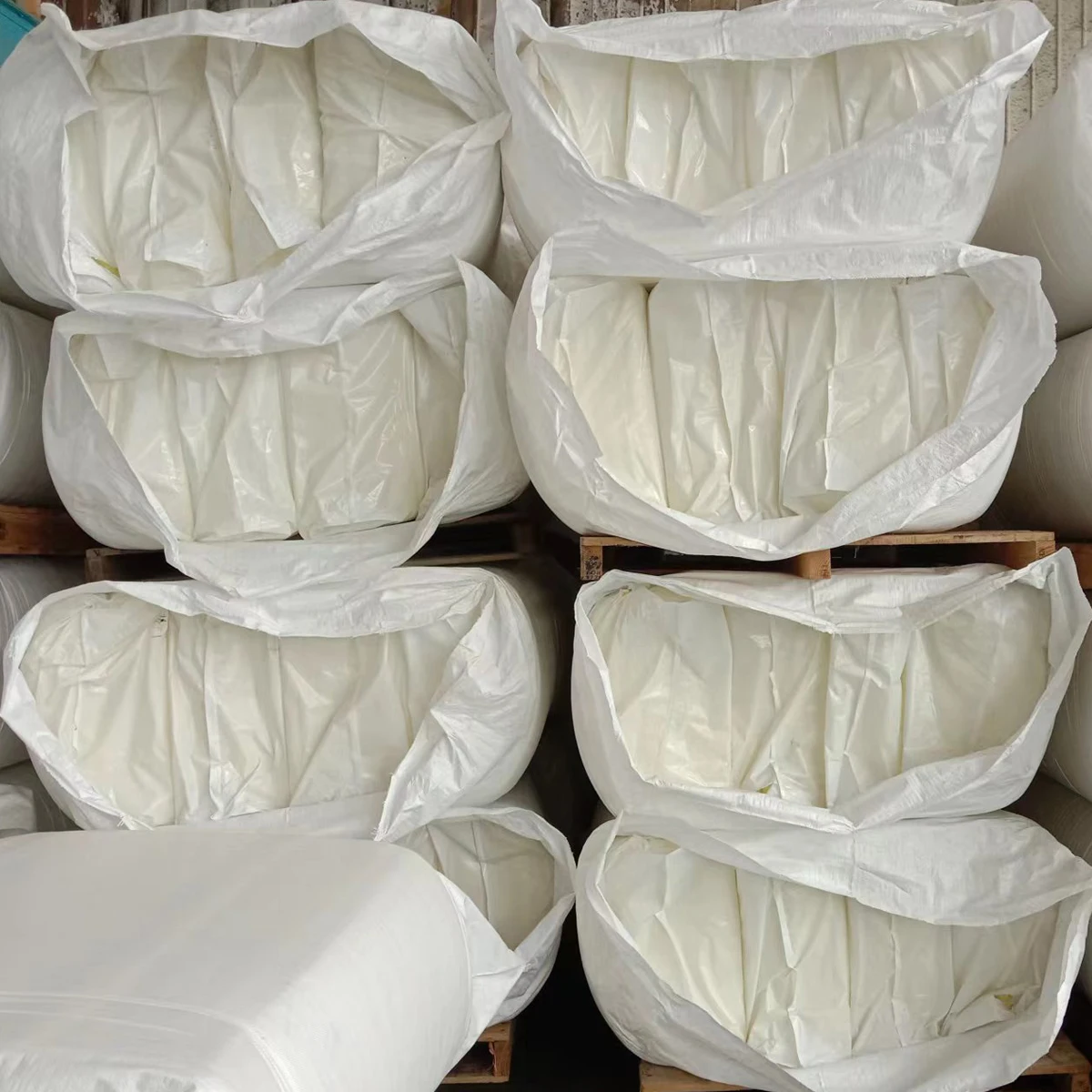

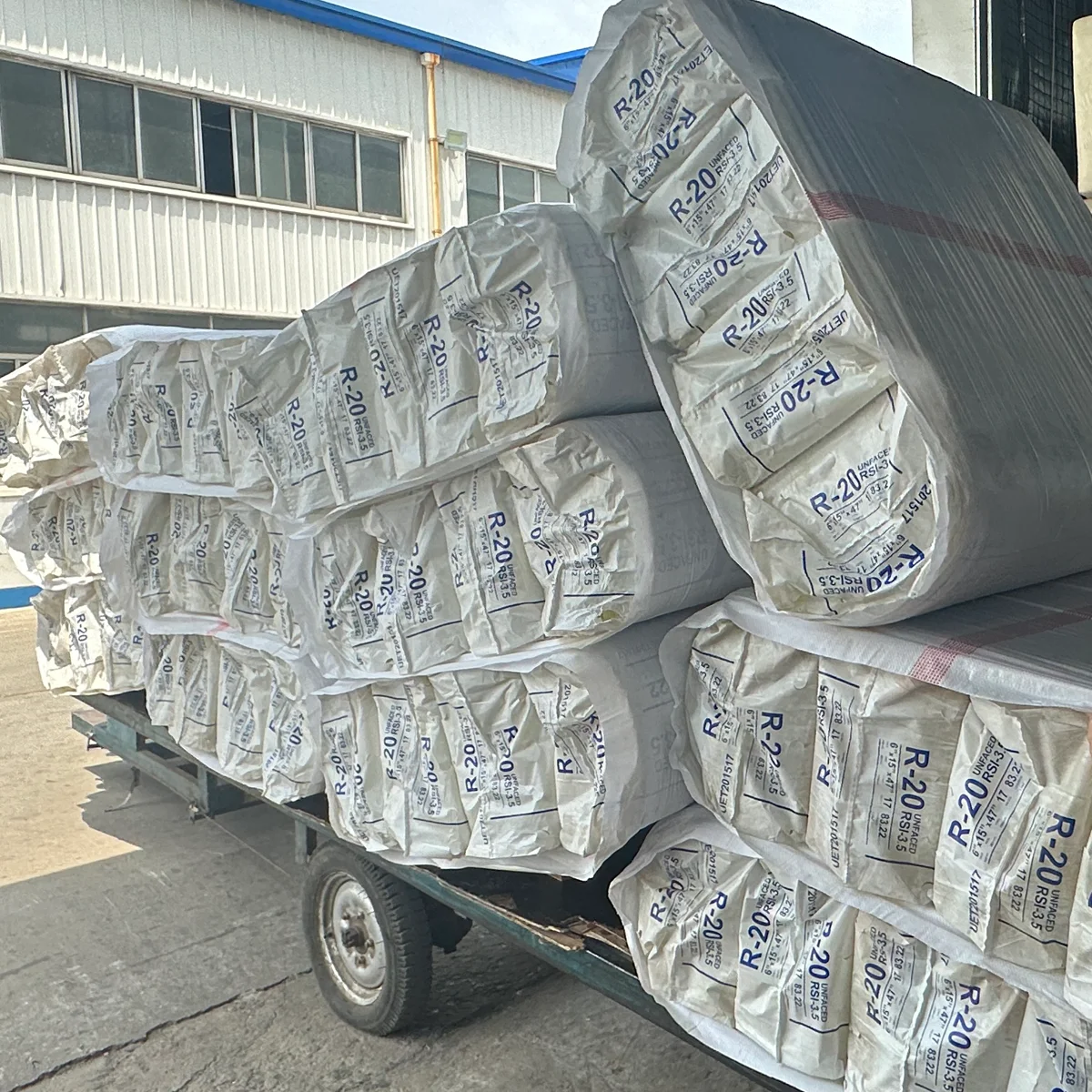

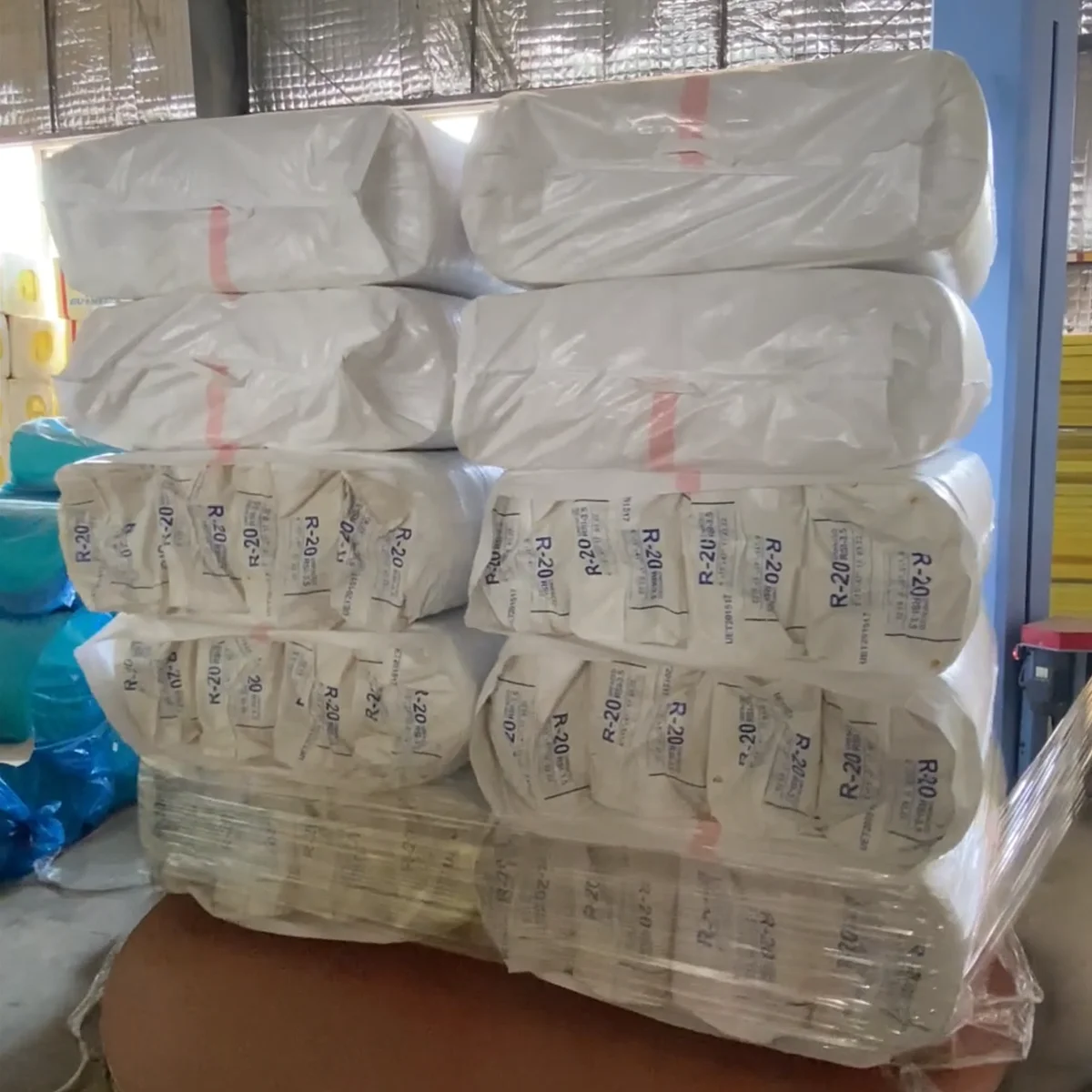

PACKAGING
7bags/bale
STORAGE AND TRANSPORT
Store insulation indoors. Store product under cover and in dry conditions. Handle with care, Products will be damaged if subject to sharp or heavy impact.
QUALITY MANAGEMENT AND SPECIFICATION COMPLIANCE
ISO 9001: 2008, ISO 14001:2004
GB/T17795-2008, GB/T13350-2008, AS/NZS 4589.1
With CE Certificate according to standard EN 13162:2008
GB/T17795-2008, GB/T13350-2008, AS/NZS 4589.1
With CE Certificate according to standard EN 13162:2008
FIRE PERFORMANCE
Classified as Euroclass A1 to STN EN 13501-1: 2007, and GB/T5464-2010, GB/T14402-2007
FEATURES AND BENEFITS
• Improve the energy efficiency of the building
• Reduce transmission of exterior sound to the interior of the building
• Absorb reverberating sounds within the building
• Provide thermal efficiency
• Keep the building warmer in winter and cooler in summer
• Reduce transmission of exterior sound to the interior of the building
• Absorb reverberating sounds within the building
• Provide thermal efficiency
• Keep the building warmer in winter and cooler in summer
| Keep Cool | Keep Warm | Fire Proof | Moisture Proof | Noise Control | Sustainbility | Save Cost | Health Safe |
APPLICATIONS
Glass wool batts and Pre-cut rolls can be used in timber and metal frame applications in residential and commercial building.
NOTICE
Safety first. Follow good safety/industrial hygiene practices during insulation. Wear appropriate personal protective equipment. Read SDS and literature before specification and insulation.
STANDARD & CERTIFICATE APPROVED PRODUCT
 |  |  |  |
UNITED PEOPLE SERVE THE WORLD
