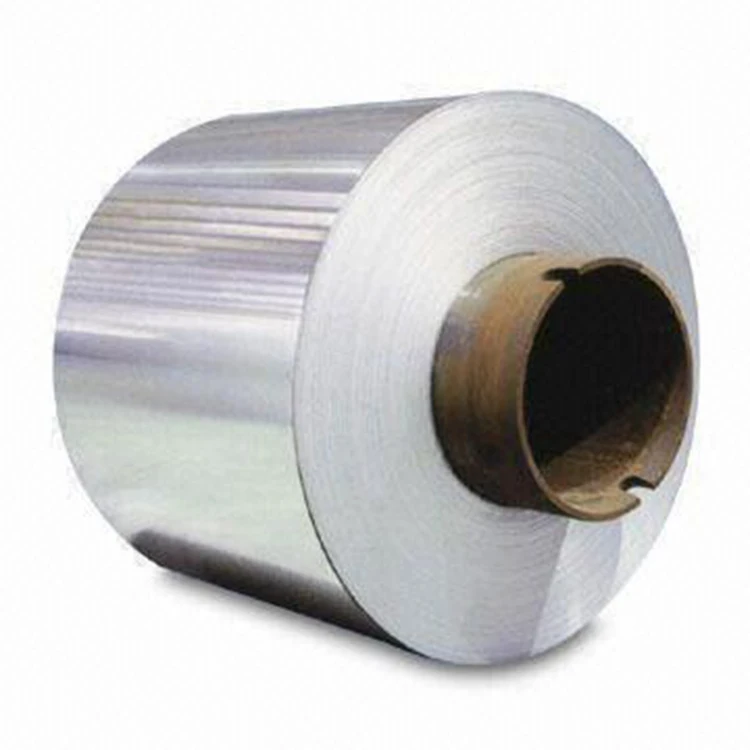

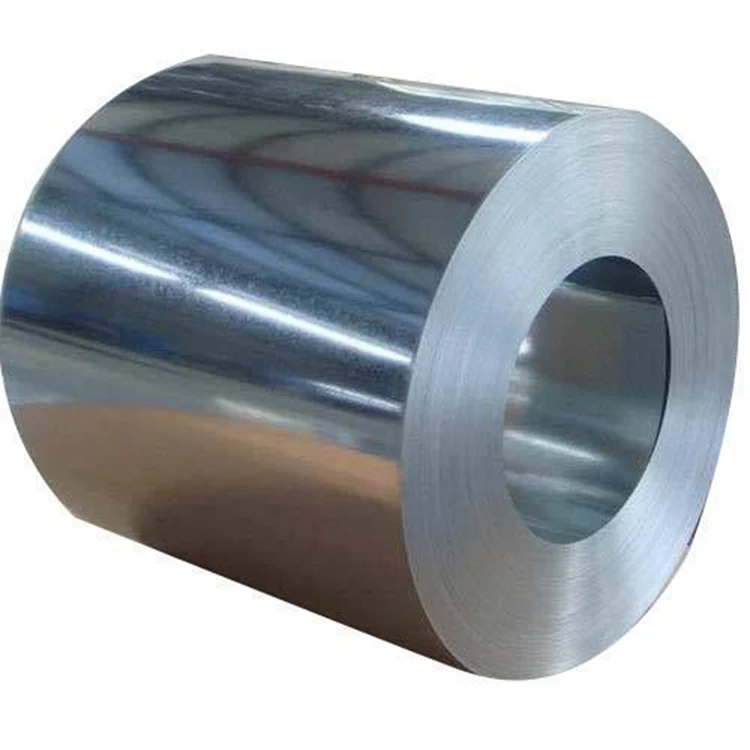

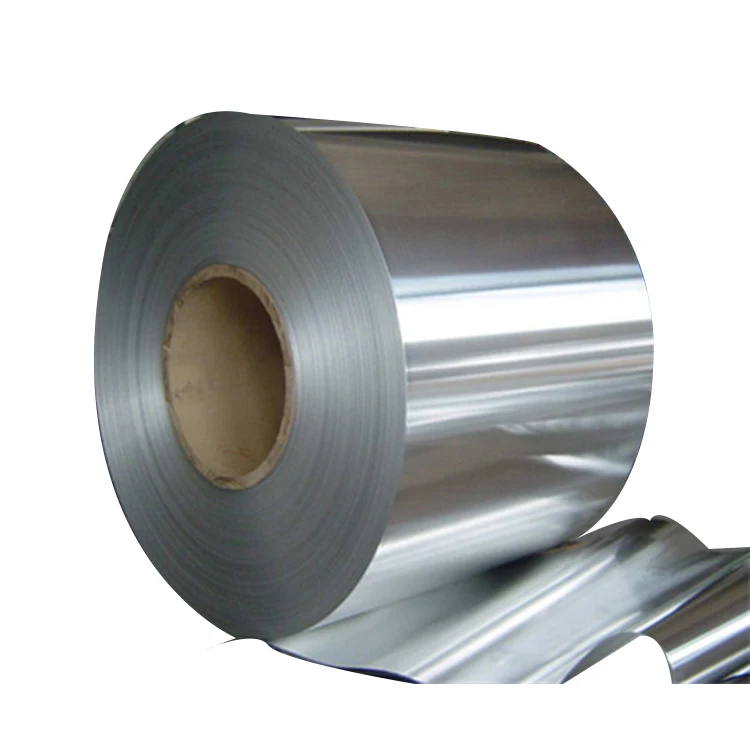

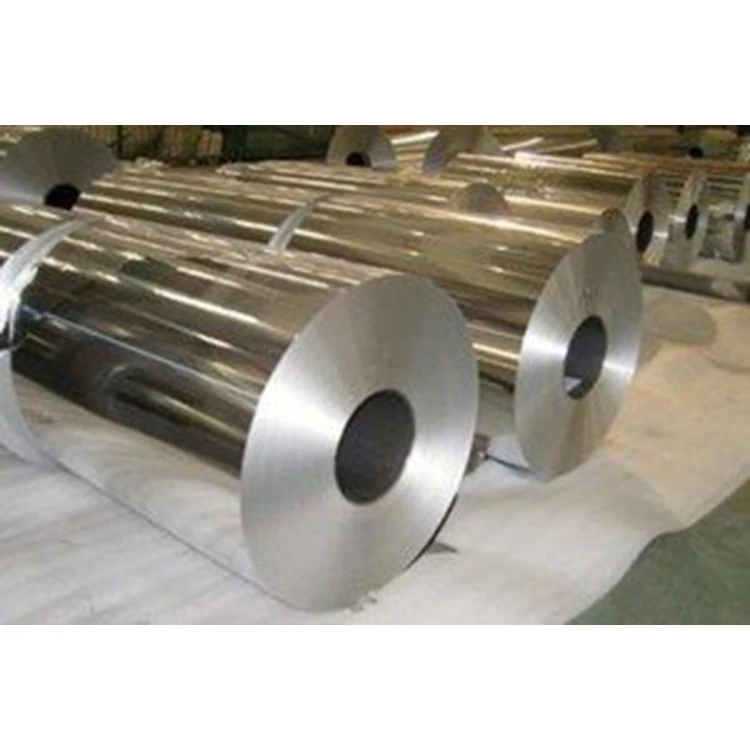

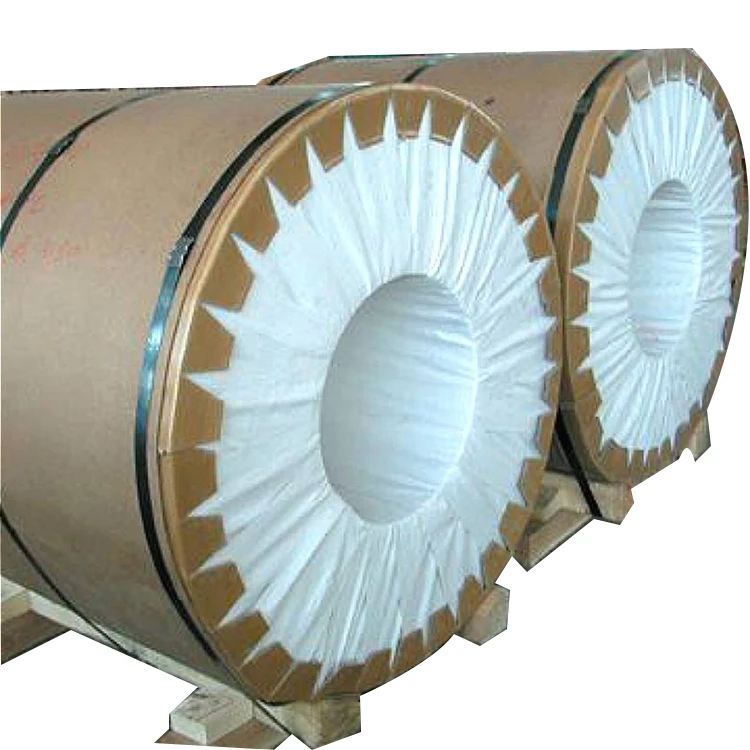

High Quality Mill Finish Insulation Aluminium Foil Sheet Jumbo Roll Aluminum Coil/Roll For Roofing Sheet
- Category: >>>
- Supplier: Tianjin Ecoin Tech Co. ltd.
Share on (1601214528511):
Product Overview
Description
3003 Aluminum coil with polysurlyn Insulation
There are 8 series of aluminum alloy, from 1xxx to 8xxxx. Most common used alloy for insulation is 1100, 1060, 3003, 3105 and 5005. 3003 is better in anti-rust performance than 1060.

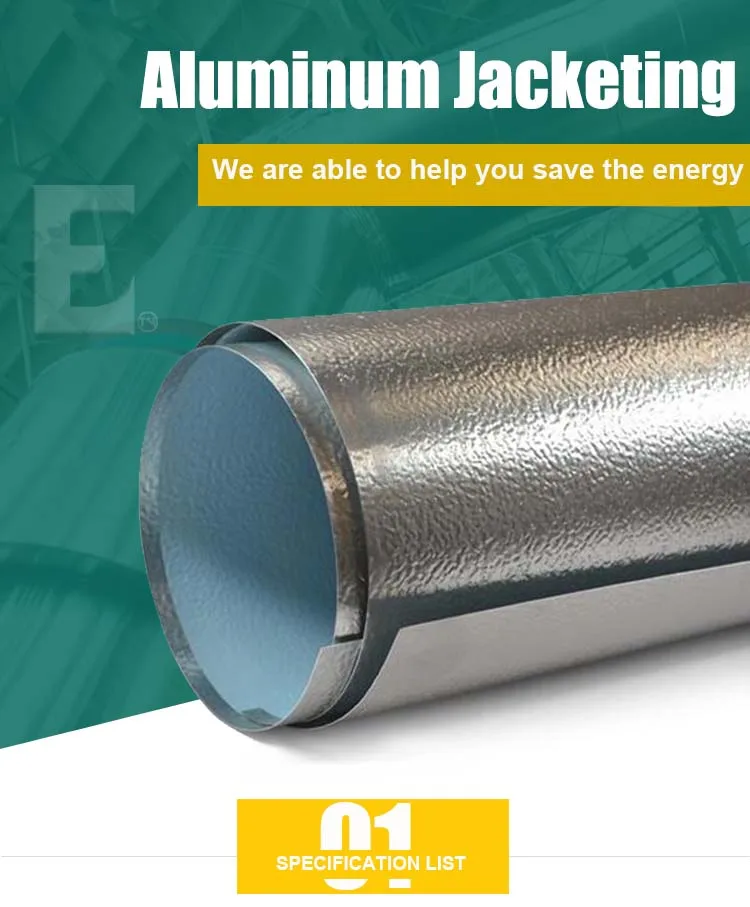

Aluminum jacketing is available in Smooth, Stucco Embossed, Corrugated (cross-crimped) finishes, with or without moisture barrier (craft paper and polysurlyn)
Standard Sizes
| Thickness(inch) | Thickness(mm) | Width(mm) | Length(m) | Suggested Application |
| 0.016 | 0.4 | 914, 1000, 1219 | 30, 60, 90, coil or sheet | OD below 36"(914mm) insulated lines |
| 0.020 | 0.5 | 914, 1000, 1219 | 30, 60, 90, coil or sheet | OD below 36"(914mm) insulated lines |
| 0.024 | 0.6 | 914, 1000, 1219 | 30, 60, 90, coil or sheet | OD 36"-8′ (914mm-2.43m) insulated lines&equipment |
| 0.032 | 0.8 | 914, 1000, 1219 | 30, 60, 90, coil or sheet | special applications where extra thickness and protection is required, such as fabricated tank head covers and other special fabrications |
| 0.040 | 1.0 | 914, 1000, 1219 | 30, 60, 90, coil or sheet | special applications where heavy mechanical is required |
| 0.050 | 1.2 | 914, 1000, 1219 | 30, 60, 90, coil or sheet | flat ducts or precipitators. Also recommended for areas subject to high wind conditions |
Remarks: Other sizes available upon request.
Chemical Composition
| Alloy | Si | Fe | Cu | Mn | Zn | Mg | Ti | Cr | Other Elements | Al | |
| Each | Total | ||||||||||
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.05 | 0.03 | 0.03 | - | 0.03 | 99.6min | |
| 1100 | Si+Fe=0.95 | 0.05-0.20 | 0.05 | 0.10 | - | - | - | 0.05 | 0.15 | 99.0min | |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.50 | 0.10 | - | - | - | 0.05 | 0.15 | reminder |
| 3105 | 0.6 | 0.7 | 0.30 | 0.30-0.80 | 0.40 | 0.20-0.80 | 0.10 | 0.20 | 0.05 | 0.15 | reminder |
| 5005 | 0.3 | 0.7 | 0.20 | 0.20 | 0.25 | 0.50-1.10 | - | - | 0.05 | 0.15 | reminder |

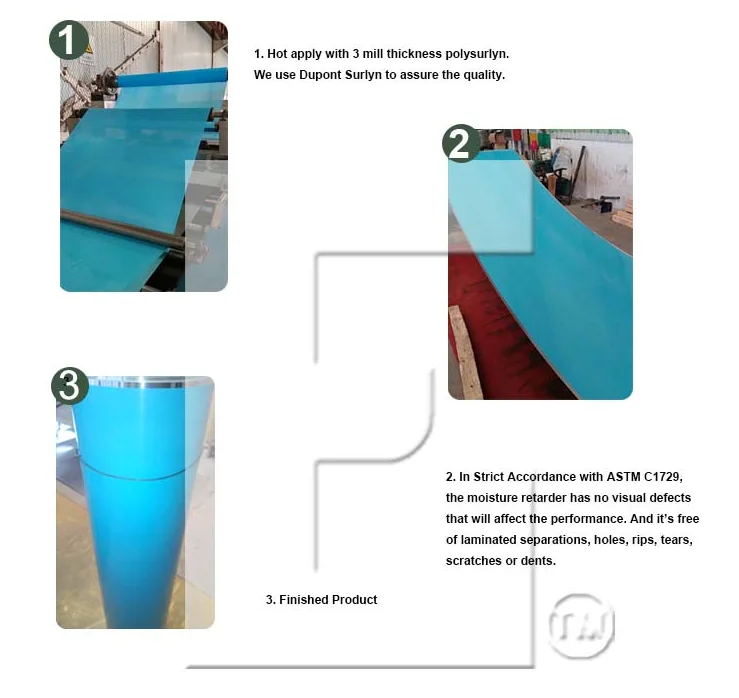

Aluminum coil cladding sheet can be factory applied with moisture barrier, the function is to prevent galvanic and chemical corrosion caused by contact of dissimilar metals in the presense of moisture, and by certain insulation materials when the sheets are installed over damp insulation materials.

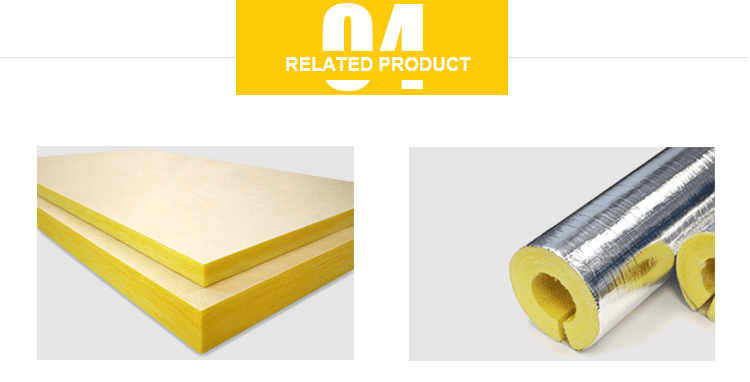

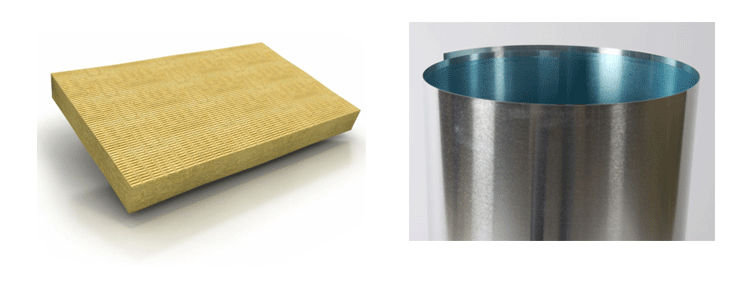

Mineral Rock Wool Board Aluminum Sheet
Ecoin aluminum sheet can be used as (application):
Aluminum Jacketing is recommended for HVAC, Insulated Piping, Tanks & vessels less than 8 feet in diameter.
Deep corrugated sheets are recommended for diameters greater than 8 feet.
Chemical Plants & Refineries: Distillation columns, tank farms, fractionation units, cokers and ethylene production units.
Paper Mills: Chemical storage tanks, breechings and ducts.
Steel Mills: Pickle acid tanks, oxygen production units, fuel oil and tar storage tanks.
Miscellaneous: Power station, Food processing plants, LPG storage units, LNG storage units, sewage and waste water treatment plants.
Tianjin EcoIn Tech Co.,Ltd
Tianjin EcoIn Tech Co.,Ltd is a company specialized in new tech insulation material manufacturing and export. Our aim is to provide Grade A non combustible Eco-Insulation, friendly to environment and human body, and affordable for clients.
EcoIn factory was set up in 1995, with the register fund of 15 million USD. We are now one of the biggest insulation factory in North of China, with the main products of fiberglass insulation, mineral insulation and aluminum jacketing system. Low bio-resistance mineral wool is under developing, and hopefully to be exported next year.
