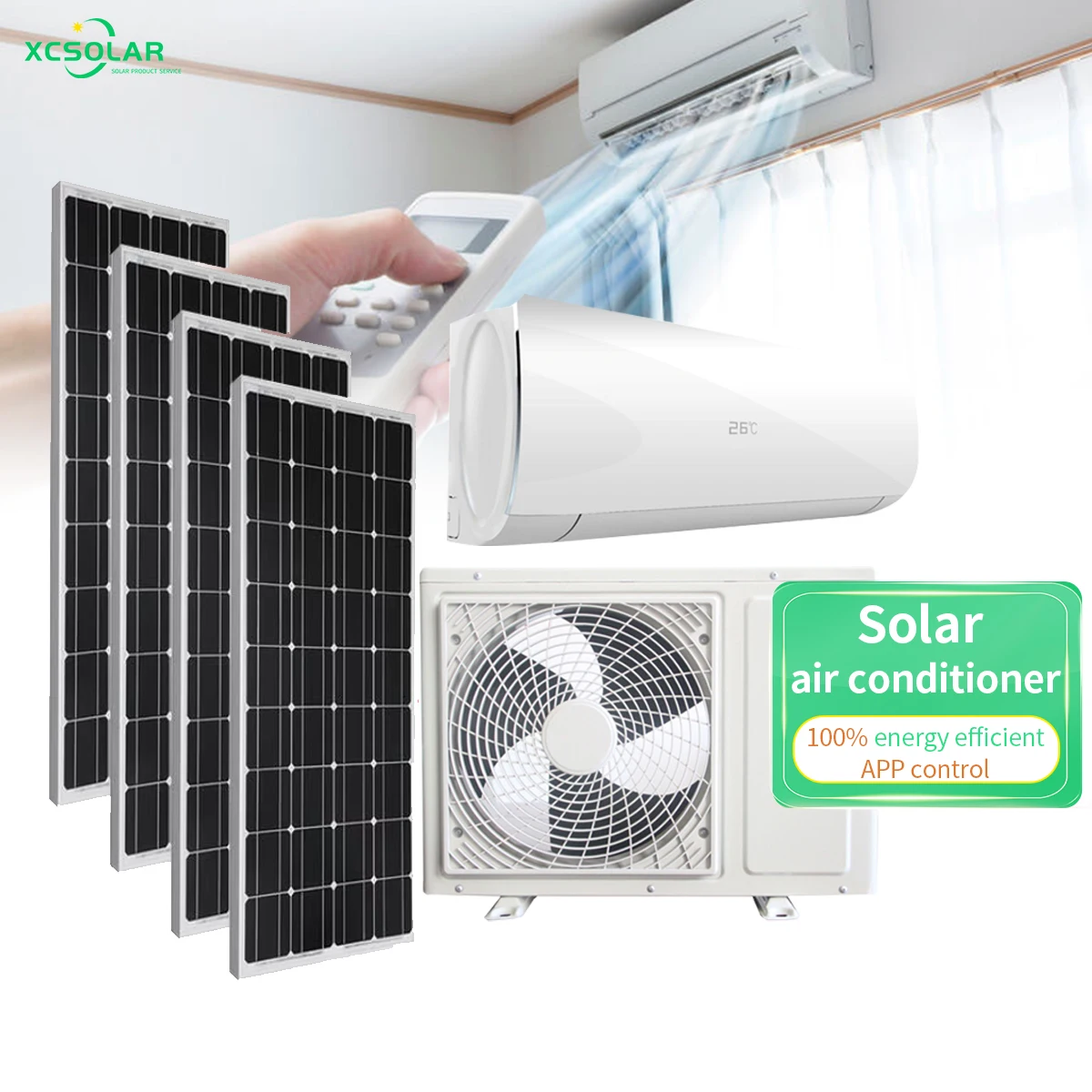

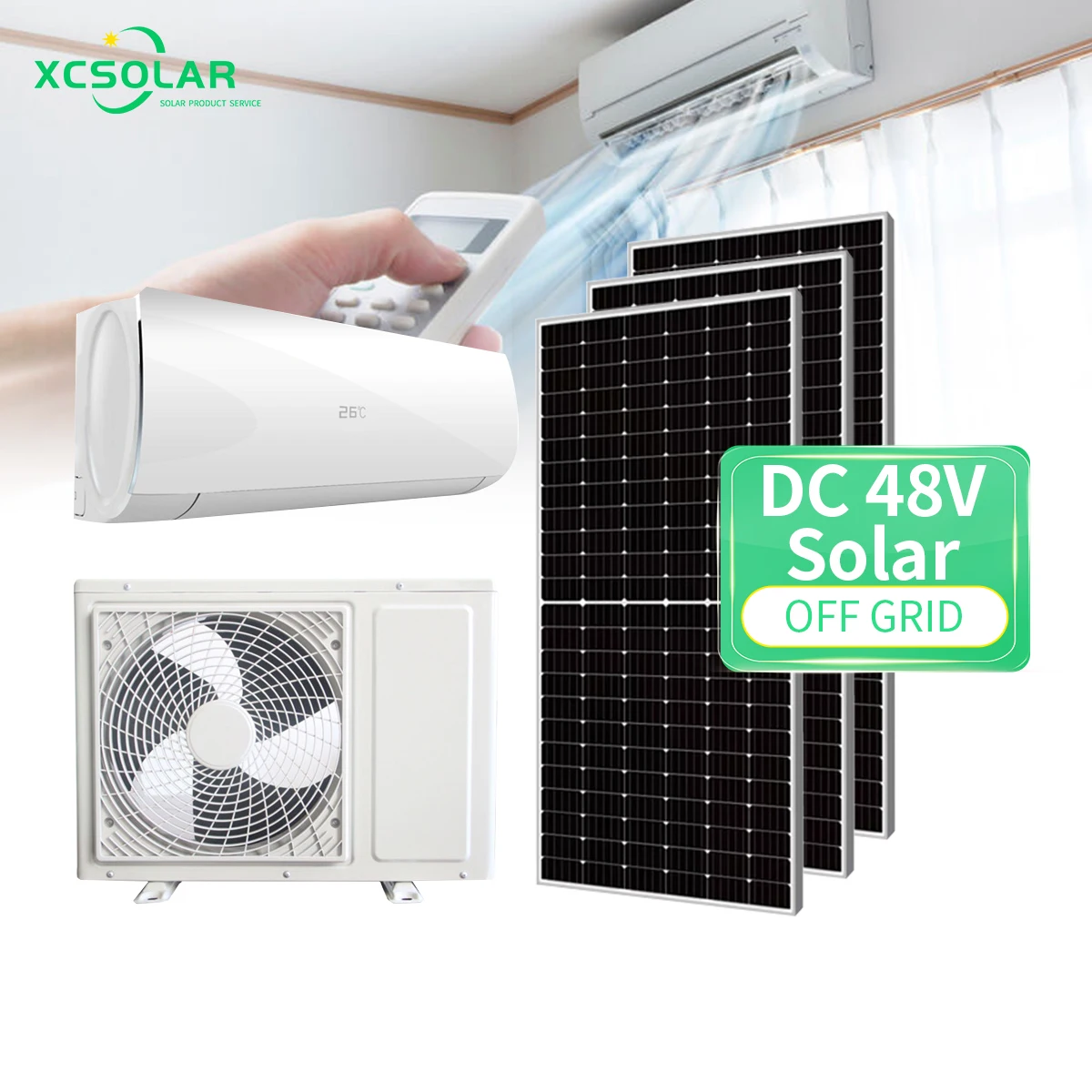

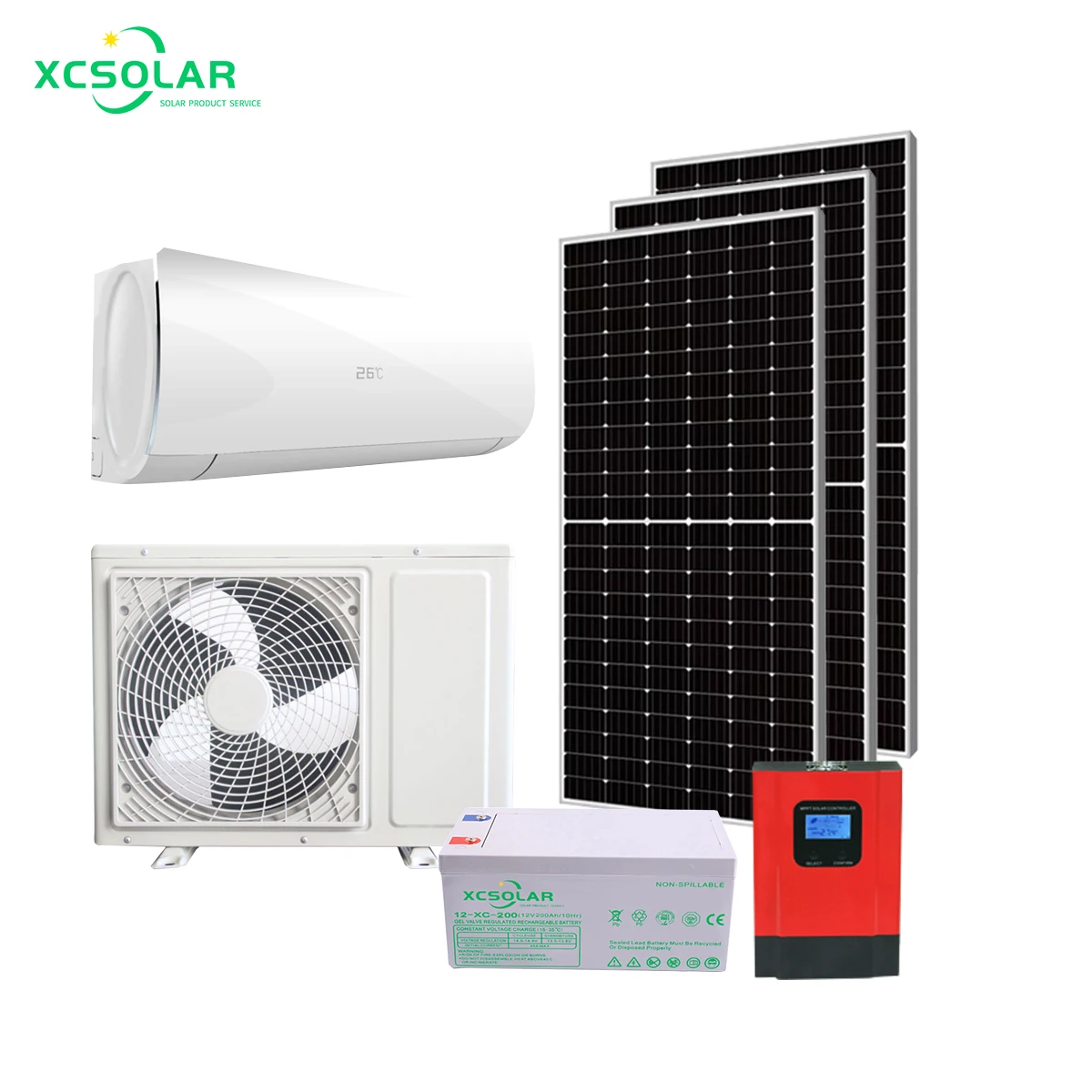

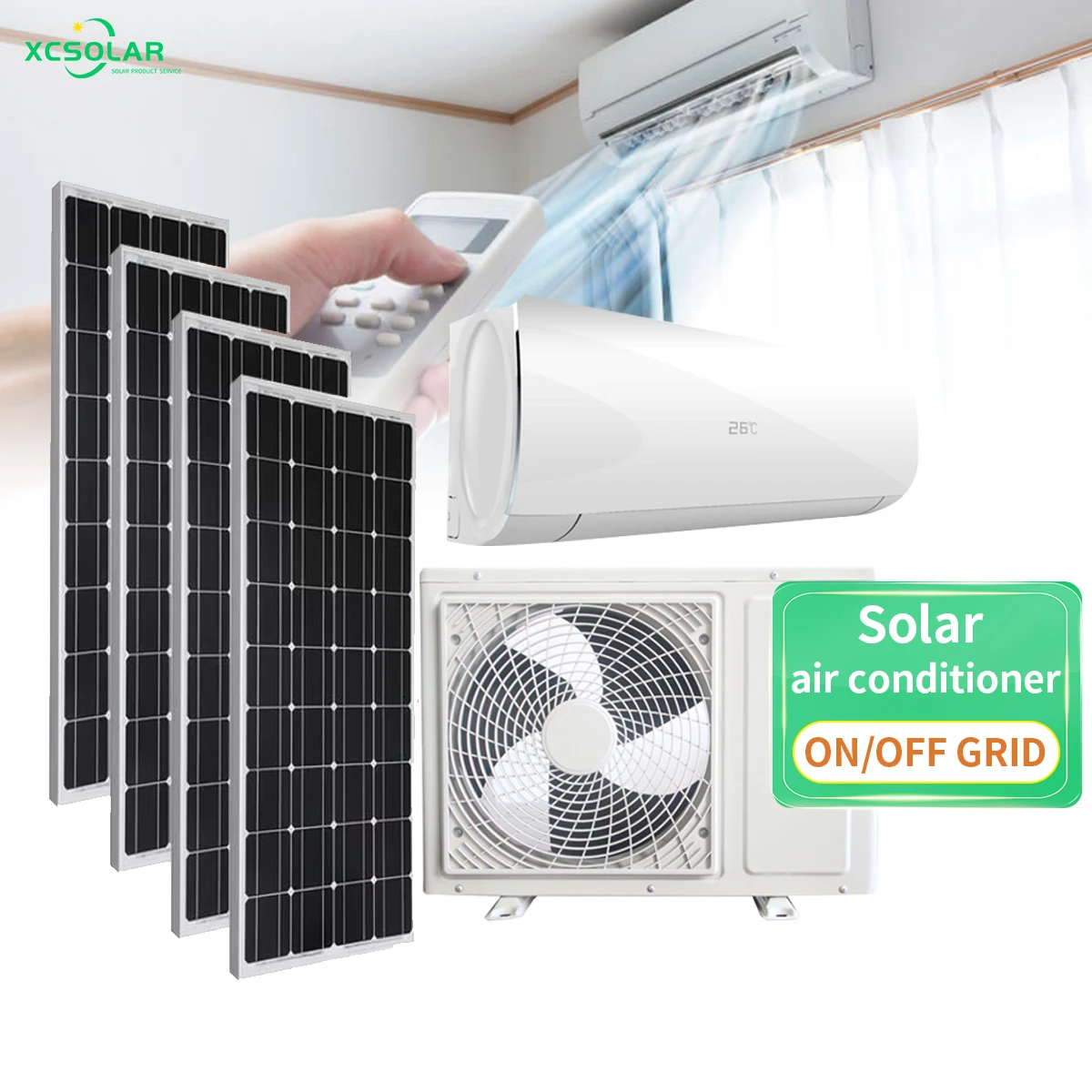

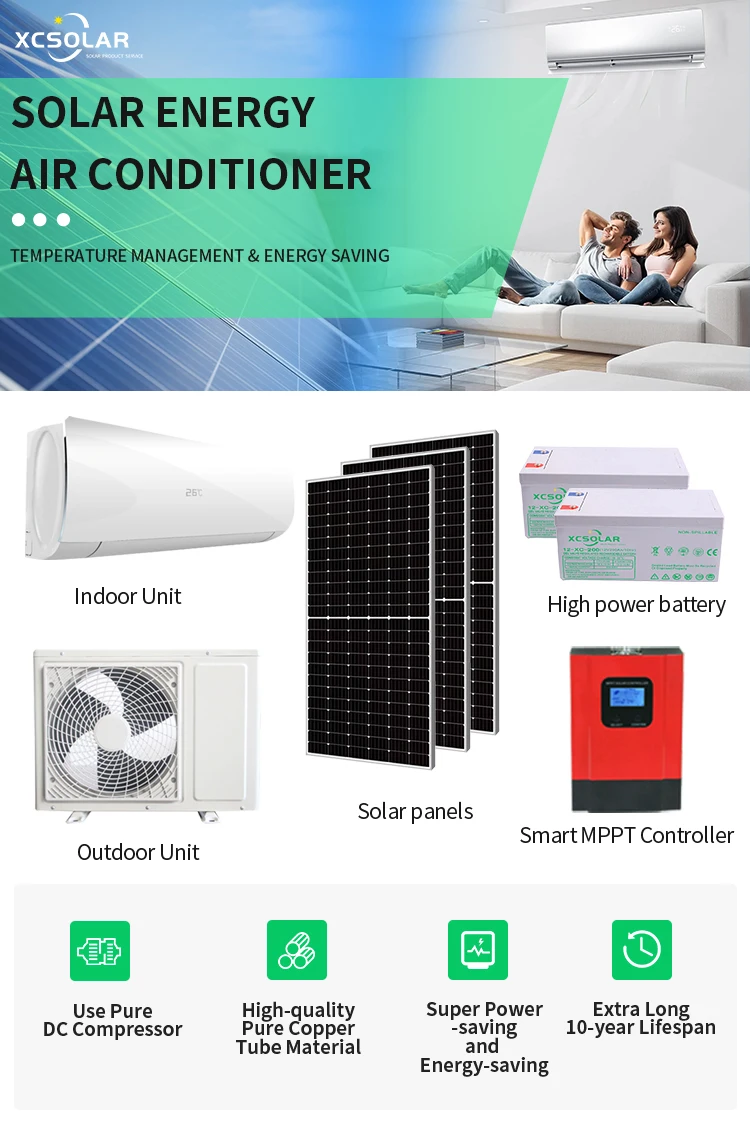

24000btu High Temperature Solar Air Conditioner With Battery for Solar off Grid Solar Airconditioner for Homes 12v 24v
- Category: >>>
- Supplier: Xc Technology Co. Ltd.
Share on (1601214636000):
Product Overview
Description
Products Description
Hybrid ACDC Solar Air Conditioner Specification T3 | ||||||||||
Model | Unit | 12000btu | 18000btu | 24000btu | ||||||
DGWG2-ACDC-12K | DGWGV-ACDC-18K | DGWGV-ACDC-24K | ||||||||
Climate Type | Tropical | T3/T1 | ||||||||
Application area | m2 | 12-20 | 20-30 | 30-42 | ||||||
Power Supply | AC Power | Ph-V-Hz | 1Ph 208V-240V/50-60HZ | |||||||
DC Power (PV in Series) | V | 80-380V | ||||||||
DC Power Current | A | |||||||||
Adviced Solar Panel | Pcs | (3-4)*330W in series | (3-6)*330W in series | (3-8)*330W in series | ||||||
Rated Cooling | Capacity(T1) | W | 3510(900-3900) | 5070(1200-6000) | 6450(1800-7900) | |||||
Power input(T1) | BUT | 12000(3000-13300) | 17300(4100-20400) | 22000(6100-27000) | ||||||
Power input(T1) | W | 940(190-1270) | 1400(220-2100) | 1790(300-3200) | ||||||
Rated Heating | Capacity(T3) | W | 2910 | 4290 | 5130 | |||||
BTU | 9900 | 14700 | 17500 | |||||||
Power input(T3) | W | 1050 | 1630 | 1940 | ||||||
Capacity | W | 4100(1000-4500) | 6100(1200-6800) | 7800(1800-9100) | ||||||
BTU | 14000(3000-15300) | 20800(4100-23000) | 26600(6100-31000) | |||||||
Power input | W | 1170(190-1700) | 1770(220-2500) | 1770(300-3500) | ||||||
T1 EER (W/W)/ (BTU/W) | / | 3.75/12.75 | 3.60/12.35 | 3.60/12.30 | ||||||
T3 EER (W/W)/ (BTU/W) | / | 2.75/9.45 | 2.65/9.00 | |||||||
COP (W/W)/ (BTU/W) | / | 3.50/11.95 | 3.45/11.75 | 3.45/11.75 | ||||||
Dehumidification capacity | L/h | 1.3 | 1.7 | 2.5 | ||||||
Model | / | WHP04200 | WHP05600 | 5RD198 | ||||||
Model | / | 2xRotary Inverter | ||||||||
Compressor | Model | / | Highly | Panasonic | ||||||
Indoor fan motor | Model | / | BLDC-15W | BLDC-45W | ||||||
Speed(Turbo/Hi/Mi/Lo) | r/min | 1300/1200/1100/950 | 1050/950/850/750 | 1350/1250/1150/1000 | ||||||
Indoor air flow(Turbo/Hi/Mi/Lo) | m3/h | 540/485/435/350 | 540/485/435/350 | 1290/1180/1070/900 | ||||||
Indoor noise level (Turbo) | m3/h | ≤42.5 | ≤46 | ≤50 | ||||||
Indoor unit | Dimension(W×H×D) | mm | 840×205×295 | 1080×330×237 | ||||||
Packing (W×H×D) | mm | 920×290×360 | 1140×300×382 | |||||||
Net weight/Gross weight | Kg | 9.0/12.5 | 15.0/18.5 | |||||||
Outdoor fan motor | Model | / | BLDC-40W | BLDC-55W | BLDC-75W | |||||
Speed | r/min | 880 | 850 | |||||||
Outdoor air flow | m3/h | 2100 | 2200 | 3500 | ||||||
Outdoor noise level | dB(A) | ≤52 | ≤55 | ≤58 | ||||||
Outdoor unit | Dimension(W×H×D) | mm | 802×564×32 | 802×564×323 | 910×622×405 | |||||
Packing (W×H×D) | mm | 910×622×405 | 910×622×405 | 1006×755×418 | ||||||
Net/Gross weight | Kg | 33.5/37.5 | 37/42.0 | 50/54.5 | ||||||
Refrigerant type | / | R410A | ||||||||
Max Design pressure | MPa | 4.3/1.5 | ||||||||
Refrigerant copper pipe | Gas side/Liquid side (inch) | inch | 3/8 1/4 | 1/2 1/4 | ||||||
Max. refrigerant pipe length | m | 15 | 20 | 25 | ||||||
Max. difference in level | m | 8 | 10 | |||||||
Drain pipe size | mm | 16 | ||||||||
Refrigerant connction copper pipe length | m | 3 | 4 | |||||||
Connection wire length | m | 4 | 5 | |||||||
Electronic Expansion Valve | / | Yes | ||||||||
Loading QTY 40" Hq/ 20"GP | Sets | 200/85 | 160/75 | 115/50 | ||||||

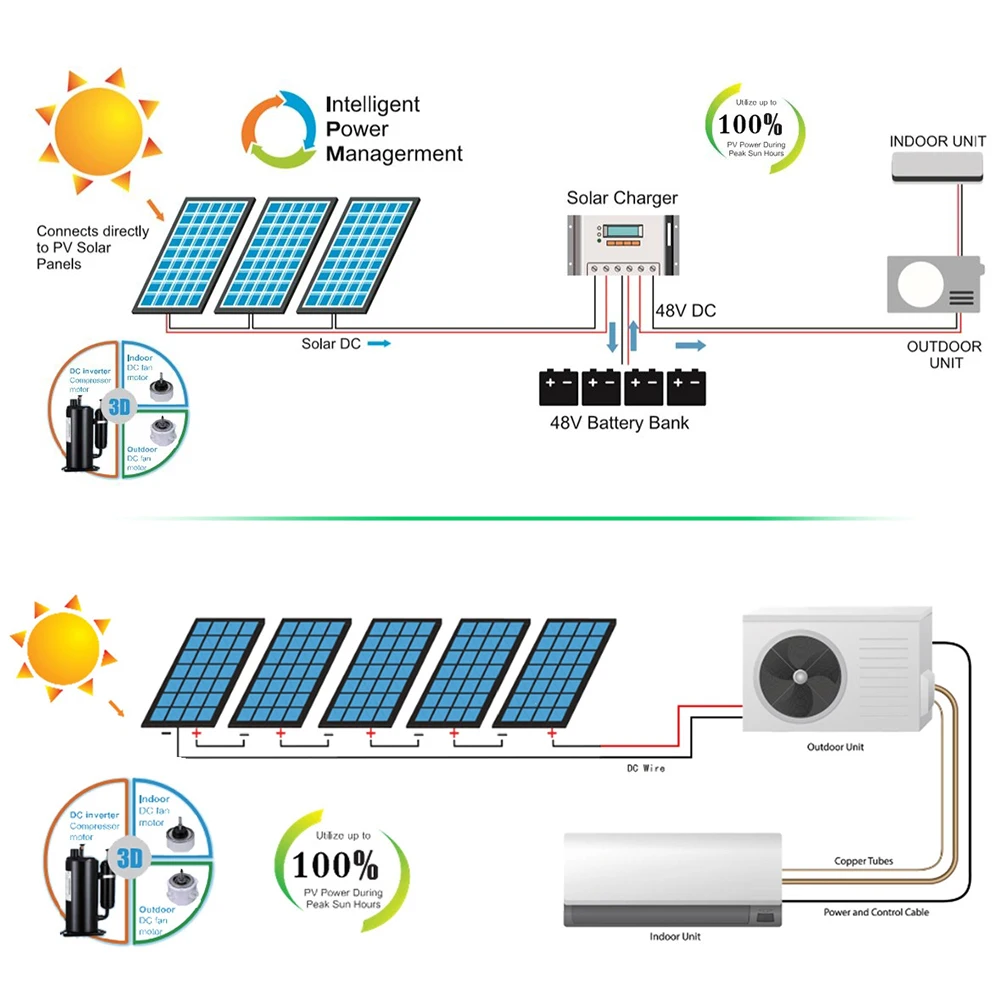

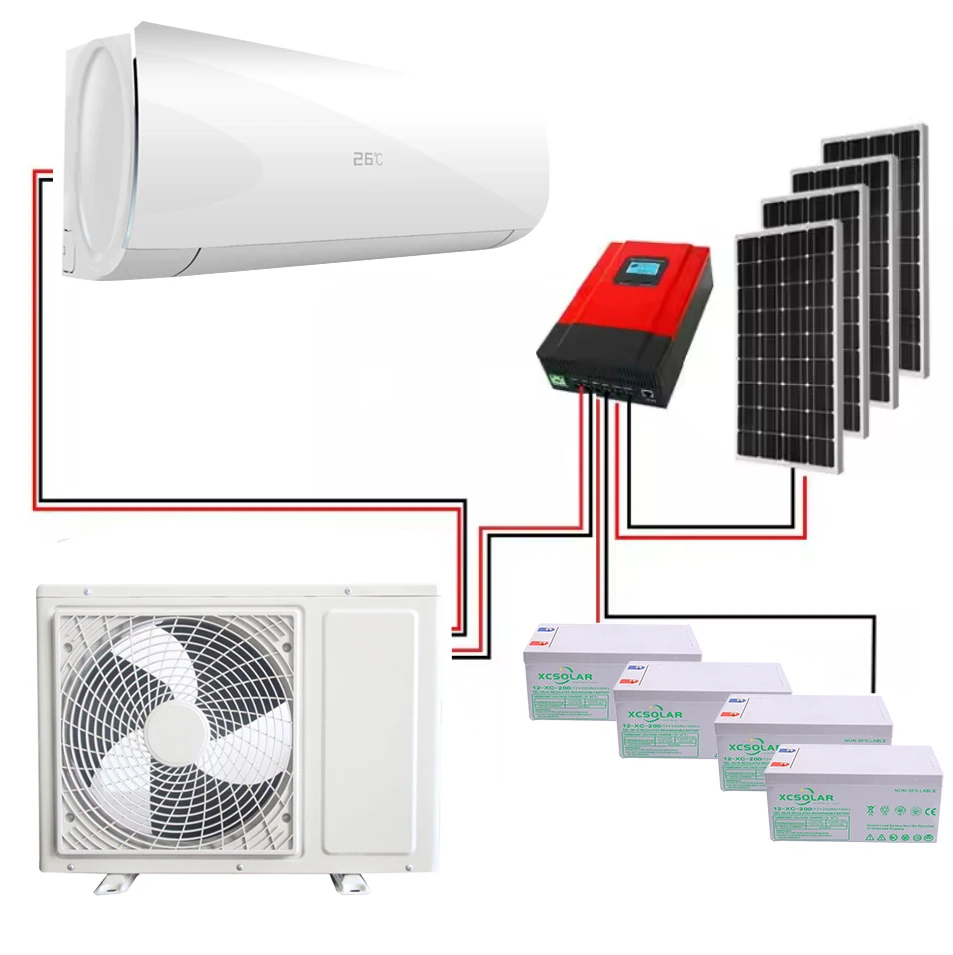

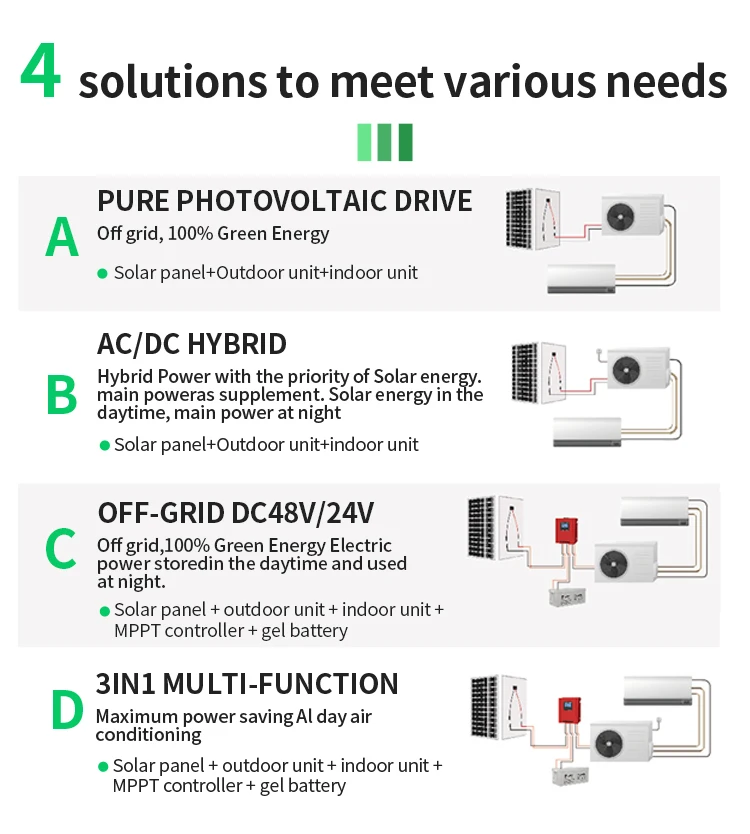

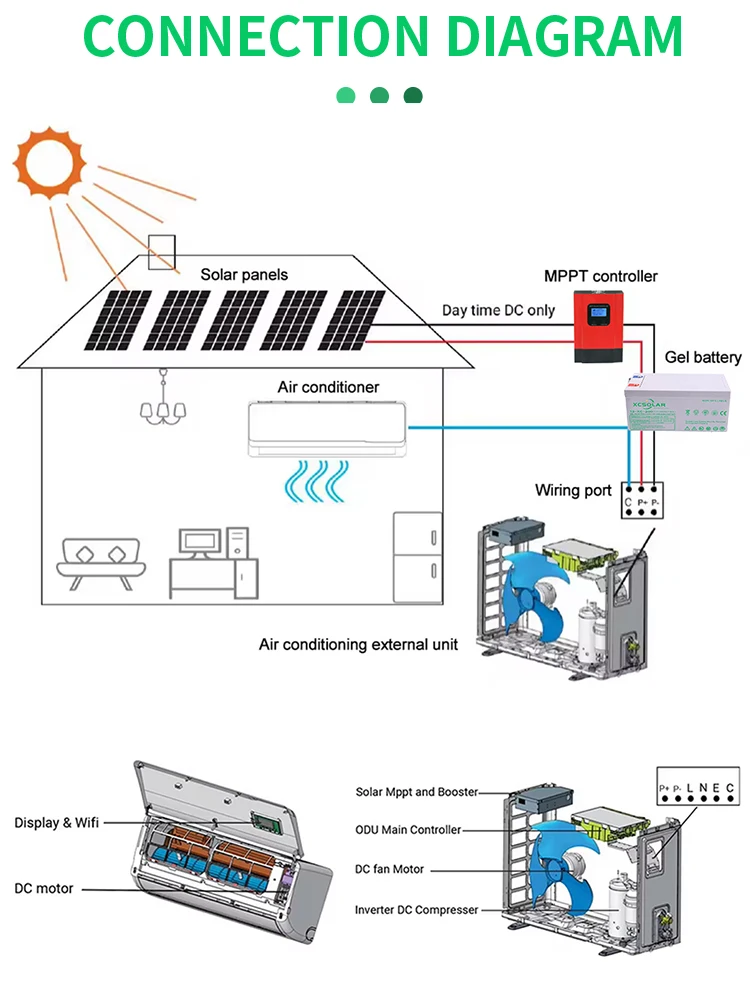

MODEL | Solar panel | Battery | MPPT | |||||||
7000BTU | 300W*3 | 12V,150AH*2 | 24V 40A | |||||||
9000BTU | 300W*4 | 12V,180AH*2 | 24V 50A | |||||||
12000BTU | 400W*4 | 12V,150AH*4 | 48V 40A | |||||||
18000BTU | 400W*6 | 12V,180AH*4 | 48V 50A | |||||||
24000BTU | 300W*9 | 12V,200AH*4 | 48V 60A | |||||||
36000BTU | 400W*9 | 12V,250AH*4 | 48V 60A | |||||||
Benefits of the XC Partner Program
Engineering Services Discounts:
Partners receive discounted pricing on engineering services,including permit assistance, utility interconnection assistance, design, drawings, structural and electrical engineering reviews and stamps. This helps partners save time and money on projects, allowing them to focus on providing high-quality solar solutionsto their customers.
Equipment Discounts:
Partners receive discounted pricing on equipment, including solar panels, inverters, and other solar equipment.
This enables partners to provide high-quality, cost-effective solutions to their customers while maximizing
profitability.
profitability.
Technical Support:
Partners have access to Xc Solar’s experienced technical support team, which provides guidance and assistance on all aspects of partners’ projects, including design, installation, and maintenance.
Marketing and Sales Support:
Xc Solar provides partners with marketing and sales support, including the development of marketing materials and training on how to effectively promote its services. This support helps partners reach more customers and grow their business.
Training and Education:
Xc Solar provides partners with training and education on the latest advances in solar technology, as well as best practices for delivering high-quality solutions to customers. This helps partners stay up to date on the latest industry trends and provide the best service to their customers.
Company Profile
FAQ
Q: Can you offer On Grid and Off Grid solar power systems?
A: Yes, we produce On Grid solar power systems, Off Grid solar power systems and also provide Hybrid solar power systems.
Q: What certificate do you offer?
A: CE, IEC, CEC, ISO, TUV. RoHS
Q:How is your technical support?
A：We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime, our engineer will also go to oversea help our customers if necessary.
Q.How to become your agent?
A：Contact us through Alibaba/email, and we can talk about details to confirm.
Q：what services can we provide?
A：Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP； Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese,Spanish,German,Russian,French
Language Spoken:English,Chinese,Spanish,German,Russian,French
Q: Do you support OEM/ODM?
A：Of course, we can do customized services for our partners.
