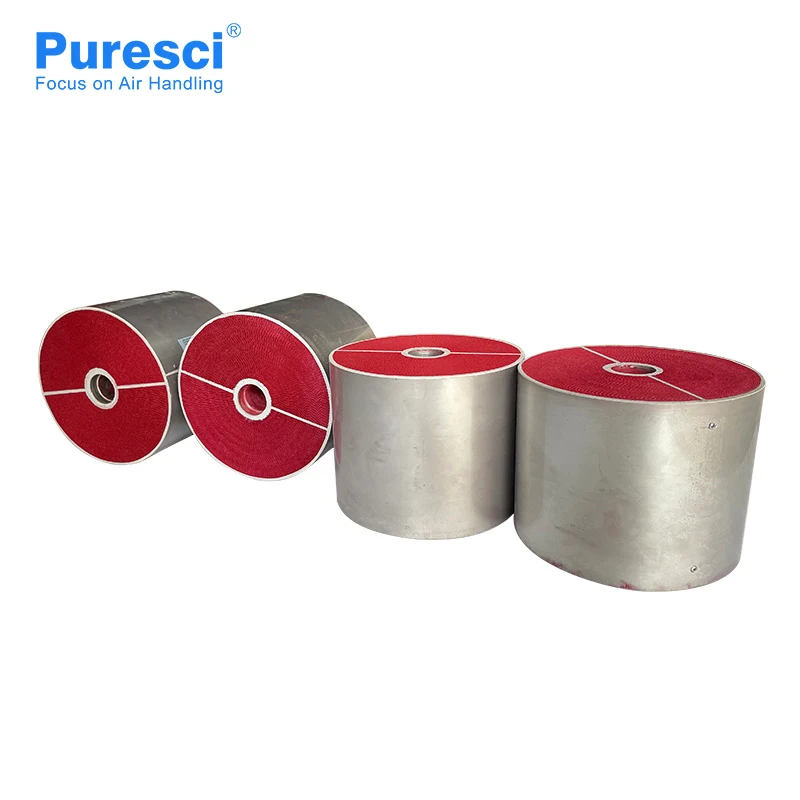

Puresci Desiccant Adsorbent Material Low Temperature Honeycomb Rotor Air Handling Unit
- Category: >>>
- Supplier: Puresci Environment Technology Limited
Share on (1601214717651):
Product Overview
Description
Products Description
Refrigeration Energy-saving Desiccant Rotor : PSS-S
PSS-S is a new generation of desiccant rotor with higher performance and cost-effective.
PSS-S dehumidification performance is better than regular PSS under the same condition of airflow, temperature and moisture of process air, regeneration temperature and humidity ratio of regeneration air.
Features
1.Enhance Adsorption Performance (10%-15%)
A smaller size of desiccant rotor is available .
Compared with normal silica gel desiccant rotor on the market, Under the same working conditions, because PSS-S has a very high performance dehumidification capacity, it is a smaller size than regular rotor.
2. Energy-saving
Save 25% ~ 40% of the total operating cost of system.
3. Wide Range of Application
(1) Normal humidity 10% ~ 40% application,Regeneration temperature 90℃ ~ 150℃
(2) Low dew point application，can reach to -50℃ ~ -75℃
4. Unique Composite Materials
All materials are developed independently by Puresci Material R&D Lab for several years.
5.Water Washable
The desiccant rotor can be washed by water and mild detergent.
6. Professional Surface Processing
Adopt international standard environmental paint with water-resistant, high temperature resistance, strong weather resistance, anti-corrosion, no odor and high hardness.
7. Variety Construction
It is recommended that using the split type for diameter ≥ 2200mm, due to delivery conditions. It's easy way to assemble upper and lower parts on site.

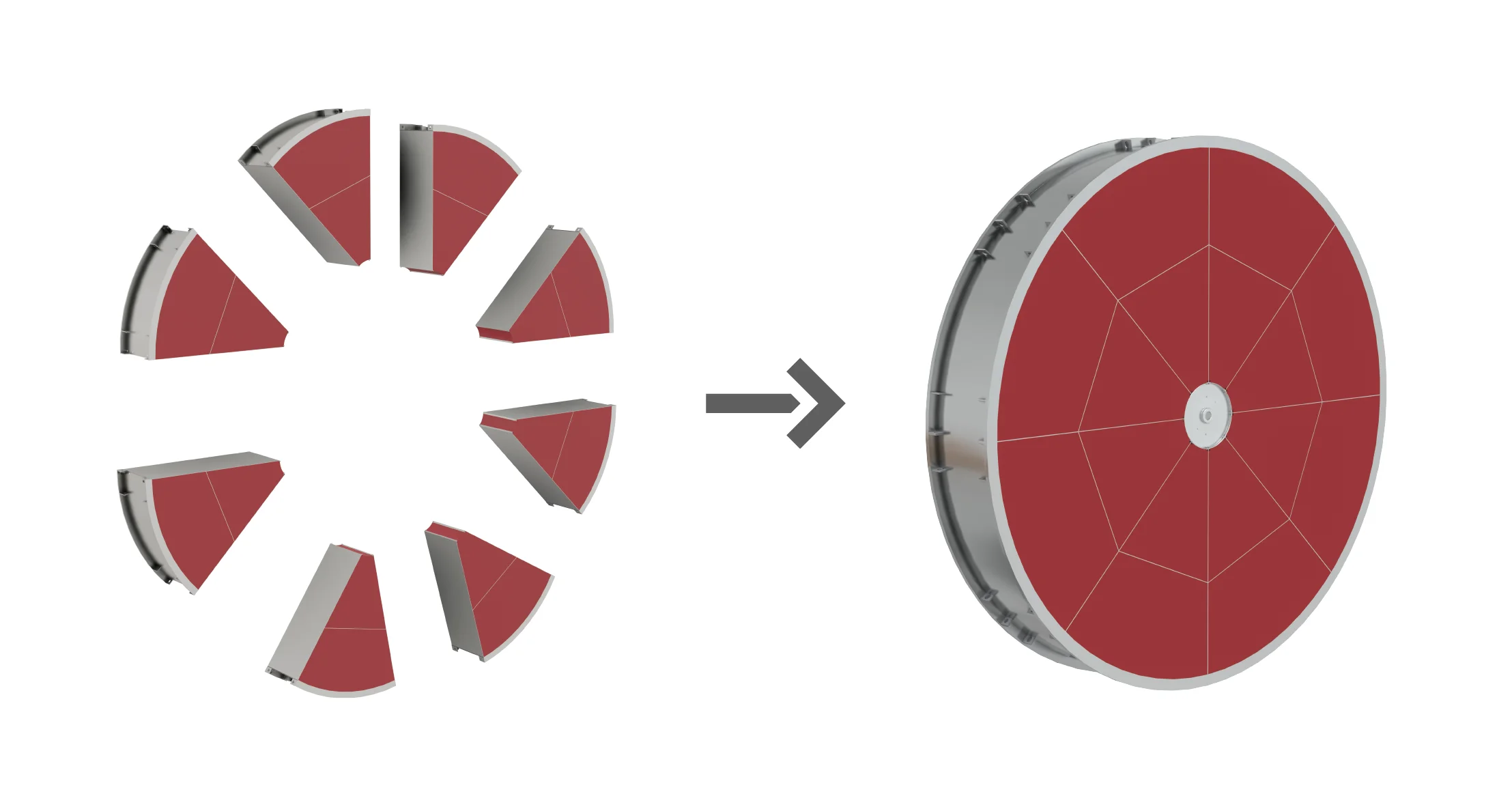

If the space for delivery or assemble is limited, the rotor can be split into small pieces in the shape of fans.

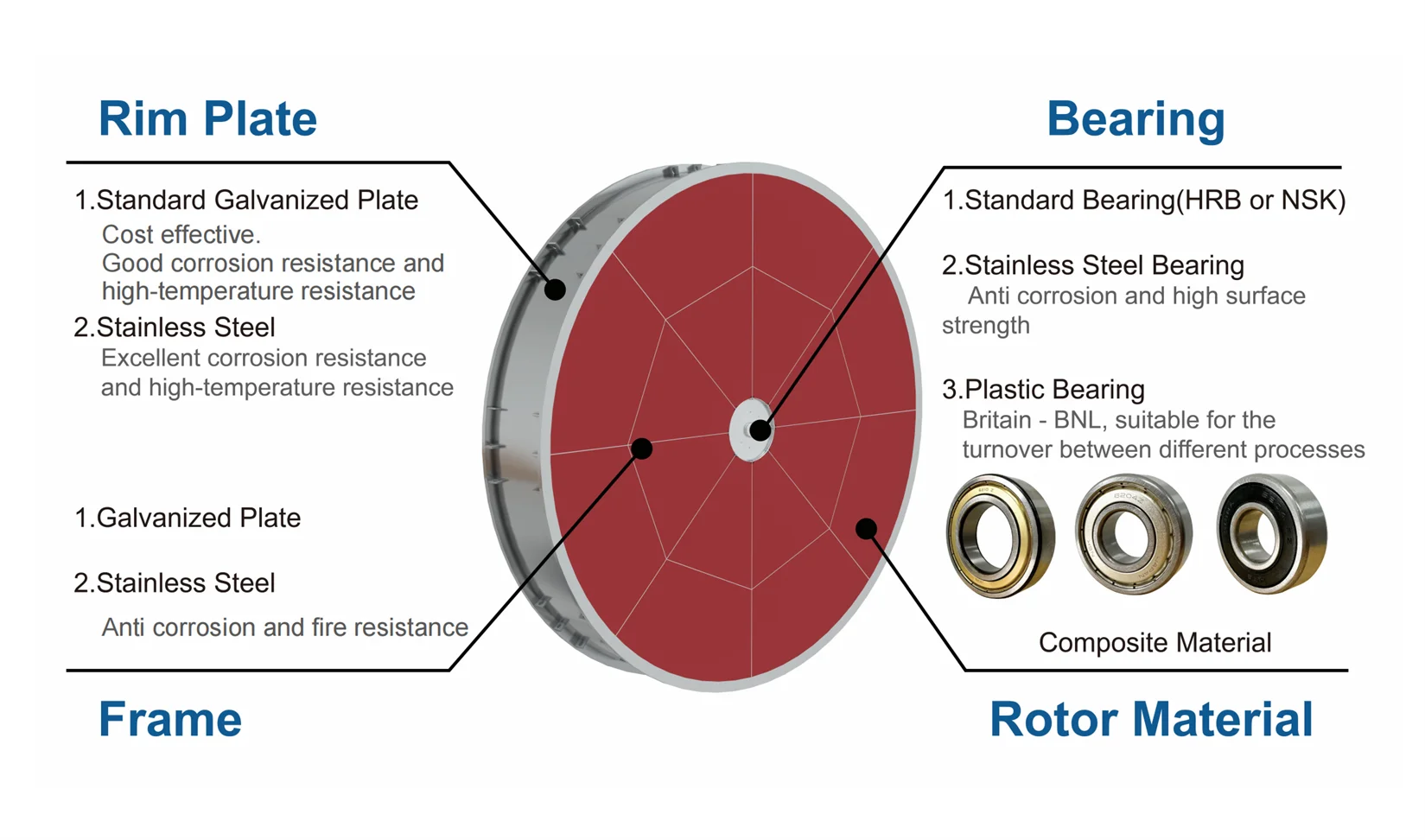

Products Structure and Dimensions

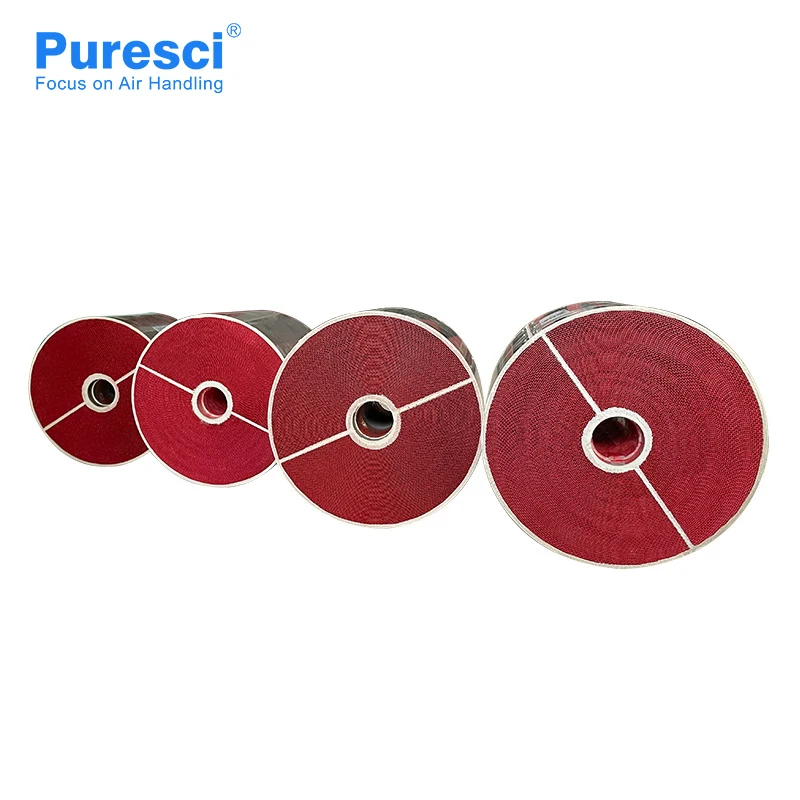

Besides standard dimensions (Diameter and Thickness), non-standard rotors can be customized according to customers' requiremens, such as 50mm, 100mm and 150mm.
The bearing can be customized according to customers' requirements if the bearings in the following picture are not your choice.
ROTOR SIZE | ||||||
Diameter(mm) | Thickness(mm) | Bearing/ Inner hole | Shaft Diameter(mm) | |||
180-400 | 50, 100, 150, 200, 300, 400 | 6204/20 | 53 | |||
440 | 300, 400 | 6204/20 | 53 | |||
500 | 200, 300 | 6204/20 | 53 | |||
450,550 | 100, 200, 300, 400 | 6204/20 | 53 | |||
650-770 | 200, 300, 400 | 6204/20 | 70 | |||
850 | 200, 300, 400 | 6204/20 | 100 | |||
900 | 200, 300 | 6204/20 | 100 | |||
965-1050 | 200, 300, 400 | 6204/20 | 100 | |||
1220-1370 | 200, 300, 400 | 6206/30 | 150 | |||
1525-1800 | 200, 300, 400 | 6206/30 or 6208/40 | 150/240 | |||
1850 | 200, 300 | 6206/30 or 6208/40 | 240 | |||
1940-2190 | 200, 300, 400 | 6208/40 or 6206/30 | 240 | |||
2200-2400, 2550 | 200, 300 | 6208/40 | 240 | |||
2450-2600 | 200, 300, 400 | 6208/40 | 240 | |||

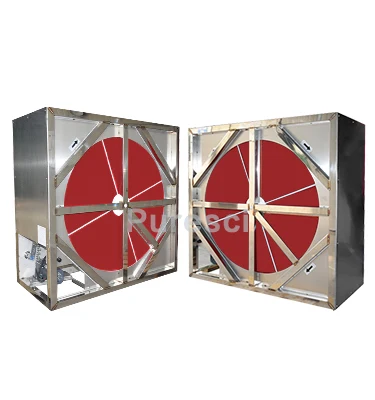

Accessories - Cassette, Flange, Sealing strip etc
Cassette's material
(1) Mild steel tube, high-temperature painting
(2) Stainless steel square tube
Motor
Applicable environment is -10℃ ~ 40℃, Motor can be customized.(220V/380V)
(1) Mild steel tube, high-temperature painting
(2) Stainless steel square tube
Motor
Applicable environment is -10℃ ~ 40℃, Motor can be customized.(220V/380V)
Product Packing and Shipping
The rotor are packed with wooden case and foam of 5 cm thickness. Don't worry about the damage in delivery.
Via Sea, Air or Express such as UPS/ DHL/ FEDEX.
Tracking NO. will send to you via Email/Whatsapp/Wechat after samples or goods are shipped out.
Application
Ship manufacturing and bridge corrosion resistance;
Storage and maintenance for electronic manufacturing;
Plastic products manufacturing and drying;
Food producing, processing and storing;
Our Service
1. Pre-sale Service
(1) Technical service consultation.
(2) Web and App for product selection.
( //selection.puresci.com)
(3) Support service - product test, system design, R&D technical support.
( //selection.puresci.com)
(3) Support service - product test, system design, R&D technical support.
2. In-sales Service
(1) Technical service consultation.
(2) PC and mobile phone selection software.
(3) Support service - product test, system design, R&D technical support.
(3) Support service - product test, system design, R&D technical support.
3. After-sales Service
Timely delivery, quickly help customers solve technical problem and optimize equipment performance, ensure terminal customers to run dehumidification equipment efficiency.
Company Profile
FAQ
Q1: What's your temrs of trade?
EXW, FOB, CFR, CIF, DDU, DDP.
Q2: What's your terms of payment?
100% advance pament before delivery by T/T.
Q3: How about your delivery time?
Normal is 7 days. The specific delivery time depends on the items and the quantity of your order.
Q4: What's your terms of packing?
The package of desiccant rotor is polyfoam and wooden case. It will be very safe for shipping.
Q5: Can you produce according to the samples?
Generally, we offer customized services.
Q6: What's your sample policy?
We can supply the sample if we have ready parts in stock, but the customers have to pay sample cost and courier cost.
Thanks for your attention! If you are interested in our products, please do not hesitate to contact
me. Welcome for your inquiry!
