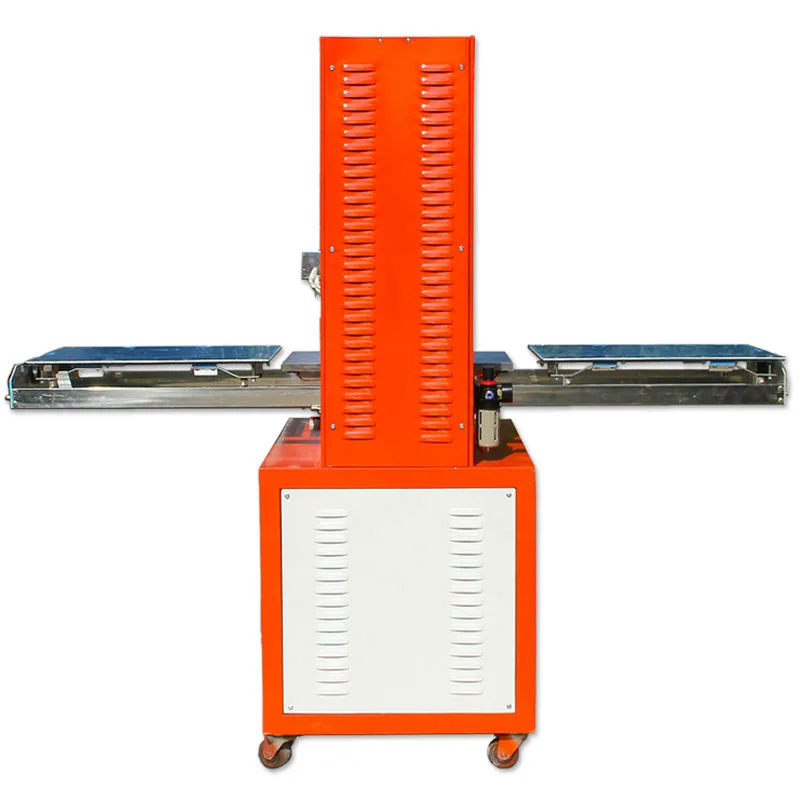

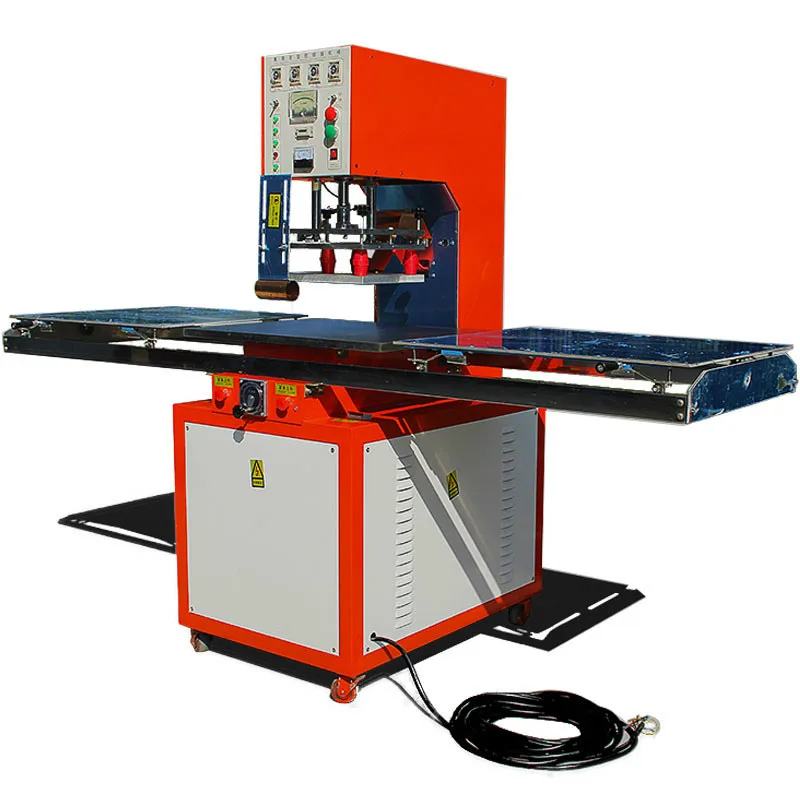

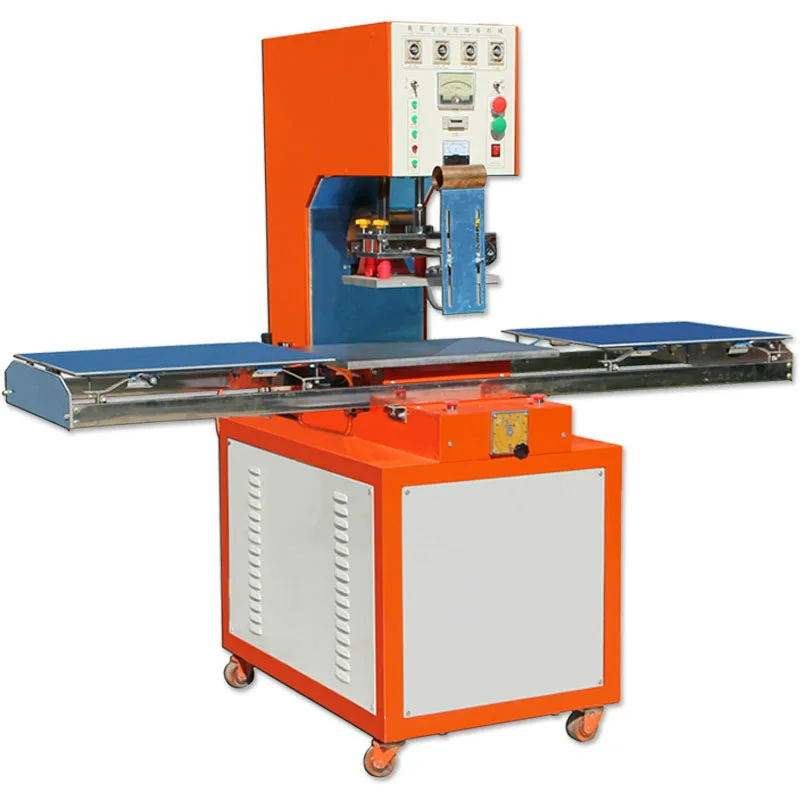

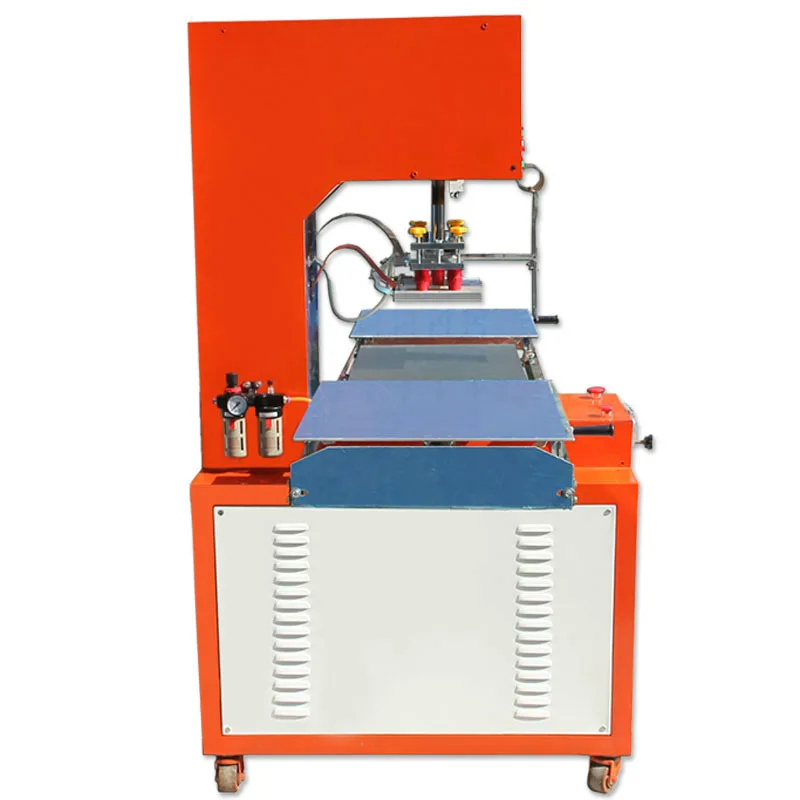

High Frequency Pvc Coated Leather Logo Trade Mark Embossing Machine
- Category: >>>
- Supplier: Changzhou Wujin Dongnan Machinery & Electrical Appliance Co. Ltd.
Share on (1601214727762):
Product Overview
Description
Products Details
Feature
The machine double station shuttle HF welders with 8, 10, 15kW stable controlled HF power outputs are designed for various industrial HF welding and heat sealing applications requiring precision flat surface for product positioning and complex shape welds. HF welder can be easily converted to a standard Heat Sealer for applications where HF welding is not necessary or impossible (eg: PP or PE materials). Machine is equipped with quick change 4 point electrode holder. Custom built tooling and electrodes are available upon request.
Overview
* HF output power range at 8, 10, 15kW
* Side load pneumatically driven shuttle work trays (1 or 2)
* Heated electrode holding plate up to 160°C
* Sealing efficiency from 1kW: 25cm2 for standard PVC materials
* Easy conversion to standard Heat Sealer
* Universal usage for PVC, PU, PET, A-PET, PLA films
* Automatic smooth glide work trays
* Easy electrode change system on upper platen
* Side load pneumatically driven shuttle work trays (1 or 2)
* Heated electrode holding plate up to 160°C
* Sealing efficiency from 1kW: 25cm2 for standard PVC materials
* Easy conversion to standard Heat Sealer
* Universal usage for PVC, PU, PET, A-PET, PLA films
* Automatic smooth glide work trays
* Easy electrode change system on upper platen
Parameter
Voltage | AC220/380/400/415/440V 50/60HZ(Customized) | ||||
Output Power | 5KW | 8KW | 10KW | ||
Input Power | 8KVA | 10KVA | 12KVA | ||
HF Frequency | 27.12MHZ ±0.6% | ||||
Oscillation Tube | 8T85RB | 8T85RB | 8T85RB | ||
Anti-spark Tube | NL-5557 | NL-5557 | NL-5557 | ||
Gap of Electrode | 200mm | 200mm | 200mm | ||
Size of upper electrode | 200×400mm | 300×500mm | 400×600mm | ||
Machine Size | 2000×1080×1780 | 2000×1080×1780 | 2000×1080×1780 | ||
Machine Weight | 400KG | 420KG | 450KG | ||
