double shaft coal mixer
US $7999-$8699
100kg counter current planetary mixer with discharging for uhpc ultrahigh performance concrete mixer
- Category: >>>
- Supplier: Henan Wode Heavy Industry Co. Ltd.Henan Ltd.
Share on (1601214906222):
Product Overview
Description
Product descriptions from the supplier
Overview
Product Description

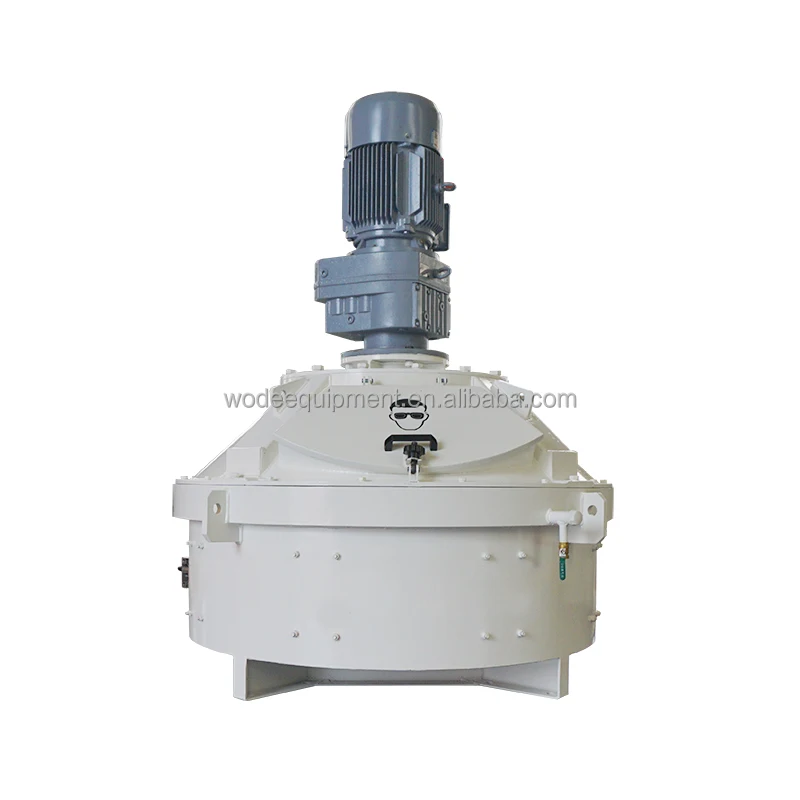

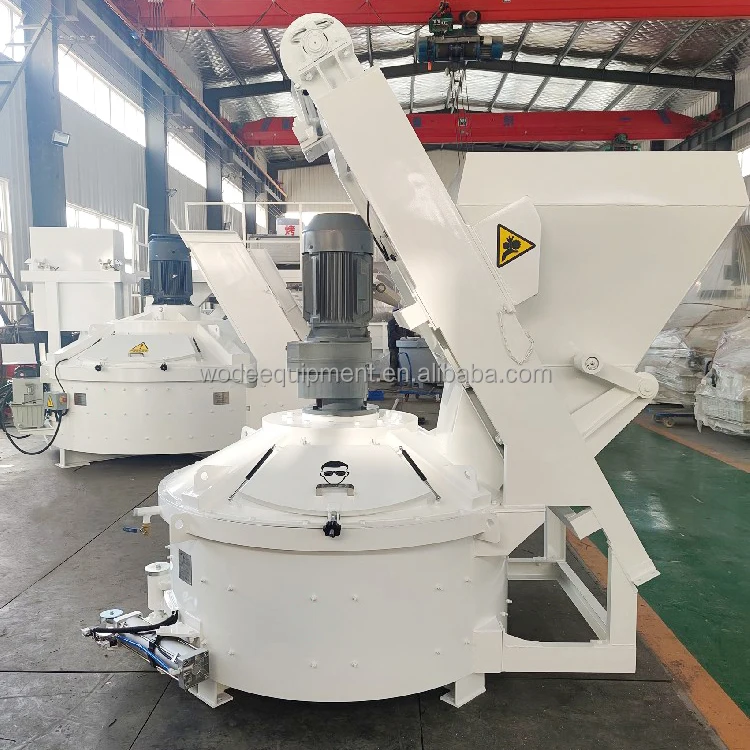

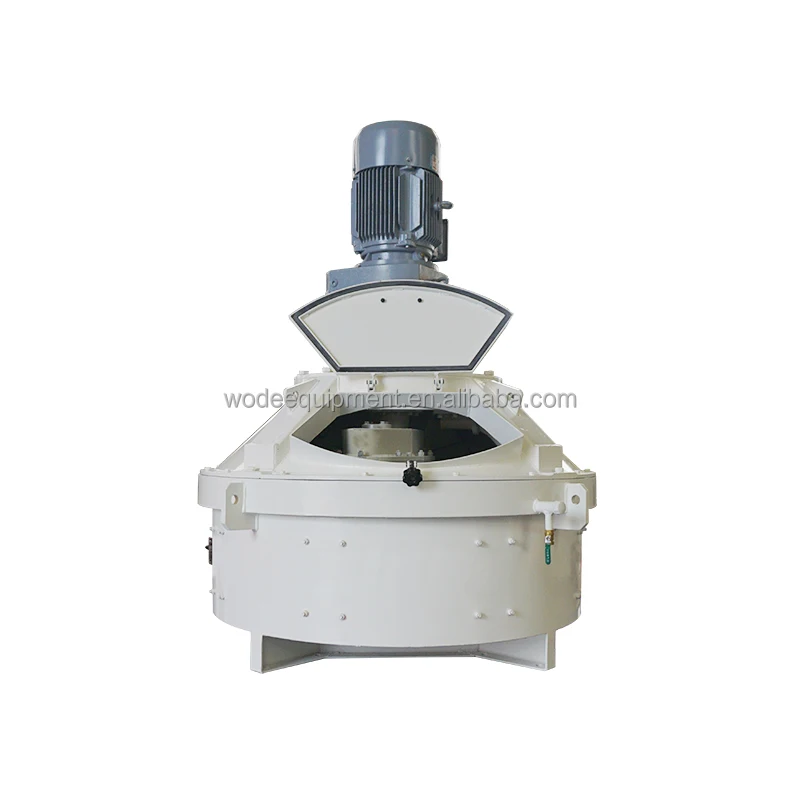

HWCPM planetary concrete mixer
HWCPM planetary mixer is good at quickly and uniformly mixing all kinds of high-quality and high-performance concrete, covering precastable, low collapse, dry process, plastic fiber and other types, as well as refractory castables, UHPC, glass, ceramics and other materials. Specially designed for concrete and refractory production and mixing, efficiently meet the needs of the industry.
Product Parameters
Item | HWCPM50 | HWCPM100 | HWCPM150 | HWCPM250 | |||
Feeding Volume (L) | 75 | 150 | 225 | 375 | |||
Feeding Capacity (Kg) | 120 | 240 | 360 | 600 | |||
Output Volume (L) | 50 | 100 | 150 | 250 | |||
Mixing Power (Kw) | 3 | 5.5 | 7.5 | 11 | |||
Mixing Star * Blade | 1*2 | ||||||
Side Scraper | 1 | ||||||
Discharge Scraper | 1 | ||||||
Discharging Power (KW) | Pneumatic/ hydraulic discharging | ||||||
Weight (Kg) | 750 | 1000 | 1300 | 1500 | |||
Dimension (mm) | 950*790 *1200 | 1664*1453 *1487 | 1670*1460 *1620 | 1860*1650 *1780 | |||
Item | HWCPM330 | HWCPM500 | HWCPM750 | HWCPM1000 | HWCPM1250 | ||||
Feeding Volume (L) | 500 | 750 | 1125 | 1500 | 1875 | ||||
Feeding Capacity (Kg) | 790 | 1200 | 1800 | 2400 | 3000 | ||||
Output Volume (L) | 330 | 500 | 750 | 1000 | 1250 | ||||
Mixing Power (Kw) | 15 | 18.5 | 30 | 37 | 45 | ||||
Mixing Star * Blade | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | ||||
Side Scraper | 1 | ||||||||
Discharge Scraper | 1 | ||||||||
Discharging Power (KW) | Pneumatic/ hydraulic discharging | 3 | |||||||
Weight (Kg) | 2000 | 2400 | 3900 | 5500 | 6000 | ||||
Dimension (mm) | 1870*1870 *1855 | 2230*2080 *1880 | 2580*2340 *2195 | 2891*2602 *2237 | 3058*2756 *2395 | ||||
Item | HWCPM1500 | HWCPM2000 | HWCPM2500 | HWCPM3000 | HWCPM4000 | ||||
Feeding Volume (L) | 2250 | 3000 | 3750 | 4500 | 6000 | ||||
Feeding Capacity (Kg) | 3600 | 4800 | 6000 | 7200 | 9600 | ||||
Output Volume (L) | 1500 | 2000 | 2500 | 3000 | 4000 | ||||
Mixing Power (Kw) | 55 | 75 | 90 | 110 | 960 | ||||
Mixing Star * Blade | 2*2 | 3*2 | 3*3 | 3*3 | 3*3 | ||||
Side Scraper | 1 | ||||||||
Discharge Scraper | 1 | 2 | |||||||
Discharging Power (KW) | 3 | 4 | |||||||
Weight (Kg) | 6500 | 9200 | 11000 | 12000 | 17500 | ||||
Dimension (mm) | 3223*2902 *2470 | 3625*3230 *2695 | 3893*3550 *2875 | 3893*3550 *3085 | 4594*4150 *3634 | ||||

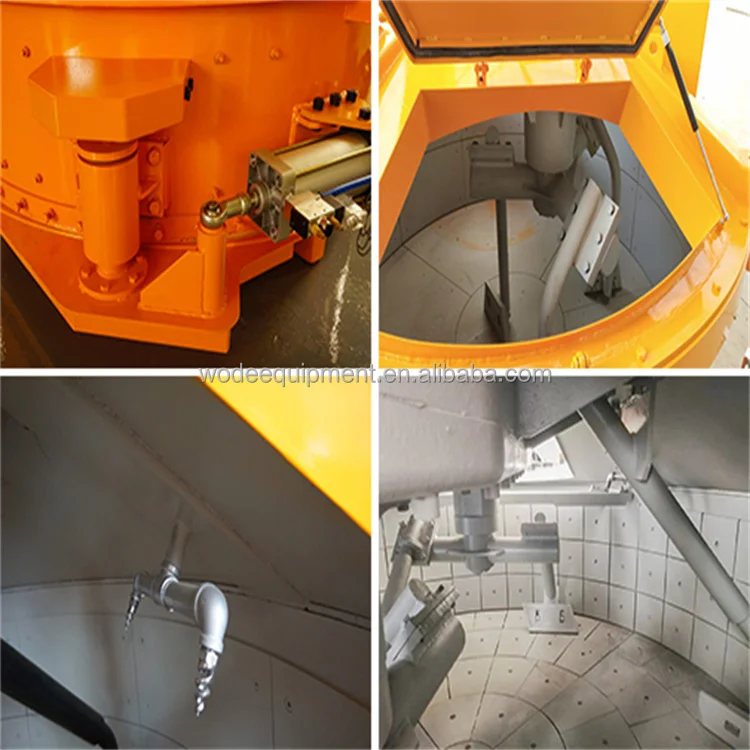

Product features

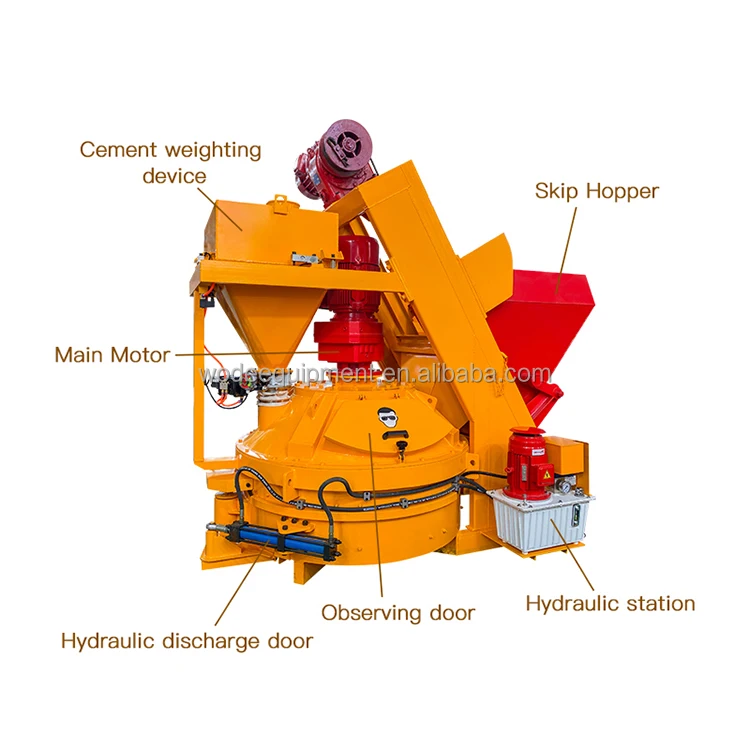

Discharge Door
According to the different demands ofcustomers, the discharging door can beopened by hydraulic, pneumatic or by hands.The number of the discharging door is threeat most. And there is special sealing deviceon the discharging door to ensure
thesealing reliable.
Maintenance Gate
Large maintenance gate and inside space isconvenient for maintenance and spare partsreplacement.
Large maintenance gate and inside space isconvenient for maintenance and spare partsreplacement.
Water & Additive Device
Overhead structure is used to water, largecovering area and make the material moreuniform mixing.
Planetary mixing system
Mixing blades are designed in parallelogramstructure, which can be turned 180°for reuseto increase service life. Bottom scraper/ sidescraper /planetary mixing. The movement ofthe material inside the trough is smooth andcontinuous.

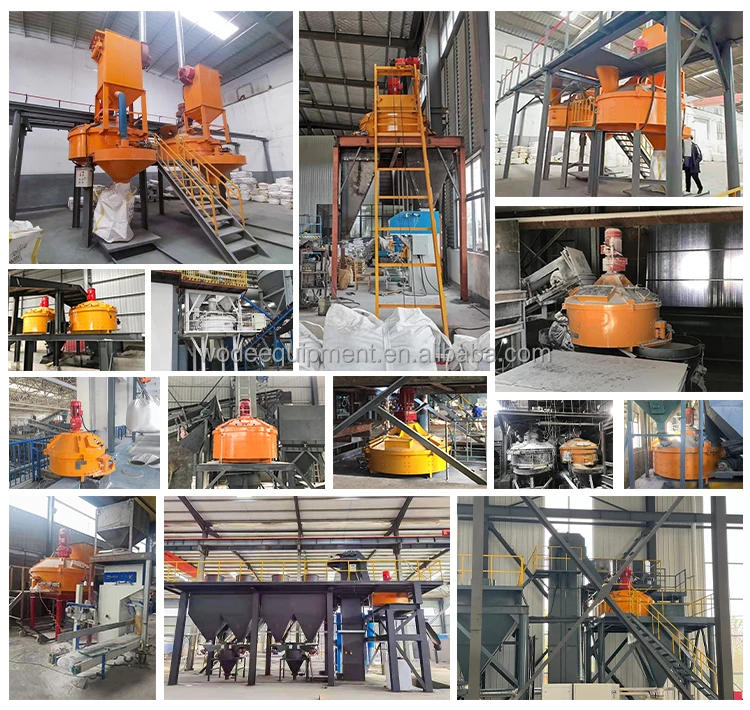

Application
Planetary concrete mixer application | ||||||
Concrete Material | Other Construction Material | Refractory Material | Others | |||
Ready-mixed concrete / Ready mix concrete | Dry Mortar | Shaped refractory | Glass (glass processing machinery) | |||
Precast Concrete | Wet Mortar | Unshaped refractory | Fertilizer | |||
Foam Concrete | Gypsum | Water treatment | ||||
Ultra High Performance Concrete | Aggregate Mixing | Mine backfill | ||||
Light Concrete | Emulsified asphalt | Ceramic Raw Materials | ||||
Shotcrete | Cement adhesive | |||||
We could customize planetary concrete mixer according to requirement. | ||||||
Related Products

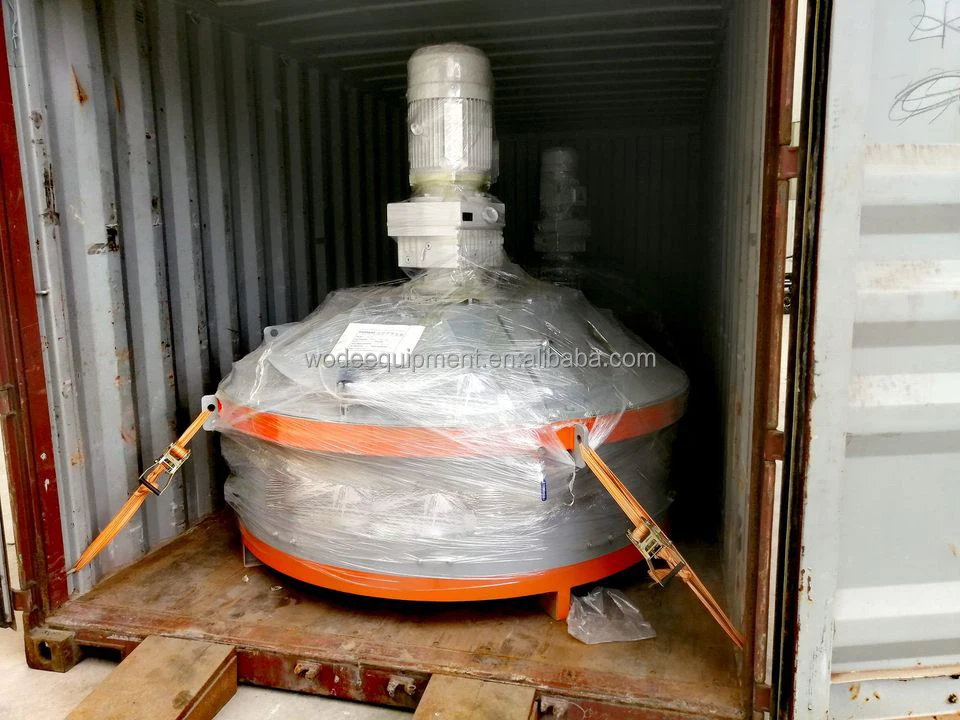

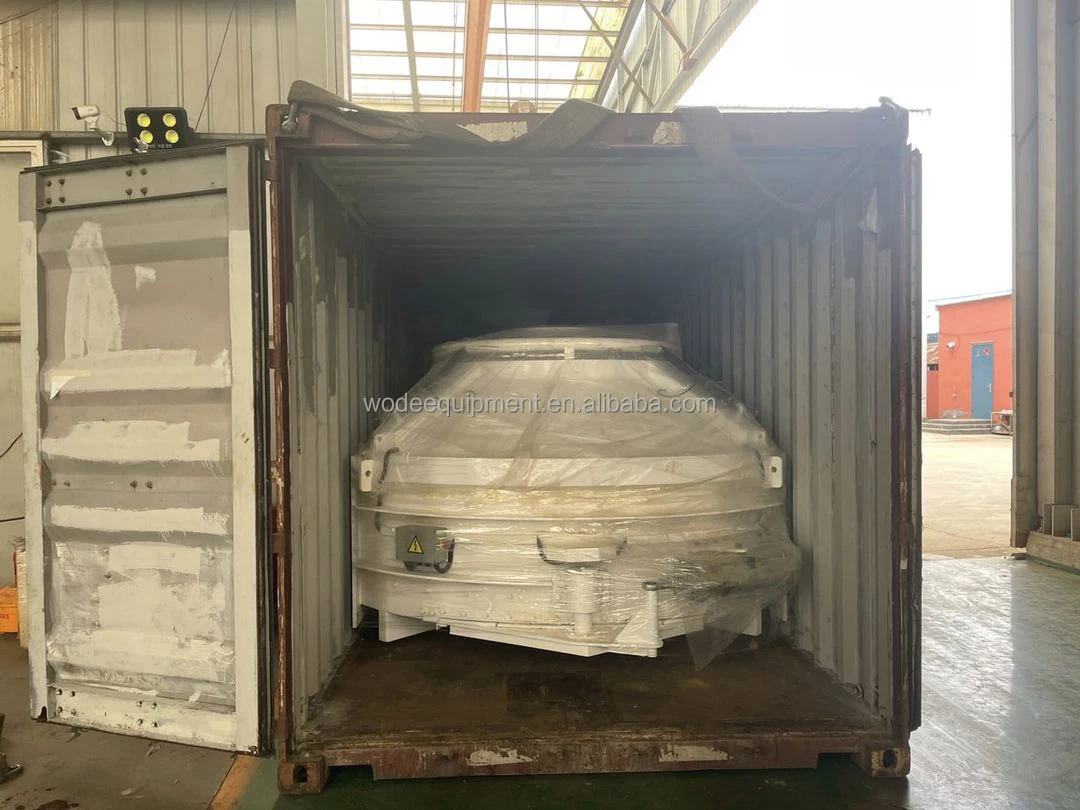

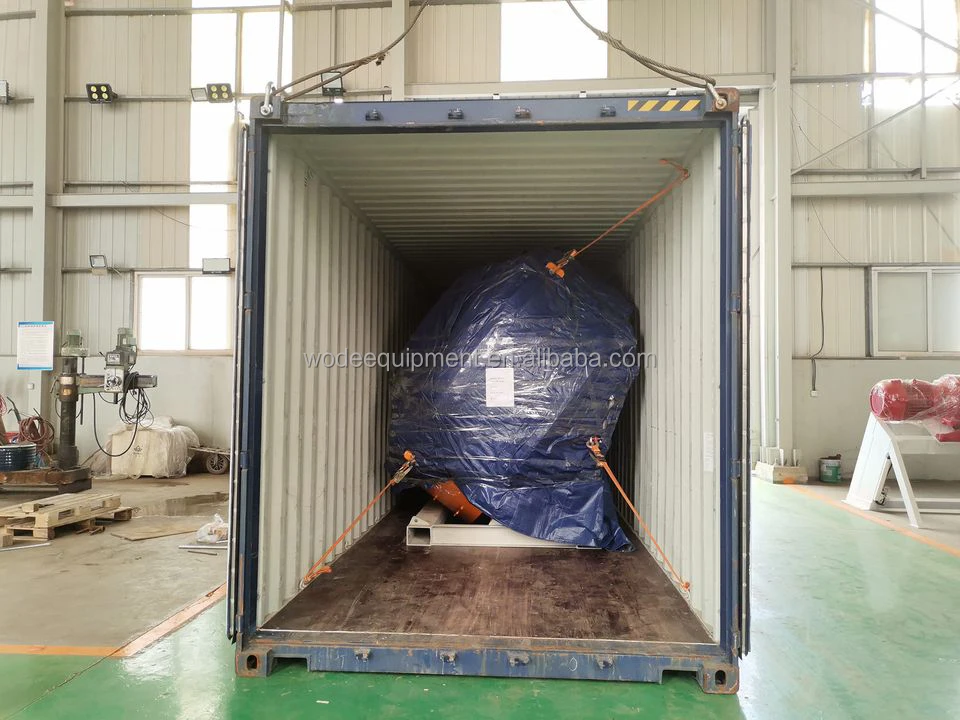

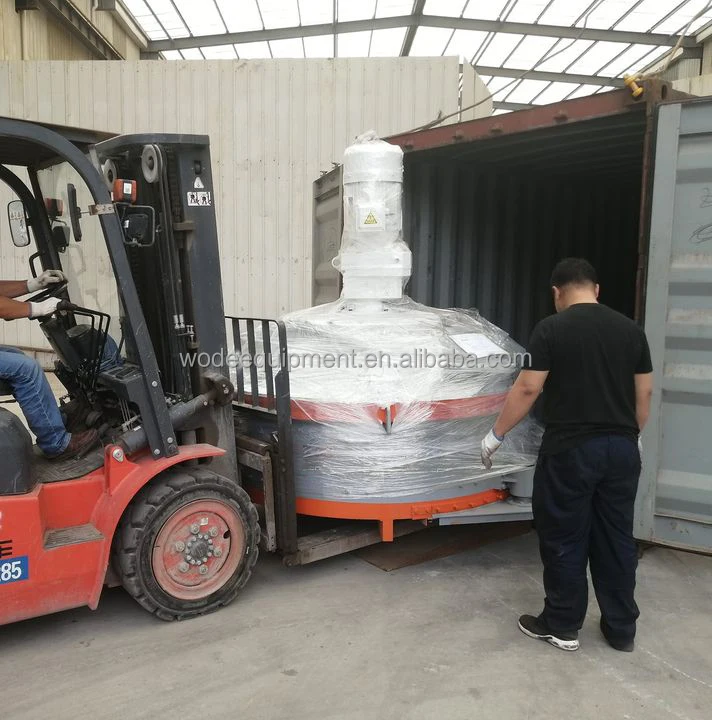

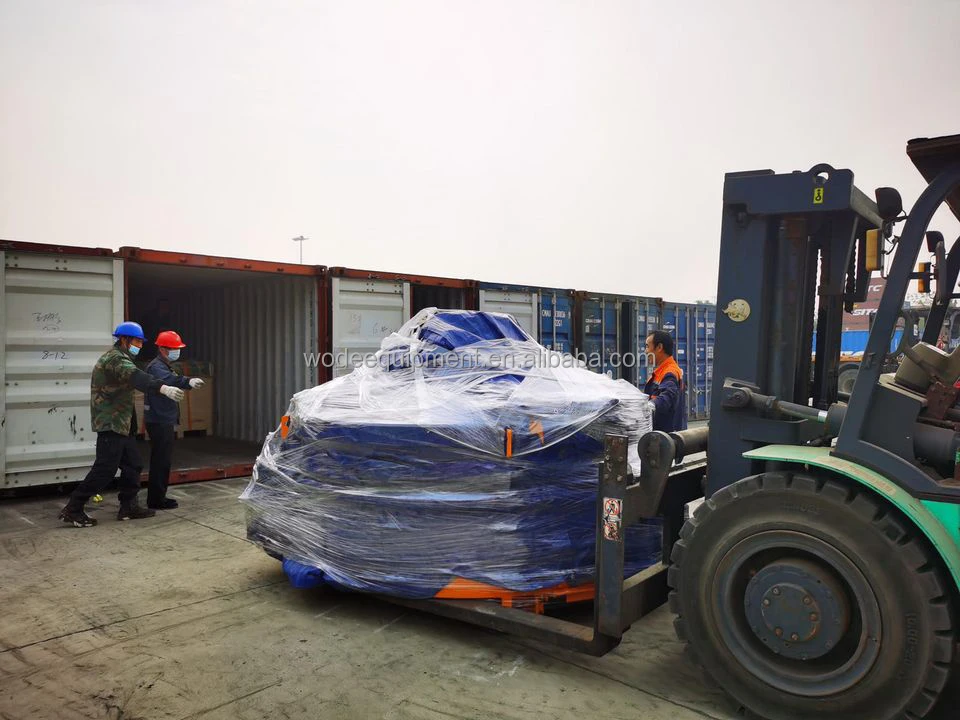

Packaging and delivery
Contact Supplier
Contact us for planetary concrete mixer catalog and price
In order to confirm which type planetary concrete mixer suitable for your job, could you please help us to confirm the following information:
1. What is your project with our mixer, for mixing concrete or refractory?
2. What is the mixing capacity you require?
3. Do you need pneumatic discharge door or hydraulic discharge door?
4. What is the voltage you require?
3. Do you need pneumatic discharge door or hydraulic discharge door?
4. What is the voltage you require?
Please contact us for more information and price.
