Factory price high efficient 250L Cunter current planetary cement concrete mixer for sale
- Category: >>>
- Supplier: Henan Wode Heavy Industry Co. Ltd.
Share on (1601214924406):
Product Overview
Description
Product descriptions from the supplier
Overview
Product Description

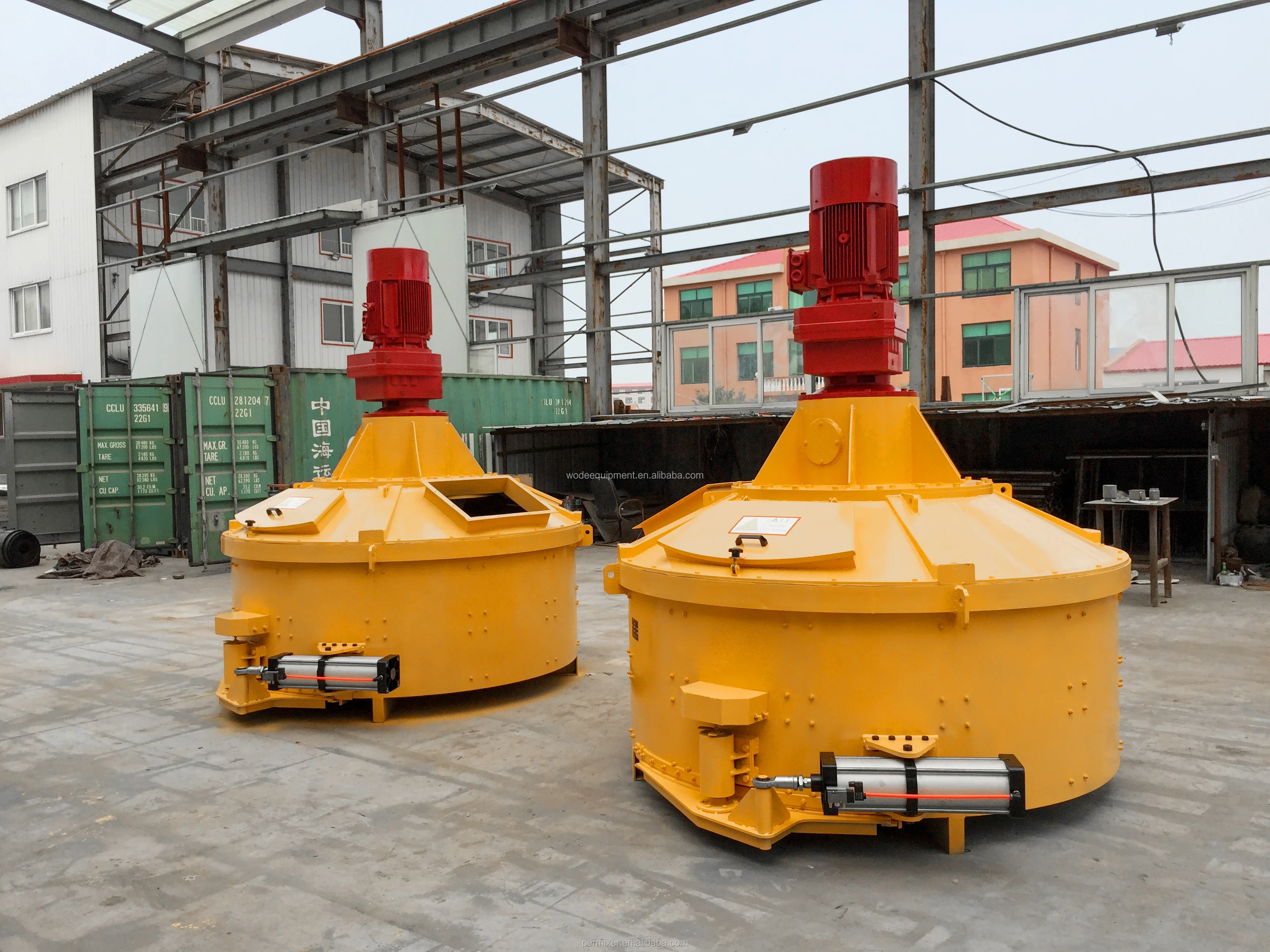

HWCPM250 planetary concrete mixer：
HWCPM250 planetary mixers efficiently integrate all kinds of high-performance concrete to ensure uniform mixing in the shortest time, which is excellent for the preparation of concrete and refractory materials, and also shows extraordinary performance in the mixing of materials in the glass, ceramics and other industries, ensuring both quality and efficiency.
Main features of planetary concrete mixer are as follows:
1. Mixing blades are composed of several groups of mixing arms, which covers the entire mixingregion. Both revolution and rotation of mixing blades ensure the homogeneity of the material.2. According to various demands of customers, the discharging door can be operatedhydraulically, pneumatically or manually.
3. The reduction unit of the vertical shaft planetary concrete mixer, specifically designed for abalanced distribution of power to the various mixing devices, ensures a low-noise rotation withoutbacklash even under severe working conditions.
4. Easy to maintain and no leakage problem. Transmission system (including motor) is located atthe top of mixing drum, completely separated from the concrete. lt's convenient for maintenanceand there is no leakage problem at the shaft end.
5. Special desianed spraver makes the water cloud cover more area and ensure the evendistribution of the materials.
6. From optimal model selection to customized vertical shaft planetary concrete mixer for specialapplication situation, we can offer a full range of technical support and maintenance services.
6. From optimal model selection to customized vertical shaft planetary concrete mixer for specialapplication situation, we can offer a full range of technical support and maintenance services.
Product Parameters
Item | HWCPM50 | HWCPM100 | HWCPM150 | HWCPM250 | |||
Feeding Volume (L) | 75 | 150 | 225 | 375 | |||
Feeding Capacity (Kg) | 120 | 240 | 360 | 600 | |||
Output Volume (L) | 50 | 100 | 150 | 250 | |||
Mixing Power (Kw) | 3 | 5.5 | 7.5 | 11 | |||
Mixing Star * Blade | 1*2 | ||||||
Side Scraper | 1 | ||||||
Discharge Scraper | 1 | ||||||
Discharging Power (KW) | Pneumatic/ hydraulic discharging | ||||||
Weight (Kg) | 750 | 1000 | 1300 | 1500 | |||
Dimension (mm) | 950*790 *1200 | 1664*1453 *1487 | 1670*1460 *1620 | 1860*1650 *1780 | |||
Item | HWCP330 | HWCP500 | HWCP750 | HWCP1000 | HWCP1250 | ||||
Feeding Volume (L) | 500 | 750 | 1125 | 1500 | 1875 | ||||
Feeding Capacity (Kg) | 790 | 1200 | 1800 | 2400 | 3000 | ||||
Output Volume (L) | 330 | 500 | 750 | 1000 | 1250 | ||||
Mixing Power (Kw) | 15 | 18.5 | 30 | 37 | 45 | ||||
Mixing Star * Blade | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | ||||
Side Scraper | 1 | ||||||||
Discharge Scraper | 1 | ||||||||
Discharging Power (KW) | Pneumatic/ hydraulic discharging | 3 | |||||||
Weight (Kg) | 2000 | 2400 | 3900 | 5500 | 6000 | ||||
Dimension (mm) | 1870*1870 *1855 | 2230*2080 *1880 | 2580*2340 *2195 | 2891*2602 *2237 | 3058*2756 *2395 | ||||
Item | HWCPM1500 | HWCPM2000 | HWCPM2500 | HWCPM3000 | HWCPM4000 | ||||
Feeding Volume (L) | 2250 | 3000 | 3750 | 4500 | 6000 | ||||
Feeding Capacity (Kg) | 3600 | 4800 | 6000 | 7200 | 9600 | ||||
Output Volume (L) | 1500 | 2000 | 2500 | 3000 | 4000 | ||||
Mixing Power (Kw) | 55 | 75 | 90 | 110 | 960 | ||||
Mixing Star * Blade | 2*2 | 3*2 | 3*3 | 3*3 | 3*3 | ||||
Side Scraper | 1 | ||||||||
Discharge Scraper | 1 | 2 | |||||||
Discharging Power (KW) | 3 | 4 | |||||||
Weight (Kg) | 6500 | 9200 | 11000 | 12000 | 17500 | ||||
Dimension (mm) | 3223*2902 *2470 | 3625*3230 *2695 | 3893*3550 *2875 | 3893*3550 *3085 | 4594*4150 *3634 | ||||

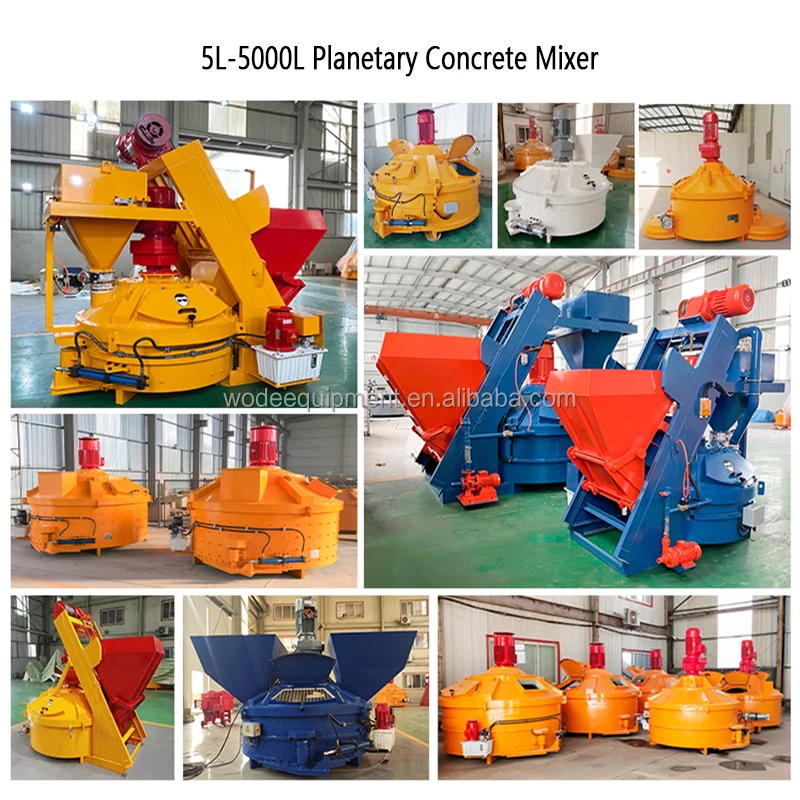

Product display
Application
Related Products
Packaging and delivery
Contact Supplier
Contact us for planetary concrete mixer catalog and price
In order to confirm which type planetary concrete mixer suitable for your job, could you please help us to confirm the following information:
1. What is your project with our mixer, for mixing concrete or refractory?
2. What is the mixing capacity you require?
3. Do you need pneumatic discharge door or hydraulic discharge door?
4. What is the voltage you require?
3. Do you need pneumatic discharge door or hydraulic discharge door?
4. What is the voltage you require?
We could customize planetary concrete mixer according to requirement.If you are interested in our products, please contact us freely .And click here. https://message.alibaba.com/msgsend/contact.htm?spm=a2700.shop_index.88.dctmsg.11075435dFTao3&action=contact_action&domain=2&id=284468362&id_f=IDX10nfuP6SeZqxn9bJFcID-qFcH7RMjvH0M5FA4ikb3lDtVQIpy2DDNcEjHLFmsQq8D&tracelog=from_shop&mloca=shop
