15 Years working life 48v100ah custom diy li ion lifepo4 lithium battery pack with SMART BMS
- Category: >>>
- Supplier: Hefei Yangtze Solar Power Co. Ltd.
Share on (1601214940548):
Product Overview
Description
Product Description
15 Years working life 48v100ah custom diy li ion lifepo4 lithium battery pack with SMART BMS
Key Features :
♦Longer Cycle Life : Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership
♦Lighter Weight : About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries
♦Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity
♦Wider Temperature Range : -20℃~60℃
♦Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging or short circuit situation
Applications :
♦Wheelchairs and scooters
♦Solar/wind energy storage
♦Back-up power for small UPS
♦Golf trolleys & buggies
♦Electric bikes
Electrical Characteristics | Nominal Voltage | 51.2V |
Nominal Capacity | 200Ah | |
Energy | 10240Wh | |
Internal Resistance(AC) | ≤20mΩ | |

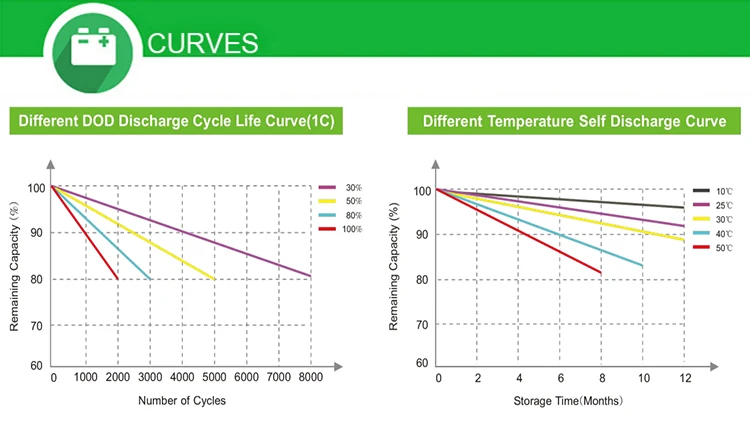

Cycle Life | >3500 cycles @ 1C 80% DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 58.4±0.2V |
Charge Mode | 0.2C to 58.4V, then 58.4V, charge current to 0.02C(CC/CV) | |
Charge Current | 50A | |
Max. Charge Current | 100A | |
Charge Cut-off Voltage | 59.4±0.2V | |
Standard Discharge | Continuous Current | 100A |
Max.Pulse Current | 120A(<3s) | |
Discharge Cut-off Voltage | 40V | |
Environmental | Charge Temperature | 0ºC to 55ºC (32F to 131F) @60±25% Relative Humidity |
Discharge Temperature | -20ºC to 60ºC (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | -20ºC to 45ºC (-4F to 113F) @60±25% Relative Humidity | |
IP Class | IP65/IP30 | |
Mechanical | Plastic Case | ABS/Metal |
Approx.Dimensions | 930*550*200mm/Customized | |
Approx.Weight | 112kg |
Packaging & Shipping
Company Information

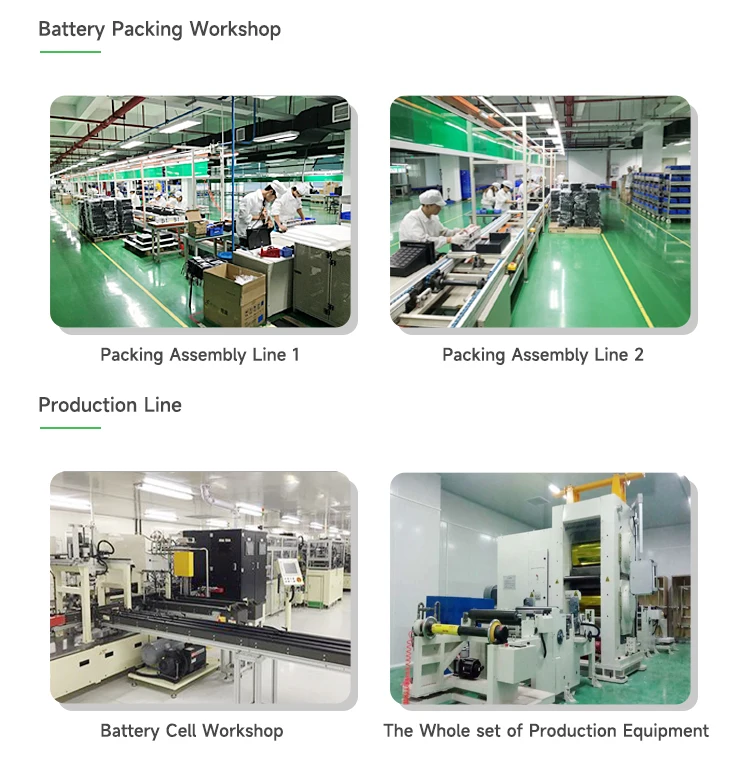

♦ Battery factory Founded in 1996 , 2 million batteries annual production capacity
♦ Products including Lithium battery , valve regulated lead acid battery , Gel battery , deep cycle battery , OPzV and OPzS battery
♦ Products are exported to more than 150 countries
♦ Products are certified by CE ,Rohs
♦ Mature and very well respected AGM and GEL technologies for valve-regulated lead-acid batteries ranging from 2Ah to 3000Ah
