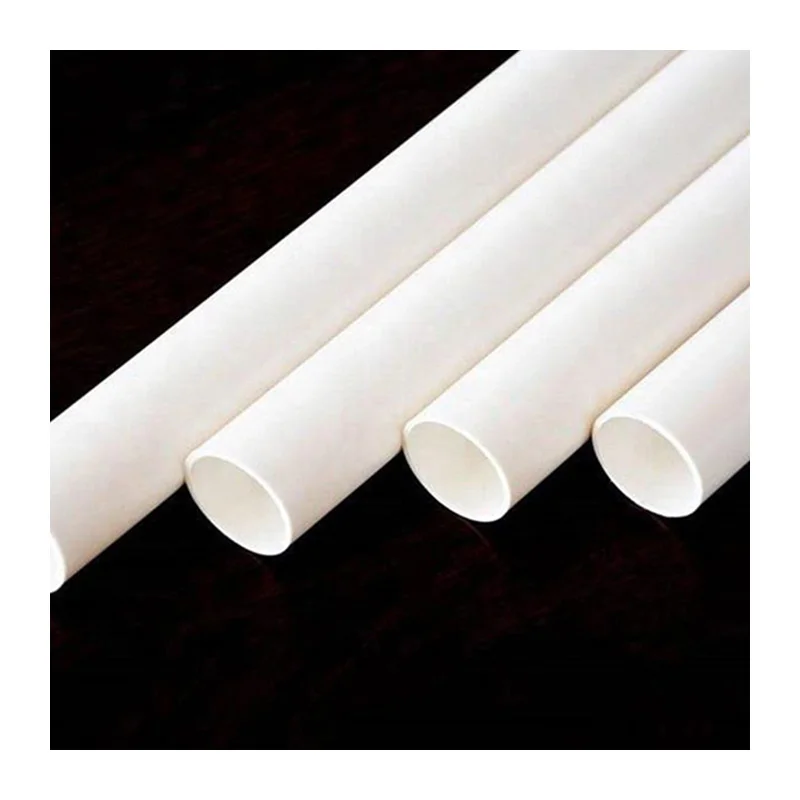

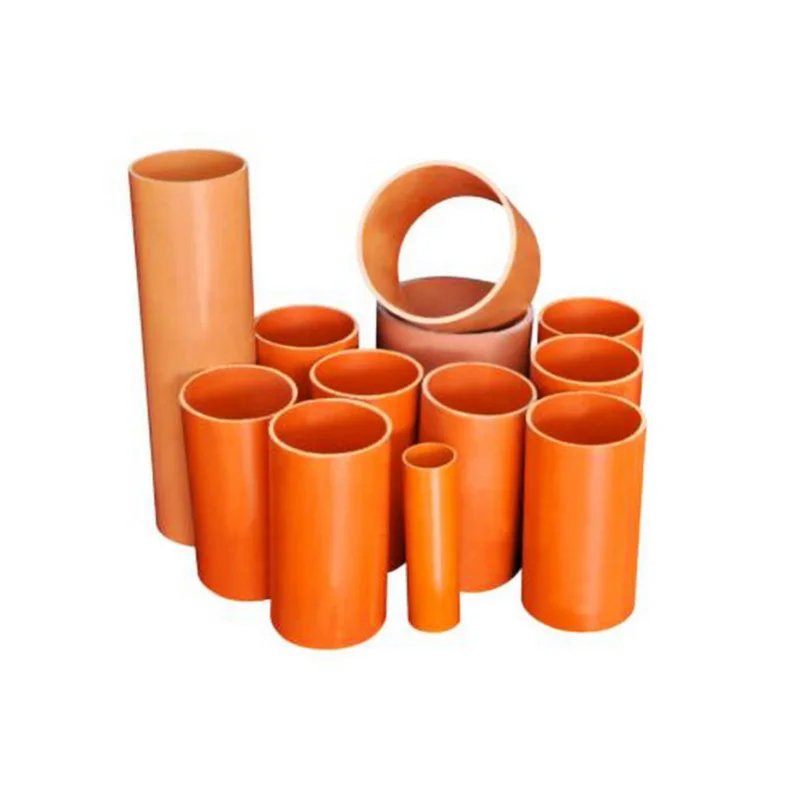

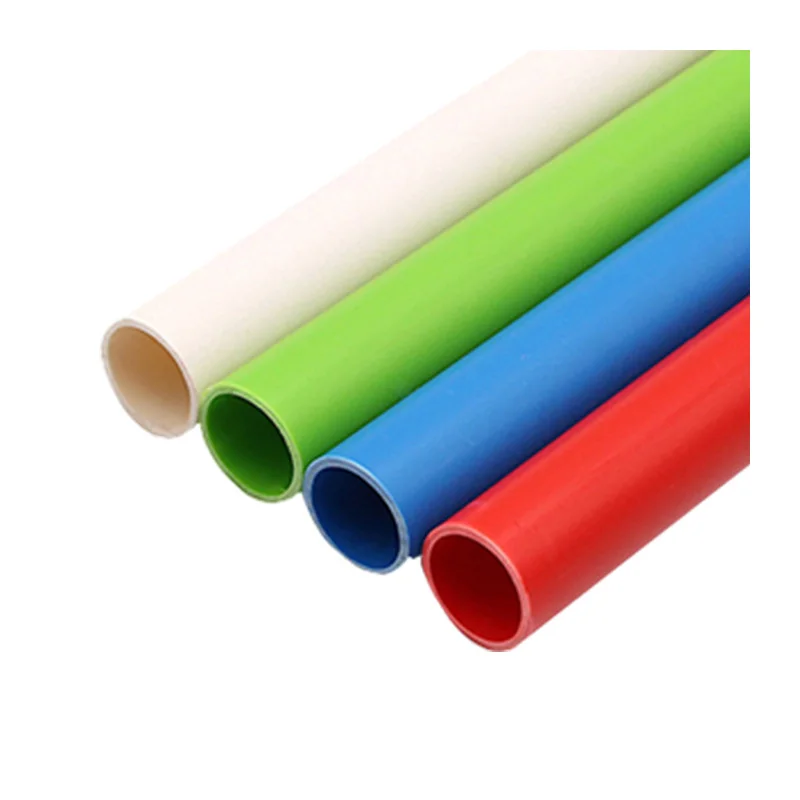

DWV Plumbing Pipe PVC Drainage Sewer Pipe for Waste Water
- Category: >>>
- Supplier: Hebei Zhuoshi Pipeline Technology Co. Ltd.
Share on (1601215081849):
Product Overview
Description
Products Description
Specification:
Norminal | SDR33 | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | SDR9 | ||||||||
Dia | 0.63 MPa | 0.8 MPa | 1.0 MPa | 1.25 MPa | 1.6 MPa | 2.0 MPa | 2.5 MPa | ||||||||
mm | Thickness | ||||||||||||||
20 | 2 | 2.3 | |||||||||||||
25 | 2 | 2.3 | 2.8 | ||||||||||||
32 | 2 | 2.4 | 2.9 | 3.6 | |||||||||||
40 | 2 | 2.4 | 3 | 3.7 | 4.5 | ||||||||||
50 | 2 | 2.4 | 3 | 3.7 | 4.6 | 5.6 | |||||||||
63 | 2 | 2.5 | 3 | 3.8 | 4.7 | 5.8 | 7.1 | ||||||||
75 | 2.3 | 2.9 | 3.6 | 4.5 | 5.6 | 6.9 | 8.4 | ||||||||
90 | 2.8 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 | 10.1 | ||||||||
Norminal | SDR51 | SDR41 | SDR33 | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | |||||||
Dia | 0.5MPa | 0.63 MPa | 0.8 MPa | 1.0 MPa | 1.25 MPa | 1.6 MPa | 2.0 MPa | 2.5 MPa | |||||||
mm | Thickness | ||||||||||||||
110 | 2.7 | 3.4 | 4.2 | 5.3 | 6.6 | 8.1 | 10 | ||||||||
125 | 3.1 | 3.9 | 4.8 | 6 | 7.4 | 9.2 | 11.4 | ||||||||
140 | 3.5 | 4.3 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 | ||||||||
160 | 4 | 4.9 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 | ||||||||
180 | 4.4 | 5.5 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 | ||||||||
200 | 4.9 | 6.2 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 | ||||||||
225 | 5.5 | 6.9 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 | ||||||||
250 | 6.2 | 7.7 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 | ||||||||
280 | 6.9 | 8.6 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 | ||||||||
315 | 7.7 | 9.7 | 12.1 | 15 | 18.7 | 23.2 | 28.6 | ||||||||
355 | 8.7 | 10.9 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 | ||||||||
400 | 9.8 | 12.3 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 | ||||||||
450 | 11 | 13.8 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 | ||||||||
500 | 12.3 | 15.3 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 | ||||||||
560 | 13.7 | 17.2 | 21.4 | 26.7 | 33.2 | 41.2 | |||||||||
630 | 15.4 | 19.3 | 24.1 | 30 | 37.4 | 46.3 | |||||||||
710 | 17.4 | 21.8 | 27.2 | 33.9 | 42.1 | 52.2 | |||||||||
800 | 15.7 | 19.6 | 24.5 | 30.6 | 38.1 | 47.4 | |||||||||
900 | 17.6 | 22 | 27.6 | 34.4 | 42.9 | 53.3 | |||||||||
1000 | 19.6 | 24.5 | 30.6 | 38.2 | 47.7 | ||||||||||
1200 | 23.5 | 29.4 | 36.7 | 45.9 | |||||||||||
Norminal | CR8-SDR34 | CR4-SDR41 | CR2-SDR52 | ||||||||||||
Dia | Thickness mm | daN/m | Thickness mm | daN/m | Thickness mm | daN/m | |||||||||
110 | 3.0 | 1400 | 3.0 | 1400 | |||||||||||
125 | 3.7 | 2500 | 3.0 | 1700 | |||||||||||
160 | 4.7 | 3200 | 3.5 | 2100 | 3.2 | 1600 | |||||||||
200 | 5.9 | 4950 | 4.7 | 3240 | 3.9 | 1800 | |||||||||
250 | 7.3 | 7500 | 6.1 | 4320 | 4.9 | 2250 | |||||||||
315 | 9.2 | 9200 | 7.7 | 5310 | 6.2 | 2835 | |||||||||
355 | 10.4 | 11015 | 8.7 | 6200 | 7.0 | 3300 | |||||||||
400 | 11.7 | 14830 | 9.8 | 6910 | 7.8 | 3600 | |||||||||
450 | 13.2 | 15100 | 11.0 | 7900 | 8.8 | 4050 | |||||||||
500 | 14.6 | 15500 | 12.3 | 8900 | 9.8 | 4500 | |||||||||
630 | 18.4 | 17200 | 15.4 | 9900 | 12.3 | 5626 | |||||||||
Features:
1.The PVC pipe easy to installation for underground due to light characterized,
2.PVC pipe can be prefered in big depth of the underground because of their strong speciality,
3.The value of SN numbers on the PVC pipes can be adapt very easy to the Sewage lines for years.
4.Due to light advantage of PVC Pipes, it’s easy to loading and unloading to the vehicles for transportation od them.
5.Pvc Pipes can be manufacture in desired size, pressure numbers and thicknesses according to projects needed,
6.PVC pipes also used as perforated pipes on the drainage projects
2.PVC pipe can be prefered in big depth of the underground because of their strong speciality,
3.The value of SN numbers on the PVC pipes can be adapt very easy to the Sewage lines for years.
4.Due to light advantage of PVC Pipes, it’s easy to loading and unloading to the vehicles for transportation od them.
5.Pvc Pipes can be manufacture in desired size, pressure numbers and thicknesses according to projects needed,
6.PVC pipes also used as perforated pipes on the drainage projects
Applications:
1.PVC Pipes uses in pressure water / potable water network,
2.Sewage networks are an area of PVC pipes usage,
3.PVC Pipes used in canalisation projects,
4.PVC Pipes uses as cable protection pipes,
5.An area also of PVC Pipe is uses for industrial area,
6.PVC Pipe can be uses for inbuilding projects,
7.PVC Pipes uses for sewerlines.
8.PVC pipes preferred also in drainage lines.
2.Sewage networks are an area of PVC pipes usage,
3.PVC Pipes used in canalisation projects,
4.PVC Pipes uses as cable protection pipes,
5.An area also of PVC Pipe is uses for industrial area,
6.PVC Pipe can be uses for inbuilding projects,
7.PVC Pipes uses for sewerlines.
8.PVC pipes preferred also in drainage lines.
Manufacturing Technique
Fittings
Company Profile
Hebei Zhuoshi Pipeline Technology CO., Ltd.
Hebei Zhuoshi Pipeline Technology CO., Ltd. is a high-tech enterprise integrating design, production, sales, construction power,municipal administration, communication and energy. We adhere to the principle of taking scientific and technological innovationas the core,promoting the development of productivity,taking innovative talents as the benchmark, improving the competitiveness ofcore science and technology,insisting on scientific and technological innovation to promote the integration of innovativeresources, and forming a joint force of enterprise innovation!
Our main products include: PVC Pipe for Electrical Cable Protection, MPP Pipes for Electrical Communication Cable Protection,PVCGrid Pipe,HDPE Water Pipe,PVC water Pipe,SRTP pipe,FRP Pipe,Hdpe Double Wall Corrugated Pipe,HDPE Porous Pipe,N—HAP Pipe and manyother plastic pipe series.
We continuously increases the investment in scientific and technological innovation,introduces talents boldly,and deepened cooperation with institutions of higher education to provide a strong guarantee for the excellent quality of pipelines;Pipes are widely used in construction water supply and drainage,hydraulic engineering projects,municipal engineering,power communication protection,gas transmission,agricultural irrigation,chemical sewage and other fields. At present, we has set up an intensive sales net work in central China, north China, east China, southwest China, northwest China and other places, which can provide end users with high-quality products and good service of pre-sale, in-sale and after-sale timely.
We continuously enlarge the marketing channels, innovate and improve production process and enter market with our own brand.We have established good corporate image in market and industry based on our superior quality and first-class reputation.Our company is developing rapidly with our innovative technology,perfect products and high-quality services.Meanwhile, we will share the development and the bright future with our customers from all over the world!
Our main products include: PVC Pipe for Electrical Cable Protection, MPP Pipes for Electrical Communication Cable Protection,PVCGrid Pipe,HDPE Water Pipe,PVC water Pipe,SRTP pipe,FRP Pipe,Hdpe Double Wall Corrugated Pipe,HDPE Porous Pipe,N—HAP Pipe and manyother plastic pipe series.
We continuously increases the investment in scientific and technological innovation,introduces talents boldly,and deepened cooperation with institutions of higher education to provide a strong guarantee for the excellent quality of pipelines;Pipes are widely used in construction water supply and drainage,hydraulic engineering projects,municipal engineering,power communication protection,gas transmission,agricultural irrigation,chemical sewage and other fields. At present, we has set up an intensive sales net work in central China, north China, east China, southwest China, northwest China and other places, which can provide end users with high-quality products and good service of pre-sale, in-sale and after-sale timely.
We continuously enlarge the marketing channels, innovate and improve production process and enter market with our own brand.We have established good corporate image in market and industry based on our superior quality and first-class reputation.Our company is developing rapidly with our innovative technology,perfect products and high-quality services.Meanwhile, we will share the development and the bright future with our customers from all over the world!
Certifications
Why Choose Us
Exhibition
Q1. Are you trading company or manufacturer?
A: We are professional manufacturer and welcome to your visit at any time.
Q2. How long is your delivery time?
A: Generally it takes 5-10 days if the goods are in stock, which depends on your quantity and can be negotiable.
Q3: Do you provide samples?
A: Yes, of course, samples is available for small quantity we can supply for free.
Q4: What is your terms of payment?
A: L/C, Western Union, T/T 30% in advanced, balance before shipment.
Q5: For pipe fittings, what do you do mainly?
A: For fittings, coupling(socket), elbow,tee,reducer,union, valve,cap,some electrofusion fittings and compression fittings.
Q6: Can i have my own logo on the product?
A: Yes, sure, you just send us your drawing, we'll make logo for you, and before production we will confirm with you in advance.
Q7: Can i request to change the method of package and transportation?
A: Yes, the packing and trasportation can be as per your requirements.
A: We are professional manufacturer and welcome to your visit at any time.
Q2. How long is your delivery time?
A: Generally it takes 5-10 days if the goods are in stock, which depends on your quantity and can be negotiable.
Q3: Do you provide samples?
A: Yes, of course, samples is available for small quantity we can supply for free.
Q4: What is your terms of payment?
A: L/C, Western Union, T/T 30% in advanced, balance before shipment.
Q5: For pipe fittings, what do you do mainly?
A: For fittings, coupling(socket), elbow,tee,reducer,union, valve,cap,some electrofusion fittings and compression fittings.
Q6: Can i have my own logo on the product?
A: Yes, sure, you just send us your drawing, we'll make logo for you, and before production we will confirm with you in advance.
Q7: Can i request to change the method of package and transportation?
A: Yes, the packing and trasportation can be as per your requirements.
