Galvanized Plate Manual Bending Machine Pneumatic MS Sheet Bending Machine
$1,100.00-2,800.00
SUNTAY TDF Flange Folding Machine Duct Making Machinery
- Category: >>>
- Supplier: Suntay International Trade Co. Ltd.
Share on (1601215146920):
Product Overview
Description
Performance Features
TDF flange machine can be divided into three types according to the working requirements.
single type T-12 and T-15, duplex type 2-T-12. Single type machine like T-12 and T-15 can form flange edge at one side and

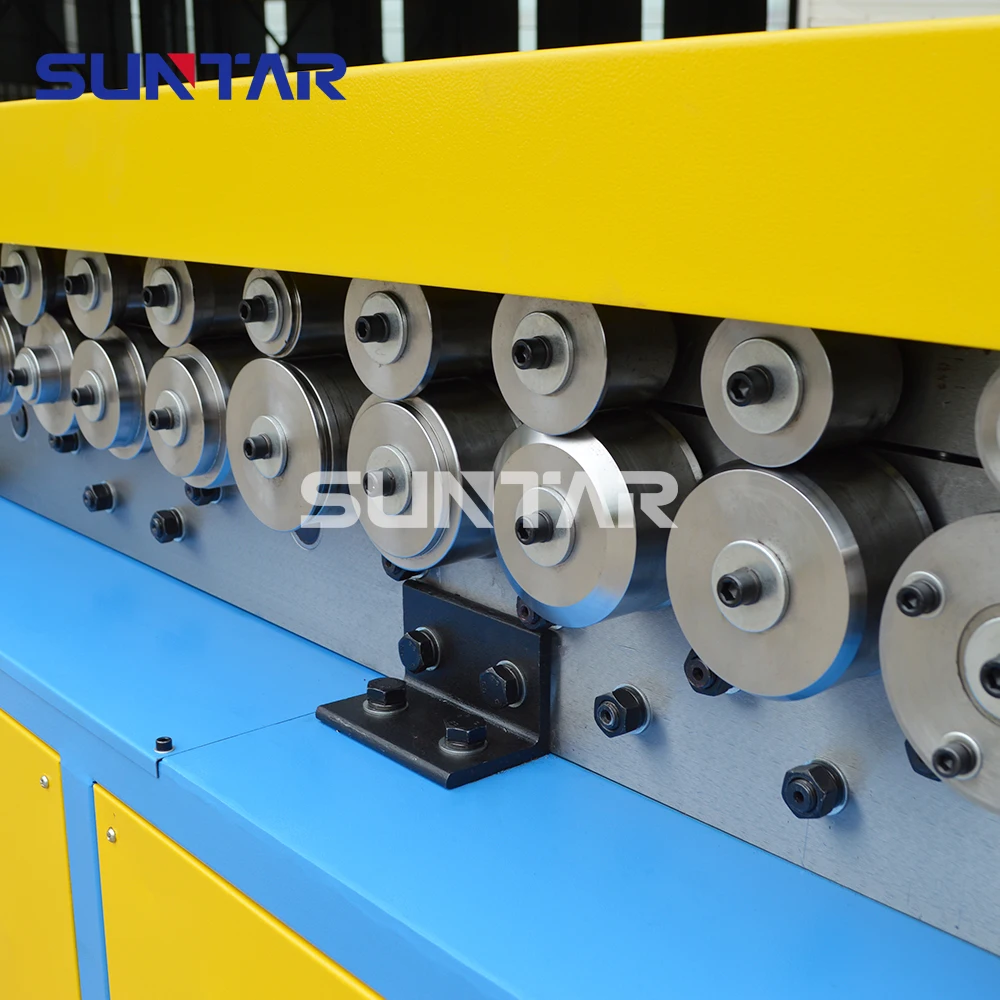

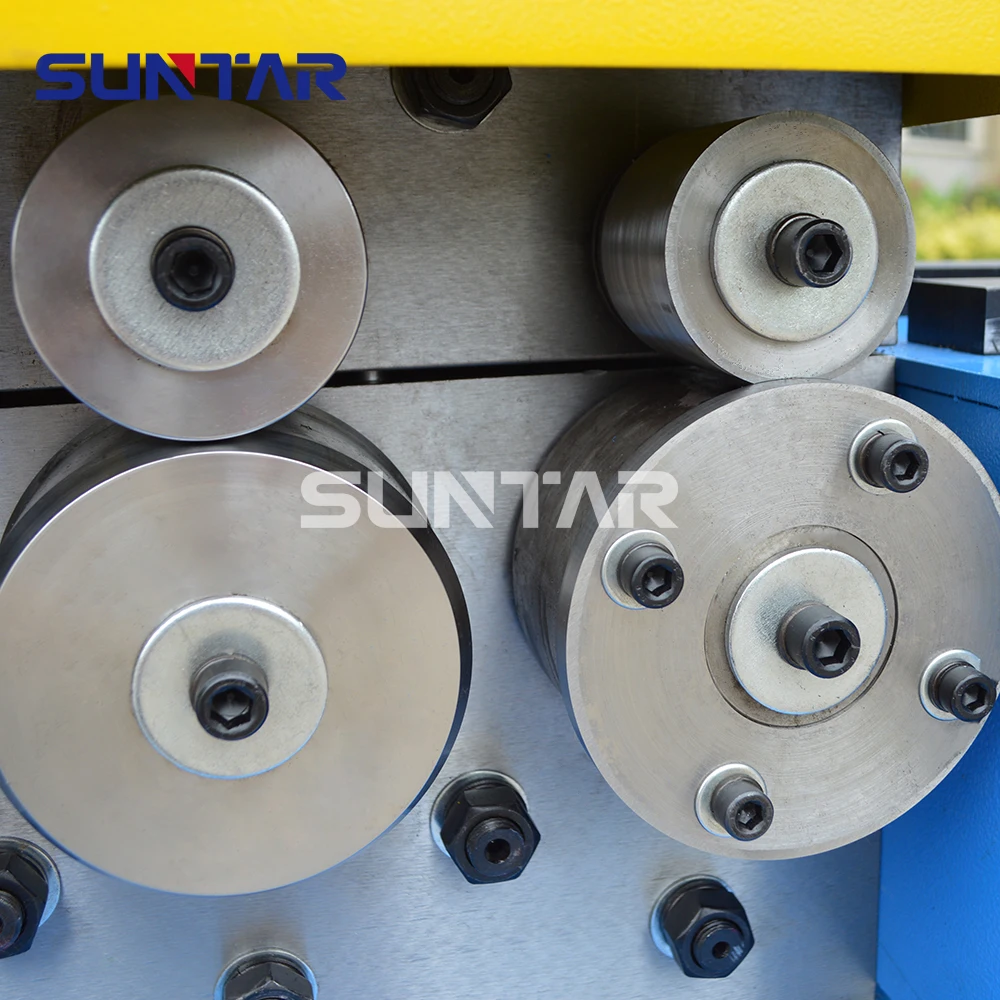

crispening edge at the other side; duplex type like 2-T-12 can form flange edge at both sides simultaneously to improve efficiency and save time. Additionally, duplex type can add flange edge or crispening edge outside at either side. Our company would specially introduce high-strength rolling reels made of GCr15, a kind of steel which prolongs the machine life more than 5 times than normal 45 steel, and also can produce stainless steel TDF flange.
Main Technical Parameters
Model | Sheet thickness(mm) | Power(KW) | Dimensions(mm) L*W*H | Weight(kg) |
T-12 | 0.5-1.2 | 3 | 2700*700*1110 | 840 |
T-15 | 0.8-1.5 | 3 | 2900*700*1100 | 940 |
