AC/DC 5kw 40A Power Growatt off Grid Hybrid Solar Power Energy Home Inverter with 48 VDC MPPT Charger for Household Use
- Category: >>>
- Supplier: Nuuko Power Co. Ltd.Nuuko Ltd.
Share on (1601215152613):
Product Overview
Description
Product Description
Specification
DATASHEET | SPF 3000TL HVM | SPF 5000TL HVM | ||
Battery voltage | 24VDC | 48VDC | ||
INVERTER OUTPUT | ||||
RATED POWER | 3000VA/ 3000W | 5000VA/ 5000W | ||

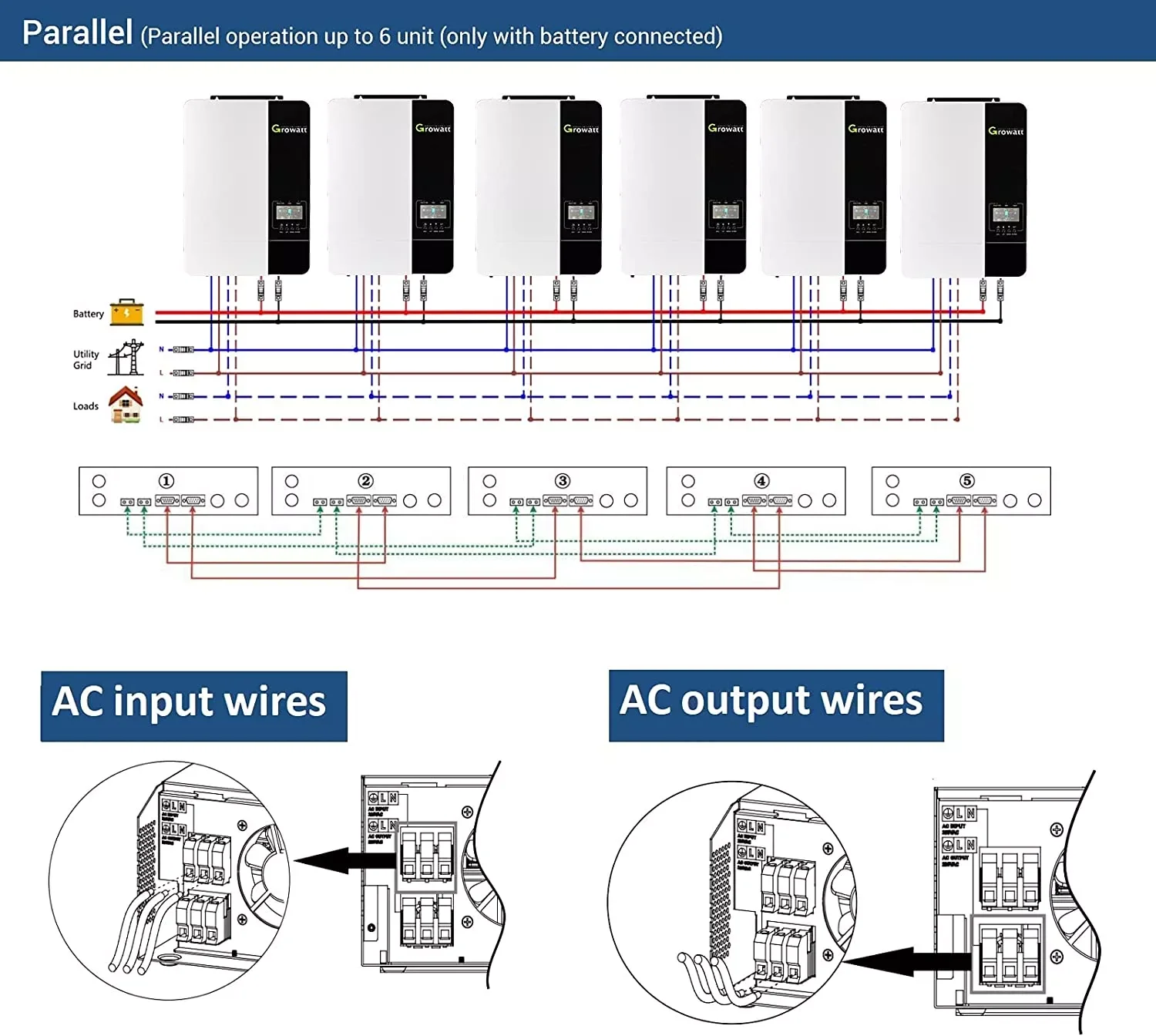

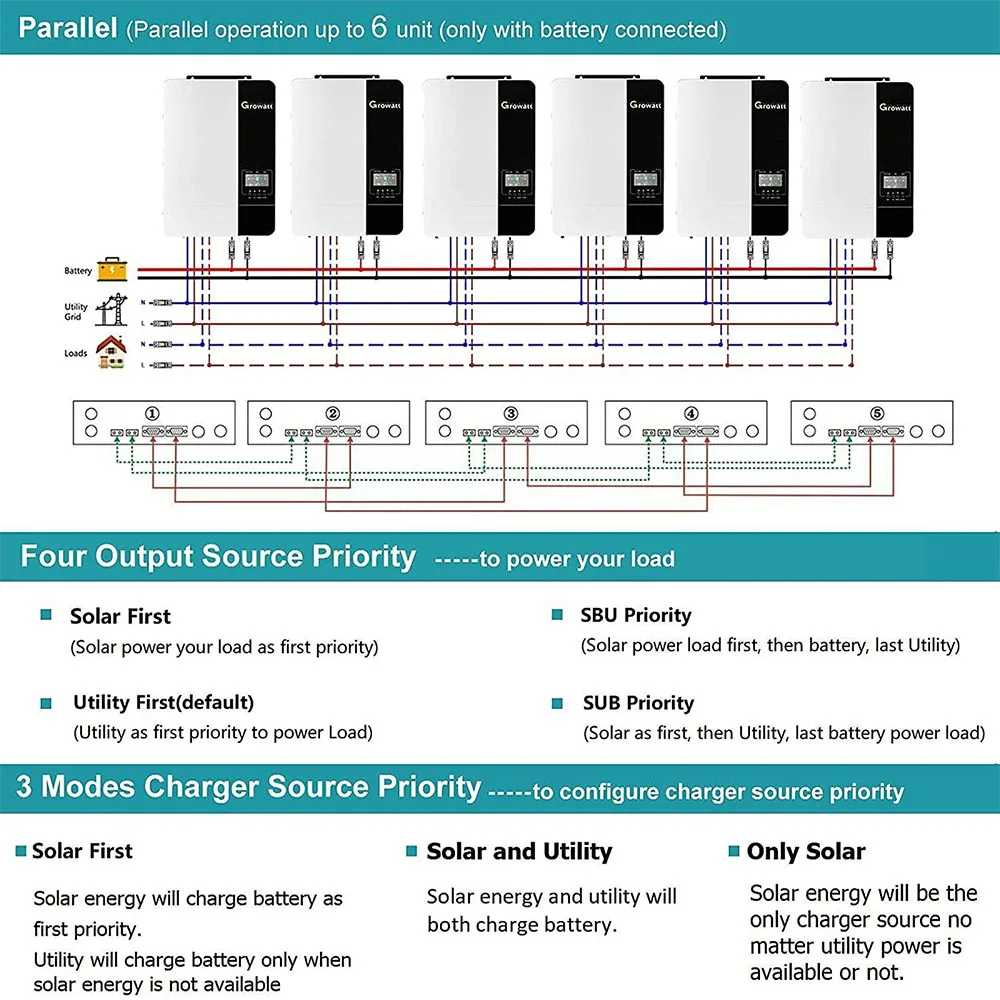

Parallel Capability | No | Yes 6 units | ||
AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz | 230VAC ± 5% @ 50/60Hz | ||
Surge Power | 6000VA | 10000VA | ||
Efficiency (Peak) | 93% | 93% | ||
Waveform | Pure sine wave | Pure sine wave | ||
Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | |||
SOLAR CHARGER | ||||
Maximum PV Array Power | 1500W | 4500W | ||
MPPT Range @ Operating Voltage | 30VDC ~ 80VDC | 60VDC ~115VDC | ||
Maximum PV Array Open Circuit Voltage | 102VDC | 145VDC | ||
Maximum Solar Charge Current | 50A | 80A | ||
Maximum Efficiency | 98% | 98% | ||
Standby Power Consumption | 2 W | 2 W | ||
AC CHARGER | ||||
Maximum AC Charge Current | 30A | 60A | ||
AC Input Voltage | 230 VAC | 230 VAC | ||
Selectable Voltage Rang | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | |||
Frequency Range | 50Hz/60Hz (Auto sensing) | 50Hz/60Hz (Auto sensing) | ||
PHYSICAL | ||||
Dimension (D/W/H) in mm | 130/315/400 | 130/350/455 | ||
Net Weight (kgs) | 8.5 | 11.5 | ||
OPERATING ENVIRONMENT | ||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | 5% to 95% Relative Humidity(Non-condensing) | ||
Operating Temperature | 0°C - 55°C | 0°C - 55°C | ||
Storage Temperature | -15°C - 60°C | -15°C - 60°C | ||
