2024 Airkey Cheap price ISO5 Vertical Laminar Air Flow
- Category: >>>
- Supplier: Airkey Envirotech Co. Ltd.Airkey Ltd.
Share on (1601215172733):
Product Overview
Description
Products Description

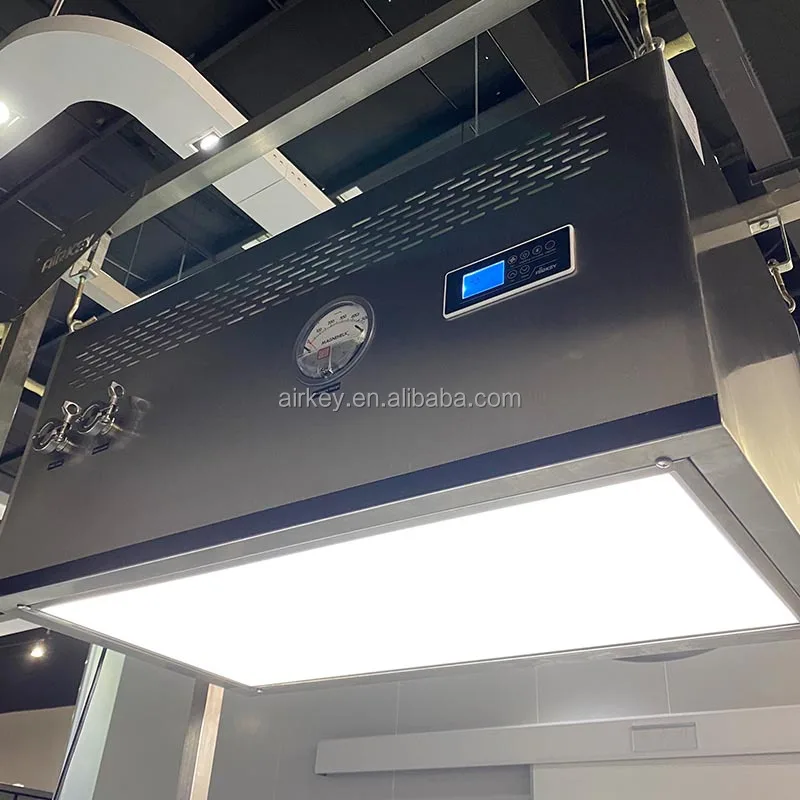

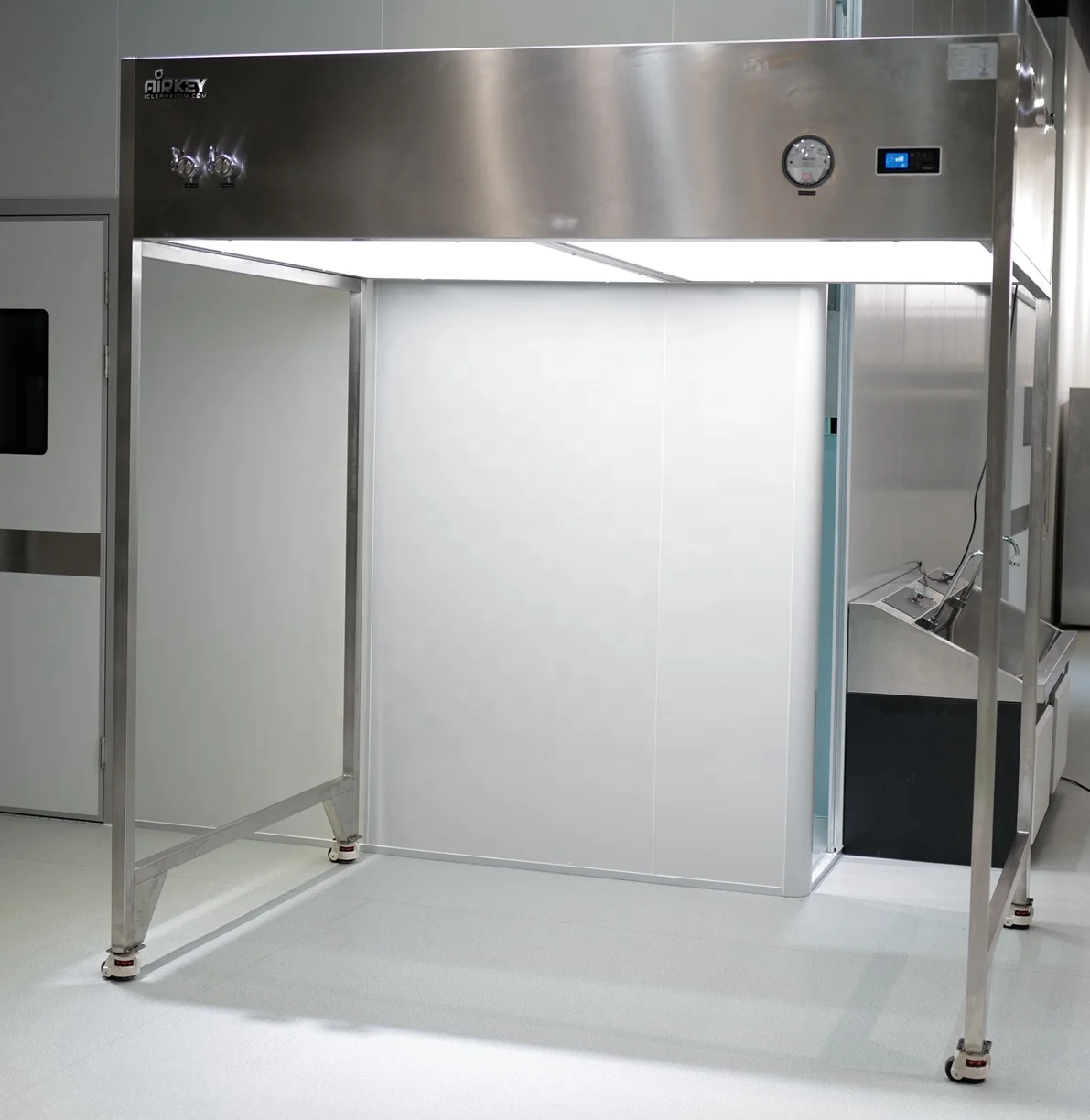

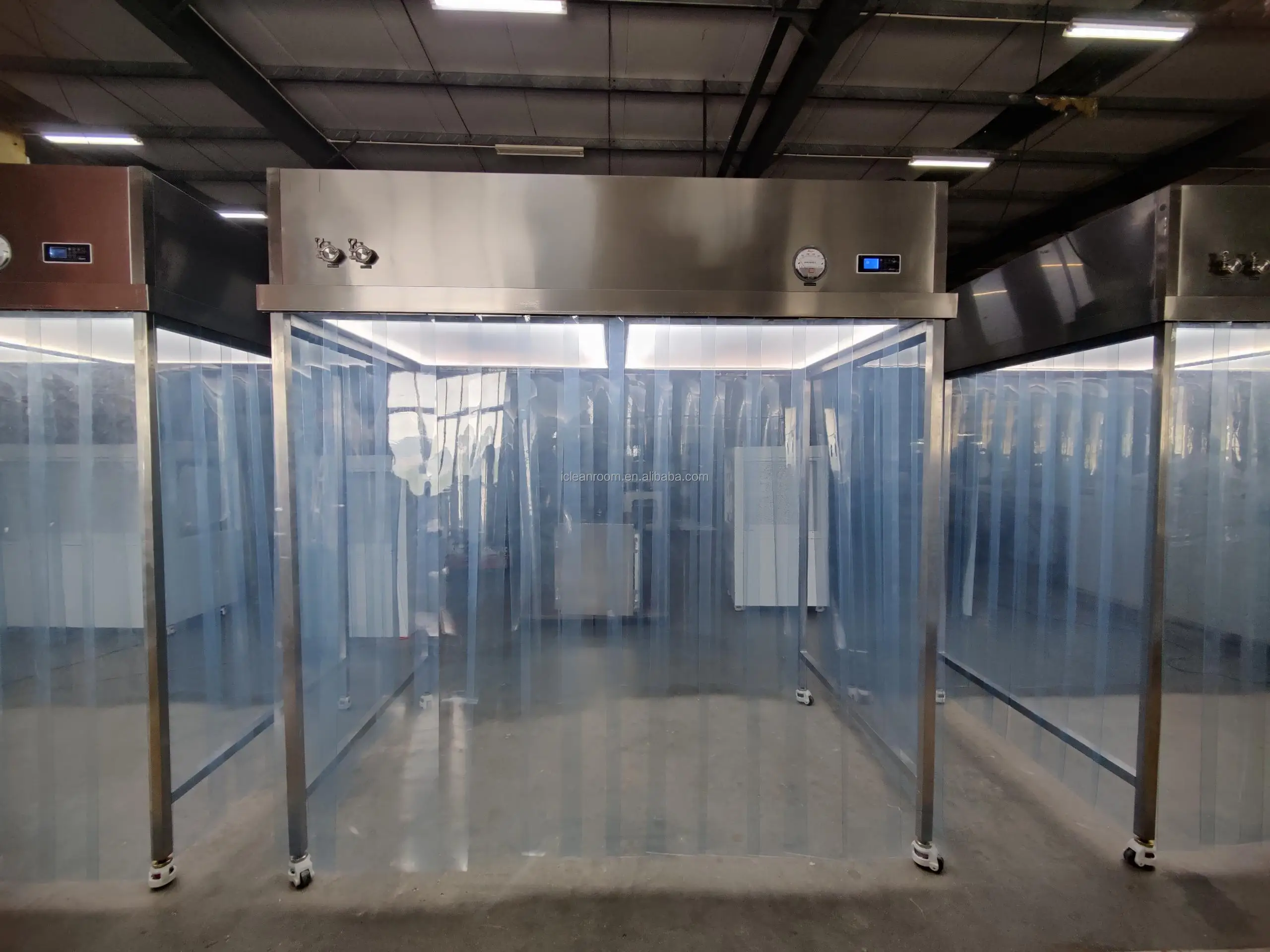

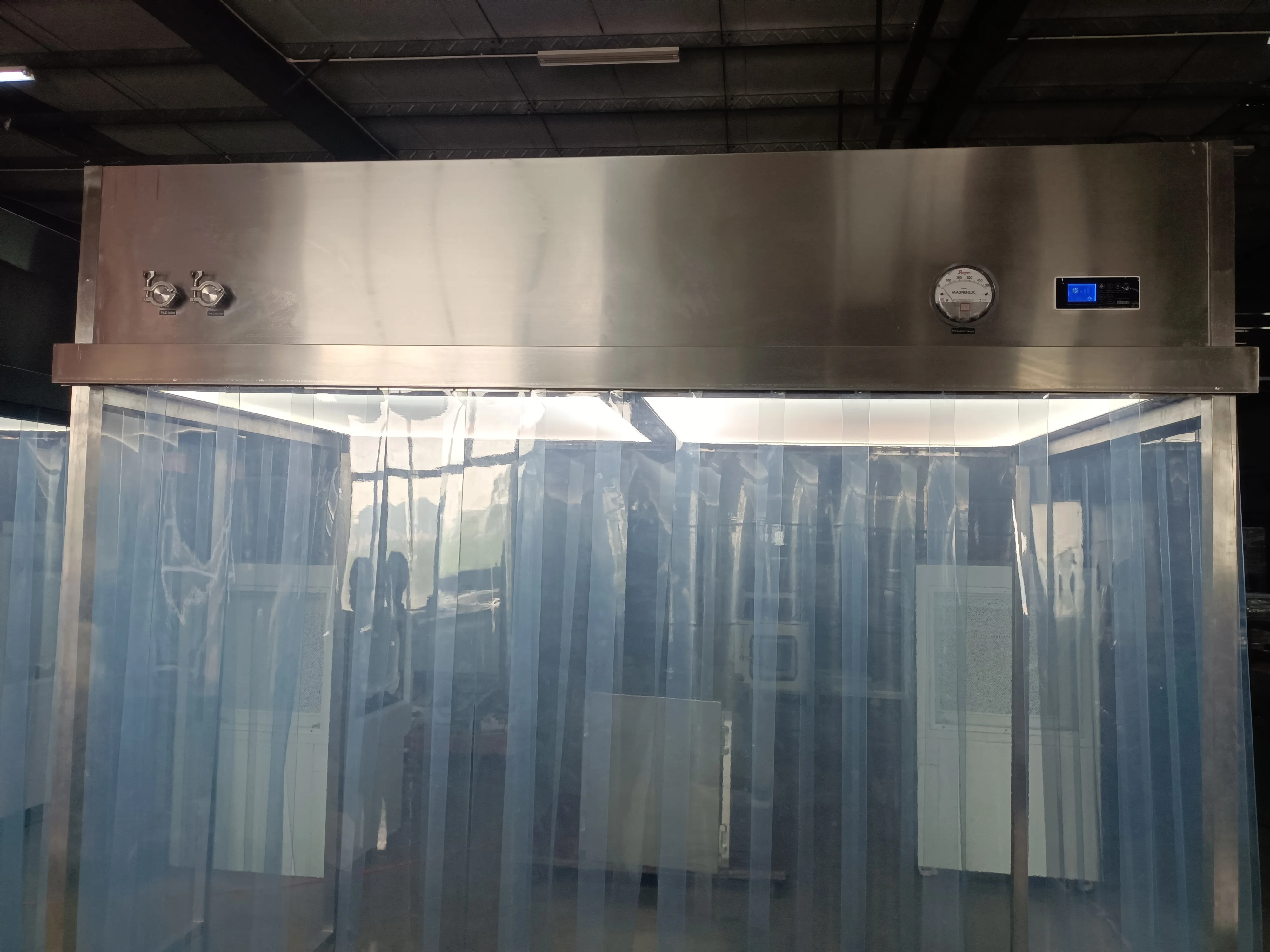

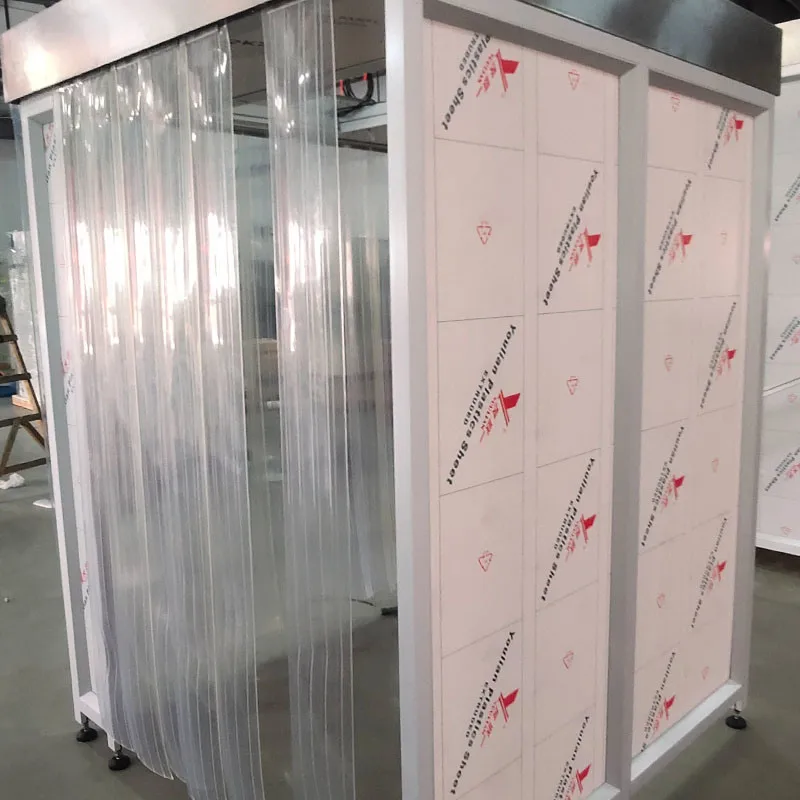

Mobile Laminar Air Flow is a vertical laminar flow equipment that provide a local ISO 5 dust-free and sterile environment. The LAF can create an ISO Class 5 or better air quality environment for sterile compounding by forming unidirectional HEPA-filter airflow. The LAF is widely used in different kind of industries that require a clean environment to ensure production air quality, such as bio-pharma, cosmetics, and food.The LAF can create a class A area in class B or class C classified area. Compared with directly build a class A clean room, it is more flexible, faster and economical. Ceiling Laminar flow hood is customizable: * Utilized as open restricted access barriers over filling and capping machines. * Stand alone units mounted via eye bolts and drop rods over specific applications. * Stand alone units mounted over mobile stands for mobile aseptic zones. | ||||||||

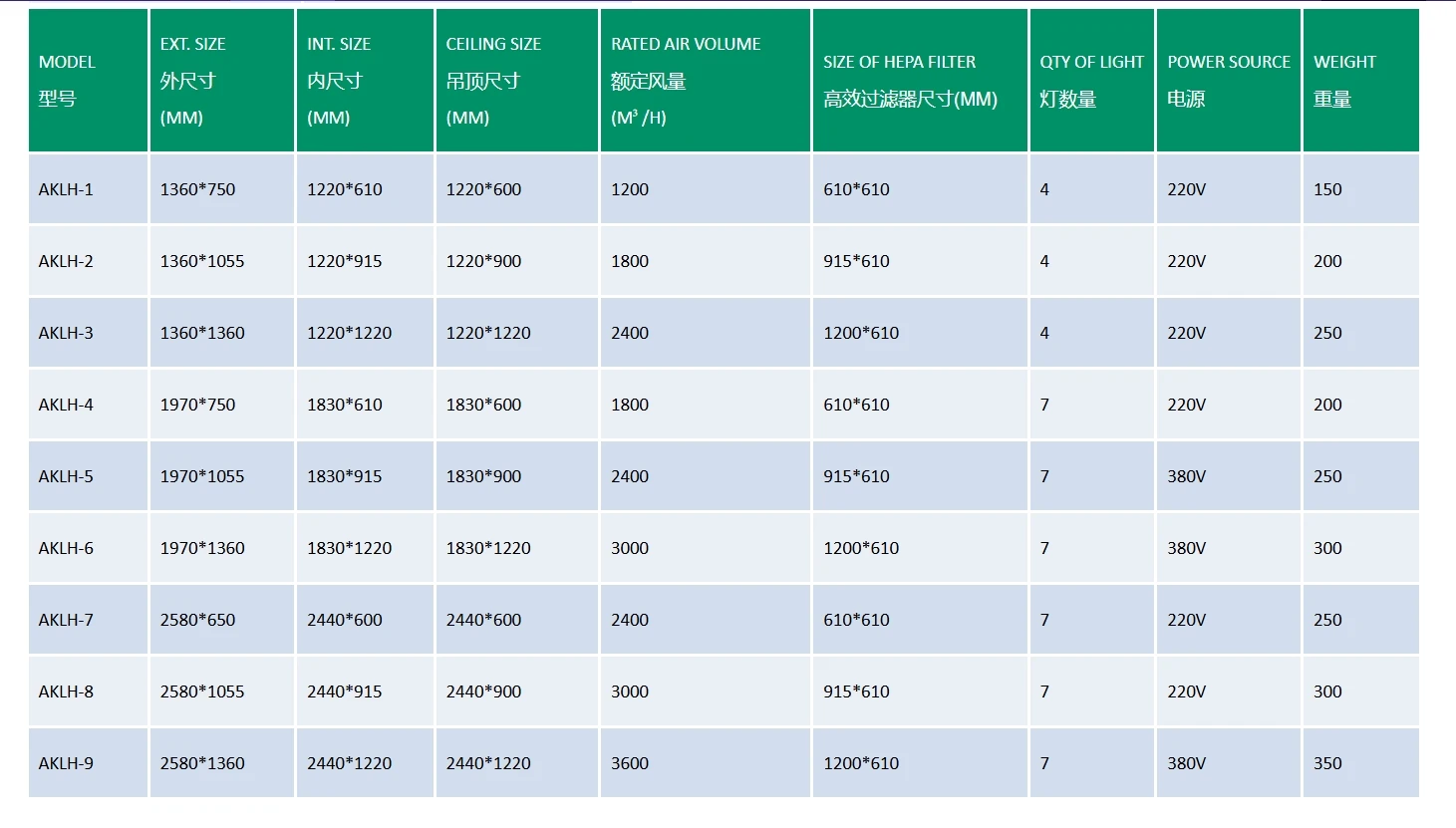

Technical Parameters
Features

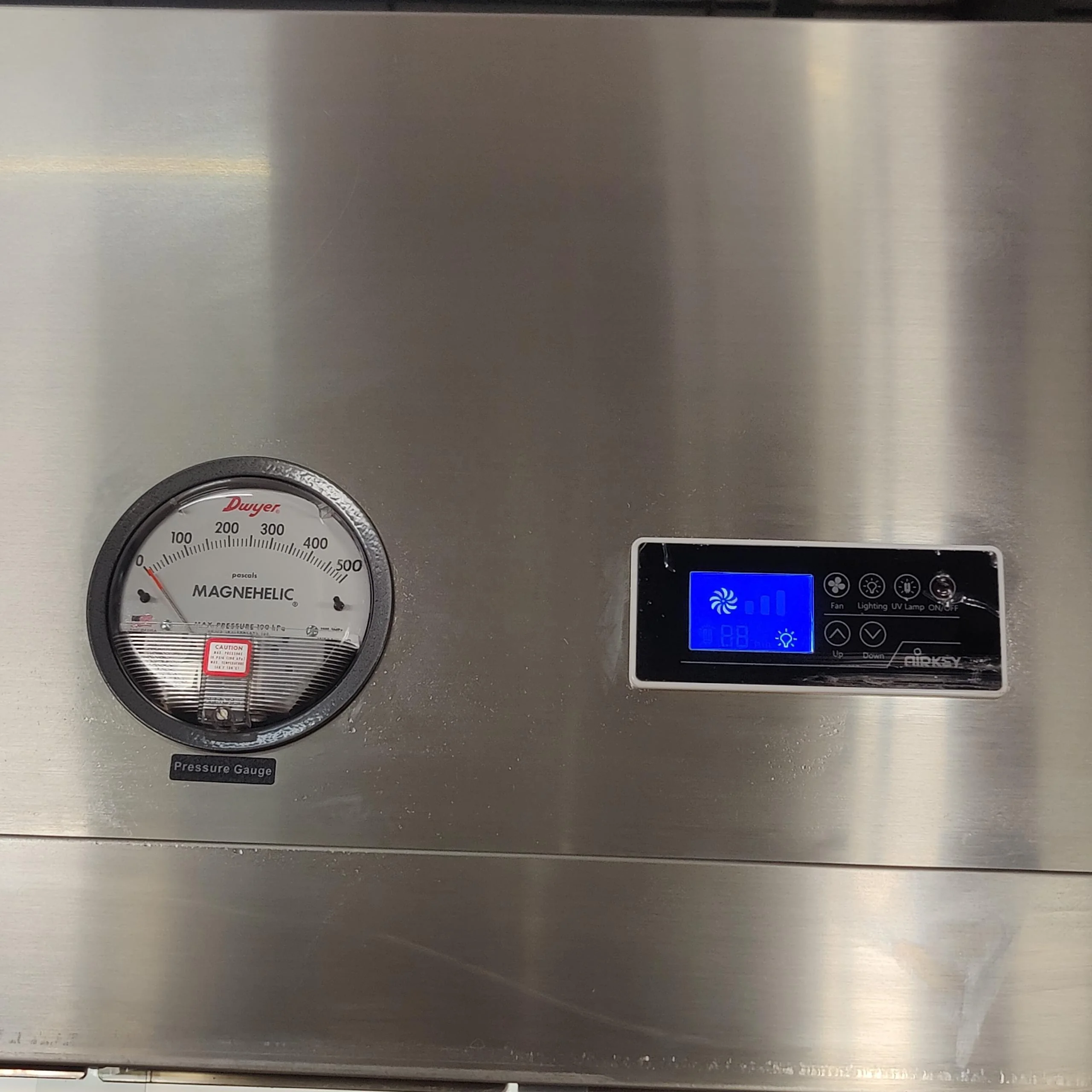

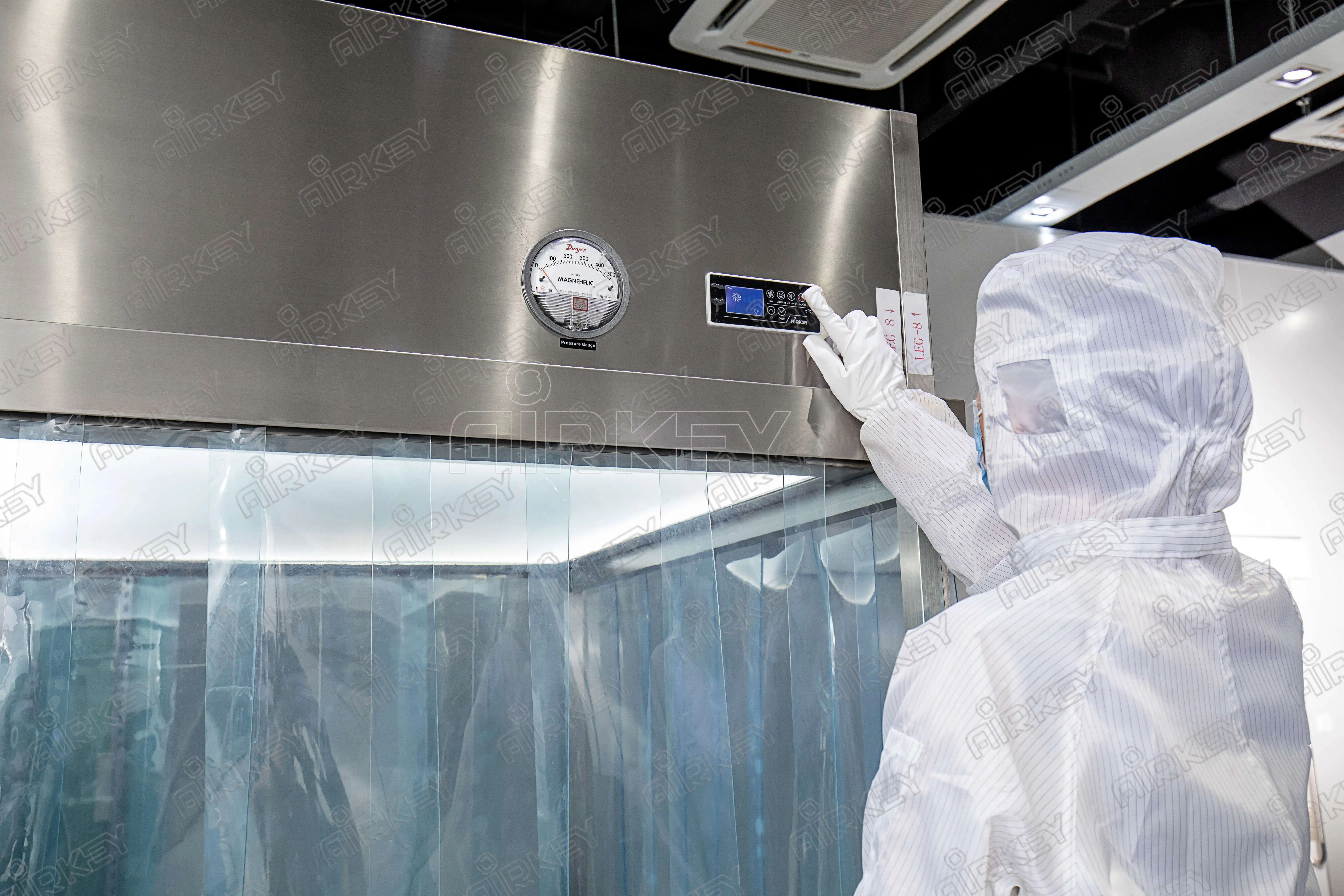

1.Control Panel
Placed in front of the LAF for turn on/off,speed control,LED light on/off and UV lamp on/off.

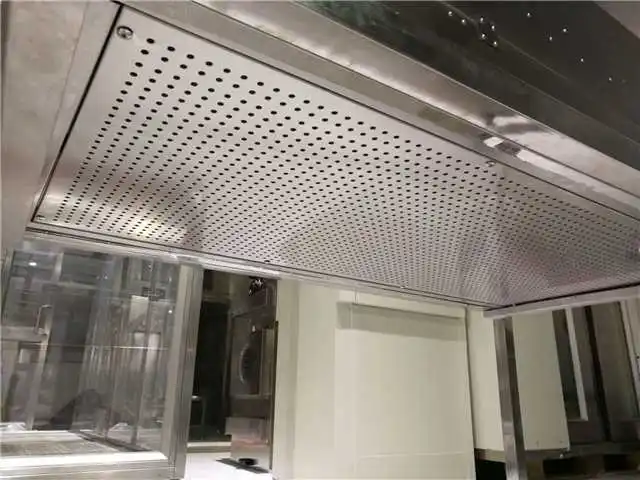

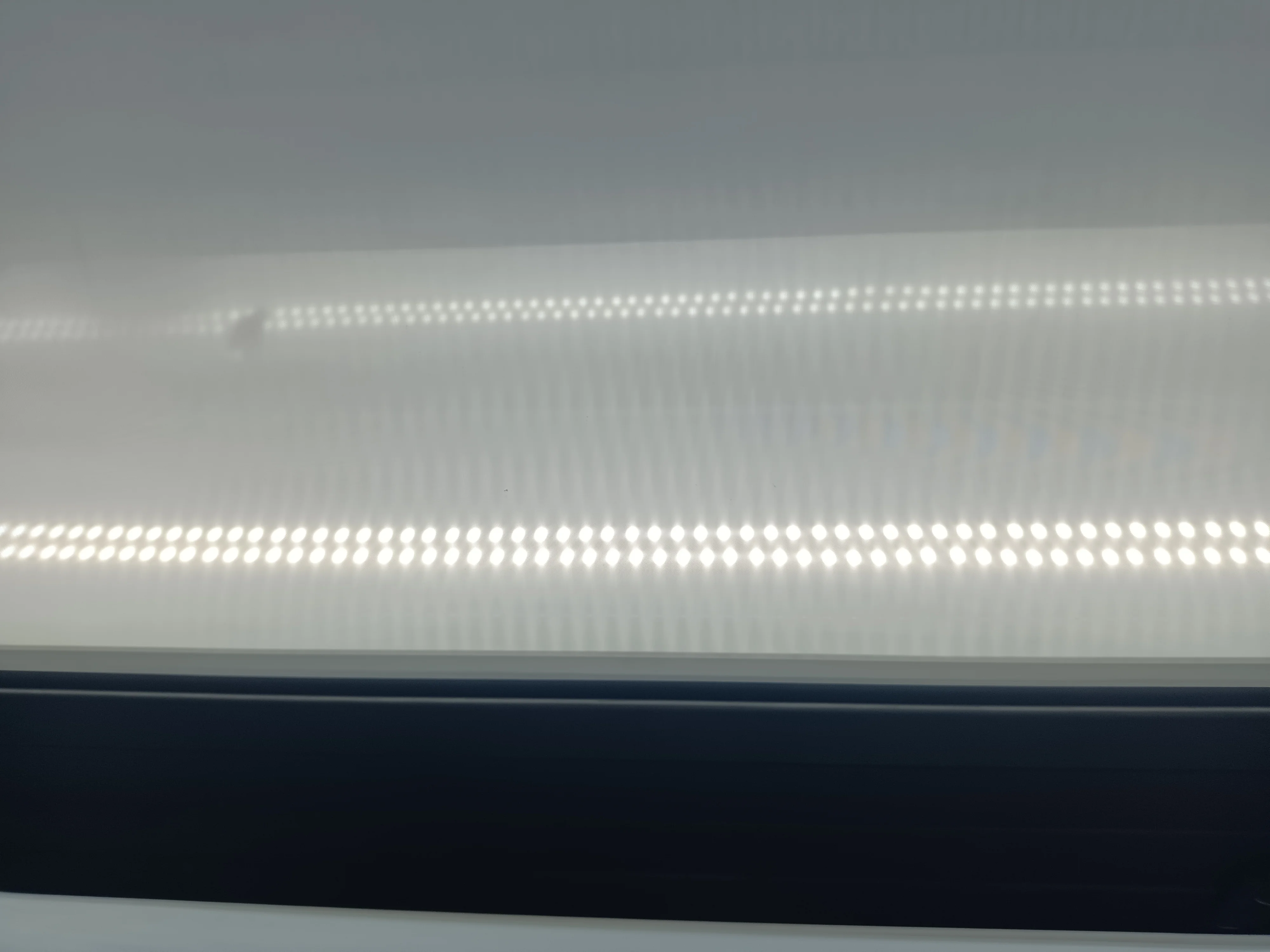

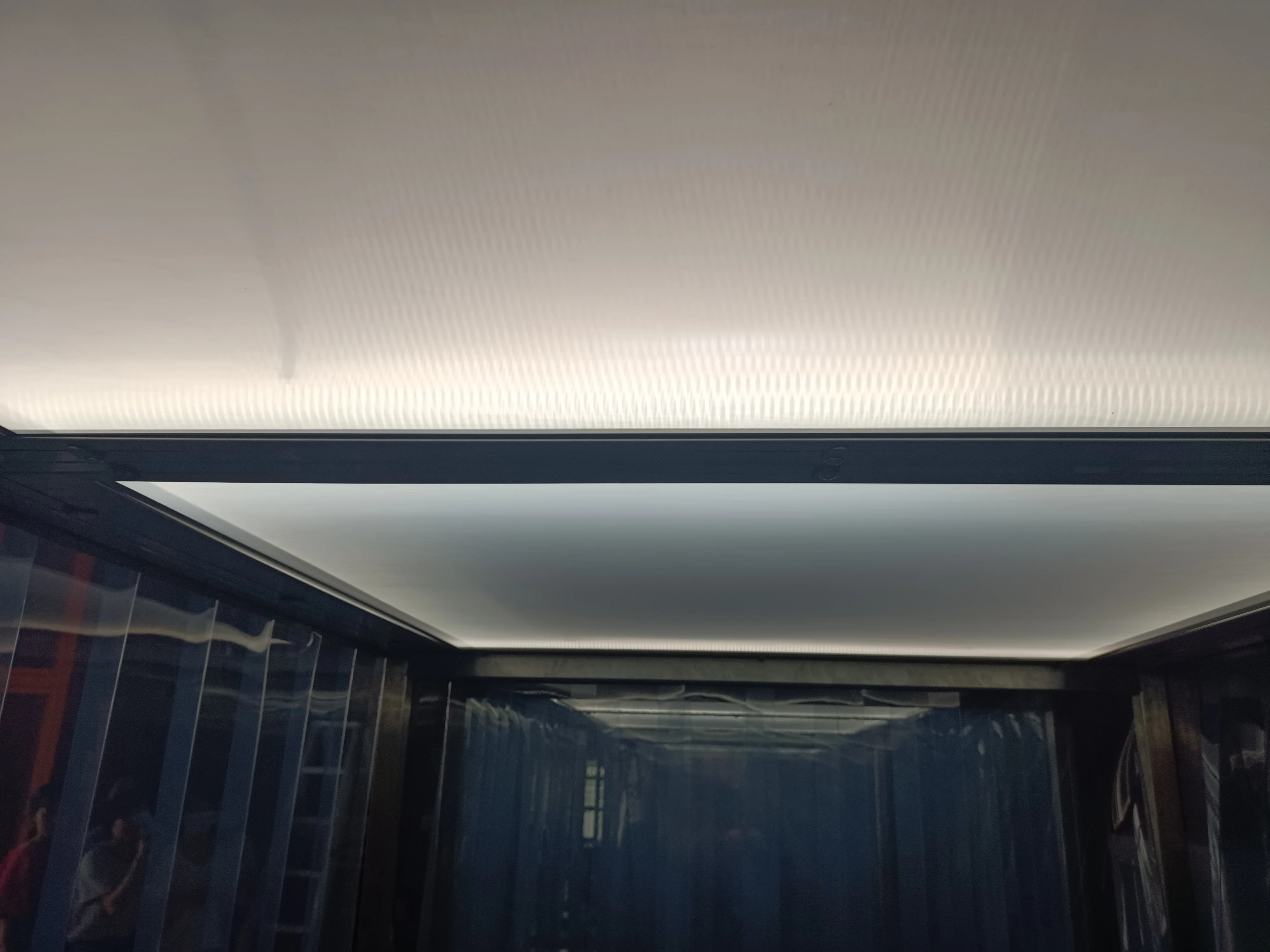

2.Homogeneous Flow Film with Light
Ultra-filtered clean air generated under homogeneous flow film which forms parallel flow pattern and homogeneous output, expellingparticles to the outside.Inserted LED light over 300 Lux,good looking and practical for use.

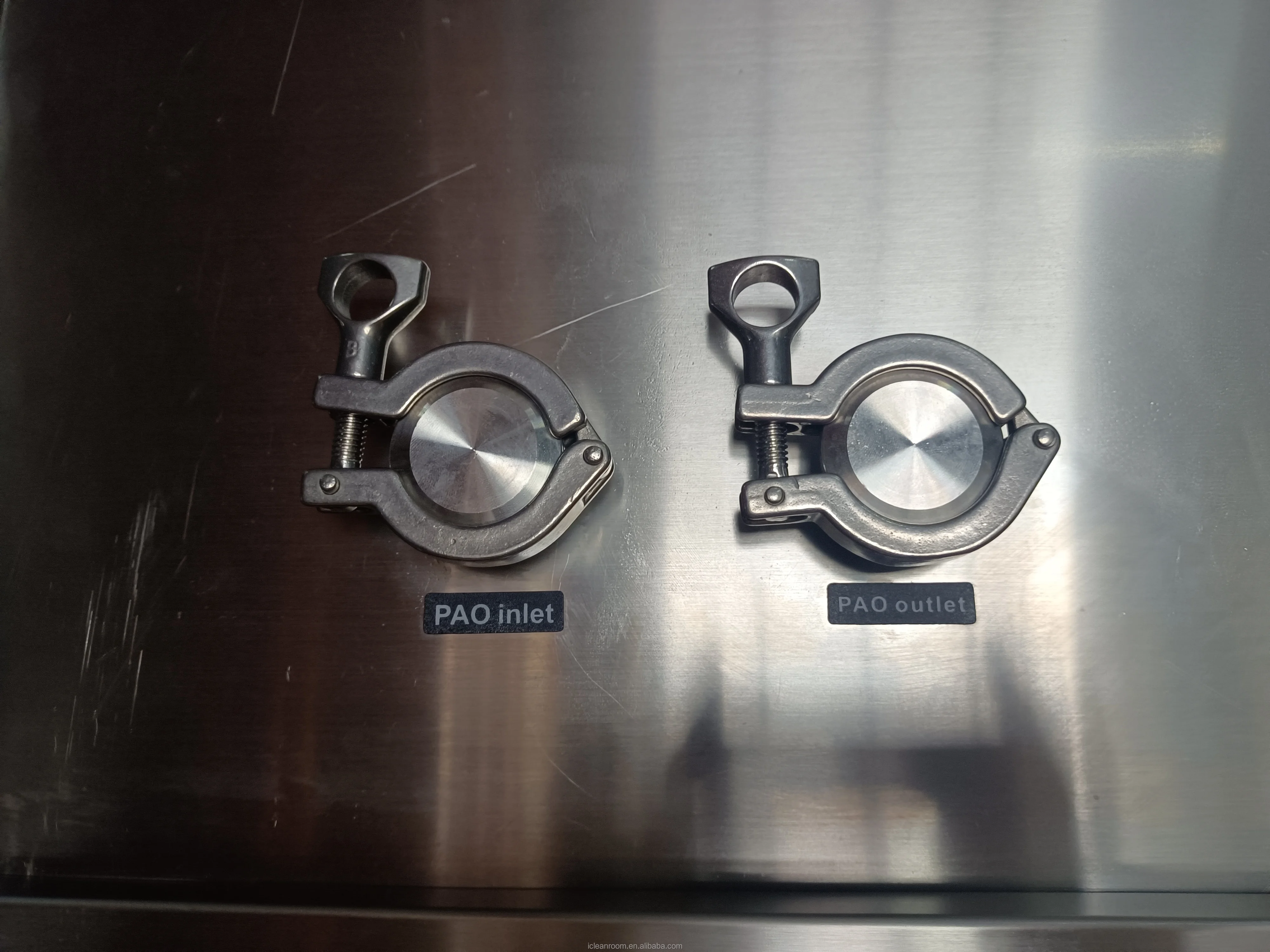

3.DOP/PAO Test Port
Easy for leakage test,ensuring sealing performance and product quality.
4.Inserted High Quality Fan
Backward centrifugal fan with compact structure,reliable,energy-saving and low noise operation.
5.Built-in Gel-sealed H14 Filter
Gel-sealed H14 Filter with high efficiency of 99.995%@0.3μm and high sealing performance(EN1882-1:2009),easily creating ISO 5.
6.Laminar flow clean area Class 100 (EN ISO 14644)

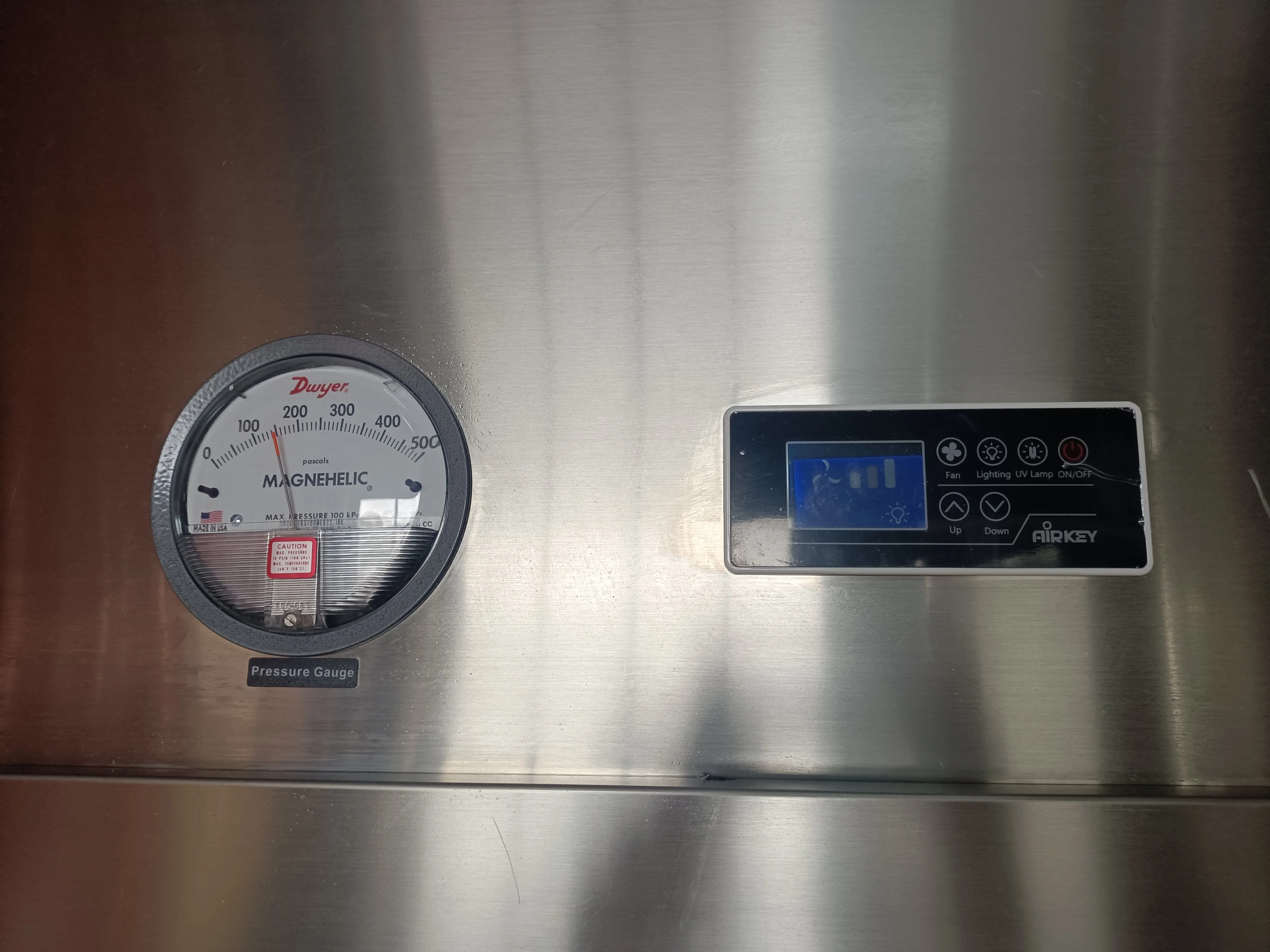

7.Pressure Gauge
Pressure gauge in Dwyer brand that accurately displays the air pressure.
8.G4 Filter
G4 filter made of non-woven cloth with efficiency of 95%@0.5μm,washable and recyclable,ensuring two-step filtration of LAF.
Placed in front of the LAF for turn on/off,speed control,LED light on/off and UV lamp on/off.
2.Homogeneous Flow Film with Light
Ultra-filtered clean air generated under homogeneous flow film which forms parallel flow pattern and homogeneous output, expellingparticles to the outside.Inserted LED light over 300 Lux,good looking and practical for use.
3.DOP/PAO Test Port
Easy for leakage test,ensuring sealing performance and product quality.
4.Inserted High Quality Fan
Backward centrifugal fan with compact structure,reliable,energy-saving and low noise operation.
5.Built-in Gel-sealed H14 Filter
Gel-sealed H14 Filter with high efficiency of 99.995%@0.3μm and high sealing performance(EN1882-1:2009),easily creating ISO 5.
6.Laminar flow clean area Class 100 (EN ISO 14644)
7.Pressure Gauge
Pressure gauge in Dwyer brand that accurately displays the air pressure.
8.G4 Filter
G4 filter made of non-woven cloth with efficiency of 95%@0.5μm,washable and recyclable,ensuring two-step filtration of LAF.
details image
