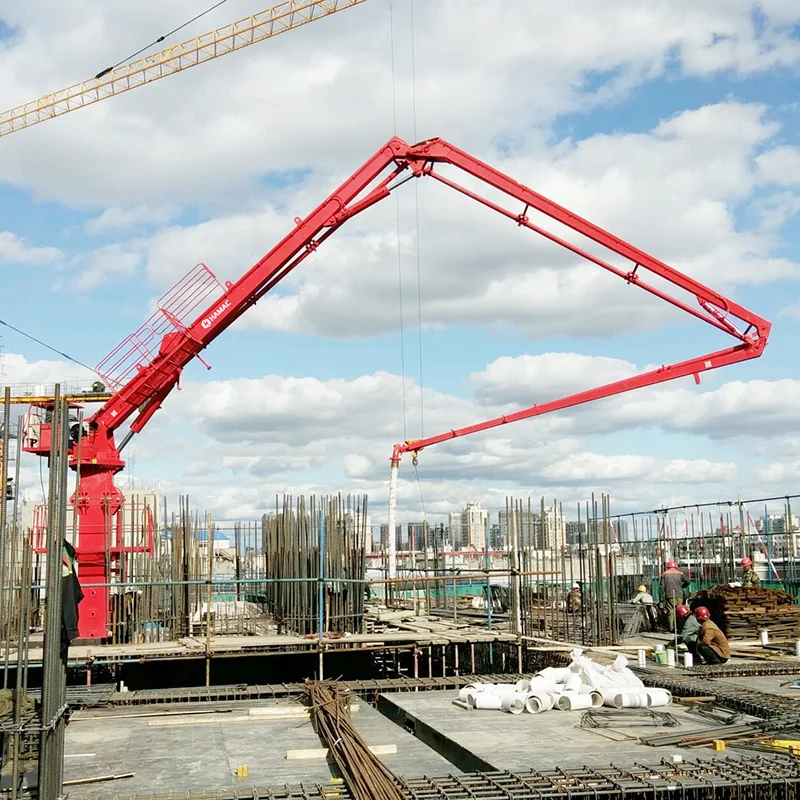

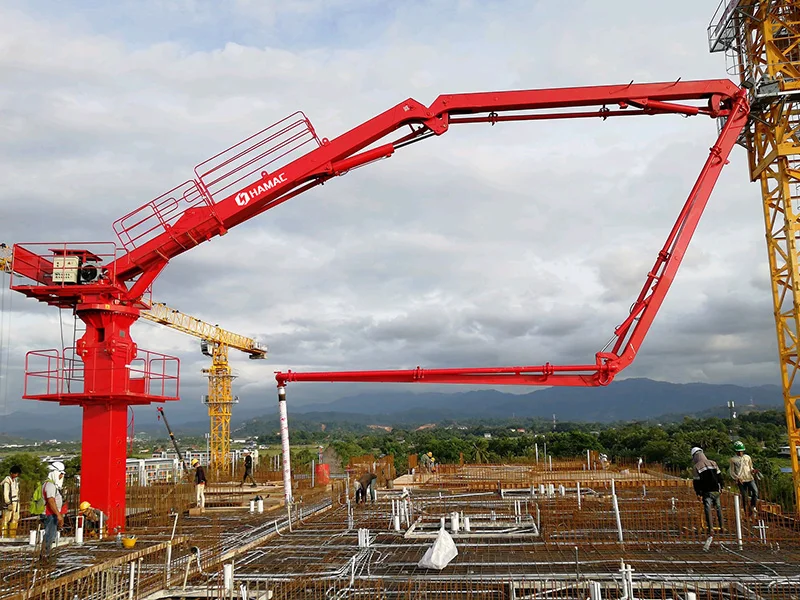

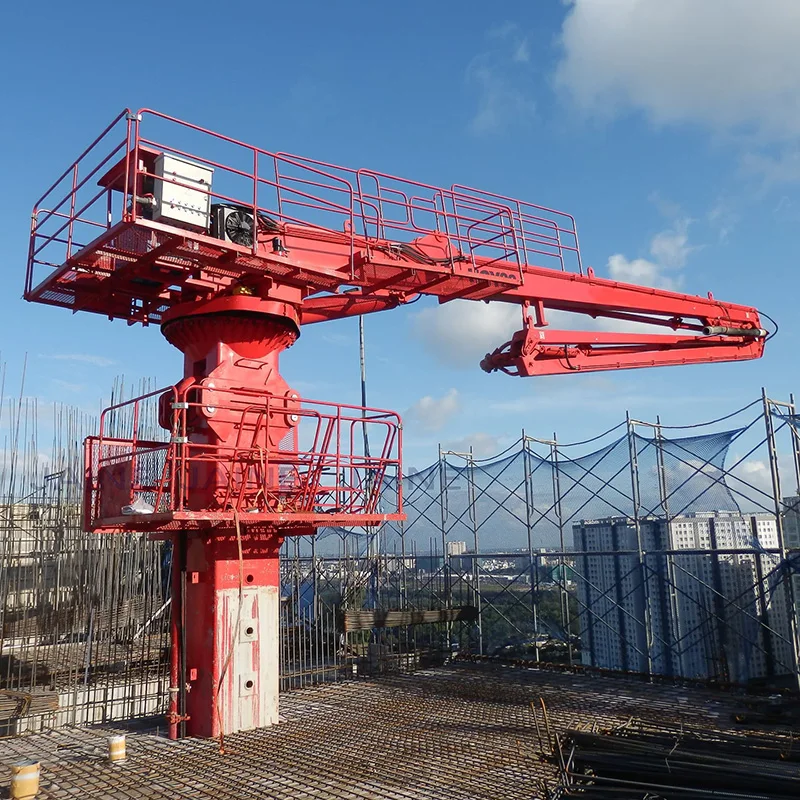

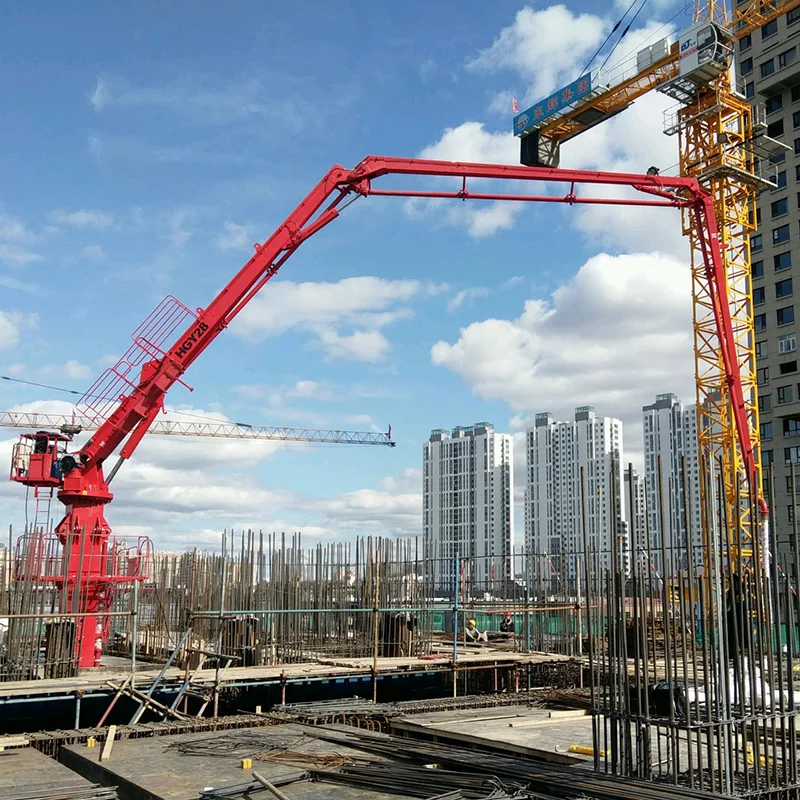

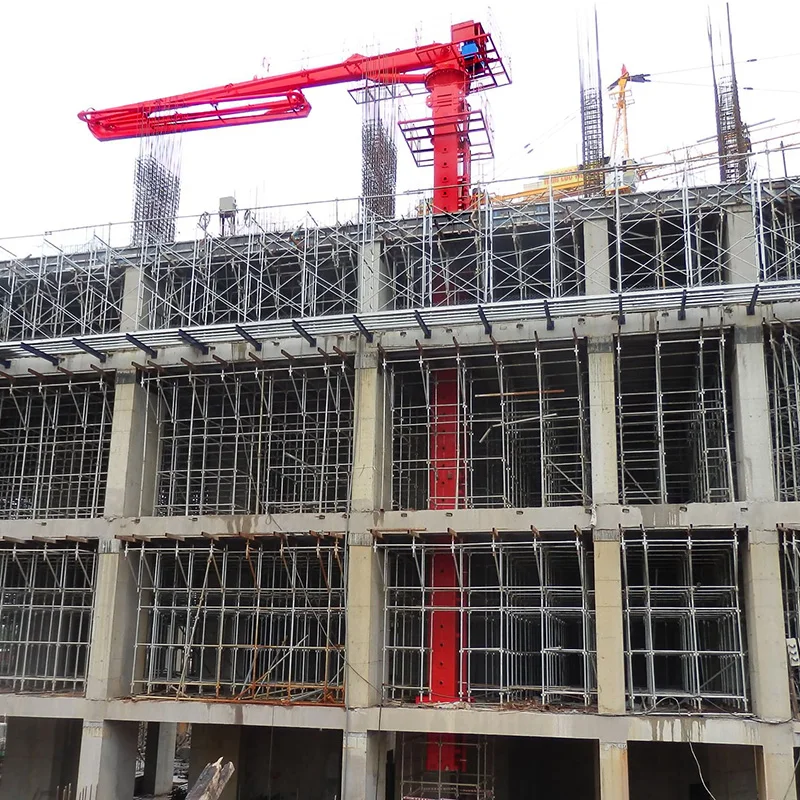

Mobile concrete placing boom Concrete carbon steel 18m placing boom for delivering concrete
- Category: >>>
- Supplier: Zhengzhou Hamac Automation Equipment Co. Ltd.
Share on (1601215455549):
Product Overview
Description
Item | HGY21D | HGY24D | HGY28D | HGY32D | |||
Max. Placing Radius (M) | 21 | 24 | 27.5 | 32 | |||
Big Arm Length (M) | 11 | 12 | 12.6 | 14.5 | |||
Big Arm Elevation (°) | 0-65 | 0-65 | 0-65 | 0-65 | |||
Medium Arm Length (M) | 6.5 | 7.5 | 8.8 | 9.2 | |||
Medium Arm Elevation (°) | 0-180 | 0-180 | 0-180 | 0-180 | |||
Small Arm Length (M) | 3.5 | 4.5 | 6.1 | 8 | |||
Small Arm Elevation (°) | 0-180 | 0-180 | 0-180 | 0-180 | |||
Hose Length (M) | 3 | 3 | 3 | 3 | |||
Concrete Delivery Pipe (Mm) | Ø125×6 | Ø125×6 | Ø125×6 | Ø125×6 | |||
Tail Rotary Radius (M) | 3.9 | 3.9 | 3.9 | - | |||
Total Power (Kw) | 5.5 | 5.5 | 5.5 | 15 | |||
System Pressure (Mpa) | 24 | 24 | 24 | 24 | |||
Rotary Speed (R/Min) | 0.3-0.8 | 0.3-0.8 | 0.3-0.8 | 0.3-0.8 | |||
Rotary Range (°) | 0-360 | 0-360 | 0-360 | 0-360 | |||
Lifting Speed (M/Min) | 0.65 | 0.65 | 0.65 | 0.65 | |||
Lifting Height(M/Time) | ≤3.6 | ≤3.6 | ≤3.6 | ≤3.6 | |||
Overall Height (M) | 13.3 | 13.3 | 12.6 | 22.9 | |||
Bare Machine Weight (Kg) | 8400 | 9500 | 10720 | 16700 | |||
Balance Weight(Kg) | 3×2000 | 3×2000 | 4×2000 | - | |||
Control Mode | Panel/Wireless Remote Control | ||||||
