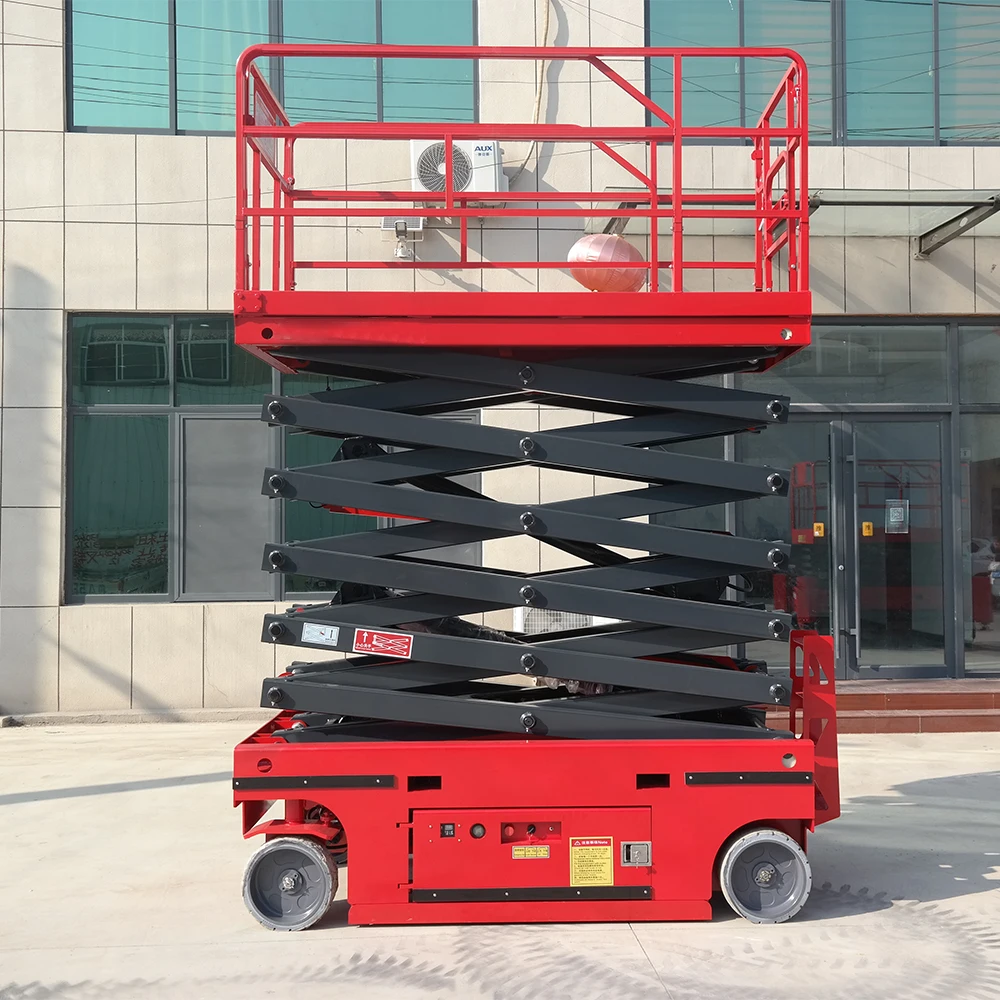

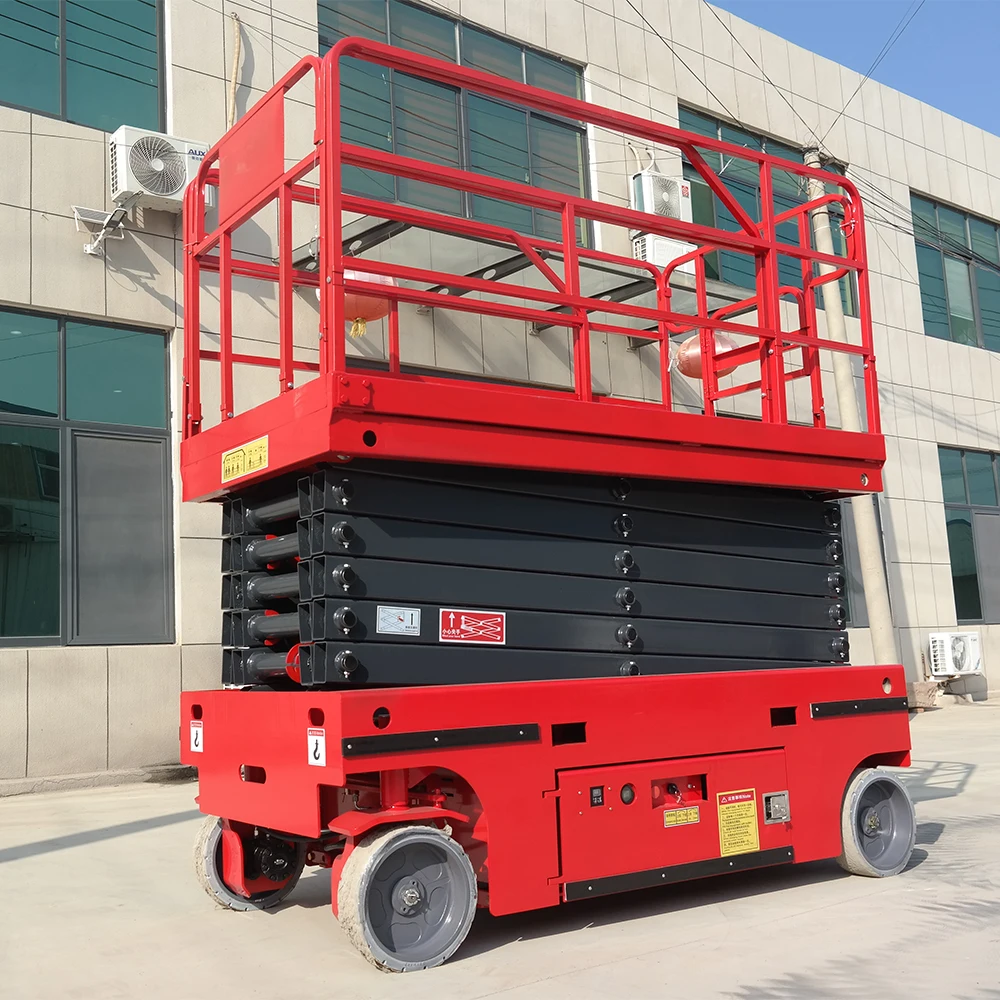

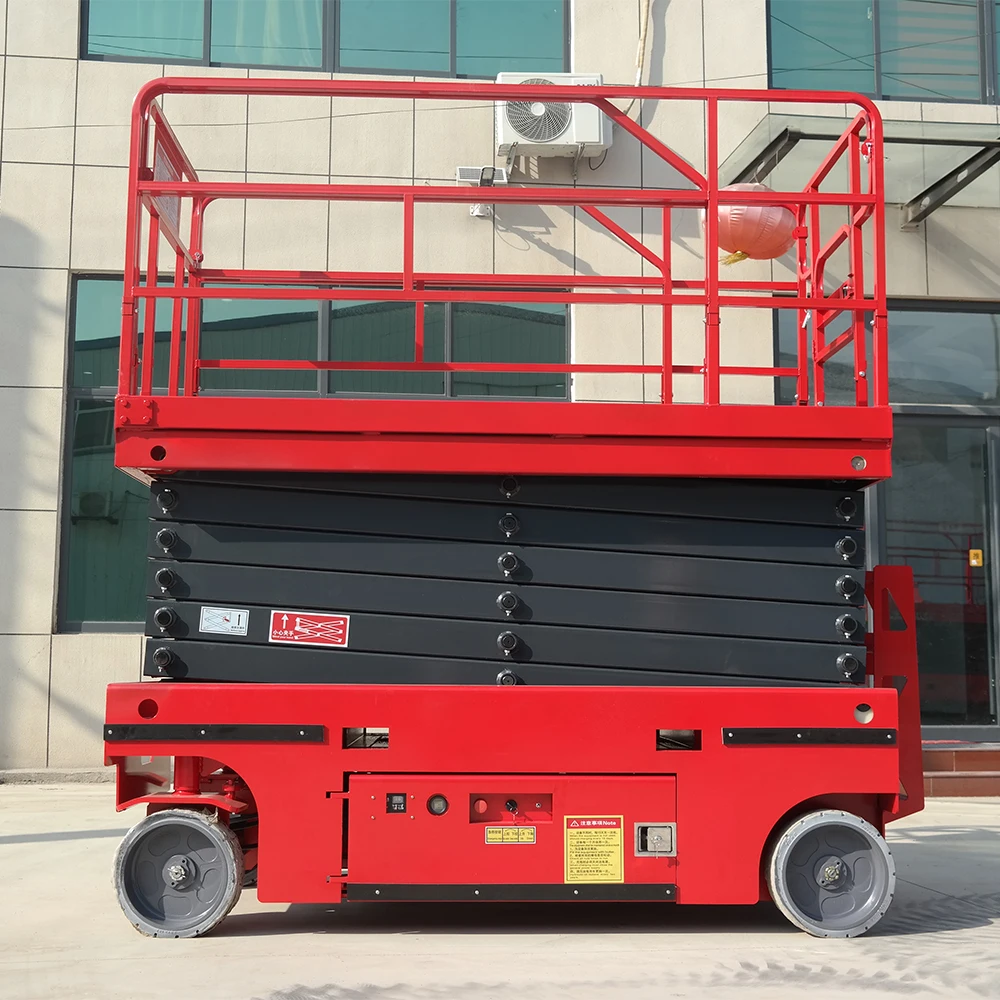

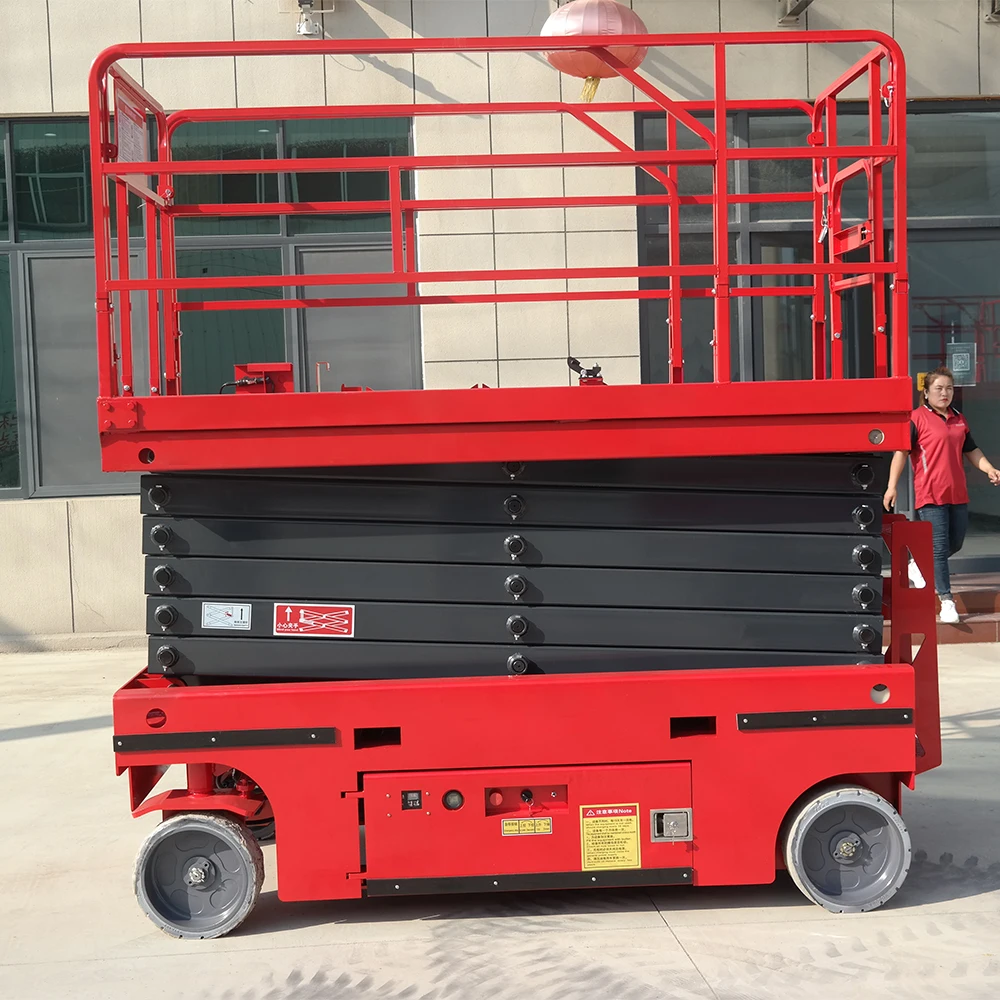

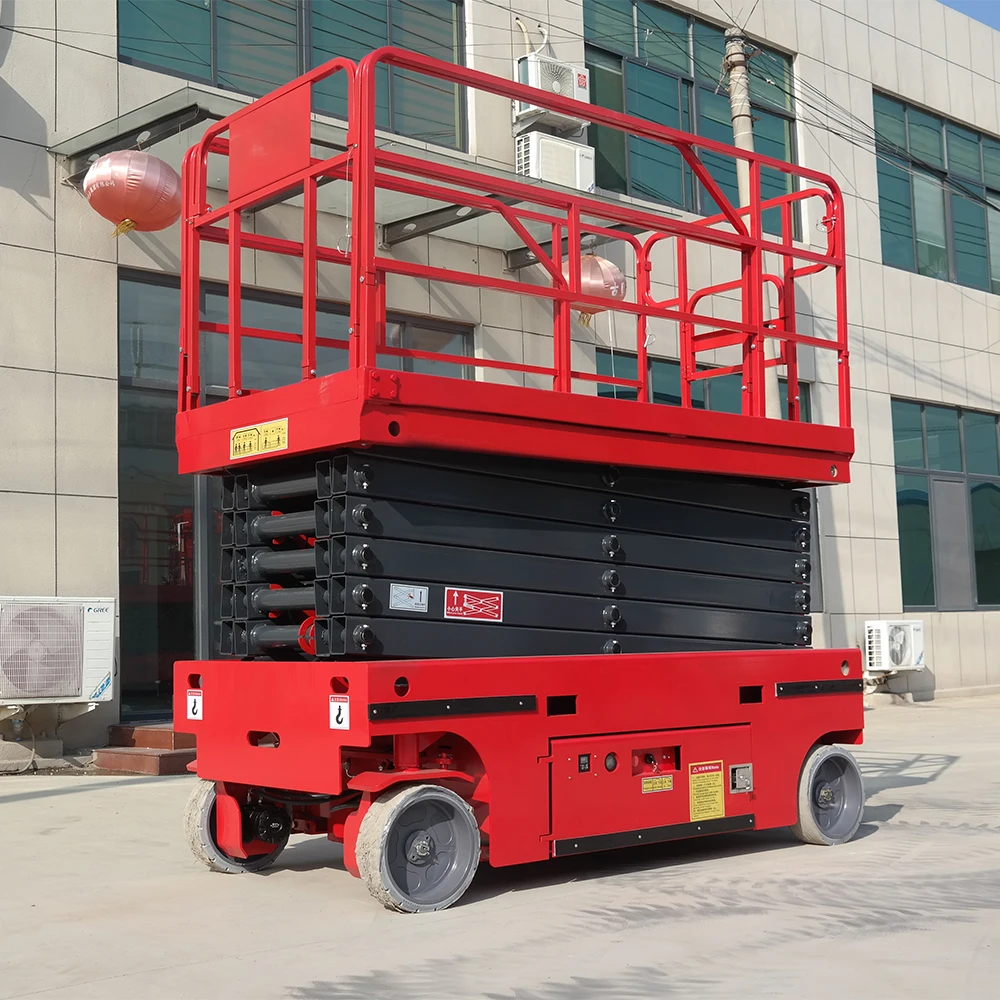

12m Self Propelled Elevated Work Platform Battery Drive Hydraulic Lifting Scaffold Platform
- Category: >>>
- Supplier: Shandong Luxin Heavy Industry Machinery Co. Ltd.
Share on (1601215515872):
Product Overview
Description
Product Paramenters
Self-propelled scissor lift has its own walking and lifting function, with the steering wheel to control the direction of running, speed can walk and a brake device, battery driven DC motor running and movements, may also choose to AC motor or diesel engine running and movements, can also use wireless electronic remote control movements, without the need for manual traction and does not need an external power supply, flexible and convenient in movement, high-altitude operations more efficient and convenient is modern enterprise, safety production ideal high-altitude operations equipment.
Factory orders, support all kinds of customization, customize the design you want!
Shandong luxin can meet the needs of most customers and try our best to help customers do more business in the market
Let me introduce the configuration of the elevating scissor lift work platform produced by our factory in detail for my dear friend
Send inquiry contact supplier for exclusive services and preferential price

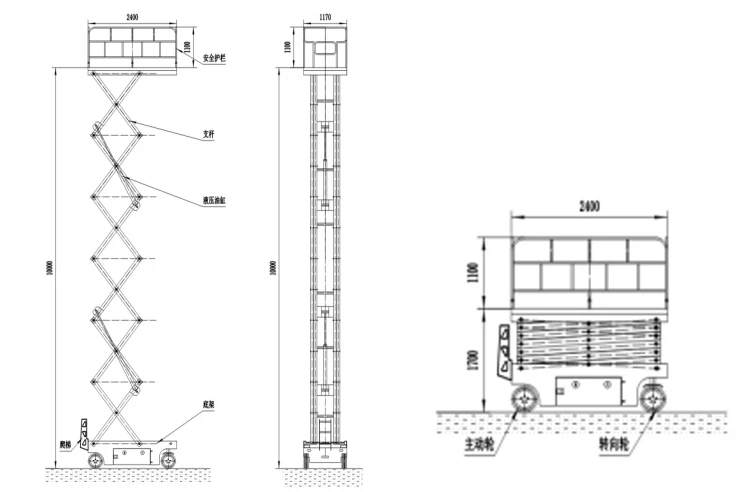

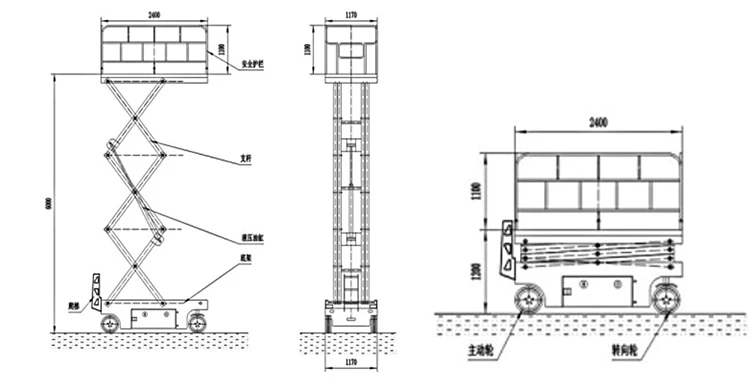

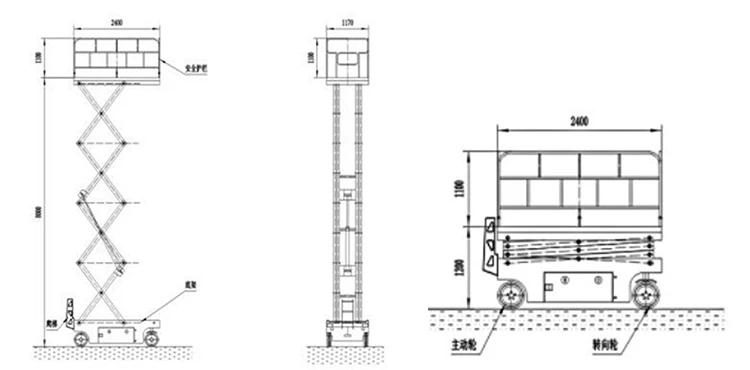

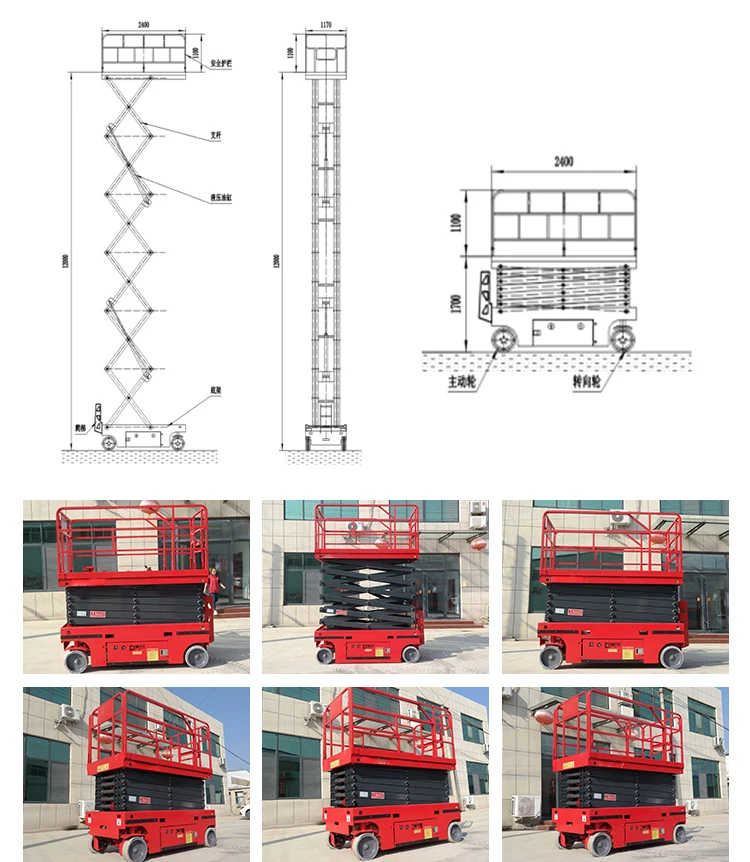

Safe working load | 320kg | Wheelbase | 2.0m |
Safe working load of extended platform | 113kg | Minimum turning radius (inner wheel) | 0 |
Extended platform dimensions (G) | 0.9m | Minimum turning radius (outer wheel) | 2.40m |
Maximum number of workers | 2 | Lifting motor/drive motor | 24V/4.0KW |
Maximum working height (A) | 8m | Machine travel speed (folded state) | 30m/min |
Maximum platform height (B) | 6m | Machine travel speed (lifted state) | 10m/min |
Length of the whole machine (C) | 2600mm | Ascending/descending speed | 80/90 sec |
Width of the whole machine (D) | 1170mm | Battery | 6V/200Ah*4 |
Height of the whole machine (fence not folded) | 2280mm | Charger | 24V/30A |
Height of the whole machine (fence folded) (E) | 1580mm | Maximum gradeability | 0.3 |
Dimensions of the working platform (length x width (F) | 2400mm*1700mm | Maximum allowable working angle (X/Y) | 1.5°/3° |
Minimum ground clearance (folded state) | 0.1m | Tire specifications | Φ381*127 |
Minimum ground clearance (lifted state) | 0.019m | Machine weight | 2000kg |
Safe working load | 320kg | Wheelbase | 2.0m |
Safe working load of extended platform | 113kg | Minimum turning radius (inner wheel) | 0 |
Extended platform dimensions (G) | 0.9m | Minimum turning radius (outer wheel) | 2.40m |
Maximum number of workers | 2 | Lifting motor/drive motor | 24V/4.0KW |
Maximum working height (A) | 8m | Machine travel speed (folded state) | 30m/min |
Maximum platform height (B) | 6m | Machine travel speed (lifted state) | 10m/min |
Length of the whole machine (C) | 2600mm | Ascending/descending speed | 80/90 sec |
Width of the whole machine (D) | 1200mm | Battery | 6V/200Ah*4 |
Height of the whole machine (fence not folded) | 2400mm | Charger | 24V/30A |
Height of the whole machine (fence folded) (E) | 1700mm | Maximum gradeability | 0.3 |
Dimensions of the working platform (length x width (F) | 2400mm*1700mm | Maximum allowable working angle (X/Y) | 1.5°/3° |
Minimum ground clearance (folded state) | 0.1m | Tire specifications | Φ381*127 |
Minimum ground clearance (lifted state) | 0.019m | Machine weight | 2200kg |
Safe working load | 320kg | Wheelbase | 2.0m |
Safe working load of extended platform | 113kg | Minimum turning radius (inner wheel) | 0 |
Extended platform dimensions (G) | 0.9m | Minimum turning radius (outer wheel) | 2.40m |
Maximum number of workers | 2 | Lifting motor/drive motor | 24V/4.0KW |
Maximum working height (A) | 12m | Machine travel speed (folded state) | 30m/min |
Maximum platform height (B) | 10m | Machine travel speed (lifted state) | 10m/min |
Length of the whole machine (C) | 2600mm | Ascending/descending speed | 80/90 sec |
Width of the whole machine (D) | 1170mm | Battery | 6V/200Ah*4 |
Height of the whole machine (fence not folded) | 2520mm | Charger | 24V/30A |
Height of the whole machine (fence folded) (E) | 1820mm | Maximum gradeability | 0.3 |
Dimensions of the working platform (length x width (F) | 2400mm*1170mm | Maximum allowable working angle (X/Y) | 1.5°/3° |
Minimum ground clearance (folded state) | 0.1m | Tire specifications | Φ381*127 |
Minimum ground clearance (lifted state) | 0.019m | Machine weight | 2400kg |
Safe working load | 320kg | Wheelbase | 2.0m |
Safe working load of extended platform | 113kg | Minimum turning radius (inner wheel) | 0 |
Extended platform dimensions (G) | 0.9m | Minimum turning radius (outer wheel) | 2.40m |
Maximum number of workers | 2 | Lifting motor/drive motor | 24V/4.5KW |

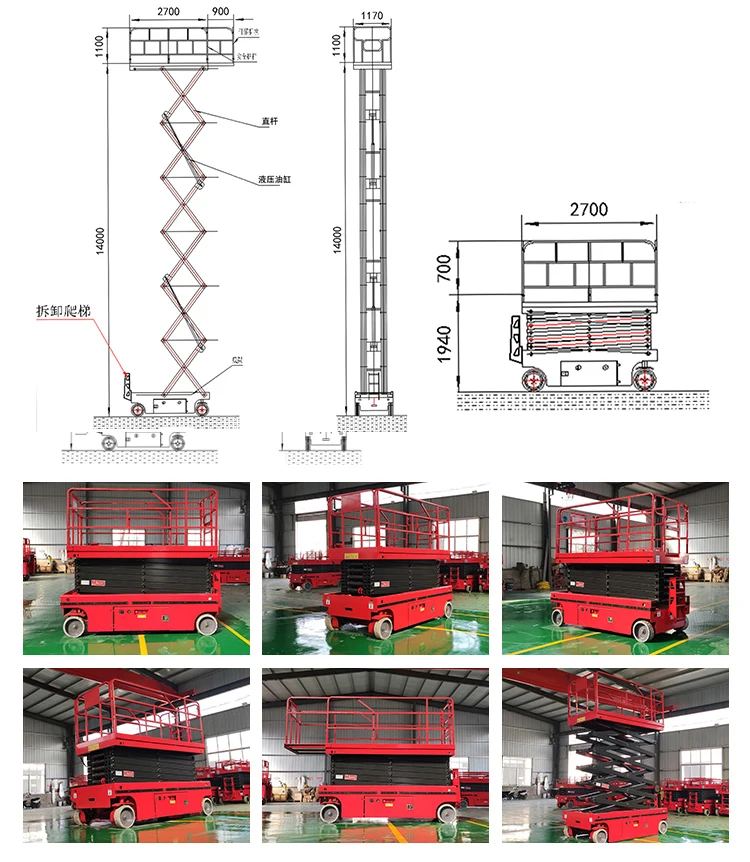

Maximum working height (A) | 14m | Machine travel speed (folded state) | 30m/min |
Maximum platform height (B) | 12m | Machine travel speed (lifted state) | 10m/min |
Length of the whole machine (C) | 2600mm | Ascending/descending speed | 80/90 sec |
Width of the whole machine (D) | 1170mm | Battery | 6V/200Ah*4 |
Height of the whole machine (fence not folded) | 2640mm | Charger | 24V/30A |
Height of the whole machine (fence folded) (E) | 1940mm | Maximum gradeability | 0.25 |
Dimensions of the working platform (length x width (F) | 2400mm*1170mm | Maximum allowable working angle (X/Y) | 1.5°/3° |
Minimum ground clearance (folded state) | 0.1m | Tire specifications | Φ381*127 |
Minimum ground clearance (lifted state) | 0.019m | Machine weight | 2600kg |
Safe working load | 320kg | Wheelbase | 2.4m |
Safe working load of extended platform | 113kg | Minimum turning radius (inner wheel) | 0 |
Extended platform dimensions (G) | 0.9m | Minimum turning radius (outer wheel) | 2.70m |
Maximum number of workers | 2 | Lifting motor/drive motor | 24V/4.5KW |
Maximum working height (A) | 15.5m | Machine travel speed (folded state) | 30m/min |
Maximum platform height (B) | 13.5m | Machine travel speed (lifted state) | 10m/min |
Length of the whole machine (C) | 3000mm | Ascending/descending speed | 80/90 sec |
Width of the whole machine (D) | 1400mm | Battery | 24V/240Ah |
Height of the whole machine (fence not folded) | 2640mm | Charger | 24V/30A |
Height of the whole machine (fence folded) (E) | 1940mm | Maximum gradeability | 0.25 |
Dimensions of the working platform (length x width (F) | 2700mm*1170mm | Maximum allowable working angle (X/Y) | 1.5°/3° |
Minimum ground clearance (folded state) | 0.1m | Tire specifications | Φ381*127 |
Minimum ground clearance (lifted state) | 0.019m |

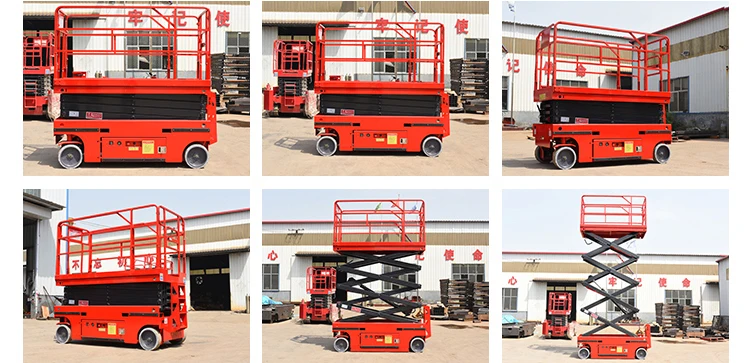

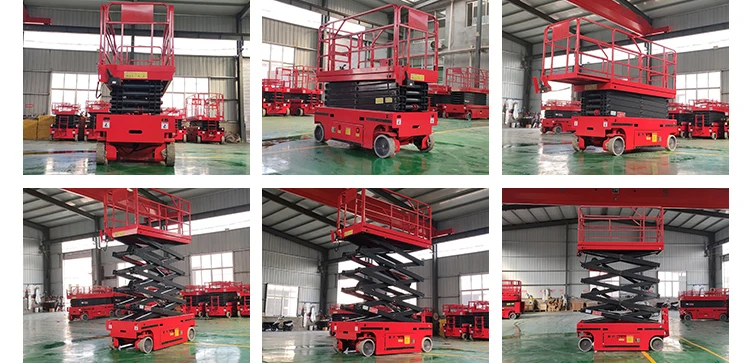

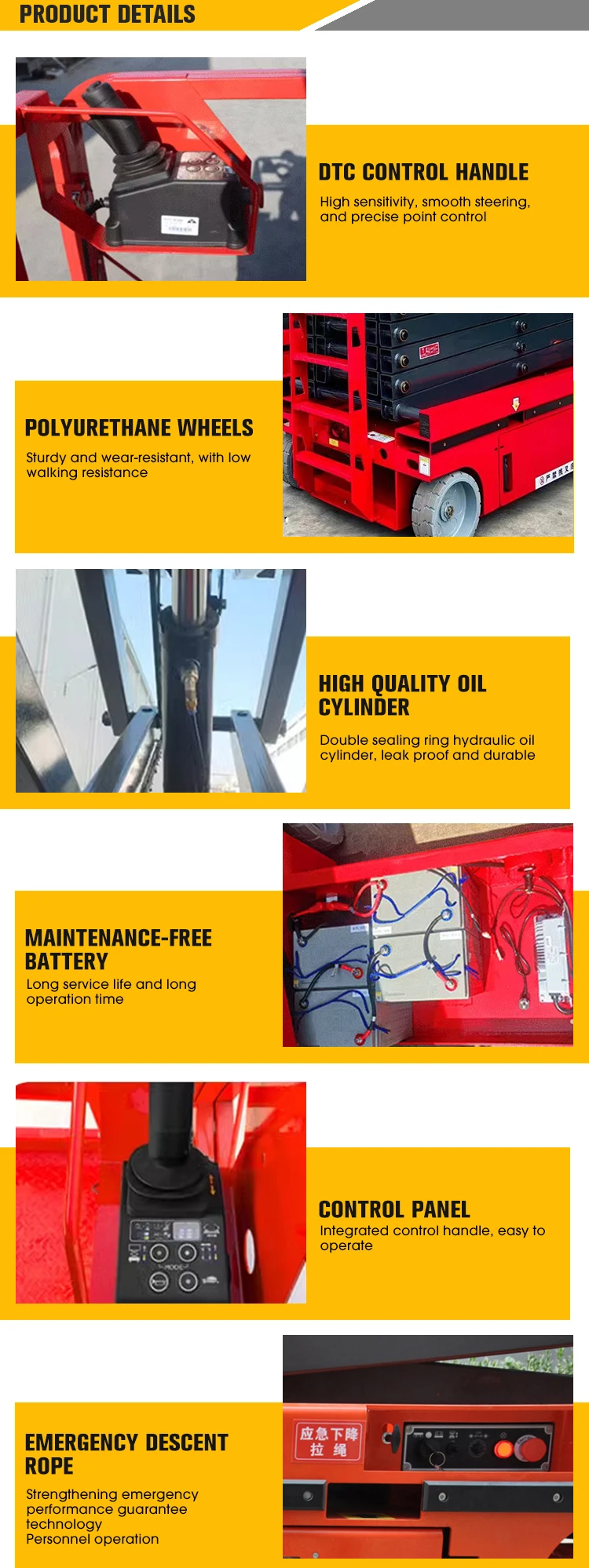

Product Details

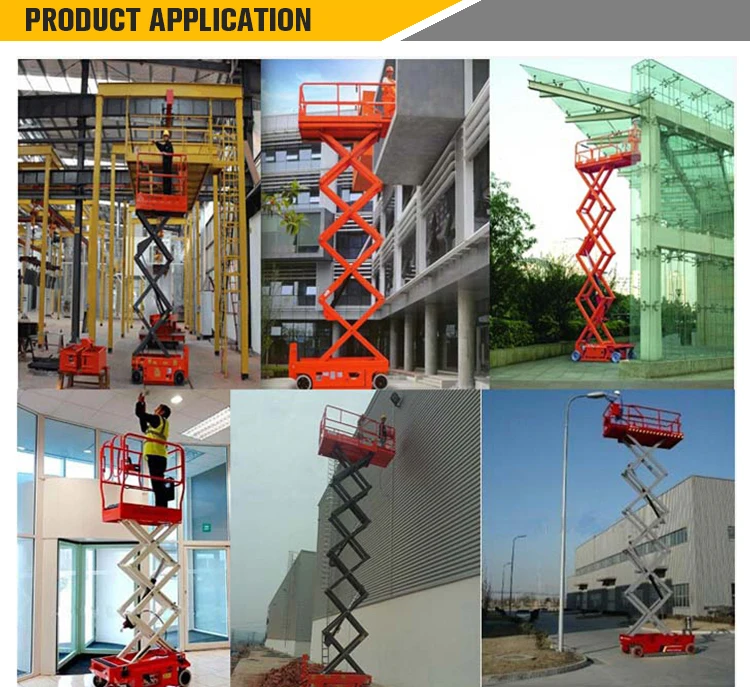

Application

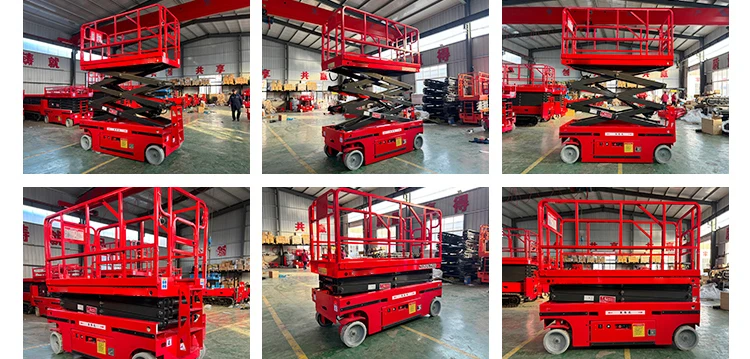

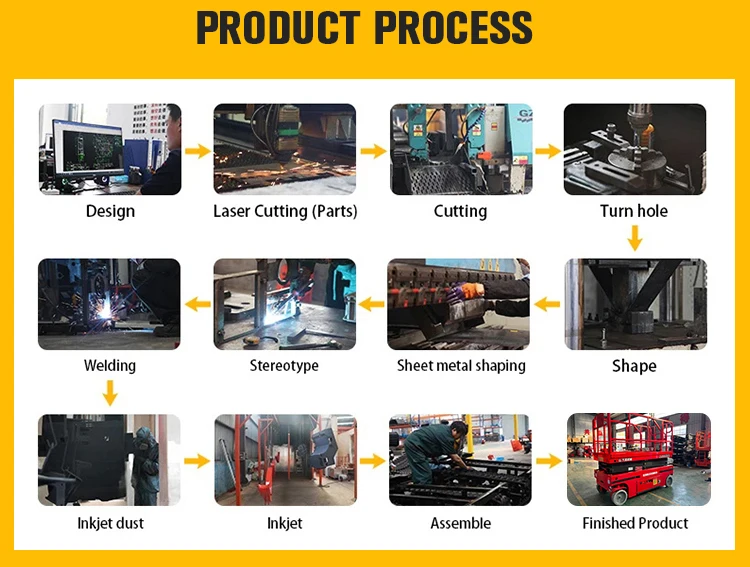

Manufacturing Technique
Packing & Delivery
Packaging type
1.Plywood box package
2.Standard exported nude packed for fcl (full container load)
1.Plywood box package
2.Standard exported nude packed for fcl (full container load)
3.Customized
We can ship your goods
1.To destination sea port by sea
2.To destination inland port by sea + railway or trailer
3.To your door by sea + railway or trailer (but not recommended, not economical)
4.To your door by land express
5.Door-to-door delivery
We can ship your goods
1.To destination sea port by sea
2.To destination inland port by sea + railway or trailer
3.To your door by sea + railway or trailer (but not recommended, not economical)
4.To your door by land express
5.Door-to-door delivery
About Us

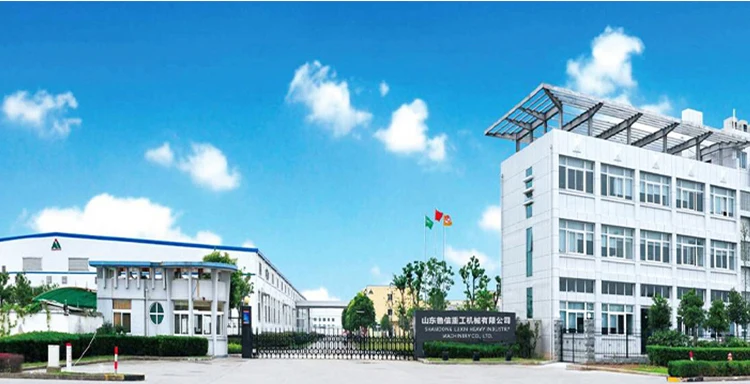

Shandong luxin heavy industry co, ltd.Is located in jining, shandonga famous construction machinery manufacturing base in china.
Closeto the bejing-kowloon, beijing-shanghal, bejing-fuzhou railway andthe beijing-hangzhou grand canal that run through the north andsouth the superior geographical location provides convenienttransportation conditions for the majority of customers luxin heavy industry is a high-tech enterprise integrating aggregateindustry, and trade since its establishment, the company has focusedon designing,developing,and manufacturing small and medium-sizedroad rollers.
Now has an annual production capacity of 5000 roadrollers and has unique competitive and product advantages.
Closeto the bejing-kowloon, beijing-shanghal, bejing-fuzhou railway andthe beijing-hangzhou grand canal that run through the north andsouth the superior geographical location provides convenienttransportation conditions for the majority of customers luxin heavy industry is a high-tech enterprise integrating aggregateindustry, and trade since its establishment, the company has focusedon designing,developing,and manufacturing small and medium-sizedroad rollers.
Now has an annual production capacity of 5000 roadrollers and has unique competitive and product advantages.
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a manufacturer and our factory has more than 20 years manufacturing experience.
Q2: Where is your factory?
A: Our factory is located in Jining, Shandong, a famous construction machinery manufacturing base in China. Close to the Beijing-Kowloon, Beijing-Shanghai, Beijing-Fuzhou Railway, and the Beijing-Hangzhou Grand Canal that run through the north and south.China. Welcome, tovisit us. We can also show you our factory and production through video chat.
Q3: What's your warranty?
A: The warranty of our products is 1 year, and we will always provide after-sale service
Q4: What's your advantage?
A: As a factory with R & D capabilities, we can provide OED, OEM service, and also can guarantee delivery time and competitive prices.
Q5: What kind of payment terms do you accept?
A: T/T, L/C at sight, Western Union, Cash, etc. We also accept a trade on Alibaba directly
A: Yes, we are a manufacturer and our factory has more than 20 years manufacturing experience.
Q2: Where is your factory?
A: Our factory is located in Jining, Shandong, a famous construction machinery manufacturing base in China. Close to the Beijing-Kowloon, Beijing-Shanghai, Beijing-Fuzhou Railway, and the Beijing-Hangzhou Grand Canal that run through the north and south.China. Welcome, tovisit us. We can also show you our factory and production through video chat.
Q3: What's your warranty?
A: The warranty of our products is 1 year, and we will always provide after-sale service
Q4: What's your advantage?
A: As a factory with R & D capabilities, we can provide OED, OEM service, and also can guarantee delivery time and competitive prices.
Q5: What kind of payment terms do you accept?
A: T/T, L/C at sight, Western Union, Cash, etc. We also accept a trade on Alibaba directly
