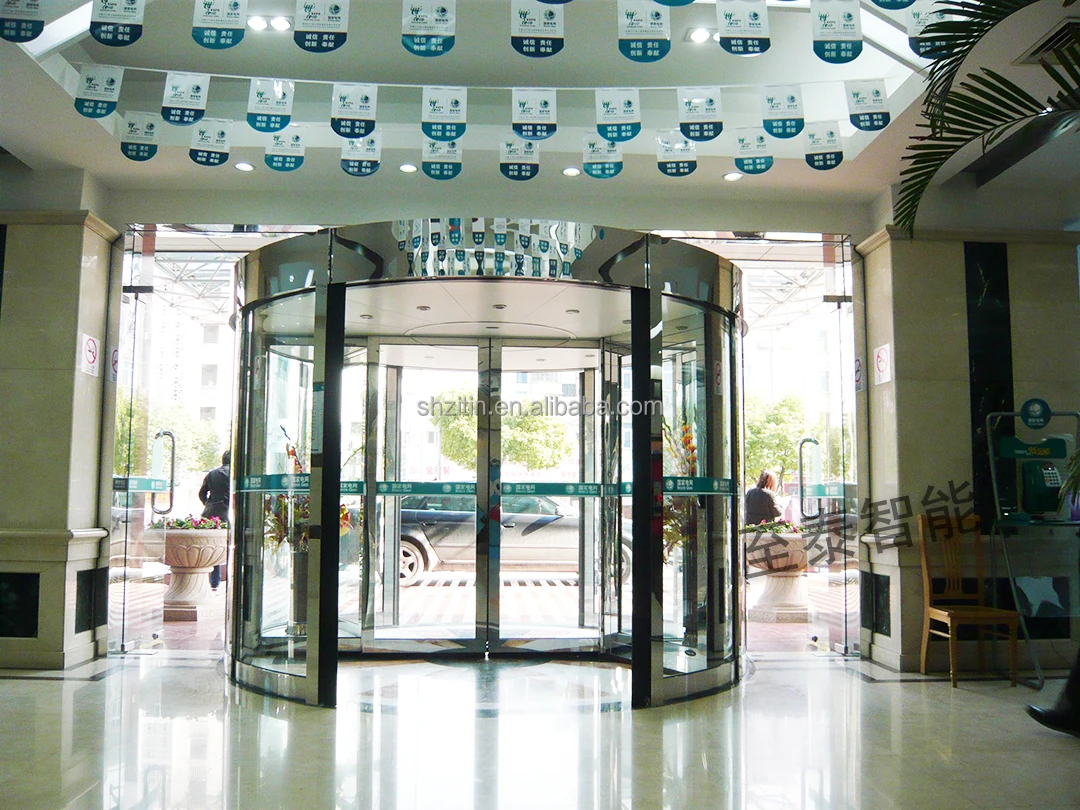

KEER Two-wing AUTO-Revolving Door


The Keer- two-wing revolving door offers plenty of scope for architectural creativity while also raising accessibility and
convenience to a new level. Thanks to the variability of its design and a broad selection of surface finishes, it will turn the
entrance of any building into a prestigious Entrance.


TECHNICAL DATA
Product name
Two-wing AUTO-Revolving Door
Material
Special aluminum door profile + tempered glass
Supply power
AC 220V 50/60Hz
Power consumption
motor 200-600W, light 500W
Safety device
16A or 2×10A
Intelligent computer control
Multilevel control, frequency control of motor speed


FUNCTION INTRODUCTION
Rotation checking function, emergency stop function, windbreak and dustproof function, central control function of fire
protection, function of automatically open the middle sliding door, programmable logic control functions, trouble self-checking function, night lock function, access control function, frequency conversion function, speed adjustment, safety prevent bump or pinching , UPS function of emergency power supply (optional), switching function of door leaf stop position, waiting function for passing through slowly , reverse function of defend pinching, door leaf position setting.




STANDARD CONFIGURATION
1.Door Body
Special aluminum door profile.
2.Glass
Door leaf and exhibition box are 6/8mm transparent tempered glasses, curved wall is 10mm tempered glass (5+5mm arc safety
laminated glass).
3.Drive device
Two sets AC220V, 50/60Hz,0.2-0.6KW.
4.Anti-interference
Function of preventing electromagnetic interference.
5.Central control computer
Programmable logic control system, revolving mode or sliding mode can be set.
6. Revolving speed control
The variable-frequency speed adjustment system ensures the door start, work and stop smoothly.
7. UPS control box
When electricity is failed, UPS will start the middle sliding door.
8. Sensor
Infra-red (radar) motion sensors, vertical rubber sensor defend pinching at entrances, anti-collision sensor at the bottom of door
leaf, infra-red direct measure sensor defend pinching.
9. Emergency stop button
Installed on the column of entrance right side, use for e mergency situation
10. Button for disabled
Installed on the column of entrance right side, use for disabled people pass slowly.
11. Electric magnetic lock setting
It can automatically lock the door.
12. Status and fault display
Display correct code or fault code of revolving operations.
13. Central fire protection control device
The middle induction sliding door is connected with the fire alarm in the building , it will open quickly in an emergency and
become an evacuation access.
14. Door leaf stop positions setting (optional)
Winter stop position, summer stop position, stop position of middle automatic sliding door, hold-open position,stop position of slow-down waiting, etc.
15. Reverse function of anti-pinching.














Q: Are you a manufacturer or trading company?
A: We are professional manufacturer of automatic doors&operators, which was establish in 2005. We have CE certificate, ROHS certificate and FCC certificate and we guarantee all product are high quality.

Q: What kind of doors you are producing?
A:Our main products include automatic doors, revolving doors, induction doors, electric glass doors, door closers, floor springs and systems.

Q: Can you accept customized?
A: Yes, we will offer complete solution according customer request.and dimension, and custom-made complete set door for project.

Q: What’s the payment way and payment terms?
 A: We accept T/T, Western Union, Cash. You can also through Alibaba website to pay it. 30%-70% deposit and balance before shipment.

Q: What’s the delivery time?
A: Standard products within 3-5 days after received the payment. Customized products depend on agreement.
