200ton Heavy duty MG Double Girder Mobile Winch Gantry Crane
- Category: >>>
- Supplier: Henan Chaoyang Machinery Technology Co. Ltd.
Share on (1601215596012):
Product Overview
Description
Product Description
200ton mg double girder remote control ship to shore electric gantry crane
Performance Characteristics:

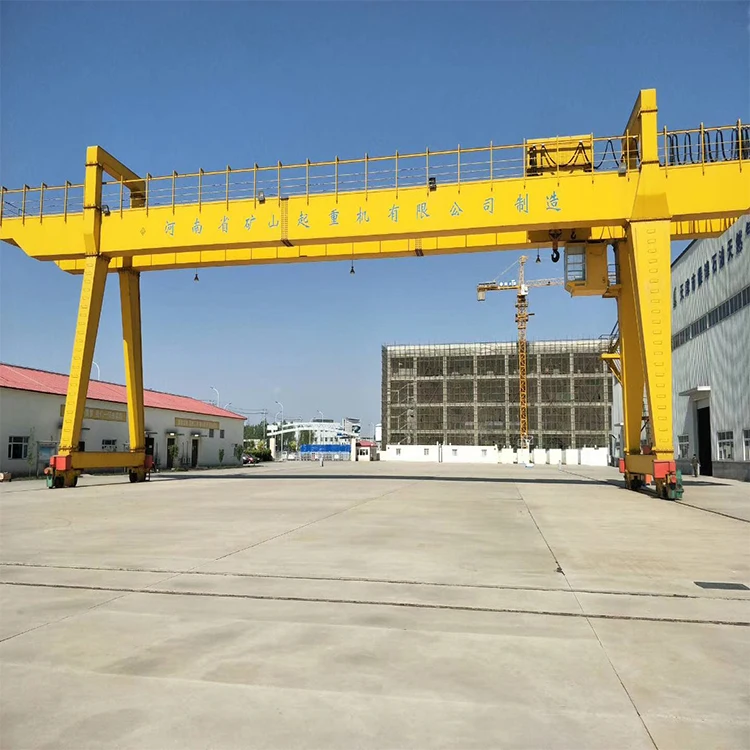

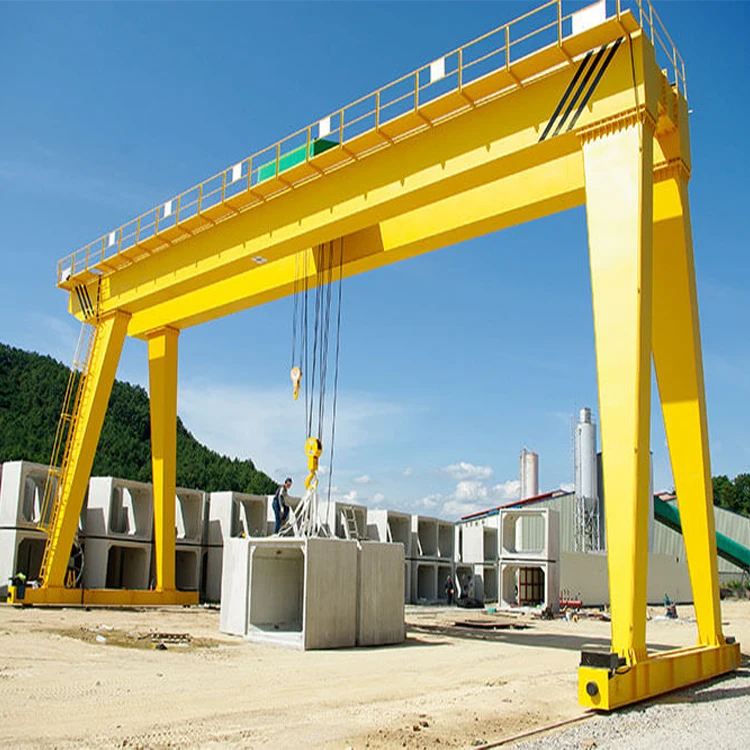

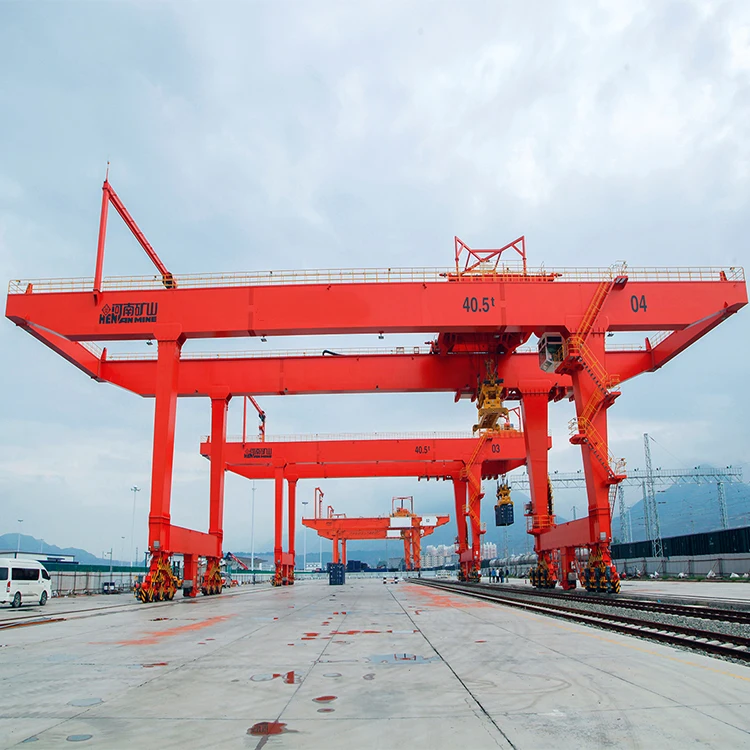

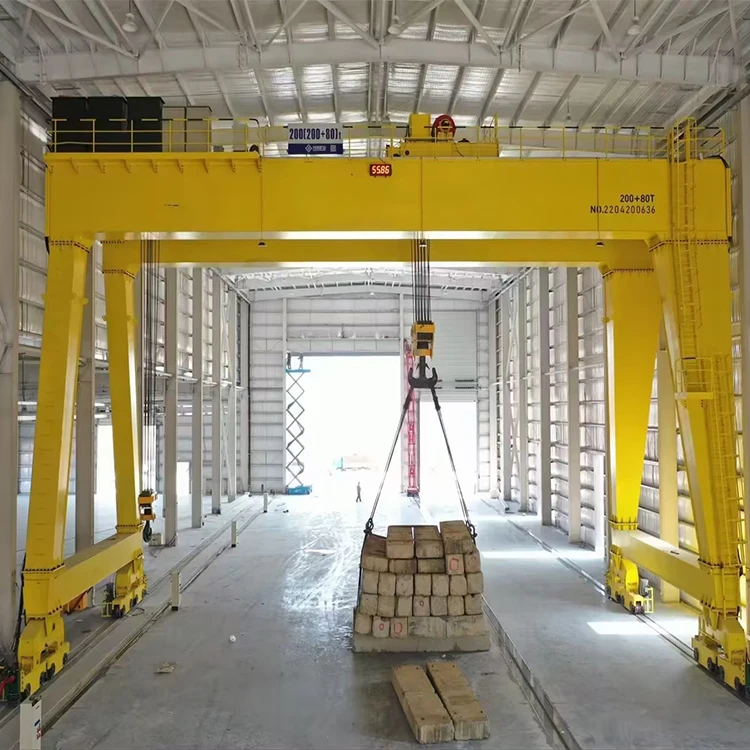

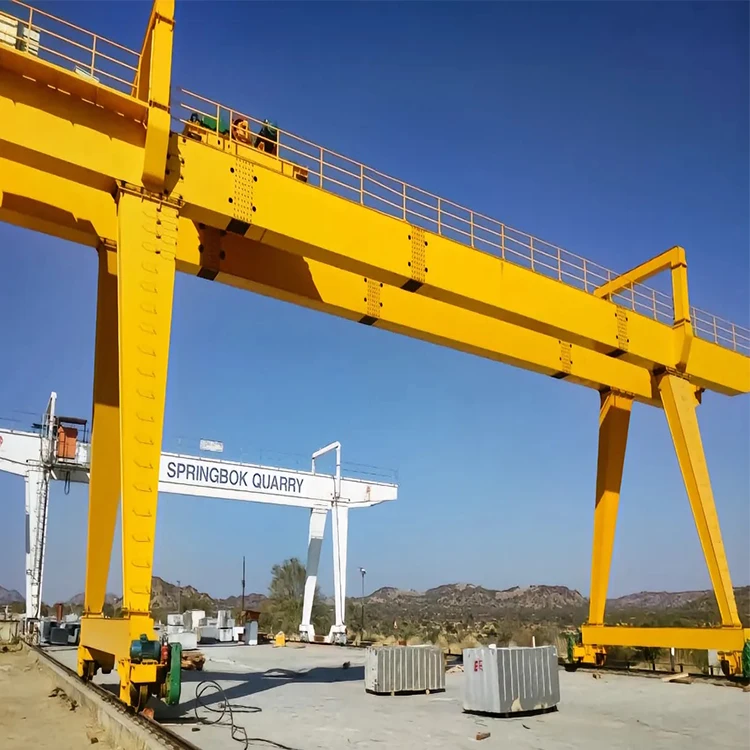

*A-type Double-beam Hoist Gantry Crane is a regular gantry crane. it is also named A-type Gantry Hoist as it looks like an “A” from side. It is usually used in outdoor storage yard to carry materials or cargos. Looking from the front, its metal structure looks like a door frame. There are two legs at the two ends of the main beam which walks on the tracks on the ground. This crane can fully use the space of the worksite with large working range, high resilience and strong versatility. It’s also widely used in port yards.Lifting Weight | t | 32/5 | |||||||||||||
Working class | A5 | ||||||||||||||
Span | S（m） | 18 | 22 | 26 | 30 | 35 | |||||||||
Lifting Height(m) | Main | H1(m) | 10 | 11 | |||||||||||
Aux | H2(m) | 10.73 | |||||||||||||
Speed | Lift | Main | m/min | 7.5 | |||||||||||
Aux | 15.4 | ||||||||||||||
handcart travel | 37 | ||||||||||||||
cart travel | 39.4 | 39.4 | |||||||||||||
Motor total power | KW | 99.3 | 117.3 | ||||||||||||
Main Size(mm) | H | 14862 | 16962 | ||||||||||||
L1 | 11179 | 7450 | 9740 | 9740 | |||||||||||
L2 | 7740 | 8490 | 9490 | 9490 | |||||||||||
S1 | 5000 | 6000 | 7000 | 7000 | |||||||||||
S2 | |||||||||||||||
S3 | 5980 6980 7980 7980 | ||||||||||||||
S4 | 4020 5020 6020 6020 | ||||||||||||||
BQ | 10745 | 111245 | 10779 | ||||||||||||
B | 8000 | 8500 | |||||||||||||
Max.Wheel Pressure | KN | 245 | 258 | 276 | 286 | 302 | |||||||||
Steel track | P43/QU70 | ||||||||||||||
Power Supply | 3-Phase A.C.50HZ 380V | ||||||||||||||
Lifting Weight | t | 50/10 | |||||||||||||
Working class | A5 | ||||||||||||||
Span | S（m） | 18 | 22 | 26 | 30 | 35 | |||||||||
Lifting Height(m) | Main | H1(m) | 10 | 12 | |||||||||||
Aux | H2(m) | 10.918 | |||||||||||||
Speed | Lift | Main | m/min | 5.9 | |||||||||||
Aux | 10.4 | ||||||||||||||
handcart travel | 36 | ||||||||||||||
cart travel | 38.5 | 38.5 | |||||||||||||
Motor total power | KW | 126.5 | 126.5 | ||||||||||||
Main Size(mm) | H | 15557 | 17657 | ||||||||||||
L1 | 10786 | 10586 | 10386 | 11000 | |||||||||||
L2 | 7935 | 8935 | 9935 | 9935 | |||||||||||
S1 | 5000 | 6000 | 7000 | 7000 | |||||||||||
S2 | |||||||||||||||
S3 | 6195 7195 8195 8195 | ||||||||||||||
S4 | 3805 4805 5805 5805 | ||||||||||||||
BQ | 10940 | 11440 | 10779 | ||||||||||||
B | 8000 | 8500 | |||||||||||||
Max.Wheel Pressure | KN | 356 | 356 | 377 | 409 | 426 | |||||||||
Steel track | P43/ QU70 | ||||||||||||||
Power Supply | 3-Phase A.C.50HZ 380V | ||||||||||||||
PRODUCT SPECIFICATIONS
FAQ
Are you original manufacture?
Yes, we MIne are an official leading manufacture in crane machinary in China
and we have the whole series products you need.
and we have the whole series products you need.
How to order?
Please provide the load capacity、 span、 lifting height、and voltage of the crane you need. We will design a product plan for you based on your actual on-site situation.
How to meet our country's quality standards?
The Chinese National Standards (GB) correspond to the standards formulated by international organizations such as the International Organization for Standardization (IS0) and the International Electrotechnical Commission (IEC). Chinese national standards are usually consistent or close to international standards
Due to differences in economic and technological development levels among different countries and regions, the standards set by each country may also vary. It is necessary to select the applicable standards based on the actual situation and make corresponding adjustments and modifications.
What about the Minimum Order Quantity?
The MoQ is 1 pcs.
