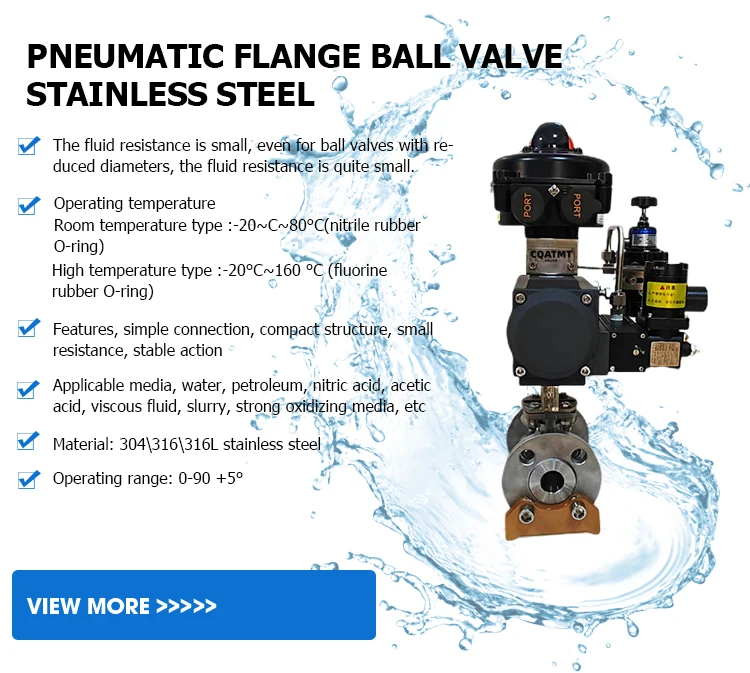

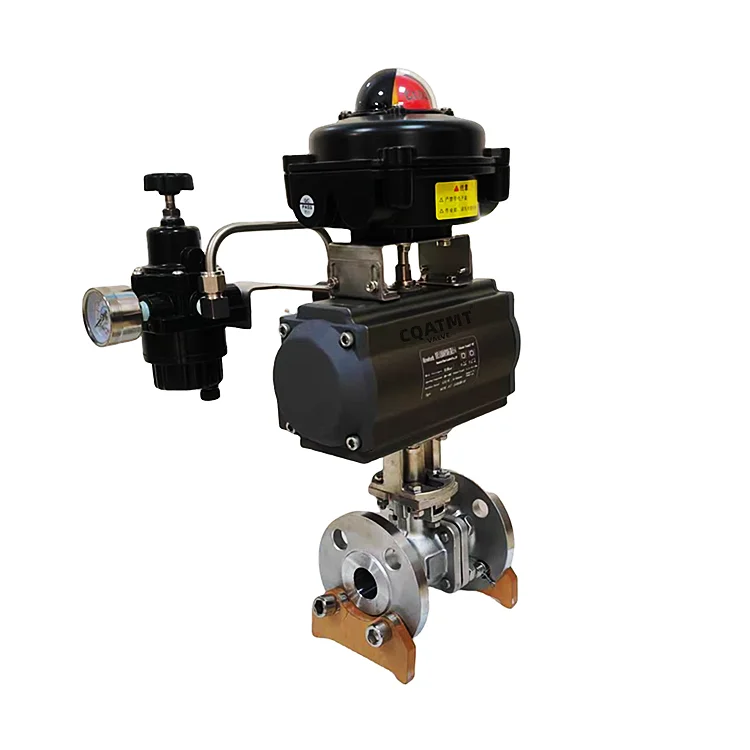

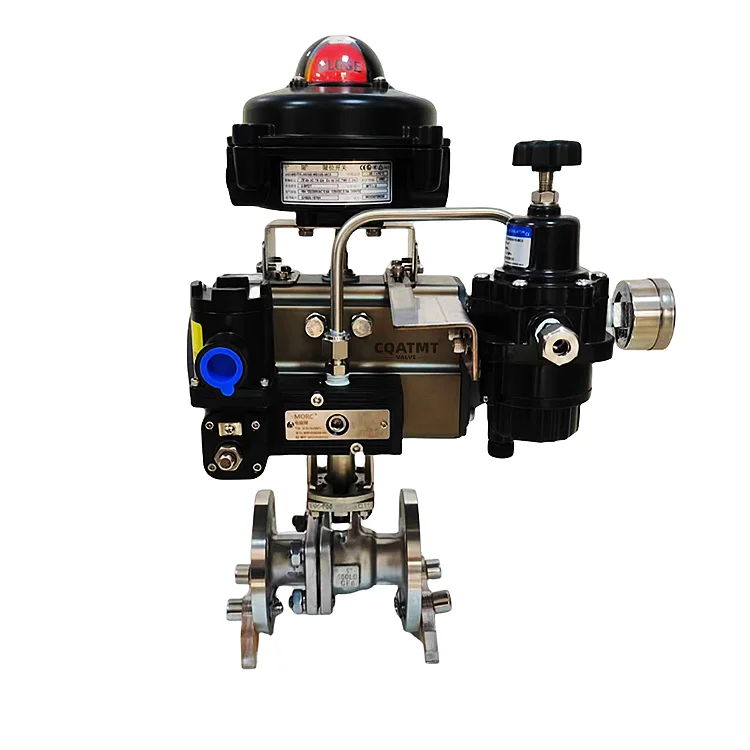

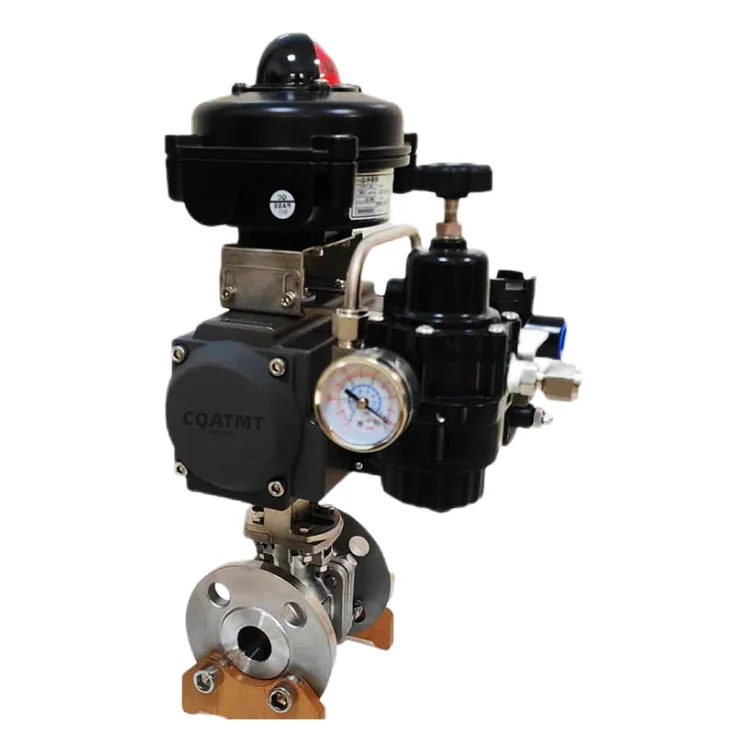

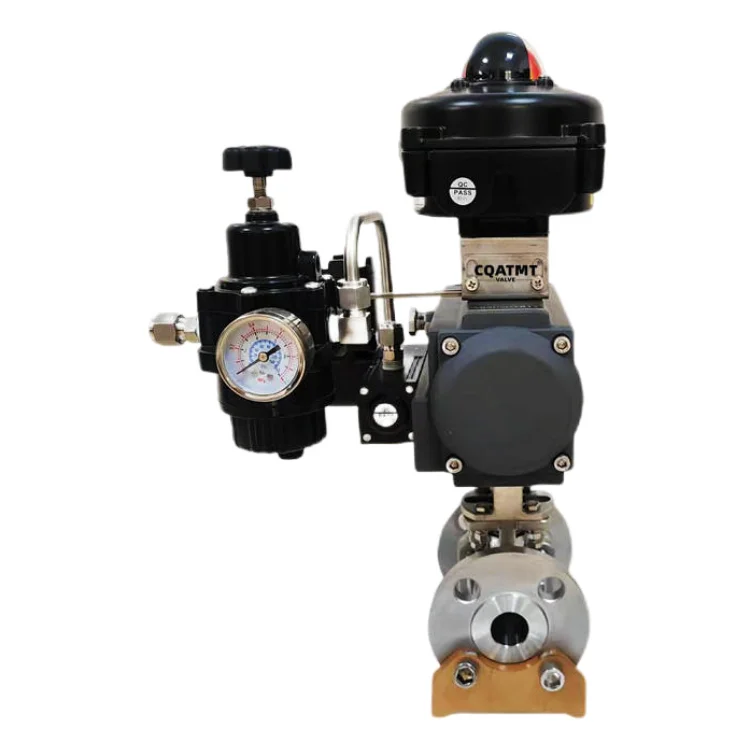

CQATMT Flanged Stainless Steel Pneumatic Ball Valve High Pressure Actuated Ball Valve Flange Stainless Steel Ball Valve
- Category: >>>
- Supplier: CQATMT Valve Technology Co. Ltd.
Share on (1601215599668):
Product Overview
Description
Production Description
Specification
item | 304 explosion-proof pneumatic ball valve |
Warranty | 1 years |
Type | BALL VALVES |
Customized support | OEM, ODM, OBM, Software reengineering |
Place of Origin | jinan |
Brand Name | CQATMT |
Model Number | BQ641F-16P |
Application | General |
Temperature of Media | High Temperature, Low Temperature, Medium Temperature, Normal Temperature |
Power | Hydraulic |
Media | Water, steam, oil. |
Port Size | DN15-DN300 |
Structure | BALL |

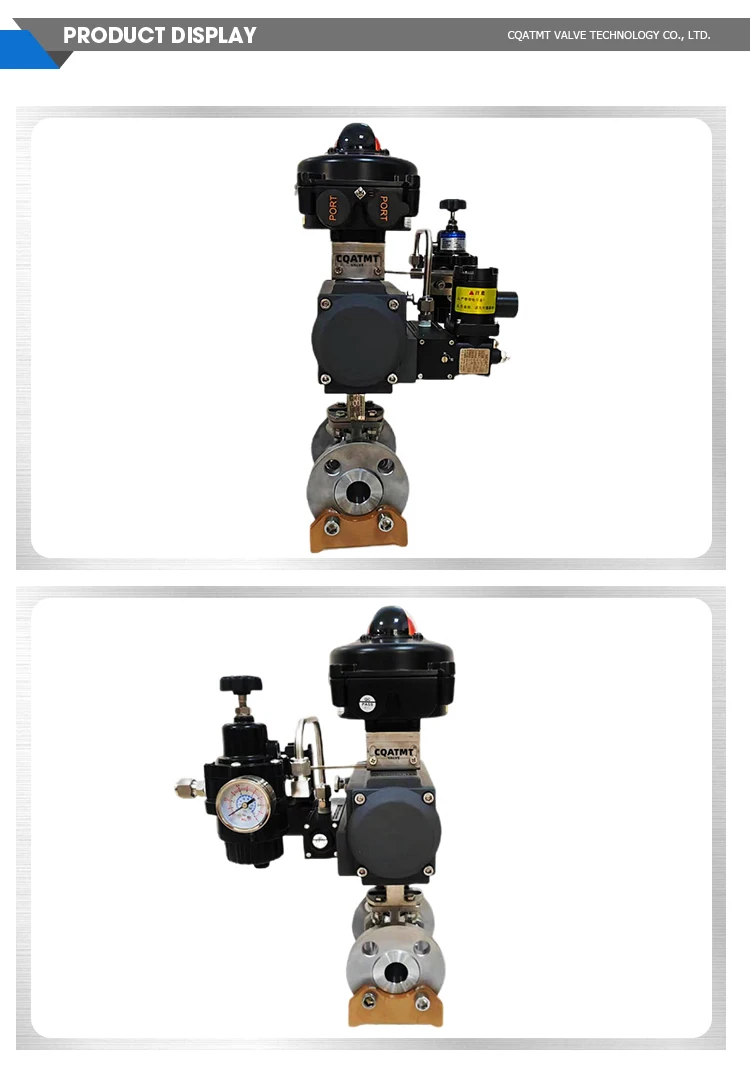

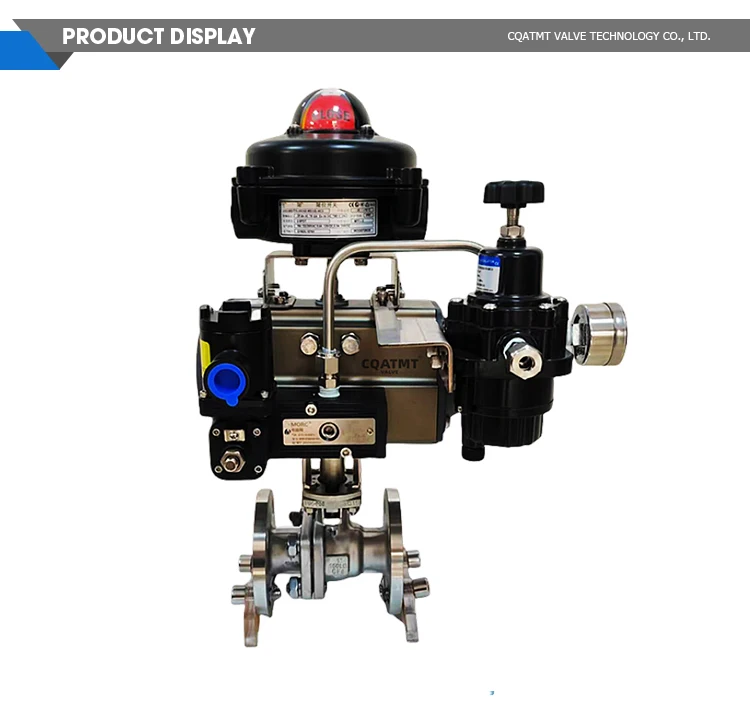

Product Display

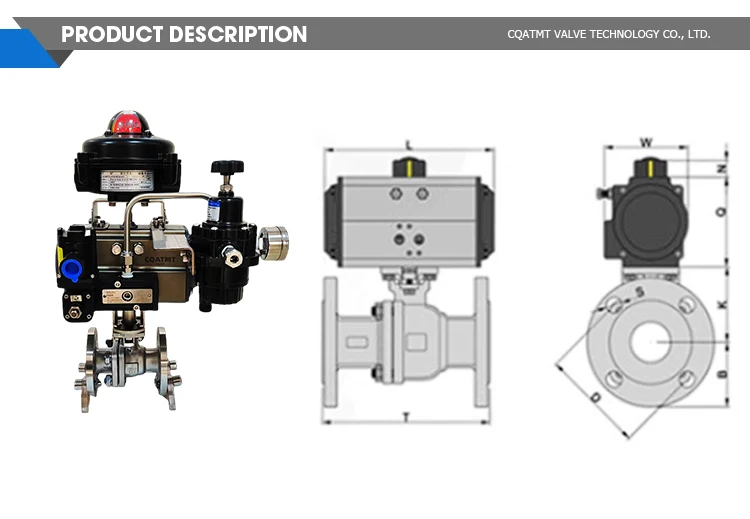

DN(mm) | L | D | D1 | D2 | b | f | Z-∅d | H | D0 |
15 | 130 | 95 | 65 | 45 | 14 | 2 | 4-∅14 | 75 | 130 |
20 | 140 | 105 | 75 | 55 | 14 | 2 | 4-∅14 | 84 | 170 |
25 | 150 | 115 | 85 | 65 | 14 | 2 | 4-∅14 | 90 | 170 |
32 | 165 | 135 | 100 | 78 | 16 | 2 | 4-∅18 | 107 | 200 |
40 | 180 | 145 | 110 | 85 | 16 | 3 | 4-∅18 | 127 | 250 |
50 | 200 | 160 | 125 | 100 | 16 | 3 | 4-∅18 | 140 | 250 |
65 | 220 | 180 | 145 | 120 | 18 | 3 | 4-∅18 | 164 | 350 |
80 | 250 | 195 | 160 | 135 | 20 | 3 | 8-∅18 | 177 | 350 |
100 | 280 | 215 | 180 | 155 | 20 | 3 | 8-∅18 | 206 | 420 |
125 | 320 | 245 | 210 | 185 | 22 | 3 | 8-∅18 | 292 | 700 |
150 | 360 | 280 | 240 | 210 | 24 | 3 | 8-∅23 | 320 | 1000 |
200 | 400 | 335 | 295 | 265 | 26 | 3 | 12-∅23 | 365 | 1300 |
250 | 533 | 405 | 355 | 320 | 30 | 3 | 12-∅25 | 420 | 1800 |
Product Application
Main Products
Company Profile
Packaging&Shipping
FAQ
1. Who are we?
We are based in Shandong, China, start from 2022,sell to South America(20.00%),Eastern Europe(20.00%),North America(10.00%),Southeast Asia(10.00%),Western Europe(9.00%),South Asia(5.00%),Eastern Asia(5.00%),Central America(5.00%),Mid East(5.00%),Oceania(4.00%),Africa(3.00%),Southern Europe(2.00%),Northern Europe(2.00%). There are total about 5-10 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Valve, Pneumatic Actuator Control Valve, Electric Control Valve, Pressure Reducing Valve, Self-control Valve
4. Why should you buy from us not from other suppliers?
The company mainly produces regulating valves, ball valves, gate valves, globe valves, check valves, power station valves, butterfly valves and other related products that meet GB, ANSI/API, JIS, DIN, BS, NF and other standards.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shandong, China, start from 2022,sell to South America(20.00%),Eastern Europe(20.00%),North America(10.00%),Southeast Asia(10.00%),Western Europe(9.00%),South Asia(5.00%),Eastern Asia(5.00%),Central America(5.00%),Mid East(5.00%),Oceania(4.00%),Africa(3.00%),Southern Europe(2.00%),Northern Europe(2.00%). There are total about 5-10 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Valve, Pneumatic Actuator Control Valve, Electric Control Valve, Pressure Reducing Valve, Self-control Valve
4. Why should you buy from us not from other suppliers?
The company mainly produces regulating valves, ball valves, gate valves, globe valves, check valves, power station valves, butterfly valves and other related products that meet GB, ANSI/API, JIS, DIN, BS, NF and other standards.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
