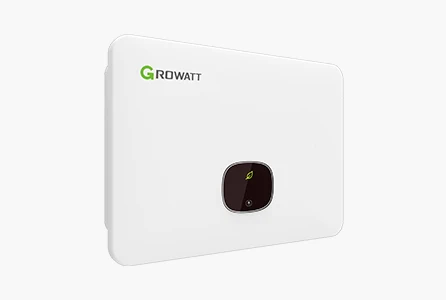

Growatt On Grid Solar Inverters 5KW 10KW 15KW Three Phase Original Pv Inverter For Sale
- Category: >>>
- Supplier: Sunevo Solar Co. Ltd.
Share on (1601215626654):
Product Overview
Description
Product Description
Specification
Datasheet | MOD 3000TL3-X | MOD 4000TL3-X | MOD 5000TL3-X | MOD 6000TL3-X | MOD 7000TL3-X | MOD 8000TL3-X | MOD 9000TL3-X | |||||||
Input data (DC) | ||||||||||||||
Max. recommended PV power (for module STC) | 4500W | 6000W | 7500W | 9000W | 10500W | 12000W | 13500W | |||||||
Max. DC voltage | 1100V | |||||||||||||
Start voltage | 200V | |||||||||||||
Nominal voltage | 580V | |||||||||||||
MPPT voltage range | 140V-1000V | |||||||||||||
No. of MPP trackers | 2 | |||||||||||||
No. of PV strings per MPP tracker | 1 | |||||||||||||
Max. input current per MPP tracker | 13A | |||||||||||||
Max. short-circuit current per MPP tracker | 16A | |||||||||||||
Output data (AC) | ||||||||||||||
AC nominal power | 3000W | 4000W | 5000W | 6000W | 7000W | 8000W | 9000W | |||||||
Max. AC apparent power | 3300VA | 4400VA | 5500VA | 6600VA | 7700VA | 8800VA | 9900VA | |||||||
Nominal AC voltage（range*） | 220V/380V, 230V/400V (340-440V) | |||||||||||||
AC grid frequency（range*） | 50/60 Hz (45-55Hz/55-65 Hz) | |||||||||||||
Max. output current | 5.0A | 6.7A | 8.3A | 10.0A | 11.7A | 13.3A | 15.0A | |||||||
Adjustable power factor | 0.8leading…0.8lagging | |||||||||||||
THDi | <3% | |||||||||||||
AC grid connection type | 3W+N+PE | |||||||||||||
Efficiency | ||||||||||||||
MAX. efficiency | 98.3% | 98.3% | 98.3% | 98.3% | 98.6% | 98.6% | 98.6% | |||||||
European efficiency | 97.5% | 97.5% | 97.5% | 97.5% | 98.1% | 98.1% | 98.1% | |||||||
Protection devices | ||||||||||||||
DC reverse polarity protection | Yes | |||||||||||||
DC Switch | Yes | |||||||||||||
AC/DC surge protection | Type II / Type II | |||||||||||||
Insulation resistance monitoring | Yes | |||||||||||||
AC short-circuit protection | Yes | |||||||||||||
Ground fault monitoring | Yes | |||||||||||||
Grid monitoring | Yes | |||||||||||||
Anti-islanding protection | Yes | |||||||||||||
Residual-current monitoring unit | Yes | |||||||||||||
String fault monitoring | Yes | |||||||||||||
AFCI protection | Optional | |||||||||||||
General data | ||||||||||||||
Dimensions (W / H / D) | 425/387/147mm | 425/387/147mm | 425/387/147mm | 425/387/147mm | 425/387/178mm | 425/387/178mm | 425/387/178mm | |||||||
Weight | 12.5kg | 12.5kg | 12.5kg | 12.5kg | 14kg | 14kg | 14kg | |||||||
Operating temperature range | –25°C ... +60°C | |||||||||||||
Nighttime power consumption | < 1W | |||||||||||||
Topology | Transformerless | |||||||||||||
Cooling | Natural convection | |||||||||||||
Protection degree | IP66 | |||||||||||||
Relative humidity | 0~100% | |||||||||||||
Altitude | 4000m | |||||||||||||
DC connection | H4/MC4(Optional) | |||||||||||||
AC connection | Connector | |||||||||||||
Display | OLED+LED/WIFI+APP | |||||||||||||
Interfaces: USB/RS485/WiFi /GPRS/LAN/RF | yes/yes/Optional/Optional/Optional/Optional | |||||||||||||
Warranty: 5 / 10 years | Yes/Optional | |||||||||||||

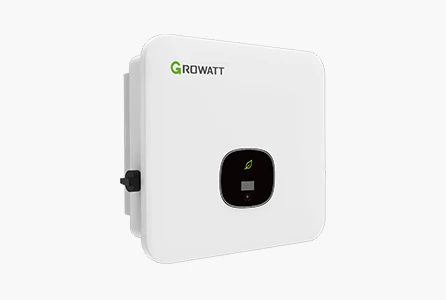

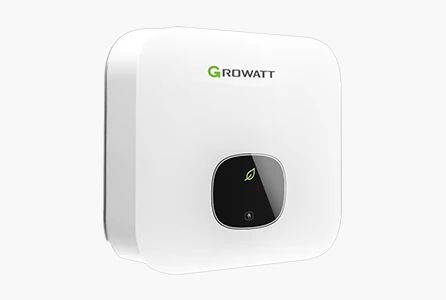

Products Series
3-6KW
2 MPPTs
Single Phase 220-240V 50/6Hz
Single Phase 220-240V 50/6Hz
3-15KW
2 MPPTs
Three Phase 380-415V 50/6Hz
Three Phase 380-415V 50/6Hz
15-40KW
3/4 MPPTs
Three Phase 380-415V 50/6Hz
Three Phase 380-415V 50/6Hz

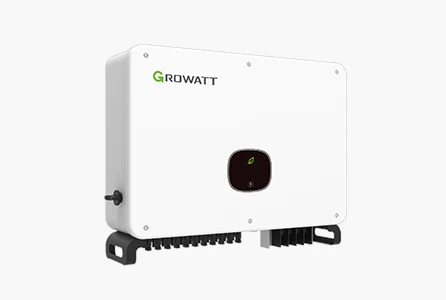

On Grid Commercial Inverter
50-70KW
3 MPPTs
Three Phase 380-415V 50/6Hz
Three Phase 380-415V 50/6Hz

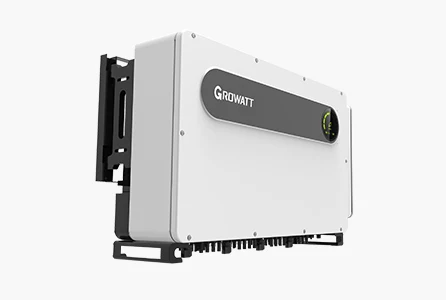

On Grid Commercial Inverter
50-250KW
6-10 MPPTs
Three Phase 380-415V/460-500V 50/6Hz
Three Phase 380-415V/460-500V 50/6Hz

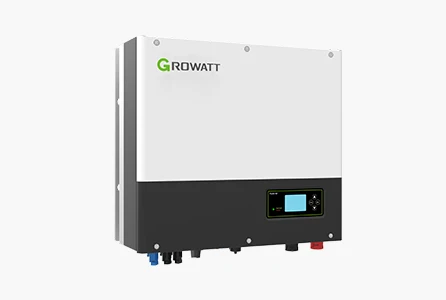

Hybrid Residential Inverter
3-12KW
3-6KW Single Phase
4-12KW Three Phase
4-12KW Three Phase

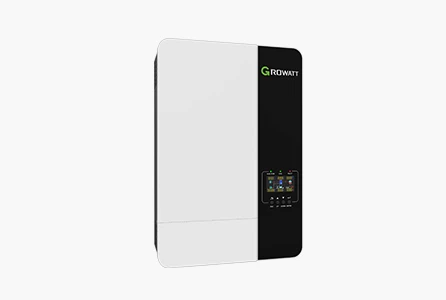

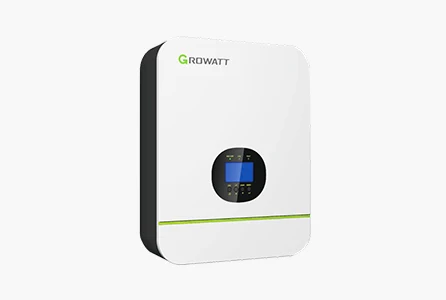

Off Grid Residential Inverter
2-5KW
Single Phase 220-240V 50/60Hz
Battery Voltage 24V/48V
Battery Voltage 24V/48V
Off Grid Residential Inverter
3KW/5KW
Single Phase 220-240V 50/60Hz
Up to 6 units in parallel
Up to 6 units in parallel

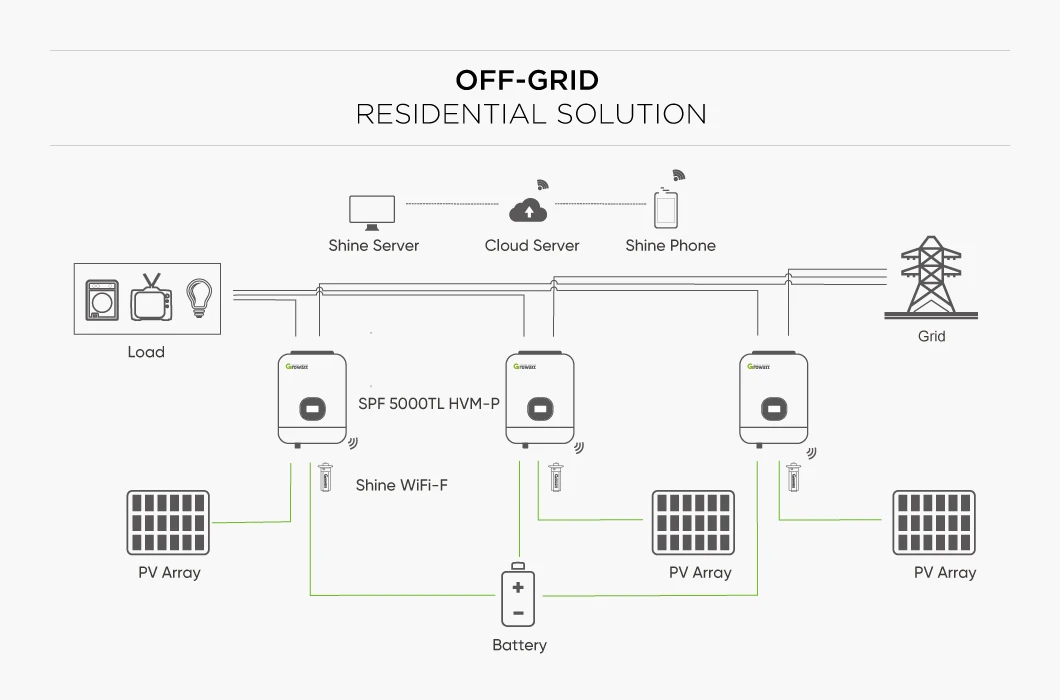

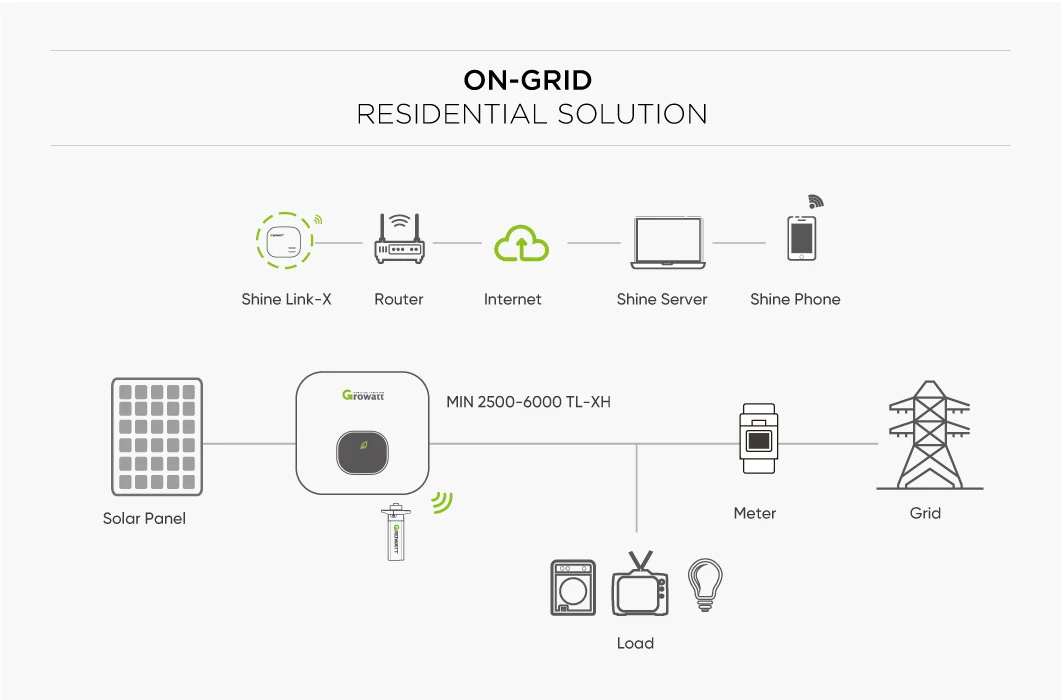

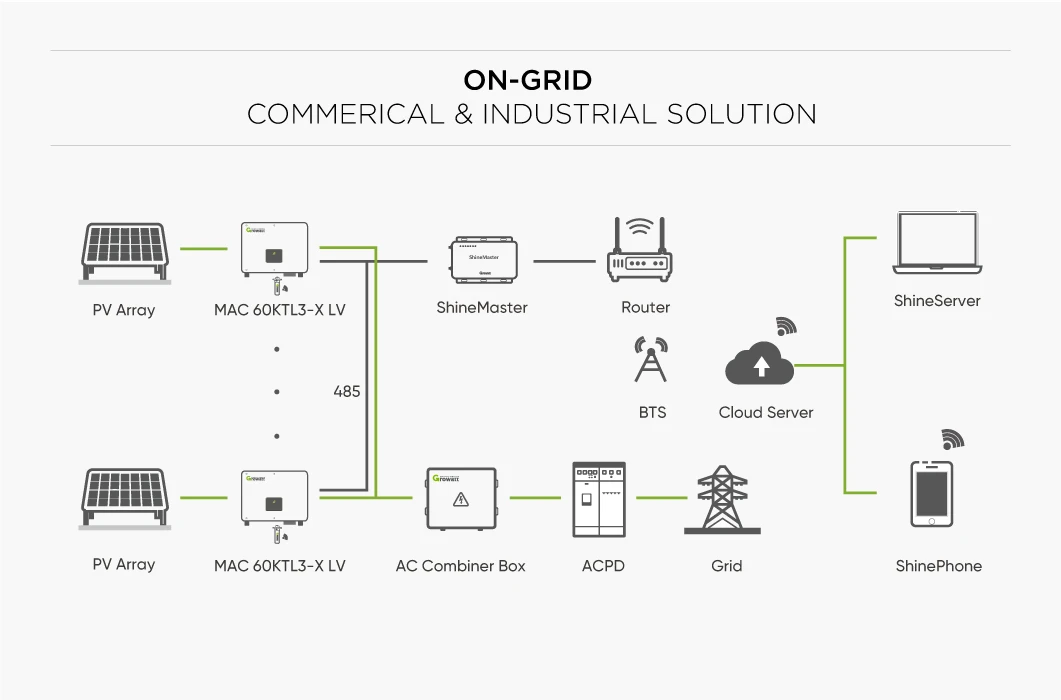

Applications

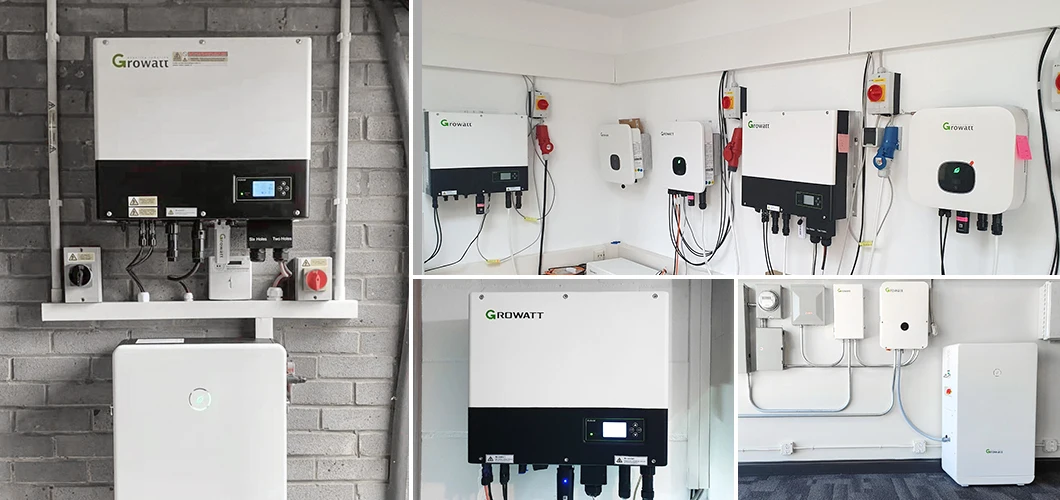

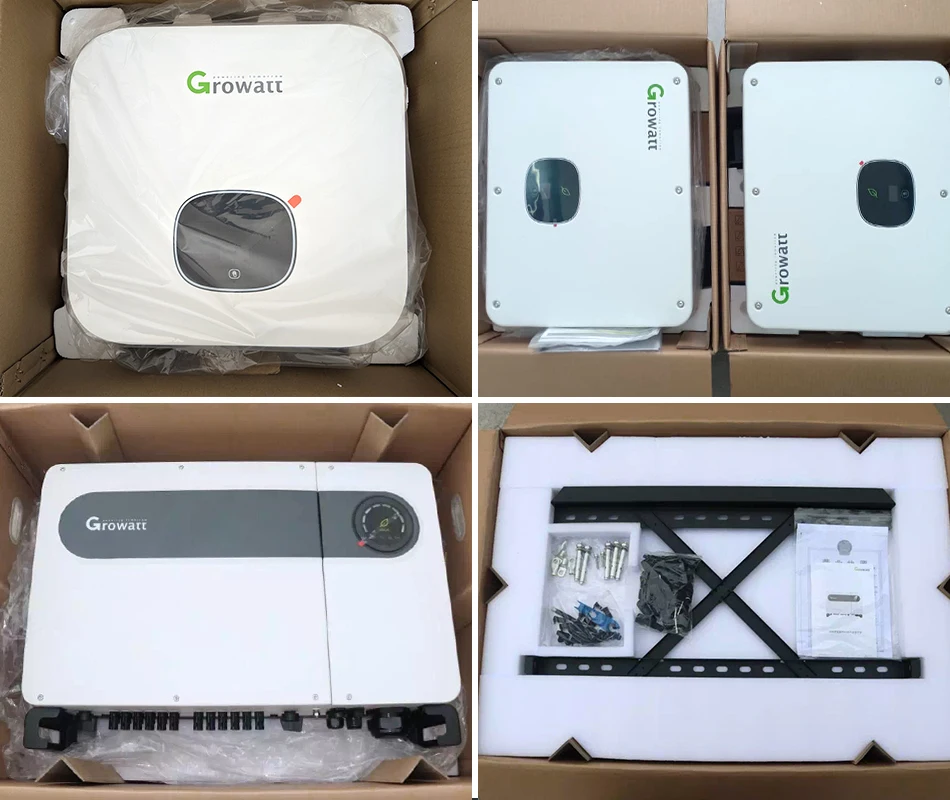

Pictures and Packages

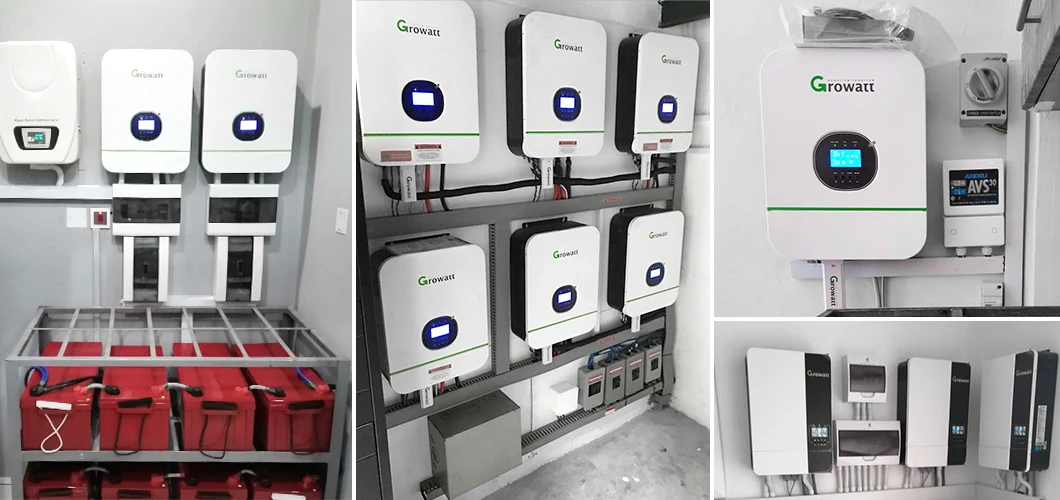

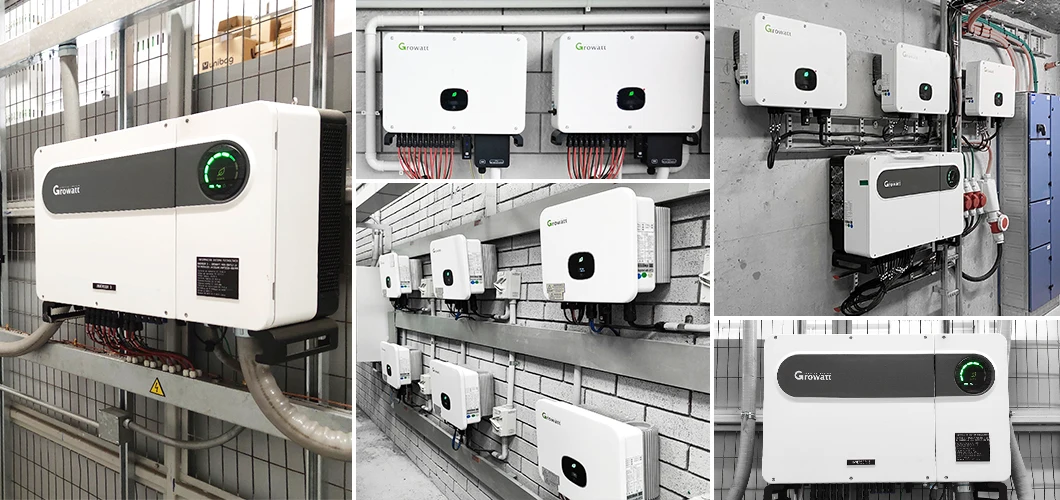

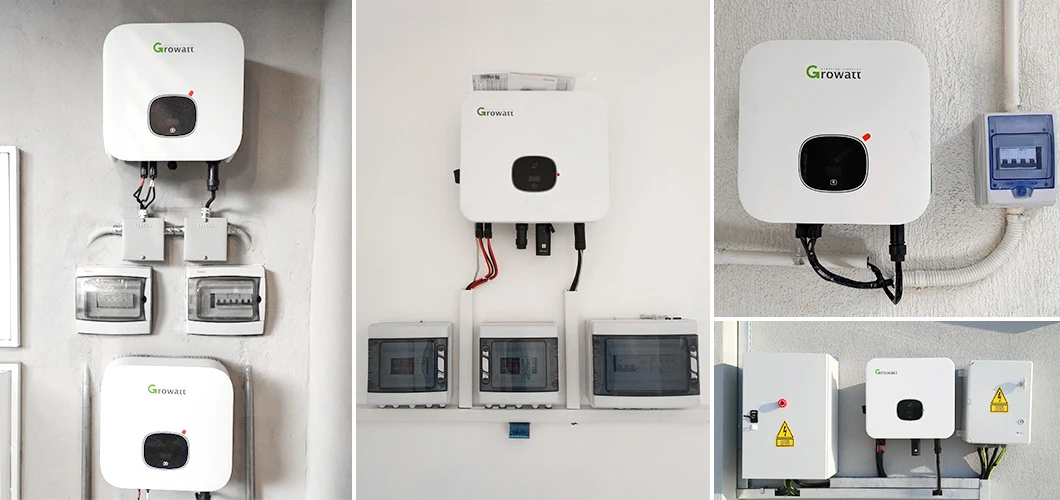

Project Case
Contact Us
FAQ
Q1.How to solve the technical problem?
A:24 hours after-service consultancy just for you and to make your problem to solve easily.
Q2.What is your delivery time?
A:Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit; If we don’t have the products in stock, we will arrange the production right now, the delivery time will be 10-30 days,It depends on the quantity of order.
Q3.Why should we choose you?
A:1: Reliable company - 14 years manufacturing and exporting experience.
2: Qualified products - TUV, CE, UL, IEC, CEC, INMETRO, ISO certified.
3: Good payment term for clients.
4: Module with lower degradation rate than standard degradation in the PV field.
Q4.How to proceed an order?
A:1.let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. Customer confirms the samples and pay deposit for formal order.
4. We arrange the production.
If you want to know more information, you can send inquiry to our team, we will cover more details.
Q2.What is your delivery time?
A:Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit; If we don’t have the products in stock, we will arrange the production right now, the delivery time will be 10-30 days,It depends on the quantity of order.
Q3.Why should we choose you?
A:1: Reliable company - 14 years manufacturing and exporting experience.
2: Qualified products - TUV, CE, UL, IEC, CEC, INMETRO, ISO certified.
3: Good payment term for clients.
4: Module with lower degradation rate than standard degradation in the PV field.
Q4.How to proceed an order?
A:1.let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. Customer confirms the samples and pay deposit for formal order.
4. We arrange the production.
If you want to know more information, you can send inquiry to our team, we will cover more details.
