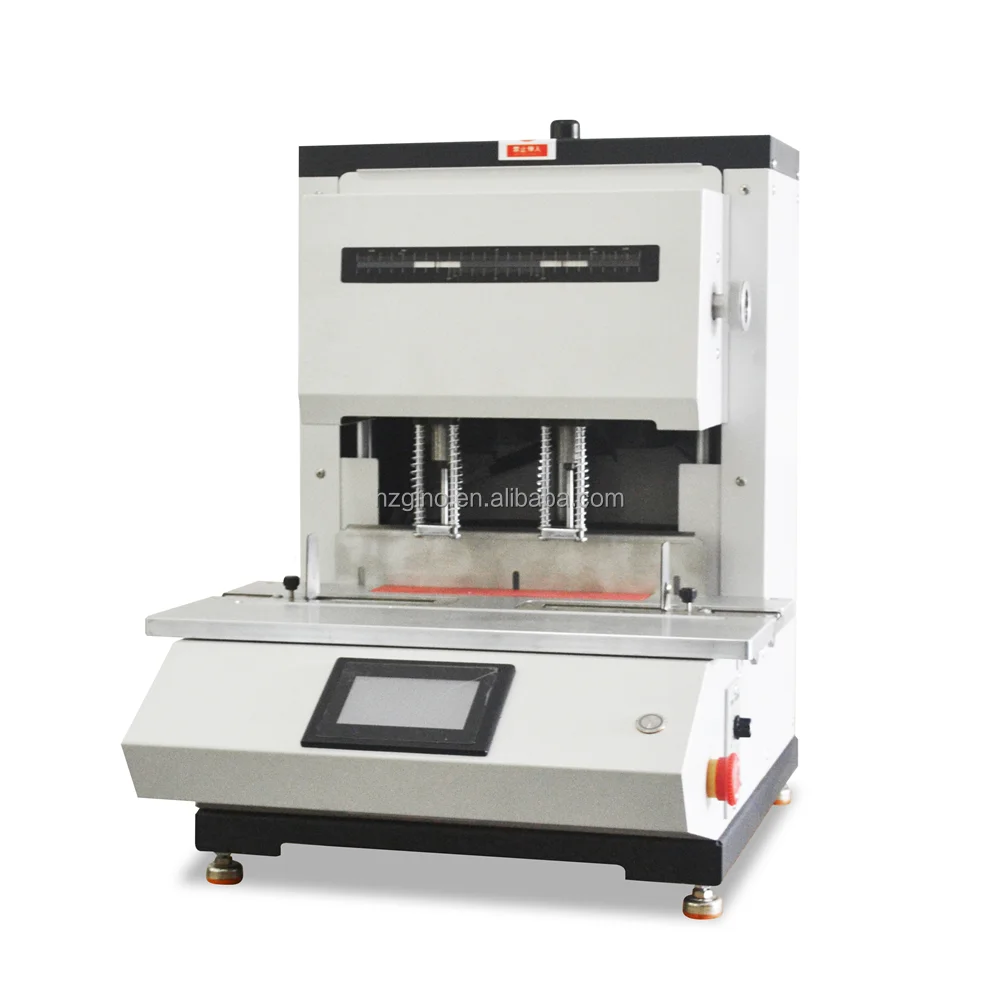

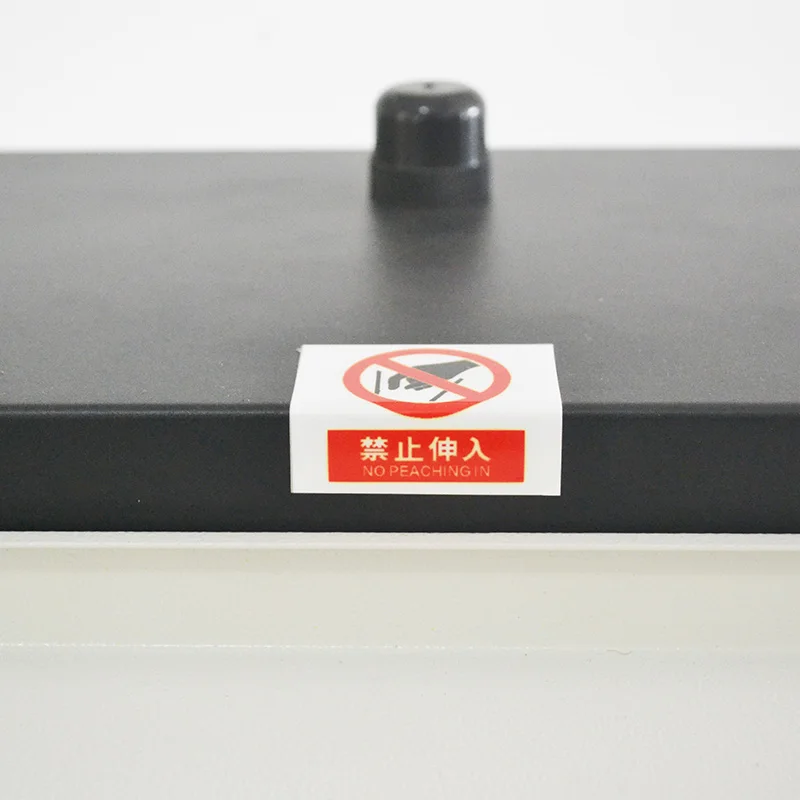

ZD500A Automatic Two holes Paper punching machine with adjustable two distance
- Category: >>>
- Supplier: Hangzhou Gino Tech Co. Ltd.
Share on (1601215634075):
Product Overview
Description
Product Description
Automatic Adjustable Two/Three Holes Paper Punching Machine
Feature
*1. High-Speed Operation: Quiet operation with adjustable punching speed, capable of punching up to 500 pages of paper within 1.0-1.5 seconds.

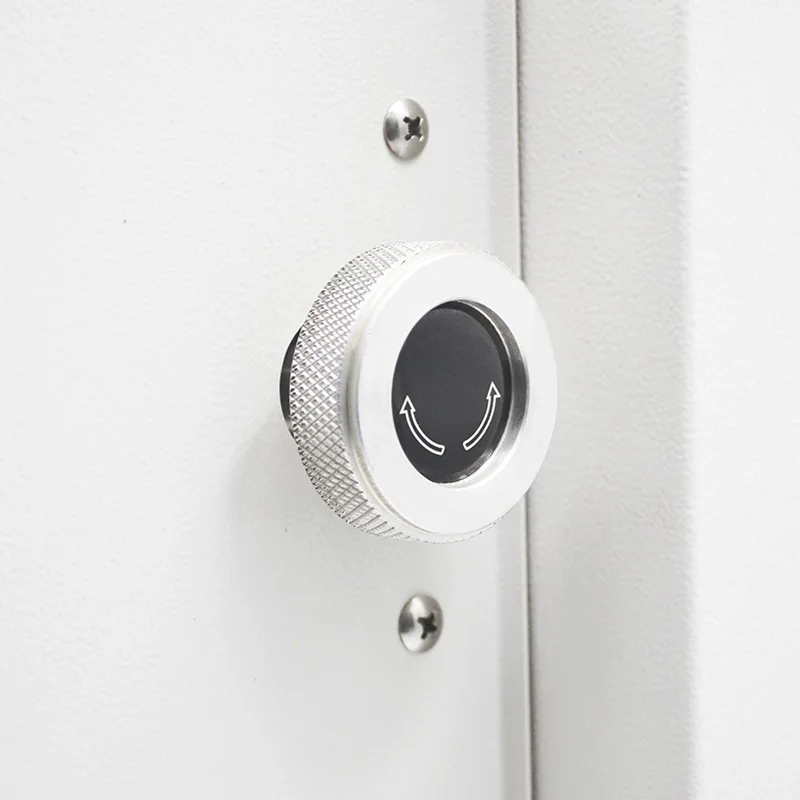

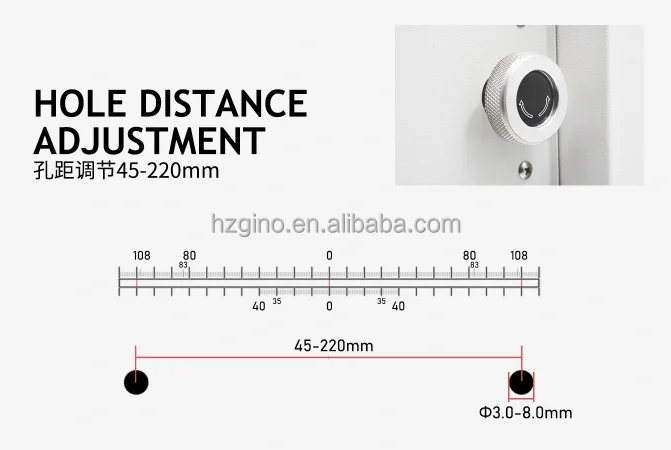

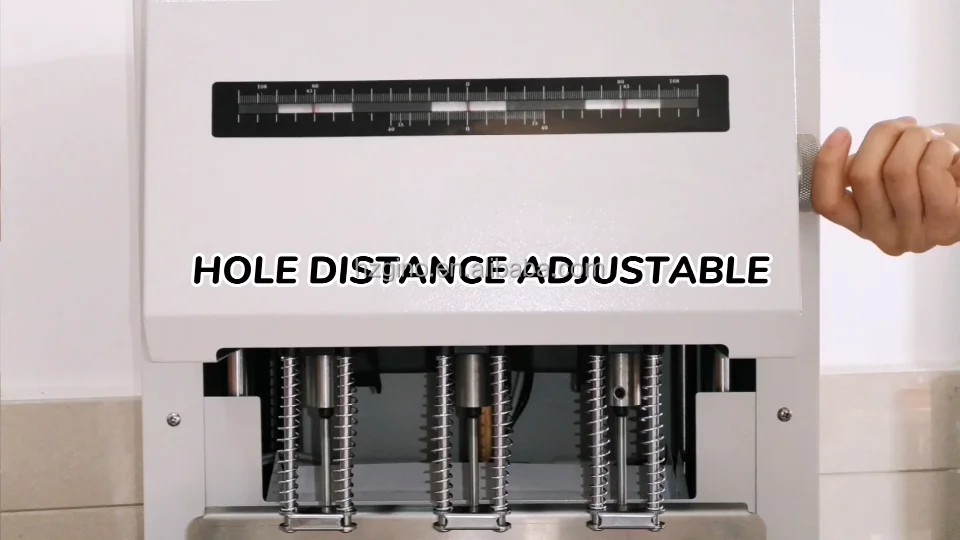

*2. Adjustable Hole Distance: Knob-adjustable hole distance ranges from 45-110 mm for ZD500B and 45-220 mm for ZD500A models.

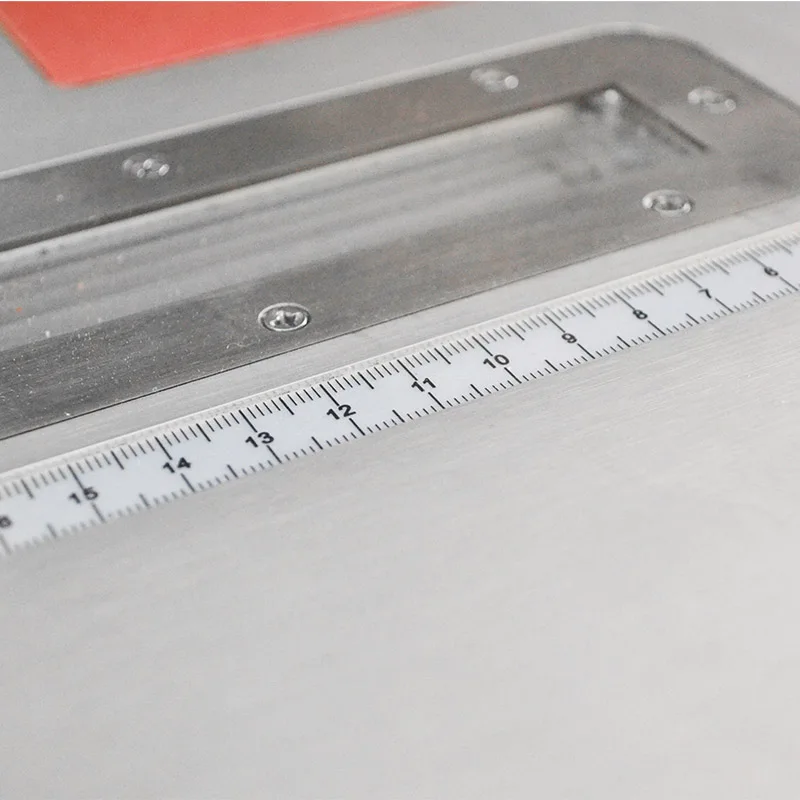

*3. Adjustable Margin Range: Margin range can be adjusted from 6-35 mm to suit various punching requirements.
*4. High-Tech Hollow Drill Bit: Equipped with a sharp and durable hollow drill bit for burr-free punching.
*5. Versatile Drill Bit Options: Option to install drill bits ranging from Φ3.0 mm to Φ8.0 mm, providing flexibility for different diameter requirements.
*6. Adjustable Drilling Depth: Drilling depth can be adjusted by pulling out the set top nut (recommended for professionals).

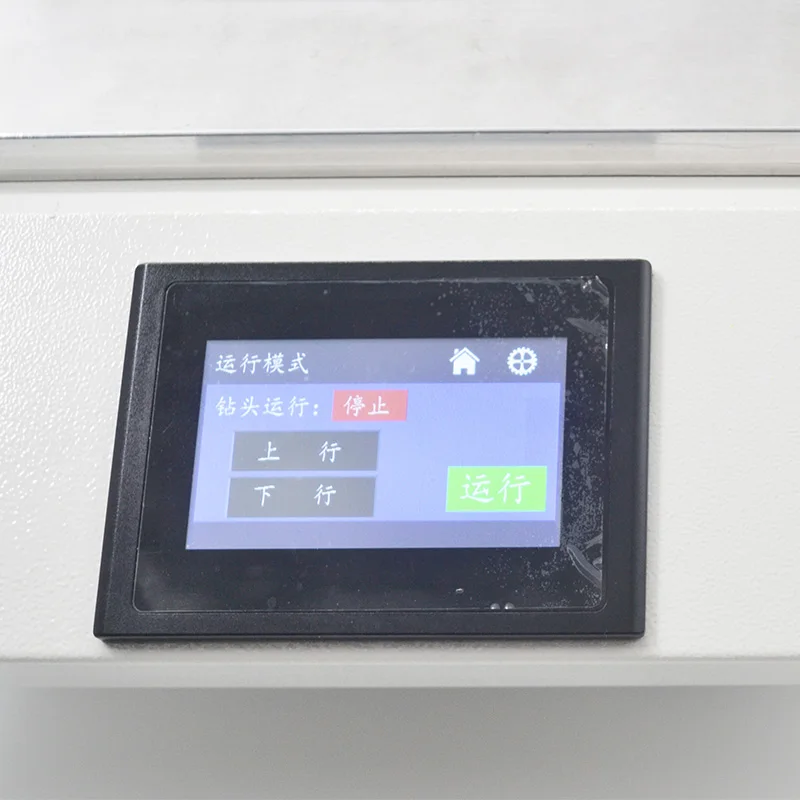

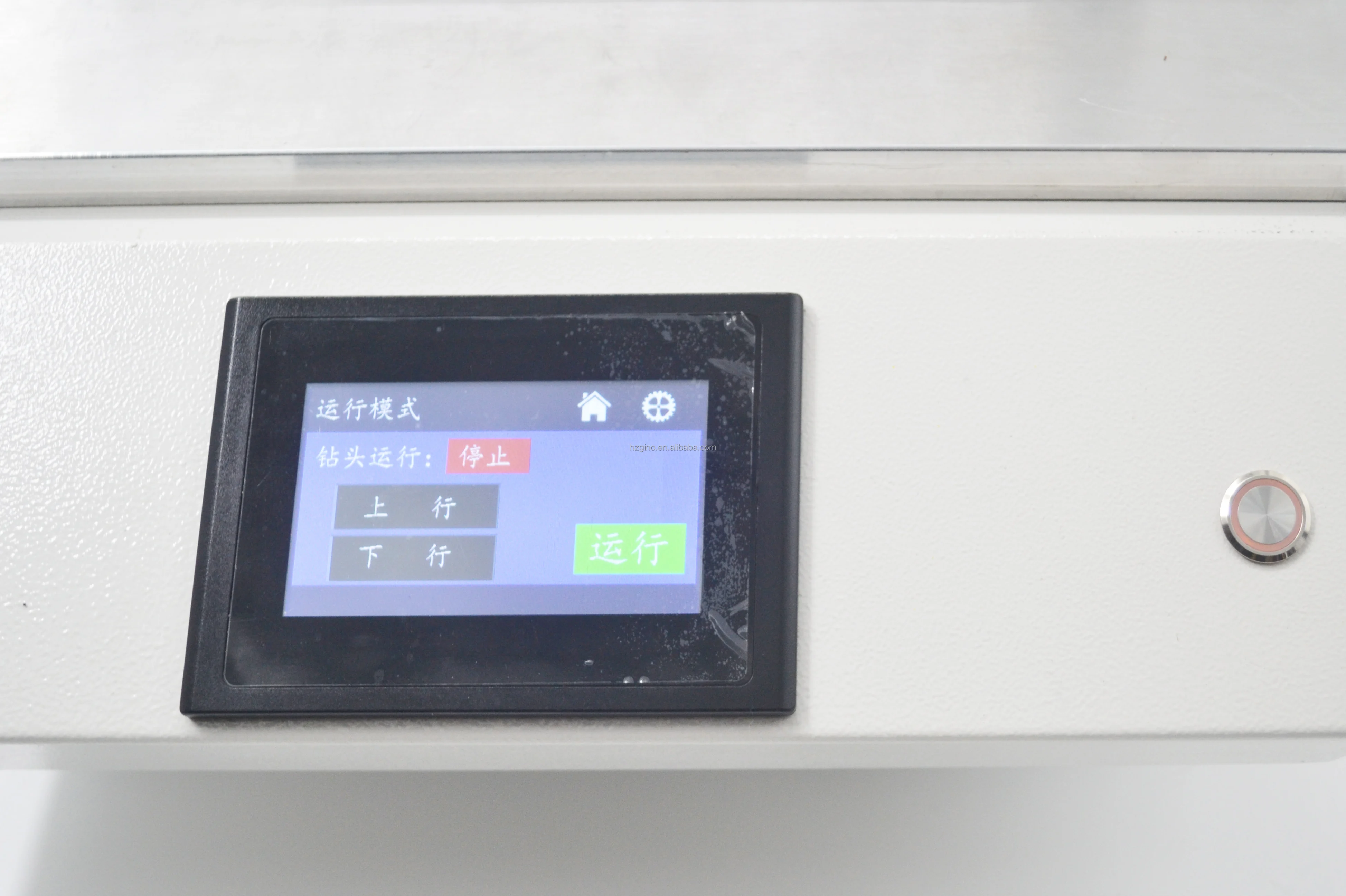

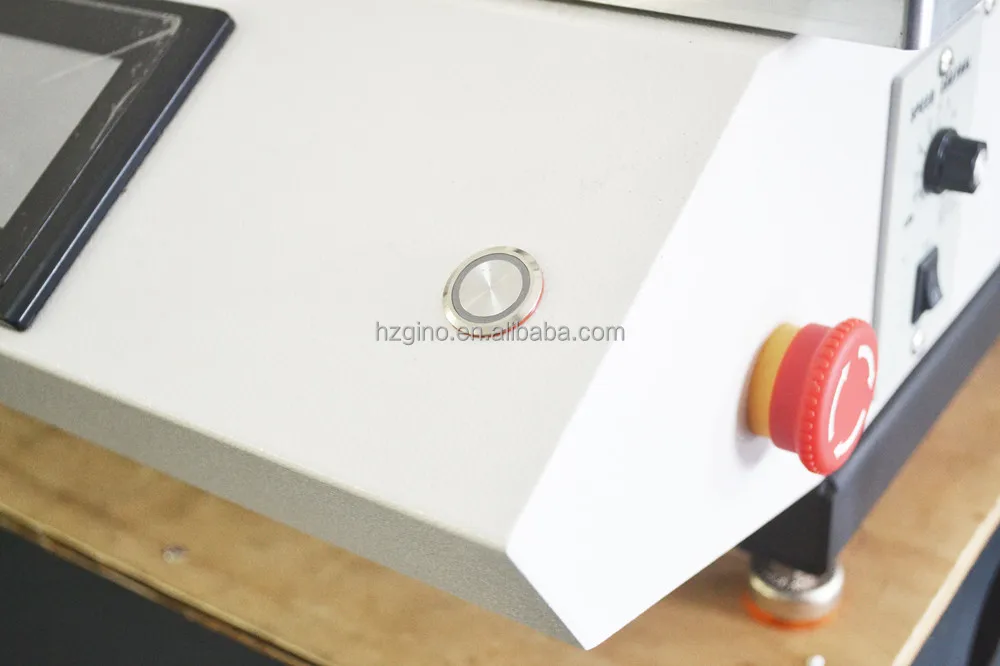

*7. LCD Color Touch Screen: Includes an auxiliary operation switch for intuitive control and monitoring.
Double Hole Punching Machine
*1. High-Speed Operation: Quiet operation with adjustable punching speed, capable of punching up to 500 pages of paper within 1.0-1.5 seconds.
*2. Adjustable Hole Distance: Knob-adjustable hole distance ranges from 45-110 mm for ZD500B and 45-220 mm for ZD500A models.
*3. Adjustable Margin Range: Margin range can be adjusted from 6-35 mm to suit various punching requirements.
*4. High-Tech Hollow Drill Bit: Equipped with a sharp and durable hollow drill bit for burr-free punching.
*5. Versatile Drill Bit Options: Option to install drill bits ranging from Φ3.0 mm to Φ8.0 mm, providing flexibility for different diameter requirements.
*6. Adjustable Drilling Depth: Drilling depth can be adjusted by pulling out the set top nut (recommended for professionals).
*7. LCD Color Touch Screen: Includes an auxiliary operation switch for intuitive control and monitoring.
*8. Safety Features: Alarm sounds in case of knife blockage or breakage, ensuring operational safety.
This punching machine is designed for efficient and precise punching tasks, suitable for a wide range of professional
applications.
This punching machine is designed for efficient and precise punching tasks, suitable for a wide range of professional
applications.
Detailed Images
Size Information
Punching thickness | 500sheets(50mm) |
Hole diameter | 3.0/3.5/4.0/5.0/6.0/7.0/8.0mm |
Hole quantity/time | 2 |
Hole distance adjustment | 45 - 220mm |
Margin adjustment | 6-35mm |
Machine dimension | 480x595x630mm |
Voltage/Power | 110/240/50/60HZ,120W |
N.W./G.W. | 90/110kg |
Package | 80*61*80cm |
