Self propelled 500 Electric Milling Machine Gasoline Ground Pulling Machine Concrete Surface Renovation
- Category: >>>
- Supplier: Shandong China Coal Construction Machinery Co. Ltd.
Share on (1601215749921):
Product Overview
Description
Self-Propelled Concrete Milling Machine
Cold Planer work for road maintenance and pavement construction, mainly used to scrape the pavement material (such as asphalt or concrete) by milling, and then resurface or repair the pavement.
Fully hydraulic self-propelled system
Sauer system imported from the U.S.A,
Continuously variable speed Automatic traveling.High efficiency and low consumption
Long service life15KW three-phase AC motor Stable performance Continuous output
Low consumption and high efficiency
Horsepower can be increased by 50% by paying attention to the maintenance in time during the use.
Sauer system imported from the U.S.A,
Continuously variable speed Automatic traveling.High efficiency and low consumption
Long service life15KW three-phase AC motor Stable performance Continuous output
Low consumption and high efficiency
Horsepower can be increased by 50% by paying attention to the maintenance in time during the use.
Products Description

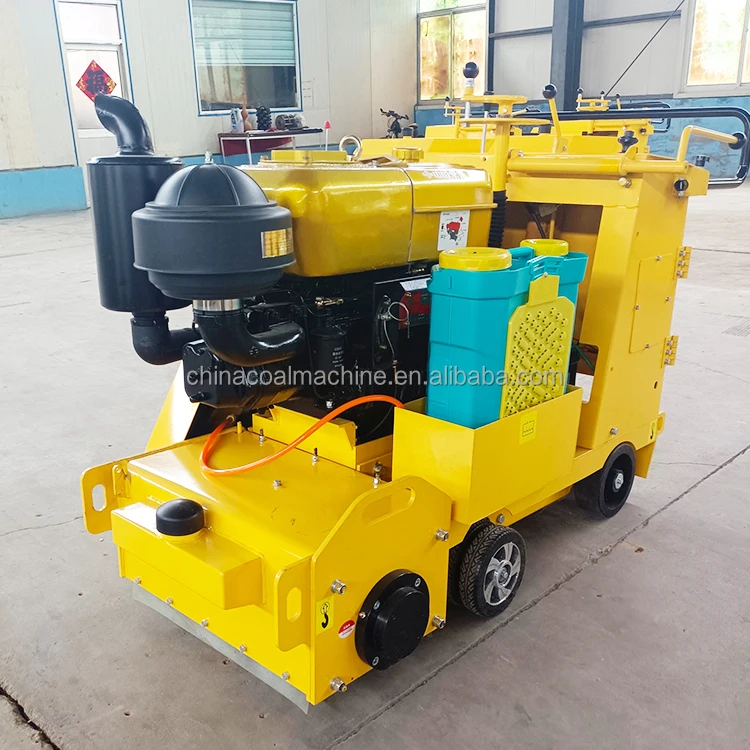

500 Self-Propelled Electric Concrete Milling Machine
The tungsten alloy cutter drum used in the road milling machine can be replaced at any time, and the milling cutter head adopts tungsten alloy blade, which is wear-resistant and high temperature resistant, and can be continuously operated on different road surfaces such as concrete, asphalt, etc., and the milling efficiency can be increased by 30%; it uses a 15kw three-phase AC motor, which is stable in performance, and it can be continuously outputted to increase the horse power by 50%.
Details Images
500 Self-Propelled Electric Concrete Milling Machine
Road Milling Machine Features：
1.Operation Platform
One-touch start Throttle control
Gear Control Milling Clutch
Easy to learn Easy to operate Better performance of the machine
One-touch start Throttle control
Gear Control Milling Clutch
Easy to learn Easy to operate Better performance of the machine
2.Depth control
Precision lever
Depth can be automatically adjusted
for a wide range of road conditions
Precision lever
Depth can be automatically adjusted
for a wide range of road conditions
3.Automatic traveling
The handle can be adjusted back and forth in depth for easier operation, and you only need to hold the machine gently when operating it. When operating the machine, you only need to hold the machine gently.
The handle can be adjusted back and forth in depth for easier operation, and you only need to hold the machine gently when operating it. When operating the machine, you only need to hold the machine gently.
4.Fully hydraulic self-propelled system
Sauer system imported from the U.S.A,
Continuously variable speed Automatic traveling
High efficiency and low consumption
Long service life
Sauer system imported from the U.S.A,
Continuously variable speed Automatic traveling
High efficiency and low consumption
Long service life
5.15KW three-phase AC motor
Stable performance Continuous output
Low consumption and high efficiency
Horsepower can be increased by 50% by paying attention to the maintenance in time during the use.
Stable performance Continuous output
Low consumption and high efficiency
Horsepower can be increased by 50% by paying attention to the maintenance in time during the use.
Product Paramenters
500 Self-Propelled Electric Concrete Milling Machine | ||||||
Milling width | 500mm | Engine model | Domestic three-phase motor | |||
Milling depth | 0-20mm | Number of cutter shafts | 6 | |||
Motor power | 15KW | Depth control | Automatic adjustment | |||
Milling drum | Alloy steel | Driving Principle | Hydraulic drive with stepless variable speed | |||
Milling method | Upper cutting type | Number of blades | 128-260blades | |||
Working quality | 600KG | Dimension | 1550x800x1125 | |||
