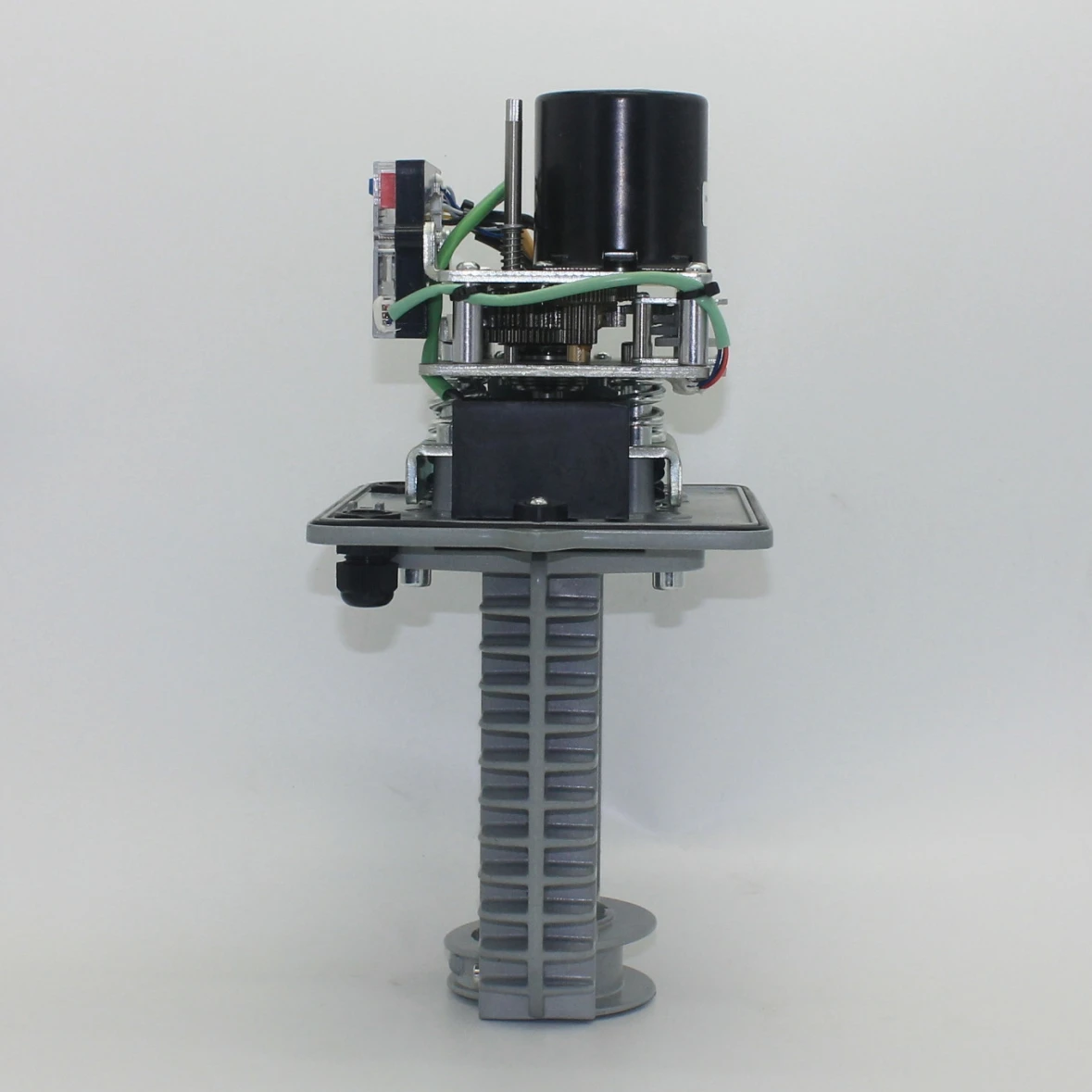

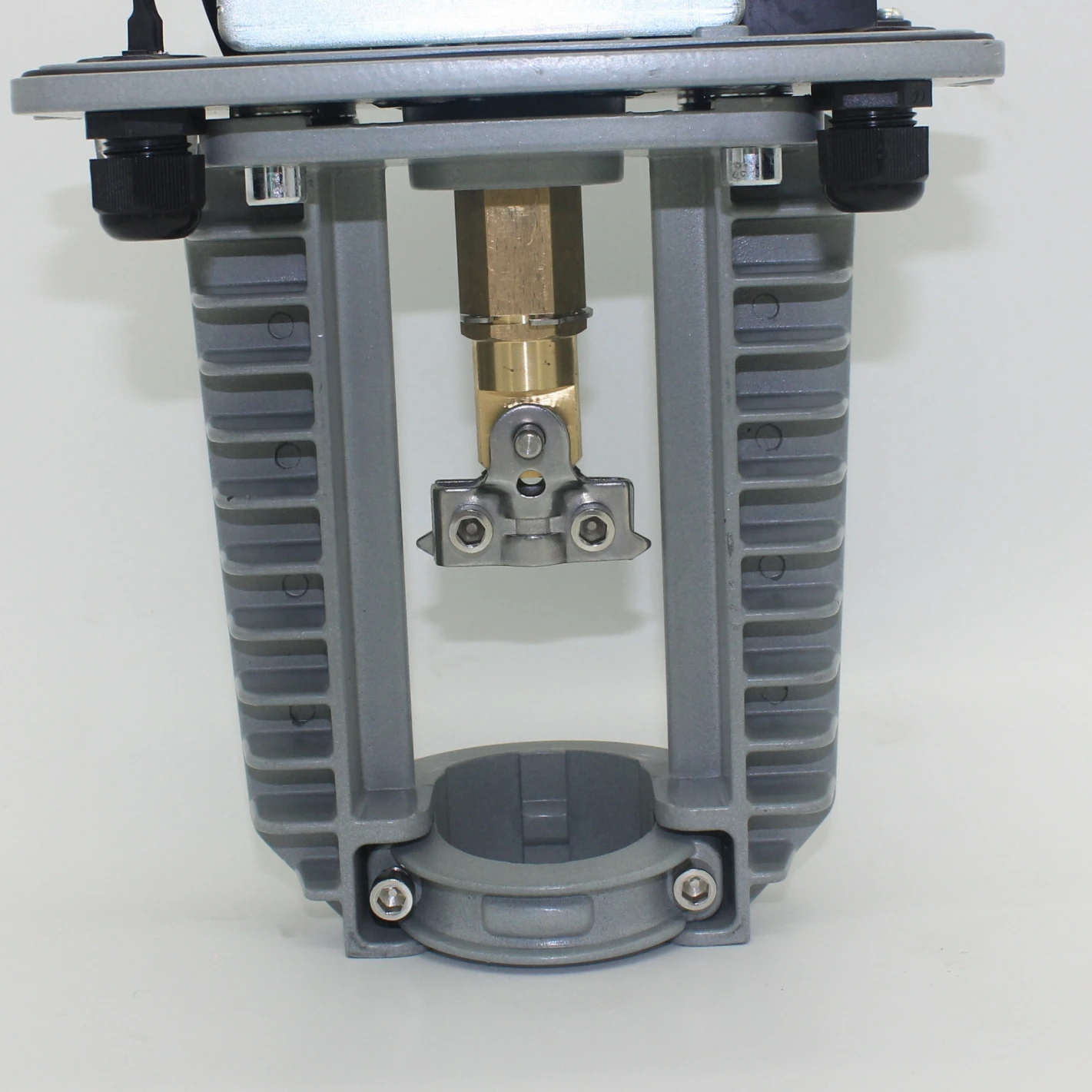

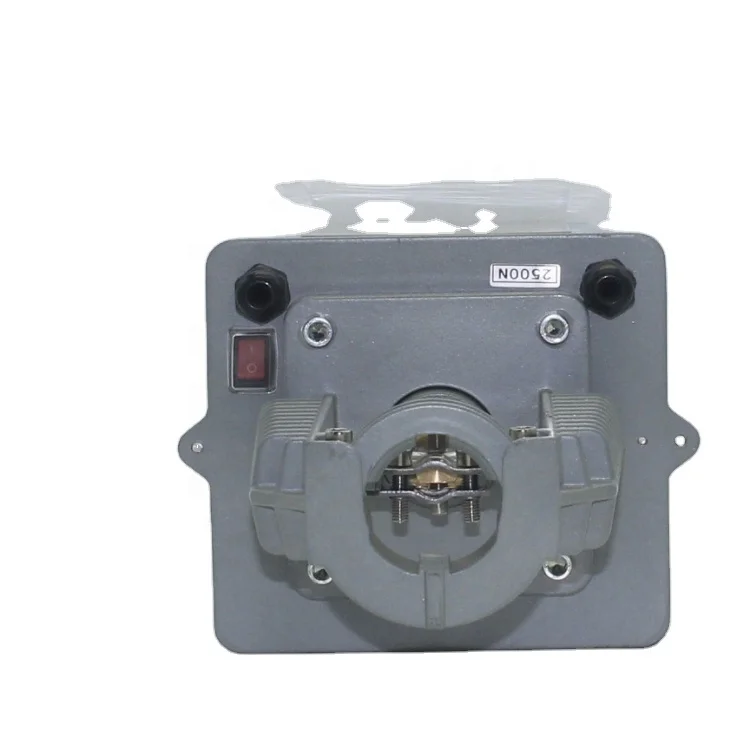

2500N 4000N 5000N force linear valve actuator 220v ac 24 v ac on off analog electric actuator for water globe valve
- Category: >>>
- Supplier: Shaoxing Honglin Controls Co. Ltd
Share on (1601215795839):
Product Overview
Description
Product Overview

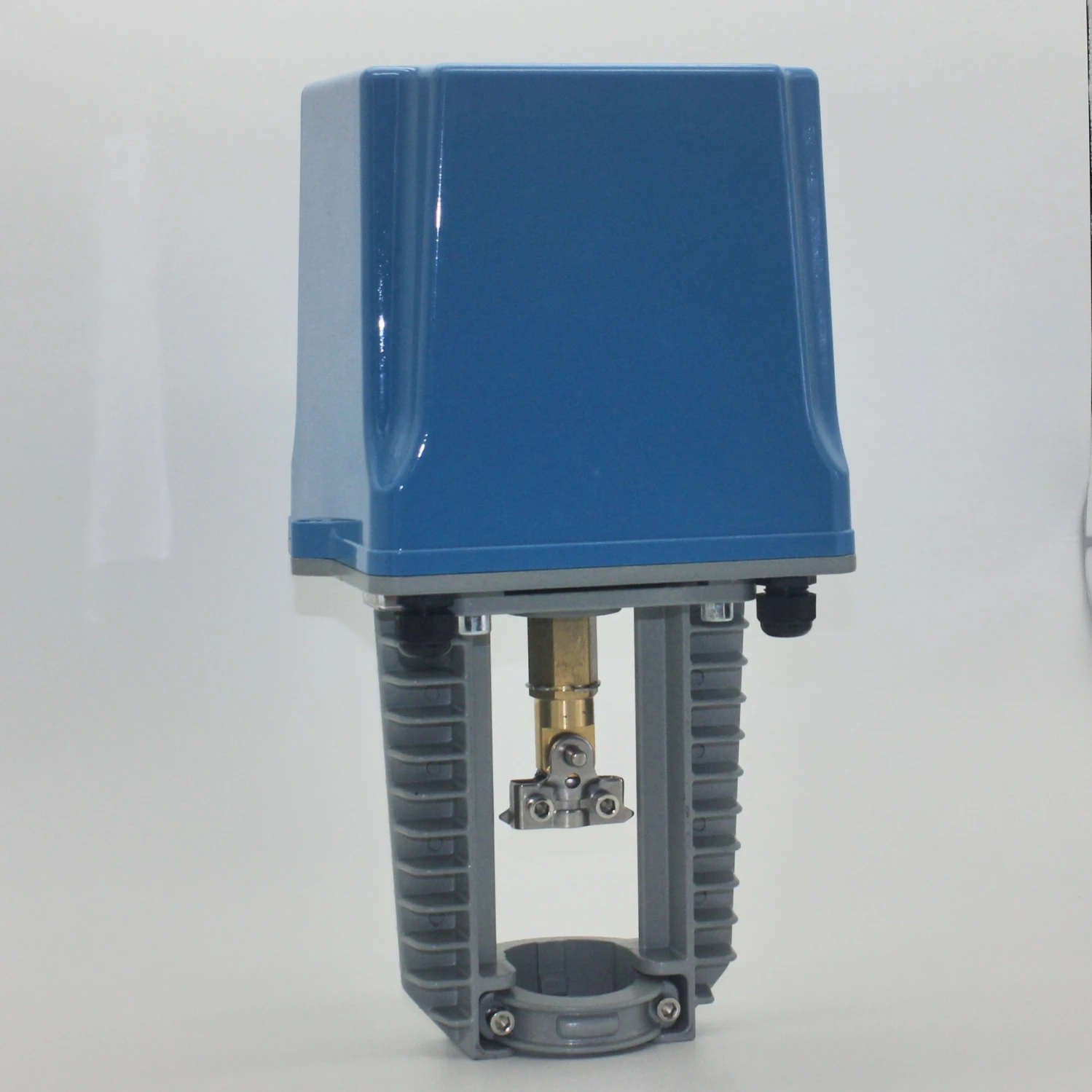

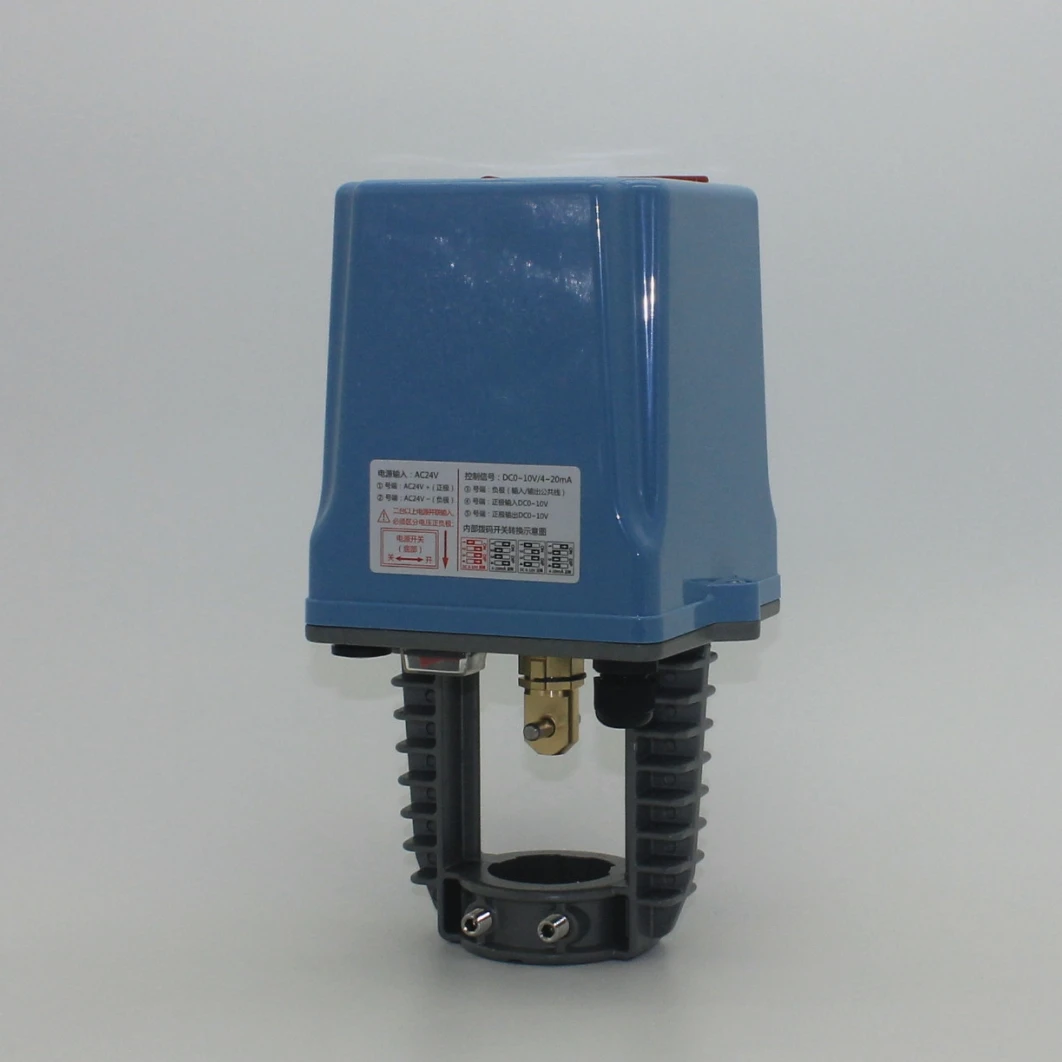

HVB Electric Actuator
HVB series electric actuator has 1500N, 2500N, 4000N, 5000N force to match different valve body, which can regulate the fluid flow, aim to system constant temperature, constant pressure, constant humidity, widely used in HVAC application.
FEATURES AT A GLANCE
1.Forged aluminum bracket and ABS actuator cover.
2.Actuator can meet different differential pressure demand.
3.Synchronous motor, equip with shut off power function, which can open at any
position due to supply stable torque.
4.forward and reversal control setting meet different valve body.
2.Actuator can meet different differential pressure demand.
3.Synchronous motor, equip with shut off power function, which can open at any
position due to supply stable torque.
4.forward and reversal control setting meet different valve body.
5. On-Off, floating or modulating(0-10Vdc/4-20mA)
6.24Vac, 220Vac
7.Big force 1500N,2500N,4000N,5000N
6.24Vac, 220Vac
7.Big force 1500N,2500N,4000N,5000N

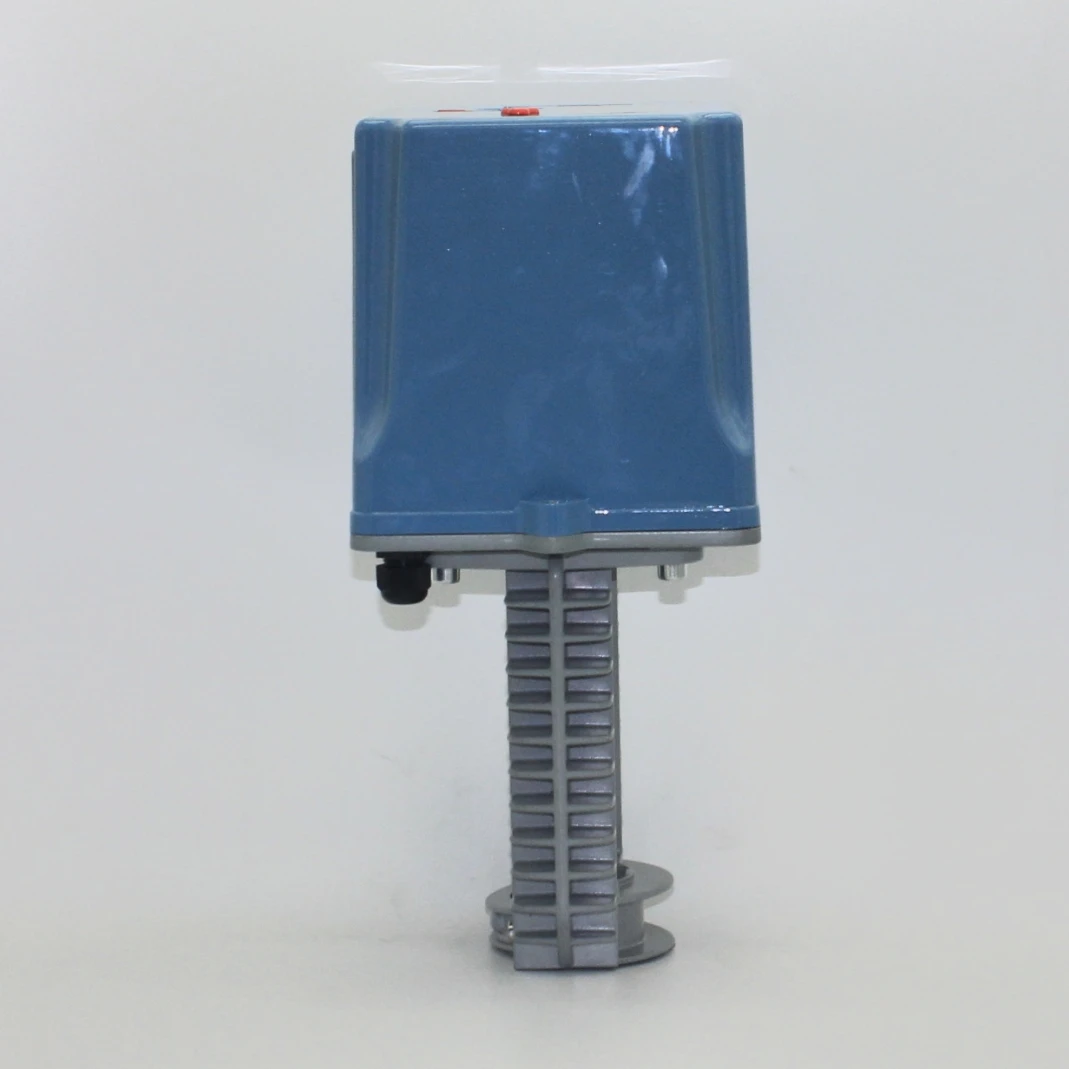

Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Item No. | HVB15CK | HVB15AK | HVB15AM | ||
Voltage | AC220V±15% | AC24V±15% | AC24V±15% | ||
Power | 6.5VA | ||||
Input Signal | On/Off(3-point) | On/Off(3-point) | 0-10Vdc or 4-20mA | ||
Feedback Signal | ------ | ------ | 0-10Vdc or 4-20mA | ||
Act Speed(mm/s) | 0.13(50Hz) | ||||
Max. Stroke(mm) | 22mm | ||||
Output Force(N) | 1500N | ||||
End Connection | Buckle | ||||
Height(mm) | 269 | ||||
Weight(kg) | 2.1 | ||||
Item No. | HVB25CK | HVB25AK | HVB25AM | HVB25CM | |||
Voltage | AC220V±15% | AC24V±15% | AC24V±15% | AC220V±15% | |||
Power | 16VA | ||||||
Input Signal | On/Off(3-point) | On/Off(3-point) | 0-10Vdc or 4-20mA | 0-10Vdc or 4-20mA | |||
Feedback Signal | ------ | ------ | 0-10Vdc or 4-20mA | 0-10Vdc or 4-20mA | |||
Act Speed(mm/s) | 40mm/240s | ||||||
Max. Stroke(mm) | 44mm | ||||||
Output Force(N) | 2500N | ||||||
End Connection | Buckle | ||||||
Height(mm) | 327 | ||||||
Weight(kg) | 4.7 | ||||||
Item No. | HVB40CK | HVB40AK | HVB40AM | HVB40CM | |||
Voltage | AC220V±15% | AC24V±15% | AC24V±15% | AC220V±15% | |||
Power | 16VA | ||||||
Input Signal | On/Off(3-point) | On/Off(3-point) | 0-10Vdc or 4-20mA | 0-10Vdc or 4-20mA | |||
Feedback Signal | ------ | ------ | 0-10Vdc or 4-20mA | 0-10Vdc or 4-20mA | |||
Act Speed(mm/s) | 40mm/400s | ||||||
Max. Stroke(mm) | 44mm | ||||||
Output Force(N) | 4000N | ||||||
End Connection | Buckle | ||||||
Height(mm) | 327 | ||||||
Weight(kg) | 4.7 | ||||||
Item No. | HVB50CK | HVB50AK | HVB50AM | HVB50CM | |||
Voltage | AC220V±15% | AC24V±15% | AC24V±15% | AC220V±15% | |||
Power | 16VA | ||||||
Input Signal | On/Off(3-point) | On/Off(3-point) | 0-10Vdc or 4-20mA | 0-10Vdc or 4-20mA | |||
Feedback Signal | ------ | ------ | 0-10Vdc or 4-20mA | 0-10Vdc or 4-20mA | |||
Act Speed(mm/s) | 40mm/400s | ||||||
Max. Stroke(mm) | 44mm | ||||||
Output Force(N) | 5000N | ||||||
End Connection | Buckle | ||||||
Height(mm) | 327 | ||||||
Weight(kg) | 4.7 | ||||||
