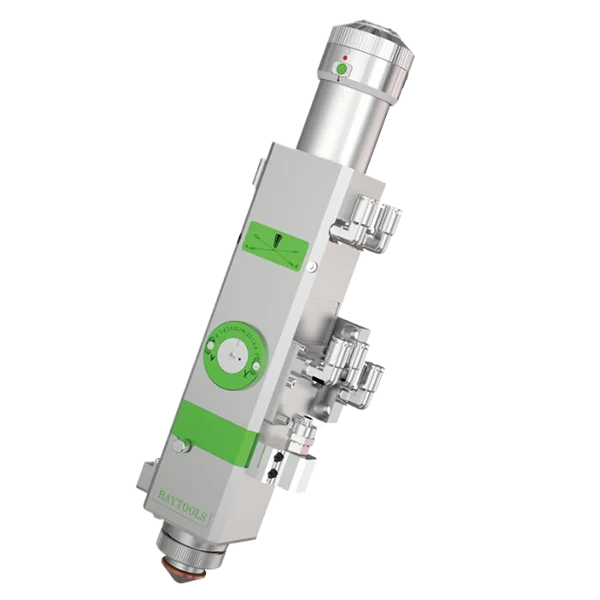

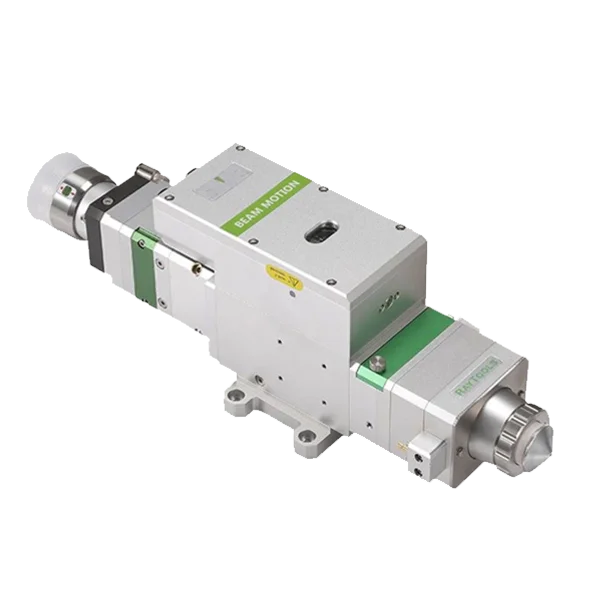

Fiber Laser Cutting Head Raytools Laser Head for CNC Fiber Laser Cutting Machine BT220 BT240 BT220 BM06K
- Category: >>>
- Supplier: Shandong Gaochuang CNC Equipment Co. Ltd.
Share on (1601215840972):
Product Overview
Description
Product Description
The BM240 series are auto-focusing laser cutting heads released by RAYTOOLS AG in 2017 for fiber laser processing with 1.5kW or
less. This products have a built-in motor drive unit, which drives the focusing lens through a linear mechanism to change position
automatically within 17mm.Customers can set the program to achieve continuous focus that completing the rapid piercing and cutting
material with different thickness. BM240 use the D28 diameters lense set to collimate and focus the laser beam, which can achieve
the diffraction-limited optical effect. The design of water-cooled structure allows laser heads to work stably and chronically.
less. This products have a built-in motor drive unit, which drives the focusing lens through a linear mechanism to change position
automatically within 17mm.Customers can set the program to achieve continuous focus that completing the rapid piercing and cutting
material with different thickness. BM240 use the D28 diameters lense set to collimate and focus the laser beam, which can achieve
the diffraction-limited optical effect. The design of water-cooled structure allows laser heads to work stably and chronically.

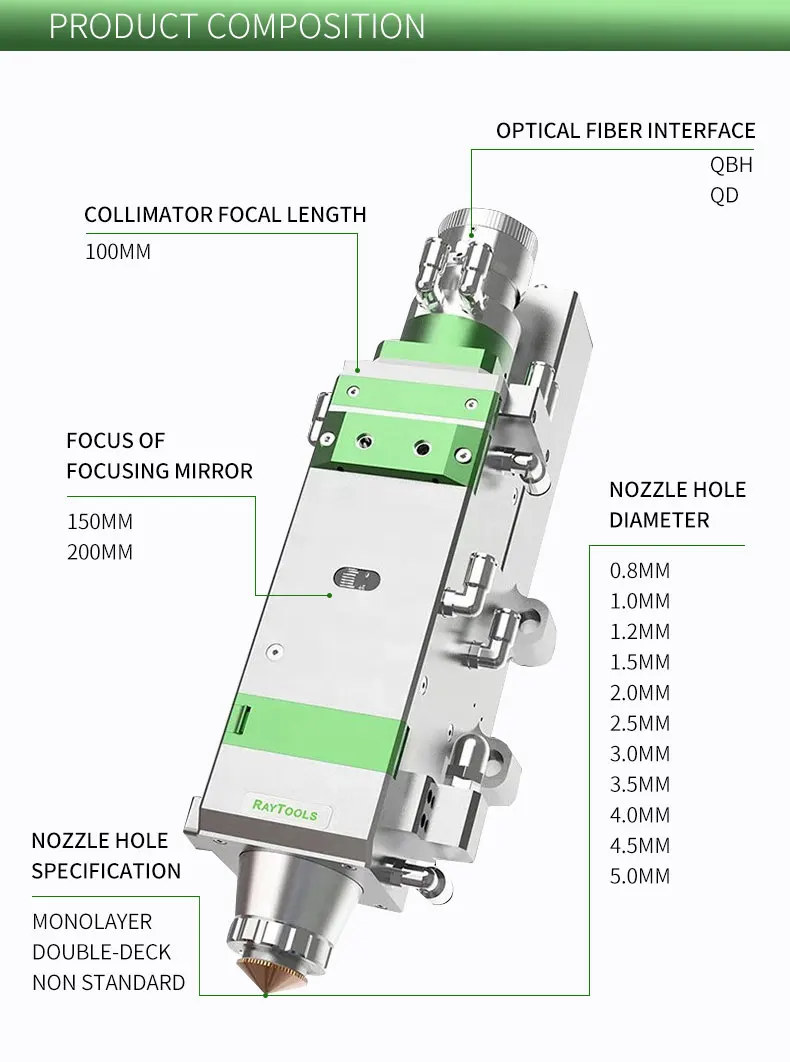

Specification
Auto focus | |
Magnification of collimated spot | 1.2X-4.0X |
Focus range | 1.2/1.5/2.0/2.5/3.0/3.5/4.0 |
Accuracy | ≤50μm |
Fiber Interface | QBH,QD,Q+ |
Clear | 50.8mm |
Cover glasses | |
Collimation side | Φ37mm * 1.6 mm |
Focusing side | Φ37mm *7 mm |
Nozzle Styles | Single, Double, Custom |
Diameter of Nozzle tip | 0.8mm,1.0mm,1.2mm,1.5mm,2.0mm,2.5mm,3.0mm, 3.5mm,4.0mm, 4.5mm,5.0mm |
Assist gas pressure | ≤30 bar |
Weight | ~7.8kg |
